PLEASE READ BEFORE YOU PROCEED

10 Things You Should Know About UniFi

1. This service is a 24-month contract and a termination fee of the total cost of the remaining months on your contract is chargeable for termination of service within the contract period.

2. If your premises reside in high rise building served via copper, you must terminate your existing Streamyx service (if any).

3. Minimal drilling is required for fibre installation to the premise. You will be responsible for providing TV and 4-socket extension cord to complete the installation. No installation appointment will be made for premises under renovation.

4. All triple play services (internet, voice and TV) must be activated during service installation. Partial service activation is not allowed.

5. UniFi is a wired broadband service. Wireless connectivity is an option and is subject to interference and obstructions factor.

6. UniFi account owner or authorised contact person must be available during the service installation. For high rise premises, owners are required to make arrangement with Building Management Office for installation permission, internal cabling and access to telecommunication room.

7. Installation fee includes external cable entrance up to the internal wiring with maximum of 15 metres for fiber cable, 15 meters for Ethernet/phone cables and 30 metres for casing (raceway). Additional charges will be applied for cable more than 15 metres and 30 metres casing (raceway) and charges will be included in your UniFi bill. See video below for optional installation charges.

8. For other non-standard installation e.g. wiring above ceiling, underground and conceal wiring, you may appoint your own contractor or deal directly with TM appointed contractor. Payment will be made directly to the contractor.

9. Please provide correct and valid Billing Address / Postal Address. Please provide valid and preferred e-mail address, or phone number as bill will be sent via e-mail or SMS. Bill is accessible at Unifi website and you need to login: Unifi Self-Care.

10. All UniFi equipment provided by TM is subject to 12 months warranty period.

IMPORTANT NOTES (MUST READ)

Internal Wiring
Minimal drilling is required for fibre installation to the premise to allow fibre cable entrance into the house. Internal concealed wiring will not be carried out by TM. However, customers can arrange their own or choose from TM’s authorised list of contractors at their own expense. TM shall propose the recommended list of contractor for the concealed wiring (wall or ceiling). As this is beyond the job scope of RNO, customer will deal and make payment directly to the contractor. Operationally, reappointment is to be arranged when the conceal wiring is completed. Customer is required to inform TM for installation appointment.

Premise currently under renovation
During installation day, TM will not proceed if the customer premise is under renovation unless insist by customer, TM will charge customer accordingly if request for other appointment time. Customers who are having their home renovated are advised to inform TM prior setting service installation appointment. TM shall not be responsible for any damages resulted from construction and renovation done by customer through third party during or after the installation.

Customer Unreachable and Change of Appointment
Premise inaccessibility or deferment of installation appointment upon the installation team’s arrival at a customer’s premise will be subject to a charge of RM100. Re-appointment will be subject to time slot availability.

High-Rise VDSL & FTTH
For high-rise (condos, apartment, office building) ,TM would require to access the MDF/SDF room to physically activate the port which normally locked by the Building Management/Maintenance. Therefore, customers are required to communicate and make arrangement with your Building Management/Maintenance Office to ensure someone is available to grant the access to TM UniFi Installer to MDF/SDF room during the installation time. Without the access to MDF/SDF room, installation cannot be performed and TM has to revisit which will incur unnecessary cost to customer.
In the case of copper wired building that uses VDSL2 technology, successful delivery of UniFi services is subject to technical testing. TM has the right to cancel the order should the building copper wire is deemed as not passing the technical test or not ready to deliver the service.


Installation Guide


Optional Installation Charges


From making an appointment to the signing-off of the Service Acceptance Form, here is a complete step-by-step process of how we bring UniFi into your home or office:

Step 1: Appointment

Appointment is made at the point of registration. You may choose your preferred date and time for UniFi installation but please note that installation for FTTx (Fibre to the Home or Office) is expected to take between 4-8 hours, and for VDSL2, 2-3 hours.

24 hours prior to the agreed installation date and time, the TM UniFi Centre will call you for a final confirmation. Our UniFi technician will also call you just before he goes to the agreed address of installation.

Step 2: Site Assessment

Upon arrival at your home or office, our technician will brief you on the step-by-step process of the entire installation. This includes:

(i) Site assessessment (outdoor and indoor)
(ii) Cable entrance (drilling point for FTTx)
(iii) Equipment termination point
(iv) Route of wiring

In the case of FTTx installation, our technician will determine the location of the Fibre Distribution Point (FDP), whether it is located on an overhead pole, or underground. If the underground fibre access is blocked due to any home or office renovation, it may require a longer installation period than for overhead fibre access installation.

For VDSL2, site assessment is much quicker since our technician need only access the building’s MDF room and perform the necessary cabling there.
Note: VDSL2 - your existing Streamyx or Business Broadband access will be disabled during this exercise.

Step 3: Installation

It's time to complete the installation process. As part of this process, some minimal drilling may be required. After laying the cables we will determine which modem is suitable for your home. Indoor installation requires more time as our technician needs to lay the internal fibre optic cable. Cables of sufficient length will be provided. However, in cases where additional cable lengths are required, some minimal charges will be incurred. To prevent unsightly wiring, wires and cables will be housed in proper casings.

However, if you wish it to be a drill-free installation, and if the fibre optic cables are required to be pulled through your home or office ceiling, we have a panel of contractors that you can work with, the costs of which will be borne by you.

VDSL2 does not require drilling since UniFi connection will come from the existing phone jack in your home or office. For this premise type, indoor installation requires minimal setup time.

Step 4: Equipment Setup

After laying all the cables, it’s time to connect the equipment. Our technician will first set up the BTU followed by Premise Gateway, Set-top-Box (for Residential package only) and DECT Phone. Once the equipment is tested and works properly, our technician will then show you that all the services are in working order.

Step 5: Completion

You are required to sign-off a Service Acceptance Form (SAF) as part of the process to complete the installation work. For a complete understanding of what TM UniFi service is, please read the terms and conditions in your service agreement.

Older blogs depicting a typical Unifi Installation process:

The Unifi Installation – My Experience: http://www.shaolintiger.com/2010/12/29/the...-my-experience/

The UniFi Installation Experience: http://jasonong.blogspot.com/2010/07/unifi...experience.html

* Thanks to the owner of the blogs (ShaolinTiger & Jason).

GENERAL WI-FI INFORMATION GUIDE by SilentVampire


As there have been similar questions that are constantly being asked here about Wi-Fi issues in the context of TM, this is a quick guide for those who are not familiar with wireless networking and how they work. Before I start explaining further, I will first start with the most basic equipment that are provided in a typical FTTH installation for Unifi. You will be provided with a BTU, router, and a DECT phone, and a UnifiTV STB (only if you subscribe to the relevant plans where the STB are provided), in the initial installation.

The BTU or Broadband Termination Unit is a terminating unit from the Access Network (TM Exchange) into a customer's premise. This unit functions like a modem and translates the pulses of light that carry data over the fibre optic cables into electrical signals. The BTU can be categorized as either fit for FE or Fast Ethernet use (10 / 100 Mbps), or Gigabit use (10 / 100 / 1000 Mbps). For gigabit speed, you would want a BTU that can support the gigabit speeds which are the AN5506-04-BG, Huawei HG8240 variant, or the Nokia G-240G variant, or the Alcatel Lucent I-240-G. Anything else will NOT be able to support the gigabit speed.

GUIDE TO SETUP THE NEW Unifi ONR D-Link DPN-FX3060V in bridge mode to use your own router by @eclectice: https://forum.lowyat.net/index.php?showtopi...ost&p=109336492

The router that is provided by TM for recent installations is usually TP-Link C1200 v1 (Pic), or D-Link DIR-850L (Pic), and more recently for new installations, the D-Link DIR-842 (Pic). All these router will be able to support gigabit speed (up to 1000Mbps) via WIRED connection ONLY. I highly recommend getting CAT6 cables or at a minimum, CAT5e cables, as both support gigabit speeds. Dintek or Prolink or AMP Netconnect or Ugreen RJ45 cables are quite reliable and is 100% confirmed to have original CAT5E or CAT6 rating. Wireless speeds will vary according to real-life environment and other factors.

If you are on VDSL, you will be provided with the ZTE ZXHN H267A (Pic) or the TP-Link Archer VR1200v for new installations recently (Pic).

The UnifiTV STB or Set-Top Box (provided only on the relevant Unifi plans) is a standard small white Android box (Pic).

Just a disclaimer, the TP-Link C1200 v1 (Pic) have MANY issues, including firmware and hardware problems, so if there are any issues with the connection and if you have this router, try changing to another router and see if your problem can be resolved. If it is resolved, then it is this particular router's issue.

For those that have been on Unifi since a long time ago, you might still be using an older router, which is either the D-Link DIR-615 (Pic) or the D-Link L7-N-R2000 (Pic), or one of the older TM generic router which are the RG-Innatech-RGX4400 (Pic), or the RG-Innatech-RG4332 (Pic), or the RG-Maritime-TRG212M (Pic), or the RG-DLINK-WBR2300 (Pic), or something older that I am unaware of. Among the older routers, the RG-Innatech-RGX4400 is the best among the lot, but still unacceptable for current modern use, as there are more newer and better options currently in the market.

If you are still using one of the six older routers above or any other older router from TM or one that you bought yourself a long time ago, which is not optimal for use in this era of gigabit speed, and you are having issues with your wired or wireless connection, it is highly recommended that you change to another modern router, and this will solve most Wi-Fi issues that you are currently experiencing, such as frequent disconnections and low speed. Refer to the list below for suitable routers.

Wi-Fi uses the IEEE802.11 family of standards. Within the 802.11 standards, are various substandards, including 802.11b (2.4GHz spectrum), 802.11a (5GHz spectrum), 802.11g (2.4GHz spectrum), 802.11n (2.4GHz spectrum and/or the 5GHz spectrum), and the 802.11ac (5GHz spectrum).

As you can see above, there are two different bands, 2.4 GHz and 5 Ghz. The primary differences between the 2.4 GHz and 5 GHz wireless frequencies are range and bandwidth.

2.4 GHz offers coverage for further distances, but may perform at slower speeds. Use 20MHz channels in the 2.4 GHz band. Using 40MHz channels in the 2.4G Hz band can cause performance and reliability issues with your network, especially in the presence of other Wi-Fi networks and other 2.4 GHz devices. A 40MHz channel on 2.4GHz might also cause interference and issues with other devices that use this band, such as Bluetooth devices, cordless phones, and neighboring Wi-Fi networks.

5 GHz provides faster data rates at a shorter distance. For best performance and reliability, enable support for all channel widths on 5 GHz. This allows devices to use the largest width they support, which results in optimal performance and compatibility.

Range : how far your data can travel. In most cases, the higher the frequency of a wireless signal, the shorter its range.

The biggest reason for this is that higher frequency signals cannot penetrate solid objects like walls and floors as well as lower frequency signals. Thus, the 2.4 GHz has a farther range than the 5 GHz frequency.

Bandwidth (speed): Higher bandwidth means that files will download and upload faster, and high-bandwidth applications such as streaming video will perform much smoother and faster.

Higher frequencies allow faster transmission of data, also known as bandwidth. Therefore, the 5GHz with its higher bandwidth will provide much faster data connections than 2.4 GHz.

Suggestions for choosing the best frequency:

Many devices only use the 2.4 GHz frequency, and these devices are all attempting to use the same “radio space” which can cause overcrowding of the channels.

So, which should you choose, 2.4 GHz or 5 GHz?

• If faster speeds are most important to you, 5 GHz is usually a better choice than 2.4 GHz.

• If the wireless range is more important to you, 2.4 GHz is usually a better choice than 5 GHz.

• If you have a lot of devices that use 2.4 GHz and you are experiencing interference or intermittent connectivity issues i.e. low connection speed and frequent disconnections, then 5 GHz is probably a better option.

To enjoy the maximum achievable speed on WIRELESS connection, you NEED to be connected to the 5GHz AC band AND have a suitable router AND a suitable USB Wi-Fi adapter. Your USB wireless adapter needs to be connected to USB3.0 for the best speed achievable on 500Mbps and 800Mbps, as USB2.0 max out at 480Mbps but due to bus access constraints, the effective throughput of USB2.0 is limited to 280Mbps, which makes it only suitable for 300Mbps, and USB3.0 can support up to 5Gbps, which makes it suitable for both 500Mbps and 800Mbps.

Your device must also have the right MIMO specification for it to support the full speed on Wi-Fi. Refer to soonwai excellent guide on MIMO and Wi-Fi in the context of real-world speed: Click here to see separate thread of his guide.

To enjoy the full speed on WIRED connection, you NEED to be connected to the gigabit router directly via Cat 5e or Cat 6 RJ45 Ethernet cable. Recommended brands that are reliable and 100% confirmed to fit the Cat ratings accurately are Dintek, Prolink, AMP Netconnect, and Ugreen. If your device can support gigabit speed via wired connection, and you are not getting the upgraded turbo speed via wired LAN connection, there are a few reasons why this happens, see below:

1) Your cable might be faulty or not up to standard. Try to test with another CAT5e or CAT6 cable. See above for recommended brands.

3) Your BTU does not support gigabit speed, or is wrongly configured, and this is limiting your speed. You have to contact TM for replacement, or configuration to gigabit speed.

4) Your router does not have gigabit LAN ports, or if it does have gigabit LAN ports, it is not configured or correctly set, which limits your connection speed to 100Mbps, instead of 1000Mbps.

5) Although your router does have gigabit ports, and is configured to 1000Mbps, you might still not be able to get the full turbo speed as it might be limited by the hardware of your router. If your router is a basic model with less than ideal hardware, you will not get your ideal full turbo speed.

SUITABLE WIRELESS ROUTER GUIDE - ALL ROUTERS LISTED HERE HAVE GIGABIT LAN PORTS

UNIFI ROUTER BUYER'S GUIDE (BY AND WITH THANKS TO BLACKTUBI): Unifi Router Buyer's Guide

For Wi-Fi, if you are upgraded to the turbo speed, you will need to change routers to enjoy the maximum achievable speed, depending on your speeds. Please refer to the list below. All speeds listed below are the maximum Wi-Fi speed that the router can achieve. If you are connected via WIRED RJ45 CAT5E or CAT6 directly to any of the router below, you can achieve gigabit speed as all routers listed below have gigabit LAN ports.

Refer to blacktubi excellent guide on routers in the context of local ISPs in Malaysia: Click here to see separate thread of his guide.

(GENERAL GUIDE ONLY)

ASUS

RT-N800HP - 100Mbps
RT-AC51U+ - 100Mbps

RT-AC1200 - 300Mbps
RT-AC1200G+ - 300Mbps
4G-AC53U - 300Mbps
RT-AC55UHP - 300Mbps
RT-AC58U - 300Mbps
RT-AC59U V2 - 300Mbps
RT-AC1300UHP - 300Mbps
RT-AC3200 - 300Mbps
Asus Lyra - 300Mbps

RT-AC66U - 500Mbps
RT-AC67U - 500Mbps
RT-AC68U - 500Mbps
4G-AC68U - 500Mbps
ROG Rapture GT-AC2900 - 800Mbps
Asus Lyra Trio - 500Mbps

BRT-828 - 800Mbps
RT-AC86U - 800Mbps
RT-AC87U - 800Mbps
RT-AC88U - 800Mbps
RT-AC5300 - 800Mbps
ROG Rapture GT-AC5300 - 800Mbps
Blue Cave - 800Mbps

RT-AX55 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX56U - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX3000 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
TUF-Gaming AX3000 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX82U -800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX86U - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX88U - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
RT-AX92U - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
ROG Rapture GT-AX11000 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
AiMesh AX6100 WiFi System (RT-AX92U 2-pack) - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
ZenWifi AX (XT8) - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)

TP-Link

Acher C20 - 100Mbps, ~300Mbps
Archer C1200 - 100Mbps, ~300Mbps

Archer A5 - 300Mbps
Archer A7 - 300Mbps
TL-WR940N- 300Mbps
Archer C6 - 300Mbps
Archer C50 - 300Mbps
Archer C60 - 300Mbps
Deco M3W - 300Mbps
Deco E3 - 300Mbps
Deco E4 - 300Mbps

Deco M3 - 300Mbps
Deco M4 - 300Mbps
Deco M5 - 300Mbps
Deco P7 - 300Mbps
Deco M9 - 300Mbps

Deco M9 Plus - 300Mbps, ~500Mbps
Archer A7 - 300Mbps, ~500Mbps
Archer C7 - 300Mbps, ~500Mbps
Archer C80 - 500Mbps
Archer A8 - 500Mbps
Archer A9 - 500Mbps

Archer C4000 - 800Mbps
Archer A10 - 800Mbps
Archer C4000 - 800Mbps
Archer C5400x - 800Mbps

Deco X20 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX10 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX20 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Deco X60 - 500Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX20 - 500Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX73 - 500Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Deco X90 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Deco X96 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX90 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Acher GX90 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Archer AX11000 - 800Mbps (typical speed on Wifi 5, higher speed on Wifi 6)

D-Link

DIR-825+ - 100Mbps, ~300Mbps
DIR-842 - 100Mbps, ~300Mbps
DIR-850L - 100Mbps, ~300Mbps
COVR-C1202 - 100Mbps, ~300Mbps
COVR-C1203 - 100Mbps, ~300Mbps

COVR-2202 - 300Mbps, ~500Mbps
DIR-859 - 300Mbps, ~500Mbps
DIR-867 - 300Mbps, ~500Mbps
DIR-868L - 300Mbps, ~500Mbps
DIR-1360 - 300Mbps, ~500Mbps
DIR-1960 - 500Mbps
DIR-2150 - 500Mbps
DIR-2660 - 500Mbps
DIR-3060 - 500Mbps

DIR-878 - 500Mbps
DIR-2680 - 500Mbps

DIR-882 - 800Mbps
DIR-885L - 800Mbps
DIR-890L - 800Mbps
DIR-895L - 800Mbps

DIR-X1560 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
DIR-X1860 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
DIR-X1870 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
DIR-X5460 - 500Mbps (typical speed on Wifi 5, higher speed on Wifi 6)

Tenda

Tenda AC6 - 100Mbps, ~300Mbps
Tenda AC9 - 100Mbps, ~300Mbps
Tenda AC10 v3 - 100Mbps, ~300Mbps
Tenda AC10U - 100Mbps, ~300Mbps
Tenda Nova MW3 - 100Mbps, ~300Mbps
Tenda Nova MW5c - 100Mbps, ~300Mbps
Tenda Nova MW6 - 100Mbps, ~300Mbps
Tenda Nova MW6 - 100Mbps, ~300Mbps
Tenda Nova MW12 - 300Mbps, ~500Mbps

Tenda AC15 - 500Mbps, ~800Mbps
Tenda AC21 - 500Mbps, ~800Mbps
Tenda AC23 - 500Mbps, ~800Mbps
Tenda AC19 - 500Mbps, ~800Mbps

Tenda TX3 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)
Tenda RX3 - 300Mbps (typical speed on Wifi 5, higher speed on Wifi 6)

~Denotes highest achievable speeds, but only under optimum conditions.

DISCLAIMER - All recommended routers and the speed they support, is a theoretical maximum and might not support real-world tests. This is only a general guide to help you to decide which would be suitable for your own use, so please be aware of that fact and do your own research, before you decide to buy anything that is listed here. Thank you.

DISCLAIMER - All recommended routers and wireless USB adapters, and the speed they support, is a theoretical maximum and might not support real-world tests. This is only a general guide to help you to decide which would be suitable for your own use, so please be aware of that fact and do your own research, before you decide to buy anything that is listed here. Thank you.

Notable links for more networking info and knowledge:

1) Blacktubi personal website. Highly recommended for networking topics and reviews. Click here.

*Thank you to @blacktubi, @Jjuggler, @wilson1stop, @wshoh, @JohnLai, @Doraku, @soonwai, @dickybird, and @imalmighty for their help and contribution throughout this thread and previous Unifi threads. It is much appreciated.

**Many thanks to @blacktubi, and @soonwai, for their amazing knowledge on their separate respective thread, and @blacktubi and @Jjuggler, for the link to their separate respective personal website.

***Guide created and written by SilentVampire - created on 24 August 2018, updated on 2 January 2021.

package SWU 6.0 ada?

1st... page

hope got good offer at Dec. when my SWU3 finish

Thread check-in!

If possible update the latest versions of ONR supplied by TM for their customers as per current time.

Wow 43rd thread!!

Too long first post.

damn v43 already.. i think v42 just start around swu3.0 not too long ago...

Testing 1, 2. Grats on v43 gaiss! 😜

I think this was answer not statement. So what was the actual question?

This is not a question. I was asking to update the list of ONRs currently supplied by TM now to their customers. Also, if possible, compile the information (guide) on how to use own router via ONR. This will be helpful for new visitors, and existing visitors to properly utilize their network gear. Additionally, it will be a good insight if users reporting in their ONR performance, and from there, we can see which is the best ONR supplied by TM, currently thou stock as AIO is not always the best option.

Oh yeah i also got the free upgrade from 500/100 to 800/200, but on current deco only can utilize full upload with the Download still at 500.

why me haven't got free upgrade...sad liao...also my plan name still 300mbps swu 3.0 even though upgraded to 500mbps


Attached thumbnail(s)

Long way, V43. Expecting new SWU?

There's already SWU 5.0. Expect it to last for a while.

parking first..

I sent email to support and request to change it. Unifi giving free upgrade to 800 randomly??

huh??can request?so dapat ke?

based on earlier posts, few people dapated

you pay how much per month for 500mbps?

mine SWU 3.0 300Mbps but upgraded 500Mbps Pro upgraded
but i don't get 800Mbps

I was referring to plan name that still remain at 300 after the 2023 free upgrade to 500, can ask support to change it. For the free upgrade to 800, I'm hope I will get it too.

owh...tot u request the plan upgrade.. 😂..rupa only the name ..

me oso hope get free upgrade..maybe 1gbps since they tot me still 300mbps...owai

i'm on the upgrade package from gov.. 300 to 500.

recently received call swu offer free unifi tv box + package. but they keep repeating the 300 speed, not 500.
after confirmed, yes speed will go back 300.

so be extra careful for those who got same offer, listen to what they said carefully.

Hi everyone, I have a question regarding second router.

I've moved to a new home and relocated my unifi. The house is 2 storey and the wifi coverage upstairs is bad. My phone is disconnected from wifi (2.4hz) most of the time.

My budget is cheapest as possible since i only need the internet for social media browsing. I am thinking to buy a secondhand router (Fiberhome AX1800, similar like current router) for upstairs since the connection point is provided by the developer.

Is this method valid? since i saw some postings on Carousell saying that the fiberhome cannot be as second router.

189.75 (since 300Mbps plan), now same price on 800/200 one

This post has been edited by Qash-M: Apr 23 2025, 04:19 PM

It clearly write 'unifi advance plus 500Mbps'. Should ignore the name, most important is what price monthly for that 500Mbps.

More than can, wired or wireless mesh. Mine Fiberhome SR1041F sub-router for DPN-FX3060, sometimes for Fiberhome HG6145F3. Use Fiberhome app for easiest mesh configuration.



This post has been edited by hsbb: Apr 23 2025, 04:58 PM

For anyone looking 3rd party Unifi ONU (Modem Bridge) without ISP management/tr069
Can look here: Ditch ONU, use GPON SFP on Business Grade Router, 2.5G ONU for Unifi & Maxis, NO NEED VLAN

I providing, programming and managing TM/Unifi compatible firmware that match with various OLT Vendor

Modem (ONU Box) without VLAN also have, internet untagged at 2.5G LAN and you can use any Router without VLAN support

SilentVampire perhaps add this info at main page? have many user using it currently since 2022, I also have send sample ONU to TM staff, user can replace ONU now



This post has been edited by Anime4000: Apr 23 2025, 05:28 PM

any updates on implementation of XGSPON ?

This post has been edited by issac99289928: Apr 23 2025, 06:15 PM

Good one, bro. Will add this info, thank you very much.

Still not thankful you can get 500mbps for Rm119?

You can try Xiaomi Router AX3000T. Eg.: https://www.lazada.com.my/products/i4097333...lFlag=true&mp=1

is Xiaomi and Fiberhome router compatible? i thought can only use same brand as range extenders

if you want to buy router as cheap as possible, better go for mikrotik

there sales going on currently



why mikrotik you maybe asking, because of software update

this is my old rb2011



notice that factory firmware 3.10, which is from 2008, still receive update until now.

but be aware, this model is cheap, because it dont have 5Ghz wifi, only 2.4Ghz, stil it using AX (wifi 6)

also, the spec is better if you compare with any router from TM



one more thing, it also can run container dierctly from the router, with that, you can install adblocker like pi hole or adguard home directly to the router'



but it good start if you want to learn how to use mikrotik router

This post has been edited by syahpian: Apr 24 2025, 12:56 PM

5.4.2025, I apply for termination on unifi page for my 500mbps+unifitv package with 6 month contract left (package price RM149 without SST). and just today received call from TM. I told that guy that the reason is because I dont want the TV pack and astro offered 500mbps for RM90 per month. Thus, that TM guy offer me this packages since he mentioned that I'm a old customer based on my account. Plan offered;

1. 100mbps = RM79 - 6 month free bill - 12 month free disney hotstar
2. 300mbos - RM99 - 6 month free bill - 6 month free disney but after 24 month contract, speed revert to 100mbps
3. 300mbos - RM119 - 6 month free bill - 6 month free disney and speed mantain even after 24 month contract.
4. 500mbps - RM139 - 6 month free bill - 6 month free disney and speed maintain after 24 month.

I opted for 100 mbps speed since I got my maxis package for 450gb data per month for my phone and another reason is that I can upgrade to higher speed anytime I want after that 6 month of free bill.

This post has been edited by joehann: Apr 24 2025, 12:41 PM

Instead of pay with ringgit, you pay with your time and brainspace to learn =)

yup2, but it worth the time and brainspace through

If you talk about wireless mesh, Xiaomi mesh may not compatible with Fiberhome mesh.
However, it still can be connected together if you know the technical know how using Repeater mode​

How to download annual bil for tax? I cannot found on app

Home > MyUnifi Experience > tap on Bill insights

here you read https://forum.lowyat.net/index.php?showtopi...ost&p=111514935
tm also give RM90 for 500Mbps

mine 500Mbps RM119 so cheap but tm offer you RM139 look extra RM20 hike lol

OK. So WU 5.0 is:

1. 100mbps = RM79 - 6 month free bill - 12 month free disney hotstar.

2. 300mbps - RM99 - 6 month free bill - 6 month free disney but after 24 month contract, speed revert to 100mbps.

3. 300mbps - RM119 - 6 month free bill - 6 month free disney and speed maintain after 24 month.

4. 500mbps - RM139 - 6 month free bill - 6 month free disney and speed maintain after 24 month.

This post has been edited by hsbb: Apr 25 2025, 09:20 AM

Go terminate like he did, then maybe you can nego for the Rm90 offer.

how about website? cannot view annual bill?

That case, she was paying RM129 for 500mbps + ultimate pack + disney?

Seriously? So cheap!

Mine is RM99 for 300mbps without any tv package.

my contract not ended i wanted 2Gbps offer RM1xx LOL

You can find it here:

wat a suprised email, got speed upgrade from 500Mbps to 800Mbps

https://forum.lowyat.net/index.php?showtopi...#entry111499183

you should thank astro's 500mbps for rm90 . this is the reason you got free speed upgrade . competition is good for consumers.

This post has been edited by issac99289928: Apr 25 2025, 05:00 AM

how much monthly?and what ur current package comes with?

I don't use astro's package . I just mention why unifi gives better offer to only unifi 500mbps package .

For D-Link DPN-FX3060V, which version 2.0.3 or 2.0.6 is the best to solve all issue?

Anyone tried self flash the fw? I having speed drop issues. Thinking to flash the fw and try

Hahaha, it's already known practice that Unifi has 101 pricing for each plan, mainly to please their old customers.

Lol. Maybe become TM staff and get staff promo then. If 500mbps rm119 is already hard to get, what makes you think you can get 2gbps for Rm1xx, unless you got insider cable?

MarcoFromTropoja Any info on it ?

I have experimented with v2.02, v2.03, & v2.06 and have discovered that only 2.4GHz can achieve less than 150Mbps, but v2.06 5GHz can achieve 1Gbps on my iPhone 16PM. I am confused as to why the download speed of 2.4GHz is slow.

My phone wifi 5 get ±150Mbps when using 2.4Ghz.


** U should try with non iphone also or laptop.

This post has been edited by hsbb: Apr 25 2025, 11:16 PM

Maybe can help u understand the basic of wifi theorical vs actual speed.
https://routerkb.asuscomm.com/?p=13110&lang=en

Hi guys.. want to ask can we changed the web management port for skyworth GN360V?

I have subscribed to static IP package and want to setup own webserver but when accessing the Web from public, it always go to the GN 360 page instead of my page (I suspect becos it used port 80 or 443)

Right now, my D-Link DPN-FX3060V (set to bridge mode) is getting capped at 200/50 Mbps after a few days or about a week of use.

I’ve looked through the history threads and found someone shared the firmware, versions v2.0.3 and v2.0.6.

Which version is more stable for bridge mode?

Also, is it safe to update the firmware ourselves? I’m concerned that the update might cause issues like losing network access, or if it might require a technician to reconfigure settings on their end.

Can I know is either version can solve the drop speed issue?

link?

Still the same, previous white router 2.4GHz can hit around 400~500 Mbps without any hassle.

you too late, it already sold out

yes i know 500Mbps RM119 already hard to get now days RM139 lol
someone 500mbps to 800mbps upgraded free
mine don't get 800mbps

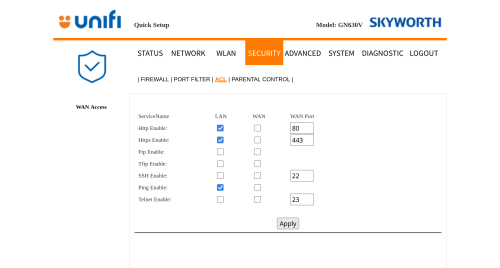

I think you can login using tmadmin.
Click Security -> ACL.
I didn't test this out as this belongs to some cafe.
However it looks like should work.


Both version will solve speed drop issue. v2.0.6 is better in my opinion since it uses a newer SDK.
The ONR do have 2 slots for firmware storage so it is supposedly quite bullet-proof but as with all firmware update, there is risk.
As long as you verify the sha256sum after download, you should be very safe, other than power outage, which should be handled by the 2 slots image.

This post has been edited by kwss: Apr 26 2025, 03:31 PM

I did noticed this page but I'm confused whether I should disable the firewall or not at the firewall setting.

I've tried changed the port here but after changing, I no longer can access the management page at the new port so not sure whether the firewall has anything to do with it.

Thanks for the suggestion

I went for SWU option 4. and somehow got 12 months of Free Disney+

Go with v.2.0.6 bro. Both solved my issue but go with the newer version.

You missed the

1Gbps - RM159 - 6 month free bill - 6 month free disney but after 24 month contract, speed revert to 500mbps.

kwss tng55 PRSXFENG
I stumble upon SDK source code, to verify what just saw

PON Stick login sessions (cookie?) can be accepted into D-Link DPN-FX3060V B1 V2.0.6


I try again by turn off D-Link just to refresh, somehow still works (as PON Stick use same GUI)

if like this, don't bother to change default password xD

This post has been edited by Anime4000: Apr 28 2025, 05:39 AM

2.0.3 already fixed the intermittent & speed capped when using bridge mode
2.0.6 same like 2.0.3 and fix wifi 2.4/5.0 unstable speed
so just use the 2.0.6 as for now

Nice work! 🎉🎉
Maybe can go find if they have a bug bounty program and report it.

That's how cheap IoT device works in general. Keep pumping out new model and sell them while using the reference design is the same.

Have you identified where is the vulnerability? Is it in the webserver? Or within the web-app? Or somewhere else?

EDIT:
I suspect they have a default key for the token and manufacturer is expected to change it but didn't.
Maybe you look for it and change it for your PON stick.
Most developers are not aware of such things. The most recent one being ASP.NET:
https://www.microsoft.com/en-us/security/bl...t-machine-keys/

This post has been edited by kwss: Apr 28 2025, 01:29 PM

I try asking for at least RM99 for 500mbps but not possible. The one she got also not mentioned whether she got free bill or not. for me probably because I'm still in contract for at least 6 month more. So getting changed to this package is a win-win situation for me. Why?

here why, my previous package is SWU 3.0 RM149 for 500mbps+tv+disney in which I got 6 month free bill which started on October 2023. So now I changed to SWU 5.0 RM79 100mbps+disney with 6 month free bill. So from October 2023 till October 2025 (2 year), I just paid for 1 year bill only with 1 year of free bill (6 month SWU3.0 + 6 month SWU 5.0).

Just now I just checked my package has changed from 500mbps pro upgrade to Unifi Home 100Mbps staywithUnifi 5.0 (Disney) Extra.

For me, RM139 is still a tad expensive since I got another account with SWU 3.0 RM119 with 500mbps speed. Thats why I go for 100mbps for RM79 only. Since I'm at the lowest speed, anytime I can upgrade to a higher speed within contract period. Will wait when the price has drop for 500mbps or 800mbps.

I don't think D-Link and Skyworth are entertain such vulnerability as ISP buy cheap cheap.

I think just let it be vulnerable, typical ISP Router are like that tho

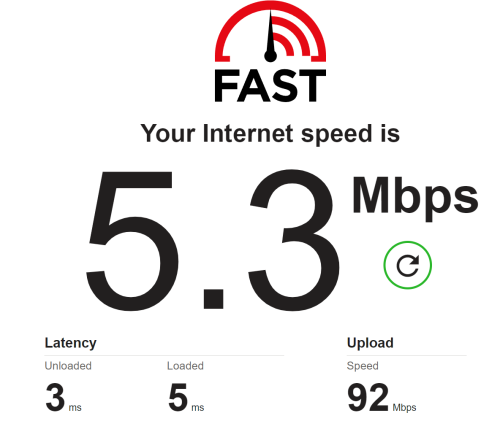

Anyone else experiencing slow internet speed??

may i know why i'm getting strict nat while checking on call of duty?

Ok, I'm noticing something unusual.
When browsing with Chrome on my phone and I go to lowyat.net, the Community Forums section is blank if I'm connected to my home Unifi. If I disconnect the wifi and use my mobile data to connect, everything's fine and I can see all the headers.
Anyone else experienced this, or know the cause?

my issue is on my phone and tablet, when browse lowyat using unifi, mostly main page will slow load, will see only background a while, then other UI will show up, open any link is fine,
but using mobile data no such issue, and pc using unifi also no such issue

Sounds a bit like my problem. Looks like a Unifi issue?

If you are using 300mbps and below plan, you got private IP which is cg-nat.

Hi guys,

Need some help here- any recommendation on router that is:

1) goes well with Skyworth GN630V
2) provides reliable & stable internet connection without heating up or need to restart periodically
3) good range
4) future proof with min 800mbps

Thank you so much for your help!

Want to learn networking in depth
- Go for mikrotik
- Or reuse old computer into OpenSense

Want fancy setups & Flex
- Go for Ubiquiti

Long-term support, best in consumer class
- Go with ASUS.

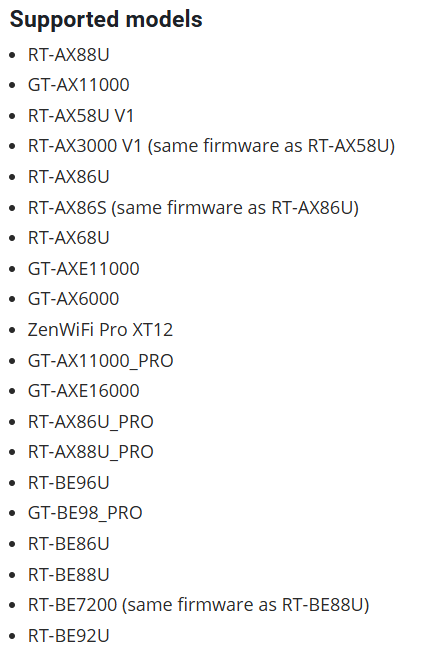

- Go for specific models supported by Asuswrt-Merlin (Google why Asuswrt-Merlin is more superior than Asuswrt stock firmware)

Good hardware, bad long-term support
- Go for TP-Link
- Has many revisions, priority given to newer revision thou your model is new. E.g., TP-Link Archer BE3600 V1, TP-Link Archer BE3600 V2. In some cases, V1 will receive firmware updates, but again, it depends on the manufacture.

Bolehlah case
- Go for D-Link, Totolink, Xiaomi, Huawei, or Tenda.
- For D-Link, Totolink, go for models supported by Openwrt community.
- D-Link is known for various vulnerability and unpatched firmware.

This post has been edited by Jjuggler: Apr 29 2025, 09:45 AM

It is indeed a serious vulnerability. However, as you mention, ISP tend to cheap out with their equipments, and never bother to issue patch to their equipments. I firmly believe that ONR being supplied to end-users to further cut cost with supplying standalone units to end-users. Hence combo unit proven cheapest for them to save cost further. Not to mention poorly developed firmware.

I toyed with the Black D-Link DPN-3060, Skyworth (white), not impressed with the firmware. Not yet toy with Fiberhome and ZTE ONR.

Thanks for the speedy reply.

Any good recommendation for Asus?

Thanks!
