Previous Kitchen Cabinet threads (V1, V2 and V3) are linked below

V1 : Kitchen Cabinet v1

V2 : Kitchen Cabinet v2

V3 :Kitchen Cabinet V3


Kitchen Cabinet Materials

And SOLID WOOD of course, courtesy of ar188

Kitchen Layouts by Qanvast (Check out which ones suit you)
Some kitchen layout ideas from RoomSketcher



Quick question - anyone using ALUMINIUM kitchen cabinets?

This post has been edited by GravityFi3ld: Jul 1 2019, 11:55 AM

it is not standard size. only hood is rather standard size.

hob have to depends on the opening. otherwise, u complete ur kitchen cabinet first. and later on only ask ppl open for u. but be aware that if open hole for quartz/marble those causes alot of dust.

if induction cooker, plz pull another wiring for it. my in laws house plug melt out due to using sharing wiring with others and induction cooker.



This post has been edited by veron4best: Jun 28 2019, 05:56 PM

Parking

time to add one more material to the list. Solid wood panels.
why? or else how to justify 50k kitchens made out of budget aluminum frame/ACP panel combo or rm200 plywood or rm100 blockboards?




pine



red oak


nyatoh

and many more, like white oak, eucylptus, walnut etc.

Congrat on the new thread.

My new KC will be end of this year. Nothing fancy. This time will be low cost as possible.

can't wait to see them !
What material are you going with - aluminium?

Any recommendations for reliable n cheao shop for kitchen cabinet using nyatoh & top granite

I was quoted more less same price from two different companies.. one quote for 4g material another is solid nyatoh.. when I ask they said not so much different btwn 4g & solid nyatoh..

My question is, which lasts longer? Really noob about KC.. hope someone can help me.. thanks in advance

I'm getting Alluminium for my kitchen as well...
RM1K for top&bottom+quartz top/per ft..is it resonable?
BTW, it is 4g material...

Hmmm….

Theoretically, glass bottles takes longer to decompose in a landfield than wooden chair. Glass & aluminium are termite resistant.

4G: Contemporary/ Modern design, some 4G have wood behind the frame, glass is heavy and the glass is at risk of cracking/ chipping (best to get soft close hinge).

Solid wood: Classic design, can install accessories onto the frame itself (drilling/ nail), can paint in the future to remodel it, warping of wood due to humidity.

What cabinet carcass are you planning? Wood? Concrete?

Thanks for replying I really appreciates it.. just simple wood for carcass.. base is concrete..

Hardboard ABS ok for carcass & door?

That's my only option if not enough budget for aluminium..

I'm planning to DIY my wall kitchen cabinet. For ikea frame it's quite easy as it come with railing but how other installer hung the cabinet other than ikea? Screwed directly to the wall?

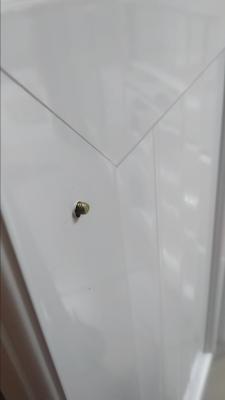

Yes it will be screwed in with a cabinet hanging screw.

Thanks for that ;-)
So that means normal cabinet carcass (other than ikea) have thicker board at the back? as for ikea cabinet the back is just a thin of plywood
Any picture of cabinet hanging screw?

You mean using a sleeve anchor?

Normal cabinets are not mounted by the back board, it is mounted using a cross member or one of the support structure.

IKEA cabinets on the other hand are mounted using a L-bracket that clips and locks onto the rail, the L-bracket is mounted on the side of the carcass not on the plywood backboard.

However one key difference with IKEA cabinets is the backboard actually plays a crucial role in keeping the carcass in shape.

Thanks again for you explanation.
But can you further elaborate this point
"Normal cabinets are not mounted by the back board, it is mounted using a cross member or one of the support structure."
What is cross member?
Any picture or link for me to refer.. Sorry noob request here

Hi sifus, need your help here.

I am considering either custom made cabinets that were recommended from my contractor or IKEA kitchen cabinets. I bought a subsale house and the previous owner has installed some cabinets in the wet kitchen area. Correct me if i am wrong, Ikea kitchen cabinets are not customisable and I am afraid that the Ikea cabinets will not fit the current kitchen once my contractor has dismantled the current table top and old cabinets.

The crossmember where it is attached to the wall is at the part where it is labelled 1/4" plywood back, 1 x 6 nail cleat.

It is basically a piece of the frame that is made from a stronger wood to hold the entire weight of the cabinet to the wall.

IKEA cabinets are modular cabinets therefore you can't customise the carcass or doors.

Sorry but what is a modular cabinet? If I buy the Ikea cabinets and if it doesn't fit, can they refund? What can I do to prevent this from happening?

Modular means it is like a Lego , you can build and add on to it for as long as you stick to what they have.

You can buy cabinets that are 20, 40, 60 and 80 cm widths as well as some corner configuration.

If the space of your kitchen is 2.4m then you can fill up the wall with any configuration using the sizes of cabinets they offer.

You can return any kits that hasn't been assembled.

How much to extend & renovate the kitchen

Hi Guys,

My max budget is RM4000. I need a full kitchen cabinet with built in hob and hood. For my new apartment.

Please help me suggest some good kitchen cabinet companies or groups. With their promo and packages.

anyone here using IKEA kitchen cabinet? Want to ask regarding gas tank location, where do you store your gas tank ya? the design draft I got from IKEA staff gave me a 40cm shelf unit beside the hob, BUT I came home to measure my petronas gas tank the width is at 46cm, definitely won't fit, how do you guys solve it ya?

why not opt for 60cm wide carcass?

oh yeaa :x could've done that. sacrifice a bit of width on the other side, thanks!

BTW just to share experience for IKEA quotation vs Signature Kitchen + Rowenda.

for the exact same things (with minor differences) but same measurement, rowenda quoted 26k, signature quoted 35k (after "discount"), IKEA quoted 17k (+3k for installation or free if DIY).

and IKEA also uses imported blum hinges + dampeners from Austria

wow i wonder what goes in to a 35k sig kitchen offer?

Did the cabinet quotes given consist of similar materials for countertop and cabinet frame/ carcass? Any accessories?

Yo bro. I also in the midst of getting ikea KC. Mine total for top is 10ft and bottom 20 feet (mixture of L shape n I shape) around 9k± without installation (been told by ikea own stuff i can DIY it, the hardest part is just to install the rail. N make sure its atraight)

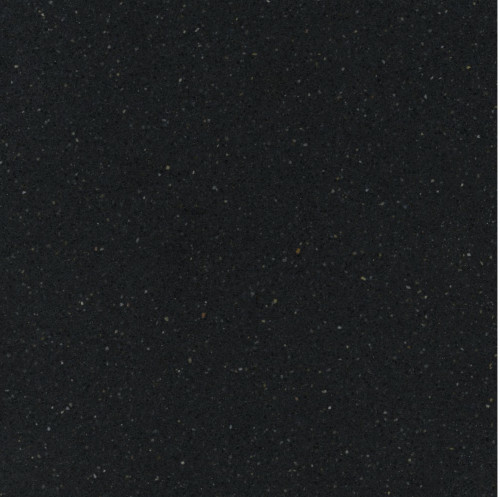

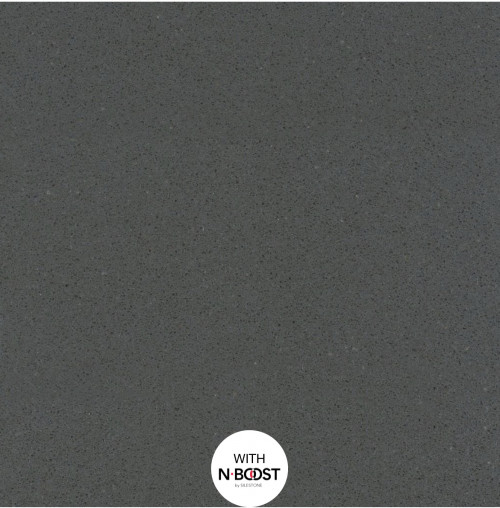

Whats your counter top choice? Quartz series from ikea is at expensive side right

Hello all sifu, sijeh,

I came across one of you mentioned about Honsénz Kitchen Group but they are located in Seremban. I already submitted my inquiry, but
has anyone came across other KC that use the same material or provide the same solution as them (anti termites and water proof) around Klang Valley area?

Why squeezeboard (PVC + Chalkboard) is recommended for kitchen cabinet and walltop building as it need to support heavy weight items ah.. no? I wonder it will have durability problem in the long run or not..

Any info/other KC recommendations is much appreciated TQTQ

Hi sifus,

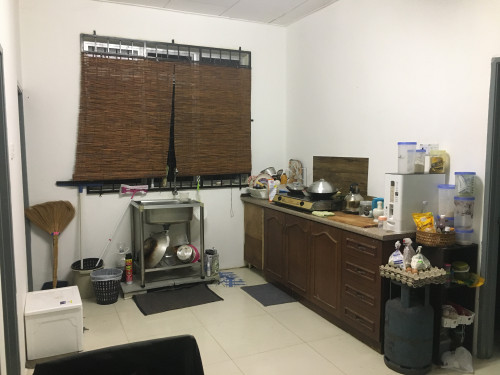

I would like to seek opinion about my kitchen kabinet quotation. I get quoted for 14.2k for my dry and wet kitchen. Is it reasonable?

Kabinet material : fomica
Table top wet kitchen : solid surface
Table top bar for dry kitchen : quartz stone

Hi. I'm planning to get ikea KC. Since people mention that ikea KC is modular, will there be any problem if i bought kitchen hob with non standard size? is ikea KC can be customized to fit in any type and size of kitchen hob?

Also, do people usually purchase kitchen hob and set before installing KC or is it ok to install KC first and later decide what kitchen hob to buy?

I think its better to choose your kitchen hob or have a clue on what you are planning to get when you buy your kitchen cabinet. Options are range cooker, built in hob and non built in stove. If using gas hob, you will also need to choose where to place your gas tank. If using electrical hob, you might need to arrange electrical wiring.

The back up option will be to use a non built in stove top. Just to note... ikea kitchen cabinets are 90cm standard height so it will be quite tall if you put a stove on top of it.

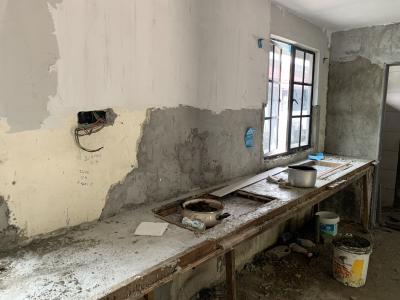

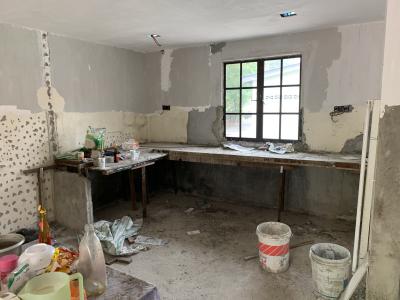

Why waste money to redo the wet and dry kitchen top? Just add in the cabinet under the existing top can already.

Hmm... Seems like an addition on storage space, countertop space and improve ventilation.

a) Add in the cabinet under the existing tile concrete countertop.

b) Add in an extra countertop (bout 5.5 ft solid surface) & wall cabinets (bout 7.5 feet) at the wet kitchen so it is L shape.

If use existing countertop at the wet kitchen for the stove or built in hob, few issues...
1. Won't be able to wall mount a kitchen hood (need a kitchen island hood)
2. It is in front of a window strong wind? fire risk?
3. Cramp space & work flow disruption. Already used to the stove being at that area. Moving will reduce countertop space that could disrupt work flow.

c) And add in a peninsula/ bar at the dry kitchen so it is L shape also.

d) Installation of a hood.

It's good to have more countertop space. ..

Hi ,
Thanks for the reply but i think you get misunderstood
1. For wet kitchen with existing tiles table top i’ll just add fomica cabinet. Additional solid surface table top added as per drawing for kitchen hob area. It will be merge with existing table top.
2. Dry kitchen also still using existing tiles table top. Just additional bar counter will be added with quartz tabletop.
3. At the bar table top one lighting point will be added
4. One bottle drawer, dish rack, spoon / utensil organizer at wet kitchen and one dish rack given at dry kitchen.
5. kitchen cabinet height till ceiling.

This post has been edited by m.syafiq.rahim: Aug 5 2019, 08:14 PM

Hi,

Thanks for the reply. You’re absolutely right. Can you give opinion about the price. I’ve survey for about >5 places :

1. Price quoted 8.9 k without any accessories/no 3d given/old school design shown.
2. 9.65k with accessories/no 3d design/unable to do electrical modification
3. 13k with accessories/with 3d design/modern design/hardly negotiable/no light point modification
4.14.2k with accessories/with 3d design/modern design/light point modification/easy negotiable and convincing/have own factory and establish

what is the purple item? island table? size and top material is what? (include in this 14.2k price?)

Can i know what is the concrete tabletop price now?

I get an quotation with RM200 per feet run. (inclusive of tile installation workmanship but exclude tile).

Is it expensive in Klang valley area?

Errr... Better let those who are in the wood works/ construction line comment on that. They might need more details e.g. measurements. After I choosing the kitchen cabinet company, my contractor checked the price with me and his estimation was quite accurate.

I've also gotten several quotes just like you and chose it based on my requirements. My requirements seem really different from yours.

Sorry, not been any help... But all the best!

Hi.. the purple item is additional bar counter. It will merge with existing table top. So become L-shape design. Price included in 14.2k

Material for top : quartz stone
Size : 6 ft

I see. What are your requirements when choosing kc? Mind share.. maybe i missed anything. Tqvm 🙂

Rough measurement :

Wet kitchen
1. Bottom cabinet at wall area: 5ft
2. Top cabinet : 7 feet
3. Bottom cabinet at window area : 11.5 ft
Dry kitchen
1. Top cabinet : 9ft
2. Bottom cabinet : 9ft
3. Bar counter 6 ft

This post has been edited by m.syafiq.rahim: Aug 5 2019, 08:23 PM

Sorry for late reply. been busy with my kitchen reno. pmed you.

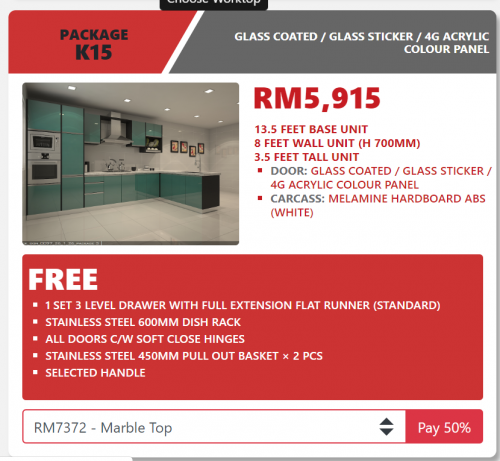

I've visited Chan Kitchen showroom just now.

Although havent got measurement for my unit, but the provided package for 8ft base & wall unit, with glass acrylic door panel, solid surface top = ~rm4.3k

Good price ? The carcass are melamine hardboard, I think should be no issue last for 5-10 years ?

Signature Kitchen is like that one, recycle design, ask biasa biasa apek cabinet makers to construct, pasang, letak nama, naik harga 300%. Because my fren ambil from signature kitchen and with that quality at that price...

BTW, what happened to the RM100+k teak wood kitchen cabinet by that rich lady ooo...

I was thinking to get a base from Ikea cabinets done and then only get a stone top (probably from those stone top suppliers in Sg Buloh or sth). Is it feasible to mount? I think it should not be a big issue to mount using little L brackets or sth rite?

yea, priced on the high end side kitchens.


wah you follow her thread? probably busy renovating i guess.

i dunno where her thread is anymore, i thought you ada update because...well..its 100+k haha

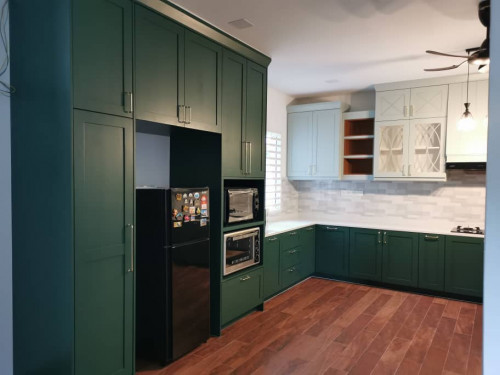

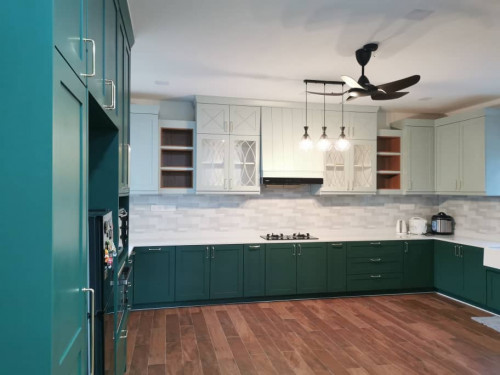

My experience so far (and also my dilemma), I wanted a timeless/classical kitchen with marble like top :

- signature kitchen: modern look, melamine door with country fitting and spray paint, not customisable =Rm40k
- unity kitchen: with spray paint on solid nyatoh wood =RM38k
- Intech kitchen: solid nyatoh white colour door, fully customisable= Rm40k with lots of customisation but no so nice marble quartz top.

Both 3 are similar price. To my surprise signature kitchen also quote me similar price but with their melamine door and also not very customisable island. Intech kitchen is really good with customisation and also use solid wood. Unity is sitting in between.

the costs reflect their “popularity” or reputation, their showroom also give you the “trustworthy” look and I hardly hear any bad comment about SK. However I like the Intech kitchen as their staff really knowledgeable and also can customise to what I want. Unity is like ditto gin between where they are semi customisable and also using solid wood.

Howeeee

Should be doable. im planning for ikea KC + quartz / granite table top. The quartz supplier just ask to add a layer of playwood (2-5mm thick). maybe the supplier will add on something more to reinforce it.

btw, also i asked ikea staff (kc section), their carcass may hold about 30kg of load per carcass (base)

Guys aaa, just wondering, how much are you guys quoted per foot run (PFR) for lower cabinet, and wall cabinet.

And also, with/without top, or with laminated otp/quartz top

Hi all sifus,

1. Anyone know the quality and workmanship of Apresi aluminum KC? I must say it has quite a hefty price tag per ft rn. All advices are very much appreciated.



2. Looking for a supplier of marble / granite that offers good quality workmanship and reasonable pricing? Marble / granite for counter-tops and flooring. Anywhere to look?

Thanks sifus

This post has been edited by kaynofx: Sep 21 2019, 10:22 PM

I installed aluminium woodgrain cabinets from Avenue Kitchen Puchong last year, and for me it was a thoroughly unpleasant experience.

They were very efficient in the pre-installation process, but sorely lacking during the installation and post-installation process.

My bad experience with them can be summed up as follows:

1. Subcontractors (ie installers and plumbers) not turning up on time or at all and showing up without an appointment;

2. Subcontractors were not briefed as to what I wanted;

3. Materials were not delivered in a timely fashion (resulting in the installer's and my time being wasted waiting for them to arrive before the installation works could commence)

4. Subpar workmanship and quality for the works - my powder coating was badly finished at multiple places and their solution was to take back the doors for repainting (which took 3 weeks), leaving me without properly fitted cabinet doors!

5. Despite minimal use and within less than a year after it was installed, a knob fell off because the screw used to fasten it was too short. And the other knobs have also loosened which we suspect is also attributable to the screw length issue and/or improper installation.

In hindsight, I wish I had had the wisdom to negotiate for a longer warranty period and more favourable payment terms.

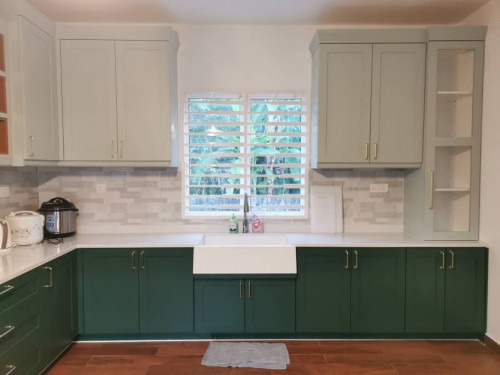

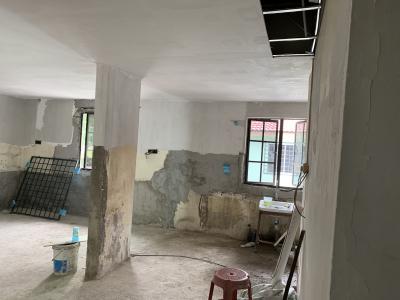

Hi... Just want to share my new kc project for my 2nd house. My 1st house kc I've already post at V3 thread where the kc is english style in turquoise color. Here's the current condition at the kitchen area:

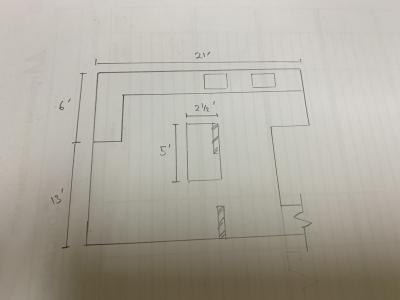

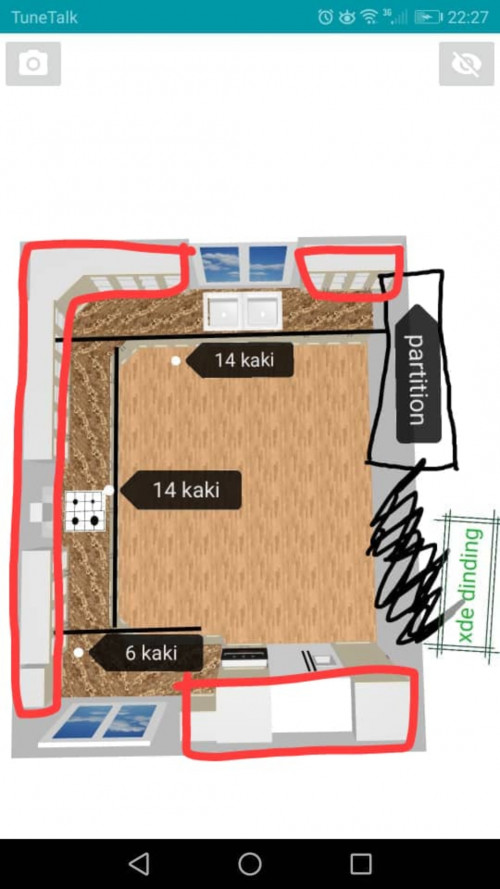

The layout for the kitchen would be as below:



Top would be quartz stone with concrete base. Cabinet would be solid wood. Hood, hob and oven I'll be using fotile as I've purchased at builders hardware with their designer sink. I'll post later when the kc is finished around 1 month. Design still using english style but maybe in grey color...

Anybody got experience with Alloy Kitchen? Know the quality and normal price for about 8ft kitchen cabinet?

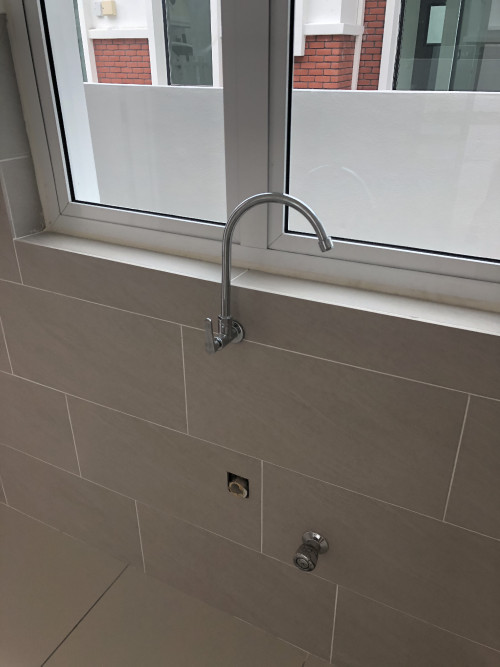

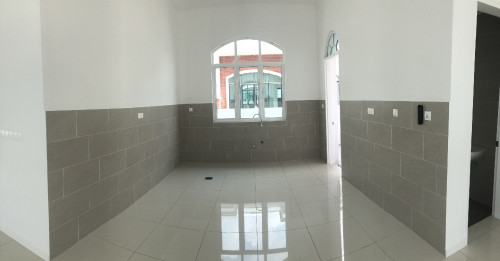

Hye sifus. Getting my new house around dec this year. Need some advices. Do i need to build kitchen cabinet asap or should i wait until inspect the house 1st. I m first home buyer really lost in rather what to do 1st.

This post has been edited by ken_hidaibuki: Sep 27 2019, 05:34 PM

hi.. i am not sure.. inspect first i guess.

Wait until you inspect your house first. Some rectification works might need to be done by developer after checks.

It is easier to visualize your kitchen layout and ensure it is functional when you are in that space.

But if you have the house plan, can start visiting kitchen cabinet companies for ideas on design, layout and shortlist them (find out the waiting time).

Also need to decide whether you are planning to get a contractor, cabinet company or interior designer for the house...

I see thanks alot for your advices. ☺

Okay if everything settle and check okayed by the contractor
Then can straight arrange for KC lar? Different from contractor cabinet company and interior design compared by what ya. Sorry noob question

This post has been edited by ken_hidaibuki: Sep 27 2019, 11:32 PM

Yes, if checks done and you are happy with it. Can arrange for KC if you don't have any plans of doing extra wet works/ extensions/ first fix plumbing/ first fix electrical wiring/ tiles installation/ plaster ceiling.

Difference between them...

Interior designer designs it and will manage/ coordinate everyone including contractor and kitchen cabinet co.
Contractor will get wet works subcontractor, electrician, cabinet subcontractor, tiles installer. Sometimes you can also opt to select your own cabinet company.
Interior designer vs contractor. This sums it up...
https://says.com/my/lifestyle/id-vs-contrac...do-up-your-home
https://www.recommend.my/blog/interior-desi...r-or-contactor/

Cabinet company/ Cabinet designer design the kitchen cabinet only & wardrobes but if concrete countertop required they will arrange it if you don't have a contractor/ interior designer

That answer alot of my question. I m on the lighter side on the budget.. In ur opinion is it okay if i only do countertop and below cabinet and later on upgrade? Cause the kitchen area is kinda big. Around 12*10 ft.

Yeah. Good to stick to your budget. Basic kitchen is fine as long as it does the job…able to store and prepare healthy tasty food.

Tall units (build in cabinets from floor to ceiling) can be quite costly but useful for storage. In the meantime can use simple metal shelf… lots of ideas in pinterest.

If you are planning to upgrade later, bear that in mind when planning your kitchen layout so won’t waste money, material and effort later on. And better to make it future proof…

Thanks for insighful advice. Going to survey kc company and some contractor. Any1 want to quote for me. Tqs.

Just sharing my completed KC to fellow forumers.. 😁

- Material : Kabinet Fomica / Quartz top
(Existing tiles top)
- Price : <15k (exclude electrical appliances)

Nice! The before and after looks so different...

Tq broo 😁 thanks for some advises 🙏🏻




Attached thumbnail(s)

Most of the time, if you are buying new build property, after you getting the key, you will still need a time to checking on the house defect, then fill up the form to ask for rectify, and until they done the rectify, usually also taking about a months time, so if you have more free time then you can look around for quotation, but that quotation will not really mean anything because that only estimation, then after you getting a key on the defect time, you still need to bring over some contractor to do measurement so that you able to get official and accurate quote with the actual measurement.

I decided to go with Intech KC at Semenyih. Hopefully it’s good.

what is the length of both base and wall cabinets?
The price sounds like a great deal!
From which company?

It's good.

As DIYer, what is standard base kitchen cabinet depth?

I would expect you want many measurements instead of depth only.
Perhaps, you can refer to Ikea Metod series for such info.
For example, Ikea base cabinet depth is 60cm meanwhile worktop is 63.5cm.

About 2 ft.

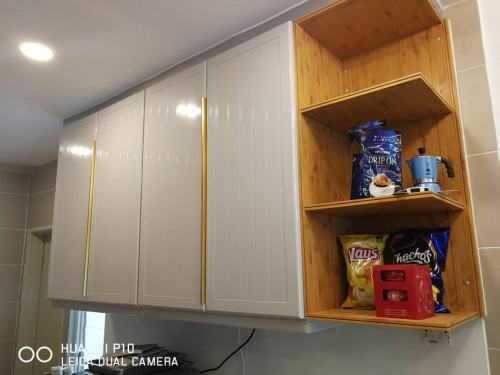

Mine
Side panel 60.5cm
My carcass less than 60.5cm (theres a 3cm gap between wall and back of carcass)
Countertop 61.5cm (made to measure after the wood works was done)

Not impress with the design and location of the tap and power point

Hi Guys, any contractor can recommend with good price?

I'm from Subang Jaya, looking to do small renovation for kitchen top.

Thanks

After surveying for well over a month for kitchen cabinet (over 20 shops), I’ve made a top 3 with a price range between RM9-12k for melamine carcass with either 4G or acrylic door.

But I still couldn’t make my mind up as wanted to do some research on Google, Facebook and Instagram.

Then on Sunday I came across a straight from factory type of kitchen cabinet maker on Instagram. He said he has no showroom, it’s straight from the factory hence the price is much lower.

He quoted me RM6.5k wiring and hacking included
Factory is in Shah Alam.

Would this be reliable? Or is this a case of too good to be true?

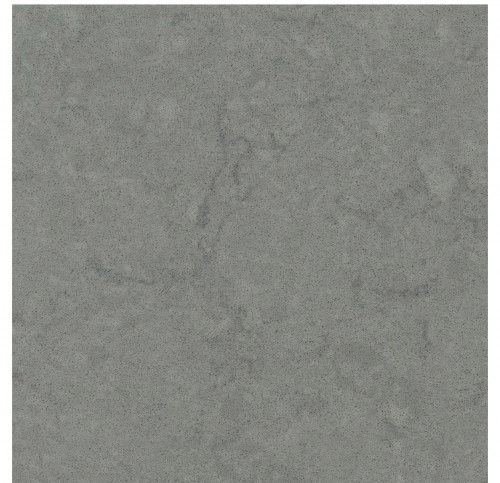

For the kitchen top, he’ll give me quartz but I prefer to source the quartz myself so that I feel assured of the quality.

But how about the kitchen cabinet? Usually people use melamine. Could it be possible that he uses an even lower quality material? Is there such a thing?

Many thanks in advance

This post has been edited by barca96: Oct 22 2019, 05:00 PM

Solid Top solution.
‪+60 12‑323 1909‬

Sunshine Marble
+60 17-605 3218

Hi if you just want to do kitchen top, I suggest you contact the suppliers I provided above.

Kabinet dapur direct kilang

Hi,share with all.how to take measurement from house floorplan
https://www.youtube.com/watch?v=jaQ9lgG9ZVI

Visit the factory? And look at the materials?

Mine was also direct from a factory, no showroom, reasonably priced compared to those with showrooms but based on friend's recommendation... I visited the factory, looked at the materials and check on the flexibility of being custom made (discussion with the sales person/ designer in the office above the factory) so I went ahead.

One benefit getting it direct from factory is custom made cabinets so you can actually design it yourself. E.g. Show them something on pinterest and they can make it...

Hello sifus, can you recommend 10" saw blade that cut melamine/laminate chipboard adn where to buy? My jobsite saw blade chipping out my melamine chipboard.

Usually a higher tooth count for the blade will have a smoother cut. However, with chipboard may also need to use masking tape to prevent the tearout.
Most brands of saw from manufacturer come with low tooth count cos it can cut fast but work not so tidy.

Hi sifus,

10 years ago I did my KC and wardrobe at Welco (the cheapest range), and they are quite ok for its price. May I know is there any recent experience with them? Are they still providing reasonably good quality at budget price?

Thanks

Hi all,share with all.different 16mm and 32mm end panel/explore panel.

https://www.youtube.com/watch?v=hBVZXMEZVd4

Thankss !! 🙂 For dry kitchen 9ft , wet kitchen 11.5 + 5 ft.. i think i posted full measurement in this thread before. 😁

Lings Home base in Perak. 😬

This post has been edited by m.syafiq.rahim: Oct 28 2019, 05:39 PM

Is there any cabinet contractor able to do minor job... Just internal shelves... Area kota damansara... Please PM me.. Or sms 011-5288-2858

Hi sifu...any comments for Unity Kitchen finishing?

I didn’t use them but did get a quotation from them on cabinet work. To me they are ok from quality standpoint but price is on the high side compared to others unless you are competing with Signature Kitchen.

Do you have any recommendation?
