Lenovo official local set all comewith 2 yrs warranty:
http://shopap.lenovo.com/SEUILibrary/contr...EAN/MY/Products
Local set Y480 already phased out and replaced by Y400. Remaining Y480 stock in the market are US imported set, its best to avoid.

Ideapad Y580, i7-3630QM + Nvidia GTX660M + 1920x1080 @RM2999[JBL], 4GB, 500GB(5400rpm), W7HB/W8, backlit keyboard, 2 yrs warranty (Stock limited)
Ideapad Y580, i7-3610QM + Nvidia GTX660M (2GB) + (1920x1080) + Bluray@RM3499[JBL], 8GB, 1TB HDD(7200rpm), W7HP, backlit keyboard, 2 years international warranty
Ideapad Y580, i7-3630QM + Nvidia GTX660M (2GB) + (1920x1080) + Bluray@RM3899[JBL], 8GB, 32GB mSATA + 1TB HDD, W7HP, backlit keyboard, 2 years warranty

Watch out & don't get the cheaper grey imported set (AP set) come with 1 yr warranty. You might get a refurbished set or end up with major warranty claim issues.
http://forum.lowyat.net/topic/2647407

Y580 with FHD review by notebookcheck HERE.

Y480 review by notebookreview HERE.
Y480 & Y580 detail specs HERE & HERE.
Lenovo brochure, Y480+GT650m

Asus poduct Guide HERE.
[b]Comments on Asus unsatisfactory warranty service HERE & HERE.
N56vz FHD review in notebookcheck HERE.

Y580 Benchmarks/ Full stress test/ OC'ed by deepcool0922 HERE & HERE

Y580 swap SSD with HDD (DDR3-1333 12GB. OCZ VERTEX 3 240GB. U3 cooler) HERE
SSD temp is 30c & disk data transfer rate increase to 7.9 in WEI


Y580 OC GTX660M HERE
Y480 user Full stress test/ 3Dmark11/ Diy SSD/HDD by Mr Bashlyner click HERE.
Y480 3Dmark11 & Full stress test results before & after the torturing

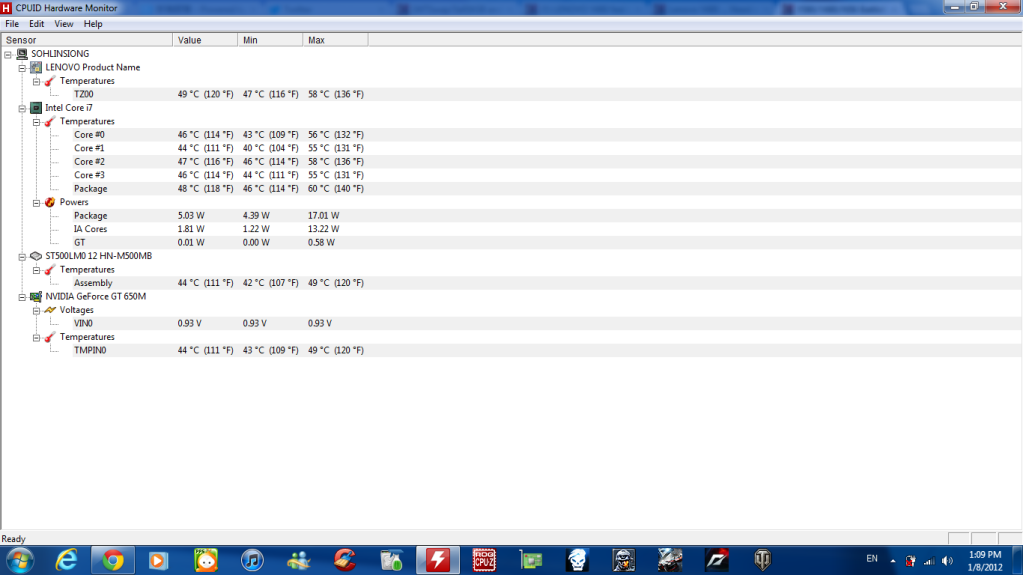

Y480 idle HDD temp drop to 40C after swapped HDD with ODD in pic 1 HERE.
Y480 benchmark after swapped SSD(Crucial M4 256GB) with HDD in pic 2/3 HERE.

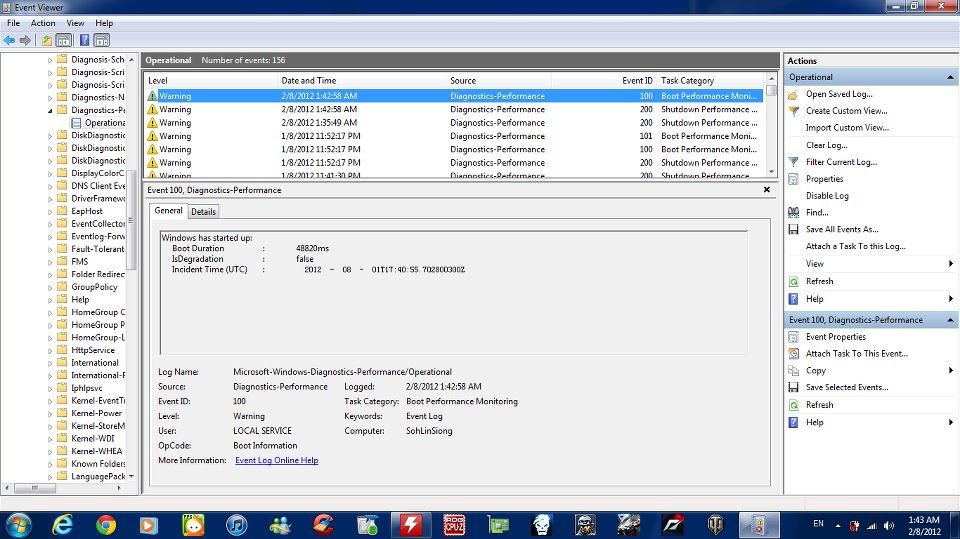

Boot up time 16s & disk data transfer rate improve from 5.9 to 7.9.

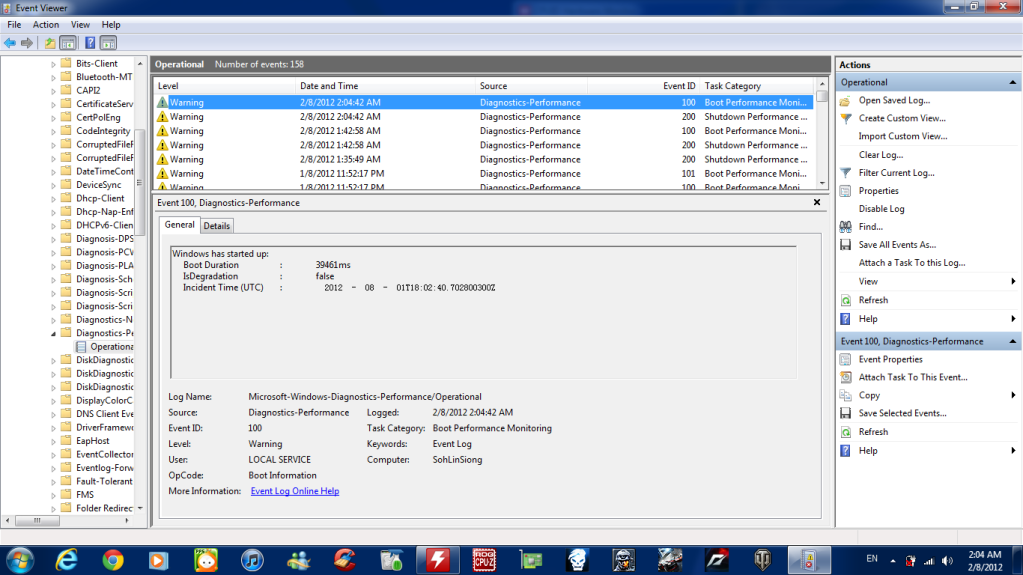

Y480 boot time 17s after swapped SSD(Corsair Force 3 120GB) with HDD by BlueBaby HERE


Add mSATA SSD by bryan_forever89 (LITEONIT LMT-64M3M 64 GB, 4GB+8GB) HERE
Window boot up 18s, disk data transfer rate improve to 7.9


Y480 Oc'ed GT650m > GTX660M by lwtw & upmost systems HERE & HERE.



Y480 gaming benchmark for Battlefield 3, Crysis 2, Dirt 3, COD8 in chinese site HERE and more HERE.

Y480 interior layout with FULL copper heat sink here and here.


Y580/480 heat distribution & recommended cooler



[color=blue]Y580 vs Y480 vs N56 interior thermal design.


According to Chinese site, Y580 has abnormal high HDD temperature due to thermal design problem where hardisk is located between the heat source CPU & GPU
HDD idle temp around 47C, it reached 63C during Furmark & Prime95 stress test.
Will it affect HDD lifespan as we may lost all the critical data?

Y580 with FULL copper heatsink but hardisk located between heat source CPU & GPU

HDD manufacturer stated operating temperature between 5c to 55C

Test results from Chinese site http://ideapad.it168.com/thread-2209355-1-1.html
Y580 with i5-3210M, GTX660M(GDDR5) at room temp 24C,
Under idle situation, CPU 55C, GTX660M 41C, HDD at 47C which is high

Under full stress with Prime95, FurMark, AIDA64 to stress HDD
CPU & GPU at 91C, HDD at 63C
This is an unnatural level of stress that is almost never achieved under normal circumstances (including heavy gaming)

If you place a new SSD in the HDD location and relocated HDD to DVD location and doing the above stress test
CPU & GPU at 91C, SSD at 47C and HDD temp down to 43C

Stripe Y580 naked .
http://ideapad.it168.com/thread-2214921-1-1.html
http://ideapad.zol.com.cn/58/160_579604.html

This post has been edited by ytlay: Jan 19 2013, 10:49 PM

with that money buy asus lamborghini net book & edifier s730 will be better...

Lol can that netbook handle games?

Apparently not

Nice information you have there bro~
According to notebookcheck's review on the N56 (Nvidia GT630M), the unit seemed to be rather hot as well...
In terms of bang for buck, the Lenovo would be better. You can still use the remaining money to opt for Lenovo's on-site warranty support

The situation on the Y580 is more or less similar to what I've been encountering on my M14x (apart from the high GPU temps, but its a GTX card, so its unsurprising). I guess that the temps can be controlled by switching to SSD entirely, and also disabling turboboost on the i7 processor, that should reduce the CPU to around 80C or so

lenovo more power

u better compare with N56VZ-S4079V which is more similar spec with y580

Y580 is very tempting with attractive price.
Just wonder how the engineer design it and placed the HDD between the heat source CPU & GPU.
Very worry about the HDD high temperature as it exceeded the maximum operating temperature. Scare it will dead anytime.

According to Notebookcheck stress test on DV6 with Furmark & Prime95. The HDD temperature only max at 38C but Y580 reached 63C.
http://www.notebookcheck.net/Review-HP-Pav...ok.56672.0.html

This is good info! I might change my mind and go for the G55... What if I buy a good cooler like the Coolermaster X3 to use with the Y580? Will it reduce the temperature alot when playing battlefield 3?

Fully disassembly lol!


http://ideapad.it168.com/thread-2214921-1-1.html

---

Added on June 18, 2012, 10:41 pmBF3 get G55 better. I heard G55 also have heat issues. The paste btw the heatsink and processor surface are not contact properly. After one of the user repaste it. The temp from 85+ dropped to 60+. Very good cooling system G55 had.

---

Added on June 18, 2012, 10:43 pmWhen ur hdd die, u already switch a new laptop.

This post has been edited by deepcool0922: Jun 18 2012, 10:43 PM

I read that although G55 has dual exhaust but one of them is dummy. Is that true?

interesting...
does that mean the dvd is removed or there's space near dvd location?

The cooler sure help, better open the back cover when gaming. You can also relocate the HDD to the DVD drive as its cooler there.

HDD die can be replaced, but data lost will

DVD is removed and replaced by HDD. Its cooler at DVD location.

dun think so... just that 1 has to work harder

what does that mean?

any picture of the inside of G55?

If hdd die. Keep claim warranty till Y590 came out, replace it to me lol

1 for cpu 1 for gpu... 2 wont dissipate the same amount of heat... therefore a slight diff in temp nearby each vent...

youtube la... hayor.. so lz

Forward to 19:40.

"Part of it on the right side is just.. for look"

don't think anyone would risk losing data.



oh wow, kepler based laptops are getting less and less impressive by the day. I hope we can get some real reviews soon enough for these gtx660m/gt650m models especially regarding the heat issues and quality control.

woah... no more dvd drive then O.O but i think that's fine

good news for HDD tray seller ><

a member in the G series thread posted in the rog forums to ask about this. Why is one the exhaust vent was partially closed?

apparently it was to prevent all the heat from going to the battery.

as quoted from the rog forum

"some of the right side is closed intentionally because that's where the battery is."

"Yes two fans and heatpipes - independently monitoring the GPU and CPU, output to one large, central vent. Aesthetically this vent is split in two, but the battery has to go somewhere, which is why it is blanked! Naturally the thickest point gives the most room for the 8 cell. Pop out the battery and see for yourself - it's absolutely not an error. They didn't make the vent smaller because symmetry is more visually pleasing. Technology doesn't adhere to human rules of beauty though - it's entirely functional.

If you watch the G55/G75 video you'll see the two cooling fans clearly - it's an accurate representation of the construction."

- MarshallR@ASUS

^Thanks you for that.

Been searching about it for few days with no result.

Can we find the HDD caddy case for Y580 in Lowyat? How much is it?


Planning to relocate HDD to DVD position for better cooling...
http://ideapad.it168.com/thread-2207079-1-1.html

Is there any better cooling suggestion to overcome the HDD high temp due to design flaw?

do all laptop have the ability to swap drive with HDD? I always thought it's just a certain model.

Bad cooling system for Y580. Only one fan to cool down processor and high end graphics card?

It should be at least 2 fans to cool down the components separately, like this.

hahaha...does this double fans really matters that much in terms of practicality?? two fans running means empty your battery faster , and the laptop size has to be blown up to accommodate another fan, the notebook will be heavier too due to the extra metal fittings...oh yah, the company are going to bump up the price to a million ringgit too if they have this extra feature.....and wht's more surprizing ,the extra fan u have there is useless unless you are gaming~~

laptop with high-end graphics card not meant for gaming or normal usage in battery mode. single or dual fan doesn't matter much. it's all about ventilation design and heat dissipation. in fact, that's the characteristics of gaming laptop. It meant to be heavy.

i use lappy with dual fan and both spinning either in idle or gaming.

This post has been edited by soundsyst64: Jun 19 2012, 09:13 PM

It doesn't seem to be the case for the Acer 3820Tg
Looked what happened to the 3830Tg after Acer removed the 2nd fan

The picture cooling system are but the price, battery life, thickness and weight are

When we compromise on cost, performance, weight & battery life, we get Y580.

Best compromise for mobility and performance is the new Macbook Pro.

This post has been edited by ytlay: Jun 19 2012, 09:26 PM

mind to tell me what happened?

i don't put in battery as I mostly use adapter. if i travel a lot outside, just use tablet or netbook. gaming laptop put at home.

i bet you can have better experience with desktop setup

yup, but i can't stand the power consumption as I operates the system 24/7 (download stuffs)
so i switch laptop and the electricity bill somewhat reduced

This post has been edited by soundsyst64: Jun 19 2012, 09:21 PM

The Acer TimelineX 3820TG with AMD HD5650M comes with a dual fan configuration. It worked like a charm, and it was almost a perfect laptop.
Then comes the successor TimelineX 3830Tg with GT540M, where Acer decided to removed one of the fans, it ended up suffering from severe CPU and GPU throttling.. because of that, we don't even recommend that laptop in this forum regardless of how awesome the 3820Tg was

you'd rather have your components fried?

best solution MSIGT70

How about this?




Attached thumbnail(s)

does the components really gonna fried without the extra fan? Y580's temperature look nice to me
the problem it has is the location of the HDD ...the whole cooling system is working fine on this laptop with SINGLE fan

---

Added on June 19, 2012, 9:59 pmblack colour is timeless...especially on edgy technology part..
BIG BIG "LIKE" for the look of the internal..which laptop is tat?

This post has been edited by jammerlee711: Jun 19 2012, 09:59 PM

90c-ish temp is fine for u?

Macbook Pro Retina.

you sure a hundred percent if you swap HDD somewhere else, the temps gonna be fine?


FYI

GE60 GDDR5 GT650, heat issue
Dv6-700x GDDR5 GT650, heat issue


the problem is not simply, 'where' the fan is. They are cramping heaving duty card in tight chassis, without sufficient airflow.

I am using GE60 with GTX 660M... However i dont feel any discomfort cause by heat after playing any graphically intensive game such as MW3 and BF3 after an extended period of time (>1 hour) especially if i use the turbo mode for the fan...even the part part around the keyboard and palmrest near the hdd isnt really too hot after that...

This post has been edited by Uchiha_Itachi1991: Jun 19 2012, 11:57 PM

not sure about gtx660m, perhaps they hada fix? but it is positive for quite some users with the gt650m


keep on using though, and MW3 is not graphically intensive for a gtx660m. what reso are you using for BF3?

CPU or GPU will be throttled before the components fried.
Full copper heat sink are but need DIY on HDD temp.

G55VW cooling are but under stress test with Furmark & Prime95, CPU at 95C, GTX660M at 77C.
CPU also above 90C like Y580.

Under extreme stress test with Furmark, Prime95 & stress HDD with AIDA64, Chinese site manage to bring down the HDD temp from 63C to 43C by swapping HDD.
This is an unnatural level of stress that is almost never achieved under normal circumstances (including heavy gaming)

if you ask me ..yes, im okay with that
for the price lenovo is asking ... this is a value buy already
im using an old acer 4935G， idle arnd 70'c, under full load already 92~3'c
it still last me for 3 years without any problem, never changed the thermal paste or anything
just vacuum the opening and fan sometimes....

DV6's cooling are good , G55's cooling are good, dual fan's cooling are good
but value wise..i'll still choose the y580

I see. what about the temps of other component?

Throttling mean huge FPS drop in game.

There are few factors u need to consider before u comparing result from the chinese website like ambient temperature and proc. They use 35w Core i5 and Malaysian model use 45w Core i7.

Yeah the price is quite a bargain. If i'm still a heavy gamer i probably will get one too.

This post has been edited by Acid_RuleZz: Jun 20 2012, 12:36 AM

a question to acid_rulezz , is DV6's GPU on par or better than GTX660 after overclock??

Which DV6? 6000 or 7000 series?

the latest that is in or coming to m'sia shore =)

the one with GT650M GDDR5? It is basically a downclock version of GTX660M.

Thank you for alerting me . Info updated to reflect the Chinese site test environment with i5-3210M, GTX660M(GDDR5) at room temp 24c.

DV6-7038tx listed in HP malaysia driver site with spec
i7-3610QM, GT650M(GDDR5), FHD anti-glare, 8GB, 1TB(5400rpm), blue ray
http://h10025.www1.hp.com/ewfrf/wc/documen...product=5277765

Its seem GT650M can OC to GTX660M.

This post has been edited by ytlay: Jun 20 2012, 02:38 AM

Seems possible. Some more already fitted with the GDDR5 version.

brace for heat. the Dv6-7k is well complaint over due to heat produced by the gddr5 choice.

Desktop no heat issues.

some nice feature for DV6-7038tx there....
full HD, anti glare, GT650 (yeah, even without OC the performance is not that far apart),quad speaker+woofer

hope its price will be competitive enough ...y580's specs and price makes every other brands seems overprice

i always play on 1080p...if possible i play all games on high setting if not ultra...

well, no point talking since the only mobile GPU that can max BF3 seamlessly is 7970m.

Y580 vs N56 thermal design. Who is the winner?



This post has been edited by ytlay: Jun 20 2012, 08:23 PM

if full hd i go lenovo

shorter heat pipes means faster cooling??... but the design of Y580's board is buggy anyway
the HDD is like roti panggang ...TOASTED on both sides =.=

Y580 with full copper heat sink and shorter heat pipes should provide better CPU & GPU cooling than N56.
Y580's HDD located at "oven" need to swap with DVD for better cooling.
If gaming for long hour, open back cover blow with cooler for super cooling.

hmmm...but this will mean void warranty the moment you got your laptop~

According to N56vz from notebook review here
Stress test with full load on CPU & GPU at temp 25.5C
CPU max at 97C, CPU throttle to 1.2Ghz
From HWiNFO64, its seem GPU also throttle to 350Mhz


Look like i7-3610QM really produce a lot of heat and i5 should be better.

Just swap DVD with HDD when warranty claim, its still cover.

This post has been edited by ytlay: Jun 22 2012, 08:40 PM

^ imo those i5 will still be as hot as the i7 if turboboost is on.

is the turboboost i5 comparable to i7 in term of performance?
just asking

i have no idea.. for game like Starcraft 2/Skyrim which benefit more on CPU clock, the i5 will perform pretty good i guess.

i dun really think this is possible but will there be any slight possibility LENOVO will change it's PCB board design for future Y580??

---

Added on June 22, 2012, 11:19 pmbut there are those stcker thingy stick on the screw holes...those "warranty void if broken" stickers

This post has been edited by jammerlee711: Jun 22 2012, 11:19 PM

---

Added on June 23, 2012, 11:50 pmJust come across a killer spec with killer price in recommendation thread here..
Oh! Lenovo really want to make other OEM . But its very good for consumer.

Lenovo Y480 i7-3610QM, GT650M (GDDR5), 4GB, 500GB, DOS at RM23xx.

Someone oledi selling in garage sales.
Remember to upgrade the warranty for peace of mind.

There are so many concern on the high HDD temp on Lenovo Y580 on Chinese site.
Here is the answer from a forumer who claim that he is Lenovo researcher in Chinese site here.

Translate it below, excuse me if any miss translation.

According to the researcher, a simple solution to reduce the HDD heat is to wrap the HDD with heat insulator. Its like wrapping the chicken in the oven, is it effective???

Imo, they will only change the layout may be next year for new generation Y series due to costing. The will use the heat insulator to reduce HDD temp.



This post has been edited by ytlay: Jun 24 2012, 02:14 AM

Y580 ...can I play dota 2 in high setting? I mean issit more than enough?

This post has been edited by yewMP5: Jun 24 2012, 05:44 PM

they want to fit the already hot temps specifications of the y580 into a 14inch?

i ran this last night 4.00am

sure you can.
even my old nvidia 9600m gt also can play in highest settings
with super smooth fps

This post has been edited by jakuraz: Jun 24 2012, 06:09 PM

Wow thanks bro....the laptop...will it heat up super fast?

weird, I can't find a GT650M Y480 anywhere in their website.

They'll probably update their website in a few months time,got any questions just post em here!

lol that's not right. US website is usually updated. Taken that, the original leaked specs for Y480 is this one, still, the price even FreeDos is too unbelievable.


Anyway lets discuss.

>14 inch
>GT650M GDDR5
>i7-3610
>Pre-existing heat issues with Y580


Reports of DV6-7XXX running GDDR5 version of GT650M going hot is quite popular on NBR. Fitting very much the same specs in a 14 inch, what would be the outcome?

HP cooling is vey suck. Noisy fan.

My 2 year old pavilion dv4 now sounds like a jet during start up =_=

even my bro 3 months old dv6 during diablo 3, very lound sound from the fan.

Well i thought you were referring to the Lenovo Malaysia website,My understanding is that the Y480 with the GT650M is only available in China and now Malaysia?

highly unlikely.


It's always US first before Malaysia

If full hd then I will work so hard for it.....value buy lar..

Let us speculate now as the price is too good to be true , it will clarify itself when the new Y480 with GT650M pop up anytime.
iirmc, Lenovo do mention that Y480 with GT650 will come in June during their previous new product lauching.
If we compare the existing Y480 with GT640M LE, its cost 2999 with win7 and 2499 with DOS. Its highly possible they will replace the existing Y480 with the same pricing.
If we compare with new Y580 at 3399. Its seem justify for the pricing different of 900 for win7, GTX660M, extra 4GB & 500GB and blue ray.
Its also possible come with i5-3210m/GT650M(GDDR5)/DOS at 2499 Then it will direct compete with N56vz with i5/GT650(DDR3) at 2699. It may not be competative with Asus where it come with Win7, 2 yrs warranty, sufwoofer and relatively better quality and design for 200 different. But Asus warranty service is questionable

This post has been edited by ytlay: Jun 24 2012, 09:31 PM

quite possible but we never see this kind of pricing(especially for an i7) yet in MY.

My take is quite different:


you know how lenovo US always have this coupon that makes their products ultra-cheap?


it'd be easier if devour could confirm us the pricing for his units.

Razer Blade win! LOL

review on lenovo

http://www.wired.com/reviews/2012/05/lenovo-y480/

---

Added on June 24, 2012, 10:58 pmmore detailed review on lenovo

http://www.theverge.com/2012/6/22/3108823/...pad-y480-review

This post has been edited by hpnc6230: Jun 24 2012, 10:58 PM

The review from Wired gave only 5 out of 10 for Y480 and it stated the performance of i7 3610 is below par. Is it solely because no SSD/7200rpm hdd (which I can overlook) or the processor in Y480 is really below par? I think it's the former right?

I am planning to get Y580 though but I have mixed feelings.

sorry bro, cant help on tis matter, i am not sure if this is the one we are getting in malaysia..

i juz went and search for review.. most gv average only..
maybe others sifu can help to explain more detail..

even better if those who have purchased can gv a short personal review

---

Added on June 25, 2012, 2:43 pmi personally think u should go for a 7200rpm hard disk.. even better if u can get the ssd version
window 8 is coming.. i tink it would be a heavy system so for future proof, get a 7200 or ssd or both (^-^)


This post has been edited by hpnc6230: Jun 25 2012, 02:43 PM
