Anyone here got the latest qoutation of grille ah?

e.g. : mild steel with paint : RM ?? / sq ft?
mild steel with powder coat: RM ?? / sq ft
Aluminium : RM ?? / sq ft?


Thanks!

---

Added on April 2, 2010, 9:46 amno one ????

This post has been edited by cyanide: Apr 2 2010, 09:46 AM

what's the different between mild steel and wrought iron? i dunno about price/sqft..
i'm currently looking around for grille quotation, so far for a 2-storey intermediate house cheapest is 3k wrought iron + hollow steel

wrought iron is stronger and normally more expensive.
mild steel is those normal material, or ... shall i said just steel?
hollow meant its not solid, got hole in the middle.

I think judging by type of house is not really accurate. Better with per sq ft. even for intermediate DSL, the total area need the grille could be different if there's big windows vs small windows.

Mine just finish install w/iron full house = RM7100..

wow, 7100

yours DSL or ???

do you know the price per sq ft?
or ... roughly how big is the total area?

I did my house:
1x French Window 2 panels
1x Sliding Door 3 panels
1x Sliding Window 2 panels
1x Casement Window 3 panels

Came up to RM1800 for painted mild steel.

wow. rm7.1k for grills. i didnt expect that much

just to confirm, do we need to get local authority consent/approval to install grille?

no need permit for gille..
market price rm 13.00 per sqft wrought iron.

good luck....RM7100....is not unusual because new house alot of windows and sliding door...

Glass homes are nice till you find out how much grille can cost you!!
If you are having a end lot or corner unit then....good luck....

hi, simplicio,

thanks for the indication of market price for wrought iron.

how about others? do u know their market rate?

thanks!

sometimes i feel sad that we cant have houses without the grilles........ its actually kindda nice.......but sure kene pecah one.....i think if there's no grille, the house needs to be equipped with hefty security systems like laser sensors, ADT centralize security, CCTV or even a guard! nothings cheap the police should ronda2 the housing areas everynite and thiefs + robbers should be feed to the sharks

sometimes i feel sad that we cant have houses without the grilles- can be done.- stay in gated community i mean the 2 million SP Setia/Sunway above one. not the 600k to 800k link type like Lake Edge.
u can leave ur barang all day outside ur house no one will steal

This post has been edited by airline: Apr 3 2010, 06:24 AM

wrought Iron nowadays is just mildsteel that went extra hamemring to give its texture.. (how I know? cause I`m selling it maa)

carbon steel is divided into 3 types...
low, medium & high

we normally use low one... or term as mild steel or M.S

medium / high is used for shaft, gear etc very hard n heavy

the price of wrought iron depends on complexity of the design...

and the price also depends on what paint and how many coating they use....

I propose you ask all this detail

Hi, Awakened_Angel,

mind to indicate the per sq ft pricing of :-
mild steel with powder coating finish? Simple design as those horizontal bar ... prefer white in color

aluminium? white color available? what bout price?

Thanks!!!!!!!!

I cant... as i`m selling raw material to fabricator.. and the price depends on their workmanship and skill....

how about average or range of their pricing?
i think you should able to indicate
thanks ya...

I have material of wide range of size and grade... the fabricator might selecct cheapest grade and quote you the cheapest price... your grille rust in 2 months time, the colour fade in 3 months time.. it`ll come out if people bang on it

---

Added on April 5, 2010, 1:41 pmRm 10-15...

This post has been edited by Awakened_Angel: Apr 5 2010, 01:41 PM

Thanks!!!

M.S Grills RM6, wrought Iron RM10

wow... RM10 /sq ft for wrought iron? quite cheap.
last i heard its about RM15. Where's the location? KL?

M.S. Grills of RM6 is it normal paint?
how about powder coating?

yeah, mine is corner double storey house..
total area is around 3000++sqft..

where can i find a grill shop in old klang road?

i saw it at 1k classified..gonna try to call them & ask 1st.

wrought iron RM 10 ? mind to share the contact ? do pm meplease....

tq... btw had checked with my enginering guys they say wrought iron is actually mild steel .. just that it has been fabricated into design. is that true ?

i think nowaday a lot of "fake" wrought iron.
BTW, i also not fancy those design. i like those simple horizontal bar.
so, i rather opt for those mild steel with powder-coating if price is right.

that is what i thought too.. mild steel is good enough esp for condo and 17th floor... good luck if they want to steal...

oic...so wrought iron is the same as ms ahh...coz i also dunno about grill...1st time search..

frankly, there are no fake wrought iron.. iron and steel are still the same hundred years ago... it is the selection of thinnest and smallest and lowest grade of material by contractor and poor workmanship....

http://en.wikipedia.org/wiki/Wrought_iron

oh... got it liao

so, most of time WI expensive is just becoz its solid compare to those hollow MS.

thanks!!!

wrong

---

Added on April 7, 2010, 5:53 pmwrought iron is more exp because it went through a process called hammerting to give its texture... both Wi and MS have hollow and solid section

This post has been edited by Awakened_Angel: Apr 7 2010, 05:53 PM

ops... ok ok...
there's options ... paiseh...


How about aluminium grill?
looks neat. is it strong enough?

And, nowaday a lot of grill design is those simple horizontal bar (which i also like this design), is it easy for theft to "jack" using those jack from lift up car one???

MS is the material... wrought iron used to be a material itself... But due to constant price hike, some ppl result to utilise MS to hammer and become wrought iron.. there`re many type of wrought iron.... hammering, TWISTING, TIGERSKIN ETC

alumnium is lighter and softer.. plus price for scrap al has increase.. many thieft ops for alu instead of metal nowadays


it is ok.. FYI, ther are few thickness.... 1.0, 1.2,1.6 &1.9mm for the hollow section.. both MS and WI

many will choose 1.0mm one./... else, you request 1.2/1.6 mm

This post has been edited by Awakened_Angel: Apr 8 2010, 10:36 AM

Is powder coating more lasting and have more resistance to rust?

yes.. but not much if they didnt apply anti oxide primer eg galvanised

A_angel,

Thanks!

Ok. so... 1.2mm is strong enough?
i know, thicker sure better... solid lagi best. But $$$ got concern.

for powder coating, can ask to apply oxide primer also?

it depends what you use and your gille size

if its main gate, say 14-15ft, 1.2 is okok .. best 1.6 laa

if you want stronger for window, also ok..

another aspect also very crucial.. its the connection of grille and wall

good luck

connection of grille to wall?

can elaborate some details?

my old house is those wooden window frame, they just nail it onto the wooden frame.
now will aluminuim window, i think it need to fix in on the concrete wall

http://img.alibaba.com/photo/244940929/SL_...ANCHOR.summ.jpg

THIS IS THE BEST LAA.. SLEEVE ANCHOR

SOME JUST USE CONCRETENAIL

ok. thanks!

but from the photo, looks like not much different compare to nail.

easy to elaborate a bit? or its too complicated.

sorry... kacau u so many times

Some contractor also called it a "wall plug"...if u want to attach/secure anything to a concrete/cement wall,u need to use this...

this will expand when you fasten it... nail wont

Hi, Awaken_Angel,

I just qouted for:-
Window grills : ~ 350 sq ft (11-12 pcs of windows)
Door gate: ~56 sq ft
Material: MS 1.2mm
Finishing: Powder coating (white)

RM4800, is this reasonable??
Thanks!!! for your helpful ...

Hi Daryl,

Mind pm me the contact for the grill guy pls? Thanks a lot.

Hi,

please pm me too... TQ.

Happen to come across this somewhere recently
Price RM/ sg ft

MS Door - RM 10
MS Window - RM 7
Wrought iron Door - RM 18
Wrought Iron Window - RM 11

The best quote I had received recently to share:

To supply and install

1. Two unit of grille window 580 x 1200mm RM 200.00
2. Three unit of grille window 1760 x 1160mm RM 850.00
3. Two unit of grille window 1070 x 550mm RM 163.00
4. One unit of grille window 2350 x 1740mm RM 567.00
5. Two unit of grille panels 570 x 1770mm RM 280.00
6. One unit of double leaf door 1210 x 2090mm RM 600.00
7. One unit of double leaf door 1770 x 2690mm RM 720.00
8. Replace anchor frame for 10 nos of grille window RM 350.00


Mild Steel: 20mmx 20mm x 1.2mm hollow section fabricate to horizontal design at ±4 ½” gap c/w one coated of antirust and two coat paint

Mild Steel: 12mm square bar (solid, not hollow) fabricate to horizontal design at ±4 ½” gap c/w one coated of antirust and two coat paint at locations (2) and (5) at an additional of 45% of the listed price.

There's a lot of misconception being spread by the sales ppl. The best is to go to the factory / workshop and engage the owners. Take the effort to go to these workshops.

This post has been edited by MFLooi: May 10 2010, 10:31 AM

i think most of the terace would have max 350 to 400 sqft. normally for a horizontal powder coating, market price should be around RM11 and doors around RM16

if mild besi, deduct RM4 or 5

so, in your scenario = 350 X 11 =RM3850
Door = 56 * 16 = RM896
Total = RM4746

I would say the price is around that range

Hi, tyhuang,

Thanks!

BTW, what do you mean by "if mild besi, deduct RM4 or 5" ???

I think he meant if for mild steel window, it will be RM11 - 4 = RM7 &
for door will be RM 16 - 5 = RM11

I just received quotation for grill from one of my contractor
windows
129 sqf
doors
152 sqf
material: ms steel

quotation 1) rm3853.7
1.0mm - 20mm * 20mm, 3" gap
quotation 2) rm4229
1.2mm - 25mm * 10mm, 3 1/2 " gap

hollow ms i guess ... knock it can hear kong kong kong sound
not powder coated

update:
windows = 137 sqf
doors = 173 sqf
1.2mm type = rm4914
powder coating = +rm1099

is the price okay?
thanks

---

Added on May 18, 2010, 8:51 pmi've got another quote from different contractor,
he's offering rm3850 for mentioned sf
but using
0.5" * 1.5" with gap of 6"
1.2mm also ...

which is better? I heard bigger gap costs more ....
if gap 3" or 3.5" or 6" which 1 is more recommend ?

This post has been edited by LickGuy: May 18 2010, 08:51 PM

Hi, I'm planning to grill my new house at Semenyih, I'm still looking for a good contractor with reasonable price to do the grill for the whole house. Can you guys recommend any contractor nearby kajang or semenyih. Planning to get their quotation first then make comparison with the contractor that my brother in law recommend me. If the price is rights and the quality is good, then I will install it maybe on next 3-4 weeks.

i also looking for wrought iron grille door for condo.



googling for suppliers ard sel/kl but most of the designs not very nice.

i have 1 contractor base in kajang got own factory for grill. interested?

Yes sure. you may PM me the contact number and location.
If the price is right and the workmanship is good, I will get them to do my grill.

Speaking of grilles, I've been told by one contractor that having "angle bar" would be more secure compared to just mounting the grilles directly. How true is that?

Would 0.8mm thickness MS grille be sufficient enough? I was quoted RM 8 psf for that.

Has anyone used the 'Invisible Grill' rather than the normal one ? This invisible Grill is pretty neat especially if you want to put up a full heigh grill at the balcony of your condo.. I'm just wondering about its durability...anyone ?

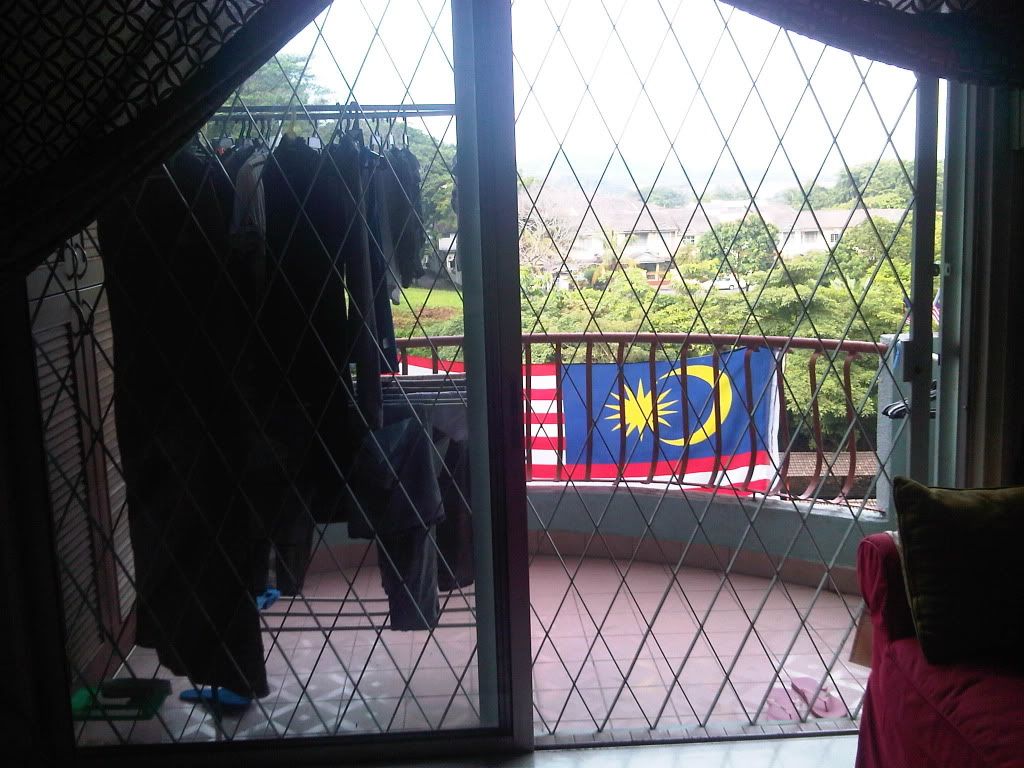

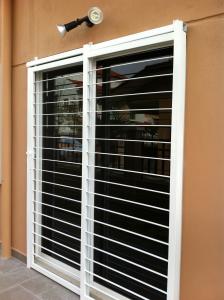

my house grille samples...main door & kitchen door...

was quote total RM2700 for all, forgot d size:-

main door x1
sliding door x1
kitchen door x1
windows x14
toilet window x2

normal finishing white paint....



This post has been edited by koled_anie: Jul 27 2010, 01:41 PM


Attached thumbnail(s)

Hi,
Any recommend reliable grill contractor around puchong/shahalam area?

Thanks.

Hi guys,

If anyone need quotes on grilles just pm me. I have my own factory located in shah alam. I usually service areas around klang, shah alam, subang, pj, damansara, KL etc.

Many customers have already engage my services from the internet.

Samples of my work can be found at www.steeltech.50megs.com

Email me at steeltech75@gmail.com

Cheers.

get someone that is recon to you.....
dont simply get it from those in newspaper or publication.
Once they did the grill. you cant reject any more even due to poor quality.
a lot of beginner trying to do grill becoz it is good money and easy to cheat people as well.

PM me as well. Tq.

Guys. Please PM me the Windows Frame and Wrought Iron grill contacts.

Thanks in advance!

Is anyone know the latest quote price for mild-steel powder coated door and window grilles? And someone with good workmanship to recommend to me?
Planning to do grilles for my new house, about 500 sq-ft for windows and 300 sq-ft for doors.

Thanks in advance.....

for iron works please contact Yong Wang Iron Works & Trading
Tel: +603 3191 5133
Mobile: +60 16 205 0402
Mr Ang

done my double storey house window and door grill, good workmanship and excellent customer service.


This post has been edited by maxguy: Feb 14 2011, 08:40 PM

how much do they charge per sqft ?

please check your pm, cheers

any one know house much stainless steel door cost? for grade ss304 and ss316. Thanks

Thanks for the info. Could you please PM me the price too? In psf...thanks

Naing,

You might want to consider them too.....


THREE KIM METAL WORKS
NO.18,JLN SC 5/D,
PUSAT PERINDUSTRIAN SUNGAI CHUA,
43000 KAJANG,SELANGOR.
TEL / FAX : 03 - 8734 3978
H/P : 012 - 214 9382
Facebook: http://www.facebook.com/profile.php?id=100001530520649

Mild Steel c/w Powder Coatings = RM 10.50 per sg/ft.

Their service is really pro and did their best to serve their customer well. You can mention my name; Andrew to try your luck for best price.

This post has been edited by andrewektai: Feb 15 2011, 09:17 AM

instead of Mild Steel + Powder coating compare with Aluminium Grille, which one is better. Of course, aluminium will not rust compare with Mild Steel even with powder coating. but in term of safety and security which one more wise?

I vouch the same...i'm one of their 'another' happy customer..i'm using galvanised folding gate.

Yes of course aluminum is always better but it cost more and aluminum is soft and the solution to this is to insert round steel bar inside the hollow section of the aluminum to add additional strength to it. Mild Steel or aluminum or stainless steel, if somebody targeted your house and intend to broke in what ever steel also no use.

anybody can recommend me contractor grill around penang island?
i want to do the cage grill.. i live at jelutong. thanks!

pls PM me the cost also, thanks.

Ivy,

As per request pm-ed.......

Can someone quote me the price of Wrought Iron grill for 4ft x 2ft window? i have around 25 windows. Thanks!

Apparently Kenment (Three Kim) has a FB page full of grills photos for reference..
URL Ref:
http://www.facebook.com/profile.php?id=100001530520649

Hi maxguy,

could you please PM me the price and the shop location as well?

Thanks a lot!

Hi!

Pls PM me price and location as well?. TQ.

do you have any contractor to do grille?

---

Added on March 14, 2011, 6:56 pmme too

This post has been edited by l28cpj: Mar 14 2011, 06:56 PM

Need somebody to do my house grille in Kota Kemuning. Anyone interested can pm me or call 0122125108. Thanks.

What the price for a 13 feet gate per foot run base on Stainless Steel and Wrought Iron?

* Please PM me if price cant publish

may i know how much do they charge per sq feet?
Its c/w anti oxide primer and 2 time powder coated?

for comparison wise, do pay a visit to this Three Kim FB..

I vouch the same...i'm one of their 'another' happy customer..i'm using galvanised folding gate.

Any good contractor doing grille in Puchong? I need it for my condo...

Please PM me the contact if you have any..

Thank you.

Already made appointment with THREE KIM METAL WORKS tomorrow...Hope can get a good price....

Where is your hse? THREE KIM METAL WORKS got do grille for Puchong area?

Please post the price if could, so that we could estimate and compared.


zie86,
Kajang and Puchong is not too far, and should not be problem for them too...except business is TOOOOOO good till can't handle. Just call and sure can want.

I already contact Yong Wang Iron Works & Trading just for asking the price...

not cheap...

Normal paint MS grill
window - RM9
door - RM15

Power-coated MS grill
window - RM12
door - RM18

they said, if whole house, they will give a lump sum price..but i doubt they will give more than 10%..

my house at serdang..even serdang i can get RM9 - 10% = RM8.1 for normal painted MS grill..

now try THREE KIM METAL WORKS...see can cheaper or not...if like the member said, power-coated RM10.50, i feel not bad...

Anyone get quotation or previously dealing with Pioneer Iron Trading, Bandar Kinrara (www.awning.com.my) for grille before? I just got the quotation from them. The price seems reasonable as compared to my other neighbors grille prices. But, it might not be the cheapest I believe! Looking for quality, hehe...

Any feedback about them?

whats the price ?

8Ft x 4.5 Ft door for RM520. Cheap?

For MS and normal paint with white color rectangular bar, it's about RM 10 psf. For your door, it should be less than RM 400. But for wrought iron and nice design, your price is reasonable.

Appointment with THREE KIM METAL WORKS last Saturday postponed...will arrange with them this few days....

For your information, I found a factory at Balakong selling stainless Steel folding gate 15 feet including small door and installation with two rows of "flowers" (flowers design can be choosen) just RM4200...

I like those design that include aluminum wood...If I can't get a good price, I will take that one...so far, RM4200 can consider cheap..

This post has been edited by edwardsiow: Apr 12 2011, 01:54 PM

Rm4200 is not cheap at all........that's the market price for an establish shop....u can get less than 3k if you check around those malay SME business..i did mine less than tat.

If same spec and can get less than 3K, i will very excited...a lot of details need to compare....like design, diameter of steel bars used, how many feets, folding or swinging, small doors or not, etc..

if you don't mind, pm me the contact number...i go to compare myself...i already ask a lot of shops, so far RM4200 is cheapest..i don't mind to ask more...but don't tell me is few years ago price....zzz

thanks

This post has been edited by edwardsiow: Apr 12 2011, 02:28 PM
