FEEL THE NEED FOR SPEED?
Experience the thrill of power with this high-performance mobile gaming laptop and its rich multimedia capabilities. Revel in vivid graphics and audio as you keep the pedal to the metal.

NVIDIA® GeForce® GT640M LE graphics supports the latest DirectX® 11 games and HD video editing
Dolby® Home Theater® v4 for full impact surround sound with premium JBL® speakers
OneKey® Theater 2.0: one-touch audio-visual optimization
OneKey® Rescue System
Integrated 720p HD webcam, HDMI out and USB 3.0
Lenovo Energy Management helps you harness your battery’s power efficiently

Tech specs

14 WXGA LED
Intel® Core™ i7 Processor 3610QM (2.30GHz up to 3.30GHz/1333Mhz/6MB Cache)
4096MB (1x4096)DDR3
750GB
DVD SuperMulti
Nvidia GeForce GT640M-LE@GT650m 2G
GBit LAN
Lenovo b/g/n
BT,2.0MP Camera
6-in-1 card reader
DMI,USB 3.0,2.0 JBL
6 cell
Win7 Home Premium 64 (C&L) also available Free-Dos Version

Lenovo Y480 Datasheet

REVIEW FROM ENGADGET

REVIEW FROM YOUTUBE

DRIVER SUPPORT

WARRANTY CHECK ?

must add these software to complete the process

ENERGY MANAGEMENT DRIVER
ONE KEY RECOVERY DRIVER
ONE KEY THEATRE

Can be found in your lenovo driver disk.

User list
1.me - y480
2.sss2sssss - y480
3.exkaizen - y480
4.chopin - y480
5.alpha001 - y480
6.sevilslayer - y480
7.rockccf - y580
8.Lanc3 - y480

Hey guys if u want to buy keyboard protector, I can help u bulk order!!
KEYBOARD PROTECTOR

support him if u want to buy this item.

more will come. any update welcome. stay tune.

This post has been edited by dirsly: Sep 19 2012, 12:14 AM

Finally,a thread dedicated to this notebook!
I'm waiting for the GT650M version to come out.
Fingers crossed,hopefully it'll be released some time around this month.

yeah hope too. users please come and join the club.

Currently proud owner of this

But dunno why, sometimes when opening windows or browser windows, seems slow or not loading

Anyone else on this nbook too? Wondering whether are there any keyboard protectors for this unit

This post has been edited by ahhoe80: Jun 7 2012, 07:36 PM

some from ebay. otherwise u need to wait in malaysia stores..

http://www.ebay.com/itm/Keyboard-Cover-Ski...#ht_4148wt_1037
http://www.ebay.com/itm/Backlit-Keyboard-S...#ht_3454wt_1037
http://www.ebay.com/itm/Backlit-Keyboard-S...#ht_2339wt_1037
http://www.ebay.com/itm/14-Anti-Glare-Scre...9#ht_3816wt_905

Thats too bad because it come with gt 640m LE..
BTW it still good for gaming mid range game..

This post has been edited by Abk92: Jun 8 2012, 01:31 AM

Anybody got any idea how to switch the graphics card on y480? thanks

Lenovo IdeaPad Y580 goes on sale melding quad-core Ivy Bridge and GeForce GTX 660M!!

SOS
Lenovo

Damn it's very cool..but when it will hit this country? end of this months?
Ermhhh surely this machine will hit more than RM3000 rite..

I'm still confusing after read the spec of Ideapad Y580 because it said the keplers of the Nvidia,
What it's means???

Can change the graphic card?? Somebody pls explain it to me thanks

yeah... the minimum price is about RM3299..
about kepler, its the new architecture of Nvidia graphic cards, just like ivy bridge being new architecture for intel processor

This post has been edited by kuroneko0509: Jun 10 2012, 09:01 AM

lenovo y580 price in malaysia will be rm3399

spec
intel 3rd gen i7 3610qm
nvidia gtx 660m
1TB of HDD
8GB of RAM

Thx for sharing. I like the spec but im a traveler. 14 more suitable 4 me. As im not a gamer,cpu is my main priority.
With i7 3610. I can set to power saver mode n stil can get gud batt life.

thanks for the input. try to run win8 now

first impression.

-realy good interface os
-battery can stretch a bit longer.

---

Added on June 16, 2012, 1:29 pmtry to uncheck background programs. run msconfig. startup tab. uncheck unnecessary program. actually u can disable all anyway.
at nvidia program. there is an auto mode, integrate graphics or nvidia processor columm. highlight the one u desire and voila.

This post has been edited by dirsly: Jun 16 2012, 01:29 PM

need help!!
yesterday i just bought Y480 with freedos but after format to window 7 and reboot keep pooing sound abt 10 sec only can see the running window logo

jst got y480
the explorer so slow like a turtle
i just the cpu usage n ram usage is very very low only
seem not using at all
i doubt is the hardisk 5400rpm problem
or the driver problem
currently i still not able to find the nvidia driver
anyone care to share out whre the driver?
the lenovo website drive doesnt match as well
driver support is SUX to max

---

Added on June 16, 2012, 11:55 pmok find out the slowness is cause by 2 different frequency ram use
one is 1333 another is 1600
anyone interest on 4gb 1333mhz pm me
i letting go at rm65 cod KL
item just 1 day

This post has been edited by benlaw: Jun 16 2012, 11:55 PM

aha, i got mine 8/6/12.
dont trust the cd driver. its all typo error to the file names.
download fr lenovo site

must download from lenova us,msia site also corrupt file

Yes. See the 1st post. All works well for my laptop. Even for the windows 8. Runs beautifully.

i got 1 unknown driver not which is missing
seem cant find

Install one key theater.one key recovery.energy management frm driver cd.

notice my machine
when plug in 8gb or different frequency ram
it give a unstable result
did a hardisk read show 5mb/sec
when pllug that ram off it show 80mb/sec
it so slow that take 15 sec to load a IE page

still finding out whether is the ram causing the issue
or hardisk bottleneck?

This post has been edited by benlaw: Jun 21 2012, 11:49 AM

hi, what is the name for one key theater installer? i couldnt find it from lenovo download site. i only see one key recovery and energy management

find it from installation disc

Will there be any version of FHD monitor?

anyone here wanna give up your RAM? or wanna buy mine to get that 1600Mhz RAM fully utlized? Click here

not for y480.. y 580 no idea. any help from forumers here..?

i notice is the hardisk problem
after everytime play game for a while
the whole system hardisk become very slow
after i leave it cool off next day
then it smooth again
anyone having issue here?
btw the hdisk here is 750gp sata II interface WD
appreciate if anyone can test using
Parkdale software
or i'm the only one having bad drive?

as for FHD monitor you can always buy 1920 monitor and plug in
ur laptop resolution is up to 1333 only

ei~ hei guys do any1 know tat~ is it possible to add msata ssd at Y480?? so tat i could switch on laptop and few minutes~

Can. Msata hard to get. Get a ssd better.

hehe im currently at china msata only sell around 600RMB (RM300) 80GB
is it near wlan card there?

Despite the fact the laptop is crazy fast, it’s slow to bootup, the hard drive is like a huge inertia that has to be overcome before the speed and momentum of the other components can take over.

I just changed mine to a ssd sata3 , the laptop spec now can be fully utilize , 18 sec boot-up(with gadgets rdy) and 8sec of shutting down .

lol mine send for warranty already
change mobo & processor
need order from china duno wait until when
sigh...

I bought the GT650 variant last weekend, and let me tell you this puppy is sweet.

One thing to note though, I bought the FreeDOS version and it does come with the driver CD, but OneTouch recovery will NOT work for this laptop.

Also, during first boot, do NOT boot into windows or DOS, but instead go to BIOS immediately because it will give you the Advanced configuration menu. Once you boot into any OS, the Advance configuration menu will disappear. We will need to wait for a modded BIOS hack to access the Advance menu (InsydeH20).

I got a 7.0 score on the Windows experience index, with a 5.9 for disk transfer rate, which kinda sucks, which is why I'm thinking of upgrading to an SSD.

Oh yeah one more thing, if you're planning to buy it make sure you get the PC1600 DDR3 and NOT the PC1333 DDR3. I got "free" RAM upgrade and they gave me the PC1333, and now I have to pay to get a PC1600 to sync with the original

Does anyone of you face problem with its Bluetooth drivers? I couldn't saw it in my Device Manager, and failed to detect my newly bought Bluetooth headset.. :-(

same for this model as well,

any owner here can confirm this? ...they got warranty sticker blocking the changing HDD or not? does upgrade to SSD on ur own void warranty due to the warranty sticker? I scared touching things that void warranty lol

have any of you get the ambient light sensor working?

I just got one like urs too. Kind of adjusting myself to it.

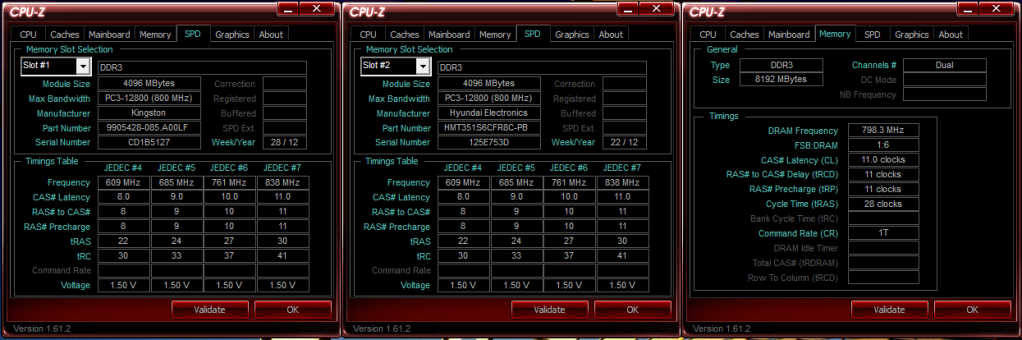

The default 4gb ram is PC1600 DDR3 or PC1333 DDR3? I added a 4gb Apacer ram which is supposed to be PC1333 DDR3 without prior knowledge of the existence of PC1600.

Besides that, is ur lcd plain brushed metal design


or

with those lines and boxes style with orange edge?

Yup , change to SSD and use HDD caddy bay to gain high speed in booting , opening program and etc .

The default RAM is PC1600 DDR3 it is labelled PC12800 on the RAM module itself (i.e. high performance RAM). If you got an additional 4 gb PC1333, then just download CPU-Z and see if that Apacer module will run on the same timing as the PC1600, if not, then get one that will.

I got the one with the styles and orange edge, it's the Nvidia GT650M model. Yours is probably the GT640LE. No offense bro, but the benchmark performance difference between those 2 cards are quite big (around 40%).

just change new mobo n proc
they still give me 640m variant
sien=_=|||

Thanks, will check on CPU-Z.

Actually mine's with the orange edge with all the pattern on the cover. Its the GT650m model with 500gb and freedos. Frankly i would prefer the plain brushed metal design though

lenovo youcam always hangs when i change the setting any help?

Now that you mention it, I do prefer the plain brushed metal design too

this laptop is damn gooding
me happy

May I know does the Y480 comes with de-dusting function?

nope. I didn't see thermal management software

good day im newbie here just bought Y480 500G yesterday....wat need to do lOL

---

Added on July 19, 2012, 12:05 pmjust install with 4G ram.....1300..i hope is fine LOL

This post has been edited by apau88: Jul 19 2012, 12:05 PM

lol, better pull out the 1300, your system will make system breakdown at worst, slowdown at best.
use the same clock ,1600mhz ram for system speed and stability

Remember to register your brand new Y480 to enjoy 1 yr or 2 yrs limited warranty.

This page only provides base warranty registration for the below products:
Notebooks : IdeaPad notebook and selected Lenovo 3000 notebook
Desktops : IdeaCentre desktop and selected Lenovo 3000 desktop

http://support.lenovo.com/en_MY/product-se...arrantyReg.page?

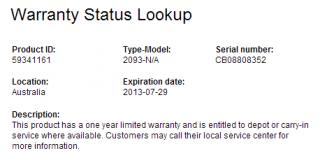

Check warranty status:
http://support.lenovo.com/en_MY/product-se...us/default.page?

how come my warranty status only stated tat 1 years warranty and not 2 years? coz while i purchase it was state from the seller. i'm using gt640m le version with free dos....

is there only 1 color option for y480 gt650m?

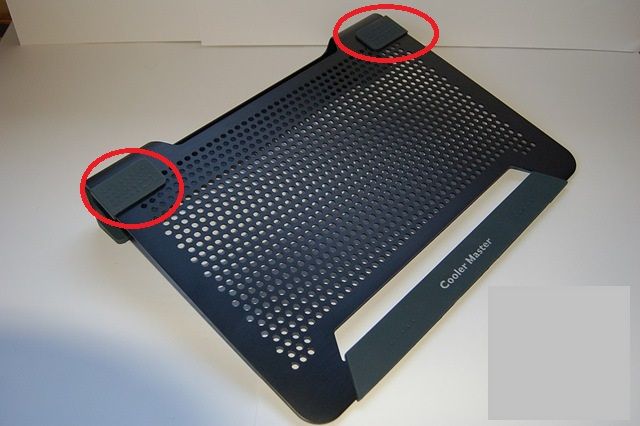

also,anyone using cooler master notepal u2/u3?

yes only the orange color stip with pattern on top is gt650m the other brushed metal is gt640m le.... get a U2 is far enough for it and i'm using it. U2 is great

how is the design for y480? 2 fan enough?
Anyway,what is the temperature after using the u2?

u need to recheck back with the seller

depends on your working enviro. if in air cond. place. will be fine. look at the review on 1st page to see actual temp. status.

This post has been edited by dirsly: Jul 20 2012, 05:43 AM

omg... the 650m is the one with orange lining? i thought it was the older version. I prefer the brushed metal though. Looks sleek.

that mean it will not RAM 1300 will affect performance?if i pull it out affect warranty or not?

---

Added on July 20, 2012, 10:30 amwhat ur suggestion to get 1600 RAM?the brand and type...
will search ASAP

This post has been edited by apau88: Jul 20 2012, 10:30 AM

cslance,
Once online registered, I believe it will update to 2 yrs limited warranty. A member in cari forum did mention that, e-mail the receipt to Lenovo to update the warranty status.

This post has been edited by ldragon: Jul 20 2012, 10:57 AM

how? do u have the email address to email to?

I also asking the same question. I did the online registration. Now waiting for the warranty details update.

This post has been edited by ldragon: Jul 20 2012, 11:17 AM

IS THE WINDOW RATING IS AFFECTED IF WE USE 1300 RAM?HOW TOCHECK

anyone play diablo III with 480 640mLE version ? i need ask some question

i have diablo3 in my lenovo650....but not mplay due to no license key...how to get it

u buy it lol,anyone found that the 5400 rpm hdisk get hot after game play?

every hdd do get hot even after you boot up your lappy lol~

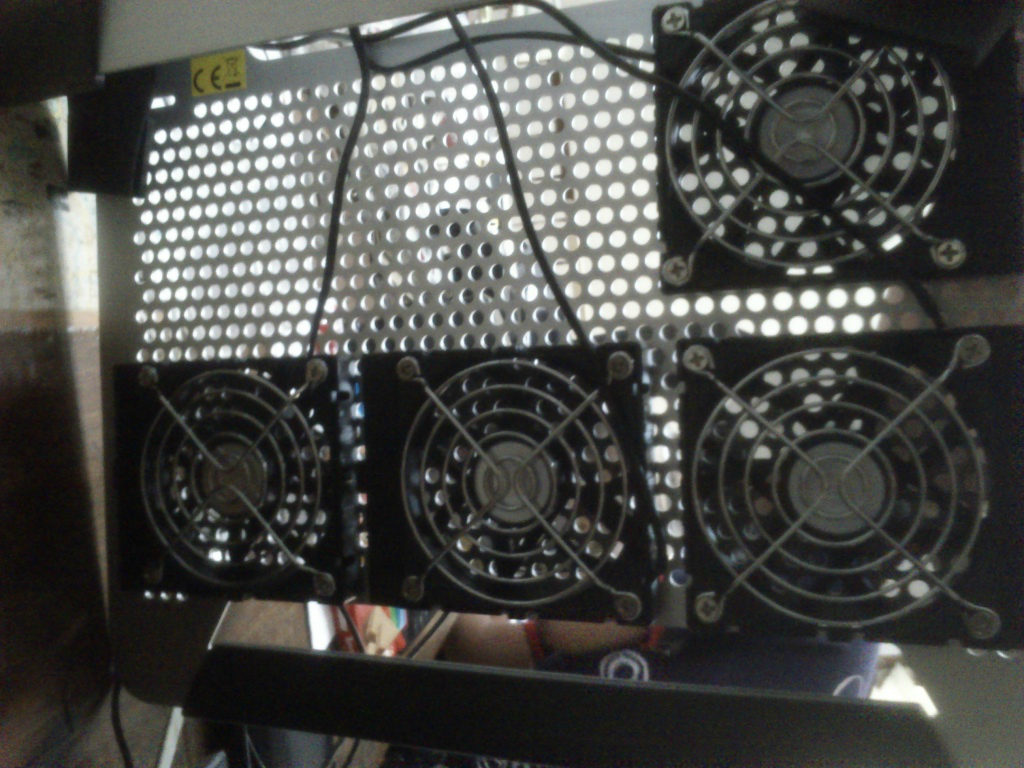

if you mean hotter than usual temp, just buy a cooling pad.. I heard several issues about y480 heating(i7)

how much the license key for diablo 3?...wan to try out la...get cooler pad la.....master cooler

ya confirm is HDD heat issue
i remove the stupid sticker stick with the hdd casing
it solve the problem now
as least now it's cooler
36 celcius
when game 52 celcius

previously was disaster

WEI a bit low on aero and gaming (not a real world issue)
6.8 for both..but alienware r2 on average 7.1

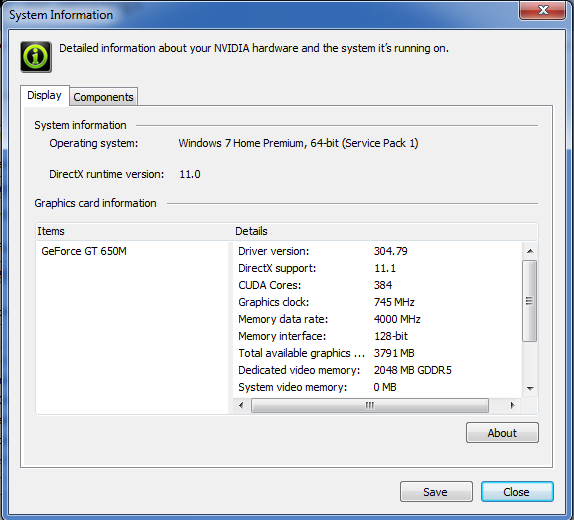

using verde beta 304.79

not bad for the cheapest ivy bridge i7 with 650gt


Attached thumbnail(s)

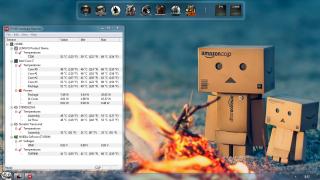

how to check the temperature?software?plzzz help me...

hwmonitor..coretemp..speccy
just to name a few

what 3dmark06 score u all get?
mine is 9622

are u on 640 le?
on 650 default will get 14k plus
on lenovo dynamic setting will get slightly above 15k
on overclock 850 and 1300 will get u pass 16k

Just order my y480 will get it on saturday.. Did u guys install any lenovo software?

only one key theatre and lenovo energy management
use nvidia verde 304.79 beta driver and use toshiba intel hd 4000 driver

Where to download the toshiba intel hd 4000? Why toshiba?

http://www.general-files.com/download/gs59...53100D.exe.html

no idea..cant remember which forum i bump in..recomended this driver
anyway no harm trying

download from intel site

Hi folks,
for those who want to buy a brand new Y480, please take a look at my thread. the supplier told me the price will go up by rm100 next week due to currency change. This unit comes with upgrade to 3 yrs onsite warranty. Pm me to get best deal. many Thanks

https://forum.lowyat.net/topic/2445505

This post has been edited by distributor: Jul 28 2012, 08:25 PM

anyone know price of mini ssd 60gb?? i want use it for cache on y480

ur HD temperature how much?
normla condition already 47
when gamin it's 65 already
anytime made the system unstable
how to check if this is normal???

i m only get P2372 on my laptop. Using ori lenovo nvidia driver and single 4gb ram only?

What other tweak or upgrade u done bro ?

About the same scores as my Sony(BIOS MOD).

But yours can be OC more.

Use MSI Afterburner and increase the core clock to get the same scores as upmost systems.

yep..actually u can push the core up to 880...
need a bios mode or throttle stop to pass 880

Just bought it yesterday with Windows 7 Home Premium licence and they free me 2GB RAM upgrade(although I have 4GB extra RAM and just change to 8GB RAM myself), bought at RM2779(I'm back to my hometown bought and they sell Windows licence price a bit higher, RM280. Luckily they got free 2GB RAM if not I'll nego...lol)
I can say it's very powerful laptop and battery life is very impressive.
The Windows Index Score:
Processor: 7.5(without startup software it can be 7.6)
RAM: 7.6
Graphic: 7.2
Gaming Graphic: 7.2
HDD: 5.9
And this laptop also can maintain in low temp(At least my laptop is lower temp than my friend's Asus N56)
BTW any Beta Driver already release for GT650M?

---

Added on July 30, 2012, 5:53 pmBut actually now I'm wasting my default 4GB 1600MHz RAM coz just now I only realized it come with 4GB 1600MHz RAM, and I installed 4GB 1333MHz RAM, so now it running 8GB with 1333MHz only...==

This post has been edited by sss2sssss: Jul 30 2012, 05:53 PM

hi all, im interested to get this laptop also.

mind to share with me hows the quality of the LCD screen? is it good compare with Dell Inspiron 14 SE?

the JBL speaker is nice and screen is bright imho

looks good, but is this considered a gaming laptop?

or the gc is good enough to run any new games?

Near to gaming laptop already
Battlefield 3 running smooth enough(Full screen, vertical sync on, graphic auto coz just now I lazy to set)
World of Tank in very high graphic setting still can perform 20-40fps, but I recommend to set to high graphic setting(rise to 30-50fps)

yeah i thought so, i tot tis cant be a full gaming laptop if it doesnt full size keyboard type xD

But is awesome with these spec and price la....XD

yeah...agreed...the spec and price very

BTW now I installed the 304.79 Beta Driver, although performance for game increase, but why Windows Index Score for Gaming Graphic decrease to 6.7?

This post has been edited by sss2sssss: Jul 31 2012, 09:29 PM

install back the official lenovo driver..it move back t0 7.1

But I think is NVIDIA rescale the score, just now also install on Inspiron 15R(GT525M), and that laptop Gaming graphic score drop to 6.4...
I think I might be no move back since gaming fps rices many
(in World of Tank graphic high setting it can be 30-60fps, in very high it can also 20-60fps)

what sticker?

Is there any time frame to register the extra one year warranty from lenovo? How do i register for the warranty?

Any local y480 will get 2 years warranty. Unless stated from shop. If u got only 1 year warranty, that means ur item is not from local.
Check warranty status on 1st page.. Ignore the laptop box information mate.
