 [Alignment Guide/General Discussion], How to interpret wheel alignment number?

views

TSzeng
post Jan 1 2021, 05:02 PM, updated 2y ago

Regular
******
Senior Member
1,760 posts

Joined: May 2008
Happy New Year 2021 to all folks on lowyat.net .....

Attached Image
Avanza 2007 Odo 315K km

Is the wheel alignment results good or bad ?

and Why ?

Database summary :
....................................................................................................................................................

BMW
a )F82/F83 2015-2020 BMW M4 Coupe 20 inch Wheel (Modified Specification);

Peugeot
a )Dongfeng Peugeot 1.6L, 2.0L ;

Toyota
a )Avanza F601/F602 (2003 - 2012) 1.3L 1.5L :
Ver 1.0
Camber -> Minimum -0° 15' , Maximum +1° 15' , Preferred +0° 30' ;

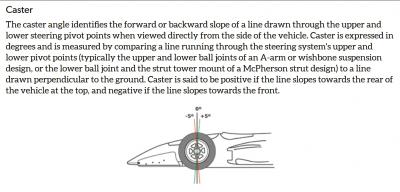

Caster - > Minimum +3° 35' , Maximum +5° 35' , Preferred +4° 35' ;

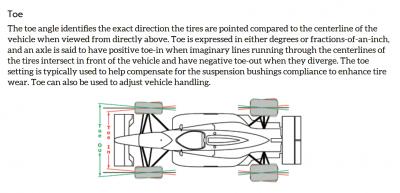

Toe - > Minimum -0° 05' , Maximum +0° 05' , Preferred 0° 00' .

Ver 2.0 (Post #66)

....................................................................................................................................................
Attached Image

Attached Image

Attached Image

Attached Image



Hope to gather alignment limits recommended by models of various vehicle manufacturers and user experience feedback and troubleshooting ........ along the way .

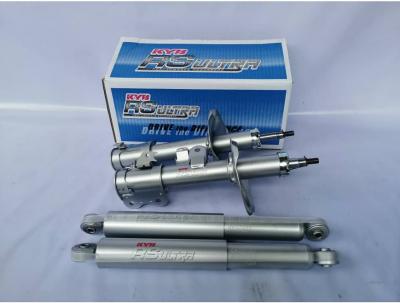

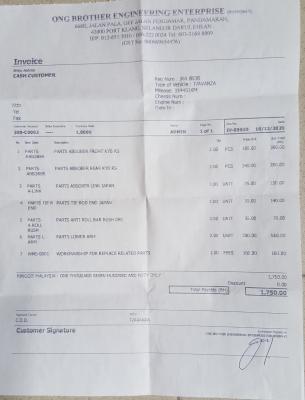

Note:This wheel alignment was done after completing replacement of parts like all 4 shock absorbers , lower arm assembly set,tie rod end set,stabilizer link set and anti-roll bar bush set from the Front and lateral control bar bush set from the Rear as detailed below .....
» Click to show Spoiler - click again to hide... «


This post has been edited by zeng: Mar 7 2022, 10:27 PM
TSzeng
post Jan 1 2021, 05:04 PM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
What is wheel alignment ?

https://www.google.com/search?client=firefo...l+alignment+%3F

...... and hope to gather articles and links related to wheel alignment in this one thread as sort of one-stop-centre for ease of searching for required alignment angles specifications and clarifying doubts and questions from users ..........

Database of wheel alignment Shops, good or bad I'm not sure.

SELANGOR

Balakong:.............. a )Ah Man Tyre Centre (ML) Sdn Bhd; (1)

Jalan Klang Lama:.. a) Kee Hin;

Jalan Loke Yew ..... a)M. B. Liew Tyres Sdn Bhd;

Kajang: ................ a) Ho Tang Kee;

Klang: ...................a) Tyreplus -SL Car Care, Klang

Puchong:................a)Ah Man Tyre Service Centre S/B (BK5);(1), (2);

Setapak:................a)Autovest Service Centre (Shell);(1);

USJ/Subang Jaya.... a) Kim Heng;

............................

JOHORE

Kempas JB ............ a) Jetsinn Tyre Auto Service Centre; (1);

................................

N SEMBILAN

Seremban: .............a) Speed City Tyre & Trading Sdn Bhd, Jln Tok Ungku, Seremban

Links

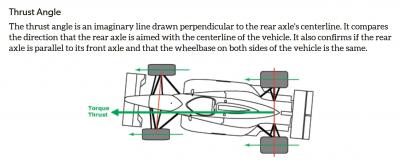

>Alignment - 3 types:-a ) 4-wheel Alignment;b ) Thrust Line/ Thrust Angle Alignment and;c ) Front Wheel Alignment
What Every Motorist Should Know About Wheel Alignment
by www.aa1car.com
>Conicity: Brand new tyre with Tyre Conicity defect
Diagnosing Tire Pull
by www.tirerack.com
>Over-steer and Under-steer problems and its adjustments
Aftermarket modifications and adjustments
by en.wikipedia.org(Automobile handling)
>"Pull"
>Wear, Heal and Toe Wear
by www.y-yokohama.com



Youtube
1 )Procedures And Steps To Perform A Wheel Alignment
by Michael Fleming
2a )Wheel Alignment Tutorial (Part 2) Toe-in ? or Toe-out ?
by YS Khong Driving
2b )Wheel Alignment Tutorial (Pt. 3) Camber Adjustment - Positive or Negative?
by YS Khong Driving
3 )Suspension System Functions & Components
by Kansow Vehicle Engineering
4 )Suspension Geometry - Part 1(Camber, Toe, Caster, KPI, Scrub Radius)
by XF Motorsports [Courtesy of dwRK]
5 )Physics of Racing
by Andre Marziali [Courtesy of dwRK]
6 )How to adjust toe in, toe out of rear tyres of BMW E90-E93
by Auto Repair Guys
7 )Car without rear shocks
by 1SECOND
8 )How Diferrent Types of Suspension System Works? Explained in Details
by The Engineers Post
9 ) How does the Steering Wheel automatically returns to its centre?
by Lesics

Parts
Hyundai, Tucson 2010 Front Suspension pictorials;
1 )Shims, Rear Camber
2 )Eccentric bolts, Rear Camber Arm and Rear Toe Arm BMW E90-E93

This post has been edited by zeng: Jan 2 2023, 08:48 PM
Zot
post Jan 1 2021, 05:13 PM

Look at all my stars!!
*******
Senior Member
7,591 posts

Joined: Mar 2014
This will explain most if not all


TSzeng
post Jan 1 2021, 05:24 PM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
Thank you for rectifying , Zot .

This post has been edited by zeng: Jan 1 2021, 05:31 PM
speedy3210
post Jan 2 2021, 10:09 AM

Casual
***
Junior Member
451 posts

Joined: May 2006
Bro zeng...... IMHO manufacturer's spec is the baseline setting for one's car, and it serves as a baseline for one to follow. I personally will not follow it that much.

All my cars deviate a bit from the manufacturer spec. If following these specs, my daily driven kancil, wira elantra etc handle like shit, tyres wear off very unevenly and extra road noise too.
TSzeng
post Jan 2 2021, 10:56 AM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(speedy3210 @ Jan 2 2021, 10:09 AM)
Bro zeng...... IMHO manufacturer's spec is the baseline setting for one's car, and it serves as a baseline for one to follow. I personally will not follow it that much.

All my cars deviate a bit from the manufacturer spec. If following these specs, my daily driven kancil, wira elantra etc handle like shit, tyres wear off very unevenly and extra road noise too.
*
Agree with your approach and line of thought that avoids treating OEM guidelines/recommendations like god , some of the times , vis-a-vis circumstances and/or personal preference/requirement .
I'm not shouting out loud as yet ,for now, in an outright manner about possibly 2 'potential' shortcomings in the alignment screenshot above , one about actual alignment angle result/reading and another one OEM specs/limits ?
This is so to prompt the readers' sharp and keen eyes to sense/detect the 2 'potential' shortcomings (in my personal view) .
For all we know, there could be some other deficiencies in the alignment screenshot , who knows ?

This post has been edited by zeng: Jan 2 2021, 11:00 AM
6UE5T
post Jan 2 2021, 10:57 AM

Regular
******
Senior Member
1,704 posts

Joined: Sep 2012
Your camber is still ok eventhough the left is somehow a bit positive but no big issue because it's still very small.

Caster no measurements there.

Toe is perfect at 0.
TSzeng
post Jan 2 2021, 11:40 AM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(6UE5T @ Jan 2 2021, 10:57 AM)
Your camber is still ok eventhough the left is somehow a bit positive but no big issue because it's still very small.

Caster no measurements there.

Toe is perfect at 0.
*
6UEST , you're absolutely right in your assessment .

However, one of the two things I don't sense 'right' (or raising some of my doubt) was about achieved angle readings in Camber .

Yes LF camber positive 0°15' and RF negative 0°15'(at border of limits) are both complying with specs .

Besides , the Cross Camber (LF minus RF) of positive 0°30' also is complying with specs .

However , the LF positive Camber in combination with RF negative Camber may or may not promote pulling left .

Considering our road crown is higher on the RHS slanting downwards towards the LHS of the road , this may further promote pulling left , or it may not ?

True enough after about a week of driving with the alignment angles , the vehicle quite consistently is pulling left on straight highway driving .

Further , it is annoying to me that this alignment job was incomplete as pointed out by you whereby the Caster angle was not measured and displayed ......
which may or may not help to explain the pulling left .

Agree with you on toe readings , which are quite desirable .

For now, I'm a bit 'suspicious' on one aspect of the spec limits displayed though Toyota should have done extensive tests/research to come up with this limits .....
TSzeng
post Jan 2 2021, 12:41 PM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
Procedures And Steps To Perform A Wheel Alignment
by Michael Fleming

Front Axle adjustment and 4-wheel Adjustment .
According to Ford Training Module : Sequence of angle adjustment is :
1 ) (Rear Axle) Camber ; >
2 ) (Rear Axle) Toe ; >
3 ) (Front Axle) Caster or Camber ; > ....... ( Question :Should Caster adjustment be given priority here? )
4 ) (Front Axle) Camber or Caster ,whichever one depending on (3) above ; >
5 ) (Front Axle)Toe . Done .


13:38

This post has been edited by zeng: Jan 20 2021, 10:46 AM
dwRK
post Jan 2 2021, 03:04 PM

the consummate chartist
*******
Senior Member
5,114 posts

Joined: Jun 2006


QUOTE(zeng @ Jan 2 2021, 11:40 AM)
6UEST , you're absolutely right in your assessment .

However, one of the two things I don't sense 'right' (or raising some of my doubt) was about achieved angle readings in Camber .

Yes LF camber positive 0°15' and RF negative 0°15'(at border of limits) are both complying with specs .

Besides , the Cross Camber (LF minus RF) of positive 0°30' also is complying with specs .

However , the LF positive Camber in combination with RF negative Camber may or may not promote pulling left .

Considering our road crown is higher on the RHS slanting downwards towards the LHS of the road , this may further promote pulling left , or it may not ?

True enough after about a week of driving with the alignment angles , the vehicle quite consistently is pulling left on straight highway driving .

Further , it is annoying to me that this alignment job was incomplete as pointed out by you whereby the  Caster angle was not measured and displayed ......
which may or may not help to explain the pulling left .

Agree with you on toe readings , which are quite desirable .

For now, I'm a bit 'suspicious' on one aspect of the spec limits displayed though Toyota should have done extensive tests/research to come up with this limits .....
*
nobody measures caster... it cannot be adjusted normally... it's only a problem if involved in a big accident

pulling left or right can be tyre related...I changed 4 new tyres, alignment done, but car pull to left...swap tyre left to right solved the problem

pulling one side can also be torque-steer problem...this affects both acceleration and to a degree deceleration

imho your alignment too neutral... easy to drift, not stable at high speed...ok for urban driving... the marginal non symmetric camber is not a problem

btw... didn't you post somewhere last time that you are not a fan of tyre alignment and rotation? anyways not important...
6UE5T
post Jan 2 2021, 04:45 PM

Regular
******
Senior Member
1,704 posts

Joined: Sep 2012
QUOTE(zeng @ Jan 2 2021, 11:40 AM)
6UEST , you're absolutely right in your assessment .

However, one of the two things I don't sense 'right' (or raising some of my doubt) was about achieved angle readings in Camber .

Yes LF camber positive 0°15' and RF negative 0°15'(at border of limits) are both complying with specs .

Besides , the Cross Camber (LF minus RF) of positive 0°30' also is complying with specs .

However , the LF positive Camber in combination with RF negative Camber may or may not promote pulling left .

Considering our road crown is higher on the RHS slanting downwards towards the LHS of the road , this may further promote pulling left , or it may not ?

True enough after about a week of driving with the alignment angles , the vehicle quite consistently is pulling left on straight highway driving .

Further , it is annoying to me that this alignment job was incomplete as pointed out by you whereby the  Caster angle was not measured and displayed ......
which may or may not help to explain the pulling left .

Agree with you on toe readings , which are quite desirable .

For now, I'm a bit 'suspicious' on one aspect of the spec limits displayed though Toyota should have done extensive tests/research to come up with this limits .....
*
Yes, the positive camber is not ideal. To adjust back to negative you need to get the camber screw.

Caster is rarely measured coz anyway not adjustable unless you use coilovers with pillow ball top mounts.
TSzeng
post Jan 3 2021, 09:31 PM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(6UE5T @ Jan 2 2021, 04:45 PM)
Yes, the positive camber is not ideal. To adjust back to negative you need to get the camber screw.

Caster is rarely measured coz anyway not adjustable unless you use coilovers with pillow ball top mounts.
*
Sorry Bro just to update here , before the current alignment job the Avanza already had the camber bolts on both Front sides installed . I only paid for labour only at RM30 , in Seremban though .

I suspect this set of camber bolt may have been installed 3.5 years ago when 2 front tyres were replaced new together with an alignment job then . Subsequent to that is the current alignment job we are deliberating today .

Agree with your position on positive Front camber as being not ideal , for on-road applications like my Avanza .

Here is some background and I would appreciate your patience :

1 )For the past one year or so , I have been feeling on cornering right at speed that the steering wheel was rather unsteady/unease/unstable on approaching highway toll booth on exits , not realising something maybe wrong with my (probably highly positive) Left Front camber etc ;

2 )Realising there were some minor heel and toe wear on both front tyres ,made a visit to my mechanic who recommends replacement of sets of Front shock absorbers/lower arms/absorber links/tie rod ends and anti-roll bar bushes and Rear absorber sets .
This 'repair' job makes taking right side cornering even worst than before.
Hence scheduling this alignment job .

3 )This current alignment result of Left Front camber of +ve 0° 15' is much better than before 'repair' on cornering into right side , although the steering wheel was still a bit unsteady/not firm at faster speed .

4 )However, the Right Front camber of -ve 0° 15' gave me very firm and steady steering (which I like it) on making cornering into left on high speed .......
hence my current rumblings on the 'less than ideal' alignment readings , despite within specs and of green colour .

5 )Of course pulling left on straight highway driving further compound my annoyance of less steady cornering into RHS.

Thanks I would do some read up on coilovers with pillow ball top mounts . Any or what difference it has with a camber plate ?

This post has been edited by zeng: Jan 3 2021, 09:36 PM
6UE5T
post Jan 3 2021, 10:18 PM

Regular
******
Senior Member
1,704 posts

Joined: Sep 2012
QUOTE(zeng @ Jan 3 2021, 09:31 PM)
Sorry Bro just to update here , before the current alignment job the Avanza already had the camber bolts on both Front sides installed  . I only paid for labour only at RM30 , in Seremban though .

I suspect this set of camber bolt may have been installed 3.5 years ago when 2 front tyres were replaced new together with an alignment job then . Subsequent to that is the current alignment job we are deliberating today .

Agree with your position on positive Front camber as being not ideal , for on-road applications like my Avanza .

Here is some background and I would appreciate your patience :

1 )For the past one year or so , I have been feeling on cornering right at speed that the steering wheel was rather unsteady/unease/unstable  on approaching highway toll booth on exits , not realising something maybe wrong with my (probably highly positive) Left Front camber etc ;

2 )Realising there were some minor heel and toe wear on both front tyres ,made a visit to my mechanic who recommends replacement of sets of Front shock absorbers/lower arms/absorber links/tie rod ends and anti-roll bar bushes and Rear absorber sets .
This 'repair' job makes  taking right side cornering even worst than before.
Hence scheduling this alignment job .

3 )This current alignment result of Left Front camber of +ve 0° 15' is much better than before 'repair' on cornering into right side , although the steering wheel was still a bit unsteady/not firm at faster speed  .

4 )However, the Right Front camber of -ve 0° 15' gave me very firm and steady steering (which I like it) on making cornering into left on high speed .......
hence my current rumblings on the 'less than ideal' alignment readings , despite within specs and of green colour .

5 )Of course pulling left on straight highway driving further compound my annoyance of less steady cornering into RHS.

Thanks I would do some read up on coilovers with pillow ball top mounts . Any or what difference it has with a camber plate ?
*
If already got camber screw them just adjust it until not positive, no need pillow ball coil overs especially on Avanza. Camber plate only to set camber at a fix degree.
TSzeng
post Jan 4 2021, 11:11 AM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(dwRK @ Jan 2 2021, 03:04 PM)
nobody measures caster... it cannot be adjusted normally... it's only a problem if involved in a big accident

pulling left or right can be tyre related...I changed 4 new tyres, alignment done, but car pull to left...swap tyre left to right solved the problem

pulling one side can also be torque-steer problem...this affects both acceleration and to a degree deceleration

imho your alignment too neutral... easy to drift, not stable at high speed...ok for urban driving... the marginal non symmetric camber is not a problem

btw... didn't you post somewhere last time that you are not a fan of tyre alignment and rotation? anyways not important...
*
Yes @dwRK I used to consider myself as being not a fan of tyre alignment and rotation till todate .

Subsequent to my previous wheel alignment 3.5 years ago post front axle tyres replacements ,about a year later my mechanic did advise me to do another wheel alignment after changing some front suspension parts (not sure whether it is cheapo absorbers or absorber links etc ) .

However as typically , I did not follow through with the alignment advice as I felt vehicle handling/cornering was ok and fine .

This may help explain why about a year ago , I began feeling unsteady/unstable steering wheel during cornering into Right ...... probably caused by and related to out of spec alignment angles .

If not for the recent 'major' front suspension parts replacement and I was troubled by the real 'lousy' right turn cornering and pulling left , I wouldn't have visited this alignment shop .

As regards current alignment values as being too neutral .... easy to drift and unstable at high speed .......
I think you could be right about it including the marginal assymetric camber angles not being a problem .

Do you think an inappropriate or less than 'ideal' non-adjustable front caster angles could lead to my current 'complaints of annoyance' ??? .

I think you are right in suggesting the 3.5 year olds 'worn' front tyres could cause pulling to one side here ......

Unfortunately caster angles are not being checked and measured here , accepting the scenario that Caster angles on Avanza can't be adjusted .

On torque-steer / acceleration/deceleration , I would need to google to read up more about it and appreciate your highlighting of it .

Oh no ... the pulling left phenomenon that I tested occurs at straight ahead driving at a constant road speed of 80/90/110 km per hr , not really during acceleration/deceleration , if that matters .

Quantitatively , I would say my Avanza pulling left fully occupying/blocking neighbouring lane completely in about 6-8 seconds after hands off steering wheel whilst traveling at 90 km/hr .

This post has been edited by zeng: Jan 4 2021, 11:12 AM
speedy3210
post Jan 4 2021, 12:27 PM

Casual
***
Junior Member
451 posts

Joined: May 2006
Zeng...... off topic abit but still related to suspension. How's does your new KYB Ultra compare to the stock absorbers that were changed out? Stiffer?
dwRK
post Jan 4 2021, 12:35 PM

the consummate chartist
*******
Senior Member
5,114 posts

Joined: Jun 2006


QUOTE(zeng @ Jan 4 2021, 11:11 AM)
Yes @dwRK I used to consider myself as being not a fan of tyre alignment and rotation till todate .

Subsequent to my previous wheel alignment 3.5 years ago post front axle tyres replacements ,about a year later my mechanic did advise me to do another wheel alignment after changing some front suspension parts (not sure whether it is cheapo absorbers or absorber links etc ) .

However as typically , I did not follow through with the alignment advice as I felt vehicle handling/cornering was ok and fine .

This may help explain why about a year ago , I began feeling unsteady/unstable steering wheel during cornering into Right ...... probably caused by and related to out of spec alignment angles .

If not for the recent 'major' front suspension parts replacement and I was troubled by the real 'lousy' right turn cornering and pulling left , I wouldn't have visited this alignment shop .

As regards current alignment values as being too neutral .... easy to drift and unstable at high speed .......
I think you could be right about it including the marginal assymetric camber angles not being a problem .

Do you think an inappropriate or less than 'ideal' non-adjustable front caster angles could lead to my current 'complaints of annoyance' ???  .

I think you are right in suggesting the 3.5 year olds 'worn' front tyres could cause pulling to one side here ......

Unfortunately caster angles are not being checked and measured here , accepting the scenario that Caster angles on Avanza can't be adjusted .

On torque-steer / acceleration/deceleration  , I would need to google to read up more about it and appreciate your highlighting of it .

Oh no ... the pulling left phenomenon that I tested occurs at straight ahead driving at a constant road speed of 80/90/110 km per hr , not really during acceleration/deceleration , if that matters .

Quantitatively , I would say my Avanza pulling left fully occupying/blocking neighbouring lane completely in about 6-8 seconds after hands off steering wheel whilst traveling at 90 km/hr .
*
no worries mate... as long as we open to learning and get smarter...

don't worry about caster angle, by process of elimination...it wasn't a problem before wink.gif ...and it won't change unless car got banged up... caster angles affects steering feel and how the car gets back to center... this is not your problem

since you done major repair, i'd assume its not a mechanical issue anymore with lower arm, etc...

too neutral alignment means... suka suka drift left...suka suka drift right.... your's is pulling left all the time... so for now don't worry about alignment yet...

so the common problems are...1) tyre related, new tyre or old tyres can both cause the symptom due to conicity. 2) steering related, can be leaky internal o-ring, clogged channel or worn gears, causing imbalance L-R force making car pull left. 3) brake drag.

torque steer can occur at constant speed...its just exaggerated during hard accelerations...
TSzeng
post Jan 4 2021, 01:02 PM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(speedy3210 @ Jan 4 2021, 12:27 PM)
Zeng...... off topic abit but still related to suspension. How's does your new KYB Ultra compare to the stock absorbers that were changed out? Stiffer?
*
Oh yesss..... RS Ultra is a lot lot more stiffer than the cheapo units (brand , don't know) that was removed .
This Avanza is no longer the bouncy , harsh stiff like rock type suspension that I had come to accept for years .....
RS Ultra really drastically smoothened out the uncomfortable bouncing at fast ride over residential area road bumps/yellow paint linings near curve/traffic lights/junctions etc .
The ride now is more comfortable, stable and firm running over uneven road surface at speed ....
and gives a nice sense in driving experience , leading me to have higher expectations on cornering stability/steadiness in fast speed cornering ........
it is now a joy and nice feeling in taking fast corners , where -ve camber angle setup matters a lot .
This RS Ultra is good recommendation I picked from the Avanza car club on lowyat , and I strongly recommend it to all first gen Avanza owners here .
Not sure whether it works equally well in 2nd gen Avanzas or other vehicle models .

Note:My mechanic commented that RS Ultra diameters are much bigger/coarser than the out going units and he demonstrated to me its strong resistance of forceful push against absorber 'piston' vs the old units showing vast differences between them .

Attached Image

This post has been edited by zeng: Jan 4 2021, 01:58 PM
TSzeng
post Jan 7 2021, 10:53 AM

Regular
******
Senior Member
1,760 posts

Joined: May 2008
QUOTE(zeng @ Jan 2 2021, 11:40 AM)
For now, I'm a bit 'suspicious' on one aspect of the spec limits displayed though Toyota should have done extensive tests/research to come up with this limits .....
*
The OEM camber spec of Mininum is -ve 0° 15' , and its Maximum is +ve 1° 15' as per Post #1 .

Now the second 'potential' shortcomings I was suspicious about is the OEM preferred Camber angle of +ve 0° 30' ±0° 45' ....
where tops of tyre are tilted away from vehicle centreline when view from car front or rear .

This IMO , will result in far more unsteady/unstable steering wheel during (fast/hard) cornering into right or left hand sides . Of course it may be fine with slow cornering though .

With a lesser/smaller LF camber of +ve 0° 15' right now ,I can already feel or sense the lack of firmness of steering wheel movement which I felt uncomfortable with at fast cornering . I can't imagine how unsteady would be the steering wheel movement with OEM spec'ed camber of +ve 0° 30' in taking fast corners ?

Why would Toyota specify such 'big' +ve camber in 2007 Avanza 1.3 L ?
Is Avanza 1.5L or of different gen specify same 'big' +ve camber ?

Hope any readers here with other mini MPV/SUV of brands like Nissan, VW, BMW,Honda Toyota etc would upload their wheel alignment screenshots for comparison and further elaboration .

This post has been edited by zeng: Jan 7 2021, 10:54 AM
dwRK
post Jan 7 2021, 03:50 PM

the consummate chartist
*******
Senior Member
5,114 posts

Joined: Jun 2006


we experienced petrolhead just worked with the alignment guys to set to whatever our fancy... no need rely on machine database

new tyres camber sometimes -1.5 to have some high g fun... old tyres -0.5 to even out wear
speedy3210
post Jan 7 2021, 09:11 PM

Casual
***
Junior Member
451 posts

Joined: May 2006
QUOTE(zeng @ Jan 7 2021, 10:53 AM)

Why would Toyota specify such 'big' +ve camber in 2007 Avanza 1.3 L ?
Is Avanza 1.5L or of different gen specify same 'big' +ve camber ?

*
Not driving an Avanza, but rented 1 b4 in Langkawi tongue.gif As debcribed by you above, its suspensionsetup can be quite harsh when empty/1person. Much quite comfortable when fully loaded (was loaded with 3 fatsos +2 midgets)

I guess it was due the long-ish suspension travel of the front setup on the car, since this is supposed to be a people and/or goods mover.

As McPherson suspension swings up, you gain negative camber due to the geometry movement. Maybe Toyota wants to keep their reputation by limiting -ve camber gain and thus saving its users "unnecessary" tyre wear, when the car is moderately loaded (most probable engineer's goal).

In your case, maybe you were driving alone most of the time. So maybe dats why you feel the suspension setup is shitty.

9 Pages  1 2 3 > » Top


Change to:
| Lo-Fi Version
0.0169sec    0.56    6 queries    GZIP Disabled
Time is now: 29th March 2024 - 12:26 AM
