 NVIDIA® GeForce® 8800 GT, Official Overclocking Discussions...

views

TStAmp0i
post Nov 1 2007, 04:54 PM, updated 19y ago

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
user posted image

The NVIDIA(R) GeForce(R) 8800 GT has the perfect combination of power, performance, and price. It offers 112 stream processors, and a 256-bit frame buffer for jealousy-inducing DirectX 10 gameplay at ultra fast frame rates.

Packed with more features for the price
With 112 stream processors and a 256-bit framebuffer interface running at 900MHz, GeForce 8800 GT delivers a level of price/performance that gamers demand.

Support for next generation PC platforms
Compatible with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow's most bandwidth-hungry games and 3D applications.

user posted image

Here we have our official overclocking discussions ranging from minor heat issue to major hard mods. It's all here, have your say and good luck in venturing into high clocks for either gaming or 3DMarks....

Drivers:Utility:3DMarks:BIOS: Core/Shader/MemoryVoltage Mods:
    Addendum:
    QUOTE
    - stock vGPU voltages for this card are 1.05v (2D idle) and 1.10v (3D load)
    - stock vMEM voltage for Qimonda GDDR3 (HYB18H512321BF-10) is 1.80v ±5%
    - 1kΩ (or higher) variable resistor can be used for the vGPU mod in order to maintain the minimum voltage close to stock. A 500Ω VR will force the vGPU slightly higher than stock vGPU even when the VR is tuned for the lowest vGPU = maximum resistance.
    - vGPU pencil mod turned out to be virtually impossible
    - usage of a multimeter is strongly recommended

    Diagram: (Image courtesy XS)
    user posted image
    Purple dot denotes vGPU measuring points, Blue dot denotes Ground...

    Example:
    user posted image
    Done by Hyde`fK @ Lowyat.NET

    user posted image
    Done by rlhc17 @ Lowyat.NET


This post has been edited by tAmp0i: Nov 26 2007, 02:00 PM
yvliew
post Nov 1 2007, 05:05 PM

Listening to IU - Strawberry Moon
*******
Senior Member
3,918 posts

Joined: Nov 2004
QUOTE(tAmp0i @ Nov 1 2007, 04:54 PM)
user posted image

The NVIDIA(R) GeForce(R) 8800 GT has the perfect combination of power, performance, and price. It offers 112 stream processors, and a 256-bit frame buffer for jealousy-inducing DirectX 10 gameplay at ultra fast frame rates.

Packed with more features for the price
With 112 stream processors and a 256-bit framebuffer interface running at 900MHz, GeForce 8800 GT delivers a level of price/performance that gamers demand.

Support for next generation PC platforms
Compatible with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow's most bandwidth-hungry games and 3D applications.

user posted image

Here we have our official overclocking discussions ranging from minor heat issue to major hard mods. It's all here, have your say and good luck in venturing into high clocks for either gaming or 3DMarks....
*
that day i saw my friend's fren install it in his comp.. run 3dmark06 over 9000+ points~ woot....
sempronic
post Nov 1 2007, 05:27 PM

Enthusiast
*****
Senior Member
986 posts

Joined: Jul 2006
From: :: infront the steering ::
wahh???
already start this topic ar???? cry.gif cry.gif
yseng
post Nov 1 2007, 05:34 PM

New Member
*
Junior Member
14 posts

Joined: Nov 2004
Thinking of getting one oso. Wat is the best price LW offering arr?
rlhc17
post Nov 1 2007, 06:22 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
NiBiTor v3.5a : bios reader & modder for those who want his stock 8800gt to be become oc or super oc edition

http://www.mvktech.net/component/option,co...0cbe7f40bdbff5/

This post has been edited by rlhc17: Nov 1 2007, 06:27 PM
StratOS
post Nov 1 2007, 06:41 PM

Berries~ Mmmm~
*********
All Stars
20,901 posts

Joined: Jan 2003
From: Miri, Sarawak
im still kinda noob in OC, but i got my card from strongbaby by XFX.. maybe tomolo reach.. might wanna try learn to OC.. XD..
gengstapo
post Nov 1 2007, 08:08 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
another killer tread in making tongue.gif

i cant see any 88ooGT pimp their screenie yet.. sweat.gif
ben_panced
post Nov 1 2007, 09:55 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(gengstapo @ Nov 1 2007, 08:08 PM)
another killer tread in making tongue.gif

i cant see any 88ooGT pimp their screenie yet..  sweat.gif
*
yala becoz there's a shortage of 88gt, heck i even asked the computer shop everyday for 88gt and they still say that they dun even have the price yet... tongue.gif
SlayerXT
post Nov 1 2007, 10:27 PM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
How bout XFX, MSI and Gigabyte 8800GT owner? post ya oc result brows.gif
AceCombat
post Nov 2 2007, 12:53 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
Palit benchmark is out.

Palit OC and benchmark
IcEMoCHa
post Nov 2 2007, 07:05 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
The fans look so small... lol.. XFX 1 bigger fan... MSI 1 got higher specs... Its better than 8800GTS 640MB...

This post has been edited by IcEMoCHa: Nov 2 2007, 07:06 PM
NightRaven
post Nov 3 2007, 06:18 AM

Getting Started
**
Junior Member
122 posts

Joined: Aug 2007
From: Singapore/Melaka
did this some time back

user posted image
gengstapo
post Nov 3 2007, 06:23 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(NightRaven @ Nov 3 2007, 06:18 AM)
did this some time back

[img]
*
yaww man, is that single or SLi??

single izzit? smile.gif
NightRaven
post Nov 3 2007, 06:23 AM

Getting Started
**
Junior Member
122 posts

Joined: Aug 2007
From: Singapore/Melaka
yea single. going to see if can fit my dice pot plus find vmods.
LExus65
post Nov 3 2007, 10:47 AM

Old Gezzer.....
******
Senior Member
1,995 posts

Joined: May 2005
i like to sli benchmark too.......the cheap price make it very attractive to build a sli rig based on 8800GT....
IcEMoCHa
post Nov 3 2007, 10:57 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Can OC till so high?... 731/2150 What brand ?
coolice
post Nov 3 2007, 11:12 AM

Team OCD!
******
Senior Member
1,857 posts

Joined: Sep 2004
From: ocdrift.com
QUOTE(IcEMoCHa @ Nov 3 2007, 10:57 AM)
Can OC till so high?... 731/2150  What brand ?
*
IINM..he is using MSI
AceCombat
post Nov 3 2007, 02:07 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
bro nightraven,if u have a quad oc-ed,the score will be skyrocketing !!!

u using stock cooler?
IcEMoCHa
post Nov 3 2007, 05:23 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
I dun think stock cooler can oc till so high..
cstkl1
post Nov 3 2007, 05:29 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
dude got ppl in XS with water cooled SSC running 800/2000/2000
kekeke

mr. night just used a dual orb...

hmm yeah saw his scores in vr.. nuts..

even more nuts is his quads on his ultras now on all over lyn benchmark tables

This post has been edited by cstkl1: Nov 3 2007, 05:30 PM
gengstapo
post Nov 3 2007, 07:10 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(cstkl1 @ Nov 3 2007, 05:29 PM)
dude got ppl in XS with water cooled SSC running 800/2000/2000
kekeke

mr. night just used a dual orb...

hmm yeah saw his scores in vr.. nuts..

even more nuts is his quads on his ultras now on all over lyn benchmark tables
*
hahaa.. we waiting for u to beat his(raven) scores..

kamon'.. shows urs smile.gif
AceCombat
post Nov 3 2007, 10:37 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
QUOTE(cstkl1 @ Nov 3 2007, 05:29 PM)
dude got ppl in XS with water cooled SSC running 800/2000/2000
kekeke

mr. night just used a dual orb...

hmm yeah saw his scores in vr.. nuts..

even more nuts is his quads on his ultras now on all over lyn benchmark tables
*
now i onyl i knwo he uses dualorb when running benchmark,the score is good,too bad i dont have any gc now or else i'll challenge again with stock cooler tongue.gif
IcEMoCHa
post Nov 3 2007, 11:13 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
eh?.. duorb good meh?.. whats the best? other than water cooled?
AceCombat
post Nov 3 2007, 11:33 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
u can try

HR-03
VF-1000CU
Fatality ZV9
Dual Orb

and one more from TR dont knwo what name liao.
cstkl1
post Nov 4 2007, 12:21 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
CPU: Intel E6850 @ 4.1Ghz
Mobo: Asus Maximus Formula
Rams: Team Xtreem PC2-6400 Cl3 2x1gb @ 1024 4-4-4-8 2T
Graphics Card: XFX 8800gt ADE @ 720/1836/1000
Driver: Official 169.04
Mods: Stock Cooling for GPU/ Coolit Freezone on the Proc

[attachmentid=323434][attachmentid=323435]

[attachmentid=323432][attachmentid=323433]
LExus65
post Nov 4 2007, 02:04 AM

Old Gezzer.....
******
Senior Member
1,995 posts

Joined: May 2005
Thermaltake dual orb do you guys meant ?? but i tot malaysia still dun have any stock ??
gengstapo
post Nov 4 2007, 01:43 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(cstkl1 @ Nov 4 2007, 12:21 AM)
CPU: Intel E6850 @ 4.1Ghz
Mobo: Asus Maximus Formula
Rams: Team Xtreem PC2-6400 Cl3 2x1gb @ 1024 4-4-4-8 2T
Graphics Card: XFX 8800gt ADE @ 720/1836/1000
Driver: Official 169.04
Mods: Stock Cooling for GPU/ Coolit Freezone on the Proc

» Click to show Spoiler - click again to hide... «
*
w0ot.. the AQ3 score kinda gila..

huhuu.. think wanna get 1 for myself tongue.gif
rlhc17
post Nov 4 2007, 02:32 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
My NV8800GT fitted with TR HR-O3 (ex-ATI 1950XTX cooler) biggrin.gif

user posted image

user posted image

This post has been edited by rlhc17: Nov 4 2007, 02:34 PM
gengstapo
post Nov 4 2007, 02:47 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(rlhc17 @ Nov 4 2007, 02:32 PM)
My NV8800GT fitted with TR HR-O3 (ex-ATI 1950XTX cooler) biggrin.gif

» Click to show Spoiler - click again to hide... «

*
walao damn.. kewL man
how the temp goes?

this setup u dont want to sell ka? laugh.gif
cstkl1
post Nov 4 2007, 05:06 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
will be taking a trip to slm to get some HR03 Gt variation

thats the hR03... less pipes.. smaller fins.
IcEMoCHa
post Nov 4 2007, 05:33 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
which brand better? MSI ? XFX? GIGABYTE? ASUS?
cstkl1
post Nov 4 2007, 05:37 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
my choice normally
Asus
second by XFX/Leadtek ( they came out later..damn)
for local

Gigabyte and MSI.. u need to shoot me
but for stock clocks and performance MSI definitely...

Added on November 4, 2007, 5:37 pmhmm so many ppl got the 8800gt but nobody posting results??? here??

This post has been edited by cstkl1: Nov 4 2007, 05:37 PM
IcEMoCHa
post Nov 4 2007, 05:45 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Umm.. which brand stock cooler runs cooler/can OC higher? And why asus? asus more expensive leh...

This post has been edited by IcEMoCHa: Nov 4 2007, 05:59 PM
rlhc17
post Nov 4 2007, 06:36 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(gengstapo @ Nov 4 2007, 02:47 PM)
walao damn.. kewL man
how the temp goes?

this setup u dont want to sell ka? laugh.gif
*
full load now with hr-03 ~50c

haha....u wtb ka!

my Galaxy 8800gt stock clock ady flashed to EVGA 8800GT SSC edition bios 700mhz core/1750mhz shader/2000mhz mem rclxms.gif

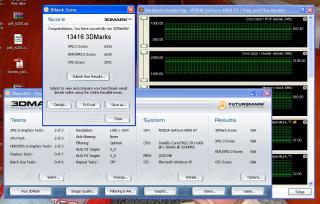

3dmark06 result :

user posted image

This post has been edited by rlhc17: Nov 4 2007, 06:38 PM
IcEMoCHa
post Nov 4 2007, 07:48 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
eh? can flash kah?... dude ur fsb:dram is 5:6 lol..... wtf... 4447Mhz...

Added on November 4, 2007, 8:12 pmIm thinking of getting a zalman vf1000 cooler... But dunno where to get... Eh those tapes to stick the heatsink on the ram where to get?

This post has been edited by IcEMoCHa: Nov 4 2007, 08:12 PM
rlhc17
post Nov 4 2007, 08:48 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
[quote=IcEMoCHa,Nov 4 2007, 07:48 PM]
eh? can flash kah?... dude ur fsb:dram is 5:6 lol..... wtf... 4447Mhz...

running 3.950ghz only
IcEMoCHa
post Nov 4 2007, 09:59 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Eh Galaxy 8800gt comes with zalman cooler?
gengstapo
post Nov 4 2007, 10:09 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(rlhc17 @ Nov 4 2007, 06:36 PM)
full load now with hr-03 ~50c

haha....u wtb ka!

my Galaxy 8800gt stock clock ady flashed to EVGA 8800GT SSC edition bios 700mhz core/1750mhz shader/2000mhz mem rclxms.gif

3dmark06 result :

[image]
*
holy cow.. ur score almost triple from my XTX

this maddnes, btw if u get bored with it, sell cheap2 to me.. sweat.gif doh.gif
dopp
post Nov 4 2007, 11:24 PM

Regular
******
Senior Member
1,733 posts

Joined: Jan 2003
From: Penang
i think use nvflash 5.50 with this bios http://www.xtremesystems.org/forums/attach...40&d=1193983369 ?
rlhc17
post Nov 4 2007, 11:43 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
nvFlash 5.57 : http://www.mvktech.net/component/option,co...1b4f0a1b1869aa/
Hyde`fK
post Nov 4 2007, 11:47 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Raymond, what's your vGPU for 760Mhz core?
irenic
post Nov 5 2007, 01:44 AM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya

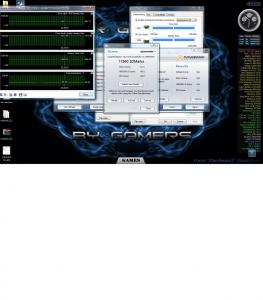

just ran a quick 3dmark06 test comparing between default 2900XT 1gb and default 8800GT with c2d @ 3ghz

system specs:

Attached Image

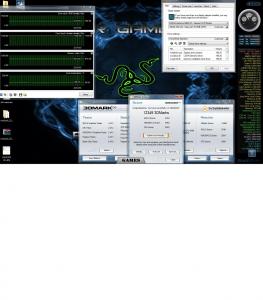

result:

Attached Image
gengstapo
post Nov 5 2007, 02:07 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(irenic @ Nov 5 2007, 01:44 AM)
just ran a quick 3dmark06 test comparing between default 2900XT 1gb and default 8800GT with c2d @ 3ghz

system specs:

» Click to show Spoiler - click again to hide... «

*
hahaa.. l0oks like cheaper 88ooGT almost like 29ooXT performance

wonder how bout real time gaming?

superb performance over price ratio

This post has been edited by gengstapo: Nov 5 2007, 02:07 AM
rlhc17
post Nov 5 2007, 10:32 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 4 2007, 11:47 PM)
Raymond, what's your vGPU for 760Mhz core?
*
stock vcore no mod nod.gif
Hyde`fK
post Nov 5 2007, 10:44 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
QUOTE(rlhc17 @ Nov 5 2007, 10:32 AM)
stock vcore no mod nod.gif
*
Your stock is what? 1.05v or 1.1v?
IcEMoCHa
post Nov 5 2007, 10:55 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
oO... no mod also so power?...
rlhc17
post Nov 5 2007, 10:56 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 5 2007, 10:44 AM)
Your stock is what? 1.05v or 1.1v?
*
not sure leh.........
check like this ka !


Attached thumbnail(s)
Attached Image
Hyde`fK
post Nov 5 2007, 11:01 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Quite nice ler to able to reach 760Mhz core.
IcEMoCHa
post Nov 5 2007, 11:12 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
whats the stock temperature?
rlhc17
post Nov 5 2007, 11:28 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 5 2007, 11:01 AM)
Quite nice ler to able to reach 760Mhz core.
*
with TR HR-03 only, stock can't sad.gif

QUOTE(IcEMoCHa @ Nov 5 2007, 11:12 AM)
whats the stock temperature?
*


Attached thumbnail(s)
Attached Image
Pepperboy
post Nov 5 2007, 11:37 AM

Getting Started
**
Junior Member
148 posts

Joined: Feb 2005
Hello all... going to receive my Leadtek 8800GT soon biggrin.gif biggrin.gif ... just wanna ask...

I'm a newbie at overclocking graphic cards, so what do u fellas use to overclock ur 8800GT? Which software is used? Or flash BIOS better? Cos I heard some ppl say the latest 169.04 drivers don't allow RivaTuner to overclock...

This post has been edited by Pepperboy: Nov 5 2007, 11:38 AM
TStAmp0i
post Nov 5 2007, 12:39 PM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(Pepperboy @ Nov 5 2007, 11:37 AM)
Hello all... going to receive my Leadtek 8800GT soon biggrin.gif biggrin.gif ... just wanna ask...

I'm a newbie at overclocking graphic cards, so what do u fellas use to overclock ur 8800GT? Which software is used? Or flash BIOS better? Cos I heard some ppl say the latest 169.04 drivers don't allow RivaTuner to overclock...
*
RivaTuner is your best friend, ATItool for artifact scanning...
kiong
post Nov 5 2007, 03:40 PM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
QUOTE(cstkl1 @ Nov 4 2007, 05:37 PM)
my choice normally
Asus
second by XFX/Leadtek ( they came out later..damn)
for local

Gigabyte and MSI.. u need to shoot me
but for stock clocks and performance MSI definitely...

Added on November 4, 2007, 5:37 pmhmm so many ppl got the 8800gt but  nobody posting results??? here??
*
i dono u guys notice smt bout vga card or not, all the 1st batch vga card from ati or nvidia, all brand are same...
cstkl1
post Nov 5 2007, 03:55 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(kiong @ Nov 5 2007, 03:40 PM)
i dono u guys notice smt bout vga card or not, all the 1st batch vga card from ati or nvidia, all brand are same...
*
u meant reference cards

nope this time around alot off overclocked versions came out
and with different bios versions

like the SSC's,Asus TOP, Zotac mems are running at 2.0v

also their timings are a bit different after i checked a few bios.
AceCombat
post Nov 5 2007, 04:43 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
so now,if we get a 8800GT,what to do first in order to hit high speed?

flash bios?change hsf?vmod?
IcEMoCHa
post Nov 5 2007, 05:53 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(rlhc17 @ Nov 5 2007, 11:28 AM)
with TR HR-03 only, stock can't sad.gif
*
Full load leh? what temp? flex.gif

Added on November 5, 2007, 5:53 pmWait... thats full load... wth? 45C at stock at full load? with HR-03 ?

Added on November 5, 2007, 10:45 pmBtw dx10.1 coming out next year january..

This post has been edited by IcEMoCHa: Nov 5 2007, 10:45 PM
irenic
post Nov 6 2007, 10:05 AM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
after playing with my friend's card for 2 days.. i think like buying this card.. huhu.. wanna go to lowyat today.. so guys, any suggestion on what brand to choose in terms of price vs performance?
gengstapo
post Nov 6 2007, 10:07 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
get the 1 like rlhc17

can flash with xfx OC version BIOS
IcEMoCHa
post Nov 6 2007, 10:16 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Asus is good...
rlhc17
post Nov 6 2007, 10:27 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(irenic @ Nov 6 2007, 10:05 AM)
after playing with my friend's card for 2 days.. i think like buying this card.. huhu.. wanna go to lowyat today.. so guys, any suggestion on what brand to choose in terms of price vs performance?
*
hahaha.......get mine loh....... smile.gif
IcEMoCHa
post Nov 6 2007, 10:39 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
But dx10.1 coming out next year... they say the graphics will be way nicer than dx10..
irenic
post Nov 6 2007, 12:37 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
QUOTE(gengstapo @ Nov 6 2007, 10:07 AM)
get the 1 like rlhc17

can flash with xfx OC version BIOS
*
thx for da suggestion.. so u meant galaxy?

QUOTE(IcEMoCHa @ Nov 6 2007, 10:16 AM)
Asus is good...
*
hmm..


QUOTE(rlhc17 @ Nov 6 2007, 10:27 AM)
hahaha.......get mine loh....... smile.gif
*
u mean get urs or get like urs.. hehe rolleyes.gif

QUOTE(IcEMoCHa @ Nov 6 2007, 10:39 AM)
But dx10.1 coming out next year... they say the graphics will be way nicer than dx10..
*
hehe nvr mind.. next year is another story.. it's hard to look so far in the future in this fast developing world..
cstkl1
post Nov 6 2007, 03:49 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(irenic @ Nov 6 2007, 10:05 AM)
after playing with my friend's card for 2 days.. i think like buying this card.. huhu.. wanna go to lowyat today.. so guys, any suggestion on what brand to choose in terms of price vs performance?
*
Asus TOP dude

definitely good

Asus dont do overclocking much on their cards
but they were king on the 8600gts...

this cards are 700/1750/2000 also...
Pepperboy
post Nov 6 2007, 06:28 PM

Getting Started
**
Junior Member
148 posts

Joined: Feb 2005
QUOTE(IcEMoCHa @ Nov 6 2007, 08:09 AM)
But dx10.1 coming out next year... they say the graphics will be way nicer than dx10..
*
Way nicer meh? I tot they say DX10.1 will just be an extension to DX10? Minor improvements over existing architecture + a few new features
irenic
post Nov 6 2007, 06:34 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
QUOTE(cstkl1 @ Nov 6 2007, 03:49 PM)
Asus TOP dude

definitely good

Asus dont do overclocking much on their cards
but they were king on the 8600gts...

this cards are 700/1750/2000 also...
*
hmm too bad i went out before i saw ur post.. i just grabbed 8800gt galaxy.. dunno how far it will go.. thinking of testing it with my x38 dq6.. but waiting for someone to lend me his ram haha
IcEMoCHa
post Nov 6 2007, 06:52 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Im getting the Asus... xD... Btw dx10 cards doesnt support dx10.1 features... Only cards like the upcoming ati 3800 can support dx10.1 features...
cstkl1
post Nov 6 2007, 09:47 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
heck screw dx10.1...
its just going to load the cards more
i will wait till DX10.1c or something like that until they perfected everything

still waiting for nvidia's promise that their DX10 cards performance will rival that of DX9

hmm galaxy

last time my 8800gtx galaxy clocked better than my asus..


This post has been edited by cstkl1: Nov 6 2007, 09:49 PM
IcEMoCHa
post Nov 7 2007, 07:30 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
oO... Galaxy better than asus?... =.=
cw_wang
post Nov 7 2007, 07:34 AM

6 Star Player
******
Senior Member
1,045 posts

Joined: Sep 2004
AHahahahah GALAXY.....makes me remember of Milky Star.
remeron
post Nov 7 2007, 11:48 AM

Casual
***
Junior Member
339 posts

Joined: Oct 2006
I've been playing with my XFX for a few days now..
still trying to get good clocks..

anyway, i have a few questions though...
i've tried overclocking to 700/2000 on stock fan running at 100% with open case and load temp at 63C (i left my air cond on full blast with full blast fan...hehe) and started artifacting at 1 hour.

Question is, does artifacting mean i've screwed my card? (I'm worried about screwing my card as it's new). I bumped it down to stock and ran atitool and it was artifact free for 6 hours.

how do i know my card is screwed?

another question is, where in heck can i get the HR-03 GT? is it even out yet?
se7enhafiz
post Nov 7 2007, 12:12 PM

Getting Started
**
Junior Member
155 posts

Joined: Sep 2007
m using asus..but dun have time to test it out.
irenic
post Nov 7 2007, 12:26 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
i just put the 8800gt with my x38 dq6 for the first time.. i cant really test this card coz i think the board is quite sucky.. i cant oc at all.. BSOD everywhere.. sad.gif

QUOTE(IcEMoCHa @ Nov 7 2007, 07:30 AM)
oO... Galaxy better than asus?... =.=
*
well honestly i think it all depends on luck.. coz all using reference board with i'm suppose non hand pick core..

but the difference might be in the bios itself, some using higher clock with higher voltage, or some might opt to use tighter timing to give better results..

dats why last time my forsa 8800gtx can oc very high like other top brand card with extra rm150 price biggrin.gif

This post has been edited by irenic: Nov 7 2007, 12:28 PM
cstkl1
post Nov 7 2007, 01:15 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(IcEMoCHa @ Nov 7 2007, 07:30 AM)
oO... Galaxy better than asus?... =.=
*
hmm dunno just that there was once that my galaxy 8800gtx could clock higher than my asus 8800gtx...

maybe just one off incident.

only thing i can say about galaxy.. packaging thumbup.gif thumbup.gif
wodenus
post Nov 7 2007, 02:36 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(Pepperboy @ Nov 5 2007, 11:37 AM)
Hello all... going to receive my Leadtek 8800GT soon biggrin.gif biggrin.gif ... just wanna ask...

I'm a newbie at overclocking graphic cards, so what do u fellas use to overclock ur 8800GT? Which software is used? Or flash BIOS better? Cos I heard some ppl say the latest 169.04 drivers don't allow RivaTuner to overclock...
*
That's bull.. 169.04 has broken ATiTool but RivaTuner still works smile.gif

Added on November 7, 2007, 2:41 pm
QUOTE(remeron @ Nov 7 2007, 11:48 AM)
I've been playing with my XFX for a few days now..
still trying to get good clocks..

anyway, i have a few questions though...
i've tried overclocking to 700/2000 on stock fan running at 100% with open case and load temp at 63C (i left my air cond on full blast with full blast fan...hehe) and started artifacting at 1 hour.

Question is, does artifacting mean i've screwed my card?  (I'm worried about screwing my card as it's new).  I bumped it down to stock and ran atitool and it was artifact free for 6 hours.

how do i know my card is screwed?

another question is, where in heck can i get the HR-03 GT?  is it even out yet?
*
The G8x/G9x core is very resilient.. it goes up to 115c (you can check with Nibitor) so it shouldn't be dying at 63c. Artifacting doesn't mean the card is gone. If it's gone, it won't boot. Or all the colors will be wrong. Even so it may just be a case of BIOS corruption, so reflashing the BIOS might save it.

This post has been edited by wodenus: Nov 7 2007, 05:44 PM
dark_evilz
post Nov 7 2007, 02:48 PM

Getting Started
**
Junior Member
241 posts

Joined: Oct 2006
From: KL
i'm using leadtek 88gt same as yours also...
n i'm using 169.04 drivers n OCed using rivatuner...
no problem at all....
IcEMoCHa
post Nov 7 2007, 08:01 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
The new Zotac OCed edition dam nice...
vailance
post Nov 7 2007, 11:24 PM

wat??
*****
Senior Member
841 posts

Joined: Feb 2005
From: Melaka>KL
QUOTE(cstkl1 @ Nov 6 2007, 03:49 PM)
Asus TOP dude

definitely good

Asus dont do overclocking much on their cards
but they were king on the 8600gts...

this cards are 700/1750/2000 also...
*
u tried Asus 88GT d? i just bought it today.. now installing driver for it.. 169.04 beta

wondering how much it can go .. i hope can get at least 700/2000 im happy with it.. icon_rolleyes.gif
mind to share some opinion on Asus 1?
vailance
post Nov 7 2007, 11:51 PM

wat??
*****
Senior Member
841 posts

Joined: Feb 2005
From: Melaka>KL
QUOTE(cstkl1 @ Nov 6 2007, 03:49 PM)
Asus TOP dude

definitely good

Asus dont do overclocking much on their cards
but they were king on the 8600gts...

this cards are 700/1750/2000 also...
*
u tried Asus 88GT d? i just bought it today.. now installing driver for it.. 169.04 beta

wondering how much it can go .. i hope can get at least 700/2000 im happy with it.. icon_rolleyes.gif
mind to share some opinion on Asus 1?

Edit: Run 3dmark06, still not satisfied with the points shocking.gif .. wondering is it my proc bottleneck... rclxub.gif


Attached thumbnail(s)
Attached Image
IcEMoCHa
post Nov 8 2007, 12:02 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
I'm getting ASUS also ... share with me ur results ya?... u using stock cooler?...
vailance
post Nov 8 2007, 12:38 AM

wat??
*****
Senior Member
841 posts

Joined: Feb 2005
From: Melaka>KL
stock cooler.. idle 56c @ 70% fan speed
load at 80c +/-
stock clock also..
having prob with my pc.. dunno why pc sudden freeze.. then cant boot d.. the only way is unclock all my cpu/ram.. lolz.. gila mobo
gengstapo
post Nov 8 2007, 08:04 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(vailance @ Nov 8 2007, 12:38 AM)
stock cooler.. idle 56c @ 70% fan speed
load at 80c +/-
stock clock also..
having prob with my pc.. dunno why pc sudden freeze.. then cant boot d.. the only way is unclock all my cpu/ram.. lolz.. gila mobo
*
mebi some board infected with a conflict with this newly 88ooGT
have too check the BIOS

i remeber quite sometimes ago got ppl here unable to clock their rig coz the board having a conflict with GFx(73ooGT iirc), after update BIOS only can work smile.gif
IcEMoCHa
post Nov 8 2007, 08:48 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
lol... Maybe ur RAM/CPU too high?... Or not enough power?
gengstapo
post Nov 8 2007, 10:46 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
to all 88ooGT owner, i need feedback here..

how bout gaming at 1920x1200 with high details.. performance ok ka?
got lag or not?
kianwee
post Nov 8 2007, 10:55 AM

Cube
*******
Senior Member
6,562 posts

Joined: Jan 2003
QUOTE(gengstapo @ Nov 8 2007, 10:46 AM)
to all 88ooGT owner, i need feedback here..

how bout gaming at 1920x1200 with high details.. performance ok ka?
got lag or not?
*
I have some problems with games like Crysis at that resolution. Others, so far are fine.
gengstapo
post Nov 8 2007, 10:59 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(kianwee @ Nov 8 2007, 10:55 AM)
I have some problems with games like Crysis at that resolution. Others, so far are fine.
*
ahh ic..
what kinda pr0bs was that?
SUSHaiXuan
post Nov 8 2007, 03:14 PM

Getting Started
**
Junior Member
141 posts

Joined: Jul 2007
From: Wangsa Maju,Kuala Lumpur
Thinking of getting one oso. Wat is the best price LW offering arr?
vailance
post Nov 8 2007, 04:09 PM

wat??
*****
Senior Member
841 posts

Joined: Feb 2005
From: Melaka>KL
not sure.. after using 8800GT, my pc dam hard to oc d.. cpu and borth bridge need to set lots higher voltage in order to boot.. weird.. guess need to wait a bios update for my mobo.. i think it takes quite sometime .. no choice, no oc ATM..
today morning wake up check 65% fan speed idle at 53c..
IcEMoCHa
post Nov 8 2007, 05:37 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Maybe not enuff power?.. 8800gt eats alot of power..
irenic
post Nov 8 2007, 08:04 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
finally manage to oc my pc.. deng..

galaxy 8800gt @ default
e2140 @ 3ghz blush.gif
2gb mushkin value ram @ 900mhz 5-5-5-15

Attached Image
IcEMoCHa
post Nov 8 2007, 09:26 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
oo... thats the highest the gc can go?... ur vcore seems quite high... Mine is 3.4GHz(9x378) @ 1.34v...
ahpaul82
post Nov 8 2007, 10:18 PM

.:äżťç˝—:.
*******
Senior Member
3,795 posts

Joined: Jan 2003
From: .: Old Klang Road :.
QUOTE(rlhc17 @ Nov 4 2007, 06:36 PM)
full load now with hr-03 ~50c

haha....u wtb ka!

my Galaxy 8800gt stock clock ady flashed to EVGA 8800GT SSC edition bios 700mhz core/1750mhz shader/2000mhz mem rclxms.gif

3dmark06 result :

» Click to show Spoiler - click again to hide... «
Walau yeh !
your score damn crazy ... shocking.gif sweat.gif
no wonder didn't come visit me lar laugh.gif
wodenus
post Nov 8 2007, 10:24 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(irenic @ Nov 8 2007, 08:04 PM)
finally manage to oc my pc.. deng..

galaxy 8800gt @ default
e2140 @ 3ghz  blush.gif
2gb mushkin value ram @ 900mhz 5-5-5-15

Attached Image
*
Actually 800 at 4-4-4-12 is faster than 900 at 5-5-5-15. You only have a 375MHz bus, why would you need 900 MHz RAM ? smile.gif

From http://www.thetechrepository.com/showthread.php?t=195 :

Latency at 900 Mhz CAS 5 = (5*2000)/900 = 11.11 ns

Latency at 800 MHz CAS 4 = (4*2000)/800 = 10 ns


So if you want to optimize the 375 MHz bus you should run the RAM at 800 MHz 4-4-4-12.



This post has been edited by wodenus: Nov 8 2007, 10:29 PM
TStAmp0i
post Nov 9 2007, 01:19 AM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

Attached Image

Attached Image

This post has been edited by tAmp0i: Nov 9 2007, 01:20 AM
wodenus
post Nov 9 2007, 01:53 AM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(tAmp0i @ Nov 9 2007, 01:19 AM)
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

Attached Image

Attached Image
*
It's glued on ? smile.gif

This post has been edited by wodenus: Nov 9 2007, 12:11 PM
rlhc17
post Nov 9 2007, 02:05 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(tAmp0i @ Nov 9 2007, 01:19 AM)
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

Attached Image

Attached Image
*
Wah......nice gfx hsf
no wonder don't wan join me la
haha...
irenic
post Nov 9 2007, 04:17 AM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
QUOTE(IcEMoCHa @ Nov 8 2007, 09:26 PM)
oo... thats the highest the gc can go?... ur vcore seems quite high... Mine is 3.4GHz(9x378) @ 1.34v...
*
u r asking whether thats the highest gc can go while i clearly stated the 8800gt @ default tongue.gif ceh haha

erm the vcore i didnt set manually in bios, just leave it in normal mode.. bcoz act this cpu can run 3ghz @ default vcore..but maybe the board automatically adjust the vcore.. doh.gif
IcEMoCHa
post Nov 9 2007, 10:23 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(irenic @ Nov 9 2007, 04:17 AM)
u r asking whether thats the highest gc can go while i clearly stated the 8800gt @ default tongue.gif ceh haha

erm the vcore i didnt set manually in bios, just leave it in normal mode.. bcoz act this cpu can run 3ghz @ default vcore..but maybe the board automatically adjust the vcore..  doh.gif
*
doh.gif ... Blur <-- ohmy.gif .. Anyway whats the highest u can OC the gc with stock cooler?

Added on November 9, 2007, 10:26 am
QUOTE(tAmp0i @ Nov 9 2007, 01:19 AM)
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

Attached Image

Attached Image
*
Later the whole heatsink drop... I laugh... LOL tongue.gif

This post has been edited by IcEMoCHa: Nov 9 2007, 10:26 AM
TStAmp0i
post Nov 9 2007, 11:26 AM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(wodenus @ Nov 9 2007, 01:53 AM)
LOL... does it really fit ? smile.gif
*
Yupe, making good contact too...

QUOTE(rlhc17 @ Nov 9 2007, 02:05 AM)
Wah......nice gfx hsf
no wonder don't wan join me la
haha...
*
Hehe bro i poor mah so have to do budget cooling... sweat.gif

QUOTE(IcEMoCHa @ Nov 9 2007, 10:23 AM)
doh.gif ... Blur <--  ohmy.gif  .. Anyway whats the highest u can OC the gc with stock cooler?

Added on November 9, 2007, 10:26 am
Later the whole heatsink drop... I laugh... LOL  tongue.gif
*
Won't drop la, stay fit wink.gif
gengstapo
post Nov 9 2007, 11:39 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(tAmp0i @ Nov 9 2007, 01:19 AM)
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

» Click to show Spoiler - click again to hide... «

*
wahh nice mod there rclxms.gif

btw, its remind me my lastime Raddy X850XTPE which i use P3 HSf tongue.gif

This post has been edited by gengstapo: Nov 9 2007, 11:40 AM
StratOS
post Nov 9 2007, 11:40 AM

Berries~ Mmmm~
*********
All Stars
20,901 posts

Joined: Jan 2003
From: Miri, Sarawak
QUOTE(tAmp0i @ Nov 9 2007, 01:19 AM)
My Athlon stock heatsink on 8800GT, full load 52°C smile.gif

Attached Image

Attached Image
*
wow.. stock athlon heatsink as cooler.. laugh.gif mine still on stock cooler..
wodenus
post Nov 9 2007, 12:12 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(tAmp0i @ Nov 9 2007, 11:26 AM)
Yupe, making good contact too...
Thermal adhesive ? smile.gif

This post has been edited by wodenus: Nov 9 2007, 12:13 PM
IcEMoCHa
post Nov 9 2007, 12:13 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Nice man... How u get it to sit in?... Try modding C2D stock heatsink into it... Sure power .. biggrin.gif
wodenus
post Nov 9 2007, 12:14 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(IcEMoCHa @ Nov 9 2007, 12:13 PM)
Nice man... How u get it to sit in?... Try modding C2D stock heatsink into it... Sure power .. biggrin.gif
*
No space I think... C2D heatsink is round tongue.gif

This post has been edited by wodenus: Nov 9 2007, 12:16 PM
IcEMoCHa
post Nov 9 2007, 12:15 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Enough space la i think... make custom mounting can lor... tongue.gif
TStAmp0i
post Nov 9 2007, 12:34 PM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(wodenus @ Nov 9 2007, 12:12 PM)
Thermal adhesive ? smile.gif
*
With Arctic Cooling MX-2... Idle at 660/1620/1800 - 43°C
wodenus
post Nov 9 2007, 01:42 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(tAmp0i @ Nov 9 2007, 12:34 PM)
With Arctic Cooling MX-2... Idle at 660/1620/1800 - 43°C
*
How did you get it to stay attached ? smile.gif
irenic
post Nov 9 2007, 02:03 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
QUOTE(IcEMoCHa @ Nov 9 2007, 10:23 AM)
doh.gif ... Blur <--  ohmy.gif  .. Anyway whats the highest u can OC the gc with stock cooler?
*
havent try.. have to do it slowly coz kinda bz with sthing else.. sad.gif


QUOTE(gengstapo @ Nov 9 2007, 11:39 AM)
wahh nice mod there  rclxms.gif

btw, its remind me my lastime Raddy X850XTPE which i use P3 HSf tongue.gif
*
kewl~! last time my x850xt pe also used xp90 .. but at that time i didnt afraid at all coz using lian li v1000b.. so the heatsink wont fall down haha


QUOTE(wodenus @ Nov 9 2007, 01:42 PM)
How did you get it to stay attached ? smile.gif
*
not sure what tampoi used, but last time i used few cable ties..
wodenus
post Nov 9 2007, 02:08 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(irenic @ Nov 9 2007, 02:03 PM)
havent try.. have to do it slowly coz kinda bz with sthing else..  sad.gif
kewl~! last time my x850xt pe also used xp90 .. but at that time i didnt afraid at all coz using lian li v1000b.. so the heatsink wont fall down haha
not sure what tampoi used, but last time i used few cable ties..
*
Won't cable ties melt ? smile.gif
TStAmp0i
post Nov 9 2007, 02:21 PM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(wodenus @ Nov 9 2007, 01:42 PM)
How did you get it to stay attached ? smile.gif
*
Cable ties... Extreme money saver + high efficiency thumbup.gif
wodenus
post Nov 9 2007, 02:44 PM

Tree Octopus
********
All Stars
14,990 posts

Joined: Jan 2003
QUOTE(tAmp0i @ Nov 9 2007, 02:21 PM)
Cable ties... Extreme money saver + high efficiency  thumbup.gif
*
Interesting.. I always thought they would melt. Must try LOL smile.gif
irenic
post Nov 9 2007, 03:36 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
hehe cable tie is stronger than u imagine biggrin.gif
IcEMoCHa
post Nov 9 2007, 03:45 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Use screw lor.. make holes in the HSF lol..
gengstapo
post Nov 10 2007, 12:54 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(IcEMoCHa @ Nov 9 2007, 03:45 PM)
Use screw lor.. make holes in the HSF lol..
*
yep, that is my method for my x850xtpe(attached P3 HSf) lastime smile.gif
IcEMoCHa
post Nov 10 2007, 02:10 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
lolx... Try mounting C2D stock hsf... I wana see that happen... Since its 1 of the best stock Intel cooler... biggrin.gif
sukhoi37
post Nov 10 2007, 08:29 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
my MSI 8800GT with stock hsf 68% fan speed.

user posted image
likito
post Nov 10 2007, 08:43 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
QUOTE(sukhoi37 @ Nov 10 2007, 08:29 PM)
my MSI 8800GT with stock hsf 68% fan speed.

» Click to show Spoiler - click again to hide... «

*
wao! nice result , still can go furthur ?

This post has been edited by likito: Nov 10 2007, 08:43 PM
sukhoi37
post Nov 10 2007, 08:50 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
QUOTE(likito @ Nov 10 2007, 08:43 PM)
wao! nice result , still can go furthur ?
*
dare not to further cos the temperature is scary at this speed. sweat.gif
IcEMoCHa
post Nov 10 2007, 10:35 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
lolx.. dont worry la... this GPU can take temperature up to 120 degrees.. biggrin.gif
storm88
post Nov 11 2007, 02:52 PM

~UncleSam Ready to Rolls~
*******
Senior Member
5,595 posts

Joined: Jan 2003
From: Between Hell and Heaven
QUOTE(vailance @ Nov 8 2007, 01:38 AM)
stock cooler.. idle 56c @ 70% fan speed
load at 80c +/-
stock clock also..
having prob with my pc.. dunno why pc sudden freeze.. then cant boot d.. the only way is unclock all my cpu/ram.. lolz.. gila mobo
*
check ur psu dude

Added on November 11, 2007, 2:59 pmjus figure out
AC cooling's Accelero S2, with sunbeam Fan from Tuniq tower 120,
Zotac 88GT AMP (700/2000/1700) idle 41C, Load 49/50C

This post has been edited by storm88: Nov 11 2007, 02:59 PM
sukhoi37
post Nov 11 2007, 03:28 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
QUOTE(storm88 @ Nov 11 2007, 02:52 PM)
check ur psu dude

Added on November 11, 2007, 2:59 pmjus figure out
AC cooling's Accelero S2, with sunbeam Fan from Tuniq tower 120,
Zotac 88GT AMP (700/2000/1700) idle 41C, Load 49/50C
*
S2 can fit into 8800gt?
I thought only S1 can fit. blink.gif
IcEMoCHa
post Nov 11 2007, 09:13 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Waiting for HR-03GT review and compare it with HR-03 Plus price/cooling power...
sniper on the roof
post Nov 12 2007, 11:19 AM

20k VIP Club
Group Icon
VIP
23,414 posts

Joined: Jan 2003
From: Taipei
By the way, you guys better ease off on the mem overclock. It'll run but there's a possibility of sudden deaths.

Did some investigation and apparently this is a qimonda issue.
sotong168
post Nov 12 2007, 11:34 AM

in retiring mode
*******
Senior Member
5,291 posts

Joined: Dec 2004
From: I Luv Msia
QUOTE(IcEMoCHa @ Nov 11 2007, 09:13 PM)
Waiting for HR-03GT review and compare it with HR-03 Plus price/cooling power...
*
The HR-03 testing outcome was a disappointment according to this review (tested on R600 tho')

QUOTE(sniper on the roof @ Nov 12 2007, 11:19 AM)
By the way, you guys better ease off on the mem overclock. It'll run but there's a possibility of sudden deaths.

Did some investigation and apparently this is a qimonda issue.
*
sudden death, that is scary sweat.gif if the temp is still within acceptable range after oc, will this problem occur?

btw, aqua-computer releases water-cooler hsf designated for 8800gt (source)




Attached thumbnail(s)
Attached Image Attached Image Attached Image
sniper on the roof
post Nov 12 2007, 12:00 PM

20k VIP Club
Group Icon
VIP
23,414 posts

Joined: Jan 2003
From: Taipei
QUOTE(sotong168 @ Nov 12 2007, 11:34 AM)

sudden death, that is scary sweat.gif if the temp is still within acceptable range after oc, will this problem occur?

*
The thing's like this... I bought a stock o/c'ed MSI and its artifact free etc at the 660/1900 but after some multi hour session of bioshock, it will occasionally just craps out.. freeze there and then.

Anyhow, I initially thought it was the cooling.... so whack fans kau kau. Only doing less than 50C load and each ram chip temps are around 42-45C only.

To make the long story short..I checked with some friends in Nvidia and they said that its a mem issue... that's why so many boards on the market are DOA'ed and there's that sudden red artifact thingy.

Anyway..I reduced my mem to 1800 now. Core and shader can of course whack lar tongue.gif
IcEMoCHa
post Nov 12 2007, 12:46 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(sotong168 @ Nov 12 2007, 11:34 AM)
The HR-03 testing outcome was a disappointment according to this review (tested on R600 tho')
blink.gif HR-03 GT was a disappointment?..
sotong168
post Nov 12 2007, 02:41 PM

in retiring mode
*******
Senior Member
5,291 posts

Joined: Dec 2004
From: I Luv Msia
QUOTE(IcEMoCHa @ Nov 12 2007, 12:46 PM)
blink.gif  HR-03 GT was a disappointment?..
*
not the gt, it's HR-03 / R600 version
sotong168
post Nov 12 2007, 03:43 PM

in retiring mode
*******
Senior Member
5,291 posts

Joined: Dec 2004
From: I Luv Msia
found this (a vmod guide on 8800gt)

Make your nVidia Geforce 8800GT runs like a ULTRA...


Attached image(s)
Attached Image
IcEMoCHa
post Nov 12 2007, 04:00 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
crazy vmod O_o...
sukhoi37
post Nov 12 2007, 05:39 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
QUOTE(sniper on the roof @ Nov 12 2007, 12:00 PM)
The thing's like this... I bought a stock o/c'ed MSI and its artifact free etc at the 660/1900 but after some multi hour session of bioshock, it will occasionally just craps out.. freeze there and then.

Anyhow, I initially thought it was the cooling.... so whack fans kau kau. Only doing less than 50C load and each ram chip temps are around 42-45C only.

To make the long story short..I checked with some friends in Nvidia and they said that its a mem issue... that's why so many boards on the market are DOA'ed and there's that sudden red artifact thingy.

Anyway..I reduced my mem to 1800 now. Core and shader can of course whack lar tongue.gif
*
hmm...been using same card with 700/2000mhz speed for 7 days.
no problem so far except the hot temperature.
gonna clock mem down soon.
Hyde`fK
post Nov 12 2007, 08:28 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Qimonda, although it's 1ns, there're numerous report even review sites, that it can't substain 2000Mhz for daily usage, until it comes to irrepairable situation. So better clock down the memory speed. As for core, there's no problem running 7XX provided good cooling keeping the core cool.
kmarc
post Nov 13 2007, 05:12 AM

The future is here - Cryptocurrencies!
Group Icon
Elite
14,576 posts

Joined: May 2006
From: Sarawak
QUOTE(sniper on the roof @ Nov 12 2007, 12:00 PM)
The thing's like this... I bought a stock o/c'ed MSI and its artifact free etc at the 660/1900 but after some multi hour session of bioshock, it will occasionally just craps out.. freeze there and then.

Anyhow, I initially thought it was the cooling.... so whack fans kau kau. Only doing less than 50C load and each ram chip temps are around 42-45C only.

To make the long story short..I checked with some friends in Nvidia and they said that its a mem issue... that's why so many boards on the market are DOA'ed and there's that sudden red artifact thingy.

Anyway..I reduced my mem to 1800 now. Core and shader can of course whack lar tongue.gif
*
QUOTE(Hyde`fK @ Nov 12 2007, 08:28 PM)
Qimonda, although it's 1ns, there're numerous report even review sites, that it can't substain 2000Mhz for daily usage, until it comes to irrepairable situation. So better clock down the memory speed. As for core, there's no problem running 7XX provided good cooling keeping the core cool.
*
Does it affect the rams on the 8800GTS? Interested to know as I'm using the GTS......
Pepperboy
post Nov 13 2007, 01:12 PM

Getting Started
**
Junior Member
148 posts

Joined: Feb 2005
Using stock cooler how high can the 8800GT core clock go (in a normal casing)?
sukhoi37
post Nov 13 2007, 01:41 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
QUOTE(Pepperboy @ Nov 13 2007, 01:12 PM)
Using stock cooler how high can the 8800GT core clock go (in a normal casing)?
*
At least 700/1900 core and memory. smile.gif
Make sure the stock fan is always above 50% at this speed.
IcEMoCHa
post Nov 13 2007, 09:47 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Shud i wait for hr-03gt or get hr-03 plus?.. Cant make decision... Haha..
rlhc17
post Nov 13 2007, 10:40 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(IcEMoCHa @ Nov 13 2007, 09:47 PM)
Shud i wait for hr-03gt or get hr-03 plus?.. Cant make decision... Haha..
*
both also thumbup.gif
Pepperboy
post Nov 14 2007, 11:58 AM

Getting Started
**
Junior Member
148 posts

Joined: Feb 2005
QUOTE(sukhoi37 @ Nov 13 2007, 01:41 PM)
Make sure the stock fan is always above 50% at this speed.
*
I tot no need to worry bout fan speed cos got auto-regulation? How to control fan speed?
irenic
post Nov 14 2007, 12:14 PM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
u can use software like rivatuner..

not sure whether ntune got this option or not..
kiong
post Nov 15 2007, 12:05 AM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
argh... so temper to get 1 now..... cry.gif
Hyde`fK
post Nov 15 2007, 01:02 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Throw price for your 2900XT and grab one off the shop. You got order any for the shop or not?
kiong
post Nov 15 2007, 01:53 AM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
QUOTE(Hyde`fK @ Nov 15 2007, 01:02 AM)
Throw price for your 2900XT and grab one off the shop. You got order any for the shop or not?
*
yeah... sell few pcs ald...
Hyde`fK
post Nov 15 2007, 02:06 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Not bad wor. smile.gif
rlhc17
post Nov 15 2007, 04:08 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 15 2007, 01:02 AM)
Throw price for your 2900XT and grab one off the shop. You got order any for the shop or not?
*
bro........don't look down on 2900xt
picture quality still better than NV especially with AA enabled thumbup.gif
Try 1 urself than u'll know
Hyde`fK
post Nov 15 2007, 11:19 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
No mar, he want to get 8800GT, but have to sell off 2900XT only can get. Or wait for 8800GTS Rev. 2. brows.gif
kiong
post Nov 15 2007, 11:46 AM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
QUOTE(rlhc17 @ Nov 15 2007, 04:08 AM)
bro........don't look down on 2900xt
picture quality still better than NV especially with AA enabled thumbup.gif
Try 1 urself than u'll know
*
the card are okey just 1 thing i don like, very hottt... even with stock sped...
storm88
post Nov 15 2007, 12:28 PM

~UncleSam Ready to Rolls~
*******
Senior Member
5,595 posts

Joined: Jan 2003
From: Between Hell and Heaven
QUOTE(kiong @ Nov 15 2007, 12:46 PM)
the card are okey just 1 thing i don like, very hottt... even with stock sped...
*
ur 2900XT 512 expect to sell berapa?
if RM600 i grap tongue.gif
kiong
post Nov 15 2007, 02:08 PM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
QUOTE(storm88 @ Nov 15 2007, 12:28 PM)
ur 2900XT 512 expect to sell berapa?
if RM600 i grap tongue.gif
*
600.... shakehead.gif
likito
post Nov 15 2007, 05:31 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
offer 601 , i grap .. just joke
irenic
post Nov 16 2007, 01:12 AM

extr3me n3wbie
*******
Senior Member
7,338 posts

Joined: Jan 2003
From: Cybercity of Cyberjaya
yeah img / vids quality still 2900xt much better than 8800gt..

ati also has better driver for vista compare to nvidia..

the problem is 8800gt performance has damn good performance at such price makes the 2900xt becomes unwanted card..
IcEMoCHa
post Nov 17 2007, 11:28 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Performance vs quality ... Performance wins!... biggrin.gif
Hyde`fK
post Nov 20 2007, 04:38 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Mount Zalman Fatality ZV9 + Vantec Tornado 92mm @ 7v onto my XFX 8800GT Extreme. The original fan is faulty so using alternative fan cooling solution. Sorry for the rusty fan grill.

user posted image

Here's the temp on load. Around 49c-52c depends on ambient temp.

user posted image

Idle temp is around 42c.

This post has been edited by Hyde`fK: Nov 20 2007, 04:41 AM
SlayerXT
post Nov 20 2007, 08:50 AM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
Already faulty not even a month?..
Hyde`fK
post Nov 20 2007, 11:11 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Faulty cause of wrong wiring. Also cause my other hardwares faulty.
IcEMoCHa
post Nov 20 2007, 11:19 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Didn't know zalman fatality zv9 also not bad... I'm getting HR-03 GT... Trying to ask around for it... Still no people selling yet...
rlhc17
post Nov 20 2007, 05:05 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 20 2007, 04:38 AM)
Mount Zalman Fatality ZV9 + Vantec Tornado 92mm @ 7v onto my XFX 8800GT Extreme. The original fan is faulty so using alternative fan cooling solution. Sorry for the rusty fan grill.

user posted image

Here's the temp on load. Around 49c-52c depends on ambient temp.

user posted image

Idle temp is around 42c.
*
finally ur gfx is here thumbup.gif

wait i show u my vmod 1 drool.gif
gengstapo
post Nov 20 2007, 07:34 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(§layerXT @ Nov 20 2007, 08:50 AM)
Already faulty not even a month?..
*
etreme OC'er marr, no need wait until 1 month
few hour already enough time to broke it..


QUOTE(Hyde`fK @ Nov 20 2007, 11:11 AM)
Faulty cause of wrong wiring. Also cause my other hardwares faulty.
*
i believe u cant wait if send RAM aite?
that Y just go on mod the GFx cooler?
am i correct?? wink.gif
Hyde`fK
post Nov 20 2007, 08:00 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Nah, I screwed it up. It's 2nd hand, so doesn't matter anyway. The copper is more important.

This post has been edited by Hyde`fK: Nov 20 2007, 08:03 PM
SlayerXT
post Nov 21 2007, 01:18 AM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
Anyway, fan can just be modded or just send for rma. Show some 8800GT vmod lor. huhu
Hyde`fK
post Nov 21 2007, 01:49 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Just to clear some confusion, the fan I talking about it the ZV9 fan, not 8800GT 's fan.
storm88
post Nov 21 2007, 11:30 AM

~UncleSam Ready to Rolls~
*******
Senior Member
5,595 posts

Joined: Jan 2003
From: Between Hell and Heaven
i'm working on to build my own's water block for the 8800GT hehe
anybody want to be white rat later ?tongue.gif
Hyde`fK
post Nov 21 2007, 11:57 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Raymond, you got vmod your card already?

My card doesn't seems that good. Manage to get it stable @ 700/1728/1950. Can't go higher for core and shader clocks, will result in having artifact and freezing. sad.gif

This post has been edited by Hyde`fK: Nov 21 2007, 11:57 AM
rlhc17
post Nov 21 2007, 10:05 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 21 2007, 11:57 AM)
Raymond, you got vmod your card already?

My card doesn't seems that good. Manage to get it stable @ 700/1728/1950. Can't go higher for core and shader clocks, will result in having artifact and freezing. sad.gif
*
My Vmodded 88GT with 1.20vgpu idle & 1.25vgpu 3D

user posted image

user posted image

This post has been edited by rlhc17: Nov 21 2007, 10:10 PM
cstkl1
post Nov 21 2007, 10:13 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(rlhc17 @ Nov 21 2007, 10:05 PM)
My Vmodded 88GT with 1.20vgpu idle & 1.25vgpu 3D

user posted image

user posted image
*
artifact free?? screenshot??
Hyde`fK
post Nov 22 2007, 12:38 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
QUOTE(rlhc17 @ Nov 21 2007, 10:05 PM)
My Vmodded 88GT with 1.20vgpu idle & 1.25vgpu 3D

user posted image

user posted image
*
Nice mod there. Still thinking whether to mod mine or not. I flashed mine with 1.1v 3D, at least able to do 730 core stable.
rlhc17
post Nov 22 2007, 02:33 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 22 2007, 12:38 AM)
Nice mod there. Still thinking whether to mod mine or not. I flashed mine with 1.1v 3D, at least able to do 730 core stable.
*
bro...try flashed urs with EVGA SSC bios
mine OC slightly better with it thumbup.gif
Hyde`fK
post Nov 22 2007, 02:39 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Will try when free. smile.gif

Added on November 22, 2007, 2:11 pmRaymond, what's the resistance value to get >1.2v. Your initial reading is what ohm?

This post has been edited by Hyde`fK: Nov 22 2007, 02:11 PM
TStAmp0i
post Nov 22 2007, 07:16 PM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
BIOS flashed. Before 1.06V idle, 1.08V load... Now 1.11V idle, 1.14V load


Attached thumbnail(s)
Attached Image
IcEMoCHa
post Nov 22 2007, 09:35 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
wat r artifacts ar?... isit the black black flashing thing?...
-pWs-
post Nov 22 2007, 09:42 PM

Look at all my stars!!
Group Icon
Elite
8,545 posts

Joined: Aug 2006
From: 224.0.0.6
When artifacts occur, there will be errors.
For the above picture, the gc works stablely @ that overclocked speed. smile.gif

-pWs-
gengstapo
post Nov 22 2007, 11:28 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(rlhc17 @ Nov 21 2007, 10:05 PM)
My Vmodded 88GT with 1.20vgpu idle & 1.25vgpu 3D

» Click to show Spoiler - click again to hide... «

*
woahhh!! u really3 damn hard OC'er to ur GFz bro.. kudos thumbup.gif
rlhc17
post Nov 23 2007, 02:06 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(cstkl1 @ Nov 21 2007, 10:13 PM)
artifact free?? screenshot??
*
yup, confirmed actifact free
wan to mod urs kah ! drool.gif

QUOTE(Hyde`fK @ Nov 22 2007, 02:39 AM)
Will try when free. smile.gif

Added on November 22, 2007, 2:11 pmRaymond, what's the resistance value to get >1.2v. Your initial reading is what ohm?
*
i didn't measure the resistance only check the voltage as i turn the vr
AceCombat
post Nov 23 2007, 12:04 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
i also wanna mod but i have no experience in modding GC cry.gif
kmarc
post Nov 23 2007, 01:13 PM

The future is here - Cryptocurrencies!
Group Icon
Elite
14,576 posts

Joined: May 2006
From: Sarawak
QUOTE(AceCombat @ Nov 23 2007, 12:04 PM)
i also wanna mod but i have no experience in modding GC cry.gif
*
Oooooo..... previously say retire ady, now wanna mod.... tongue.gif
AceCombat
post Nov 23 2007, 01:36 PM


Group Icon
Elite
5,434 posts

Joined: Dec 2006
shhh.....dont say out la,most of them forgot already mah....
kiong
post Nov 23 2007, 06:01 PM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
i also wan 8800gt.... cry.gif ... any new chipset coming out?
cstkl1
post Nov 23 2007, 08:03 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(rlhc17 @ Nov 23 2007, 02:06 AM)
yup, confirmed actifact free
wan to mod urs kah ! drool.gif
i didn't measure the resistance only check the voltage as i turn the vr
*
not yet
both cards has been flashed
to a better bios than the ssc.. the xfx ADE XXX...
y better the ADE XXX bios doesnt suffer the problem of depreciating performance when u keep overclocking even though its artiact free...
the SSC has that bug... the ADE XXX bios are newer.

test it.. it was debated quite heavily in XS..

vmodded and now on Danger Den Maze 5

i am running at vgpu of 1.3v idle 1.32v load
flashed to 810/1944/2000... thanks to a crucial techie guy for doing this for me...
dont have nimble fingers for soldering...kekeke.. last tme burned a galaxy 8800gtx once..

no screenies until i sort out the second card problem

the problem is
on the sli ...

its different from the previous sli of the 8800 series

this is the difference

1. 2nd card cannot be overclocked independently
2. on SLI mode u cannot set the fan speed for the 2nd card
3. the 2nd card always run at 400core 800 shader 900mem

hmmmm

interesting eh...

and the way the overclocks and sli is working
did nvidia did a copycat of the crossfire... those who has crossfired before will know what i mean by this.

the 3870 now running at 900/2600..
hopefully when i get the MCW60 WC setup that i am doing for the cards
can push higher..
would like do a comparison for both...at OC
interesting.. cause this clocks above already beat the stock 8800gt

This post has been edited by cstkl1: Nov 23 2007, 08:11 PM
coolice
post Nov 23 2007, 08:15 PM

Team OCD!
******
Senior Member
1,857 posts

Joined: Sep 2004
From: ocdrift.com
QUOTE(cstkl1 @ Nov 23 2007, 08:03 PM)
not yet
both cards has been flashed
to a better bios than the ssc.. the xfx ADE XXX...
y better the ADE XXX bios doesnt suffer the problem of depreciating performance when u keep overclocking even though its artiact free...
the SSC has that bug... the ADE XXX bios are newer.

test it.. it was debated quite heavily in XS..

*
bro..mind to paste the link? biggrin.gif
or which thread and wat post in xs?

edited:btw..wat is the sm2 and sm3 score for 3870 @ 900/2600?

This post has been edited by coolice: Nov 23 2007, 08:16 PM
IcEMoCHa
post Nov 23 2007, 08:18 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
where do u find the firmware of the cards anyway?
Hyde`fK
post Nov 23 2007, 10:31 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
@cstkl1

For the vgpu of 1.3, is it BIOS flashed or hardmod? What's the 3D vgpu for ADE XXX BIOS?
cstkl1
post Nov 24 2007, 02:56 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
hard mod...hmm going to check the resistance ...something wrong..
damn need a volt meter now..
got a feeling its more than 1.3 on load
even though my friend said it is at 1.3
cant sli...and getting restarts...

sishh got ppl i know who vmod till 1.4v!!!!!



the xfx bios is on XS forum..
its been there for a week



hmm got problem now wei
crossfire and sli both got problem
single card hd3870 can run 900/2600
crossfire fail.
sli also fail now

fed up already ..
wasted whole day

hmm the G92 sli is totally different than the G80 sli

crossfire i am new to the R6xx.. so no idea ..anybody can help??
y is it if test each card at 900/2600 no probs
but if i crossfire them only can do 864/2500

the sli now.. totally screwed up...
if sli..on 3dmark06 the comp will restart...
single card test for both works for 3dmark

???
F***

for the HD3870
try this bios.. but at ure own risk
its from a guy in XS
http://www.xtremesystems.org/forums/showpo...6&postcount=165



This post has been edited by cstkl1: Nov 24 2007, 03:03 AM
xiong91
post Nov 24 2007, 08:51 AM

Wassupp
*****
Senior Member
732 posts

Joined: Apr 2005
From: Tanah Melayu
wad cooler is recommend if wan oc 8800gt? zalman fatal1ty FC-ZV9 enough to handle it? or hav to grab Tt?
IcEMoCHa
post Nov 24 2007, 11:22 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
wait for hr-03 gt or u can get hr-03 plus...
SUSSony Trinitron
post Nov 24 2007, 12:40 PM

Casual
***
Junior Member
441 posts

Joined: Nov 2004
if i get 2 of these 8800gt and run SLI, can it beat my current 8800gtx sli?
IcEMoCHa
post Nov 24 2007, 01:04 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
nope i think not... gtx performance still better ... its much more expensive too..
cstkl1
post Nov 24 2007, 01:29 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(IcEMoCHa @ Nov 24 2007, 01:04 PM)
nope i think not... gtx performance still better ... its much more expensive too..
*
dont to be too sure on that

the gt sli works differently

no wonder it scales pretty well on gaming benchies.
gengstapo
post Nov 24 2007, 02:13 PM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(Sony Trinitron @ Nov 24 2007, 12:40 PM)
if i get 2 of these 8800gt and run SLI, can it beat my current 8800gtx sli?
*
hard to say lehh, need to wait until some 1 came out with it -.-

got forumer here bought 8800GT x2(for SLi i think), perhaps he can do some benchie(s) for us
wonder where is he now hmm.gif
IcEMoCHa
post Nov 24 2007, 10:16 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
=.=.... single 8800gt is good enuff.. why would u wana SLi?... I rather spend that money on other stuff...
Hyde`fK
post Nov 25 2007, 12:21 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
When you need to run games at max setting and uber high resolution, single card won't do well enough.
TStAmp0i
post Nov 25 2007, 03:35 AM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
Finally been able to spare time on the Zotac, quick run at 1.23vGPU load. Core and shader couldn't go further even though higher volts applied... Trailed behind rlhc17 by a little bit biggrin.gif

Core 783 / Shader 1944 / Mem 2106
16374
Attached Image

This post has been edited by tAmp0i: Nov 25 2007, 03:43 AM
rlhc17
post Nov 25 2007, 01:44 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(tAmp0i @ Nov 25 2007, 03:35 AM)
Finally been able to spare time on the Zotac, quick run at 1.23vGPU load. Core and shader couldn't go further even though higher volts applied... Trailed behind rlhc17 by a little bit biggrin.gif

Core 783 / Shader 1944 / Mem 2106
16374
Attached Image
*
nice clock rclxms.gif rclxms.gif
how to get 1.23vGpu ?
Hyde`fK
post Nov 25 2007, 02:02 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Hardmod lor.
TStAmp0i
post Nov 25 2007, 02:43 PM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(rlhc17 @ Nov 25 2007, 01:44 PM)
nice clock rclxms.gif  rclxms.gif
how to get 1.23vGpu ?
*
1K VR, idle 1.18V and load 1.23V.... smile.gif
Bro your new MSI how, torture it drool.gif
Hyde`fK
post Nov 26 2007, 02:54 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Just some quick testing after vmod my 8800GT. 1.24vGPU idle 1.30vGPU full load. Mounted with Zalman ZV9 + Vantec Tornado @ 12v full blast instead of 7v cause too hot, in aircon room.

user posted image

user posted image

user posted image

ATItool artifact scan @ 770 core 1890 shader 975 memory

user posted image

This post has been edited by Hyde`fK: Nov 26 2007, 03:00 AM
nelienuxe_sara
post Nov 26 2007, 06:32 AM

noob im ur father
*******
Senior Member
2,546 posts

Joined: Jan 2005
From: far far away...
ts can u put at the 1st post the point for benchmark after the mod
rlhc17
post Nov 27 2007, 11:22 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
Here is my MSI 8800GT OC ed (660core 950mem 1650shader)
come with Red color PCB board hehe...... smile.gif

user posted image
Hyde`fK
post Nov 27 2007, 11:49 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Mod it and OC kaw kaw!
rlhc17
post Nov 28 2007, 12:29 AM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(Hyde`fK @ Nov 27 2007, 11:49 PM)
Mod it and OC kaw kaw!
*
stock voltage quite good ady rclxms.gif
no more modding later WTS biggrin.gif

user posted image
Hyde`fK
post Nov 28 2007, 12:32 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Stock already better than my modded one. -.-
IcEMoCHa
post Nov 28 2007, 08:32 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
lol.... modded lose to stock ar?...
Hyde`fK
post Nov 28 2007, 10:22 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Just compare my result with his. sweat.gif

Might think of getting 8800GTS G92, but have to see how well it scale against 8800GT.
gengstapo
post Nov 28 2007, 10:46 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(rlhc17 @ Nov 27 2007, 11:22 PM)
Here is my MSI 8800GT OC ed (660core 950mem 1650shader)
come with Red color PCB board  hehe...... smile.gif

[user send image]
*
lol.. it broke the nvidia color code.. suppose to be green pcb, but it use red such ati card tongue.gif

nahh, JK only.. nice card u got

This post has been edited by gengstapo: Nov 28 2007, 10:46 AM
TStAmp0i
post Nov 28 2007, 11:21 AM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
Unmod also can hit 770MHz core and 1900MHz shader... Superb card indeed, i wonder how if it is modded? rolleyes.gif
rlhc17
post Nov 28 2007, 12:23 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(tAmp0i @ Nov 28 2007, 11:21 AM)
Unmod also can hit 770MHz core and 1900MHz shader... Superb card indeed, i wonder how if it is modded? rolleyes.gif
*
no more modding bro.......
WTS soon.....waiting for good pricing on ATI 3870 thumbup.gif
Jian_yi
post Nov 28 2007, 08:59 PM

Casual
***
Junior Member
330 posts

Joined: Jul 2005
From: Singpore / Johor Bahru
QUOTE(Hyde`fK @ Nov 26 2007, 02:54 AM)
Just some quick testing after vmod my 8800GT. 1.24vGPU idle 1.30vGPU full load. Mounted with Zalman ZV9 + Vantec Tornado @ 12v full blast instead of 7v cause too hot, in aircon room.

user posted image

user posted image

user posted image

ATItool artifact scan @ 770 core 1890 shader 975 memory

user posted image
*
bro, something question here... about the 8800GT 512MB G92 core, after vmod for it. Do you think wanna exchange the GPU cooler for it?
mypetridish
post Nov 29 2007, 07:54 AM

Regular
******
Senior Member
1,313 posts

Joined: Jan 2006
has anyoen modded their MSI 8800gt yet?
gengstapo
post Nov 29 2007, 08:21 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(mypetridish @ Nov 29 2007, 07:54 AM)
has anyoen modded their MSI 8800gt yet?
*
no need la, msi 88ooGT amongst the best currently
can OC upto 770mhz w/out mods thumbup.gif
Hyde`fK
post Nov 29 2007, 03:15 PM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
QUOTE(Jian_yi @ Nov 28 2007, 08:59 PM)
bro, something question here... about the 8800GT 512MB G92 core, after vmod for it. Do you think wanna exchange the GPU cooler for it?
*
If you want to overclock the core, yes, 3rd party cooler is a must. The temp will only goes up if you increase your core.
Jian_yi
post Nov 30 2007, 12:29 AM

Casual
***
Junior Member
330 posts

Joined: Jul 2005
From: Singpore / Johor Bahru
QUOTE(gengstapo @ Nov 29 2007, 08:21 AM)
no need la, msi 88ooGT amongst the best currently
can OC upto 770mhz w/out mods  thumbup.gif
*
bro, are you sure? without vmod still can bump to 770Mhz hmm.gif , as I know all the 8800GT 512MB any model any brand is come from Foxconn. "brand" is just stick the sticker & box packing for the graphic card.
Hyde`fK
post Nov 30 2007, 02:17 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
Well for me, it's more onto luck than brand. Even Galaxy can pump to 760core without vmod.
sukhoi37
post Nov 30 2007, 12:02 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
QUOTE(Jian_yi @ Nov 30 2007, 12:29 AM)
bro, are you sure? without vmod still can bump to 770Mhz  hmm.gif , as I know all the 8800GT 512MB any model any brand is come from Foxconn. "brand" is just stick the sticker & box packing for the graphic card.
*
the one he's owning is made by MSI themselves.
It's red pcb with full solid cap.
rlhc17
post Nov 30 2007, 12:10 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
i notice that MSI 8800gt (RED pcb) had a better built quality thumbup.gif than the foxconn built 1

This post has been edited by rlhc17: Nov 30 2007, 12:11 PM
likito
post Nov 30 2007, 08:11 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
QUOTE(rlhc17 @ Nov 30 2007, 12:10 PM)
i notice that MSI 8800gt (RED pcb) had a better built quality thumbup.gif  than the foxconn built 1
*
where u get the MSI red pcb board , how much u get it ?
rlhc17
post Nov 30 2007, 11:18 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(likito @ Nov 30 2007, 08:11 PM)
where u get the MSI red pcb board , how much u get it ?
*
LYP Rm9xx
nelienuxe_sara
post Nov 30 2007, 11:51 PM

noob im ur father
*******
Senior Member
2,546 posts

Joined: Jan 2005
From: far far away...
my score for zotac is 10xxx is it normal?
no oc wor

Added on November 30, 2007, 11:52 pm3DMARK2006

Added on December 1, 2007, 1:14 amhi guys may i have ur attention
how to update the bios
pls guide me hehe noob here


This post has been edited by nelienuxe_sara: Dec 1 2007, 01:14 AM
gengstapo
post Dec 1 2007, 08:34 AM

Retired enthusiast
********
All Stars
10,688 posts

Joined: Jan 2005
QUOTE(Jian_yi @ Nov 30 2007, 12:29 AM)
bro, are you sure? without vmod still can bump to 770Mhz  hmm.gif , as I know all the 8800GT 512MB any model any brand is come from Foxconn. "brand" is just stick the sticker & box packing for the graphic card.
*
maybe its a luck, try ask rlhc17
he the owner of the MSi 88ooGT
sotong168
post Dec 1 2007, 09:08 AM

in retiring mode
*******
Senior Member
5,291 posts

Joined: Dec 2004
From: I Luv Msia
QUOTE(Jian_yi @ Nov 30 2007, 12:29 AM)
bro, are you sure? without vmod still can bump to 770Mhz  hmm.gif , as I know all the 8800GT 512MB any model any brand is come from Foxconn. "brand" is just stick the sticker & box packing for the graphic card.
*
all frm the same source and thus the quality (stability, durability, oc-ability) is the same? including ic?
lichyetan
post Dec 1 2007, 12:57 PM

*****
*******
Senior Member
2,295 posts

Joined: Jan 2005
From: Penang
notice something weird, should be qimonda issue mentioned by sniper on the roof, my zotac amp edition got artifacts after playing hours of crysis, but not in other game, currently downclocked the ram to 1800mhz default. but oc my shader and core to 710mhz and 1760 mhz...

This post has been edited by lichyetan: Dec 1 2007, 12:58 PM
HaHaNoCluE
post Dec 1 2007, 01:55 PM

Newbie
****
Senior Member
628 posts

Joined: Oct 2006
the red pcb that msi is using r indeed a better pcb with more layer thus eliminating (decrease) vdrop... (well, ther's no way anyone can eliminate vdroooop anyway)... same goes to galaxy (blue pcb) which is famous for using more layer pcd for their gfx...

note: not all red pcd r same quality, so dun buy a mobo or gpu due to the color... hahahaha...
rlhc17
post Dec 1 2007, 11:24 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
For those who wan to change ur 88gt to Zotac Amp edition u can get the bios here : http://www.mvktech.net/component/option,co...546bb5be612d94/
lichyetan
post Dec 1 2007, 11:27 PM

*****
*******
Senior Member
2,295 posts

Joined: Jan 2005
From: Penang
QUOTE(rlhc17 @ Dec 1 2007, 11:24 PM)
For those who wan to change ur 88gt to Zotac Amp edition u can get the bios here :  http://www.mvktech.net/component/option,co...546bb5be612d94/
*
wont 2000mhz mem made it crashes? i using this card playing crysis at 1680*1050 suffering random crashes... when downclocked it to stock 1800mhz, no problem liao... so if ur ram chip is using qimonda's chip... my advice is downclock it to 1800mhz... else might be problematic late on....
rlhc17
post Dec 1 2007, 11:36 PM

Enthusiast
*****
Senior Member
835 posts

Joined: Sep 2004
From: LYP@Bintang Walk
QUOTE(lichyetan @ Dec 1 2007, 11:27 PM)
wont 2000mhz mem made it crashes? i using this card playing crysis at 1680*1050 suffering random crashes... when downclocked it to stock 1800mhz, no problem liao... so if ur ram chip is using qimonda's chip... my advice is downclock it to 1800mhz... else might be problematic late on....
*
try 1st la...maybe it got better memory timing
maybe won't crash leh....
SUSbrandonlooi
post Dec 2 2007, 01:06 AM

New Member
*
Junior Member
5 posts

Joined: Nov 2007
im using MSI 8800GT OC my spec and mark 3DGAME06

user posted image

q6600 @ 3.00ghz
Corsair 1GB X4 667DDR2
gigabyte P965 S3
MSI geforce 8800gt @ 700/980/what driver 169.02
win xp pro sp2

SCORE = 13478
heng84
post Dec 2 2007, 03:47 AM

Casual
***
Junior Member
307 posts

Joined: Apr 2005
QUOTE(rlhc17 @ Dec 1 2007, 11:24 PM)
For those who wan to change ur 88gt to Zotac Amp edition u can get the bios here :  http://www.mvktech.net/component/option,co...546bb5be612d94/
*
u mean from zotac normal 8800gt with 660mhz to zotac amp edition 700mhz
or any 8800gt can use that bios?.
sorry noob here.
zhen^wei
post Dec 2 2007, 07:44 AM

Look at all my stars!!
*******
Senior Member
4,057 posts

Joined: Jan 2003
From: Pandan Indah
Zalman Fatal1ty FC-ZV9 VGA Cooler good for cooling the 8800GT or not ?
IcEMoCHa
post Dec 2 2007, 09:24 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(lichyetan @ Dec 1 2007, 11:27 PM)
wont 2000mhz mem made it crashes? i using this card playing crysis at 1680*1050 suffering random crashes... when downclocked it to stock 1800mhz, no problem liao... so if ur ram chip is using qimonda's chip... my advice is downclock it to 1800mhz... else might be problematic late on....
*
How to know if its using qimonda or others?
TStAmp0i
post Dec 2 2007, 10:54 AM

The name is Poi
*******
Senior Member
2,825 posts

Joined: Jan 2003
From: Miri
QUOTE(IcEMoCHa @ Dec 2 2007, 09:24 AM)
How to know if its using qimonda or others?
*
Take out the heatsink and look at the chips... thumbup.gif
lichyetan
post Dec 2 2007, 04:52 PM

*****
*******
Senior Member
2,295 posts

Joined: Jan 2005
From: Penang
my zotac amp edition experiencing artifacts only on crysis & gears of wars with 1680*1050 resolution @ 2000mhz memory clock. when play with lower resolution, no problem occurs... weird.... i can pass 3dmark2006 at my nativ resolution also... weird... someone can explain this??? blush.gif
IcEMoCHa
post Dec 2 2007, 09:10 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Whats the highest OC with aftermarket cooler without vmodding u could go?
SlayerXT
post Dec 4 2007, 02:29 AM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
Should be around 750/2000/2000. Anyway, the 2 phase vrm might bottleneck oc.
irangan
post Dec 4 2007, 04:14 AM

Lost Soul
******
Senior Member
1,201 posts

Joined: Dec 2004
From: Kuala Lumpur
Today I just grabbed a brand new and rare (at least for now) 8800GT from Lowyat Plaza @ATE. I sent to coolice for testing because I dont have the proper hardware to test. See what he just sent to me. Hehe...

No VMod and using stock cooler only. Will try to push more under watercooling when I get the card back from him later.

All result is done by coolice.

All stock speed benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@2.4Ghz (Stock speed)
user posted image

OCed CPU and stock speed GPU benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@3.6Ghz (Overclocked speed)
user posted image

Max clocked CPU and GPU benchmark.
GPU: 783Mhz Core/ 2050Mhz Memory/ 1880Mhz Shader (Overclocked speed)
CPU: Q6600@3887Mhz (Overclocked speed)
user posted image


--------------------------------------------------------------------------------
Pictures of the box and card
user posted image
user posted image


This post has been edited by irangan: Dec 4 2007, 01:56 PM
heng84
post Dec 4 2007, 01:29 PM

Casual
***
Junior Member
307 posts

Joined: Apr 2005
anyone tried oc zotac 8800gt amp further?.
i have the card but left back a intel processor to setup the whole pc. i wanna know how far it can go .
have tested the card in my bro amd pc but only awhile cos he want me to take it out lol. idle temp 58' when fan in max, if auto about 61 -62' , played call of duty2 went up to 68. is it normal?

This post has been edited by heng84: Dec 4 2007, 01:32 PM
kevinwcw
post Dec 4 2007, 02:41 PM

Enthusiast
*****
Senior Member
943 posts

Joined: Feb 2005
From: KL Sri Petaling
wao...68 is quite hot a bit.... biggrin.gif
hiphop
post Dec 5 2007, 12:31 AM

Getting Started
**
Junior Member
152 posts

Joined: Nov 2006
QUOTE(irangan @ Dec 4 2007, 04:14 AM)
Today I just grabbed a brand new and rare (at least for now) 8800GT from Lowyat Plaza @ATE. I sent to coolice for testing because I dont have the proper hardware to test. See what he just sent to me. Hehe...

No VMod and using stock cooler only. Will try to push more under watercooling when I get the card back from him later.

All result is done by coolice.

All stock speed benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@2.4Ghz (Stock speed)

OCed CPU and stock speed GPU benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@3.6Ghz (Overclocked speed)

Max clocked CPU and GPU benchmark.
GPU: 783Mhz Core/ 2050Mhz Memory/ 1880Mhz Shader (Overclocked speed)
CPU: Q6600@3887Mhz (Overclocked speed)
hmm.gif do u try gaming using 783Mhz core, 2050Mhz memory, 1880Mhz shader in few hours, as i know some OC card can't take memory in 2000Mhz.

btw its a good result with no vmod and stock cooler thumbup.gif
heng84
post Dec 5 2007, 02:15 AM

Casual
***
Junior Member
307 posts

Joined: Apr 2005
QUOTE(irangan @ Dec 4 2007, 04:14 AM)
Today I just grabbed a brand new and rare (at least for now) 8800GT from Lowyat Plaza @ATE. I sent to coolice for testing because I dont have the proper hardware to test. See what he just sent to me. Hehe...

No VMod and using stock cooler only. Will try to push more under watercooling when I get the card back from him later.

All result is done by coolice.

All stock speed benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@2.4Ghz (Stock speed)
user posted image

OCed CPU and stock speed GPU benchmark.
GPU: 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader (Stock speed)
CPU: Q6600@3.6Ghz (Overclocked speed)
user posted image

Max clocked CPU and GPU benchmark.
GPU: 783Mhz Core/ 2050Mhz Memory/ 1880Mhz Shader (Overclocked speed)
CPU: Q6600@3887Mhz (Overclocked speed)
user posted image
--------------------------------------------------------------------------------
Pictures of the box and card
user posted image
user posted image
*
impressive dude wish i could do that.
whats your temp readings after oc with that stock cooler
0168257061
post Dec 5 2007, 03:12 AM

EimiFukada
********
All Stars
14,242 posts

Joined: Jul 2007
From: JAVABUS
ahh...tested my rig with 3DMark06 Pro @ 1440X900 resolution.
» Click to show Spoiler - click again to hide... «


Added on December 5, 2007, 3:19 amadd -> the max temp falls on feature test 2 of 7

yeah...just saw a new temp.....with 18C ambient temperature.
» Click to show Spoiler - click again to hide... «


Added on December 5, 2007, 3:45 amwill test 100% and 25% tomorrow tongue.gif

This post has been edited by 168257061: Dec 5 2007, 03:45 AM
irangan
post Dec 5 2007, 11:59 AM

Lost Soul
******
Senior Member
1,201 posts

Joined: Dec 2004
From: Kuala Lumpur
QUOTE(hiphop @ Dec 5 2007, 12:31 AM)
hmm.gif  do u try gaming using 783Mhz core, 2050Mhz memory, 1880Mhz shader in few hours, as i know some OC card can't take memory in 2000Mhz.

btw its a good result with no vmod and stock cooler  thumbup.gif
*
coolice didnt test that... But I did play my Hellgate London at 800Core, 2000 Memory, 1950Shader. I am using WaterCooling.

QUOTE(heng84 @ Dec 5 2007, 02:15 AM)
impressive dude wish i could do that.
whats your temp readings after oc with that stock cooler
*
Stock cooler = 51' Idle 62' Load
Watercooling = 31' Idle 35' Load
clayclws
post Dec 5 2007, 04:28 PM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
Impressice results. ASUS Top is available in lots of shops in Lowyat now, if I'm not mistaken. Seen at least 3 shops selling it.
bearbrick
post Dec 5 2007, 06:45 PM

Casual
***
Junior Member
363 posts

Joined: Jan 2005
QUOTE(clayclws @ Dec 5 2007, 04:28 PM)
Impressice results. ASUS Top is available in lots of shops in Lowyat now, if I'm not mistaken. Seen at least 3 shops selling it.
*
just got my asus top 8800gt from czone @990 is that a good buy?
the card quite hot when idle 55 load 76.
thinking isit worth topup 200bucks for the 8800gts
tadasu
post Dec 5 2007, 07:40 PM

On my way
****
Senior Member
526 posts

Joined: Jan 2003
what air cooler do u guys normally use?
irangan
post Dec 5 2007, 11:19 PM

Lost Soul
******
Senior Member
1,201 posts

Joined: Dec 2004
From: Kuala Lumpur
QUOTE(clayclws @ Dec 5 2007, 04:28 PM)
Impressice results. ASUS Top is available in lots of shops in Lowyat now, if I'm not mistaken. Seen at least 3 shops selling it.
*
Yeah.. It is a very good card with a reasonable price.

QUOTE(bearbrick @ Dec 5 2007, 06:45 PM)
just got my asus top 8800gt from czone @990 is that a good buy?
the card quite hot when idle 55 load 76.
thinking isit worth topup 200bucks for the 8800gts
*
Probably this website can show u the difference between GTS and TOP GT.

http://www.gpureview.com/show_cards.php?card1=544&card2=548

To me, GT TOP is a good enough for me
intothefantasy
post Dec 5 2007, 11:25 PM

Regular
******
Senior Member
1,561 posts

Joined: Feb 2006
From: Penang island
bro..the asus 8800gt TOP cooler is not those big zalman fans? i tot those were TOP version for d asus.
clayclws
post Dec 6 2007, 11:36 AM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
Here is the official ASUS TOP available in Malaysia.
kiong
post Dec 6 2007, 04:12 PM

Getting Started
**
Junior Member
103 posts

Joined: Mar 2005
From: kuching/miri
guy's any 1 try the new 8800gts 512mb ald?
clayclws
post Dec 6 2007, 05:49 PM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
QUOTE(kiong @ Dec 6 2007, 04:12 PM)
guy's any 1 try the new 8800gts 512mb ald?
*
Yes...and it's in another forum. Go check it out here.

Added on December 6, 2007, 5:51 pmIt's not in the overclocking thread but some of them do talk about its overclockability.

This post has been edited by clayclws: Dec 6 2007, 05:51 PM
capriodimitri
post Dec 10 2007, 11:25 PM

Getting Started
**
Junior Member
138 posts

Joined: Jan 2003
From: Penang
Anyone else flash bios to EVGA SSC?

http://www.evga.com/forums/m.asp?m=176929

I am wondering should I flash my XFX to this using its winflash or manual diskette mode.
kagi182
post Dec 11 2007, 01:23 AM

New Member
*
Junior Member
27 posts

Joined: Dec 2005
aww where can i get the cheapest 8800gt...
clayclws
post Dec 11 2007, 02:01 AM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
QUOTE(kagi182 @ Dec 11 2007, 01:23 AM)
aww where can i get the cheapest 8800gt...
*
In bulk section or garage sales of Lowyat.net...check it out.

This post has been edited by clayclws: Dec 11 2007, 02:01 AM
likito
post Dec 14 2007, 08:26 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
here is cooler master coolVivaPro fan + 8800GT
source : http://forum.coolaler.com/showthread.php?t=168349

user posted image
user posted image
user posted image
user posted image

for those who r limited budget on HSF!
clayclws
post Dec 14 2007, 10:57 PM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
I would recommend anyone limited on budget to save up and buy a decent one. Don't buy cheap heatsink+fan because it's not worth it. When you lift the stock cooler, you voided the warranty. Your resell price has been extremely lowered. Plus, there's no guarantee that it'll work on your future upgrades.

So, if you want a cooler, of which, you can use on current and future cards, I would suggest getting a decent one recommended in the Overclocker forum. It may have voided the warranty but the high OC-ability would justify the void.
Punish
post Dec 15 2007, 07:44 AM

Look at all my stars!!
*******
Senior Member
2,023 posts

Joined: Jan 2003
From: Muddy Estuary
this coolviva pro really can fit 8800GT..? tats great....how much izzit below RM150?

GTG

This post has been edited by Punish: Dec 15 2007, 07:45 AM
IcEMoCHa
post Dec 15 2007, 10:53 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Is HR-03 GT available yet?... So long alredy... Coolviva Pro is around RM100...
clayclws
post Dec 15 2007, 12:39 PM

Look at all my stars!!
*******
Senior Member
2,659 posts

Joined: Sep 2006
From: Miri, PJ & KL
QUOTE(IcEMoCHa @ Dec 15 2007, 10:53 AM)
Is HR-03 GT available yet?... So long alredy... Coolviva Pro is around RM100...
*
Waiting on it too...Guess January is good bet.
likito
post Dec 15 2007, 01:10 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
QUOTE(Punish @ Dec 15 2007, 07:44 AM)
this coolviva pro really can fit 8800GT..? tats great....how much izzit below RM150?

GTG
*
i saw thundermatch rm95 last time blush.gif
randoll
post Dec 16 2007, 04:24 PM

On my way
****
Junior Member
506 posts

Joined: Jan 2005
From: Puchong
wanna ask all the sifu here got try to overclock the stream processor of 8800GT before or not? biggrin.gif
SpikeTwo
post Dec 16 2007, 06:01 PM

無敵 PC Elitist
*******
Senior Member
5,464 posts

Joined: Jan 2003
From: Ăśber Special Forces Gaming Room
wow...nice cooler from coolermaster! nice temps! only if they make the plsatic cover longer to extend near the rear of the case, then the hot air could go out from the casing.
IcEMoCHa
post Dec 20 2007, 04:20 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Anyone tried flashing the bios to others?... comparing the performance... Which is the best bios atm?...
OC4/3
post Dec 21 2007, 05:22 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
Would also know the answer to IcEMoCHa question as i already have PNY 8800GT but current rig PSU cannot support it(New system soon)
sayming
post Dec 21 2007, 03:21 PM

"Welcome, to my DEATH MACHINE, interloper!"
*******
Senior Member
3,410 posts

Joined: Jan 2003
From: Wangsa Maju, Kuala Lumpur
Hmm there are a lot of screen tearing when I move my mouse cursor fast in FPS-es. Anything I can do to stop that?

Added on December 21, 2007, 7:23 pmHmm I only scored 10881 from 3DMark06 with my MSI 8800GT.
Is my card underperforming? =(

This post has been edited by sayming: Dec 21 2007, 07:23 PM
hiphop
post Dec 21 2007, 08:43 PM

Getting Started
**
Junior Member
152 posts

Joined: Nov 2006
QUOTE(capriodimitri @ Dec 10 2007, 11:25 PM)
Anyone else flash bios to EVGA SSC?

http://www.evga.com/forums/m.asp?m=176929

I am wondering should I flash my XFX to this using its winflash or manual diskette mode.
*
noob question here, its announce bios can suit for all brand GC.
eg: EVGA bios can be flash to MSI GC?
kaiser_falco
post Dec 21 2007, 11:08 PM

the world wanderer
******
Senior Member
1,167 posts

Joined: Mar 2005
From: sunway/petaling jaya
ok first try with the card i just get few hours ago...


standard setting card not oc.
asus 8800gt: 600/900/1512
conroe e6600:3.6GHZ

Attached Image




ok now rough o.c to top version..lol
asus 8800gt: 702/972/1728
conroe e6600:3.6GHZ

Attached Image



that it for now...will try to bump on the oc later..



temperature: idle 52c load max 68c

Added on December 22, 2007, 12:12 amdidnt realise that this card is damn good....crysis detected it as very high setting,and it no lag so far...gaming on widescreen 1440x900...

Added on December 22, 2007, 4:03 pmcome on 3.6ghz c2d e6600 bottleneck??im doing 740/1836/972 already...
score 12355 only...hmmm dont see any improvement...

This post has been edited by kaiser_falco: Dec 22 2007, 04:03 PM
Oxburg
post Dec 23 2007, 10:36 AM

Enthusiast
*****
Senior Member
857 posts

Joined: Feb 2007
Probably a driver problem?Try using the official driver.
Hyde`fK
post Dec 23 2007, 10:38 AM

D9s Killer
*******
Senior Member
2,378 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!
The score is ok. If you want higher score, get a Kentsfield Quad Core.
S4PH
post Dec 23 2007, 01:01 PM

adam_s4ph
******
Senior Member
1,167 posts

Joined: Jan 2007
From: ..Tsukuba..
QUOTE(sayming @ Dec 21 2007, 03:21 PM)
Hmm there are a lot of screen tearing when I move my mouse cursor fast in FPS-es. Anything I can do to stop that?

Added on December 21, 2007, 7:23 pmHmm I only scored 10881 from 3DMark06 with my MSI 8800GT.
Is my card underperforming? =(
*
make sure ur running at highest possible refresh rate,low refresh rate will cause graphic tearing coz ur frame rate has exceeded the monitor capability.

Added on December 23, 2007, 1:03 pmAsus 8800GT how huh bro izit a good performer with 600MHZ core and 1800mhz clock,1500MHZ shader clock.Just bought it yesterday and had the grapchic tearing problem,used higher refresh fixed it.

This post has been edited by S4PH: Dec 23 2007, 01:03 PM
sayming
post Dec 23 2007, 06:06 PM

"Welcome, to my DEATH MACHINE, interloper!"
*******
Senior Member
3,410 posts

Joined: Jan 2003
From: Wangsa Maju, Kuala Lumpur
QUOTE(S4PH @ Dec 23 2007, 01:01 PM)
make sure ur running at highest possible refresh rate,low refresh rate will cause graphic tearing coz ur frame rate has exceeded the monitor capability.

Added on December 23, 2007, 1:03 pmAsus 8800GT how huh bro izit a good performer with 600MHZ core and 1800mhz clock,1500MHZ shader clock.Just bought it yesterday and had the grapchic tearing problem,used higher refresh fixed it.
*
How and where to change the refresh rate? Sorry I do not have much PC knowledge let alone graphic card tweakings. Whats the 600MHZ core and 1800mhz clock,1500MHZ shader clock you mentioned and what does it mean?
Mine is MSI smile.gif

Hmm my monitor is running on 60Hz but when I change to 75Hz I get out of range....does it mean my monitor cant support 75hz refresh rate? sad.gif

This post has been edited by sayming: Dec 23 2007, 06:10 PM
kaiser_falco
post Dec 23 2007, 10:15 PM

the world wanderer
******
Senior Member
1,167 posts

Joined: Mar 2005
From: sunway/petaling jaya
asus 8800gt normal version hit the ceiling @ 720/1750/1900.... memory can go far then that but it a qimonda...so dare not to try it for daily usage...next maybe after few month will flash the bios or v mod but not now still sayang this card though...
IcEMoCHa
post Dec 24 2007, 01:35 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
hmm... which bios to flash?...
HiT-AbLe
post Dec 24 2007, 01:51 PM

Enthusiast
*****
Senior Member
866 posts

Joined: Jan 2003
QUOTE(sayming @ Dec 23 2007, 06:06 PM)
How and where to change the refresh rate? Sorry I do not have much PC knowledge let alone graphic card tweakings. Whats the 600MHZ core and 1800mhz clock,1500MHZ shader clock you mentioned and what does it mean?
Mine is MSI  smile.gif

Hmm my monitor is running on 60Hz but when I change to 75Hz I get out of range....does it mean my monitor cant support 75hz refresh rate?  sad.gif
*
I also facing the same problem, but only in Crysis at 1280X1024@75hz. But I found a way to overcome this problem, I tone down the resolution to 1280x960 and no problem to get into Crysis, then I just change the resolution to 1280x1024 in the game, somehow this "out of range" problem won't happen, but make sure before u want to quit game u have to switch the resolution to other, that's kinda irratating.
OC4/3
post Dec 25 2007, 04:21 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(IcEMoCHa @ Dec 24 2007, 01:35 PM)
hmm... which bios to flash?...
*
EVGA SSC,XFX XXX,Asus Top,basically top clock card.
jimmydotnet
post Dec 26 2007, 02:09 PM

Jimbo da Riverian
*****
Senior Member
766 posts

Joined: Nov 2005
From: Slim Shady Town
damn u guys sure fast to overclock things...hehee...the card just out in malaysia...u guys already overclock it...
IcEMoCHa
post Dec 26 2007, 05:42 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(OC4/3 @ Dec 25 2007, 04:21 AM)
EVGA SSC,XFX XXX,Asus Top,basically top clock card.
*
which is the best?
OC4/3
post Dec 27 2007, 02:53 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(IcEMoCHa @ Dec 26 2007, 05:42 PM)
which is the best?
*
I guess EVGA SSC since have better fan control
tadasu
post Dec 27 2007, 07:03 AM

On my way
****
Senior Member
526 posts

Joined: Jan 2003
hi, anyone here using nTune to overclock their cards?
jeromeccm
post Dec 27 2007, 10:43 AM

On my way
****
Senior Member
545 posts

Joined: Nov 2006
Hi Guys.. just to share my experience here..
I used to have a Asus 8800GT Top. I is a nice card however i found a few things that i dont like. Just personal opinion... sharing ma...
- Noisy fan (more noisy than my EVGA 8800GTS and my Zotac 8800GT amp)
- Very hot. (in this case very scare to OC unless change other cooler)

Performance wise is quite good.. I think the top series can still push further with better cooler..

by the way once silly question here..

I am using a Zotec 8800GT amp. Not OC at the moment.
I am using a AMd 5200+ 2.6G, no OC also...
2G kingston value ram 667MHz.

I manage to hit 3Dmark06 (default test) max 10184 score... is it normal?

Another question is does it make sence to flash the bios for my Zotec to others like the XFX 8800GT XXX version?

Regards
IcEMoCHa
post Dec 27 2007, 11:10 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
You can flash ur card bios to other versions... Don't worry about the temperature... It can stand temps up to 120C before dying.... And that score for ur computer specs is quite normal...
jeromeccm
post Dec 27 2007, 11:27 AM

On my way
****
Senior Member
545 posts

Joined: Nov 2006
QUOTE(IcEMoCHa @ Dec 27 2007, 11:10 AM)
You can flash ur card bios to other versions... Don't worry about the temperature... It can stand temps up to 120C before dying.... And that score for ur computer specs is quite normal...
*
thanks... i was trying to OC my PC but cannot.. dont know why... not stable... sigh...
I played crysis at 1280 res and mid+high details (mix) average about 30+ to 40 frame rate...

Added on December 27, 2007, 11:34 am
QUOTE(IcEMoCHa @ Dec 27 2007, 11:10 AM)
You can flash ur card bios to other versions... Don't worry about the temperature... It can stand temps up to 120C before dying.... And that score for ur computer specs is quite normal...
*
actually what is the main reason people change the bios for the card?
stability? performance? OCability?
does it affect the warranty?


This post has been edited by jeromeccm: Dec 27 2007, 11:34 AM
IcEMoCHa
post Dec 31 2007, 02:13 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
woohoo just got my card... got MSI card... biggrin.gif
OC4/3
post Jan 1 2008, 01:24 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
SO who have done soft vmod before?I still haven't do a real oc on 8800GT yet.
irangan
post Jan 1 2008, 10:16 AM

Lost Soul
******
Senior Member
1,201 posts

Joined: Dec 2004
From: Kuala Lumpur
QUOTE(OC4/3 @ Jan 1 2008, 01:24 AM)
SO who have done soft vmod before?I still haven't do a real oc on 8800GT yet.
*
What do you mean by soft vmod? By flashing bios that increase the voltage?

If you havent oc before, dont go for vmod first else there is high chances you will burn your card. haha
IcEMoCHa
post Jan 1 2008, 11:37 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
3dmark06 score... GPU at stock speed
Core :660mhz
Mem :1900mhz
Shader :1650mhz

CPU :3402Mhz
RAM : 946mhz 5-5-5-15

user posted image
irangan
post Jan 1 2008, 12:33 PM

Lost Soul
******
Senior Member
1,201 posts

Joined: Dec 2004
From: Kuala Lumpur
QUOTE(IcEMoCHa @ Jan 1 2008, 11:37 AM)
3dmark06 score... GPU at stock speed
Core :660mhz
Mem :1900mhz
Shader :1650mhz

CPU :3402Mhz
RAM : 946mhz 5-5-5-15

user posted image
*
a reasonable good score. try to OC... see how far can it go
IcEMoCHa
post Jan 1 2008, 01:47 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
The GPU temp is quite high when i OC @ 700Mhz Core/ 2000Mhz Memory/ 1750Mhz Shader ... around 72C when loaded... im quite worried... there is a case when finish doing 3dmark there is a pop out window saying the driver has failed and has been restored ... whats the cause?...
OC4/3
post Jan 2 2008, 01:41 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(irangan @ Jan 1 2008, 10:16 AM)
What do you mean by soft vmod? By flashing bios that increase the voltage?

If you havent oc before, dont go for vmod first else there is high chances you will burn your card. haha
*
That what i mean
nicholasmark
post Jan 4 2008, 01:46 AM

Getting Started
**
Junior Member
214 posts

Joined: Dec 2007
From: Creams
get an ultra everything solved brows.gif
IcEMoCHa
post Jan 4 2008, 11:49 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
ultra so expensive... SLi 8800gt can pawn ultra...
Oxburg
post Jan 7 2008, 11:59 PM

Enthusiast
*****
Senior Member
857 posts

Joined: Feb 2007
Guys did u a all feel spike lag when play game?I meant certain time the screen is flashed/freeze for very very instant.Like stagnant frame for some milisecond.Last time my old rig quite frequent but 8800GT also have.Abit disapointed.
Izwan898
post Jan 8 2008, 04:07 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(Oxburg @ Jan 7 2008, 11:59 PM)
Guys did u a all feel spike lag when play game?I meant certain time the screen is flashed/freeze for very very instant.Like stagnant frame for some milisecond.Last time my old rig quite frequent but 8800GT also have.Abit disapointed.
*
I also experiencing the same problem...any sifus can explain why? icon_question.gif
Oxburg
post Jan 8 2008, 04:17 AM

Enthusiast
*****
Senior Member
857 posts

Joined: Feb 2007
QUOTE(Izwan898 @ Jan 8 2008, 04:07 AM)
I also experiencing the same problem...any sifus can explain why? icon_question.gif
*
wow your rig much better then me also feeling those?= = Izit all card facing such problem?Or it is something we dunno how to fix.
Izwan898
post Jan 8 2008, 09:18 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(Oxburg @ Jan 8 2008, 04:17 AM)
wow your rig much better then me also feeling those?= = Izit all card facing such problem?Or it is something we dunno how to fix.
*
That's what bothering me all these time...dunno why...is it bcoz of my windows or what...danggg... rclxub.gif Need help sifus!! icon_question.gif
IcEMoCHa
post Jan 8 2008, 10:11 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
no problem with mine... OCed...
nicholasmark
post Jan 8 2008, 12:53 PM

Getting Started
**
Junior Member
214 posts

Joined: Dec 2007
From: Creams
QUOTE(IcEMoCHa @ Jan 4 2008, 11:49 AM)
ultra so expensive... SLi 8800gt can pawn ultra...
*
then sli ultra, my friend using 8800gt sli versus mine, too far apart, no competition. brows.gif
Izwan898
post Jan 8 2008, 01:09 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(IcEMoCHa @ Jan 8 2008, 10:11 AM)
no problem with mine... OCed...
*
Using stock cooler or 3rd party?What brand?Thinking wanna change too before OC... laugh.gif
IcEMoCHa
post Jan 8 2008, 02:19 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
i using stock cooler... getting accelero s1...
Izwan898
post Jan 8 2008, 03:04 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
What's your idle and full load temps?Using Rivatuner? hmm.gif
Oxburg
post Jan 8 2008, 04:08 PM

Enthusiast
*****
Senior Member
857 posts

Joined: Feb 2007
QUOTE(IcEMoCHa @ Jan 8 2008, 10:11 AM)
no problem with mine... OCed...
*
o/c will solve those problem?the problem i meant is very very minor like v-sync , or jumped frame for some milisecond.
IcEMoCHa
post Jan 8 2008, 04:40 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(Izwan898 @ Jan 8 2008, 03:04 PM)
What's your idle and full load temps?Using Rivatuner? hmm.gif
*
idle around 45C and load around 60C... yeah using rivatuner... smile.gif
Izwan898
post Jan 8 2008, 04:46 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(IcEMoCHa @ Jan 8 2008, 04:40 PM)
idle around 45C and load around 60C... yeah using rivatuner...  smile.gif
*
Wah so cool?Mine idle @ 55C n 70C full load...u set 100% fan what? hmm.gif
IcEMoCHa
post Jan 8 2008, 06:32 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
my fan set to auto... maybe cuz my AC is on and i have a PCI cooler...

This post has been edited by IcEMoCHa: Jan 8 2008, 06:32 PM
Izwan898
post Jan 8 2008, 08:28 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(IcEMoCHa @ Jan 8 2008, 06:32 PM)
my fan set to auto... maybe cuz my AC is on and i have a PCI cooler...
*
Owh...AC n pci cooler....coz if set it to auto max load temp will rise to a whooping of 82C!! That's why I'm not OC it yet... sweat.gif doh.gif
IcEMoCHa
post Jan 8 2008, 10:04 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
ur casing ventilation bad i think... my casing crazy ventilation... 2 x 12cm front, 25cm side , 8cm back + 2x12cm back... biggrin.gif
Izwan898
post Jan 8 2008, 10:53 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
Walaooooooo.....sooo many fans aaa? shocking.gif

I'm using praetorian with 1x12cm front n 3x8cm exhaust...not enough aaa?
nadeng1987
post Jan 9 2008, 11:43 PM

Casual
***
Junior Member
433 posts

Joined: Aug 2007
No need to buy lots of fans maa. Just dont close ur case and the air flow wud be as good as 6 fans in a closed system case. And i meant this for ocers who dont really care bout fancy case looks and wanna save budget loh.
Izwan898
post Jan 10 2008, 02:02 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(nadeng1987 @ Jan 9 2008, 11:43 PM)
No need to buy lots of fans maa. Just dont close ur case and the air flow wud be as good as 6 fans in a closed system case. And i meant this for ocers who dont really care bout fancy case looks and wanna save budget loh.
*
Already opened my casing mahhh... sweat.gif
IcEMoCHa
post Jan 10 2008, 10:56 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
my casing thermaltake armor ma... holes everywhere for ventilation lolz...
toro86
post Jan 17 2008, 07:37 PM

Getting Started
**
Junior Member
109 posts

Joined: Jul 2007
From: Where Everyone Lives
Just tested my Palit Sonic edition(650/1625/1900) stock clock OC it to (720/1720/2050) running 3d mark06 no problem at max temp 68C using stock cooler.
Want to ask how far OC can it go for any 8800gt OC edition user.Plan to try OC it to the max.Thx.
Izwan898
post Jan 18 2008, 03:44 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
Guys, I have a question here....FYI, I have set Rivatuner to auto adjust my 8800GT fan referring to it's temps but sometimes it stop working...I mean it stop auto adjusting...why aaa?Is it coz of driver compatibility?? icon_question.gif
kaiser_falco
post Jan 18 2008, 11:29 PM

the world wanderer
******
Senior Member
1,167 posts

Joined: Mar 2005
From: sunway/petaling jaya
just got some good news for you guys, new leak beta driver out 171.16 driver

http://forum.lowyat.net/index.php?showtopic=614819


try it out..and benchie it see if it good or not rumors said it good...

Added on January 19, 2008, 12:43 amok here is an update of quick run:

coh-of: all max setting no AA (1440x900) dx10
169.28 beta: 45.3/60.0/3.9
171.14 beta: 47.9/62.5/2.8

wic latest patch max setting no AA (1440x900) dx10
169.28 beta: 38/21/56
171.16 beta: 41/18/60

all test run under window vista/8800gts 512mb/overclock

This post has been edited by kaiser_falco: Jan 19 2008, 12:43 AM
likito
post Jan 20 2008, 10:54 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
QUOTE(nadeng1987 @ Jan 9 2008, 11:43 PM)
No need to buy lots of fans maa. Just dont close ur case and the air flow wud be as good as 6 fans in a closed system case. And i meant this for ocers who dont really care bout fancy case looks and wanna save budget loh.
*
hmm! alot fan = noisy + dust for daily use

This post has been edited by likito: Jan 20 2008, 10:55 PM
Izwan898
post Jan 21 2008, 02:00 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(likito @ Jan 20 2008, 10:54 PM)
hmm! alot fan = noisy + dust for daily use
*
Cannot disagree more with u bro!! icon_rolleyes.gif
vincentlaw
post Jan 21 2008, 02:39 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
All default factory settings.... havent OC yet..... will try later

Asus 8800GT 512mb Top Edition, win xp sp2, driver 171.16 beta

Is it good or bad?

This post has been edited by vincentlaw: Jan 21 2008, 02:40 PM


Attached thumbnail(s)
Attached Image
DEz012
post Jan 21 2008, 05:55 PM

On my way
****
Senior Member
574 posts

Joined: Oct 2006
@ vicentlaw

Ok for the result u can Oc your Proc. for higher scores. As my score were 7k only due to i'm using Pentium D 805 even overclock to 3.2ghz.
vincentlaw
post Jan 21 2008, 08:12 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(DEz012 @ Jan 21 2008, 05:55 PM)
@ vicentlaw

Ok for the result u can Oc your Proc. for higher scores. As my score were 7k only due to i'm using Pentium D 805 even overclock to 3.2ghz.
*
i will push it abit and get the score later as i dont have the time to do it yet now.... kinda bz and additionally my Hdd space is nearly full.. left about 2gb.... wonder that will decrese the performance or not...

This post has been edited by vincentlaw: Jan 21 2008, 08:13 PM
kmarc
post Jan 21 2008, 08:19 PM

The future is here - Cryptocurrencies!
Group Icon
Elite
14,576 posts

Joined: May 2006
From: Sarawak
QUOTE(vincentlaw @ Jan 21 2008, 02:39 PM)
All default factory settings.... havent OC yet..... will try later

Asus 8800GT 512mb Top Edition, win xp sp2, driver 171.16 beta

Is it good or bad?
*
Good la..... my GTS at max GC/CPU overclocked only get 11452....
Izwan898
post Jan 21 2008, 08:32 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(kmarc @ Jan 21 2008, 08:19 PM)
Good la..... my GTS at max GC/CPU overclocked only get 11452....
*
Me too...juz around 12K.... sad.gif
kmarc
post Jan 21 2008, 08:38 PM

The future is here - Cryptocurrencies!
Group Icon
Elite
14,576 posts

Joined: May 2006
From: Sarawak
QUOTE(Izwan898 @ Jan 21 2008, 08:32 PM)
Me too...juz around 12K.... sad.gif
*
Eh? Yours is a GT wor..... should be able to reach 13K.... smile.gif
vincentlaw
post Jan 21 2008, 10:29 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Izwan898 @ Jan 21 2008, 08:32 PM)
Me too...juz around 12K.... sad.gif
*
fuihyoo..... GTSv1 also win me liao... pffff.... must OC kao kao win u back... brows.gif brows.gif
Izwan898
post Jan 21 2008, 10:32 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(kmarc @ Jan 21 2008, 08:38 PM)
Eh? Yours is a GT wor..... should be able to reach 13K....  smile.gif
*
QUOTE(vincentlaw @ Jan 21 2008, 10:29 PM)
fuihyoo..... GTSv1 also win me liao... pffff.... must OC kao kao win u back... brows.gif  brows.gif
*
GT can reach 13K??Need to OC first maybe? sweat.gif Mine runnin stock mahhh...

I'm not too brave to oc my GT yet coz the temps really bothers me....waiting for my allowance to get the HR-03(Drum rolling) brows.gif
vincentlaw
post Jan 21 2008, 11:27 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
OCed... 13876 .. will furthur OC later

This post has been edited by vincentlaw: Jan 21 2008, 11:56 PM


Attached thumbnail(s)
Attached Image
vincentlaw
post Jan 22 2008, 12:02 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
Futhur OCed pushing GC furthur.... 13937 only.... just abit increase from previous... Zzzzzzzzz Furthur Up


Attached thumbnail(s)
Attached Image
Izwan898
post Jan 22 2008, 12:40 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
What's ur temps with that setting?Stock cooler for the GT?? blink.gif
vincentlaw
post Jan 22 2008, 01:32 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Izwan898 @ Jan 22 2008, 12:40 AM)
What's ur temps with that setting?Stock cooler for the GT?? blink.gif
*
For 8800GT,idle 54'c and max load roughly 79-81'c, roughly bcoz so far dont have software that can observe the temp, only Smartdoctor from asus itself can on this card so after finish bench then fast fast open smartdoctor to see it... yes it is stock cooler.... Asus Glaciator Fan...

CPU is 40'c idle and 58'c load with stock cooler too
Izwan898
post Jan 22 2008, 03:27 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(vincentlaw @ Jan 22 2008, 01:32 AM)
For 8800GT,idle 54'c and max load roughly 79-81'c, roughly bcoz so far dont have software that can observe the temp, only Smartdoctor from asus itself can on this card so after finish bench then fast fast open smartdoctor to see it... yes it is stock cooler.... Asus Glaciator Fan...

CPU is 40'c idle and 58'c load with stock cooler too
*
Hmmm not bad...why don't u use Rivatuner?It also can monitor your temps...can record summore... thumbup.gif
vincentlaw
post Jan 22 2008, 04:26 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Izwan898 @ Jan 22 2008, 03:27 AM)
Hmmm not bad...why don't u use Rivatuner?It also can monitor your temps...can record summore... thumbup.gif
*
yes riva tuner work for others but not this new Asus 8800GT top edition (with glaciator fan). Asus claimed they have a special thermal sensor and now only the software provided by asus "smartdoctor" only can read the temp. Riva Tuner and others cant read it..... LOL riva tuner show 0'c... how happy if i can get that seriously.. tongue.gif.

So the only way to see the temp is with "smartdoctor" from asus

BTW ur GTS is 512mb or 320/640mb??? u said u get 12k score rite??? oced???
longpants
post Jan 23 2008, 02:14 AM

Getting Started
**
Junior Member
260 posts

Joined: Nov 2005
waah ur temp 81C only?

u are lucky u have the newer version of asus top. mine reach temp of 85-90C when playing COD!. siao.
vincentlaw
post Jan 23 2008, 03:00 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(longpants @ Jan 23 2008, 02:14 AM)
waah ur temp 81C only?

u are lucky u have the newer version of asus top. mine reach temp of 85-90C when playing COD!. siao.
*
Open the side panel..... >_<"..... sad d for 81'c if close then i think might see smoke.... tongue.gif
IcEMoCHa
post Jan 23 2008, 11:06 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
put a pci cooler will lower the temp quite alot ...
vincentlaw
post Jan 23 2008, 12:17 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(IcEMoCHa @ Jan 23 2008, 11:06 AM)
put a pci cooler will lower the temp quite alot ...
*
cooler or blower??? cooler is the 2 fan and blower is the 1fan sucking the air out
Izwan898
post Jan 23 2008, 06:04 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(vincentlaw @ Jan 23 2008, 12:17 PM)
cooler or blower??? cooler is the 2 fan  and blower is the 1fan sucking the air out
*
81C?Wow....i used a profile from Rivatuner...max temp 67C only using COD.... sweat.gif
vincentlaw
post Jan 23 2008, 10:51 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Izwan898 @ Jan 23 2008, 06:04 PM)
81C?Wow....i used a profile from Rivatuner...max temp 67C only using COD.... sweat.gif
*
wats ur clock of ur card?, and additionally wat compare my casing with urs... LOL urs over mine alot.. LOL... im just using RM20 casing.. which bought from forumer... hahahah..... if i have ur casing also can 69'C..... i think lower also can.... tongue.gif

anyway i've OCed mine till 735/1835/2092.... althou not very high but still okay i feel.... not yet test the limit... kinda lazy
skcs1985
post Jan 23 2008, 11:35 PM

Casual
***
Junior Member
322 posts

Joined: Sep 2006
From: Seri Kembangan; Equine Park
hi guys wanna ask 1 question
i m using ASUS 8800GT 512MB the normal version, not TOP

should i flash the bios or stay stock??
wut changes would it make if i flash the card??
vincentlaw
post Jan 24 2008, 01:27 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(skcs1985 @ Jan 23 2008, 11:35 PM)
hi guys wanna ask 1 question
i m using ASUS 8800GT 512MB the normal version, not TOP

should i flash the bios or stay stock??
wut changes would it make if i flash the card??
*
is there any problem with ur card now? such as weird temperature (with "smartdoctor" by asus)?, hang/crash even temperature is good, low benchmark score?
Else i personally feel dont need...
im not quite sure since im using TOP ed now.... But will fix a non-TOP for my fren this friday. tongue.gif will test out abit..
skcs1985
post Jan 24 2008, 01:51 AM

Casual
***
Junior Member
322 posts

Joined: Sep 2006
From: Seri Kembangan; Equine Park
ooo nice
after u fix pls let me know if flashing it improve
Izwan898
post Jan 24 2008, 02:41 AM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(vincentlaw @ Jan 23 2008, 10:51 PM)
wats ur clock of ur card?, and additionally wat compare my casing with urs... LOL urs over mine alot.. LOL... im just using RM20 casing.. which bought from forumer... hahahah..... if i have ur casing also can 69'C..... i think lower also can.... tongue.gif

anyway i've OCed mine till 735/1835/2092.... althou not very  high but still okay i feel.... not yet test the limit... kinda lazy
*
Hehe mine juz stock one mahhh...not dare to OC yet coz still waiting for 3rd party cooler....cannot afford new one if it's crispy already(BBQ/Burned) sweat.gif

My temps went to 93C once bcoz the auto adjusting fan profile malfunctioned.... doh.gif
vincentlaw
post Jan 24 2008, 03:05 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Izwan898 @ Jan 24 2008, 02:41 AM)
Hehe mine juz stock one mahhh...not dare to OC yet coz still waiting for 3rd party cooler....cannot afford new one if it's crispy already(BBQ/Burned) sweat.gif

My temps went to 93C once bcoz the auto adjusting fan profile malfunctioned.... doh.gif
*
its good urs can adjust fan. mine is stock speed, cant control yet. Even by Asus "smartdoctor" isnt it stupid?

Even the slider can be adjust, but the "Smart Cooling" cant be selected. Wonder when they will come out with 1 with supported it. Riva Tuner fan tuning not available.


Attached thumbnail(s)
Attached Image
vincentlaw
post Jan 24 2008, 03:12 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
Hmm tried OCed furthur and this is wat i get... Seems it just a slight improvement from furthur OC... Not yet Limit yet... Will stop at here

This post has been edited by vincentlaw: Jan 24 2008, 03:13 AM


Attached thumbnail(s)
Attached Image
johnkor
post Jan 24 2008, 03:44 AM

Level 2 Mainboard Repair Specialist
*******
Senior Member
4,237 posts

Joined: Sep 2006
QUOTE(tAmp0i @ Nov 1 2007, 06:54 PM)
user posted image

The NVIDIA(R) GeForce(R) 8800 GT has the perfect combination of power, performance, and price. It offers 112 stream processors, and a 256-bit frame buffer for jealousy-inducing DirectX 10 gameplay at ultra fast frame rates.

Packed with more features for the price
With 112 stream processors and a 256-bit framebuffer interface running at 900MHz, GeForce 8800 GT delivers a level of price/performance that gamers demand.

Support for next generation PC platforms
Compatible with the new PCI Express 2.0 bus architecture, offering a future-proofing bridge to tomorrow's most bandwidth-hungry games and 3D applications.

user posted image

Here we have our official overclocking discussions ranging from minor heat issue to major hard mods. It's all here, have your say and good luck in venturing into high clocks for either gaming or 3DMarks....

Drivers:Utility:3DMarks:BIOS: Core/Shader/MemoryVoltage Mods:
    Addendum:
    Diagram: (Image courtesy XS)
    user posted image
    Purple dot denotes vGPU measuring points, Blue dot denotes Ground...

    Example:
    user posted image
    Done by Hyde`fK @ Lowyat.NET

    user posted image
    Done by rlhc17 @ Lowyat.NET

*
y u dont include PNY , BFG GIGABYTE
vincentlaw
post Jan 24 2008, 05:14 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(johnkor @ Jan 24 2008, 03:44 AM)
y u dont include PNY , BFG GIGABYTE
*
bcoz the post is posted on 1st of november 2007 and last edited on 27th november 2007 and then the 1st post isnt updated till now...

and pls use spoiler for lots/big picture if u wanna quote it.
likito
post Jan 24 2008, 11:19 AM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
QUOTE(vincentlaw @ Jan 24 2008, 01:27 AM)
is there any problem with ur card now? such as weird temperature (with "smartdoctor" by asus)?, hang/crash even temperature is good, low benchmark score?
Else i personally feel dont need...
im not quite sure since im using TOP ed now.... But will fix a non-TOP for my fren this friday. tongue.gif will test out abit..
*
waiting for ur top and non top comparison
SlayerXT
post Jan 24 2008, 12:44 PM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
QUOTE(vincentlaw @ Jan 24 2008, 03:12 AM)
Hmm tried OCed furthur and this is wat i get... Seems it just a slight improvement from furthur OC... Not yet Limit yet... Will stop at here
*
3GHz not achievable? unsure.gif
johnkor
post Jan 24 2008, 01:40 PM

Level 2 Mainboard Repair Specialist
*******
Senior Member
4,237 posts

Joined: Sep 2006
i think XRL8 is the best ! Xlerate Edition!
vincentlaw
post Jan 24 2008, 05:41 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(likito @ Jan 24 2008, 11:19 AM)
waiting for ur top and non top comparison
*
its will be difference score cause we both using diff spec. the diff is:
C2Q Q6600
MSI P35 Neo2FR
Asus 8800GT Glaciator fan

HOHO getting my Q6600 this week end..and more testing will be carry out with Q6600.....

I will try to do some bench if i got the time. cause need to fix up the system + format + install windows + update + install software ... then only can run benchies... tongue.gif wonder how long will all that takes.

I will be sad if his score is near mine.. >_<"

Added on January 24, 2008, 5:42 pm
QUOTE(§layerXT @ Jan 24 2008, 12:44 PM)
3GHz not achievable?  unsure.gif
*
wat u mean.. i was using 3.4ghz there.... just that the C1E is on... so u saw 2.55ghz there only... or shud i off the speedstep for benchies??? will increase scores??

All benchies was done with C1E on.... Dont dare to go 3.5ghz yet since im only using stock cooler!!!! waiting xigmatek cooler

This post has been edited by vincentlaw: Jan 24 2008, 05:46 PM
SlayerXT
post Jan 25 2008, 09:10 PM

PRIDE!
*******
Senior Member
2,042 posts

Joined: Jan 2003
From: KL
Owh the c1e was the the culprit. Nice score!
vincentlaw
post Jan 25 2008, 11:37 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(§layerXT @ Jan 25 2008, 09:10 PM)
Owh the c1e was the the culprit. Nice score!
*
so u mean off c1e and EIST will be better score?

but basically i cant compare already.. now with Q6600... so will get diff score already...
likito
post Jan 27 2008, 07:19 PM

Regular
******
Senior Member
1,468 posts

Joined: Sep 2006
From: Taman Melati, KL
hey guy , i just bought pny 8800GT 512mb ,
any one know how to flash bios , where i can find bios for pny ..
thanks
johnkor
post Jan 28 2008, 06:59 PM

Level 2 Mainboard Repair Specialist
*******
Senior Member
4,237 posts

Joined: Sep 2006
ah www.pny.com / supports!
coldz
post Jan 28 2008, 10:54 PM

New Member
*
Junior Member
29 posts

Joined: Nov 2007
hey..i need help..i am using msi 8800gt but i couldn overclock it..when ever i try to oc it...the screen will freeze....the prob is i am not using stock cooler...i am using HR 03 GT...suppose i could oc it kao kao...pls help...10s ya...
vincentlaw
post Jan 28 2008, 11:14 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(coldz @ Jan 28 2008, 10:54 PM)
hey..i need help..i am using msi 8800gt but i couldn overclock it..when ever i try to oc it...the screen will freeze....the prob is i am not using stock cooler...i am using HR 03 GT...suppose i could oc it kao kao...pls help...10s ya...
*
could be driver problem... try with other driver.... last time i experience this with 7800GS EE
coldz
post Jan 28 2008, 11:27 PM

New Member
*
Junior Member
29 posts

Joined: Nov 2007
QUOTE(vincentlaw @ Jan 28 2008, 11:14 PM)
could be driver problem... try with other driver.... last time i experience this with 7800GS EE
*
other driver?i thought the latest driver should fix it.... doh.gif ish..thought with HR 03 GT i could oc it kao kao..now i couldn even oc it!!!...the temp 4 my 8800 gt is 45C
vincentlaw
post Jan 29 2008, 01:38 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(coldz @ Jan 28 2008, 11:27 PM)
other driver?i thought the latest driver should fix it.... doh.gif ish..thought with HR 03 GT i could oc it kao kao..now i couldn even oc it!!!...the temp 4 my 8800 gt is 45C
*
not always the latest = the best.....try afew previous driver.... HR03GT is gigantic... if dont get 45 then sad... mine is 49'c with asus 800GT TOP stock glaciator cooler... tongue.gif

Added on January 29, 2008, 4:58 pmThis is the bench with my new Q6600 OCed to 3.0ghz and GC OCed to 740/1838/2136

How is it? It seems the review is true about E6750 is slightly better compared to Q6600... coz my Q6600 SM2.0 and SM3.0 score lose to my E6750 score even at same GC clock speed.

This post has been edited by vincentlaw: Jan 29 2008, 05:05 PM


Attached thumbnail(s)
Attached Image
johnkor
post Jan 29 2008, 06:48 PM

Level 2 Mainboard Repair Specialist
*******
Senior Member
4,237 posts

Joined: Sep 2006
i think i need to change da cooler ! to Coolermaster
Izwan898
post Jan 29 2008, 07:02 PM

MrNastey
*****
Senior Member
937 posts

Joined: Jun 2006
From: Malaysia
QUOTE(johnkor @ Jan 29 2008, 06:48 PM)
i think i need to change da cooler !  to Coolermaster
*
CM any good?Thinkin wanna change to TR HR03 but seems so big... sweat.gif
vincentlaw
post Jan 29 2008, 10:34 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(johnkor @ Jan 29 2008, 06:48 PM)
i think i need to change da cooler !  to Coolermaster
*
u are using pentium 4? and ddr400 with 8800GT??? u are just wasting the 8800GT performance. ur p4 and ram and maybe ur IDE HDD too will drag down ur 8800GT performance... dont use ur money to get cooler.... use ur money to upgrade 1st....

advised to change to better 1... c2s E4xxx, SATA2, and ddr677 at least.

This post has been edited by vincentlaw: Jan 29 2008, 10:36 PM
ezinger
post Feb 5 2008, 12:35 PM

butter cookies
******
Senior Member
1,536 posts

Joined: Jan 2005
this is my score on useless stock fan with slight overclocking..

user posted image
vincentlaw
post Feb 5 2008, 03:48 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ezinger @ Feb 5 2008, 12:35 PM)
this is my score on useless stock fan with slight overclocking..

user posted image
*
wahhh ur cpu score 5k....im sure its quadcore Oced more than 3.0ghz...
ezinger
post Feb 5 2008, 09:32 PM

butter cookies
******
Senior Member
1,536 posts

Joined: Jan 2005
QUOTE(vincentlaw @ Feb 5 2008, 03:48 PM)
wahhh ur cpu score 5k....im sure its quadcore Oced more than 3.0ghz...
*
3.6 Ghz brows.gif
vincentlaw
post Feb 10 2008, 05:25 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ezinger @ Feb 5 2008, 09:32 PM)
3.6 Ghz  brows.gif
*
zzzz 3.6ghz summore slightly OC ah.... u mean ur GC slight izzit??? wats the clock u OC to get that 14k???? screenie ler..

This post has been edited by vincentlaw: Feb 10 2008, 07:32 PM
ezinger
post Feb 11 2008, 10:21 PM

butter cookies
******
Senior Member
1,536 posts

Joined: Jan 2005
QUOTE(vincentlaw @ Feb 10 2008, 05:25 PM)
zzzz 3.6ghz summore slightly OC ah.... u mean ur GC slight izzit??? wats the clock u OC to get that 14k???? screenie ler..
*
there is still alot of room for oc. but i haven't changed my cooler yet.

i'll be back with a new score once i get new coolers which are difficult to get locally.
vincentlaw
post Feb 11 2008, 11:06 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ezinger @ Feb 11 2008, 10:21 PM)
there is still alot of room for oc. but i haven't changed my cooler yet.

i'll be back with a new score once i get new coolers which are difficult to get locally.
*
u mean ur GC or CPU have alot of room to OC..... Q6600 at 3.6ghz is extreme already.... Zzzzzzz i feel dont have much rooms to OC anymore... unless u wanna take high risk
ezinger
post Feb 12 2008, 12:17 AM

butter cookies
******
Senior Member
1,536 posts

Joined: Jan 2005
QUOTE(vincentlaw @ Feb 11 2008, 11:06 PM)
u mean ur GC or CPU have alot of room to OC..... Q6600 at 3.6ghz is extreme already.... Zzzzzzz i feel dont have much rooms to OC anymore... unless u wanna take high risk
*
i only slightly oc my gc, so there is alot of room to oc my gc and i didn't even volt mod my gc also. no point oc my gc with stock fan. it's too useless even on 100%.

actually, my cpu has a little more room to oc brows.gif
getting new mobo and new cooler. right now just waiting for the cpu cooler.
Hoodlums
post Feb 13 2008, 08:54 AM

On my way
****
Senior Member
598 posts

Joined: Sep 2004
Plan to buy 8800GT but confius, can my Acbel iPower 450W handle this GC well? rolleyes.gif
My current rig like at my signature hmm.gif

This post has been edited by Hoodlums: Feb 13 2008, 08:56 AM
vincentlaw
post Feb 13 2008, 11:42 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(Hoodlums @ Feb 13 2008, 08:54 AM)
Plan to buy 8800GT but confius, can my Acbel iPower 450W handle this GC well?  rolleyes.gif
My current rig like at my signature hmm.gif
*
by refering to ur rig u using now in ur signature.... ur acbel 450w shud be change when u get 8800GT.... anyway how many Ampere u have on a single +12V rail...
for me i will change to prevent instability or even dmg to the hardware.....
ben_panced
post Feb 13 2008, 10:13 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(Hoodlums @ Feb 13 2008, 08:54 AM)
Plan to buy 8800GT but confius, can my Acbel iPower 450W handle this GC well?  rolleyes.gif
My current rig like at my signature hmm.gif
*
can dont worry..
i used my power hungry x1950xt with that psu..
fyi.. in terms of power consumption x1950xt >>> 8800gt tongue.gif
voditoleons
post Feb 16 2008, 06:32 PM

New Member
*
Junior Member
42 posts

Joined: Dec 2007
hey i am using asus en8800gt 256mb (glaciator fan).
how far can i OC it? (mid-oc enuff)

my case temp around 42
vincentlaw
post Feb 16 2008, 07:53 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(voditoleons @ Feb 16 2008, 06:32 PM)
hey i am using asus en8800gt 256mb (glaciator fan).
how far can i OC it? (mid-oc enuff)

my case temp around 42
*
recommended to use latest smartdoctor from asus... u can OC with that and i think that is the only software that can see ur GC temperature.
OC4/3
post Feb 17 2008, 01:26 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(voditoleons @ Feb 16 2008, 06:32 PM)
hey i am using asus en8800gt 256mb (glaciator fan).
how far can i OC it? (mid-oc enuff)

my case temp around 42
*
700core should be easy.Most 8800GT crap out@stock v@720core like that.Good one can hit 740 core but rare.
ben_panced
post Feb 17 2008, 05:06 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(OC4/3 @ Feb 17 2008, 01:26 AM)
700core should be easy.Most 8800GT crap out@stock v@720core like that.Good one can hit 740 core but rare.
*
my gigabyte 8800gt can do 756mhz core @ 1.1vcore..
but the sp clockspeed is more important than core
voditoleons
post Feb 17 2008, 07:52 PM

New Member
*
Junior Member
42 posts

Joined: Dec 2007
QUOTE(ben_panced @ Feb 17 2008, 05:06 PM)
my gigabyte 8800gt can do 756mhz core @ 1.1vcore..
but the sp clockspeed is more important than core
*
hmm is it ok for 1700+ shader?
my smartdoctor just cannot monitor my gc temp with asus driver + gamerosd installed. tried 4 times already. gab up.
1 time 3dmark06 pass = stable?
can 3dmark test the stability of cpu too?
0168257061
post Feb 17 2008, 08:44 PM

EimiFukada
********
All Stars
14,242 posts

Joined: Jul 2007
From: JAVABUS
QUOTE(ben_panced @ Feb 17 2008, 06:06 PM)
my gigabyte 8800gt can do 756mhz core @ 1.1vcore..
but the sp clockspeed is more important than core
*
LMFAO
Gigabyte got gamers hud which let you control the voltage on the gpu....
its really great..oh my....I also want sad.gif
btw , whats the stock vcore for 8800GT GPU ?
ben_panced
post Feb 17 2008, 09:25 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(168257061 @ Feb 17 2008, 08:44 PM)
LMFAO
Gigabyte got gamers hud which let you control the voltage on the gpu....
its really great..oh my....I also want sad.gif
btw , whats the stock vcore for 8800GT GPU ?
*
stock vcore 1.1v..
max vcore supported by the gamer hud is 1.2v.. smile.gif
Hoodlums
post Feb 18 2008, 03:09 AM

On my way
****
Senior Member
598 posts

Joined: Sep 2004
I'm using Gigabyte P35-DS3 Rev. 1.0, juz support PCIE 16X v1.0..
Any performance penalty if using 8800GT? hmm.gif
0168257061
post Feb 18 2008, 04:46 PM

EimiFukada
********
All Stars
14,242 posts

Joined: Jul 2007
From: JAVABUS
QUOTE(ben_panced @ Feb 17 2008, 10:25 PM)
stock vcore 1.1v..
max vcore supported by the gamer hud is 1.2v..  smile.gif
*
uhm..how about your memory speed ?
saw your siggy only 19xx...
goldfries
post Feb 18 2008, 05:00 PM

40K Club
Group Icon
Forum Admin
44,415 posts

Joined: Jan 2003
QUOTE(voditoleons @ Feb 17 2008, 07:52 PM)
1 time 3dmark06 pass = stable?
can 3dmark test the stability of cpu too?
tell you la, 3dmark06 doesn't say anything about your stability.

i had the 8800GT OCed and it passed 3dmark06 no problem. yeah, bench it with FEAR and there it goes. hang.

vincentlaw
post Feb 18 2008, 05:39 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(goldfries @ Feb 18 2008, 05:00 PM)
tell you la, 3dmark06 doesn't say anything about your stability.

i had the 8800GT OCed and it passed 3dmark06 no problem. yeah, bench it with FEAR and there it goes. hang.
*
thats true... tongue.gif... it just bench performance only... and minorly scan for artifacts
OC4/3
post Feb 18 2008, 11:02 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(ben_panced @ Feb 17 2008, 05:06 PM)
my gigabyte 8800gt can do 756mhz core @ 1.1vcore..
but the sp clockspeed is more important than core
*
Link core to shader mah.I can go ~71x without crashing 40min gaming and 3dmark@Stock volt doh.gif .
vincentlaw
post Feb 18 2008, 11:31 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ben_panced @ Feb 17 2008, 05:06 PM)
my gigabyte 8800gt can do 756mhz core @ 1.1vcore..
but the sp clockspeed is more important than core
*
wooh... got benchy screeny anot drool.gif drool.gif drool.gif
ben_panced
post Feb 18 2008, 11:45 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(168257061 @ Feb 18 2008, 04:46 PM)
uhm..how about your memory speed ?
saw your siggy only 19xx...
*
too bad the software dont allow vram adjustment.. btw tho this card uses samsung gddr3 chips, i cannot oc my mem to 1000mhz, it'll fail atitool artifact scanning in minutes..

QUOTE(OC4/3 @ Feb 18 2008, 11:02 PM)
Link core to shader mah.I can go ~71x without crashing 40min gaming and 3dmark@Stock volt doh.gif .
*
i oc the core and shader independently..
firstly i will find the max stable clockspeed for my core, shader, and memory using atitool artifact scanning for about an hour..
and after that i oc my core, shader and memory according to my highest clockspeed at the sametime and again run the artifact scanning for about 6 to hours, that's how i got my 756/1890/1944 oc setting..

QUOTE(vincentlaw @ Feb 18 2008, 11:31 PM)
wooh... got benchy screeny anot  drool.gif  drool.gif  drool.gif
*
i already posted a couple screenies in the 8800gt thread in the hardware subforum..
any1else87
post Feb 19 2008, 11:08 AM

Casual
***
Junior Member
310 posts

Joined: Jun 2006
my zotac 8800gt amp is running at 60-61 C idle. Is that normal ? what shud i do ? change the GC cooler? if so, what cooler to use?
vincentlaw
post Feb 19 2008, 02:22 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(any1else87 @ Feb 19 2008, 11:08 AM)
my zotac 8800gt amp is running at 60-61 C idle. Is that normal ? what shud i do ? change the GC cooler? if so, what cooler to use?
*
ur casing airflow shud be bad i think..... 60-61'c for zotac amp... even higher thanmy asus TOP which is the hottest card in 8800GT innovated fan market
ben_panced
post Feb 19 2008, 11:36 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(any1else87 @ Feb 19 2008, 11:08 AM)
my zotac 8800gt amp is running at 60-61 C idle. Is that normal ? what shud i do ? change the GC cooler? if so, what cooler to use?
*
set ur fan speed to 100% via rivatuner..
or improve ur cable management..
or improve ur casing airflow..
that should do the trick flex.gif
fuzore
post Feb 20 2008, 08:41 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
my palit 8800gt idle temp is 52c load is about 62c.... sweat.gif
anyone here using palit like me whats ur temp and how high have u oc ur card... hmm.gif
k3et
post Feb 20 2008, 09:06 AM

Getting Started
**
Junior Member
192 posts

Joined: Jan 2003
From: Subang Jaya and Off Jln Puchong (near OUG)
I'm using Zotac AMP Edition stock at 700/1700/2000.

Now I overclock it at 760/1900/2200 but in rivatuner hardware monitoring shows 756/1890/2202.

Idle 58c
Load 67c

Using stock bios.

So any sifu here got higher than this or this is the limit already?
vincentlaw
post Feb 20 2008, 12:33 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(k3et @ Feb 20 2008, 09:06 AM)
I'm using Zotac AMP Edition stock at 700/1700/2000.

Now I overclock it at 760/1900/2200 but in rivatuner hardware monitoring shows 756/1890/2202.

Idle 58c
Load 67c

Using stock bios.

So any sifu here got higher than this or this is the limit already?
*
so high??? try use ATItool to stress test and scan atifacts....
ben_panced
post Feb 20 2008, 02:24 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(k3et @ Feb 20 2008, 09:06 AM)
I'm using Zotac AMP Edition stock at 700/1700/2000.

Now I overclock it at 760/1900/2200 but in rivatuner hardware monitoring shows 756/1890/2202.

*
rivatuner shows ur shader clockspeed is 1890 because it is 1890mhz..
it's because SP clockspeed increase in 54mhz step.. and rite now u're in 1890mhz.. so the next step is 1890+54 or previous step is 1890-54..
that's how to correctly oc a 8 series card.. flex.gif
about the core im not too sure.. because when i oc my previous 8800gts card, the core will increase in 27mhz step, tho it didnt work that way when i oc my 8800gt core clockspeed...
btw ur memory is @ 2.2ghz which is amazing, my card eventho it uses samsung gddr3 chips, still cannot be oced to 2000mhz memory.. sweat.gif
0168257061
post Feb 20 2008, 06:58 PM

EimiFukada
********
All Stars
14,242 posts

Joined: Jul 2007
From: JAVABUS
QUOTE(fuzore @ Feb 20 2008, 09:41 AM)
my palit 8800gt idle temp is 52c load is about 62c.... sweat.gif
anyone here using palit like me whats ur temp and how high have u oc ur card... hmm.gif
*
lol, you are using Palit factory heatsink ah? sweat.gif
fuzore
post Feb 20 2008, 07:40 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(168257061 @ Feb 20 2008, 06:58 PM)
lol, you are using Palit factory heatsink ah?  sweat.gif
*
yup using that blue one la...set fan 60%<55c 80%>56c using riva +vizo propeller next to it... tongue.gif
ben_panced
post Feb 20 2008, 09:51 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(fuzore @ Feb 20 2008, 07:40 PM)
yup using that blue one la...set fan 60%<55c 80%>56c using riva +vizo propeller next to it... tongue.gif
*
hmm.gif the temp looks good, but what if u set the fan to 100%? will it be noisy??
OC4/3
post Feb 20 2008, 10:05 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(vincentlaw @ Feb 20 2008, 12:33 PM)
so high??? try use ATItool to stress test and scan atifacts....
*
Agree.He must have a miracle or golden 8800GT to go that high without vmod.My one,so far highest stable shader is 1797mhz.18xxmhz will crash!Will try at the future through.
vincentlaw
post Feb 20 2008, 10:11 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(OC4/3 @ Feb 20 2008, 10:05 PM)
Agree.He must have a miracle or golden 8800GT to go that high without vmod.My one,so far highest stable shader is 1797mhz.18xxmhz will crash!Will try at the future through.
*
waiting his ATItool artifact scan screeny.... if really can go that high... i will sell off my asus top right away and get the same as his.... my asus top is far lower than him which is 745/1838/2136 without increasing voltage....
ben_panced
post Feb 20 2008, 10:37 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(OC4/3 @ Feb 20 2008, 10:05 PM)
Agree.He must have a miracle or golden 8800GT to go that high without vmod.My one,so far highest stable shader is 1797mhz.18xxmhz will crash!Will try at the future through.
*
maybe zotac set vcore for their amp 8800gt higher than normal kot..
maybe around 1.2v..
stock 1.1vcore 8800gt gpu SP's cannot be oced past 1.8ghz..
it'll fail atitool artifact scanning in less than 10 minutes <- my own experience hehe biggrin.gif
fuzore
post Feb 21 2008, 08:35 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(ben_panced @ Feb 20 2008, 09:51 PM)
hmm.gif the temp looks good, but what if u set the fan to 100%? will it be noisy??
*
of coz la bit noisy but not to loud still acceptable... tongue.gif
i put my green frog under the atitool stress on small oc 650/1900 and log its temp...

under stress fan 80% = 65c

Attached Image

idle fan 60% = 53c

Attached Image
OC4/3
post Feb 21 2008, 08:16 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(vincentlaw @ Feb 20 2008, 10:11 PM)
waiting his ATItool artifact scan screeny.... if really can go that high... i will sell off my asus top right away and get the same as his.... my asus top is far lower than him which is 745/1838/2136 without increasing voltage....
*
Agree and i just kill my 8800GT yesterday during 3dmark06@720core/1800shader/950mem.Hope after RMA,the card is better one. thumbup.gif
vincentlaw
post Feb 21 2008, 08:48 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(OC4/3 @ Feb 21 2008, 08:16 PM)
Agree and i just kill my 8800GT yesterday during 3dmark06@720core/1800shader/950mem.Hope after RMA,the card is better one. thumbup.gif
*
omg at that clockspeed i tot it shudnt die... i tot it have the function where lower down clock speed automatically when in danger temperature... u overvolt too much?
fuzore
post Feb 22 2008, 08:22 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(OC4/3 @ Feb 21 2008, 08:16 PM)
Agree and i just kill my 8800GT yesterday during 3dmark06@720core/1800shader/950mem.Hope after RMA,the card is better one. thumbup.gif
*
woo..u killed ur card alredy what brand r u using...
ben_panced
post Feb 22 2008, 10:54 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(OC4/3 @ Feb 21 2008, 08:16 PM)
Agree and i just kill my 8800GT yesterday during 3dmark06@720core/1800shader/950mem.Hope after RMA,the card is better one. thumbup.gif
*
wow my daily oc setting is even higher than that yet it's rock stable sweat.gif
so, i guess u're unlucky dude sweat.gif

OC4/3
post Feb 22 2008, 09:24 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(fuzore @ Feb 22 2008, 08:22 AM)
woo..u killed ur card alredy what brand r u using...
*
PNY.I think not enough V.After RMA,going to do softmod and buy Accelerato S1. thumbup.gif
ben_panced
post Feb 23 2008, 10:34 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(OC4/3 @ Feb 22 2008, 09:24 PM)
PNY.I think not enough V.After RMA,going to do softmod and buy Accelerato S1. thumbup.gif
*
dude.. it's unusual to kill a gc from a oc, unless the temp is jumping through the roof sweat.gif
btw, how long will it take to rma ur card?? smile.gif
sempronic
post Feb 25 2008, 12:10 AM

Enthusiast
*****
Senior Member
986 posts

Joined: Jul 2006
From: :: infront the steering ::
just got my Enno3D 8800GT OC 512MB....

its not to hot like GTS....
but thinking wanna get a good cooler for it..
any recommendation? Thermalright HR03??
vincentlaw
post Feb 25 2008, 12:46 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(sempronic @ Feb 25 2008, 12:10 AM)
just got my Enno3D 8800GT OC 512MB....

its not to hot like GTS....
but thinking wanna get a good cooler for it..
any recommendation? Thermalright HR03??
*
wuuuuu welcome to 8800GT world... hehe reference fan?? artic acelero s1/s2 is good with turbo module... if u want monster then HS-03 i think.... artic have new big cooler which is 3 fan on it 1.. dunno wat name d....

come come show us some benchies.... drool.gif drool.gif

This post has been edited by vincentlaw: Feb 25 2008, 04:21 AM
k3et
post Feb 25 2008, 09:08 AM

Getting Started
**
Junior Member
192 posts

Joined: Jan 2003
From: Subang Jaya and Off Jln Puchong (near OUG)
vincentlaw: sorry I can't post or try in AtiTool as I'm using Vista x64 that doesn't compliant with AtiTool 0.26/0.27

but so far I try to do 3dmark03/05/06 and play COD4 without and problem
OC4/3
post Feb 25 2008, 10:53 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(ben_panced @ Feb 23 2008, 10:34 PM)
dude.. it's unusual to kill a gc from a oc, unless the temp is jumping through the roof  sweat.gif
btw, how long will it take to rma ur card??  smile.gif
*
The core suck,that it.It show artifact,even during normal usage.ATE say 2weeks to 1month.
vincentlaw
post Feb 25 2008, 11:45 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(k3et @ Feb 25 2008, 09:08 AM)
vincentlaw: sorry I can't post or try in AtiTool as I'm using Vista x64 that doesn't compliant with AtiTool 0.26/0.27

but so far I try to do 3dmark03/05/06 and play COD4 without and problem
*
oo why use 64bit OS???? hmmm
r4st4m4n
post Feb 25 2008, 10:47 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
Thought I'd share my first volt mod experience with you guys.

Seeing all the great volt moded 8800 GT OC results on xtremesystems forum, I finally decided to jump into the hard volt mod train. I went to Jalan Ara Saturday, bought an hakko solder iron, DMM, all the hardware needed for the Vmod. I also went to modernopc to buy HR 03-GT to replace the stock cooler.

Everything wasn't smooth but at the end I finally managed to get it working.

Here is my max AT stable OC before the volt mod: 712/1728 @ 1.1V load temp 78*C
user posted image

Here is my current max AT stable OC after the volt mod and the installation of the HR 03-GT 783/1890 @ 1.2V load temp 51*C
user posted image

Picture of the moded card: (not very pretty but it does the job tongue.gif)
user posted image

Although it's not AT stable, I can run 10 loops Crysis GPU benchmark and 2 loops 3dmark06 at 799/1998/975 @ 1.2V idle (still testing) rclxms.gif

After testing max stable OC at 1.2V idle, I'll go up to 1.3V idle. So far my best 3dmark06 run is 13025. Not bad for a dual core brows.gif

The HR-03 GT is pricey, but it is an awesome cooler. I've never reached higher than 54*C at 799/1998 and it was without A/C, after 1 hour of GPU testing almost non stop thumbup.gif

Turns out pretty good for a 1st volt mod and considering that I had never soldered anything before. biggrin.gif



This post has been edited by r4st4m4n: Feb 25 2008, 10:47 PM
vincentlaw
post Feb 26 2008, 12:03 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(r4st4m4n @ Feb 25 2008, 10:47 PM)
Thought I'd share my first volt mod experience with you guys.

Seeing all the great volt moded 8800 GT OC results on xtremesystems forum, I finally decided to jump into the hard volt mod train. I went to Jalan Ara Saturday, bought an hakko solder iron, DMM, all the hardware needed for the Vmod. I also went to modernopc to buy HR 03-GT to replace the stock cooler.

Everything wasn't smooth but at the end I finally managed to get it working.

» Click to show Spoiler - click again to hide... «

Although it's not AT stable, I can run 10 loops Crysis GPU benchmark and 2 loops 3dmark06 at 799/1998/975 @ 1.2V idle (still testing) rclxms.gif

After testing max stable OC at 1.2V idle, I'll go up to 1.3V idle. So far my best 3dmark06 run is 13025. Not bad for a dual core brows.gif

The HR-03 GT is pricey, but it is an awesome cooler. I've never reached higher than 54*C at 799/1998 and it was without A/C, after 1 hour of GPU testing almost non stop  thumbup.gif

Turns out pretty good for a 1st volt mod and considering that I had never soldered anything before. biggrin.gif
*
ooo... high risk high return... wats ur SM2.0/SM3.0 score for 3dmark06 whn u get 13k score..... post up the score and let us see its better...

This post has been edited by vincentlaw: Feb 26 2008, 12:04 AM
r4st4m4n
post Feb 26 2008, 10:21 AM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(vincentlaw @ Feb 26 2008, 12:03 AM)
ooo... high risk high return... wats ur SM2.0/SM3.0 score for 3dmark06 whn u get 13k score..... post up the score and let us see its better...
*
I'm at work right now so I'll post my score tonight. I didn't post because I thought I'll wait once found max OC at 1.3V brows.gif
IcEMoCHa
post Feb 26 2008, 10:42 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
Whats the best bios for OC atm?... im using latest msi bios ....
ben_panced
post Feb 26 2008, 02:34 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(r4st4m4n @ Feb 26 2008, 10:21 AM)
I'm at work right now so I'll post my score tonight. I didn't post because I thought I'll wait once found max OC at 1.3V  brows.gif
*
nice work dude.. rclxms.gif however ur finding does confirm my suspicion that the max clockspeed for shader @ 1.2v is 1890mhz,
if we want to oc the sp more than 1.9ghz then 1.3v vcore is needed tongue.gif
r4st4m4n
post Feb 26 2008, 03:05 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
Here is my 3dmark06 score at 792/1944/993 @ 1.2V idle

user posted image

I've actually pass 3dmark06 at 799/1998 @ 1.2V but I saw afterwards that I left the memory at 950MHz so my score was slightly lower than this one. doh.gif

I'll see tonight if I can continue to increase the clock at the same voltage but i think I'm reaching already the max for 1.2V wink.gif

QUOTE(IcEMoCHa @ Feb 26 2008, 10:42 AM)
Whats the best bios for OC atm?... im using latest msi bios ....
*
I've tried several bioses from different brands before the volt mod and all gave me the same results. Now I'm using my stock bios modified with 1.1V setting and fan increasing with the core temp ... which is now useless since I have done the vmod and change the stock heatsink smile.gif

This post has been edited by r4st4m4n: Feb 26 2008, 03:09 PM
ben_panced
post Feb 26 2008, 03:12 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(r4st4m4n @ Feb 26 2008, 03:05 PM)
Here is my 3dmark06 score at 792/1944/993 @ 1.2V idle

user posted image

I've actually pass 3dmark06 at 799/1998 @ 1.2V but I saw afterwards that I left the memory at 950MHz so my score was slightly lower than this one.  doh.gif

I'll see tonight if I can continue to increase the clock at the same voltage but i think I'm reaching already the max for 1.2V wink.gif
I've tried several bioses from different brands before the volt mod and all gave me the same results. Now I'm using my stock bios modified with 1.1V setting and fan increasing with the core temp ... which is now useless since I have done the vmod and change the stock heatsink smile.gif
*
bro is ur oc stable??
did u try to stress the card using atitool artifact scanner??
my card can go further @ 1.2v but the max stable is 1890 for sp..
r4st4m4n
post Feb 26 2008, 03:39 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(ben_panced @ Feb 26 2008, 03:12 PM)
bro is ur oc stable??
did u try to stress the card using atitool artifact scanner??
my card can go further @ 1.2v but the max stable is 1890 for sp..
*
It is not not AT stable at this speed, but I did could run 10 loops of Crysis GPU benchmark followed by 2 loops of 3dmark06 without crashing/artefacting.

AT is fully stable (20 min) only at 783/1890.

I personally don't really care to be AT stable as long as I am stable in games. So my next step will be to game (mainly Crysis as it stresses the card like nothing else rolleyes.gif ) and if I can play 1-2 hours without a crash, I call it a day. Later I will also try other games. I think I will probably have to back up a bit from 799/1998 since I generally found that Crysis was stable more or less at the same speed as AT, but I don't really base my OC on AT.

My approach for the CPU is different, There I want to be 100% stable orthos, OCCT, ... wink.gif

This post has been edited by r4st4m4n: Feb 26 2008, 03:45 PM
ben_panced
post Feb 26 2008, 03:47 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(r4st4m4n @ Feb 26 2008, 03:39 PM)
It is not not AT stable at this speed, but I did could run 10 loops of Crysis GPU benchmark followed by 2 loops of 3dmark06 without crashing/artefacting.

AT is fully stable (20 min) only at 783/1890.

I personally don't really care to be AT stable as long as I am stable in games. So my next step will be to game (mainly Crysis as it stresses the card like nothing else rolleyes.gif ) and if I can play 1-2 hours without a crash, I call it a day. Later I will also try other games. I think I will probably have to back up a bit from 799/1998 since I generally found that Crysis was stable more or less at the same speed as AT, but I don't really base my OC on AT.

My approach for the CPU is different, There I want to be 100% stable orthos, OCCT, ... wink.gif
*
hmm.gif hurm i seem to be trusting the atitool more than crysis..
but in the end it's up to the personal preferences..
btw, bro when will u try 1.3v??
wanna see la how high the sp can go..
because right now, gigabyte utility only support vcore overvoltage up to 1.2v only sweat.gif

r4st4m4n
post Feb 26 2008, 03:57 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(ben_panced @ Feb 26 2008, 03:47 PM)

hmm.gif hurm i seem to be trusting the atitool more than crysis..
but in the end it's up to the personal preferences..
btw, bro when will u try 1.3v??
wanna see la how high the sp can go..
because right now, gigabyte utility only support vcore overvoltage up to 1.2v only  sweat.gif
*
My idea was to do stability testing at 1.2, 1.25 then 1.3V (after the OCP will probably kicks in and I'm not sure I want to go higher anyways). It is to know how the card speeds scales with the voltage and if I don't see many benefit from going higher than 1.25V, I'll probably stay at this value for 24/7 use.

Now I'm also in a hurry to know how far it will go with 1.3V. tongue.gif
So maybe I'll skip 1.25V for the moment and I'll try 1.3V tonight and I'll post results here wink.gif
nakata101
post Feb 26 2008, 07:17 PM

*******(PES&WE)******* Play Like Champion
*******
Senior Member
2,423 posts

Joined: Jan 2003
From: Alor Star & Changlun
------- deleted------

This post has been edited by nakata101: Feb 26 2008, 08:59 PM
nicholasmark
post Feb 26 2008, 08:52 PM

Getting Started
**
Junior Member
214 posts

Joined: Dec 2007
From: Creams
fuahwahh.. nice topic nice rclxm9.gif
vincentlaw
post Feb 26 2008, 10:05 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(r4st4m4n @ Feb 26 2008, 03:05 PM)
» Click to show Spoiler - click again to hide... «
bro ur score higher than mine but why my score is better than urs... in terms of SM2.0/SM3.0




Attached thumbnail(s)
Attached Image
r4st4m4n
post Feb 26 2008, 10:42 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(vincentlaw @ Feb 26 2008, 10:05 PM)
bro ur score higher than mine but why my score is better than urs... in terms of SM2.0/SM3.0
*
Probably because of your CPU being clock higher than mine. I want to try later to OC my CPU higher for bench and see what kind of increase in score i can get.
vincentlaw
post Feb 26 2008, 10:51 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(r4st4m4n @ Feb 26 2008, 10:42 PM)
Probably because of your CPU being clock higher than mine. I want to try later to OC my CPU higher for bench and see what kind of increase in score i can get.
*
but my CPU is on 3k and urs 2.8k... i think wont affect SM2.0 as much as 400+ and SM3.0 for 600+.... quite big diff...

i notice that my clock is 740/1838/2136... which the 2136 more than urs alot.. is that the reason....
danieljoey
post Feb 26 2008, 11:16 PM

Çťá´‰qooN
******
Senior Member
1,284 posts

Joined: Oct 2007
From: 槟城 - Penang Island Status: Un-Owned
QUOTE(vincentlaw @ Feb 26 2008, 10:05 PM)
bro ur score higher than mine but why my score is better than urs... in terms of SM2.0/SM3.0
*
hey bro pls bench again with 1280 x 1024 res
ur using 1152 x 864 only
vincentlaw
post Feb 26 2008, 11:20 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(danieljoey @ Feb 26 2008, 11:16 PM)
hey bro pls bench again with 1280 x 1024 res
ur using 1152 x 864 only
*
ooo i tot that is the default... default follow screen? im using widescreen... will bench later...

This post has been edited by vincentlaw: Feb 26 2008, 11:21 PM
r4st4m4n
post Feb 26 2008, 11:45 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(danieljoey @ Feb 26 2008, 11:16 PM)
hey bro pls bench again with 1280 x 1024 res
ur using 1152 x 864 only
*
Oh yeah, good find ... wink.gif

I was starting to wonder how come my score was so low compared to him.

I just tried a run with my CPU at 3.33GHz and GPU at 842/2106/993 to see if it was making a big difference but was still under his score doh.gif

Attached Image

@ben_panced: I tried 1.3V and seems to be AT stable around 828/1998 ... +.1V doesn't make a huge difference. But I will continue my own stability testing and see how far I can go in game ...

This post has been edited by r4st4m4n: Feb 26 2008, 11:47 PM
ben_panced
post Feb 27 2008, 12:32 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(r4st4m4n @ Feb 26 2008, 11:45 PM)
Oh yeah, good find ... wink.gif

I was starting to wonder how come my score was so low compared to him.

I just tried a run with my CPU at 3.33GHz and GPU at 842/2106/993  to see if it was making a big difference but was still under his score  doh.gif

Attached Image

@ben_panced: I tried 1.3V and seems to be AT stable around 828/1998 ... +.1V doesn't make a huge difference. But I will continue my own stability testing and see how far I can go in game ...
*
hmm.gif eh ape pulak bro + .1v does give a good boost from 1890mhz SPs to 1998 mhz AT stable is nice.. an improvement of 108mhz..
so it seems i have to hard mod the card to pass the 1.9ghz SP mark brows.gif
vincentlaw
post Feb 27 2008, 12:46 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
ok i found that my 3dmark06 resolution setting cant be set to 1280x1024 in XP(no options of it)... but in vista ultimate i found out it have 1280x1024... why ah?...
so i decide to bench at 1440x900.. here is what i get.. with 740/1838/2136 & 3.0ghz Q6600 at TOP edition default voltage...

This post has been edited by vincentlaw: Feb 27 2008, 12:51 AM


Attached thumbnail(s)
Attached Image
zeustronic
post Feb 27 2008, 08:24 AM

Retire OC Into Audiophiles
*******
Senior Member
2,605 posts

Joined: Jan 2006
From: A Place Between Heaven & Hell
QUOTE(vincentlaw @ Feb 27 2008, 01:46 AM)
ok i found that my 3dmark06 resolution setting cant be set to 1280x1024 in XP(no options of it)... but in vista ultimate i found out it have 1280x1024... why ah?...
so i decide to bench at 1440x900.. here is what i get.. with 740/1838/2136 & 3.0ghz Q6600 at TOP edition default voltage...
*
at 3dMark06 setting click default ler bro, impossible that u cant set 1280 x 1024.
r4st4m4n
post Feb 27 2008, 09:03 AM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(zeustronic @ Feb 27 2008, 08:24 AM)
at 3dMark06 setting click default ler bro, impossible that u cant set 1280 x 1024.
*
Maybe because is using a 19'' wide ? I never tried 3dmark 06 with a wide but if the screen doesn't support 1280*1024 maybe he can't use it.

QUOTE(vincentlaw @ Feb 27 2008, 12:46 AM)
ok i found that my 3dmark06 resolution setting cant be set to 1280x1024 in XP(no options of it)... but in vista ultimate i found out it have 1280x1024... why ah?...
so i decide to bench at 1440x900.. here is what i get.. with 740/1838/2136 & 3.0ghz Q6600 at TOP edition default voltage...
*
1440x900 almost equivalent to 1280x1024 in term of numbers of pixels. As you can see your SM2.0/3.0 scores lower than mine now wink.gif

This post has been edited by r4st4m4n: Feb 27 2008, 09:05 AM
fuzore
post Feb 27 2008, 09:11 AM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
@0168257061...ur using palit also right like mine normal not sonic...like in ur siggy...
u clock it at 700/2000...but mine when clock to 700/2000 and stress with atitool got error/artifac la...
zeustronic
post Feb 27 2008, 02:27 PM

Retire OC Into Audiophiles
*******
Senior Member
2,605 posts

Joined: Jan 2006
From: A Place Between Heaven & Hell
QUOTE(r4st4m4n @ Feb 27 2008, 10:03 AM)
Maybe because is using a 19'' wide ? I never tried 3dmark 06 with a wide but if the screen doesn't support 1280*1024 maybe he can't use it.
1440x900 almost equivalent to 1280x1024 in term of numbers of pixels. As you can see your SM2.0/3.0 scores lower than mine now wink.gif
*
Samsung 931BW can run 3DMark06 at 1280 x 1024 wink.gif
vincentlaw
post Feb 27 2008, 05:55 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(zeustronic @ Feb 27 2008, 08:24 AM)
at 3dMark06 setting click default ler bro, impossible that u cant set 1280 x 1024.
*
why not... let me take a sceenie and show u later

Added on February 27, 2008, 5:56 pm
QUOTE(zeustronic @ Feb 27 2008, 02:27 PM)
Samsung 931BW can run 3DMark06 at 1280 x 1024  wink.gif
*
my vista ultimate can ... but my xp sp2 cant... duno why....

This post has been edited by vincentlaw: Feb 27 2008, 05:56 PM
vincentlaw
post Feb 27 2008, 06:06 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
here is it....no option of 1280x1024 doh.gif


Attached thumbnail(s)
Attached Image
cstkl1
post Feb 27 2008, 06:32 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003
QUOTE(vincentlaw @ Feb 27 2008, 06:06 PM)
here is it....no option of 1280x1024  doh.gif
*
dude its close enough.. +-300 points no biggie. and ure scores look right at default at those setting anyway..


This post has been edited by cstkl1: Feb 27 2008, 06:34 PM
vincentlaw
post Feb 27 2008, 06:52 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(cstkl1 @ Feb 27 2008, 06:32 PM)
dude its close enough.. +-300 points no biggie. and ure scores look right at default at those setting anyway..
*
but why no option for 1280x1024 ah.. vista got.. weird lla...hehe
QiW
post Feb 28 2008, 09:23 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
just got my asus 8800gt top yesterday ..
only OC the PC cpu .. nothing done to grafik card at all ..
scores ok ahh ??

Attached Image
QiW
post Feb 28 2008, 09:57 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
this one at different resolution ...

Attached Image
QiW
post Feb 28 2008, 10:17 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
another one with 1440x900 res .. tongue.gif

Attached Image
vincentlaw
post Feb 28 2008, 10:42 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(QiW @ Feb 28 2008, 09:23 AM)
just got my asus 8800gt top yesterday ..
only OC the PC cpu .. nothing done to grafik card at all ..
scores ok ahh ??

» Click to show Spoiler - click again to hide... «

*
QUOTE(QiW @ Feb 28 2008, 09:57 AM)
this one at different resolution ...

» Click to show Spoiler - click again to hide... «

*
QUOTE(QiW @ Feb 28 2008, 10:17 AM)
another one with 1440x900 res .. tongue.gif

» Click to show Spoiler - click again to hide... «

*
about the same as mine....comparing 1440x900 bench, mine higher 500score coz i OC abit of GC out of it.... we both have the same specs/score i can say.. anyway how much ram u have on ur com?? what HDD ur winXp running on?

This post has been edited by vincentlaw: Feb 28 2008, 10:43 AM
QiW
post Feb 28 2008, 11:17 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(vincentlaw @ Feb 28 2008, 10:42 AM)
about the same as mine....comparing 1440x900 bench, mine higher 500score coz i OC abit of GC out of it.... we both have the same specs/score i can say.. anyway how much ram u have on ur com?? what HDD ur winXp running on?
*
2GB of RAM ..
HDD is 3yr old MAXTOR SATA .. hehehehe

anyone know anything about this PhysX thing ahh ???
seems to be cuttin edge stuff ...
ben_panced
post Feb 28 2008, 11:53 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(QiW @ Feb 28 2008, 11:17 AM)
2GB of RAM ..
HDD is 3yr old MAXTOR SATA .. hehehehe

anyone know anything about this PhysX thing ahh ???
seems to be cuttin edge stuff ...
*
if u have 2 cards in sli can lah..
1 card will render the graphics while the other will handle physics...
but for me cpu physics is enough, just take a look at havok physics engine powered games such as oblivion, hl2..
Oxburg
post Feb 28 2008, 08:11 PM

Enthusiast
*****
Senior Member
857 posts

Joined: Feb 2007
HI can i know why i couldnt install gc driver after i install vista ultimate? i alredi using 32bits and install with 32bits also.But i couldnt detect 32Bits..
ben_panced
post Feb 29 2008, 11:17 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(Oxburg @ Feb 28 2008, 08:11 PM)
HI can i know why i couldnt install gc driver after i install vista ultimate? i alredi using 32bits and install with 32bits also.But i couldnt detect 32Bits..
*
what you mean u tried to install a 32-bit driver on a 32-bit vista ultimate but failed??
have u checked already whether the driver that u're installing is vista 32-bit or xp 32-bit driver hmm.gif
QiW
post Feb 29 2008, 02:22 PM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(ben_panced @ Feb 28 2008, 11:53 AM)
if u have 2 cards in sli can lah..
1 card will render the graphics while the other will handle physics...
but for me cpu physics is enough, just take a look at havok physics engine powered games such as oblivion, hl2..
*
SLi ?? i dont think so la .. its a PCI card ... not gfx card leehh ..
i know the site says it says in physics calculations for some apps and games that carries the PhysX logo ..

what about games and apps that doesnt carry that PhysX logo ?? no difference ??
ben_panced
post Feb 29 2008, 04:24 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(QiW @ Feb 29 2008, 02:22 PM)
SLi ?? i dont think so la .. its a PCI card ... not gfx card leehh ..
i know the site says it says in physics calculations for some apps and games that carries the PhysX logo ..

what about games and apps that doesnt carry that PhysX logo ?? no difference ??
*
what?? are u talking about the normal physix card of the rumored physix engine that be run on an nvidia gpu?? hmm.gif

r4st4m4n
post Feb 29 2008, 11:06 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
Small update for ben.

Last night I played Crysis. It seems to be stable at 792/1944/950 @ 1.2V idle. At least it was for the whole 1+ hour I played it rclxms.gif

More Crysis testing at 1.3V will come soon wink.gif

This post has been edited by r4st4m4n: Feb 29 2008, 11:06 PM
IcEMoCHa
post Feb 29 2008, 11:19 PM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(r4st4m4n @ Feb 29 2008, 11:06 PM)
Small update for ben.

Last night I played Crysis. It seems to be stable at 792/1944/950 @ 1.2V idle. At least it was for the whole 1+ hour I played it  rclxms.gif

More Crysis testing at 1.3V will come soon  wink.gif
*
nice bro... why dun try 800mhz core clock and 2200mhz memory clock...? im sure with HR03-gt can do that...
QiW
post Mar 1 2008, 07:32 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(ben_panced @ Feb 29 2008, 04:24 PM)
what?? are u talking about the normal physix card of the rumored physix engine that be run on an nvidia gpu??  hmm.gif
*
Ageia PhysX which is doing the technology is bought over by NVIDIA already i think .. so whatever PhysX thats coming out still comes from Ageia but maybe NVIDIA might market it under their own umbrella laa .. that is to be seen over the next year

as for new NVIDIA cards that comes out with PhysX .. for sure will be super duper expensive .. coz the PhysX PCI card alone will cost u around rm1.2k at this moment .. hehehehe ... i know coz i got my hands on one of those PhysX card to test test .. tongue.gif
but for games without the PhysX then it doesnt make any difference laa .. u can always go to the Ageia website to see the difference in gfx

as for whatever rumours that 9800gt will come around the rm1k or jsut over rm1k mark .. prepared to be surprised .. i was told by reliable source that it will cost around rm2.1k when it hits our shores .. prolly within the next 2-3 months .. tongue.gif
r4st4m4n
post Mar 1 2008, 01:50 PM

Getting Started
**
Junior Member
156 posts

Joined: Aug 2007
From: Damansara
QUOTE(IcEMoCHa @ Feb 29 2008, 11:19 PM)
nice bro... why dun try 800mhz core clock and 2200mhz memory clock...? im sure with HR03-gt can do that...
*
My memory doesn't overclock very well. For the moment I leave it at 950MHz (1800MHz) in order to make sure that it won't give me instability. Once I found the max on the core and the shaders, I'll OC the memory.

But from the first result I have, it seems the memory is unstable over 993MHz (1986MHz). It is slightly under the result I had with the stock cooler (1000+MHz). It might be due to the 2 memory chips under the HR-03 GT heatpipes. The heatsink provided for them are tiny because the heatpipes are just on top of them, so maybe the cooling capacity is slightly worse than with the stock cooler. It doesn't really matter since the performance increase when OCing the memory by few MHz is barely noticeable.

800 MHz is definitely possible, the hr-03 GT can handle the heat easily. From my first testings, I think I should be able to do around 840MHz core and 2100 MHz shaders at 1.3V and it should be fully stable in games. smile.gif

This post has been edited by r4st4m4n: Mar 1 2008, 01:54 PM
ben3003
post Mar 2 2008, 12:30 PM

10k Club
********
All Stars
10,859 posts

Joined: Jan 2003
From: Sarawak
sorry to tumpang thread, can i stablize my 9600gt by increase the PCI-E voltage by 0.1V?
matyrze
post Mar 3 2008, 01:14 PM

Historical tears
****
Senior Member
678 posts

Joined: Dec 2007
From: Shah Alam
hallo guys..i wanna ask this artifacts thingy la..i oced my zotac 8800gt once..at 1 stage there were black squares appeared all over my screen..i tot that is d artifact..n it only cause bt instability..but juz now my friend told me that artifacts may suggest that my gc is edi damaged..is dat tru??
QiW
post Mar 3 2008, 01:39 PM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
could be the OC settings are over your card limitation .. try go back to default settings and see if the problems still persists .. if ori settings u get this artifact prob then take it back to the shop and claim .. tongue.gif
scpt
post Mar 3 2008, 03:32 PM

Androidian
******
Senior Member
1,239 posts

Joined: Jan 2003
From: PJ/Malacca
Hi guys I'm new here biggrin.gif
My Asus 8800GT can only OC to 650/950, which is kinda sucks I think seeing that most people can get to 700/1000. Any higher than that I will get artifacts in ATI Tools test. sad.gif
user posted image
OC4/3
post Mar 3 2008, 08:52 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(scpt @ Mar 3 2008, 03:32 PM)
Hi guys I'm new here biggrin.gif
My Asus 8800GT can only OC to 650/950, which is kinda sucks I think seeing that most people can get to 700/1000. Any higher than that I will get artifacts in ATI Tools test. sad.gif
user posted image
*
This GC is bad.Now time to RMA it.
vincentlaw
post Mar 3 2008, 08:58 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(OC4/3 @ Mar 3 2008, 08:52 PM)
This GC is bad.Now time to RMA it.
*
how can u RMA a working units??? rclxub.gif cant OC high doesnt include in warranty..
scpt
post Mar 3 2008, 09:14 PM

Androidian
******
Senior Member
1,239 posts

Joined: Jan 2003
From: PJ/Malacca
Sigh...is it just mine or are there anyone else who are using the same card but getting higher overclock speeds?
vincentlaw
post Mar 3 2008, 09:22 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(scpt @ Mar 3 2008, 09:14 PM)
Sigh...is it just mine or are there anyone else who are using the same card but getting higher overclock speeds?
*
not sure but overclockability for same models..... is depend on luck....
QiW
post Mar 3 2008, 10:43 PM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
i am using ASUS 8800gt ... but the TOP version .. stock clock 700 memory 1000 shader 1750 ... so far so good except for the normal probs faced by loads of other ppl using 8800gt .. hahahaaa
ben_panced
post Mar 4 2008, 12:55 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(QiW @ Mar 3 2008, 10:43 PM)
i am using ASUS 8800gt ... but the TOP version .. stock clock 700 memory 1000 shader 1750 ... so far so good except for the normal probs faced by loads of other ppl using 8800gt .. hahahaaa
*
what?? temp ke??? tongue.gif

vincentlaw
post Mar 4 2008, 01:24 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ben_panced @ Mar 4 2008, 12:55 AM)
what?? temp ke???  tongue.gif
*
temp is good too.... for those who have the glaciator version... while the reference fan v2 will still suffer from high temp... idle 48'c and load 64'c at 740/1838/2136 here... still got rooms to go furthur but lazy to do so already..

This post has been edited by vincentlaw: Mar 4 2008, 01:25 AM
ben_panced
post Mar 4 2008, 01:38 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(vincentlaw @ Mar 4 2008, 01:24 AM)
temp is good too.... for those who have the glaciator version... while the reference fan v2 will still suffer from high temp... idle 48'c and load 64'c at 740/1838/2136 here... still got rooms to go furthur but lazy to do so already..
*
oc till u drop la bro..
baru worth all that money that u "throw" to buy ur gc brows.gif
vincentlaw
post Mar 4 2008, 02:01 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ben_panced @ Mar 4 2008, 01:38 AM)
oc till u drop la bro..
baru worth all that money that u "throw" to buy ur gc  brows.gif
*
will do when im really free... this week + next week have 4 times strike lottery.. haha test ,assignment, test, assignment, report.... wanna turn insane already... haha.... additionally the bench is soooooo slow.. everytime i wait until i sleep 1.... haha
QiW
post Mar 4 2008, 07:58 AM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(ben_panced @ Mar 4 2008, 12:55 AM)
what?? temp ke???  tongue.gif
*
not temp laa ... read on .. http://forums.guru3d.com/showthread.php?t=243239
http://forums.guru3d.com/showthread.php?t=...ight=8800gt+g92
and got lots more in there to read about for 8800gt g92 .. tongue.gif

maybe spending more time USING it rather than just OC it for benchmark points could help .. hehehehe

This post has been edited by QiW: Mar 4 2008, 08:20 AM
IcEMoCHa
post Mar 4 2008, 10:22 AM

~本田~
******
Senior Member
1,988 posts

Joined: Aug 2005
From: Puchong, Selangor
QUOTE(scpt @ Mar 3 2008, 03:32 PM)
Hi guys I'm new here biggrin.gif
My Asus 8800GT can only OC to 650/950, which is kinda sucks I think seeing that most people can get to 700/1000. Any higher than that I will get artifacts in ATI Tools test. sad.gif
user posted image
*
Hmm... can go higher la... my MSI 8800gt using stock cooler can support up to 720/1000... but not running that high cuz full load temperature for 5minutes already 86C... LOL...

This post has been edited by IcEMoCHa: Mar 4 2008, 10:23 AM
ben_panced
post Mar 4 2008, 02:25 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(IcEMoCHa @ Mar 4 2008, 10:22 AM)
Hmm... can go higher la... my MSI 8800gt using stock cooler can support up to 720/1000... but not running that high cuz full load temperature for 5minutes already 86C... LOL...
*
set ur fan speed to 100% la..
it's not that noisy, ive heard it, unless u open ur sidepanel la.. sweat.gif

scpt
post Mar 4 2008, 03:41 PM

Androidian
******
Senior Member
1,239 posts

Joined: Jan 2003
From: PJ/Malacca
QUOTE(vincentlaw @ Mar 4 2008, 01:24 AM)
temp is good too.... for those who have the glaciator version... while the reference fan v2 will still suffer from high temp... idle 48'c and load 64'c at 740/1838/2136 here... still got rooms to go furthur but lazy to do so already..
*
Mine using the glaciator, but dunno which version...and don't have temp sensor I think. Coz I tried all sorts of program to view my GC temp but fail. doh.gif

QUOTE(IcEMoCHa @ Mar 4 2008, 10:22 AM)
Hmm... can go higher la... my MSI 8800gt using stock cooler can support up to 720/1000... but not running that high cuz full load temperature for 5minutes already 86C... LOL...
*
I did try 700/1000 with a few 3dmark runs without problem. But I'm getting errors at those speeds in ATI Tool artifact test. Is the ATI tool test trustable?

QUOTE(ben_panced @ Mar 4 2008, 02:25 PM)
set ur fan speed to 100% la..
it's not that noisy, ive heard it, unless u open ur sidepanel la.. sweat.gif
*
How to set fan speed?
QiW
post Mar 4 2008, 04:52 PM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(scpt @ Mar 4 2008, 03:41 PM)
Mine using the glaciator, but dunno which version...and don't have temp sensor I think. Coz I tried all sorts of program to view my GC temp but fail. doh.gif
I did try 700/1000 with a few 3dmark runs without problem. But I'm getting errors at those speeds in ATI Tool artifact test. Is the ATI tool test trustable?
How to set fan speed?
*
if yours came with glaciator fan .. then your is an ASUS rite ???
u can set fan speed as well as play with your core speed memory and shader using the supplied software call smart doctor .. hehehe
alternatively .. u can try rivatuner or atitools .. u can find the download link somewhere in the sticky threads .. tongue.gif
vincentlaw
post Mar 4 2008, 07:49 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(QiW @ Mar 4 2008, 04:52 PM)
if yours came with glaciator fan .. then your is an ASUS rite ???
u can set fan speed as well as play with your core speed memory and shader using the supplied software call smart doctor .. hehehe
alternatively .. u can try rivatuner or atitools .. u can find the download link somewhere in the sticky threads .. tongue.gif
*
QUOTE(scpt @ Mar 4 2008, 03:41 PM)
How to set fan speed?
*
asus glaciator fan speed cant be adjust...... too bad

This post has been edited by vincentlaw: Mar 4 2008, 07:50 PM
ben3003
post Mar 4 2008, 07:53 PM

10k Club
********
All Stars
10,859 posts

Joined: Jan 2003
From: Sarawak
anyone tried to increase the pci-e voltage?
OC4/3
post Mar 4 2008, 10:03 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(scpt @ Mar 4 2008, 03:41 PM)
Mine using the glaciator, but dunno which version...and don't have temp sensor I think. Coz I tried all sorts of program to view my GC temp but fail. doh.gif
I did try 700/1000 with a few 3dmark runs without problem. But I'm getting errors at those speeds in ATI Tool artifact test. Is the ATI tool test trustable?
How to set fan speed?
*
As long as can game for a few hours without artifact and pass 3dmark then ok already.
matyrze
post Mar 5 2008, 01:41 PM

Historical tears
****
Senior Member
678 posts

Joined: Dec 2007
From: Shah Alam
WTask..do ATITool's 'scan for artifacts' option take gc under full load?i oced my zotac 8800gt with hr03..using atitool got max core 720 shader 1800 memory 1900..is that can be considered gud enough edi?default core 660 memory 1800?thx notworthy.gif
SkywalkerxX
post Mar 5 2008, 01:43 PM

Protection & Control
****
Senior Member
590 posts

Joined: Feb 2008
From: Ampang
oh damn..after reading this thread i really wana change from 86GT to 88GT..aiya..i did test my gt86 with 3DMark06 but the mark really dun achieve what i want..the around 7500-8300..zzzzz regret after buying 86GT last 2 week.. T.T
fuzore
post Mar 5 2008, 01:48 PM

<motion sickness around>
*******
Senior Member
2,142 posts

Joined: Jan 2008
From: who wants to know?
QUOTE(SkywalkerxX @ Mar 5 2008, 01:43 PM)
oh damn..after reading this thread i really wana change from 86GT to 88GT..aiya..i did test my gt86 with 3DMark06 but the mark really dun achieve what i want..the around 7500-8300..zzzzz regret after buying 86GT last 2 week.. T.T
*
he..he..he.. rclxms.gif come2 go buy ur self a new 8800GT u wont regret it... thumbup.gif
i also recently change mine 8600gt to 8800gt...
vincentlaw
post Mar 5 2008, 02:06 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(fuzore @ Mar 5 2008, 01:48 PM)
he..he..he.. rclxms.gif  come2 go buy ur self a new 8800GT u wont regret it...  thumbup.gif
i also recently change mine 8600gt to 8800gt...
*
come sell ur 8600GT cheap to me... and get ur 8800GT... hehe... or u want my 8800GT TOP edition?
ben_panced
post Mar 5 2008, 09:54 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(vincentlaw @ Mar 5 2008, 02:06 PM)
come sell ur 8600GT cheap to me... and get ur 8800GT... hehe... or u want my 8800GT TOP edition?
*
lor why downgrade bro..??
btw, the price for 8800gt is really2x cheap these days..
at czone u can get galaxy 88gt for rm729... brows.gif
vincentlaw
post Mar 5 2008, 10:38 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(ben_panced @ Mar 5 2008, 09:54 PM)
lor why downgrade bro..??
btw, the price for 8800gt is really2x cheap these days..
at czone u can get galaxy 88gt for rm729...  brows.gif
*
haha downgrading but not to 8600GT.... if i trade with him 8600GT i will sell to my fren since he want it.. i will get 9600GT and try out abit.. less gaming already...
sempronic
post Mar 5 2008, 10:42 PM

Enthusiast
*****
Senior Member
986 posts

Joined: Jul 2006
From: :: infront the steering ::
QUOTE(ben_panced @ Mar 5 2008, 09:54 PM)
lor why downgrade bro..??
btw, the price for 8800gt is really2x cheap these days..
at czone u can get galaxy 88gt for rm729...  brows.gif
*
rm729??
sure it is 512MB one?
vincentlaw
post Mar 5 2008, 10:51 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(sempronic @ Mar 5 2008, 10:42 PM)
rm729??
sure it is 512MB one?
*
yes..... some1 just bought it... here http://forum.lowyat.net/topic/591656/+1440 post #1443

This post has been edited by vincentlaw: Mar 5 2008, 10:55 PM
sempronic
post Mar 5 2008, 11:10 PM

Enthusiast
*****
Senior Member
986 posts

Joined: Jul 2006
From: :: infront the steering ::
QUOTE(vincentlaw @ Mar 5 2008, 10:51 PM)
yes..... some1 just bought it... here http://forum.lowyat.net/topic/591656/+1440 post #1443
*
owwhh....nice pricing now.... doh.gif doh.gif

guys....thinking wanna get HR-03GT....is it worh it??RM240???

or got any cooler that is cheaper and perform near same as TR?
vincentlaw
post Mar 5 2008, 11:30 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(sempronic @ Mar 5 2008, 11:10 PM)
owwhh....nice pricing now.... doh.gif  doh.gif

guys....thinking wanna get HR-03GT....is it worh it??RM240???

or got any cooler that is cheaper and perform near same as TR?
*
urs very hot ah? i personally feel not worth it.... somtimes think back the items i brought... izzit really a need ah?? sometimes regret about it as i think back the money...sayangnya cry.gif ..

anyway if u say u wanna extremely oc it to get advantage of it... yes if u dont need to buy 3rd party cooler.... but if u bought it... then its not an advantage of OC anymore.. its more like u pay for the performance = buying an even better graphic card directly...

anyway just my personal opinion.. laugh.gif

This post has been edited by vincentlaw: Mar 5 2008, 11:33 PM
clawhammer
post Mar 6 2008, 02:03 AM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
I just got myself the Galaxy 8800GT 512MB and manage to achieve around 14,700 3dmark06 755/1887/1030 on E8200@4Ghz. Btw, I removed the stock cooler and mod it with an old Thermaltake Typhoon + YS Tech fan, Thermaltake RAM sicks and did the vMem mod.

I need to test further and see what's the best OC I can get out of this biggrin.gif
vincentlaw
post Mar 6 2008, 02:15 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(clawhammer @ Mar 6 2008, 02:03 AM)
I just got myself the Galaxy 8800GT 512MB and manage to achieve around 14,700 3dmark06 755/1887/1030 on E8200@4Ghz. Btw, I removed the stock cooler and mod it with an old Thermaltake Typhoon + YS Tech fan, Thermaltake RAM sicks and did the vMem mod.

I need to test further and see what's the best OC I can get out of this biggrin.gif
*
yooh... so high thumbup.gif ... mind to show some SS? wanna see the SM and CPU score rclxms.gif ...

tot the fan perform very good... as a J-Slade got Idle temp is nice 41°C and load temp is 51~52°C...... still need to change ka sweat.gif ??? mine 48-49'c idle and 65'c load when 740/1838/2136 then means must change lor... mad.gif rclxub.gif rclxub.gif

This post has been edited by vincentlaw: Mar 6 2008, 02:18 AM
ben_panced
post Mar 6 2008, 08:54 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(clawhammer @ Mar 6 2008, 02:03 AM)
I just got myself the Galaxy 8800GT 512MB and manage to achieve around 14,700 3dmark06 755/1887/1030 on E8200@4Ghz. Btw, I removed the stock cooler and mod it with an old Thermaltake Typhoon + YS Tech fan, Thermaltake RAM sicks and did the vMem mod.

I need to test further and see what's the best OC I can get out of this biggrin.gif
*
bro push ur vcore to 1.3v and oc the shaders to 2.0ghz rclxms.gif
btw, how much volts did u pushed for the memory?? hmm.gif
the galaxy uses qimonda chips rite?? hmm.gif

clawhammer
post Mar 6 2008, 11:28 AM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
vincentlaw, I'll re-run the test and post online so you guys can see it.

ben_panced, the max. I can get from that card is 1.25V (measured with multi-meter). I still need a vGPU mod to go higher than that. Galaxy uses Samsung and I had memory volts at 2.15V. I still need to test how far I can go biggrin.gif
matyrze
post Mar 6 2008, 01:00 PM

Historical tears
****
Senior Member
678 posts

Joined: Dec 2007
From: Shah Alam
QUOTE(sempronic @ Mar 5 2008, 11:10 PM)
owwhh....nice pricing now.... doh.gif  doh.gif

guys....thinking wanna get HR-03GT....is it worh it??RM240???

or got any cooler that is cheaper and perform near same as TR?
*
it is worth all of d money spent IF ur gc very hot with stock fan..in my case my gc temp was 90C sweat.gif shocking.gif with stock fan when playing stalker..now i use hr03 gt n d temp drop to 70C max after 2 hours of stalker thumbup.gif ..

This post has been edited by matyrze: Mar 6 2008, 01:02 PM
OC4/3
post Mar 6 2008, 04:08 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(clawhammer @ Mar 6 2008, 02:03 AM)
I just got myself the Galaxy 8800GT 512MB and manage to achieve around 14,700 3dmark06 755/1887/1030 on E8200@4Ghz. Btw, I removed the stock cooler and mod it with an old Thermaltake Typhoon + YS Tech fan, Thermaltake RAM sicks and did the vMem mod.

I need to test further and see what's the best OC I can get out of this biggrin.gif
*
Wah,good oc man.1887shader is no joke.My PNY show permanent artifact@720/1800/950 during 3dmark06 and currently on RMA sweat.gif But then your card is 1.25v default which i think is .15v more than stock 8800GT thumbup.gif
QiW
post Mar 6 2008, 05:43 PM

Casual
***
Junior Member
354 posts

Joined: Sep 2006
From: KL
QUOTE(OC4/3 @ Mar 6 2008, 04:08 PM)
Wah,good oc man.1887shader is no joke.My PNY show permanent artifact@720/1800/950 during 3dmark06 and currently on RMA sweat.gif But then your card is 1.25v default which i think is .15v more than stock 8800GT thumbup.gif
*
your PNY is stock factory OC at those clock and memory or u OC it yourself until that setting from stock ??
clawhammer
post Mar 7 2008, 12:39 AM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
QUOTE(OC4/3 @ Mar 6 2008, 04:08 PM)
Wah,good oc man.1887shader is no joke.My PNY show permanent artifact@720/1800/950 during 3dmark06 and currently on RMA sweat.gif But then your card is 1.25v default which i think is .15v more than stock 8800GT thumbup.gif
*
Default vGPU should be around 1.1V but this card gives 1.25V BUT it's still not enough biggrin.gif I'm still waiting for some chaps over at Xtreme to come up with a vGPU mod. Anyway, here are some pictures as promised:

user posted image

user posted image

user posted image

user posted image

user posted image

user posted image

My idle is around 42-44C in an air-cond room and highest is around 55-57C with 3dmark06/ATI Tool. I'm not sure if the score or temps are good as I've been totally out of the graphics card scene for a while. The last time I used 3dmark was the 2001 version laugh.gif Anyway, I can't seem to post my results online after my 3dmark06 run? The site is too slow.
vincentlaw
post Mar 7 2008, 12:57 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(clawhammer @ Mar 7 2008, 12:39 AM)
» Click to show Spoiler - click again to hide... «
bro that kind of small fan u use wont be noisy when high rpm???
clawhammer
post Mar 7 2008, 01:03 AM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
It is very very noisy, max speed is around 7,200rpm and a leftover from my overclocking days (originally fitted to a Thermaltake Volcano II) biggrin.gif I don't have a good fan for now so I mounted this instead and had it right onto my Zalman fan controller.

The airflow is straight down and it produces very strong air - just like those Vizo Windstorm. Nevertheless, most of the time it's running around 20%-25% only.
vincentlaw
post Mar 7 2008, 01:06 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(clawhammer @ Mar 7 2008, 01:03 AM)
It is very very noisy, max speed is around 7,200rpm and a leftover from my overclocking days (originally fitted to a Thermaltake Volcano II) biggrin.gif I don't have a good fan for now so I mounted this instead and had it right onto my Zalman fan controller.

The airflow is straight down and it produces very strong air - just like those Vizo Windstorm. Nevertheless, most of the time it's running around 20%-25% only.
*
omg vizo windstorm... if u are my roommate.. i will just throw ur whole computer out of the window laugh.gif cant tolerate at all... 0% tolerance to windstorm mad.gif
clawhammer
post Mar 7 2008, 01:12 AM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
QUOTE(vincentlaw @ Mar 7 2008, 01:06 AM)
omg vizo windstorm... if u are my roommate.. i will just throw ur whole computer out of the window laugh.gif  cant tolerate at all... 0% tolerance to windstorm mad.gif
*
It's connected to the fan controller and running 20-25% would give you only a tiny buzzing sound smile.gif It's my 12cm fan which is making louder noise than this little one. I'm playing C&C with that 3dmark settings and GPU temp is around 48-49C
vincentlaw
post Mar 7 2008, 03:56 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(clawhammer @ Mar 7 2008, 01:12 AM)
It's connected to the fan controller and running 20-25% would give you only a tiny buzzing sound smile.gif It's my 12cm fan which is making louder noise than this little one. I'm playing C&C with that 3dmark settings and GPU temp is around 48-49C
*
the buzzing some for long term is bad for ur ears..... dont la... so cool and so noisy.. its a nono for me.. i'll seek out the balance or at least unoticeable noise from ˝meter away.. anyway that is a good temp.. but C&C and 3dmark just dont stress full load on ur GC... ATItool still the best for GC load stressing...

This post has been edited by vincentlaw: Mar 7 2008, 03:56 AM
ben_panced
post Mar 7 2008, 11:19 AM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE(vincentlaw @ Mar 7 2008, 03:56 AM)
the buzzing some for long term is bad for ur ears..... dont la... so cool and so noisy.. its a nono for me.. i'll seek out the balance or at least unoticeable noise from ˝meter away.. anyway that is a good temp.. but C&C and 3dmark just dont stress full load on ur GC... ATItool still the best for GC load stressing...
*
yup i agree, the balance between noise and performance is important.. and atitool seems to be the best for gc load stressing..
btw bro clawhammer.. how do u fit the cpu hsf on ur 88gt?? is it by using cable ties?? or did u mod the hsf itself?? hmm.gif

clawhammer
post Mar 7 2008, 12:07 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
vincentlaw, I've told you it's connected to a fan controller smile.gif Maybe you want to try using one to know how it functions and btw, there's no silent yet good performance fan. There's normally a trade off.

ben_panced, ATI Tool is below 60C load as I'm in an aircond room. I mod it and the HSF is mounted via screws with proper washers to prevent the PCB from getting damaged.
ben_panced
post Mar 7 2008, 03:17 PM

PC and MotorBicycle Enthusiast
*****
Senior Member
962 posts

Joined: Dec 2004
From: Kulai
QUOTE
ben_panced, ATI Tool is below 60C load as I'm in an aircond room. I mod it and the HSF is mounted via screws with proper washers to prevent the PCB from getting damaged.
*
hurm very innovative bro.. nod.gif
but i think that artic cooling s1 is better than the cpu hsf that ure using.. hmm.gif
because i saw the ati tool artifact scanning load temp was only 51c on my frens 8800gt with modded bios with vcore @ 1.22v and shaders at 1838mhz..
btw, he used vizo dual propeller fan to cool the s1 heatsink

This post has been edited by ben_panced: Mar 7 2008, 03:18 PM
clawhammer
post Mar 7 2008, 04:13 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
Yes, I do know after market cooler could be better especially Thermalright ones but I'm modding the HSF out of my interest and most of all, it's FREE in a way as I don't have to buy something new. Nevertheless, it's not meant to encourage people to do what I'm doing smile.gif I'm just purely sharing what I've done.
OC4/3
post Mar 8 2008, 03:08 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(clawhammer @ Mar 7 2008, 12:39 AM)
Default vGPU should be around 1.1V but this card gives 1.25V BUT it's still not enough biggrin.gif I'm still waiting for some chaps over at Xtreme to come up with a vGPU mod. Anyway, here are some pictures as promised:

user posted image

user posted image

user posted image

user posted image

user posted image

user posted image

My idle is around 42-44C in an air-cond room and highest is around 55-57C with 3dmark06/ATI Tool. I'm not sure if the score or temps are good as I've been totally out of the graphics card scene for a while. The last time I used 3dmark was the 2001 version laugh.gif Anyway, I can't seem to post my results online after my 3dmark06 run? The site is too slow.
*
Is this optimize pass?Using 1280x1024? thumbup.gif If can show orb then better.

Added on March 8, 2008, 3:10 am
QUOTE(QiW @ Mar 6 2008, 05:43 PM)
your PNY is stock factory OC at those clock and memory or u OC it yourself until that setting from stock ??
*
Self oc

This post has been edited by OC4/3: Mar 8 2008, 03:10 AM
vincentlaw
post Mar 8 2008, 03:27 AM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
@OC4/3
pls do not quote whole picture laaaa.... use spoiler!!!!!!!!!!!!!!!!!!
overclockalbert
post Mar 8 2008, 03:58 AM

Regular
******
Senior Member
1,058 posts

Joined: Apr 2006
From: Penang , Malaysia
nice GC cooler mod.


rgds,
albert
clawhammer
post Mar 8 2008, 02:19 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
OC4/3, What is orb? I just overclocked the core/shader/memory and everything else is left at default (including DirectX/OpenGL settings) smile.gif

overclockalbert, thanks but I believe if the cooler has a larger surface then it would be better. I notice the different designs between CPU coolers VS GPU coolers biggrin.gif I'll stick with this for a while and see what else I can do.
sukhoi37
post Mar 8 2008, 02:30 PM

Into Computer Since 2002
*******
Senior Member
4,810 posts

Joined: Jan 2003
woot, clawhammer finally come into high end gc overclocking?


anyone know the mounting hole for 8800gt and 3870 is the same?
or different? hmm.gif
voditoleons
post Mar 8 2008, 03:05 PM

New Member
*
Junior Member
42 posts

Joined: Dec 2007
any ASUS en8800gt user tried to oc >750?
my en8800gt can run stable with 700/1000. but when 750 the screen freeze already (memory stay 1000)
vincentlaw
post Mar 8 2008, 03:38 PM

Regular
******
Senior Member
1,507 posts

Joined: May 2007
QUOTE(voditoleons @ Mar 8 2008, 03:05 PM)
any ASUS en8800gt user tried to oc >750?
my en8800gt can run stable with 700/1000. but when 750 the screen freeze already (memory stay 1000)
*
u can but need to increase the voltage
matyrze
post Mar 8 2008, 06:44 PM

Historical tears
****
Senior Member
678 posts

Joined: Dec 2007
From: Shah Alam
when u guys use atitool to scan for artifacts, how do u set the sensitivity of d scanner?to d upmost left(most sensitive) or juz let it at default?i guess we shud not try to move the cursor further right, no?
OC4/3
post Mar 8 2008, 06:45 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(clawhammer @ Mar 8 2008, 02:19 PM)
OC4/3, What is orb? I just overclocked the core/shader/memory and everything else is left at default (including DirectX/OpenGL settings) smile.gif

overclockalbert, thanks but I believe if the cooler has a larger surface then it would be better. I notice the different designs between CPU coolers VS GPU coolers biggrin.gif I'll stick with this for a while and see what else I can do.
*
ORB is online result browser.Register an account at orb,upload once 3dmark is done and share the compare link so we can see the detail and FPS for each test rclxms.gif
clawhammer
post Mar 8 2008, 08:48 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur
QUOTE(sukhoi37 @ Mar 8 2008, 02:30 PM)
woot, clawhammer finally come into high end gc overclocking?
anyone know the mounting hole for 8800gt and 3870 is the same?
or different? hmm.gif
*
I started playing some 3D games so I bought the card biggrin.gif

Added on March 8, 2008, 8:48 pm
QUOTE(OC4/3 @ Mar 8 2008, 06:45 PM)
ORB is online result browser.Register an account at orb,upload once 3dmark is done and share the compare link so we can see the detail and FPS for each test rclxms.gif
*
Ok, that's interesting smile.gif I'll try to register one but the other day when I try to upload, the site is too slow.

This post has been edited by clawhammer: Mar 8 2008, 08:48 PM
OC4/3
post Mar 8 2008, 11:16 PM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule
QUOTE(clawhammer @ Mar 8 2008, 08:48 PM)
I started playing some 3D games so I bought the card biggrin.gif

Added on March 8, 2008, 8:48 pm

Ok, that's interesting smile.gif I'll try to register one but the other day when I try to upload, the site is too slow.
*
Try to upload for a few times.Sometime take 3attempt one.You use default setting right?And do you have MSN?
« Next Oldest · Overclockers United · Next Newest »


3 Pages  1 2 3 >Top
Add ReplyOptions


Change to:
| Lo-Fi Version
 0.2598sec    0.69    6 queries    GZIP Disabled
Time is now: 9th December 2025 - 05:24 PM
All Rights Reserved © 2002- 2025 Vijandren Ramadass (~unite against racism~)
Removal Request
Powered by Invision Power Board © 2025  IPS, Inc.
