i don't think 61C at 100% load

Team 2600C10 @ 2666 11-13-13-31-2T fails LinX


although 32m passed @ 2666 10-12-12-21-1T

If 5.2ghz at 61'c full load... I wil be very happy!! Lol

Btw i still suspect the temp report error.
Once touch 100'c, the proc itself will lower down the speed to saver speed.

5.4ghz boot to windows need 1.56v vcore. But not stable. Still tweak it. Lol


Shepard:-

Im using chapalang ram, so nth more i can tweak jor. Tdp already set to 150.

This post has been edited by kelvin_hata: Apr 29 2012, 01:40 PM

5.4GHz is interesting

My mobo, the TJmax is locked to 105C only.
Although the BIOS & AI suite are set both to 130C max it won't override the 105C.
so best i could stress my 3570K is up to 4.6GHz only as the max temp hit 103C.
4.7-4.8GHz can play with some short tests only. Definitely not IBT/LinX or prime95 AVX.

PS: once you have finished playing with your 3770K & feel bored with it you should know whom to find.

Sure


And i dun think it reach 100++'c it must be something wrong!!!

This post has been edited by kelvin_hata: Apr 29 2012, 02:08 PM

What could that be? The link below blows away the possibility of bad contact & TIM paste rumours.

i7-3770k tested with IHS removed. Results?

So sad.. but i guess i still will go for ivy bridge because for the PCIE 3.0 only.. for future cards.

make sure to grab the 3770K + watercooling for better OC.
3570K is hard to get 5GHz unless you're the among the luckiest guys

Using dual ADDA fans(171CFM) on H100, not yet buy processor yet, still deciding which to go as i more on gaming only, maybe i5

---

Added on April 29, 2012, 11:18 pmowikh84, faster buy the i7 and overclock . Wanna see da result

This post has been edited by JeffreyYap: Apr 29 2012, 11:18 PM

Heard 3770K will only appear in local stores on this coming Tues/Wed. Cant wait for this new toy

Almost done with our LDPV V4 bench table. Didn't have enough tube to complete the loop. Once it is ready we'd see what IB can do on our setup

hehehe... i will throw the 3770k once i got the mobile extreme version

Can't wait to see your V4 in action.
Dimastech paint job is really poor, the flexfan stand is so fragile. And i've broken one of the case feet

LOL come2 to me baby

btw, managed to push the RipjawsZ kit to 2600, but vdimm is not so sweet

G.Skill RipjawsZ 2400C9 @ 2600 10-12-12-31-2T
vdimm 1.88v, VCCSA 1.175, VTT 1.05v
CHA/B Data Vref 0.5v
no mem preset profile selected
transmitter slew auto
DRAM Write Additional Swizzle auto

If the dimastech is epoxy powder coated it should be very hardy. Perhaps it was the smooth powder coating wHich is not so reliable.

Hard epoxy type. It is durable to scratches but there are a few spots the paint is applied too much causing uneven coating. Worst thing is it's at the front panel

Dimastech paint job is garbage compared to LDPC. There are also some sharp edges here and there.

This post has been edited by CyntrixTech: Apr 30 2012, 10:39 AM

here the belakang rumah paint shops use robot for spraying then they go for baking at 200C.
If belakang rumah comes out even coat then Dimastech must be really shit quality.

so serious

normally after the bending process the fabricators will grind off the sharp edges so it would rounded a bit

Well had a quick test of my new retail CPU Sunday - only had about 25lts of LN2 and very hot - so my session only lasted an hour or so before everything was soaked and LN2 was running low.

These Ivy Bridge CPU's certainly run very hot which may limit their appeal for air and water benchers - but if you have something colder - well they just fly

My CPU seems to be somewhere at the lower end of achievements for retails seen to date - benching 6300+ for Pifast, Super Pi, and Maxxmem with no real issues. No way my board was going to run this cpu any higher though, 6350 was maximum regardless of volts used. Will try another board this coming weekend and see if this is definitely the cpu limit or not

Memory used is Team Xtreme 2600 Kit 10-12-12-31 2T - not maxed out just focused on CPU max to start

Heres a few pics - no real tweaks, just a light os install


Someone order some bandwidth??

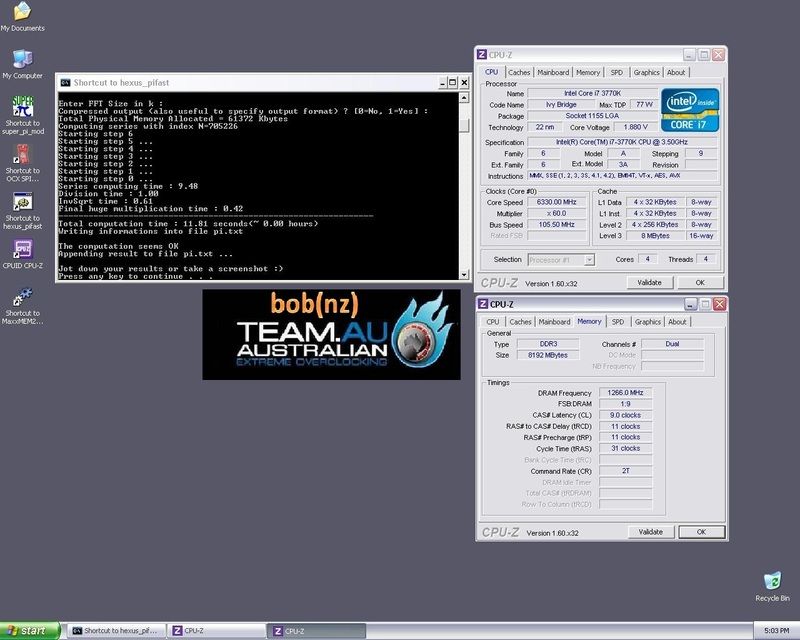

PiFast

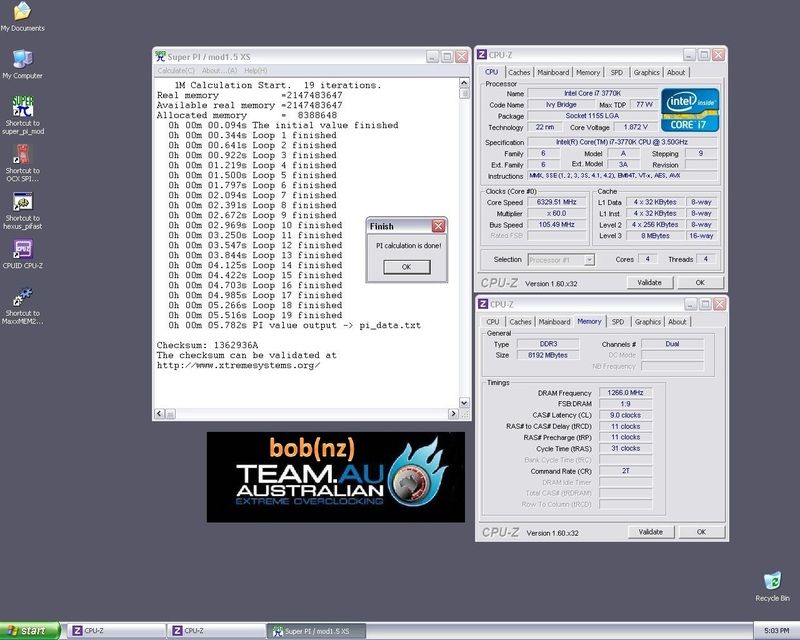

Super Pi 1M



LN2 refill coming for a weekend of benching

In this case(Sub Zero OC),IB>SB
