Ivy Bridge OC Thread V1



This is Ivy Bridge (IB) overclocking thread.
Please share your benchmark, stability, guides etc...

Latest BIOS:
LINK

Latest Overclocking Programs, System Info, Benchmarking, & Stability Tools
LINK - credit to stasio

Monitoring Tools:
CPU-Z 1.67
RealTemp 3.70
ReadlTemp TI
CoreTemp 1.0 RC5
HWiNFO 4.22
Mem TweakIT 2.00.01
CPU-Tweaker 2.0 Beta 15
GIGABYTE Tweak Launcher
Z87 OC Button
ASRock OC Tools 0724
ASUS TurboVCore

Stability/Stressing Tools: - Please use Win7 Service Pack 1 (SP1), take a screenshot before the test finished.
LinX 0.6.4 (10.3.7) - set memory to "ALL" preset
LinX 0.6.5 (11.1.0.002)
Prime95 28.1 Build 2 X64
Linpack 11.0.5.009
OCCT 4.4.0




Benchmark Tools:
SuperPI Mod XS 1.5
HyperPI 0.99 Beta
AIDA64 3.00.2590
Cinebench 11.5
wprime 2.09
pifast
maxxmem
AquaMark 3.1

OC Tips & Guides
AnandTech - Undervolting & Overclocking on Ivy Bridge
shamino's Mem OC Guide on M5G
Z77 UEFI OC Tuning Guide
Gigabyte Ivy Bridge/Z77 Overclocking Guide
ASUS Maximus V Formula OC Guide
Sandy / Ivy Bridge | Complete Overclocking Guide | *ASRock Edition*
owikh84's BIOS settings for 5GHz
Memory Overclocking Guide for Intel Ivy Bridge platform



===========================================================================

Latest News & Updates:

Removing the absolute CRAP thermal packaging on the ivy bridge cpu AKA IHS - credit to kelvin_hata
i7-3770k tested with IHS removed. Results?
Delidded Ivy Bridge Club

===========================================================================

3770K & 3570K Reviews:


=============================================================================

Z77 Motherboards Reviews:



=============================================================================

DRAM Reviews:



Corsair RAM IC:


G.Skill RAM IC:


=============================================================================

BSOD codes for overclocking






Source

This post has been edited by owikh84: Oct 15 2013, 09:00 PM

LYN Ivy Bridge Owners:

## to be listed you must post at least a screenshot of CPU-Z consisted of CPU & motherboard tabs.

Username | CPU | Highest OC | Motherboard | Cooling

1)
owikh84 | 3570K | 4.7GHz (4C/4T) | ASUS Maximus V Gene | Water
owikh84 | 3770K | 5.0GHz (4C/8T) | ASUS Maximus V Gene | Water
owikh84 | 3770K | 5.3GHz (2C/2T) | ASUS Maximus V Formula | Water
owikh84 | 3770K | 5.0GHz (4C/8T) | ASUS Maximus V Extreme | Water
owikh84 | 3770K | 5.0GHz (4C/8T) | ASRock OC Formula | Water

2) CyntrixTech | 3570K | 4.6GHz (4C/4T) | ASUS P8Z77-M | Air

3) coolice | 3570K | 6.761GHz (2C/2T) | ASUS Maximus V Gene | LN2

4) kelvin_hata | 3770K | 5.218GHz (4C/8T) | ASUS P8P67 | Water

5) bob(nz) | 3770K | 6.33GHz (4C/8T) | Motherboard? | LN2

6) ah_khoo | 3570K | 4.5GHz (4C/4T) | ASUS Z77 Deluxe | Water

7) kuntawakaw | 3770K | 4.5GHz (4C/8T) | MSI Z77A-GD65 | Air

8) _707027_ | 3570K | 4.09GHz (4C/4T) | ASUS P8Z77V-Pro | Air

9)
ketapang | 3570K | 4.2GHz (4T/4T) | MSI Z77A-G43 | Air
ketapang | 3570K | 4.5GHz (4C/4T) | ASRock Z77 Extreme4 | Air

10)
louislkw | 3770K | 6.382GHz (2C/2T) | Gigabyte Z77X-UD5H | LN2
louislkw | 3770K | 6.7GHz (1C/1T) | ASUS Maximus V Gene | LN2

11) JeffreyYap | 3570K | 4.2GHz (4C/4T) | ASRock Z77 Extreme4 | Air Cooling

12) ALeUNe | 3570K | 4.7GHz (4C/4T) | ASUS P8Z77M | Water

13) spdboyz | 3570K | 4.6GHz (4C/4T) | | ASUS Z77 Sabertooth | Water

14) ainuddin | 3770K | 4.6GHz (4C/8T) | ASUS Maximus V Gene | Air

15) fatalynx05 | 3570K | 4.8GHz (4C/4T) | ASUS P8Z77-V Pro | Water

16) trisx | 3770K | 4.6GHz (4C/8T) | ASUS Maximus V Gene | Air

17)
ZaiNor-DI255 | 3770K | 4.7GHz (4C/8T) | Gigabyte G1.Sniper3 | Air
ZaiNor-DI255 | 3570K | 4.3GHz (4C/4T) | ASRock Z77E-ITX | Water

18) huzzLEE_82 | 3570K | 4.5GHz (4C/4T) | ASRock Fatal1ty Pro-M | Water

19) diaBoliQu3 | 3570K | 4.5GHz (4C/4T) ASUS P8Z77-V PRO | Air

20) Dreamworks | 3770K | 4.9GHz (4C/8T) | Intel DZ77GA-70K | Water

21) stasio | 3770K | 4.7GHz (4C/8T) | Gigabyte GA-Z77X-UP5 TH | Water

22) usop8290 | 3570K | 4.4GHz (4C/4T) | ASRock Z77E-ITX | Water

23) lordc4an | 3770K | 4.1GHz (4C/8T) ASRock Z77 Extreme4 | Air

24) zerohunter | 3570K | 4.9GHz (4C/4T) | ASUS Maximus V Gene | Water

25) codenamew | 3570K | 4.1GHz (4C/4T) | ASUS P8Z77-M | Air

26) Exeunt | 3570K | 3.6GHz (4C/4T) | ASRock Z77 Extreme4 | Air

27) arerife | 3570K | 4.7GHz (4C/4T) | ASUS P8P67 | Air

28) lat_lonelyboyz | 3570K | 4.6GHz (4C/4T) | ASRock Z77 Extreme4 | Air

29)
shepard | 3770K | 4.6GHz (4C/8T) | ASUS P8Z77-V LK | Air
shepard | 3570K | 5.0GHz (4C/4T) | ASUS Maximus V Extreme | Water

30) objectifyme | 3770K | 4.5GHz (4C/8T) | ASUS P8Z77-i Deluxe | Water

31) captvizcenzo | 3770K | 5.226GHz (4C/8T) | ASUS Maximus V Formula | Water

32) alpha2211 | 3770K | 4.83GHz (4C/8T) | ASUS Z77 Sabertooth | Air

33) teamloks | 3570K | 4.5GHz (4C/4T) | ASRock Z77 Extreme4 | Air

34) muhiann | 3570K | 4.6GHz (4C/4T) | MSI Z77A-G43 | Water

35) imation1314 | 3570K | 4.4GHz (4C/4T) | Gigabyte Z77-D3H | Air

36) tplus1 | 3570K | 4.7GHz (4C/4T) | ASRock Z77 Extreme4 | Water

37) wongtheboy92 | 3570K | 5.0GHz (4C/4T) | MSI MPower Z77 | Air

38) bulibulizaimon | 3570K | 4.7GHz (4C/4T) | ASRock Pro4-M | Air

39) shin6619 | 3770K | 4.3GHz (4C/8T) | ASUS P8Z68-V | Air

40) ocz | 3770K| 4.5GHz (4C/8T) | Gigabyte GA Z77M-D3H | Air

41) hypermax | 3770K | 4.4GHz (4C/8T) | ASUS P8Z77-V | Water

42)
raydenex | 3570K | 3.8GHz (4C/4T) | ASUS Z77 Sabertooth | Water
raydenex | 3770K | 4.5GHz (4C/8T) | ASUS Z77 Sabertooth | Water

43)
hirie | 3570K | 4.7GHz (4C/4T) | ASRock Z77E-ITX | Water
hirie | 3570K | 4.7GHz (4C/4T) | ASUS Maximus V Gene | Water

44) souq | 3770K | 4.6GHz (4C/8T) | ASRock Z77 Extreme? | Water

45) hanny562 | 3770K | 4.9GHz (4C/4T) | MSI Z77 MPower | Water

46) refor_matt | 3770K | 4.4GHz (4C/8T) | MSI Z77 MPower | Air

47) Lokie90 | 3570K | 4.0GHz (4C/4T) | ASRock Z77 Extreme4 | Water

48) gxthelord | 3570K | 4.2GHz (4C/4T) | ASRock Z77 EXtreme4 | Cooling?

49) ijatneda | 3570K | 4.6GHz (4C/4T) | ASUS Maximus V Gene | Water

50) ah_khoo | 3570K | 4.3GHz (4C/4T) | ASRock Z77 Pro3 | Cooling?

This post has been edited by owikh84: Feb 2 2016, 06:31 AM

This post has been edited by owikh84: Mar 9 2013, 01:52 PM

3770K @ 5.0GHz on Asus Maximus V Formula

LinX for 1 hour @ 1.416v... passed


LinX for 7 hours @ 1.448v... 1.416v-1.434v BSOD


straight away run Prime95 at 1.448v... failed in 1 hour +


bump up to 1.48v... passed 4 hours + prime95


2800 10-13-13-28-1T


3770K @ 5.0GHz on Asus Maximus V Extreme

2800 11-14-14-25-1T


3770K @ 5.0GHz on ASRock OC Formula:


vCore comparison 3770K @ 5.0GHz:
ASRock: 1.416v
Asus: 1.456v

This post has been edited by owikh84: May 22 2013, 07:22 AM

Let me start it first

Recently bought myself a 3570K, Asus Maximus V Gene (M5G), as well as Team Extreem 2600MHz C10 4X4GB


Put them on Dimastech EasyDual v2.5 Benchtable


Temporarily cooled by cheapo XSPC RASA 750 RS240 + Arqtik DD TEC block


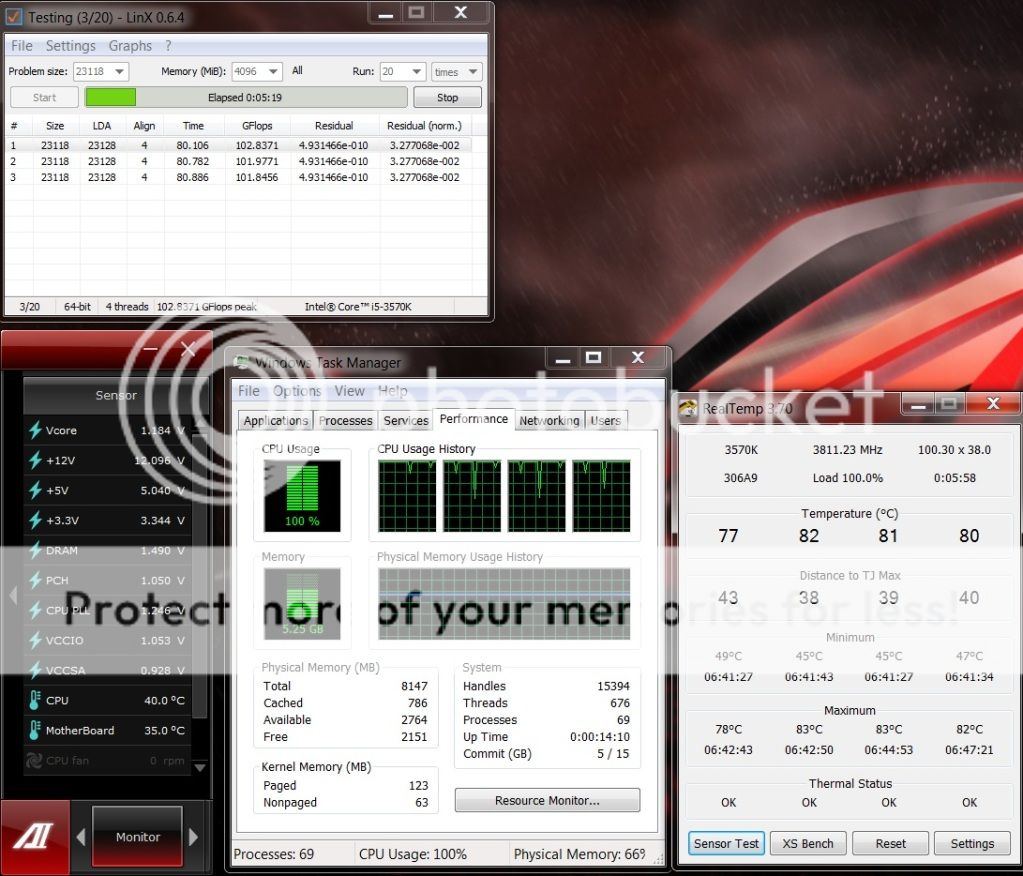

So without wasting time I run a short LinX on Win7 x64 SP1 with the TEC dialed to the max at ambient 33C.
Everything is on stock clocks with turbo ON.

yupe, that's pretty hot for me.
Hope things get better when i get my full custom wc kit later.

It is true.

Another proof here that IB is very hot. Expecting 3770K to be hotter.

Thanks stasio!

That's the only test i did yesterday I was too tired in my chemical lab the drainage system was stuck with spirulina & chlorophyll fibers

Whatsapp me bossy

Totally agreed with you. It is not hot at all when i touch my rad & TEC block.
TEC controller still showing 33C during LinX.
Don't know what's happening but i think we will wait for explanation from Intel or mobo manufacturer
Could be false sensor readings, bad IHS contact, etc...

3570K @ 4.5GHz
M5G
Team 2600C10 2x4GB @ 2666

ok noticed that bios is set to 130c max

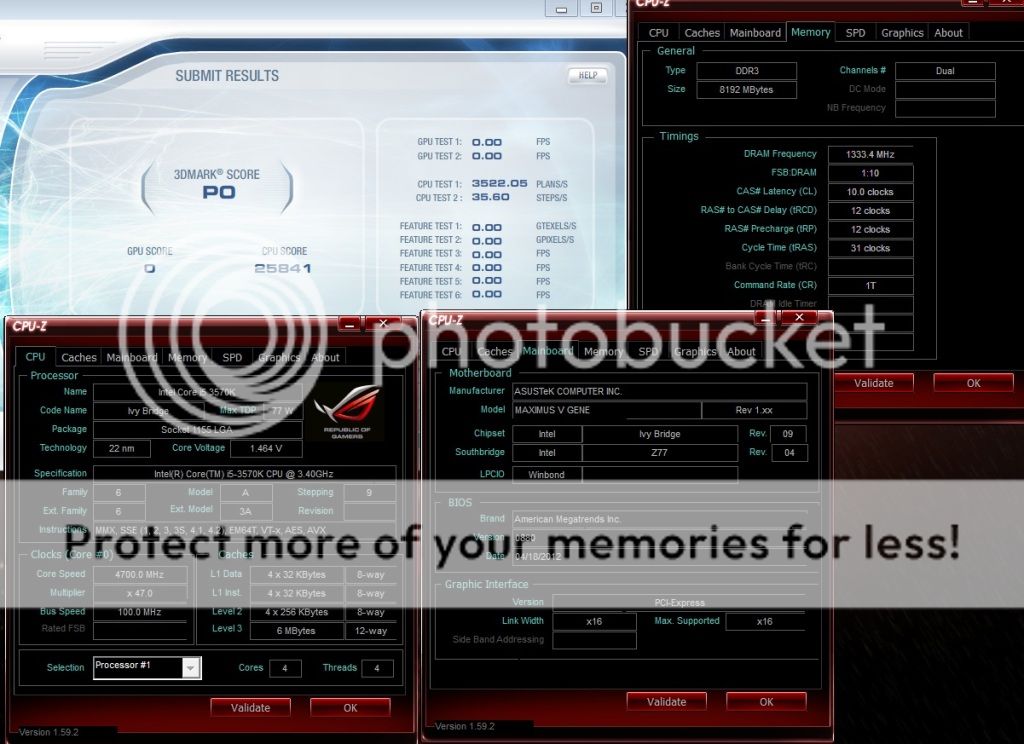

3570K @ 4.7GHz
Team 2600C10 2x4GB @ 2666 10-12-12





This post has been edited by owikh84: Apr 21 2012, 10:36 AM

It's the RS240 bought from you last year.
New EK HF+jetplate6, D5+EK top, 2x RX360, Bits res 250, Primoflex tubing, comp fittings from APES; as well as 10x +2 ScytheGT from you Mr.P
All reached me safely yesterday.

Use win7 x64 SP1 + prime95 x64 27.1 w/ AVX for max torture LOL

i've updated the first post, suggestions are welcomed for thread improvement

This post has been edited by owikh84: Apr 21 2012, 11:03 AM

2x RX360 only. It is considered as overkill already for CPU-only loop.
Will grab some good GTX680s + wb & put them in the same loop later, later bro...
I go with D5 coz i got old EK top already.

2x 355 looks overkill for 2x RX360
my SB-E rig is powered by 2x D5 dual top paired with 2x RX480 can make fountain inside 250 res.

maybe you got a bad 3570K which loves voltage so much so i suspect the BSOD (please check post #1) is due to insufficient vCore when the turbo clock kicks in your CPU needed more voltage. my stock clocked 3570K on M5G is pretty smooth with the default settings & latest bios.

Turbo frequency for 3570K is up to 3.8GHz & one core only. Turbo can be overridden by setting the multiplier manually.
CPU level up is a feature offered by Asus boards for auto OC sometimes is not as reliable as desired. Manual OC is always the best although more work to do than just let bios OC for you.

---

Added on April 23, 2012, 11:04 pmvery nice bro, now toast it with LinX & see.
I don't think this 3770K will survive on my RASA kit.

This post has been edited by owikh84: Apr 23 2012, 11:04 PM

More power phases do not guarantee better performance and does not mean better OC. Generally, more phases should make for smoother voltage output, but it is only one of several factors in the design of the CPU voltage regulator. Power phasing is more of an energy management feature than an OC feature. It will really only feed the CPU with as much energy as it needs, and the other power phases get turned off. The Fatality PROFESSIONAL is usually ASRock's flagship mobo and this is the model you should get.

M5G + Noctua NH-D14



Motherboard Compatibility

RAM Compatibility

Performance wise D14 > C14 > Genesis
http://www.silentpcreview.com/article1191-page7.html
http://www.silentpcreview.com/article1138-page6.html

This post has been edited by owikh84: Apr 24 2012, 12:54 PM

Just noticed that the RAM heatsink is that tall, confirmed not fit then.

nice try but win7 SP1 + Latest LinX will surely required A LOT LOT more voltage & generate A LOT LOT more heat.

Easy decision. 3570K is a better buy than 2500K.
IB can also take high core temps and not degrade like SB, it can also do 4.5ghz on air, just depends on your CPU.
IB @ 4.5GHz is enough to beat SB 4.9GHz. Most SB could only achieve 4.7GHz max on aircooling.
However the high temp you see doesn't mean the heat coming off of it is high. The cooler isn't that hot when touch with hands.
TJmax for IB is alot higher than what SB offered.

Quad core based mobile IB should be available start from 29/4
Followed by Dual core in June.

this is the one
Well done kunta. Nice MSI's cherry picked chip you got there with that vcore it is air cooled friendly. I think 5GHz is possible on water.

---

Added on April 25, 2012, 12:30 pmOhh the LinX posted in the post #1 is the latest version coded with AVX.

This post has been edited by owikh84: Apr 25 2012, 12:30 PM

EK Supreme HF jetplate6
2x RX360 + 12x GT 1850rpm
D5 + EK Top
EK X2 250 res

I think so bro i look again at the AI reading it's only 40C. Something wrong with RealTemp and i will record with other temp monitoring soft later tonight

LOL i also kena sudden shock in the morning. Took a chill pill trying to calm myself to ignore the readings as my fingers still feel cool when touching both the rads, CPU block, tubing as well as the res. there was no hot air dissipated out of the rads. So i found:

Ivy Bridge Temperatures Could Be Linked To TIM Inside Integrated Heatspreader: Report
