Actually it's been quite sometimes since I wanted to post this thread...
We have highest FSB for amd64, but it doesn't facilitate that much since we know what matters most is the clock speed at the end of the day.

Honestly I've waited long enough for somebody to open this thread, but to no avail.
So I open it myself. If the mod here (wait, I'm a mod) doesn't see the relevance of this thread, please just throw this thread away without flaming me...: respect:

So the rules are pretty simple:

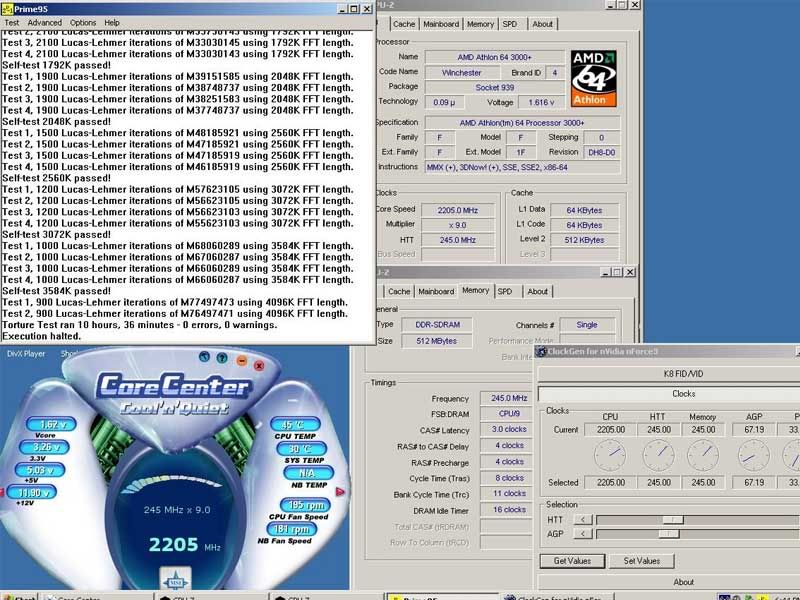

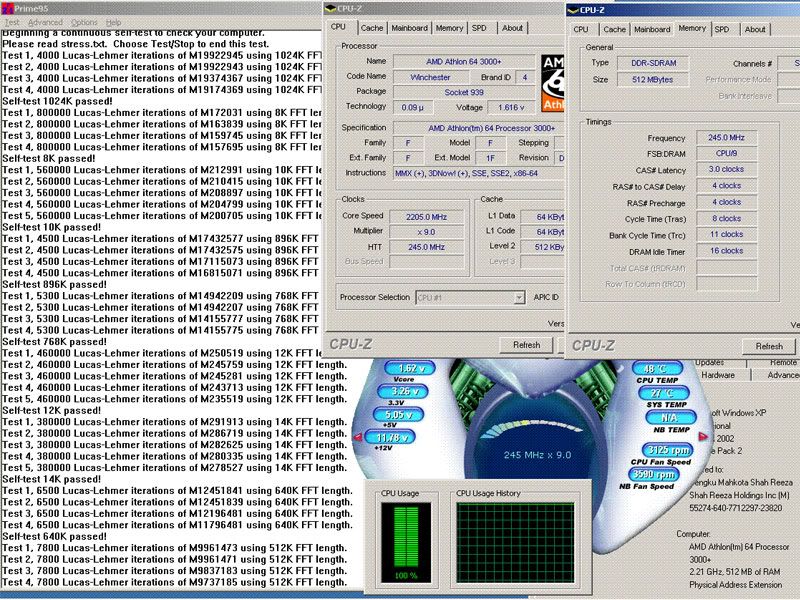

1. A screenshot of stable prime + cpuz (no need to verify), at least full screen passed test (like what I did below), normally it will take about 3 hrs (small fft) for this to complete. (To be ranked prime stable)

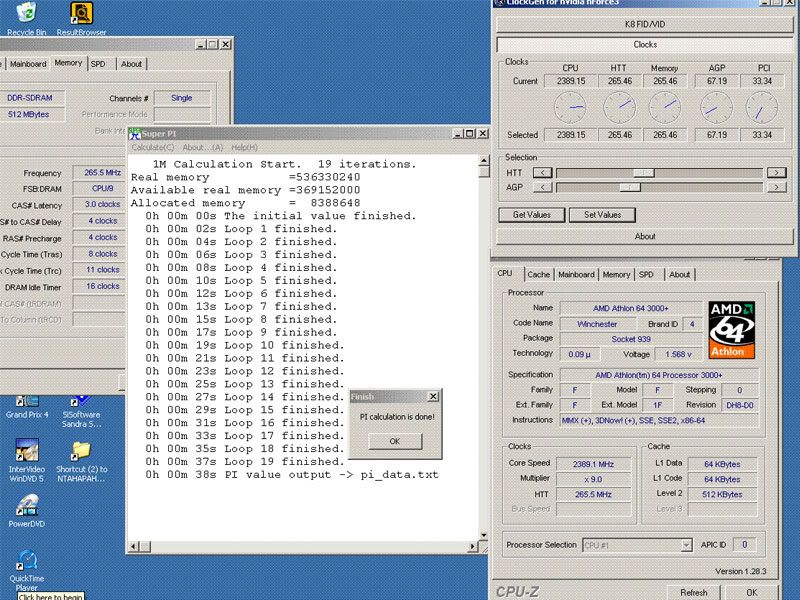

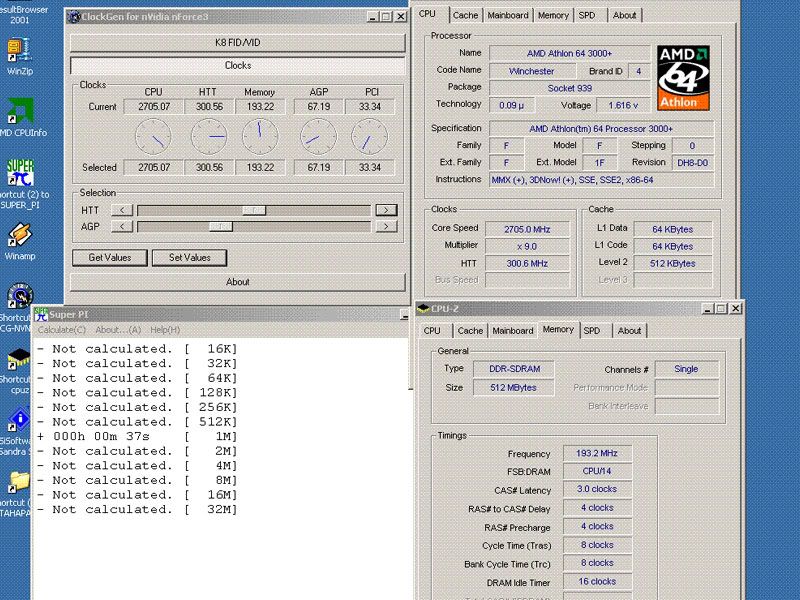

2. An option to show your bench able speed, please attached cpu-z and superPI screenies. (To be ranked benchable)

3. Please specify type of cooling, (air, water, phase change, you name it).

4. This is optional...for those who have the stepping information pls include it with ur results for easy reference..places to be limited to 20 as to make for more competitive database

RANKING...


AMD64 S939 SERIES & FX SERIES

Prime stable
1. babyelf ~ 3000+ @ 2.943 Ghz @ 1.57v @ Watercooled @ Venice
2. arj ~ 3000+ @ 2.84 Ghz @ 1.7v @ Watercooled @ Venice
3. tampoi ~ 3200+ @ 2.8 Ghz @ 1.552v @ Air cooling @ Venice
4. rlhc17 ~ 3500+ @ 2.76 Ghz @ 1.7v @ XP-90 @ Clawhammer (CAA2C 0505APBW)
5. uglyvamp ~ 3000+ @ 2.745 Ghz @ 1.55v @ Venice
6. ianho ~ 3000+ @ 2.70 Ghz @ 1.60v @ Watercooled @ Venice (LBBLE0516GPBW)
7. ah_chak ~ 3000+ @ 2.7 Ghz @ 1.6v @ XP90C and 92mm Thermaltake Smart Fan x 2 @ Venice (0516 DPJW)
8. Irenic ~ 3500+ @ 2.70 Ghz @ 1.65v @ XP-90 & Tornado @ Newcastle
9. ahpaul82 ~ 3000+ @ 2.662 Ghz @ 1.616v @ Watercooled @ Venice (LBBLE 0516CPBW)
10. PCcrazy ~ 3200+ @ 2.62 Ghz @ 1.65v @ Hyper6 @ Winchester (CBBHD0450VPGW)
11. fritzz ~ 3000+ @ 2.60 Ghz @ 1.39v @ Air cooling @ Winchester
12. kianwee ~ 3200+ @ 2.5Ghz @ 1.36V @ Cooling? @ Venice
13. Imrezm ~ 3000+ @ 2.5 Ghz @ 1.6v @ Air cooling @ Winchester
14. gamers maniac ~ 3200+ @ 2.5 Ghz @ 1.63v @ XP-90 - delta12cm @ Winchester
15. moderno ~ 3000+ @ 2.5Ghz @ 1.71V @ Hyper6 + @ Winchester
16. fatalynx05 ~ 3000+ @ 2.5Ghz @ 1.712V @ Venice
17. Rzonealley ~ 3000+ @ 2.5 Ghz @ 1.76v @ XP-90 @ Winchester (CBBID 0451MPM)
18. e-jump ~ 3000+ @ 2.43Ghz @ 1.50v @ Air cooling @ Winchester (CBBGD 0440)
19. remysix ~ 3000+ @ 2.43 Ghz @ 1.65v @ Air cooling @ Winchester
20. Rezz ~ 3200+ @ 2.4 Ghz @ 1.63v @ Air cooling @ Winchester

Benchable
1. arj ~ 3000+ @ 3.0 Ghz @ 1.616v @ Dry Ice @ Venice
2. babyelf ~ 3000+ @ 2.943 Ghz @ 1.57v @ Watercooled

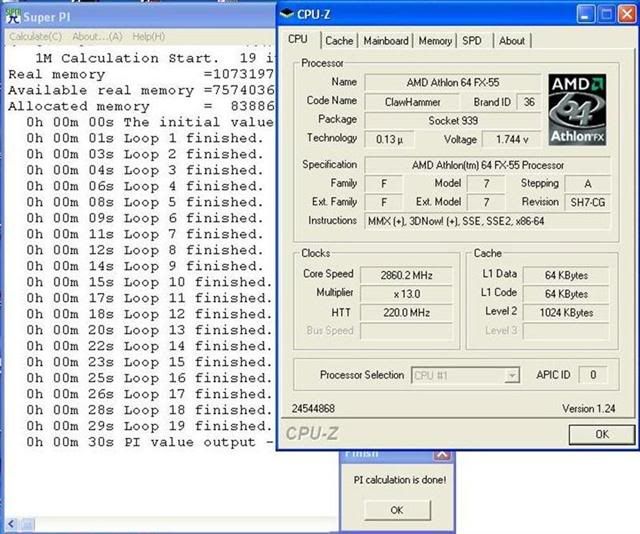

3. arj ~ FX-55 @ 2.86 Ghz @ 1.74v @ Watercooled @ Clawhammer
4. rlhc17 ~ 3500+ @ 2.85 Ghz @ 1.7v @ XP-90 & 8cm Delta Focus Flow @ Clawhammer
5. babyelf ~ 3500+ @ 2.84 Ghz @ 1.6v @ XP-90 & tornado @ Clawhammer @ CAA2C 0509 DPMW
6. uglyvamp ~ 3000+ @ 2.8 Ghz @ 1.53v @ Venice
7. De_Cruelz ~ 3500+ @ 2.8 Ghz @ 1.63v @ Stock @ Clawhammer
8. Irenic ~ 3500+ @ 2.794 Ghz @ 1.66v @ XP-90 + Tornado 92mm @ Newcastle
9. x800 ~ 3000+ @ 2.754 Ghz @ 1.632v @ TT Big Water @ Venice
10. PCcrazy ~ 3200+ @ 2.75 Ghz @ 1.70v @ Hyper6 @ Winchester (CBBHD0450VPGW)
11. antonio_zth ~ 3000+ @ 2.706 Ghz @ 1.685v @ Air cooling @ Venice
12. Sniper on the roof ~ 3200+ @ 2.7 Ghz @ 1.7v @ Air cooling @ Winchester
13. e-jump ~ 3000+ @ 2.64 Ghz @ 1.632v @ Air cooling @ Winchester
14. Evogenix ~ 3200+ @ 2.6 Ghz @ 1.71 @ Air cooling @ Winchester
15. Rzonealley ~ 3000+ @ 2.56 Ghz @ 1.71v @ XP-90 @ Winchester
16. ffrulz ~ 3000+ @ 2.4 Ghz @ 1.6v @ Air cooling @ Winchester

Bootable
1. arj ~ 3000+ @ 3.2 Ghz @ 1.71v @ Dry Ice @ Venice
2. De_Cruelz ~ 3500+ @ 3.0 Ghz @ 1.776v @ Watercooled @ Clawhammer
3. rlhc17 ~ 3500+ @ 2.9 Ghz @ 1.70v @ XP-90 @ Clawhammer
4. x800 ~ 3000+ @ 2.854 Ghz @ 1.632v @ TT Big Water @ Venice
5. PCcrazy ~ 3200+ @ 2.85 Ghz @ 1.75v @ Hyper 6 @ Winchester (CBBHD0450VPGW)
6. ianho ~ 3000+ @ 2.794 Ghz @ 1.60v @ Stock @ Venice
7. irenic ~ 3500+ @ 2.794 Ghz @ 1.66v @ XP-90 + Tornado 92mm @ Newcastle
8. e-jump ~ 3000+ @ 2.72 Ghz @ 1.63 @ Air cooling @ Winchester
9. Antonio_zth ~ 3000+ @ 2.7 Ghz @ 1.6v @ Air cooling @ Winchester


AMD64 S754 SERIES

Prime stable
1. Embuhnator ~ 2800+ @ 2.70 Ghz @ 1.536v @ CAA2C 0505 FPMW @ Clawhammer
2. mazdagtr210 ~ 3200+ @ 2.61 Ghz @ 1.64v @ ACFreezer64 @ Clawhammer
3. Koyukii ~ 3000+ @ 2.45 Ghz @ 1.65v @ Air cooling @ Newcastle
4. Snoy ~ 3000+ @ 2.4Ghz @ 1.50v @ Air cooling @ Clawhammer
5. Jslut ~ 3000+ @ 2.4Ghz @ 1.65v @ XP-90 @ Clawhammer
6. shadow_dweller ~ 3000+ @ 2.25Ghz @ 1.46v @ stock cooling @ Newcastle

Benchable
1. Embuhnator ~ 2800+ @ 2.88 Ghz @ 1.77v @ 0505 FPMW @ Clawhammer @ Watercooled
2. KoYukii ~ 3000+ @ 2.62 Ghz @ 1.71v @ 0448CPNW @ Air cooling @ Newcastle
3. Jslut ~ 3000+ @ 2.61 Ghz @ 1.85v @ XP-90 @ Clawhammer
4. aichan ~ 2800+ @2.6 Ghz @1.5v @0505 FPMW @ Stock @ Clawhammer
5. Shadow_dweller ~ 3000+ @ 2.50 Ghz @ 1.68v @ Stock @ Newcastle
6. Sidewinderz ~ 2800+ @ 2.16 Ghz @ 1.568v @ Air cooling @ Clawhammer

Bootable
1. Embuhnator ~ 2800+ @ 2.925 Ghz @ 1.792v @ CAA2C 0505FPMW @ Clawhammer
2. Embuhnator ~ 2800+ @ 2.80 Ghz @ 1.753v @ 0349 VPMW @ Clawhammer
3. Shadow_dweller ~ 3000+ @ 2.52 Ghz @ 1.68v @ Stock Cooling @ Newcastle
4. fatalynx05 ~ 2800+ @ 2.5 Ghz @ 1.50v @ Air Cooling @ Clawhammer


Guys please feel free to contribute...
Feel free to discuss anything about AMD64 here, new core overclocking potential and so on. But please keep this thread clean.

AMD64 Processor specifications / How to read an OPN
http://www.angrygames.com/AMD_CPU/AMD_64/AMD_64.htm

Credit to Gogar for his excellent work..
http://math.gogar.com/athlon64.cgi

A study of AMD64 ocing techniques
http://www.neoseeker.com/Articles/Hardware...64oc/index.html

This post has been edited by PCcrazy: Oct 19 2005, 12:16 PM

aaah, i get it now

for now there's only my result so i'll post mine for now

COME ON SEMPRON USERS!!!! JOIN IN!!!

semprons from socket A to socket 754 are welcomed


AMD64 SEMPRON SOCKET 754

1. Cyclone87 ~ 2800+ @ 2715 @ 1.45V @ Stock @ Palermo (E6) [12/09]
2. soulfly ~ 2800+ @ 2704 @ 1.616V @ XP90 @ Palermo (LBBWE 0527EPAW) [3/10]
3. wtm0325 ~ 2800+ @ 2680 @ 1.488V @ Stock @ Palermo (E6)
4. mazdagtr210 ~ 2800+ @ 2565 @ 1.57V @ AC-Freezer64 @ Palermo (E6) [16/09]
5. mazdagtr210 ~ 2800+ @ 2240 @ 1.552V @ AC-Freezer64 @ Palermo (E6)
6. jslut ~ 3100+ @ 2475@ 1.5v @ XP-90 @ Palermo
7. soulfly ~ 3000+ @ 2430 @ 1.65V @ Air-cooling @ Palermo
8. low yat 82 ~ 2800+ @ 2402 @ 1.5V @ Stock(?) @ Palermo (E6) [6/01/06]
8. embuhnator ~ 2800+ @ 2400 @ 1.392V @ Stock HSF
9. soulfly ~ 2800+ @ 2400 @ 1.696V @ XP90 @Palermo(LBBID 0514CPMW) [26/08]
10. superpc ~ 2500+ @ 2275 @ 1.45V @ Stock @ Palermo (E6) [13/09]
11.
12. mazdagtr210 ~ 2800+ @ 2240 @ 1.552V @ AC-Freezer64 @ Palermo(E6) [11/09]
13. KenL ~ 2800+ @ 2145 @ 1.45V @ Stock @ Palermo (E6) [10/09]
14. Najmods ~ 2500+ @ 1910 (272*7) @ 1.424V @ Stock (?) @ Palermo (E6) [24/10]

EDIT2:: here's another update to my results

This post has been edited by jslut: Jan 8 2006, 10:49 AM


Attached thumbnail(s)

Solution for low overclock in Windows XP SP2

Disabling DEP system-wide using boot.ini

1. Click Start, and then click ControlPanel.

2. Under Pickacategory, click PerformanceandMaintenance.

3. Under or Pick a Control Panel icon, click System.

4. Click the Advanced tab, and in the Startup and Recovery area, click Settings.

5. In the SystemStartup area, click Edit.

6. In Notepad, click Edit and then click Find.

7. In the Findwhat field, type /noexecute and then click FindNext.

8. In the Find dialog box click Cancel.

9. Replace the policy_level (for example, "OptIn" default) with "AlwaysOff" (without the quotes).

WARNING: Be sure to enter the text carefully.

Note: Your boot.ini file switch should now read:

/noexecute=AlwaysOff

10. In Notepad, click File and then click Save.

11. Click OK to close StartupandRecovery.

12. Click OK to close SystemProperties and then restart your computer.

Source from XS

Some other forumers also conclude success from this tweak...

So what is DEP? It is some kind of protection to prevent malicious code from running. Some suggested that the win actually telling the system to not boot due to incorrect clock speed reported. However rumours says this tweak is for DFI and venice combo. But others who got stuck at very low overclock might want to have a go at the tweak.

Guys, if you have tried or wanted to, don't forget to put some feedback here. Will put my feedback later, hopefully I can achieve more speed (which I doubt so). DFI owners, pls have a go...

Hi PCcrazy, good of you to open such a thread rather than waiting for someone else

Perhaps you could specify a specific number of hours and running what test to qualify for the ranking? Just thought that it might be clearer that way and avoid confusion later on.

3500+ CBBLE 0515?????? - 2705 MHZ 1.552V AIR - Rickster_64 XS
3200+ LBBLE 0516?????? - 2800 MHZ 1.680V H2O - Badge56 XS
3200+ LBBLE 0517APHW - 2850 MHZ 1.520V AIR - PITer TWEAK.PL
3200+ LBBLE 0518APDW - 2853 MHZ 1.696V H2O - htkm1 XS

3000+ LBBLE 0517APIW - 2800 MHZ 1.440V AIR - peter lu XS
3000+ LBBLE 0517APIW - 2700 MHZ 1.360V AIR - peter lu XS

3200+ LBBLE 0515APAW - 2800 MHZ 1.400V AIR - Burnt_Ram XS - SuperPI 32M , XP-90 + FAN
3200+ LBBLE 0515APAW - 2850 MHZ 1.450V AIR - 4rory XS
3200+ LBBLE 0515APAW - 2800 MHZ 1.408V AIR - D3kMatrix XS/OCforums - prime stable 8 h
3200+ LBBLE 0515APAW - 2850 MHZ 1.520V AIR - D3kMatrix XS/OCforums - prime stable 24 h
3200+ LBBLE 0515APAW - 2906 MHZ 1.550V AIR - s7e9h3n XS , SuperPI 32M stable
3200+ LBBLE 0515APAW - 2900 MHZ 1.408V H2O - musk XS
3200+ LBBLE 0515APAW - 2700 MHZ 1.360V ??? - jinu117 XS - prime stable
3200+ LBBLE 0515APAW - 2950 MHZ 1.500V H2O - JfRsQ XS - stable ??? , Bought from NCIX Computers, Canada

3500+ LBBLE 0516CPAW - 2754 MHZ 1.616V AIR - Dani XS - stock cooler

3000+ CBBLE 0512DPAW - 2902 MHZ 1.500V AIR - SmokeyTheBandit XS
3000+ CBBLE 0504DPAW - 3000 MHZ 1.648V PC - Gorod XS
3000+ CBBLE 0512DPAW - 2700 MHZ 1.360V AIR - =STE=BloodAngel XS
3000+ CBBLE 0504DPAW - 2800 MHZ 1.616V AIR - Gorod XS
3000+ CBBLE 0512DPAW - 2857 MHZ 1.632V AIR - DesertShooter XS - Zalman 7700CU , stable ?
3000+ CBBLE 0512DPAW - 2880 MHZ 1.520V AIR - vrtn XS - XP120 + FAN , SuperPI 16M Stable
3000+ CBBLE 0512DPAW - 2800 MHZ 1.520V AIR - =STE=BloodAngel XS
3500+ CBBLE 0512DPAW - 2840 MHZ 1.456V PC - Onepagebook XS
3500+ CBBLE 0512DPAW - 2750 MHZ 1.660V AIR - mcbarnet007 XS
3800+ CBBLE 0507DPAW - 2906 MHZ 1.360V PC - Cranox XS

3200+ CBBLE 0504EPAW - 2800 MHZ 1.520V AIR - Kane XS
3500+ CBBLE 0504EPAW - 3003 MHZ 1.480V PC - TodB XS
3000+ LBBLE 0517EPAW - 2700 MHZ 1.475V AIR - SoboL XS - FreeZone QC-80 CU - http://www.esc.pl/index.php - prime stable
3000+ LBBLE 0517EPAW - 2925 MHZ 1.522V AIR - Vosh tweak.pl - 12 h prime stable , Freezer64 + AS5 , BEST CPU IVE SEEN
3000+ LBBLE 0517EPAW - 2961 MHZ 1.616V AIR - Vosh tweak.pl - 12 h prime stable , Freezer64 + AS5 , BEST CPU IVE SEEN
3000+ LBBLE 0517EPAW - 2781 MHZ 1.480V AIR - Pure tweak.pl - stock cooler , prime stable
3000+ LBBLE 0517EPAW - 2942 MHZ 1.580V H2O - wampir XS - SuperPI 16 M stable
3000+ LBBLE 0516EPAW - 2700 MHZ 1.552V AIR - SDX XS - XP120 + FAN , prime stable
3500+ LBBLE 0515FPAW - 2850 MHZ 1.648V AIR - Joe Camel XS
3500+ LBBLE 0515FPAW - 2750 MHZ 1.440V AIR - Tibu XS
3500+ LBBLE 0515FPAW - 2900 MHZ 1.648V AIR - Tibu XS

3800+ LBBLE 0515GPAW - 2856 MHZ 1.488V H2O - Jaco XS - 14h prime stable
3000+ LBBLE 0516GPAW - 2754 MHZ 1.504V ??? - Trevor XS - prime stable

3000+ LBBLE 1516EPHW - 2700 MHZ 1.536V AIR - MassiveOverkill amdforums

3200+ LBBLE 0517BPEW - 2845 MHZ 1.376V H2O - Fintas-XP XS
3200+ LBBLE 0517BPEW - 2800 MHZ 1.560V AIR - KamE38 XS - stock cooler stable

3200+ LBBLE 0516EPEW - 2800 MHZ 1.616V AIR - vapb400 XS
3200+ LBBLE 0516EPEW - 2700 MHZ 1.700V AIR - Deus Falsus XS
3200+ LBBLE 0516EPEW - 2650 MHZ 1.584V AIR - dnottis XS


3000+ LBBLE 0516CPBW - 2700 MHZ 1.664V AIR - HousERaT XS
3000+ LBBLE 0516CPBW - 2765 MHZ 1.744V AIR - trans am XS
3000+ LBBLE 0516CPBW - 2700 MHZ 1.750V AIR - clockedOut XS - NOT STABLE
3000+ LBBLE 0516CPBW - 2700 MHZ 1.488V AIR - stang8118 Ocforums
3000+ LBBLE 0516CPBW - 2808 MHZ 1.664V AIR - stang8118 Ocforums
3000+ LBBLE 0516CPBW - 2610 MHZ 1.568V AIR - patrck17 Ocforums
3000+ LBBLE 0516CPBW - 2475 MHZ 1.472V AIR - JDizzle Ocforums
3000+ LBBLE 0516CPBW - 2700 MHZ 1.400V H2O - Craptacualr Ocforums
3000+ LBBLE 0516CPBW - 2765 MHZ 1.648V AIR - TheMeatFrog XS
3000+ LBBLE 0516CPBW - 2450 MHZ 1.520V AIR - Geforce4ti4200 XS - 2500 NOT STABLE
3000+ LBBLE 0516CPBW - 2610 MHZ 1.488V AIR - shiznit93 XS
3000+ LBBLE 0516CPBW - 2700 MHZ 1.552V H2O - ociadotnet XS
3000+ LBBLE 0516CPBW - 2600 MHZ 1.632V H20 - bmaffin13 XS - 12+ Hours prime stable
3800+ CBBLE 0513CPBW - 2750 MHZ 1.500V AIR - Seriola XS - stock cooler - prime stable 5h
3000+ LBBLE 0516CPBW - 2630 MHZ 1.536V AIR - Skratch XS - stock cooler

3000+ CBBLE 0512DPBW - 2901 MHZ 1.680V H2O - mongoled XS
3000+ CBBLE 0512DPBW - 2916 MHZ 1.664V H2O - Jimbo Mahoney XS
3000+ CBBLE 0512DPBW - 2922 MHZ 1.580V AIR - Torman XS - stock cooler
3000+ CBBLE 0512DPBW - 2826 MHZ 1.500V H2O - xpr-k XS

3000+ LBBLE 0516EPBW - 2160 MHZ 1.400V AIR - PURE TWEAK.PL - EXTREME BAD
3000+ LBBLE 0516EPBW - 2860 MHZ 1.730V H2O - Yotomeczek TEAK.PL
3000+ LBBLE 0516EPBW - 2806 MHZ 1.600V H2O - Yotomeczek TEAK.PL

3200+ LBBLE 0515FPBW - 27500 MHZ 1.450V ??? - oasked XS
3200+ LBBLE 0515FPBW - 2700 MHZ 1.408V AIR - Techwarrior XS - 24 h prime stable , XP-90 + FAN
3200+ LBBLE 0515FPBW - 2800 MHZ 1.552V AIR - Techwarrior XS - 24 h prime stable , XP-90 + FAN
3500+ LBBLE 0515FPBW - 2972 MHZ 1.648V AIR - charlie XS - Hyper6 , bought from monarch

3000+ LBBLE 0516GPBW - 2808 MHZ 1.552V H2O - arj XS
3200+ LBBLE 0515GPBW - 2800 MHZ 1.392V H2O - H2OGun XS
3200+ LBBLE 0515GPBW - 3000 MHZ 1.600V H2O - H2OGun XS
3200+ LBBLE 0515GPBW - 2700 MHZ 1.450V AIR - bonzer XS
3200+ LBBLE 0515GPBW - 2929 MHZ 1.664V AIR - PcCI2iminal XS
3200+ LBBLE 0515GPBW - 2700 MHZ 1.328V ??? - leotonch XS - prime stable

3000+ LBBLE 0516CPCW - 2610 MHZ 1.650V AIR - KamE38 XS - stock cooler stable
3000+ LBBLE 0516CPCW - 2600 MHZ 1.550V AIR - Vroom - from Trend4PC.de XS
3800+ LBBLE 0516CPCW - 2751 MHZ 1.460V H2O - Computersmsa Bel-Hardware.be

3200+ LBBLE 0516EPGW - 2840 MHZ 1.660V ??? - TheMeatFrog XS
3200+ LBBLE 0516EPGW - 2763 MHZ 1.664V AIR - politenessman XS
3200+ LBBLE 0516EPGW - 2808 MHZ 1.580V AIR - Rubescen XS
3200+ LBBLE 0516EPGW - 2670 MHZ 1.700V AIR - Deus Falsus XS
3200+ LBBLE 0516EPGW - 2500 MHZ 1.550V AIR - Dermen Ocforums
3200+ LBBLE 0516EPGW - 2700 MHZ 1.456V AIR - Ziku TWEAK.PL
3200+ LBBLE 0516EPGW - 2700 MHZ 1.504V AIR - 4X4N XS
3200+ LBBLE 0516EPGW - 2800 MHZ 1.696V AIR - Wayway XS
3200+ LBBLE 0516EPGW - 2670 MHZ 1.700V AIR - Deus Falsus amdforums
3200+ LBBLE 0516EPGW - 2700 MHZ 1.568V H2O - aMp XS
3200+ LBBLE 0515EPGW - 2800 MHZ 1.504V ??? - daddy_fizz XS - prime stable 2h

3800+ CBBLE 0513CPDW - 2950 MHZ 1.664V ??? - kamui XS
3800+ CBBLE 0513CPDW - 2929 MHZ 1.650V H2O - xxmartin XS
3800+ CBBLE 0513CPDW - 2700 MHZ 1.360V PC - spiritedandy Ocforums

3000+ LBBLE 0515FPDW - 2845 MHZ 1.530V AIR - sinsinking XS - Hyper6
3000+ LBBLE 0512FPDW - 2700 MHZ 1.480V ??? - SillySider03 - prime stable

3000+ LBBLE 0516DPMW - 2712 MHZ 1.536V H2O - zwierzak24dg TWEAK.PL
3000+ LBBLE 0516DPMW - 2627 MHZ 1.536V ???? - zwierzak24dg TWEAK.PL
3000+ LBBLE 0516DPMW - 2745 MHZ 1.550V AIR - VerB TWEAK.PL
3000+ LBBLE 0516DPMW - 2844 MHZ 1.648V H2O - Mardok TWEAK.PL
3500+ LBBLE 0516DPMW - 2700 MHz 1.550V H2O - Sillen XS

3000+ LBBLE 0517EPMW - 2700 MHZ 1.376V AIR - qk4722 XS - prime stable
3800+ CBBLE 0504EPMW - 3306 MHZ 1.664V PC - s7e9h3n , Mach2

3000+ LBBLE 0515FPMW - 2808 MHZ 1.600V AIR - askimo XS

3000+ LBBLE 0516EPKW - 2700 MHZ 1.696V AIR - Cornelious0_0 XS

3200+ LBBLE 0517BPDW - 3201 MHZ 1.608V DICE - Dj_Rudy XS - stable ??

3000+ LBBLE 0516DPJW - 2800 MHZ 1.568V AIR - UCmajewski XS - stock cooler

prime stable?? have to wait later lar

ok i'll get to work on it

thanks De_Cruelz

Like ive mentioned before. A full screen test (like what ive did) or up to 3 hrs prime test.
There is no need to prime stable in order to be in the ranks. But i will not mentioned in ur ranks that the clock speed is prime stable.

it's better to give the stepping of the the processor also.
i'll post mine after 'priming'

Gee thanks sukhoi. But i forgot the stepping and lazy to reseat the hsf back. Maybe next time i edit mine.

pccrazy edit on 1st page to ask them to provide the stepping and production date of proc too, so u wont have to ask each of them. i will submit mine later still looking for the highest mine stable huhu.still not satisfied with 2.4 hehe.

Okay. For those who have the stepping information pls included with ur results for easy reference.

bro at those settings i can't prime... prime not stable and i'm almost breaching 1.9V

so i'll leave it to u to either wanna take it out or not

I will not take it out. But i put it @ benchable category instead.

ok u the boss bro

btw i'll try to get the highest prime stable clock and i'll post here

Thanks for the support jslut. Looking forward to your best clock speed @ prime stable.

hmm...mine kinda low...but here goes...

i tried to post my screenies of 2.7ghz but somehow i cant attach it...
hmm nvr mnd, let me try to improve my cooling 1st and hopefully manage to hit 2.75/ 2.8ghz

new results..

2610 Mhz @ 1.6v

and

2620 Mhz @ 1.65v

and....fail prime after an hour @ 2630 Mhz @ 1.65v...
going for 1.7v this time for 2630 Mhz..

it looks like my target of 2650 mhz is pretty hard to reach at safe vcore..
my prediction is I need 1.80 - 1.85 to reach 2650. my winnie is average clocker to say the least..

This post has been edited by PCcrazy: Mar 23 2005, 06:16 AM

here is mine at

2450Mhz 245*10 @
1.6Vcore @
aircooled @
idle 42 load 55

my newcastle 754 get's heat up easily especially during load.

sorry din run prime test as i heard running stress test it self might shorten the life of the cpu. i highly doubt my cpu can be prime stable at this speed.

currently running 24/7 on

2080Mhz 260*8 ( stock speed ) @
1.43Vcore ( below stock ) @
aircool @
idle 36 load 45

jz a suggestion to Pc_Crazy maybe it would be good to include the idle and load temp for the current ( benching or priming ) system they are on. Jz my 2 cent.

This post has been edited by shadow_dweller: Mar 23 2005, 10:08 AM


Attached thumbnail(s)

juz a question before i post my results...i wont be doing the priming thing...is folding considered as stressing the cpu? consider it as priming?

Ur suggestion to include temp is good. But since many mobos temp monitoring system are not reliable, i dun think it is necessary. However u can submit it with ur results jus for reference but to put in the rankings together really is not necessary.

neway thanks for the suggestion.

btw, shadow, running prime will not hurt the proc, that, I can guarantee you. Unless provided you are running out of spec vcore and temp. 1.7v and 60 degrees below is a safe bet on AMD64.

here's mine.
quite low if compare to those sifus, but....it's on a SFF platform(Shuttle SN95G5)
air-cooling, stepping...forgot to write down when i reapply the AS5.

This post has been edited by sukhoi37: Mar 23 2005, 12:27 PM


Attached thumbnail(s)

I belive there is a lot more to offer if u r on neo2...
Neway great clock on SFF.....

possibly the rams or the proc's memory controller. some amd64 cant go high becoz of the limitations on the mem controller, but it's really only common in 754, not 939. rezz, have u tried using the bios instead of the corecenter?

anyway nice of PCcrazy to start this thread.

Can u post yr stepping info??
Need it urgently. Nice OC ability.

Errr.... Sempron S754 can join?

Just asking btw...

Thanks for the support guys

@ soulfly...if there are many sempron users around here, of cos...why not...

Quote evilhommura:

Can u post yr stepping info??
Need it urgently. Nice OC ability.;

Ok...next time dude...i have a lot to do right now..

This post has been edited by PCcrazy: Mar 23 2005, 08:53 PM

i already set in bios to max vcore, but when it load to windows it only gives around 1.63vcore. while to boot to 2.55 also it only able to boot, not stable, so if i boot to 2.55, i have to enter corecenter to increase vcore then only can stable. so i cannot boot in 2.6 since it need more vcore which cannot achieve that vcore in bios.

maybe i'll try bios ver1.37 or 1.36 i heard it can increase vcore to 1.9v in bios. now using bios 1.41 (standard from mo mobo, never flash it)

1.36b has a working 15% and 18.3% CPU VID...if u need high vcore, this BIOS is a must to u..However 1.41mod gives higher clock speed in my case...
Mind u, it only applies to me..Every different board is quite different in a way they behave..

the 1.9v (1.85v overvolted) can only be set within windows via corecenter. Max from the BIOS is 1.76

last time i used bios 1.2 just because i wanted 1.8x to boot windows... There is always clockgen... you can raise ur volts thre corecenter then raise some FSB..

@ neuvas...

new toy "A64 3500+ NewHammer @ 250x11"?
care to post some screenies...2750Mhz? Damn..Is that prime stable?

no time to prime yet...

did a preliminary 1 hour 2.70GHz @ 1.7v.. wanna go further after my xm and project submission...

now running at a 2.75GHz at a lower voltage, no problems... YET..

want to settle my RAM first..

wat ram u gonna buy bro??

btw does the 1.9V affects all amd64 mobo?? coz i tried to set 1.9V once and my mobo just died... good thing can bios reset, works perfectly after that

I only use the 1.9v for benches most of the time like now, running 1.65v to 1.7v only... sayang procc laaa...

highest vcore i tried was 1.876V

although i couldn't break 300*9 so i don't know what's wrong.. don't think it's the heat though since never got above 45C

Well some board jus plain sux..my Neo2 wouldnt boot with anything above 300htt..

2.7ghz

using xp90 + tornado 90mm


Attached thumbnail(s)

nice clock speed...i feel that urs got a lot more potential, show it man..
Newcastle leading the way now..



This post has been edited by PCcrazy: Mar 31 2005, 08:59 PM

mine ...

benchable....

maybe my cpu has alot more potential.. but i dun have much skills ..

2.75ghz at 1.63vcore.. manage to do sandra, everest, super PI.. but failed small fft test after 10secs
looks like i have to increase the vcore summore


Attached thumbnail(s)

What is the highest benchable clock speed irenic?
im assuming it is looking easy to bench @ 2.8 Ghz

prime stable.... [sorry, forgot where i put the prime pics ]



benchable... [see the htt ]


btw, why is my stepping in the list?
mine cbbgd 0440 ...
izzit that worse , not even listed?
n my friggin rams is holding me back

This post has been edited by e-jump: Mar 25 2005, 05:46 PM

e-jump, i know that u r not cheating on the prime stable clock speed..
But i have to be consistent with the rules..In order for ur clock speed to
be recognized u need to include at least 3 hrs prime screenshot or full screen test passed..im really sorry, but sometimes that's the way it goes..

Bout the stepping, i think not all steppings are there..
btw thanks for participating....

Anyway, time to raise some voltage e-jump, psyche up a bit dude..

Playing with my precious...

i got another 10 Mhz bump benchable...

TCCDs will let u do it 1:1!

// PCcrazy :
really crazy oc-ing jo... broke 2.8GHz there...
saw any smoke came out from your proc??
what vcore you using???

Evogenix

Nah...i saw no smoke..but a bit of fire
Im using 1.75 vcore to get that result..recently i manage to broke 2850Mhz,
print the screen, but im so clumsy that i accidentally delete it....(actually want to delete my previous record, but then, i dunno somehow i delete the recent one )..

@ Evo, hows ur new rig...care to post some pics or result...i love to see it..

oww.. you got a gemm over there...

my rig currently down due rma-ing vga card [overheat casue artifact issue] "
i hope can prime stable at 2.6GHz then can edi =D

Evogenix

i'd suggest the ranking is done based on % of oc...e.g.
pccrazy --
rated: 2000Mhz
oced:2610
% oced:610/2000 => 30.5%
So...the oced achieved: 30.5%
just my suggestion...
now...going for the oc and getting the screenies

This post has been edited by remysix: Mar 27 2005, 12:54 AM

below is my AMD64 3000+ socket 754 with air cooling ...


Attached thumbnail(s)

Ok guys, already received my SLi-DR
Hopefully the proc will arrive Weds or Thurs and I can have a nice long weekend of overclocking goodness! Wait for my results

If I do that, it's not fair to those who got high end proc...Because typically amd proc does max out around 2.5 - 2.8 regardless whatever type u own...
I've seen 3000+ do more than 2.7 and I've seen 3500+ unable to do 2.7.
Reason being, it has reached the threshold value...
The difference between 3000+ and 3200+ is that, it is guaranteed to run @ that speed with stock vcore, and one more thing, superior proc got a step of multiplier given...unless u own fx-55..



FX-55?

my 24/7 rig on XP90. prime for 6 hours, no error.

Vcore: 1.575v, Vdimm:2.70v.

I'll try to boost up more later when i am free.

edit: on s754 Abit KV8pro rev1.1
edit2: typo

This post has been edited by Snoy: Mar 27 2005, 08:58 PM


Attached thumbnail(s)

snoy may i know wat ram you are using ?

jz curious.

KVR hynix dt-d43.

Haha no la. I wish I could get one though hehe! The proc i'll be getting is one of the new 3500+ CAA2C's

good luck then~!

just want to correct, your vdd is 1.55v

it's your vdimm which is 2.7v

yup... typo error... vdimm is corrected. Thanx:)

my vdd is 1.575v but not 1.55v.

here's mine. lousy proc!!!
PCcrazy lend me ur proc...hehe.
mine CBBID 0503EPJW <-- avoid this guy
XP90 +90mm fan. VID 1.664 the one on prime95 is testing2 oni.


Attached thumbnail(s)

same specs except vdimm=3.4V and using 512mb twinmos SP (UtT)


Attached thumbnail(s)

What is ur highest benchable speed?

Thanks bro!

I'll be getting confirmed stepping which is 0505 APMW . Tomorrow everyone in Australia start working so hopefully can get it on Wednesday or Thursday. I wonder how high can it go on stock cooling though

What is the higest overclocked speed for 3200+ and 3000+??
Highest Vcore using stock cooler??

there is no such thing as highest...it all depands on your processor batch, mobo type, type of ram and etc etc...

highest?
i think 3000 goes faster than 3200..
try check at vr-zone.com

this is my benchmarkable clock. pass super pi.
2.5 at 1.7vid.

btw if it pass 3dmark01, 03 and 05 can assume benchmarkable or not.
all the time i use 2.565 clock to submit to orb for my 3d score.


Attached thumbnail(s)

That is consider benchable bro...i think passing superPI is a lot easier than passing 3dmark..or im wrong...

lol... i post again.. now prime already.. but its only 2.4G
using cheapo kvr ram. not D43 or BT-J, just cheap ram from pc fair.. keke...

btw, which prime setting should i use? i use large FFT. issit correct?

i've read at xtremesystems or ocforums (can't remember ) that passing 32M super pi means ur system quite stable already... there's a thread for posting 32M results at one of those forums

how long will it take to pass 32M super pi?

my rig at settings 280*9 can finish 24 iterations in roughly 32 min

last time i stopped at 2.75ghz.. but i found some improvement in my processor.. last time 2.6ghz needed 1.52vcore. but now i just passed primetest for 13hrs @1.48vcore...

full load temp at 56C

@ Irenic..
if u can mantain the temp below 48 degrees..u will get an increase of 50Mhz...it does apply to me though..
nevertheless, seeing 56 degrees, i doubt it..it looks like wc is the way to go dude..

i just wondering...the temp you guys mentioned is taken from which reading? BIOS? Smartguardian?or external probe?...coz my BIOS reading and Smartguardian reading totally different...by about 10C...normal load reported 35-37C...BIOS...hahhaa...always got the delta at full speed...which is set to run at that speed with 50c threshold...damn hot la...already used the as5...followed the instruction...so back to my question...which reading do u use?

My reading is from Corecenter provided by MSI...actually reading from windows..
We know that the temp is not that accurate..but my BIOS and Corecenter reading is about the same..

Maybe you should try downloding the latest smartguardian...

start to mess around with my 3200+
2.5GHz only benchmarkable

Evogenix


Attached thumbnail(s)

2.6GHz nyak nyak nyak~!!!
bootable

Evogenix


Attached thumbnail(s)

@ evo...can u include superPI 1M benchies together with ur screenie...its in the rules dude... sorry

heres the sreenie

Evogenix


Attached thumbnail(s)

wc .. any suggestion what wc shold i use?

Actually im still learning my way..so its better for u to ask sifus around..im not entitled for any opinions..scare later it will troubled u..

This post has been edited by PCcrazy: Mar 29 2005, 11:53 AM

i already talked with a few people bout wc.. and most of them suggest me to buy the items separately.. erm DIY wc

but then when i think back, my v1000b is too small to keep the radiator / pump inside it.. and if i put outside, i cant close my side panel unless i mod my casing

do u know any performance but not so expensive ready made wc?

IMO, its better to buy parts by parts so that u can get the best performing wc system for ur rig..why not spend a bit more on ur wc setup..its good investment btw..

I heard about cheap TT Big Water, but the performance really poor..u wouldnt want to invest in rm300++ but end up something similar to high end air cooling..

bout the casing stuff---very rare to see people on wc had their casing closed..

This post has been edited by PCcrazy: Mar 29 2005, 12:12 PM

hmm i guess some brand like corsair has ready made wc rite? and if we're using them, we can closed the side panel
but not sure bout the performance n price

TT bigwater? nah... dunwan la.. my friend is using it and his amd64 3200+ temp is 49 compare to my friend with similar setup but using stock amd64 hsf, his temp only 45C

Actually ive been reading tomshardware for ready made wc made by some company (dun remember)...the performance was terrible...out of maybe 10 if im not mistaken, only two or three were recommended..and those gonna cost u an arm and leg..
finding a good wc is easy., but to know whether u r paying the true value is a prety difficult affairs.

This post has been edited by PCcrazy: Mar 29 2005, 12:29 PM

hmm if like that..maybe no other choice but have to stick with air cooling

Irenic, now im still a student...so i dun have a fix income..
atm wc is a big no no... actually i can afford one.. but im not wasting my money all for my interest in pc..
If i have a fix income----i want the best wc rig that money could buy..
