Just use the key to free the motor and can manual pull push gate open close

if from outside, have to climb inside the house first

From out side just slide ur hand in from the side gap and unlock the motor. If u cover up the side then too bad hv to climb the gate. For our custom full aluminium gate normally the side gap is cover but will leave a small open to access the motor lock.

hello guys, just wanted to know if those wifi module selling at Lazada/Shopee really work for DCMoto GFM925W?
Was that like need to download 3rd party app to trigger the open/close gate signal (like premap the remote control freq)?

or you have anything else to suggest?

Third party wifi module can be connect to wire in on DC moto board for open both side and close only. For full feature ust use DC moto original Iot for full hand function. Now clearance DC moto original Iot Rm220/= courier Rm10/= within Klg valley. Clearance no warranty. To order whatsapp us at 0122019294 limited stock only.

ok i see

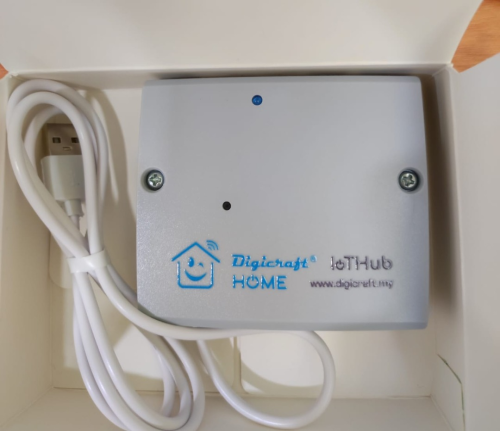

i looked through the IOT hub module from DCmoto digicraft, there are 2 versions right? please correct me

older version:


newer version:

Yes we are clearing the old model only

may i know any particular differences between these 2 models?
any added benefit for the new model?

Same function. Cannot link to other app for voice command

Hi guys.

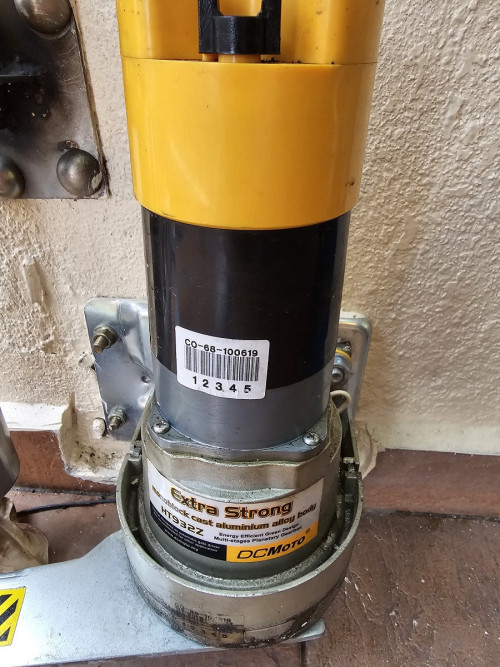

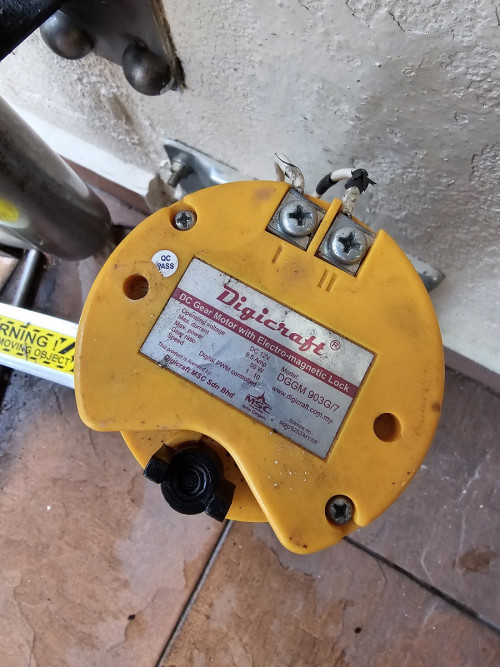

My autogate recently only opens one side. I tried to troubleshoot and found out that the voltage was there around 6-12v when i try to open or close.
I unlocked the lock and manage to move the door manually.
Does that mean that my motor is dead and I can just replace that?
I have yet to open up the motor to check.




Thanks of any response in beforehand!

Swap the working side motor to the faulty side to test is it motor problem or not

Connect direct to a 12v backup battery. If cannot at turn all then ur motor is kong already. Just get another motor to replace. If it work direct from backup battery could be something wrong with wiring or board.

This post has been edited by dblcss: Sep 20 2023, 12:06 PM

Tried to swap motor, its working.
Tried to swap the wire in between left and right on the control board. Still the same side working only.
I'm suspecting its the wiring to another side is broken.
If i can move the door while unlocked, does that mean the gearbox is fine?

If you think the wire is broken which I think quite unlikely, you can use a meter and do a continuity test. Of course you need some extra wire because the meter leads are not long enough.

I actually do get voltage on the bad side which makes me thought that the motor was out, but i tried to swap the motor and its working.

Just get a pair of wire connect direct from board to motor and if it work fine then just put the wire in casing or pvc pipe then problem all settle. Or flexible pvc would be easier just use wall clip to hold on to the wall.

Hi Alex

Thank you for setting up my new gate and solar autogate in my Bangsar Baru house. Highly recommended.

Fantastic service

Hi tq very much for supporting our company product and service.

Hi,i saw from some video where the thief can push the autogate to open.And recently saw a video of motorbike theft where the thief went inside the house and free the gate motor.Is there any improved version available or still have those kind of things now.And do you guys lock your autogate with padlocks during out from the house for a long time likesay vacation or balik kampung or leave it like that?In terms of safety and technology,what kind we have for now?

Technically you would want to be able to push the auto gate freely just in case of a power outage or mechanical issue. Not sure if piston type automatic gate can be pushed or not because I don't see any keyhole... But anyhow both with force also can open.

Yes, you should lock your gate with a padlock if you are not home for a long time. This is one additional step for thefts to overcome.

Other than that, you can use a smart device (Door sensor - but need to make it waterproof) and get a wireless camera.
