 Tp LInk TL-MR3420 Owner CLub V2.5, need a pro here

views

chuahcs79
post Apr 29 2013, 02:39 PM

Look at all my stars!!
Group Icon
Elite
6,931 posts

Joined: Apr 2011
From: Bolehland for sure ^_^


oh one more thing,

for those who tweaked their huawei modem band config and plug into their openwrt router,.. the openwrt firmware no matter which version ( huntsman, blackwidow, Altitude adjustment or barrier breaker ) all will restore the band config to auto band,...

u will need to plug in your modem into router first, then use the command section at modem tab to enter AT command to band config your modem ,...

just though some of you might want to know,...



This post has been edited by chuahcs79: Apr 29 2013, 02:49 PM
maxcheam
post Apr 29 2013, 05:50 PM

Casual
***
Junior Member
384 posts

Joined: Jan 2006
From: Penang



No issue getting connected using Huntsman 04-30 version on MR3020 and E398. Currently, monitoring it's stability before upgrading the rest of my fleet of TP-Link routers. biggrin.gif
hurricane21
post Apr 29 2013, 07:29 PM

Senior Probation
******
Senior Member
1,389 posts

Joined: Feb 2006
From: Southern Region


No idea what happened, i try to downgrade from 04-23 to 04-19 then upgrade again to 04-30, surprisingly now its working, no more disconnect hmm.gif

BTW sierra modems only can use DCHP client? i tried UMTS/GPRS/EVDO and PPP mode but end up get no connection. hmm.gif
digilife
post Apr 29 2013, 07:35 PM

The MNP guy, its me yeah.
*******
Senior Member
8,025 posts

Joined: Feb 2005
From: Planet Boleland


OnicStorm,Apr 29 2013, 11:06 AM]
This is interesting man. All i knoe is that Asus RT N-16 is capable of doing it by default FW, but MR3420 with 8MB of flash memory possible ?
*

[/quote]
Space limitation can be easily overcome with Rootfs on External Storage (extroot). The main constraint I came across now isn't with storage space, but with the limited RAM soldered onboard... planning on upgrading it to 64 MB... icon_idea.gif thumbup.gif Ahhh... my soldering skill unsure.gif

This is a little capable machine, although a bit old, but is well supported by OpenWRT and Gargoyle firmware.
Check this out: OpenWRT Built for TP-Link WR1043ND

By adding USB hubs (USB 2.0), you can do more with OpenWRT. For e.g:
1. Wireless surveiliance camera
2. USB bluetooth
3. More USB WiFi adapters, connecting to some other AP's (station mode) and acting as an AP at the same time, WDS, etc ...and... aircrack-ng brows.gif
4. USB audio - play mp3 music wirelessly! See this youtube video
5. Many other uses, as long as there's OpenWRT driver support for the hardware!

PS: Theoretically USB 2.0 can support up to 128 devices connected at once, with hubs! nod.gif




What kind of USB hub have you tested ?

I believe you would need an external enabled powered hub, I just bought an External powered hub, it was fine when i used direct plug in to pc's usb port and supply a 1A external power for the hub with the modem connected. But it wont work when i connect the hub with the modem to my MR3420 doh.gif
Those of you who want to try my way of using a powered usb hub, becareful ~~ never connect the powered usb hub to your pc usb ( on it ) before you start your pc , it will short your pc mobo/usb port ( the power from the powered usb port )

This post has been edited by digilife: Apr 29 2013, 07:39 PM
chuahcs79
post Apr 29 2013, 08:04 PM

Look at all my stars!!
Group Icon
Elite
6,931 posts

Joined: Apr 2011
From: Bolehland for sure ^_^


[quote=digilife,Apr 29 2013, 07:35 PM]
OnicStorm,Apr 29 2013, 11:06 AM]
This is interesting man. All i knoe is that Asus RT N-16 is capable of doing it by default FW, but MR3420 with 8MB of flash memory possible ?
*

[/quote]
Space limitation can be easily overcome with Rootfs on External Storage (extroot). The main constraint I came across now isn't with storage space, but with the limited RAM soldered onboard... planning on upgrading it to 64 MB... icon_idea.gif thumbup.gif Ahhh... my soldering skill unsure.gif

This is a little capable machine, although a bit old, but is well supported by OpenWRT and Gargoyle firmware.
Check this out: OpenWRT Built for TP-Link WR1043ND

By adding USB hubs (USB 2.0), you can do more with OpenWRT. For e.g:
1. Wireless surveiliance camera
2. USB bluetooth
3. More USB WiFi adapters, connecting to some other AP's (station mode) and acting as an AP at the same time, WDS, etc ...and... aircrack-ng brows.gif
4. USB audio - play mp3 music wirelessly! See this youtube video
5. Many other uses, as long as there's OpenWRT driver support for the hardware!

PS: Theoretically USB 2.0 can support up to 128 devices connected at once, with hubs! nod.gif

What kind of USB hub have you tested ?

I believe you would need an external enabled powered hub, I just bought an External powered hub, it was fine when i used direct plug in to pc's usb port and supply a 1A external power for the hub with the modem connected. But it wont work when i connect the hub with the modem to my MR3420 doh.gif
Those of you who want to try my way of using a powered usb hub, becareful ~~ never connect the powered usb hub to your pc usb ( on it ) before you start your pc , it will short your pc mobo/usb port ( the power from the powered usb port )
*

[/quote]
tried that before too. But was last time when i stay georgetown. Ha ha. Always confirm on your computer first. Then on the power on usb hub after computer fully running ma. biggrin.gif
miezaidin
post Apr 29 2013, 08:36 PM

Getting Started
**
Junior Member
119 posts

Joined: Nov 2008


any one here test one MR3220 V2..?
digilife
post Apr 29 2013, 08:42 PM

The MNP guy, its me yeah.
*******
Senior Member
8,025 posts

Joined: Feb 2005
From: Planet Boleland


On HM 2013-04-30 now.

Huawei E372

Attached Image
chuahcs79
post Apr 29 2013, 08:43 PM

Look at all my stars!!
Group Icon
Elite
6,931 posts

Joined: Apr 2011
From: Bolehland for sure ^_^

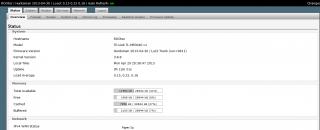

just tested the hunstman 4-30 with my MR3040V1

it can auto detect and dial even though the network status showing wrong port or detail display is haywire,..

Attached Image


Attached Image
renishi
post Apr 29 2013, 09:09 PM

Enthusiast
*****
Senior Member
893 posts

Joined: Jun 2006
My MR3040V1 can detect everything nicely but i did set up the apn

and it stills goes into reboot loop when i enable my wif... i suspect is hardware di... cannot be so many problem 1....

I am thinking of buying another 3g modem just to test this out

and since i ordered the MB prepaid plan ~ i might need a secondary modem too tongue.gif
hurricane21
post Apr 29 2013, 09:40 PM

Senior Probation
******
Senior Member
1,389 posts

Joined: Feb 2006
From: Southern Region


Anyway to identify whether the wifi device is connected on b/g or n? notworthy.gif
renishi
post Apr 29 2013, 10:18 PM

Enthusiast
*****
Senior Member
893 posts

Joined: Jun 2006
» Click to show Spoiler - click again to hide... «


This e392 too power hungry la... the tl-mr3040 cant handle? jeez.... finally can use with wifi

last time blacktubi say didnt adjust modem and i check its default is 21tx and 200+ vga offset....

maybe i need a low power consumption model to accommodate this router
maxcheam
post Apr 29 2013, 10:19 PM

Casual
***
Junior Member
384 posts

Joined: Jan 2006
From: Penang



QUOTE(hurricane21 @ Apr 29 2013, 07:29 PM)
No idea what happened, i try to downgrade from 04-23 to 04-19 then upgrade again to 04-30, surprisingly now its working, no more disconnect hmm.gif

BTW sierra modems only can use DCHP client? i tried UMTS/GPRS/EVDO and PPP mode but end up get no connection. hmm.gif
*
QUOTE(chuahcs79 @ Apr 29 2013, 08:43 PM)
just tested the hunstman 4-30 with my MR3040V1

it can auto detect and dial even though the network status showing wrong port or detail display is haywire,..

Attached Image
Attached Image
*
I see that many of you have a wrong impression about ROOter firmwares (namely Redback, BlackWidow and Huntsman) although Dairyman and Waroonga Farm have mentioned before. Note that it's a customized version of OpenWRT which optimize for 3G/4G usage. The only configuration you need to worry about for making 3G/4G connection is at the Modem tab (APN name, Username, Password, SIM PIN, Keep Connection Alive, DNS servers). You don't need to mess with the configurations in the Network tab 'cause whatever you do over there will be overwritten by a scheduled task.

And the Network Status at the Modem tab it's just informational, it doesn't affect your connection at all.

I hope we don't get confused with the original OpenWRT releases. To understand better about ROOter firmwares, please read information on this page - http://www.rfactory.org/OpenWRT/

This post has been edited by maxcheam: Apr 29 2013, 10:24 PM
rootlinux
post Apr 29 2013, 10:29 PM

Enthusiast
*****
Senior Member
898 posts

Joined: Jan 2003
From: ph/sbj/slgr
OpenWRT Attitude Adjustment (12.09 final) ~ http://bit.ly/14HBDvU
renishi
post Apr 29 2013, 10:38 PM

Enthusiast
*****
Senior Member
893 posts

Joined: Jun 2006
QUOTE(rootlinux @ Apr 29 2013, 10:29 PM)
OpenWRT Attitude Adjustment (12.09 final) ~ http://bit.ly/14HBDvU
*
how to find our router's fw ?
rootlinux
post Apr 29 2013, 11:02 PM

Enthusiast
*****
Senior Member
898 posts

Joined: Jan 2003
From: ph/sbj/slgr
QUOTE(renishi @ Apr 29 2013, 10:38 PM)
how to find our router's fw ?
*
the link is there...

This post has been edited by rootlinux: Apr 29 2013, 11:12 PM
iOnicStorm
post Apr 29 2013, 11:23 PM

New Member
*
Junior Member
18 posts

Joined: Nov 2008
From: Malaysia


QUOTE(digilife @ Apr 29 2013, 07:35 PM)
I believe you would need an external enabled powered hub, I just bought an External powered hub, it was fine when i used direct plug in to pc's usb port and supply a 1A external power for the hub with the modem connected. But it wont work when i connect the hub with the modem to my MR3420  doh.gif
Yes, if you use some power/current hungry devices such as USB 3G modem... and no, if you don't (e.g. flash drive + usb bluetooth).

Getting things done under Linux (i.e OpenWRT) isn't as straightforward as it is on Microsoft Windows. It needs more works and reading. It's not that hard if you're willing to learn. And it's quite rewarding if you do so.

I believe you're using ROOter firmware (Huntsman?). And I think this firmware may "assume" user to have only *ONE* USB port and *NOT* using an external hub, so the 3G modem can only exist on USB 1-1 location. When you plug the modem into a port on the external hub, the address change (maybe USB 2-1 or something). The scripts on the firmware failed to recognize this and making you think that the hub isn't working, but in fact it's recognized by the kernel.

How do we know that? Use PuTTY or whatever SSH/telnet software to log into your router, and check with the command:
CODE
dmesg | more

Or (Check before & after pluging in your devices)
CODE
cat /proc/bus/usb/devices

Or even better (if you've enough space):
CODE
opkg update
opkg install usbutils
lsusb

Solution? Use other firmware & do the customization on your own.

This post has been edited by iOnicStorm: Apr 30 2013, 12:51 AM
fitzhex
post Apr 30 2013, 01:21 AM

On my way
****
Senior Member
550 posts

Joined: Aug 2008
From: From:From:From:From:From:


the latest Huntsman 2013-04-30 keep rebooting my mr3420 v2.. previous 19 firmware does not behave like this. any1 know why?
LcBoy135z
post Apr 30 2013, 05:02 AM

Getting Started
**
Junior Member
224 posts

Joined: Mar 2009



QUOTE(chuahcs79 @ Apr 28 2013, 12:34 PM)
u need to make sure u didnt tweak any turbo supercharges or tweaking any TX/RX value number,.. u need to make sure your E372 is original factory default setting ,. then it will work,.

or

u can set up manually :

- then login 192.168.1.1 ( you will see LuCI Gui interface )
- click login
- go to System
- go to Administration
- key in your new password ( For web Gui )
- re key in your same password again
- click save and apply
- go to Network
- click Edit on Wan ( 3G wan )
- select UMTS/GPRS/ED-VO protocol
- click switch protocol
- select UMTS/GPRS/ED-VO on protocol again
- Modem device ( zte mf680 = /dev/ttyUSB1 , E372 = /dev/ttyUSB0 <- last is zero )
- service type : select UMTS only or UMTS/GPRS
- Key in your ISP APN , ( Unet, Maxisbb, bbnet, celcom3g, u3g, my3g and so on )
- Go to ADvance setting
- Modem init time out: 5 ( key in )
- Use gateway Metric : 0
- Tick the box of : if uncheck, No default route is configure
- Use custom DNS server : 8.8.8.8 click the icon at the end
- second roll: 8.8.4.4
- LCP echo failed Threshold : 0
- LCP echo interval : 5
- Inactivity timeout: 0
- select Wifi
- click Edit
- select your wifi prefer channel 1~11
- enter your wifi name in ESSID
- go to Wireless security
- encryption : WPA2-PSK
- key : wifi password
- click save and apply
- then click enable to on your wifi ( if u need it )
- now go to System
- Reboot
- click Performs reboot
- plug in your Usb modem after
- wait for reboot finish and enjoy
*
thank you chuah

please pin this post at first page...superb tuto..easy to beginner like me tongue.gif
digilife
post Apr 30 2013, 05:17 AM

The MNP guy, its me yeah.
*******
Senior Member
8,025 posts

Joined: Feb 2005
From: Planet Boleland


QUOTE(maxcheam @ Apr 29 2013, 10:19 PM)
I see that many of you have a wrong impression about ROOter firmwares (namely Redback, BlackWidow and Huntsman) although Dairyman and Waroonga Farm have mentioned before. Note that it's a customized version of OpenWRT which optimize for 3G/4G usage. The only configuration you need to worry about for making 3G/4G connection is at the Modem tab (APN name, Username, Password, SIM PIN, Keep Connection Alive, DNS servers). You don't need to mess with the configurations in the Network tab 'cause whatever you do over there will be overwritten by a scheduled task.

And the Network Status at the Modem tab it's just informational, it doesn't affect your connection at all.

I hope we don't get confused with the original OpenWRT releases. To understand better about ROOter firmwares, please read information on this page - http://www.rfactory.org/OpenWRT/
*
CORRECT

notworthy.gif notworthy.gif

E372, auto select by FW , din touch anything , just APN = max4g ( but no LTE in my area,, just key in for fun )

» Click to show Spoiler - click again to hide... «
maxcheam
post Apr 30 2013, 10:32 AM

Casual
***
Junior Member
384 posts

Joined: Jan 2006
From: Penang



QUOTE(fitzhex @ Apr 30 2013, 01:21 AM)
the latest Huntsman 2013-04-30 keep rebooting my mr3420 v2.. previous 19 firmware does not behave like this. any1 know why?
*
unfortunately, there is a bug in 04-30 version where the Keep Connection Alive script is pointing to a private IP address to check the WAN connection. If you've set "Enabled with Restart", it will continue to reboot every time the scheduled task run due to the private IP address is unreachable.

Here's a quick workaround until the bug has been rectified in the next release:
- Change the settings for Keep Connection Alive in Modem tab to Enabled or Disabled
- Add the this command without the double quotes in Scheduled Tasks under System tab. "*/5 * * * * /bin/ping -c 10 openwrt.org || reboot"



Latest update:
Please redownload the 04-30 version from the website, it has been replaced with a working firmware.

This post has been edited by maxcheam: Apr 30 2013, 10:46 AM
