soon we will have PCB made out of poron/ eva foam? hnngghhh

mkb tuning is indeed a hobby haha

haha

there are also pre-cut pads that are specifically designed for band-aid mod, holee mod, and for supporting stabilizer wires. almost all mods that were invented by mkb community are becoming more accessible. again, these are all optional. it's up to users to get and apply them when necessary.

on sounds, there's something that I just recalled, of the very old keyboards from Digital Electronic Corporation that I used to use on the Alpha workstations.

the keyboards themselves are pretty silent, but they do give a very soft beep on every key press. but it looks like nobody else has really done this except for DEC

Hi guys, I'm using a Outemu brown full-size keyboard right now, looking for a new board soon since I'm beginning to feel some odd sensation on my wrist and elbow.

The 60% keyboard seems like the best for ergonomic, however I'm unsure about the lack of print screen key and other nav bar key since I do use those a lot. How do you guys deal with this problem?

Also, anyone use linear switch for typing here? I love how the lubed Gateron yellow sounds after hearing it, but my switch tester will take some time to arrive. My preference might change once I tried the switch tester but right now I'm leaning towards linear switches.

Suggest you go for a 65. That will give you the nav keys. Print screen with a Fn key shouldn't be a problem. Also make sure your games dun use F keys, otherwise you'll need at least a 75.

As for linears, maybe you can look for Gazew thocky linears. I'm not sure if they're out yet though.
https://www.youtube.com/watch?v=nc1BCtw0zN0..._channel=Shoobs

I dunno. All my boards are silent.
Good luck.

Thanks! 65% seems like a nice middle ground between size and functionality.

Does anyone knows if it's possible to replace switches on the Razer Huntsman Mini to Gateron optical?

It's not possible. They don't share the same "construction method"

Hi guys, im still new at this so let me know if this is a stupid question - im using RK61 with red switches, and thinking of buy new keycaps to make the typing sounds nicer (more 'muted'? ASMR kind).

Looking at this honey & milk keycaps. Want to know if changing the keycaps would make a difference in the sound: https://shopee.com.my/product/385045247/648...56-1628405738.9

Thanks for your advice.

This post has been edited by underscore_lee: Aug 8 2021, 02:59 PM

Thank you sir
I see that the switches can be removed from the PCB so I thought it's possible

Just gotta remember this "there are no stupid questions"

A keycap change would change the sound profile for sure, in fact, any changes would change the sound as sound is a result of vibrations. Different keycap materials, different keycap thickness, different keycap profile, all would change the sound profile. Lower profile will generally sound "quieter"

You could always search YouTube for a sample sound of the keycap sound, while not 100% reflective of the sound you would get, most people who upload on YouTube would have likely have the same keyboard with different keycap profiles too, especially the less popular keyboard content YouTubers. (Since it's becoming a norm for "popular keeb content YouTubers" to only feature high end keyboard related content)

Make sense. The keycaps im looking seems to be the lower profile (in terms of height). Will check out YouTube and give it a try. Thanks man!

in my opinion, go for thicker keycap if you want more muted sound profile.

Hi guys,
Anyone know where can I send my Logitech G Pro keyboard for repair/service? Some of my keys are double registering.

I tried cleaning it myself using contact cleaner, but seems like some letters are still having the issue.

right, thicker caps will sound deeper and lower-pitched.

in general, sound profile is affected by a lot of things. here are the extensive listings: http://blacksimon.tv/science (alt: https://docs.google.com/spreadsheets/d/15Xm...0oqr8Aux24SNz0/ )

in terms of key caps, we can look at the keycaps tab.

you can try contacting builders at mymkb mechmarket's provider list, https://www.facebook.com/groups/MYMECHMARKE...79389625627322/

usually, a non-permanent fix would be to blow dry air into inside of switch using blower, and spam the keys repeatedly. this often works for mx style switches.

I miss IBM Model M. The whole area can hear me type.

Still no one is selling it locally.

my latest builds



GMMK Pro + Double Gaskets
Durock + GOAT frankenstabs + Bandaid
Ink Blacks + Lubed + filmed + 65G Sprit Supremes
Akko Cherry Neons
Full metal knob



GMMK Pro
Durock + GOAT frankenstabs + Bandaid
Boba U4T + Lubed + Filmed + 62G Long TX Springs
Akko ASA Carbon Retro
Full metal knob

Currently building Feker Glaze 98, Kiwi switches, Durock plate mounts. Sounds horrible, so trying out different acoustic mods. Testing out masking tape on PCB as there is not space in case for foams.

Just preordered my next next next build, KBD Odin. Still considering whether to get the keychron end of this month as it's too similar to the gmmk pros and keychron's build quality is quite shoddy.

If I'm looking at the same thing, it's probably because the PCB is mostly resting on the bottom acrylic sheet. There needs to be some room there for nice sound IMO.

But I think it is necessary to do it like that since it's a sandwich mount with hotswap PCB. If it was soldered, the PCB would be firmly attached to the plate and there would be no problem to add another layer or 2 between the plate and bottom sheet.

i was actually thinking of using latex glue as a layer at the bottom case but now testing with masking tape first.

The problem is actually with the case design, its too soft. bottom part is actually alright, just the middle frame is too soft and flimsy. Maybe double sided tape on each layer with a soft thin cushion on the bottom of the PCB. Was thinking foam between the top shell and pcb, but it beats the point of the glaze as LEDs will be blocked.

Worst off i'll just use some silent linears with this keyb. The kiwi's are just too loud.

dont think i can do anything else for now.

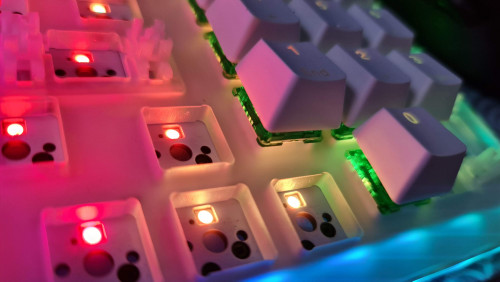

with kiwi's, everything turns slightly green tint due to its shell

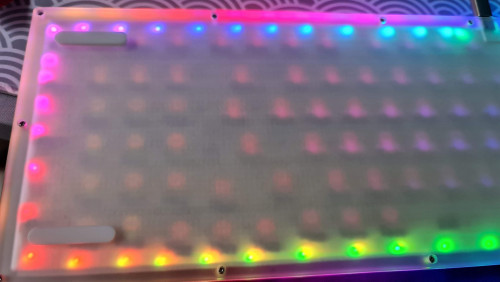

masking tape on PCB followed by thin foam packing from my GMMK Pro

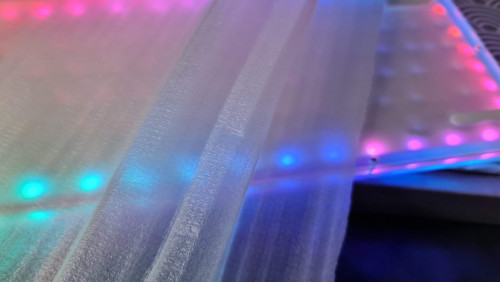

The packing foam i used. I think a piece of knitted TShirt fabric would also do very well.
