dat depends on proc batch oso la .
not all batch could go 3.6ghz below 1.5vCore
some nid like 1.55 for it >.<"
daym dat sux >.<"
Q6600 Overclock and Temperature
|
|
 Jul 9 2009, 05:50 AM
|

Senior Member
4,196 posts Joined: Oct 2007
|
|
Quote|
|
|
|
|
Jul 9 2009, 05:48 PM
|
Senior Member
5,644 posts Joined: Feb 2008 From: Heaven to HELL
|
QUOTE(monsh @ Jul 9 2009, 05:50 AM) dat depends on proc batch oso la . dat depends on how to describe "stable oc".not all batch could go 3.6ghz below 1.5vCore some nid like 1.55 for it >.<" daym dat sux >.<"  for some, as no problem during gaming, its fine. some people just throw in a 3dmark benchmark, if it passes, good to go. some people wans higher demand in their terms of "stable", may b must pass folding 24/7 or 5 - 10 loops of IBT. |
|
|
Jul 10 2009, 01:44 AM
|
|
Senior Member
4,196 posts Joined: Oct 2007
|
haha yeap forgot to mention , my state of stability is 24hours of prime95 >.<"
so far no problem both benchmarking and gaming ^^, |
|
|
Jul 14 2009, 06:04 PM
|
Senior Member
760 posts Joined: Dec 2008
|
try look at my worker thread 4, i done primetest 95 about 8 hours and xx minutes. then appears hardware failure detected. what does it means by
Fatal error rounding was 0.5 and expected less than 0.4  AFAIK primetest 95 running 7 hours consider pass right? (correct me if im wrong) noob  Attached thumbnail(s)
|
|
|
Jul 15 2009, 12:42 AM
|
|
Senior Member
1,288 posts Joined: Apr 2009
|
QUOTE(atomik @ Jul 14 2009, 07:04 PM) try look at my worker thread 4, i done primetest 95 about 8 hours and xx minutes. then appears hardware failure detected. what does it means by hohoh 3.3ghz nampak... pass for certain aspect, well if you're running common softwares or gaming, surely no problem for 24/7 unless you need to run something that is using excessive cpu usage then it's possibly not possible with current setup.Fatal error rounding was 0.5 and expected less than 0.4 AFAIK primetest 95 running 7 hours consider pass right? (correct me if im wrong) noob why suddenly after 7hours it failed? temp? |
|
|
Jul 15 2009, 10:42 AM
|
|
Senior Member
760 posts Joined: Dec 2008
|
dunno la why its fail after 7 hours. but now testing for 3.4Ghz. hopefully pass the prime. just curious with my windows xp sp3 to use intel burn test. no 64 bit n no 4GB ram.
85c load n idle 52c. on prime n OCCT. @vigilant mind to show ur post like vcore. mch, VTT, mch ref, and so on.  |
|
|
|
|
|
Jul 15 2009, 01:27 PM
|
|
Senior Member
4,196 posts Joined: Oct 2007
|
@atomik
y not u post ur setting here ^^, Added on July 15, 2009, 1:28 pmseems like u need 1.44v to run 3.3ghz >.<" bad batch of proc ? This post has been edited by monsh: Jul 15 2009, 01:28 PM |
|
|
Jul 15 2009, 05:38 PM
|
|
Senior Member
1,288 posts Joined: Apr 2009
|
QUOTE(atomik @ Jul 15 2009, 11:42 AM) dunno la why its fail after 7 hours. but now testing for 3.4Ghz. hopefully pass the prime. just curious with my windows xp sp3 to use intel burn test. no 64 bit n no 4GB ram. Vcore : 1.5v 85c load n idle 52c. on prime n OCCT. @vigilant mind to show ur post like vcore. mch, VTT, mch ref, and so on. Vdimm: 2.2v NB/SB: 1.3v FSB:1.4v Core 1 GTL Ref:0.67*VTT Core 2 GTL Ref:0.67*VTT MCH GTL Ref:0.64*VTT CPU PLL:1.6 I'm not sure about this but temp is the factor my cores fail during prime95 test. I need to let up my casing side window open, or it will rise to 80'c-85'c during prime and fail in few mins. Its quite stable at 75'c 100% cpu load. Time for WC maybe...but lazy to setup, I rather have aircond instead  This post has been edited by Vigilant: Jul 15 2009, 05:53 PM |
|
|
Jul 15 2009, 06:19 PM
|
|
Senior Member
760 posts Joined: Dec 2008
|
QUOTE(monsh @ Jul 15 2009, 01:27 PM) @atomik no no, i only need 1.36v to running on 3.30GHz. just frgt to lower the vcore when doing stability test. y not u post ur setting here ^^, Added on July 15, 2009, 1:28 pmseems like u need 1.44v to run 3.3ghz >.<" bad batch of proc ? » Click to show Spoiler - click again to hide... « Added on July 15, 2009, 6:21 pm QUOTE(Vigilant @ Jul 15 2009, 05:38 PM) Vcore : 1.5v WC? looks like ur ready to fork out more money funding the "aircond" haha Vdimm: 2.2v NB/SB: 1.3v FSB:1.4v Core 1 GTL Ref:0.67*VTT Core 2 GTL Ref:0.67*VTT MCH GTL Ref:0.64*VTT CPU PLL:1.6 I'm not sure about this but temp is the factor my cores fail during prime95 test. I need to let up my casing side window open, or it will rise to 80'c-85'c during prime and fail in few mins. Its quite stable at 75'c 100% cpu load. Time for WC maybe...but lazy to setup, I rather have aircond instead  might be a copy cat n thanks for sharing the setting.  This post has been edited by atomik: Jul 15 2009, 06:21 PM Attached thumbnail(s)
|
|
|
Jul 15 2009, 06:45 PM
|
|
Senior Member
1,288 posts Joined: Apr 2009
|
Diff mobo, x takut burn lagi ke? If you set your voltages same like mine. Better find those who use same mobo like yours, I thought your mobo better for quad.
|
|
|
Jul 15 2009, 07:26 PM
|
Senior Member
843 posts Joined: May 2008 From: S'wak Kuching
|
CPU Vcore Set 1.38v can get 1.36v. Pretty nice >.< I want leh
|
|
|
Jul 15 2009, 08:34 PM
|
|
Senior Member
760 posts Joined: Dec 2008
|
QUOTE(Vigilant @ Jul 15 2009, 06:45 PM) Diff mobo, x takut burn lagi ke? If you set your voltages same like mine. Better find those who use same mobo like yours, I thought your mobo better for quad. erm. edy read the XS forum on p45 ud3p thread. n get some ideas to start with. some suggest to reach 3.6GHz need to test 1.5v vcore 1st. then try lowering the vcore until u find the suitable voltage when experience stability. so i come out with this method n any ideas n recommendation are welcome |
|
|
Jul 15 2009, 08:39 PM
|
|
Senior Member
1,288 posts Joined: Apr 2009
|
QUOTE(atomik @ Jul 15 2009, 09:34 PM) erm. edy read the XS forum on p45 ud3p thread. n get some ideas to start with. some suggest to reach 3.6GHz need to test 1.5v vcore 1st. then try lowering the vcore until u find the suitable voltage when experience stability. so i come out with this method n any ideas n recommendation are welcome vdroop how much? Dayum! My vdroop sux! |
|
|
|
|
|
Jul 15 2009, 09:31 PM
|
|
Senior Member
760 posts Joined: Dec 2008
|
1.38v to 1.36v.

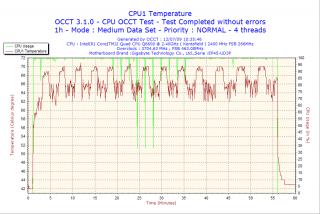

ur vdroop sux? if more than 0.05 i think sux kot. cant remember the exact figure. =( Added on July 15, 2009, 10:20 pmcan i trust IBT porgram? refer my picture past the stability at 3.4GHz with q6600 1.424v gigabyte p45 ud3p bios ver. f8 complete all 20 cycle w/o error.  but the tempt so sexy+hot . This post has been edited by atomik: Jul 15 2009, 10:22 PM Attached thumbnail(s)
|
|
|
Jul 16 2009, 07:11 PM
|
|
Senior Member
1,134 posts Joined: Apr 2008
|
think ill post my overclock with my q6600. had it for a while just upgraded to ep45-ud3p and the results are good.
doing 3.7 gig at 1.45v cant seems to get any higher though which is a shame.
This post has been edited by kevink82: Jul 16 2009, 07:31 PM |
|
|
Jul 16 2009, 10:44 PM
|
|
Senior Member
1,288 posts Joined: Apr 2009
|
QUOTE(atomik @ Jul 15 2009, 10:31 PM) 1.38v to 1.36v. Just burnt my Q6600 ur vdroop sux? if more than 0.05 i think sux kot. cant remember the exact figure. =( Added on July 15, 2009, 10:20 pmcan i trust IBT porgram? refer my picture past the stability at 3.4GHz with q6600 1.424v gigabyte p45 ud3p bios ver. f8 complete all 20 cycle w/o error. but the tempt so sexy+hot . . I'm not 100% sure. But the mobo can light up without the 2x12v connector in. I suppose its the cpu then. |
|
|
Jul 17 2009, 02:35 AM
|
|
Senior Member
4,196 posts Joined: Oct 2007
|
@kevink
mind posting d settings for ur rig ? i cant seems to go anywhere above 3.6ghz already . donno y . |
|
|
Jul 17 2009, 10:12 AM
|
|
Senior Member
1,134 posts Joined: Apr 2008
|
have to check when i get home.. i c ur load temp is way lower than mine though monsh i hit 71 max when im doing prime occt etc etc. but im on air
|
|
|
Jul 17 2009, 04:00 PM
|
|
Senior Member
4,196 posts Joined: Oct 2007
|
its normal bro .
im using custom watercooling not air cooler . sure lots of difference here . |
|
|
Jul 18 2009, 06:50 PM
|
|
Senior Member
1,134 posts Joined: Apr 2008
|

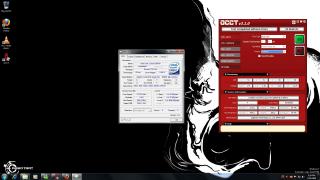

Here's my settings its pretty standard.... just succesfully lower the voltage to 1.43v
 but doesnt make a difference in temperature at all lolCPU Clock Ratio ..........................: 8X CPU Host Clock Control..................: [Enabled] CPU Host Frequency (Mhz) ............: 464 PCI Express Frequency (Mhz) .........: 100 C.I.A.2 .................................:[Disabled] CPU Clock Skew (ps)....................: 50ps MCH Clock Skew (ps)...................: 100ps System Memory Multiplier ..............: 2.00D DRAM Timing Selectable ................: [Manual] CAS Latency Time........................5 tRCD ...................................5 tRP'....................................5 tRAS....................................18 LLC .....................................: ENABLED CPU Vcore .......................: 1.431 CPU Termination (1.200)..................: 1.44 CPU PLL (1.500)..........................: 1.50 MCH Core (1.100).........................: 1.30 MCH Reference (0.760)....................: AUTO MCH/DRAM Ref (0.900).....................: AUTO ICH I/O (1.500)..........................: 1.50 ICH Core (1.100).........................: 1.20 Limit CPUID Max. to 3....................: [Disabled] No-Execute Memory Protect................: [Enabled] CPU Enhanced Halt (C1E)..................: [Disabled] CPU Thermal Monitor 2(TM2) ..............: [Disabled] CPU EIST Function........................: [Disabled] Virtualization Technology................: [Disabled]
|
