LDT x1, improve stability? does it affects lotsa performance?

yeap... i use LDT x 1, without any problem at all, the performance... i don't see any slowness/lagginess/ or whatever that badly affect the lower LDT ... beside, sometimes, i can't boot at LDT x 3 or x 4, don't why for sure...

this is my 1st time using AMD.

x2 3.0GHz 6000+
Corsair 1GB DDR2 667MHz
Abit NF-M2S
Cap Itik PSU
Stock HFS

is it possible for me to OC since i dont plan to spend for it, juz using current spec...

or i'll juz hav to forget it...

of course it possible to overclock, , anyway... overclocking using capalang PSU is not recommended, it's just too dangerous for that, and frankly speaking, i don't trust on capalang PSU at all.

wow...my x2 really likes voltage. LOL...cant get pass 2.35Ghz other day. after adding more voltage, now become 1.425v in bios. lower in windows (CPUz, everest = 1.39v).

i noticed a drop became 1.36 while Orthos stress while using 1.4v (1.38v in cpuz), that's when Orthos gave me error.

i wonder wat's the safe range of voltage? i read somewhere x2 toledo core can go up to 1.45+v within the safe range.



This post has been edited by SpikeTwo: Aug 21 2007, 11:04 AM

actually it's because there's voltage fluctuation suffered from your either PSU or inaccurate voltage reading in BIOS/Motherboard , like mine here... if i leave in BIOS as "Auto", it'll detect in (CPUz) @1.113v while in CoreTemp 4.21, it's 1.35v - suffered BSOD all the time though...
for now, i set in BIOS @1.400v, and detected in CPUz @1.360 instead of 1.135v (Auto in BIOS)

here is my x2 3800+(CCBWE 0552SPMW) oc, passed 2 hours of orthos last midnight but forgot to save screenshot, it does 2.7Ghz @ 1.45v... better thn my opty 170 which is CCBWE 0551VPMW, maxed out at 2.6ghz@ 1.56v


This post has been edited by lichyetan: Aug 21 2007, 01:38 PM


Attached thumbnail(s)

So how much can you OC so far?

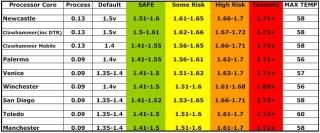

Here's a general guide on Vcore and max temp:


Attached thumbnail(s)

need help from u all...

my current mobo is Abit KN9.. Proc X2 3800+

then i buy new Proc X2 4000+ .. and 8800gts 320...


my prob, my new gc cant fit on my Abit KN9, just bcause of 3pcs of capacitor, those cap too tall, and when i plug on my 8800gts. hsf cover hit those cap.. so my 8800, didnt plug in properly.. don't want take risk. thinking might be short circuit, if just ignore this prob. eheh so i might want to buy new mobo for this gc n proc...

may i know, who is using 8800series, and what mobo u using with ur 8800series...

tq....

This post has been edited by sopen2003: Aug 21 2007, 09:20 PM

kmarc: yeah, i got the exact same table from within this thread i think. LOL...so it is reliable source eh? i cant seem to find any other convenient resources. maybe i havent really look through them.

currently still on 2.4Ghz. haha...when I'm free i will try to go higher. but i wont go to the limits. just wanted to get a lil bit more juice from what I bought. where's ur 4200? wanna sell to me?

Maybe you can ask the question in this thread : http://forum.lowyat.net/topic/456301/+2240

Don't really know whether it is reliable or not. Look quite convincing though....

My X2 4200+ already in my wife's rig.....

This post has been edited by kmarc: Aug 22 2007, 02:53 PM

ok bro, thanks..

my X2 3800+ oced to 2.45Ghz stable with HT multiplier 3 and Cpu multiplier 10 (vcore= 1.36V and Vdimm=auto). then i tried to increse Ht multiplier to 4 and its only stable at 2.4Ghz (Vcore=1.38, Vdimm=auto). seems the temp increase abit while idle form 38'c to 40'c. is this normal?? seems higher speed lower Htt multiplier give cooler temp...

don't think HTT speed will affect temeprature , normally speed and voltage will do so .

erm..maybe caused by my higher Vcore....

Hi guys, wonder why my bios setting is showing different reading in my cpuz, this happen after i reflash my bios. my bios setting is 2.6g but cpuz show 2.5g only. In bios 260X10 but cpuz show 250X10, anything wrong with my bios. In fact, i reflash again still the same, weird never happen before.

how about the speed when POST ?
disable full screen logo and use PAUSE|BREAK key to halt the screen .

In fact i have diable the full screen logo, but what has full screen logo have to do with the setting of the speed or fsb.

what i tried to mean is check the speed when POST ( after disable logo then only can see current speed , and you already did that )
press PAUSE|BREAK to halt the POST screen so you can read properly ( POST usually run very fast )

This post has been edited by ktek: Aug 30 2007, 02:21 AM

Ok i get u now, i try to check it out tonight.
