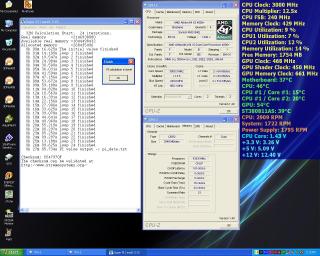

I'm running fsb 240x12.5 @3.0ghz vcore1.45v. Should i lower the multiplier to increase the fsb cause i can't get pass fsb 245. Now still prime for more than 6hours no error but too high temp 58'c+.


Attached thumbnail(s)

Errr.... I thought it is not advisable to set multipliers to half (I see yours at 12.5).

AMD4800+ brisbane 2.5ghz = 200fsb x 12.5 default http://www.xbitlabs.com/articles/cpu/displ...brisbane_5.html

---

Added on June 7, 2007, 3:37 amWhen idle my temp is around 45'C. But when i prime or orthos my temp go up to 65'C and above . Izzit normal to have the temp so high for 3.0ghz?

This post has been edited by linkinpark: Jun 7 2007, 03:37 AM

what are the software to test oc stability for am2 x2?

same with other platform, prime, orthos to be named few...

Download core temp ver 0.94. It has a parameter called TCaseMax. This temperature will give you a rough guide as to how high your proc can run at 100% stability and reliability.

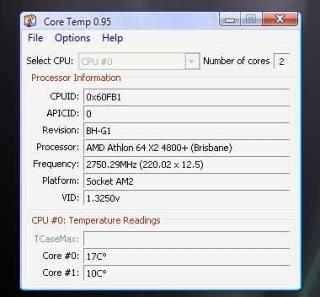

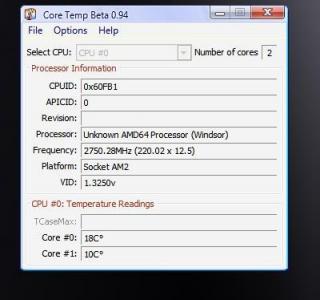

Both 0.94 and 0.95 core temp can't read the tcasemax.



Attached thumbnail(s)

Oops! You're using the brisbane core? I've have come across a few people who have problems with temp reading in the brisbane core.

Unconfirmed but they say that the brisbane core may have a defective temperature sensor. That may be the reason why your core temp is so low!

Here's one link : http://www.alcpu.com/forums/viewtopic.php?...4506f3b16bde900

Try googling for brisbane temperature problems.....

Other things that you can try:
Reflash your BIOS to the newest update
Use other temp sensor programs
Use your mobo's temperature sensor

My bios is the lastest before i flash my mobo my cpu temp more worst everthing default temp already 60'c on idle . I try so many temp sensor program like everest, speedfan, hmonitor and core temp none work.

hi can anybody answer me..i'm newbie for OC

mine is Asus a8n sli and amd64 3000+.
Q: i've oc to about 2.5 ghz (280 x 9) and on ai booster it's shows the fsb is 1120mhz ( exceded 1000 mhz for max a8n sli). Is it safe ? cause i want to push more..hehe... tq


any sugeestion to improve mine...


Attached image(s)

, small pic, can't see, anyway, remember keep your HT Link under 2GHz, try lowering your HT Link to say... x2 or x3 to keep it under 2GHz

1120 shud be ya htt value, try to keep it under 1000MHz if possible, anything more than that wun do ya system any good. ai oc is crap if u ask me, manual oc still d best way to push ya system to it's max.

the value off htt should be below 1000mhz ...try oc manually and see whether ur ram permit it...like mine...can't get past 270 coz ram problem...and using stock hsf oni

This post has been edited by serve: Jun 12 2007, 11:01 AM

haha , K8 still alive
recently upgraded to Opty 144
hard to find X2 s939 in nowadays ...

X2 s939 is available at the Bulk section dude, i just got mine last few weeks.

ya, s939 x2 still available at bulk section, regret to get my opty last time cause more expensive and sommore get the worst steppings, ccbwe 0551 vpmw... saw those x2 at bulk section can oc till 2.7ghz++, although its 512kb cache, i think its clockspeed tht matters in amd cpu, the cache should made real little diff... am i right?

so, i see that my vcore actually shoots up on load.
how do i make it to have lower margin of difference compared to idle?
cooling the pwm & mosfets only make it less fluctuate, but the difference is still there at load (1.46) & idle (1.42).
this is bcoz i can run lower vcore (1.42) at load, but from load to idle, the vcore will drop significantly making proc not receiving enough juice --> hang =__="
*my other rails are stable at rated value.

5-15% difference depending on the program especially F@H SMP Client.

That one is caused by your mobo and psu, voltage supplied fluctuates/overvoltage too much.

This post has been edited by uzairi: Jun 15 2007, 02:43 PM

noobie here..

i'm using brisbane 3600x2 am2, hynix hpy5-c4 512x2 667, x 1650pro..
currently running at 2.62(ram n gc didn'nt oc)
i just bought this proc last friday n running it 4 48 hours at 2.62..
then i wander why my cpu temp is very cool..
its reading is around 26-32(depend on surronding)
is it ok??

Just get my 3600+ Brisbane and Biostar TA690G with a pair of Mushkin DDR2-667 1GB. I want to OC, but even running at stock, my cpu-z shows

Core Speed: 1000 MHz
Multiplier: x 5.0
Bus Speed: 200 MHz
HT Link: 800 MHz ( I change it at BIOS)

How do I get 9.5 multiplier? I've been trying around, but none change it. And also I didn't find CnQ features too
