 AMDŽ Socket-AM2 Overclocking thread, discuss our setup/overclocking issues

views

Syfq
post Sep 10 2006, 02:40 AM

Sense of Definition
******
Senior Member
1,138 posts

Joined: Aug 2005
From: Blackout



QUOTE(camedemac @ Sep 9 2006, 08:34 PM)
if TForce 6100

go to Bios

OC Navigator

Memory Clock Value or Limit, change it there..!!

For CPU/6 try go to the first page tongue.gif

For example,

CPU Default speed = 2000MHz
Ram Speed = 333.33 (DDR667)

So if u divide 2000 by 333.33, u will get 6 aite?
that means ur divider for ur RAM is CPU/6

If u oc your CPU 250x10=2500MHz
that means ur ram run at 2500/6 = 416.67MHz

Another Example

CPU Default Speed = 2000MHz
RAM Speed = 400 (DDR800)

2000/400 = 5
So, Ram divider now is CPU/5

If u oc ur CPU to 250x10 = 2500MHz
That means ur Ram run at 2500/5 = 500MHz
*
QUOTE(nelza_ax @ Sep 9 2006, 08:55 PM)
thanks camedamed.. got edi!!.. blush.gif

dlm ym xmoh bgtau vmad.gif
*
huhuhuh tak sangka ...otai OC intel tak tau OC AMD LOL
jangan mare thumbup.gif thumbup.gif

This post has been edited by NavigatorŽ: Sep 10 2006, 02:40 AM
syarat
post Sep 10 2006, 08:14 AM

Casual
***
Junior Member
325 posts

Joined: Jun 2005
From: Gombak



QUOTE(camedemac @ Sep 9 2006, 07:34 PM)
if TForce 6100

go to Bios

OC Navigator

Memory Clock Value or Limit, change it there..!!

For CPU/6 try go to the first page tongue.gif

For example,

CPU Default speed = 2000MHz
Ram Speed = 333.33 (DDR667)

So if u divide 2000 by 333.33, u will get 6 aite?
that means ur divider for ur RAM is CPU/6

If u oc your CPU 250x10=2500MHz
that means ur ram run at 2500/6 = 416.67MHz

Another Example

CPU Default Speed = 2000MHz
RAM Speed = 400 (DDR800)

2000/400 = 5
So, Ram divider now is CPU/5

If u oc ur CPU to 250x10 = 2500MHz
That means ur Ram run at 2500/5 = 500MHz
*
this is what ive been looking, btw, bro soulfly, care to elaborate on the cpu multi?
how cpu multi collaborate with calculations above?
TSsoulfly
post Sep 10 2006, 12:19 PM

revving towards 10,000 rpm
Group Icon
VIP
15,903 posts

Joined: Jan 2003
From: Miri



i couldn't really explain, just refer to the table... those values are fixed.

When using different cpu multiplier, the divider, x (where DDR speed is CPU/x) is different. I think this is already set inside the memory controller.

in other means, x value of DDR2-800 is not the same when u use 10x compare to 9x multi

This post has been edited by soulfly: Sep 10 2006, 12:23 PM
Syfq
post Sep 10 2006, 12:54 PM

Sense of Definition
******
Senior Member
1,138 posts

Joined: Aug 2005
From: Blackout



QUOTE(mruzian @ Sep 9 2006, 08:50 PM)
hehe u can always ask help from our
great SOULFLY  rclxms.gif
thinks he can help u  smile.gif
*
waaaa ... let for me la.. ur proc.. cry.gif

mruzian
post Sep 10 2006, 03:03 PM

Androidify
*****
Senior Member
744 posts

Joined: Oct 2005
From: Android World


QUOTE(NavigatorŽ @ Sep 10 2006, 12:54 PM)
waaaa ... let for me la.. ur proc.. cry.gif
*
ahaks smile.gif pm u edi bro
TSsoulfly
post Sep 10 2006, 07:44 PM

revving towards 10,000 rpm
Group Icon
VIP
15,903 posts

Joined: Jan 2003
From: Miri



Come on lah guys... where are your overclocking results? Chatting like this wont get us anywhere lah.
davidletterboyz
post Sep 10 2006, 10:05 PM

Der Kaiser
*******
Senior Member
4,672 posts

Joined: Jan 2003


QUOTE(soulfly @ Sep 10 2006, 07:44 PM)
Come on lah guys... where are your overclocking results? Chatting like this wont get us anywhere lah.
*
I can read these posts only hehehe. Anyways, except u and cyclone87, who else is hitting high HTT with their Biostar 550?
Cyrus2k
post Sep 11 2006, 01:25 AM

Casual
***
Junior Member
474 posts

Joined: Jan 2003
From: Ampang @ http://himitsu.us


well.. I only got to 2.4GHz @ 240 x 10 so far... now waiting for my new RAM to continue OC... doh.gif
syarat
post Sep 11 2006, 01:59 AM

Casual
***
Junior Member
325 posts

Joined: Jun 2005
From: Gombak



wanna ask sifus here..i just started cpu oc..
i am using BIOS, of course..

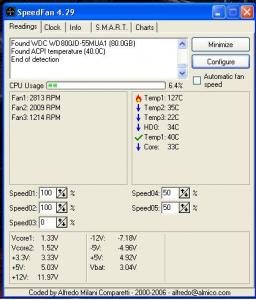

btw, speedfan detected sumthing like this.
Attached Image

is this a mere bugs or am i frying my chip??
Cyrus2k
post Sep 11 2006, 02:32 AM

Casual
***
Junior Member
474 posts

Joined: Jan 2003
From: Ampang @ http://himitsu.us


If you fried your chip, I don't think you can actually boot up your comp tongue.gif

Anyway, I got the same result as yours.. so I guess its speedfan detection problem or not compatible with our mobo..
allenultra
post Sep 11 2006, 03:05 AM

Look at all my stars!!
*******
Senior Member
9,027 posts

Joined: Jan 2003
From: Ipoh



Well, may I know how significance the HTT and NB/SB voltage in determining the am2 oc?

I not sure should I increase it or just let it like that.......
face some problem at 2.4ghz with 1.35v on 3000+
TSsoulfly
post Sep 11 2006, 10:37 AM

revving towards 10,000 rpm
Group Icon
VIP
15,903 posts

Joined: Jan 2003
From: Miri



I'm doing more than 300mhz HTT with default chipset voltage

you only need to increase the chipset voltage if you find that instability with usb devices, on-board sound or 3d application.

if it's just your cpu instability, just increase vcore.
F@NT@sy_G@RRic
post Sep 11 2006, 03:02 PM

Getting Started
**
Junior Member
115 posts

Joined: May 2006
From: Kuantan-Pahang


QUOTE(soulfly @ Sep 11 2006, 10:37 AM)
I'm doing more than 300mhz HTT with default chipset voltage

you only need to increase the chipset voltage if you find that instability with usb devices, on-board sound or 3d application.

if it's just your cpu instability, just increase vcore.
*
u mean increase the chip v from 1.5v to 1.6v ah.
F@NT@sy_G@RRic
post Sep 11 2006, 03:03 PM

Getting Started
**
Junior Member
115 posts

Joined: May 2006
From: Kuantan-Pahang


QUOTE(soulfly @ Sep 11 2006, 10:37 AM)
I'm doing more than 300mhz HTT with default chipset voltage

you only need to increase the chipset voltage if you find that instability with usb devices, on-board sound or 3d application.

if it's just your cpu instability, just increase vcore.
*
bang cepat oc u punya Team ram...
want see u new super PI result laugh.gif laugh.gif
i guna value ram boleh kalah awak brows.gifbrows.gif

This post has been edited by F@NT@sy_G@RRic: Sep 11 2006, 03:05 PM
duarnt
post Sep 11 2006, 04:26 PM

Sux!
*****
Senior Member
961 posts

Joined: Jan 2003
From: Cyberjaya


am2 3000+ orleans , asus m2n-e, haier 512MB 533 ddr2 <---wahahha im cheap, stock fan, 500w cheap psu

2.25@1.25v, 250 x 9
temp idle = 46c
full load = 51c

The only problem is cannot restart windows. Else wont boot. But if shutdown 1st then power on back ok no problem. Can go higher but need to change PSU + ram i think.
8tvt
post Sep 11 2006, 04:54 PM

Peace Lover
*******
Senior Member
8,753 posts

Joined: Jan 2003
@duarnt

is called 'warmboot'.. i also some times face it when doing 250fsb..
normal for oc setup.. but still can't really understand what's the prob.. maybe voltage supply not enough.. or maybe the mobo prob..
allenultra
post Sep 11 2006, 05:10 PM

Look at all my stars!!
*******
Senior Member
9,027 posts

Joined: Jan 2003
From: Ipoh



AMD64 Orleans 3000+ | Biostar T-force 6100-am2 | 2x 512mb Apacer DDR2-667 | Stock heatsink | Enlight 420w


Struggling in some oc though....
Not able to break 2500mhz even I raise vcore and running at ddr2-533 divider.

Crash at startup....I guess onboard GPU is culprit or chipset voltage not sufficient. Will try oc later tonight.
NB cooling is pretty ok as I hang an icute fan below the CPU heatsink blowing at NB. laugh.gif

This post has been edited by allenultra: Sep 11 2006, 05:11 PM


Attached thumbnail(s)
Attached Image
TSsoulfly
post Sep 11 2006, 05:10 PM

revving towards 10,000 rpm
Group Icon
VIP
15,903 posts

Joined: Jan 2003
From: Miri



QUOTE(F@NT@sy_G@RRic @ Sep 11 2006, 03:03 PM)
bang cepat oc u punya Team ram...
want see u new super PI result laugh.gif  laugh.gif
i guna value ram boleh kalah awak brows.gifbrows.gif
u got higher clockspeed than mine, that explains it. not because of value ram or performance ram.

by the way.... i cannot do anything right now since i don't have my graphics card. i'm online with my dad's laptop or my sis' pc. my computer is lying unused.

p/s: u lead me by 100mhz on cpu clockspeed, but yet the difference is only 0.033s brows.gif

This post has been edited by soulfly: Sep 11 2006, 05:14 PM
F@NT@sy_G@RRic
post Sep 11 2006, 05:23 PM

Getting Started
**
Junior Member
115 posts

Joined: May 2006
From: Kuantan-Pahang


QUOTE(soulfly @ Sep 11 2006, 05:10 PM)
u got higher clockspeed than mine, that explains it. not because of value ram or performance ram.

by the way.... i cannot do anything right now since i don't have my graphics card. i'm online with my dad's laptop or my sis' pc. my computer is lying unused.

p/s: u lead me by 100mhz on cpu clockspeed, but yet the difference is only 0.033s brows.gif
*
will do it when i get my Gskill BHZ and FSP 600W PSU brows.gif

u want buy my GC tak laugh.gif

This post has been edited by F@NT@sy_G@RRic: Sep 11 2006, 05:28 PM
F@NT@sy_G@RRic
post Sep 11 2006, 05:25 PM

Getting Started
**
Junior Member
115 posts

Joined: May 2006
From: Kuantan-Pahang


QUOTE(allenultra @ Sep 11 2006, 05:10 PM)
AMD64 Orleans 3000+ | Biostar T-force 6100-am2 | 2x 512mb Apacer DDR2-667 | Stock heatsink | Enlight 420w
Struggling in some oc though....
Not able to break 2500mhz even I raise vcore and running at ddr2-533 divider.

Crash at startup....I guess onboard GPU is culprit or chipset voltage not sufficient. Will try oc later tonight.
NB cooling is pretty ok as I hang an icute fan below the CPU heatsink blowing at NB.  laugh.gif
*
may be is u HT link too high
i dulu kena juga sweat.gif
but stock volt can hit 2.2ghz is very ok lo wink.gif

This post has been edited by F@NT@sy_G@RRic: Sep 11 2006, 05:27 PM
