I think this is the very first time I could finish Vantage CPU tests @ 5.0GHz without throttling.

Congrats, what a nice chip there

You don't use stock cooler.
With decent cooler, IB can clock to 4.3GHz with reasonable temp.

so the suggestion about this 3218 batch is true. They generally have low VID thus consume low voltage & good IMC up to 2800 dram easy.
I will try the Malay chip tonight hopefully it's not a dud touchwood
Still looking for a 5GHz 4C8T @ 1.3v LinX

arghh nearly forgot about 3rd party air cooler i quickly jump to delid solution LOL

as promised, got some time to play with the 2nd 3770K, MALAY batch L220B296
It consumes slightly lower vcore & cooler than the Costa 3218B123

Vantage CPU @ 1.44v


3D11 @ 1.46v


wprime @ 1.46v


Somehow this chip couldn't push the dram to 2800

update:

max multi 53X @ 1.55v


dram 2709 10-12-12-25-1T


This post has been edited by owikh84: Jul 6 2012, 12:38 AM

When are you taking out your secret weapon?

secret weapon?

So, lower temperature vs better IMC. Which one is preferred & which one will be dumped?

Edited: What's the Vccsa set for Malay chip?

This post has been edited by dblooi: Jul 6 2012, 09:33 AM

LOL good question.
Hard to decide bro i think i will keep both until i found a 5GHz HT 1.3v chip or wait for my $$ turns to subzero then only dumb these haha

But one thing for sure,

I WILL KEEP HUNTING!!

---

Added on July 6, 2012, 9:44 amVCCSA attempted for 2800 was 1.35v
VCCIO 1.35v
2709 takes 1.25v respectively

The Costa does 2800 at 1.25v VCCSA & VCCIO

This post has been edited by owikh84: Jul 6 2012, 09:44 AM

Just now I try to OC my processor to 4.4GHz....
But for 1 hour only, then I revert back to the factory settings...
Afraid to see so much heat produced by my processor..., possibly it can turn into chocolate chip cookies if I continue to OC this processor

Anyway, can I OC the integrated HD4000? WEI score seems too low for the IGP....

Your CPU speed is throttled down once you hit 105C so it's not really the frequency you set in BIOS.
Try lower clock and lower vcore to get below 105C.

I'm not sure whether your mobo allows IGP OC you might wanna go through this:
http://semiaccurate.com/2012/04/23/overclo...intels-hd-4000/

He has AiSuite installed, that should tell you if it would OC iGPU.

Finally I've decided to remove the IHS & replace the TIM with MX-4.

Before:

3770K L220B296 @ 5.0 GHz 1.44v
WC: EK HF + 2x RX360 + 12x GT + D5 + EK Top + EK X2 Ad 250 Res + EK FC7970
Ambient: 30C

After:

Ambient temp: 34C


So that's around 8-14C improvement.
That was on I will test it under Quad TEC later, followed by sandwiched Quad + single TEC.

After replacing the TIM now I could run LinX 5.0GHz HT @ 1.416v load.
Look at the GFlops.



Stopped halfway & will rerun 20+ iterations tonight when the ambient goes down.

update:

Finished 20 iterations... so 1.41v BIOS set is the lowest vcore for 5.0GHz HT


This post has been edited by owikh84: Jul 8 2012, 12:49 AM

So I've put the CPU under Quad TEC & these are some of the short tests performed.

none Quad TEC:
Quad TEC replacing the EK HF:


none Quad TEC:


Quad TEC:

Binning proc is getting more fun
Received two more 3770K from this batch L220B296
Hopefully I got a better luck this time



Results will surface later, stay tuned

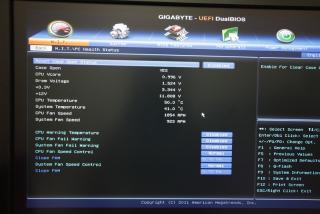

I've checked in the BIOS settings and seems that the option to click on the vcore settings are greyed out (unable to click)

yeah I've just checked the manual this mobo doesn't allow vcore adjustment so it will decide the voltage for you automatically at limiting value.
I believe all you could do is to play with the ratio aka multiplier only.
well, this B75 chipset is not meant for OC that's why you can't expect much from it and so for 3450.

Maximus V Extreme BIOS 0010

http://www.mediafire.com/?4w0qg0s9ocy5skd

Adds:
IGPU force disable under System agent config/ graphics config/ option -> internal graphics

Adds:
Pause and rest your CPU/VGA during benching with OCKEY ->
CTL + F1 = pause
CTL + F1 = unpause
If reboot during a pause phase, shutdown and use OCKey to unpause and turn on again to make sure it boots properly without being paused.

This post has been edited by stasio: Jul 12 2012, 08:01 PM

Maximus V Formula BIOS 0001

http://www.mediafire.com/?shdbwhkkn3ddr6j

Adds:
IGPU force disable under System agent config/ graphics config/ option -> internal graphics
