hello,
u can start here RAM
and u can take a look at #3 post (divider table) at the first page

Hello, good days,
i need ur double confirmation,
did u setting back as previous like u achieve 2.9ghz and change just what i told u?
i mean here is the setting that can make u achieve that speed, as my setting help u to achieve stability.
if yes, ignore this question

next,

please check this, as in ur bios, i couldn't find any timing setting, most probably it automatically change to the value in the box,
remind u, this is SS from the other ram, so other value might appear there.

this board have a limitation on vdimm,
@CelciuzX
please clarify about this. (max vdimm)

This post has been edited by xixo_12: Oct 5 2008, 10:11 AM

this link might help u understand better.. Link. as for reference my proc can get 3.0Ghz at 1.376v.

Yup, i changed it back to my settings that enables me to reach 2.9ghz before i changed the LDT frequency to 800mhz.
My setting are:

vdimm: 2.1v (max vdimm is 2.1v)
vcore: 1.4v
multi: 11
bus speed: 270

270*11=2.970mhz

I dont think my mobo allows me to change timings either, only memory clock frequency.

---

Added on October 5, 2008, 2:58 pmThanks, reading it now

---

Added on October 5, 2008, 3:18 pmHey xixo_12,

After reading the guide given by sharkeer. It said to keep the PCIe clock at 100mhz. But in my bios it states LDT/PCI, so meaning if i change the LDT it'll change my PCI speed too?

Maybe it failed to boot cause the PCI clock was too high.
BTW, is it a must for me to remove my proc to reset the proc settings? Kinda troublesome

This post has been edited by CelciuzX: Oct 5 2008, 03:18 PM

remove ur proc? i tot got cmos jumper for resetting everything?

It wont work, i take off the cmos battery still cant boot. When i take off the proc only it will boot. wtf?

bro, still cannot oso.

haiz, worst come to worst have to reformat lah

hello,
from my observation,
this mobo have lack of bios feature that give very limitation to oc the proc on the mobo.

as ur said PCIE clock at 100mhz, yes it is a must, but i didnt saw any of that setting,
what i said earlier u change the LDT bus frequency. the function is to lowering down the HTT link from default 1ghz or 5x, to 800mhz or 4x from ur HTT, it gain stability, starting now, i can help so much on this.

@ah_khoo

i tried system restore, it didnt find the windows installation inside the pc.

tried "bootrec /fixboot" or "bootrec /fixmbr" oso cannot..windows installation not found..but the C:\Windows is there

now reformat back to xp..

u can't find d xsdt table thingy?

I thought those XSDT Table thinggy under Power Management?

nope i can't find it. i did everything possible already in the power management but still it won't boot.

nvm, it's on XP now. haiz.

hi..
anybody can tell me abt hw many PW phase for gigabyte mobo..
1. 770-DS3 ,&
2. 78GM-S2H

u thk which 1 beter for OC phenom..?



This post has been edited by cdlim87: Oct 5 2008, 09:29 PM

I think 770 is better..
The phase need see teh mobo picture..

yes.. other ppl oso tell me 770 beter but is 770 dunoe wat 2.0 if 1.0 not vy good oni..
u noe that..? can explain bit..? thx
ohh i get it.. 2.0 & 1.0 i their version..

78 4phase ist?


770 1.0 4phase oso..?


770 2.0 5phase..?


am i rite..?

This post has been edited by cdlim87: Oct 5 2008, 10:19 PM

dude please use proper english, as ur language hard to understand

try this: Primary IDE Master/Slave > 32-bit Data Trasnfer. Set it to Disable.

d best quality built 770 board would be ASRock A770CrossFire imo, but too bad it's not available yet... even in sgp...

asus M3A78 Pro aint too bad either... 4+1 phase w/ 4 mosfets for each (d most i've seen so far).

yeah, M3A78 Pro is the best i've seen so far, and it's right beside me to bad, just reformat to XP

i just noticed, it's using 780G + SB700

sorry thn i will use more proper english..

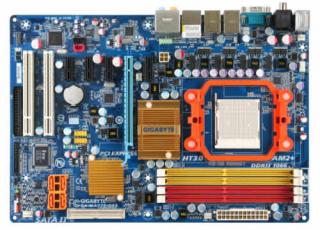

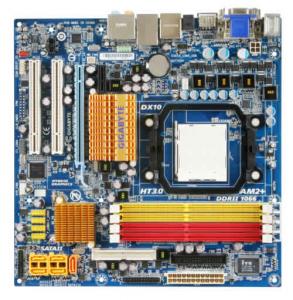

i oledi edit and update with their picture,, ist the PW phase look at the someting black colour beside the proc..?

4.3





This post has been edited by X.E.D: Oct 6 2008, 04:57 PM

Bro XED..what thing 4.3?You mean Deneb 4.3Ghz on Air?
