im considering p45 mobo, so does it mean when i change mobo i can oc higher? looking at 400 fsb hopfully if i get p45 mobo.. but wondering how much vcore it takes to power up 400fsb..

yup
hopefully ;p
if mine p35 can hit 400fsb, p45 sure even more ;p

get p35 if u lazy tweak mobo

just up vcore can OC edi without having to adjust too much

p45 can let u OC at relatively lower vcore but then u will have to adjust alot of things like gtl ref, vnb, vfsb to ensure u are stable at that clock....

ur q6600 is normally walled at around 450fsb....

just my 2 cents liao

450 X 9 = 4.05GHz d =D
@Uzary kinda depnds on what your stock core is at lor. For my super l33t 1.325 last timei tried took 1.6 to reach 400. But i'm guessing for those with better 6600's it would take a lot less.

mine... 450 x 8... bios set vcore at 1.45v..

tested wit 1.4, later try lowering the vcore even more..........

tech3910... nice q6600 that u have with low vid.. mine 1.30vid (

the VID depends on mobo bro... last time i used EP45-UD3L, mine 1.1625, change to TP 45HP, increase to 1.325...

This post has been edited by S16: Sep 13 2009, 02:51 AM

no no no

different batch has different VID.
as fir the VID drop to 1.1625, it will happen if u enable 1 of the power saving features in bios.
C1E or ESIT, either 1.

i hav seen q6600 wit VID as log as ~1.23

---

Added on September 13, 2009, 4:44 amactually not much different.
just dat my default voltage is lower.
it doesn't mean lower VID can OC higher.

anyway, for idle, i undervolt my q6600 to 1.024
still manage to OC to 270*9

This post has been edited by tech3910: Sep 13 2009, 04:44 AM

i admire ur default voltage. tempting!!!!

Hi there guys, haven't been active for quite a while but anyways i would like to ask you guys that have been able to make 4.0GHz with your q6600 whether if it's possible if you guys could post a cpuz screenie of it for reference. I seem to have hit a barrier in my overclock @@

hey guy, this thread was started by me, haha, but i am now moving to i7, very nice platform.

great thread. only that i cant see any thread for qx6800. see that q6600 need more vcore than qx6800.

Can't get pass 3.0ghz -.- using Q6600 with gigabyte P43-DS3L board, Intel Stock Fan.

Current 3.0 setting

MHZ: 333
Multiplier: x9
vCore: 1.375
vNB: 1.2
vSB: 1.65
vRam: 1.8

Temperature
Idle: 39 Loading: 75 as TjMax @ 85

Passed IBT 5 loops

anyone still active in OCing this processor?

This post has been edited by opera33: Nov 16 2009, 10:51 PM

Cant Get Pass 3.4Ghz on P5Q Pro

Processor = q6600 G0 Stepping with corsair h50 cooling

Current 3.4Ghz setting

MHZ: 378
Multiplier: x9
vCore: 1.450
vNB: [Auto]
vSB: [Auto]
vRam: 1.95

Temperature
Idle: 27 C" Max Load Temprature: 58 C"

Prime 95 Torture Test Stable 48 Hrs

Im using Kingston hyper 6400 4-4-4-12 2gb Modules X 2

I am having trouble running the rams at 400 FSB 1:1 Ratio.. im sure it can reach that speed 3.6 ghz with 400fsb 1:1, im just not sure how to set the motherboard settings.. so i leave most of the options on auto.

Any gurus know wat settings to put into ai tweaker in asus p5q pro for a 400mhz 1:1 overclock?

i believe most who overclocking q6600 is now overclocking i7

sure i bet most of them are ocing i7.. that will be my next step.. im just squeezing everything out of this processor b4 i move on.. ITS STILL KINDA SOON TO MOVE ON to a new processor.. unless money is no object to u..

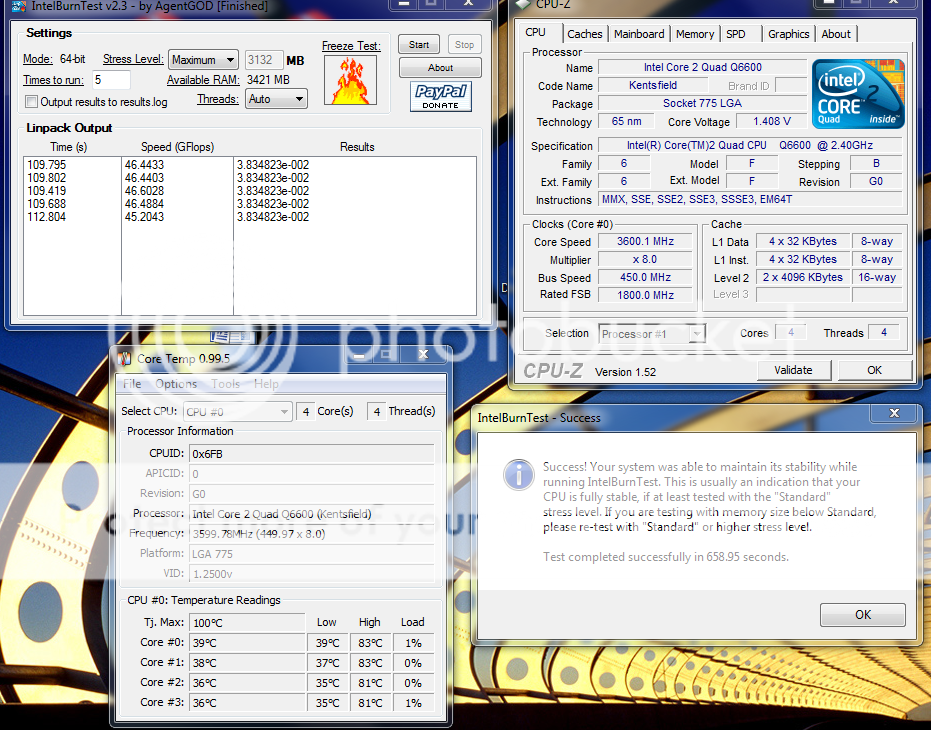

HI bro i getting my Q6600 3.6GHZ is 50% overclock with 24/7 ver stable

This where i post the picture and testing
http://forum.lowyat.net/topic/1049742/+120?hl=claw

I share with you.

This is my tweak and setting .

My system:
Q6600
Asus Maximus II Formula Motherboard
4gb Corsair Dominator 1066
ATI Radeon HD 5870 (asus)
Cooler Master realpower 550w PS
Bigwater 760i to cold down the cpu.




Processor Q6600-3.6Ghz
Ai Overclock Tuner Manual
OC From CPU Level Up Auto
Ratio CMOS Setting 9
FSB Frequency 400
CPU Clock Skew Auto
NB Clock Skew Auto
FSB Strap to North Bridge Auto
DRAM Frequency DDR2-1066Mhz
DRAM CLK Skew on Channel A1 Auto
DRAM CLK Skew on Channel A2 Auto
DRAM CLK Skew on Channel B1 Auto
DRAM CLK Skew on Channel B2 Auto
DRAM Timing Control Manual
CAS# Latency 5
DRAM RAS# to CAS# Delay 5
DRAM RAS# Precharge 5
DRAM RAS# Activate to Precharge 15
RAS# to RAS# Delay Auto
Row Refresh Recycle Time Auto
Write Recovery Time Auto
Read to Precharge Time Auto
Read to Write Delay (S/D) Auto
Write to Read Delay (S) Auto
Write to Read Delay (D) Auto
Read to Read Delay (S) Auto
Read to Read Delay (D) Auto
Write to Write Delay (S) Auto
Write to Write Delay (D) Auto
Write to PRE Delay Auto
Read to PRE Delay Auto
PRE to PRE Delay: Auto
All PRE to ACT Delay Auto
All PRE to REF Delay Auto
DRAM Static Read Control Auto
DRAM Read Training Auto
MEM. OC Charger Auto
Ai Clock Twister Auto
Ai Transaction Booster Auto
Common Performance Level Auto
Pull-in of CHA PH1 Auto
Pull-in of CHA PH2 Auto
Pull-in of CHA PH3 Auto
Pull-in of CHB PH1 Auto
Pull-in of CHB PH2 Auto
Pull-in of CHB PH3 Auto
PCIE Frequency 100
CPU Voltage 1.35
CPU PLL Voltage 1.553
FSB Termination Voltage 1.1265
DRAM Voltage 2.10
North Bridge Voltage 1.1265
South Bridge 1.5 Voltage 1.50
South Bridge 1.1 Voltage: 1.12
CPU GTL Reference (0): +10mv
CPU GTL Reference (1) +40mv
CPU GTL Reference (2) +10mv
CPU GTL Reference (3) +40mv
NB GTL Reference Auto
DDR2 ChA Reference Voltage Auto
DDR2 ChB Reference Voltage Auto
North Bridge DDR Reference Auto
Ratio CMOS Setting 9
C1E Support: Disabled
Max CPUID Value Limit Disabled
Intel Virtualization Tech Disabled
CPU TM Function Disabled
Execute Disable Bit Disabled
Load-Line Calibration Enabled
CPU Spread Spectrum Disabled
PCIE Spread Spectrum Disabled

what's your budget ?

I used that mobo before and still i managed to do 3.8ghz rock stable. So the mobo is not the problem

i still stuck with Q6600. Think to move to Q9550 before moving completely new platform with I7.

Honestly speaking, Q6600 is a great CPU for OC.
