already tried hitting 4ghz on air.. but then not stable one... only can do everest ram bandwidth bench with it...

n then, i jusst sold it yesterday

lolwut

how much voltage u need to reach 4ghz ?

hmm...around 1.6 +/- 0.05

Wah... how much is the load temp while stressing ?

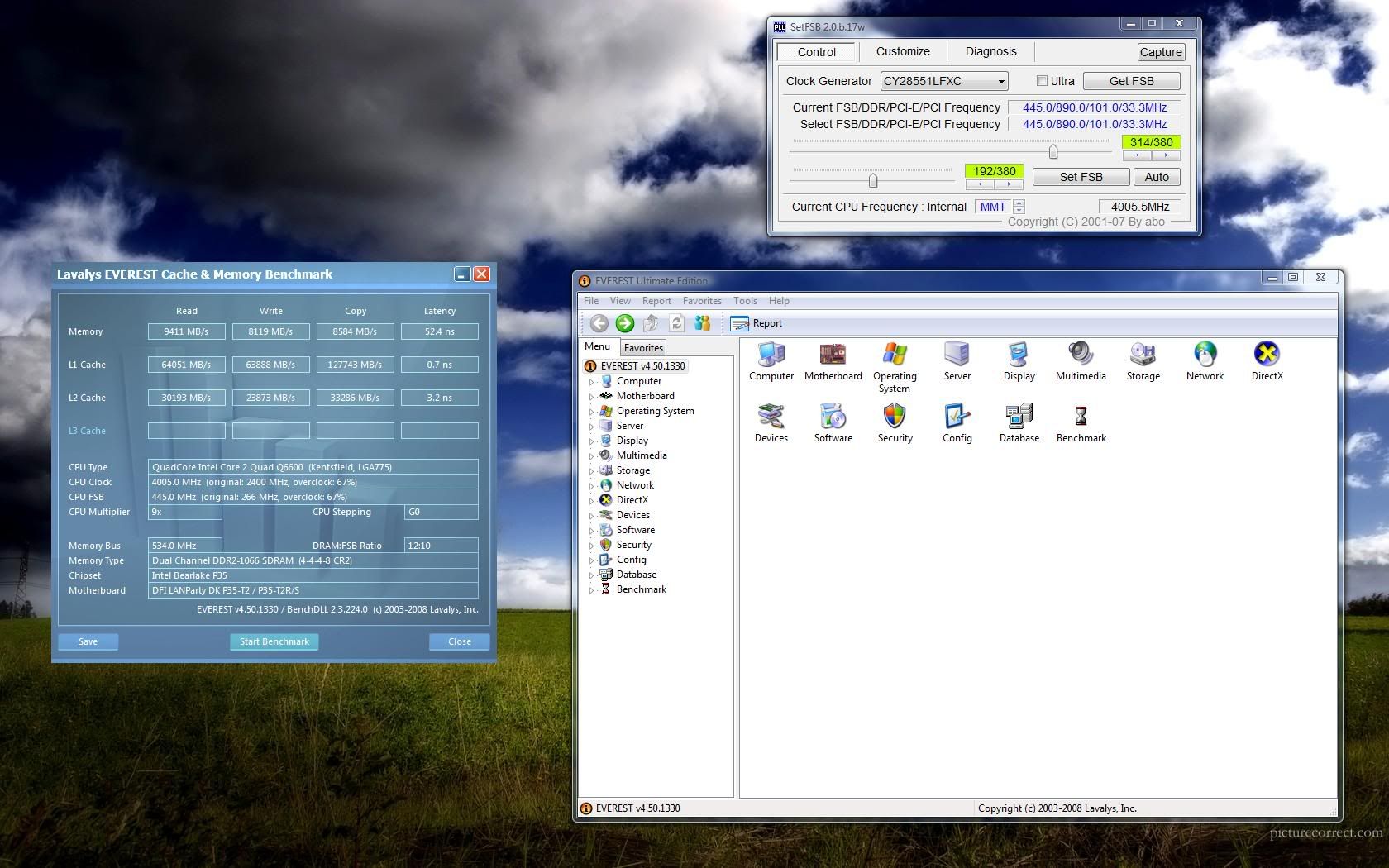

hmm...didnt care to look...kakaka...btw, here is the SS

me still noob

can some1 help me....i have q6600 G0....i cant manage to oc to 2.8ghz not even 2.7ghz..on asus p5n-d mobo...ram aeneon xtune cl4 capabilities running at 800mhz at 4-4-4-12 not overvoltage required in this setting...i set link in 2:3 ratio with ram running 800mhz n set 5-5-5-15 n ram voltage auto just adjust vcore 1.35v all other voltage auto....still unable to login vista...but take note can boot in bios n can pass the post just cannot boot in vista ultimate sp1....pls help me....thx in advance

This post has been edited by subrok007: Aug 28 2008, 11:42 AM

Set ratio 1:1, ram timing to 5-5-5-15 and give some volts to it like 2.2v. Start with 400mhz and progress slowly. Please state here what voltage that you can adjust so that we can help u further.

just now i tried again...but still cant boot in vista hang in login vista.... the bios stated the cpu core speed is 2.7ghz...i set vcore is 1.30v n vdimm is 1.90v ram timings is 5-5-5-15 n ratio 3:2 with ram running at 800mhz... fsb 1200....
what did u mean by start 400mhz? if ram setting 1:1 ratio n FSB is 1200 then ram will be 11xx something using link..

This post has been edited by subrok007: Aug 28 2008, 12:54 PM

Set la vcore higher bro.. 1.35v or 1.4v then vdimm put 2.2v, ratio put at 1:1 and start from 266mhz all the way up to 400mhz slowly.

i try 1st
bro after tried, i follow ur instruction still unable to boot...FSB 1280 vcore set 1.4v, vdimm set 2.21v ratio put 1:1 directly cannot boot not even boot in bios.... vcore set 1.4v n vdimm set 2.21v ratio put 2:3 timing 5-5-5-15 can boot in bios but cannot boot in vista....
haih.....help me.....



This post has been edited by subrok007: Aug 28 2008, 02:00 PM

Off EIST and C1E at your bios. Then try increase the vMch by 0.1v and try again.

bro off le the C1E n EIST...even the virtualization tech also disable....but still cant boot...wat is vMch ? sorry noob here

Chipset voltage.

Do some reading on how to overclock before proceeding. It seems that you still dont have the necessary info to start overclocking

i have read some kmarc guideline n follow he instruction but still unable to do that.... previously i have using ai booster to overclock...able to overclock 10% but unable to overclock 15% onward got bsod... bro still need ur assist me...thx anyway

http://forum.lowyat.net/index.php?act=ST&f...0#entry15451675

Read that, you can ask me which one you dont understand and i will explain it to you.

We can try 1 by 1 and see if we can clock it higher..

hmm noob question here,anybody used mars?i wonder why there arent any 1:1 ram ratio,plus,what is the downside if ram runs higher than cpu?

Are sure no 1:1 ram ratio ?

bro i have read the kmarc guideline dy.....but seem i still cant get oc to 2.7ghz....i now having stock HSF....but if i din do torture test shud be ok (prime95)...i will get my cpu cooler soon... for now i js wan try whether can oc to 2.7ghz,,,so that once my cpu cooler arrive i will set the setting easily w/o twist my head....
ok now here we go with 1st step.. i do manually in bios P5N-D n750i chipset..
vcore is 1.35v
vdimm is 2.21v
fsb to mem ratio...set link 2:3 ratio
fsb is 1280 = 320x9 = 2.8GHz
ram timings is 5-5-5-15
HT volt set auto
NB volt set auto
SB volt set auto
all power saving tech disable (EIST, C1E, Virtualization tech)
multiplier remain unchange is x9

This post has been edited by subrok007: Aug 28 2008, 05:32 PM

HT volt set auto
NB volt set auto
SB volt set auto

What is the actual voltage ?

yeah,im pretty sure uzairi.By the way my temp right now is 51/50/50/50 idle and 65 when load.Running at Q6600 B3 at 3ghz(1.3300v) with sidepanel close.Any solution to lower down the temp?
