The VSOL V2802RH is not able to pass VLAN tags to the LAN ports?

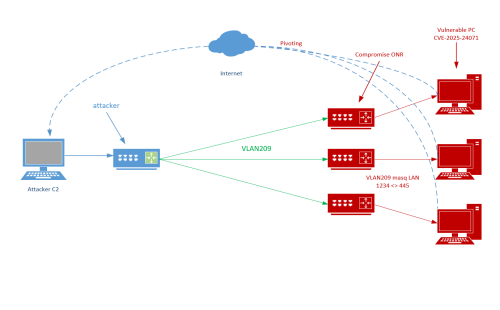

the same group send me this, there are many ONR are could driven which many has been compromise, since ARM CPU is fast, victim wont feel slow, unless something happen is slow

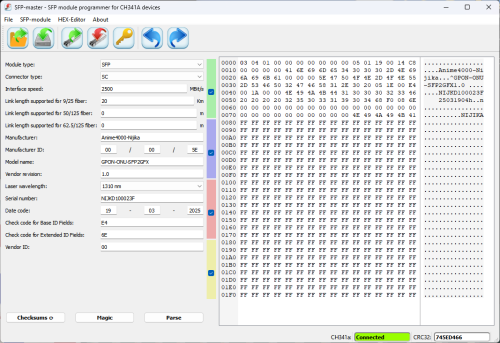

I have build my proper SFP development and streamline

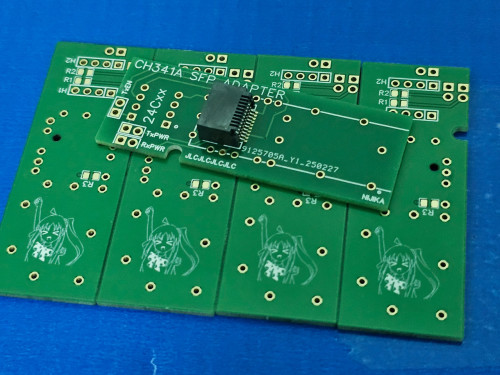

Custom PCB, need self solder the SMD component

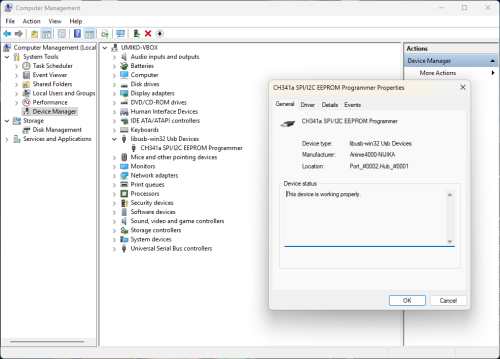

My own USB Driver for CH341a (not using WCH)


Programming Interface

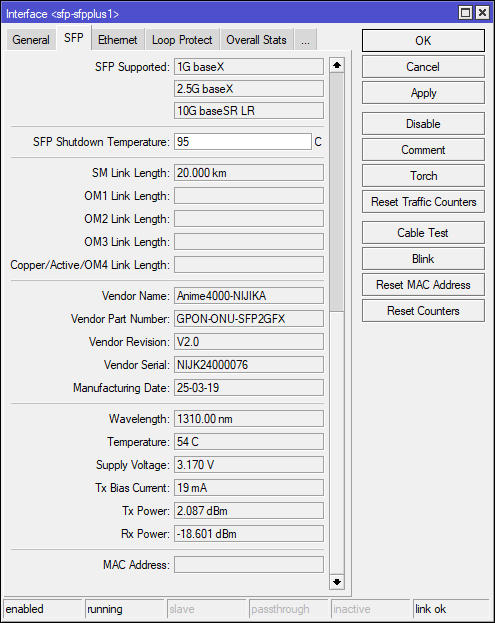

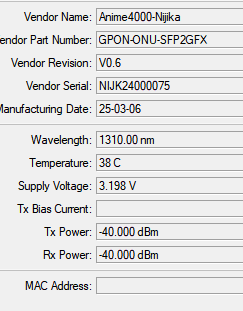

The GPON-ONU-SFP2GFX board improved and have proper DDM


This post has been edited by Anime4000: Mar 26 2025, 08:20 PM

this INTEL SOC or HUAWEI SOC or REALTALK SOC like DLINK chip ?
what chip using ???

Realtek V2 SoC with DDM
The Intel Lantiq SoC no more new, also have issue with FHTT which I still haven't figure it out,
but for Realtek V2, still active and has year March 2025 firmware which need extended test

It's nice to know you have access to the latest SDK.

Given vulnerability like this:
https://isc.sans.edu/diary/28940

It's best to always update. However, it also means that using any device with MTK chip with unknown SDK version will makes you vulnerable.

Since all TM ONR are using MTK chip, user simply won't know.

This post has been edited by kwss: Mar 26 2025, 05:21 PM

Indeed, since PON Stick strip a lot of feature like VoIP, TR069, pretty harden especially stick just do bridge like old TM ONT.

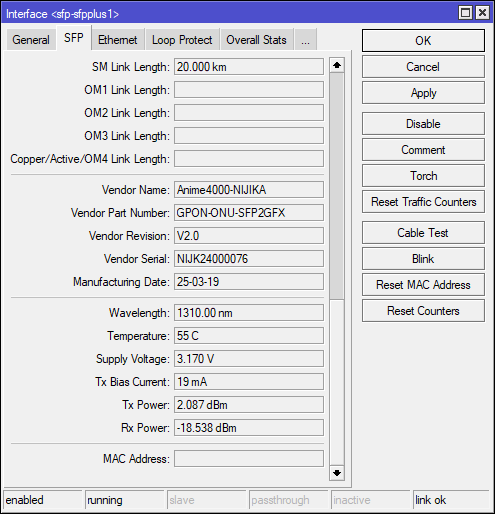

I think I just make V2.0 Stick strong? got -18dBm compared with

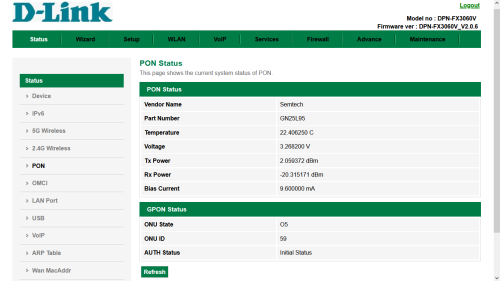

Stock D-Link -20dBm

ohh Realtek V2 how cpu and ram spec compare old Realtek like ONR DLINK AND SKYWORTH SPEC vs Realtek V2
batter you may spec compare table how look spec

wow -18dBm and ONR DLINK -20dbm

you may testing Speed -18dBm vs -20dBm how compare speed and ping and load how fast stable connection
i know -dBm still batter

Huawei OptiXstar S800E XGS-PON SFP ONU

Could this work or I need to study more ?

Please check out the "Ditch ONU, use GPON SFP on Business Grade Router" Topic

Isn't this the topic?

Oops I apologize, I somehow thought this was on the TIME Fiber thread, must have had a few tabs open

Nope

TM is only using GPON currently for consumer

XGPON, XGSPON, EPON all cannot work

blacktubi PRSXFENG tng55
I managed to get D-Link ONR Realtek SDK


the boa web server indeed very old


same like Skyworth ONR, also use boa... 🤣

Everyone using the same upstream SDK from Realtek 😂

I think Realtek is the only one making this kind of low cost GPON ONU chipset that can support 2.5G PHY so everyone using the same stuff.

Actually I wonder if D-Link is the one handling the firmware, I suspect the firmware RD is done by the local OEM and D-Link is only producing the hardware.

Indeed, many cheap ONT now use Realtek
also D-Link base board, with secureboot keys


I try with White D-Link ONR if can really pair with OpenWRT

Not sure what do you mean by pairing. There is a directory under /etc/ that contains all the hardcoded keys and password for all D-Link customers. This includes the mesh key, TR069 as well.

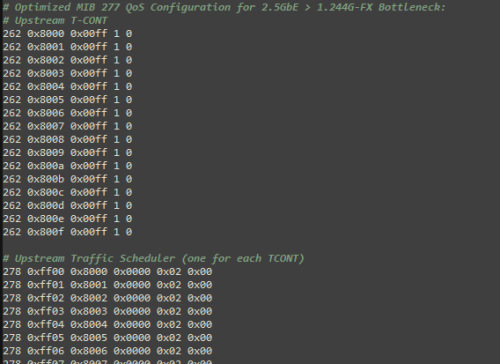

Now improving Unifi OMCI based on D-Link DPN-FX3060V B1 Hardware, to spawn a lot of Upload T-CONT just to combat bandwidth among other user




Also, if TM OLT has updated to latest Rec. ITU-T G.988 (11/2022), this could make Symmetrical GPON when my own OMCI


And tell OLT which this PON Stick is 2.5Gbps capable instead of faking GbE

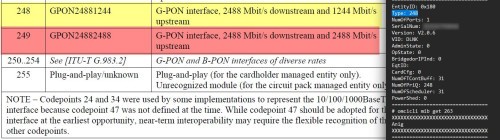

why are they actually using 248 instead of 249 interface?
and why they bother to 'fake' plug in 47 instead of using 50? is that a provisioning thing?

It's about History, the GPON standard I read is finalised in 2022.

Thing is, NBase-T (IEEE 802.3bz) was rectified in 2013
Using existing 10G Base-T and slowed down to 1/2 (5Gbps) and 1/4 (2.5Gbps),

The GPON exist in 2003

thus, many GPON ONU are stuck with old standard, thus, Type 47 is used for backwards compatibility but still can push over GbE

That is why Unifi release 2Gbps a bit hiccup because of this,
OLT see the Type 47 and use QoS based on 1GbE.

So, proper 2Gbps for GPON should be 1+1

Thus, Type 47 is just backwards compatible.

and Symmetrical GPON 2488Mbps (Type 249) is quite rare, unless OLT support it.

I doubt if TM support it, if they do, better just using 10G OLT instead
