@gaara92  @quasi @wanttotree

I have read that there are no formal specifications for the behaviour of "unmanaged L2 switches that are VLAN un-aware" when they encounter tagged VLAN frames.  Apparently some switches will just drop them whilst others will faithfully pass them along. (I guess others could just collide and keep trying ?)

OK ...curiousity got the better of me and I just tried the following setup to see if this particular L2 switch I happen to have (D-LINK DGS-1008MP) will just "pass thru'" the tagged frames or drop them.

As per diagram (sorry... rough quick draw) , I connected my wired PC to the ER-X and my iPhone to the WIFI on the TP-Link AC1200.

-----------------------------------------------------------------------------------------------------
Test 1:  with both the USG and the TP-Link AC1200 Routers ON

Ran Maxis Speed test on my wired PC (5 times) ....averaged about 91Mbps Download Speed
I have tried ringing the analog phone whilst the test I running too. Phone seem to work ok.
-------------------------------------------------------------------------------------------------------

Test 2:  with the USG powered ON and the TP-Link AC1200 OFF

Ran Maxis Speed test on my wired PC (5 times) ....averaged about 94Mbps Download Speed
--------------------------------------------------------------------------------------------------------

Test 3: with both the USG and the TP-Link AC1200 Routers ON

Ran 2 you-tube videos on my PC and 1 you-tube video on my iPhone 6.
Ran all 3 videos streaming for about 30 minutes, no gliches.
--------------------------------------------------------------------------------------------------------------

Not an exhaustive test I know, but it does look like a viable setup if one already has a spare L2 switch
and do not wish to spend more for a smart switch.  (For my setup, I am buying a TL-SG105e cos I
want my setup to be VLAN aware and cannot afford to depend on an L2 switch that happen to be well behaved).

Hey guys I want to sell some Ubiquiti Products here

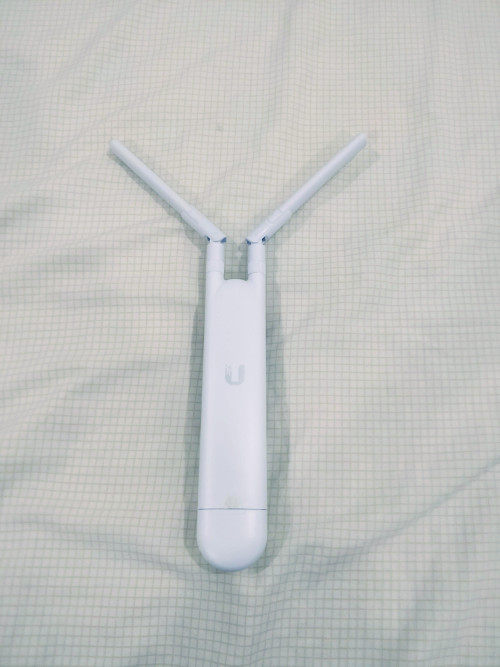

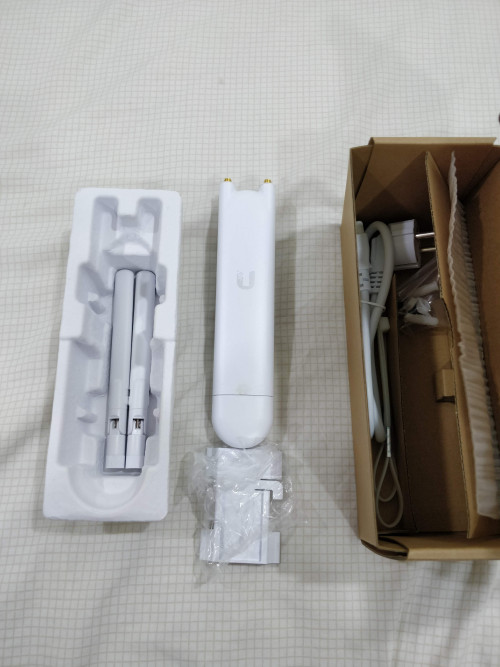

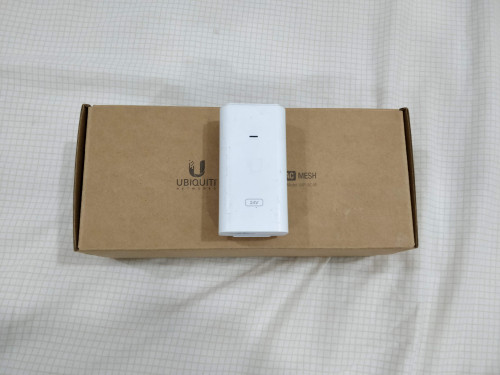

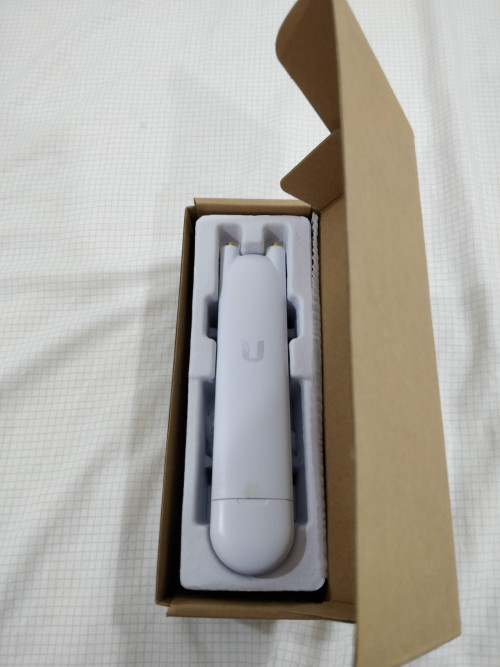

I have 2x UAP-AC-Mesh bought around july/august 2018

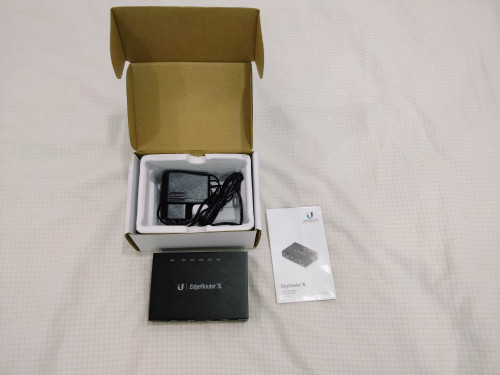

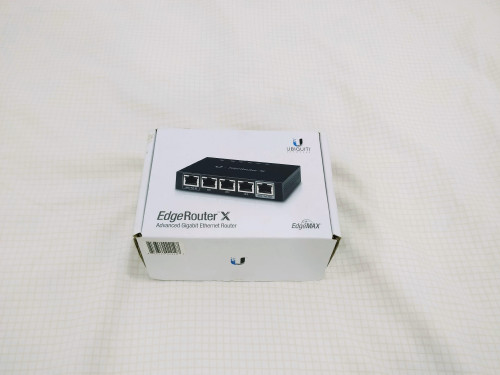

and also an Edgerouter X
bought around mid 2016 used to experiment with networking during my studies



I'm selling the UAP Mesh for RM 400 each
and the Edgerouter X for RM 200
Harga tetap

Can post
If COD Putrajaya, Cyberjaya, Bandar Baru Bangi or Kajang

I have the receipt for the UAP AC Mesh but not the Edgerouter X
Selling because I want to buy some other networking equipment to experiment too

Previously bought a UAC AP LR for my degree final year project.
Now use for home as an extra AC, however i found that the speed is slower than just my router itself (and it's a cheap router, AC1200 provided by TIME).

What gives? Is it due to the fact that it's only 2x2MIMO? I don't think that plays too much of a role since i believe my router itself is also 2X2..

Check cable if negotiating 1gbps or 100mbps

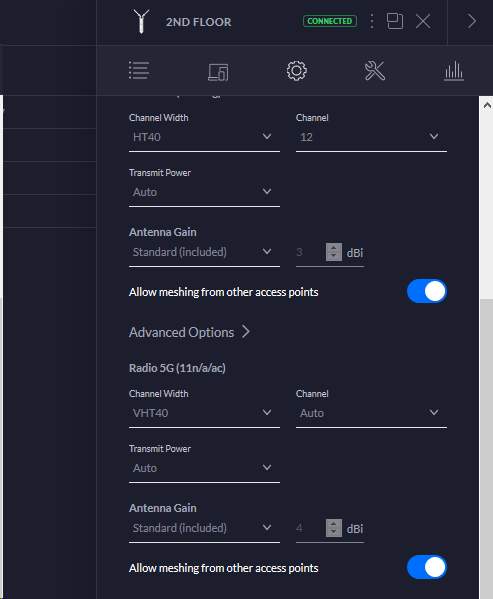

If on 5ghz try changing the channel width to 40/80mhz on your AP

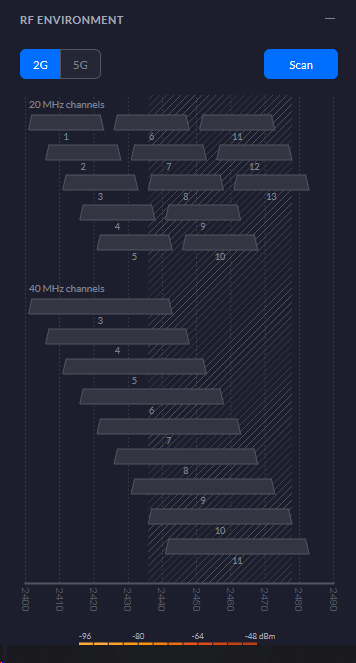

If on 2.4ghz check for a clear channel by doing an RF Scan

Select a channel between 1,6,11 with the least interference and a channel width of 20mhz.
You can also use 40mhz channel width for 2.4ghz but not recommended if interference is high

Hehehe

Testing Point To Point Nanobeam AC Gen 2

Speedtest

NEW AC IN WALL

This looks awesome. Make me wanna drill my walls. Lol

Anyone got price list for Unifi G3 Cameras? (Dome, Bullet and Flex)

Got 4 recently and i love em. Now planning for bigger deployment in the office.

Anyone got price list for Unifi G3 Cameras? (Dome, Bullet and Flex)

Got 4 recently and i love em. Now planning for bigger deployment in the office.

can check price from sublime at lelong.... so it should b around that price

Yeah worth the money :-)

If u want to hire me let me know

Hi all,
Anyone is using ubiquiti product with tmnet issued router, tplink AC1200? Im planning to use UAP-AC-LR with the router but I heard there are issues with the vlan tagging with the ac1200. Any feedback? Thanks.

Just vlan tag at tp-link dial the router

UAP-AC-LR no need to do any vlan tagging unless u want a separate vlan for ur wifi network

I suggest you dish the tplink ac1200 as main router replace it with mikrotik

Set tplink ac1200 as ap along with UAP-AC-LR

Thank you for the suggestion.
Which mikrotik would you recommend?
Checkout sublime lazada page and there are too many models, cant even tell whats the difference.
Im mainly using for home usage but need to use conference call regularly, ie: skype.
