> AMD Socket-939 Overclocking Database, Athlon64, Athlon64 FX, Opteron

views

TSsoulfly
post Jan 20 2006, 05:41 PM, updated 14y ago

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



AMD Socket-939/AM2 Overclocking Database
for Athlon64, Athlon64 FX & Opteron



Rules and requirements:
1. Only 1 post each for one system.
2. One single screenshot of SP2004/Prime95, two CPU-Z (each showing CPU and RAM properties) is required.
3. CPU stepping is a must! Check for your CPU stepping on top of your processor. Also include informations such as BIOS set CPU voltage & cooling method.
4. Include other necessary informations such as motherboard type, memory configuration.
5. Only results with at least 8 hours prime stable will be accepted. Set your SP2004/Prime95 to run custom test with 8-512K in-place FFT (for CPU with 512KB L2 cache) or 8-1024K in-place FFT (for CPU with 1MB L2 cache) or BLEND test.
6. All of the requirements above are mandatory.


Tools:
SP2004 - http://sp2004.fre3.com/download.htm
CPU-Z - http://www.cpuid.com/cpuz.php

Lowyat.NET Socket-939 Results

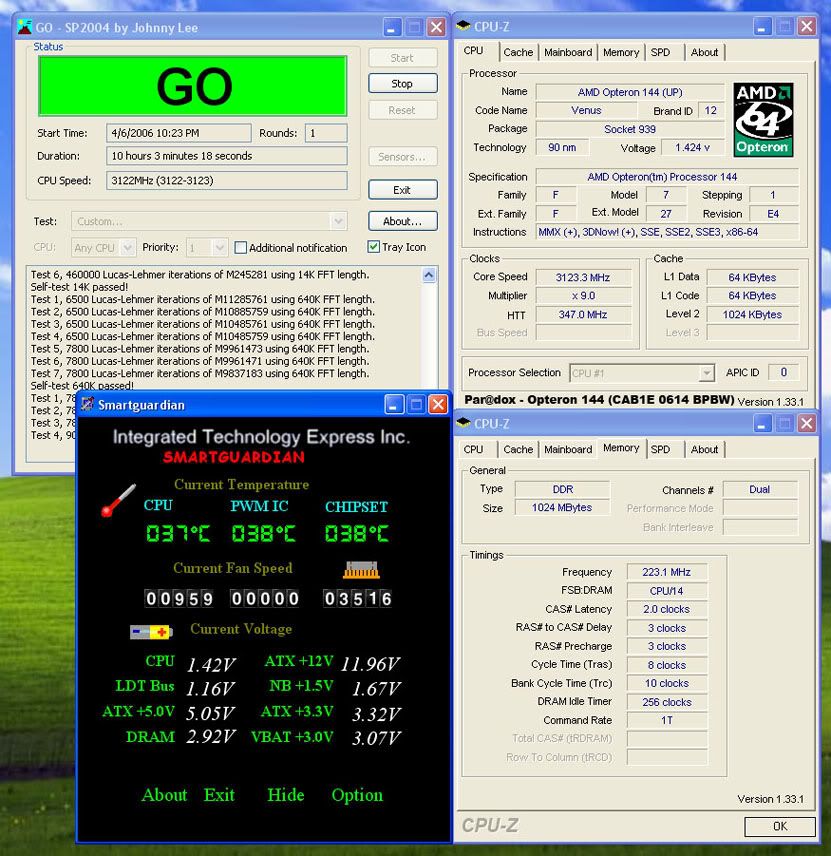

CAB1E 0614 BPBW | [email protected] | 3204MHz | 1.595V | Opteron 144 E4 | WATER
CAB1E 0614 BPBW | OverCool | 3150MHz | 1.582V | Opteron 146 E4 | AIR
CAB1E 0614 BPMW | amok | 3109MHz | 1.400V| Opteron 144 E4| WATER
CAB2E 0540 FPMW | tAmp0i | 3000MHz | 1.508V | Opteron 146 E4 | AIR
CABYE 0540 FPAW | sup3rfly | 3000MHz | 1.550V | Opteron 146 E4 | AIR
CABYE 0540 FPMW | kazama | 3000MHz | 1.595V | Opteron 146 E4 | AIR
CAB2E 0602 GPAW | kiljim | 2987MHz | ?????V | Opteron 144 E4 | AIR
CAB1E 0614 BPMW | kingmaker_20 | 2970MHz | 1.370V | Opteron 144 E4 | WATER

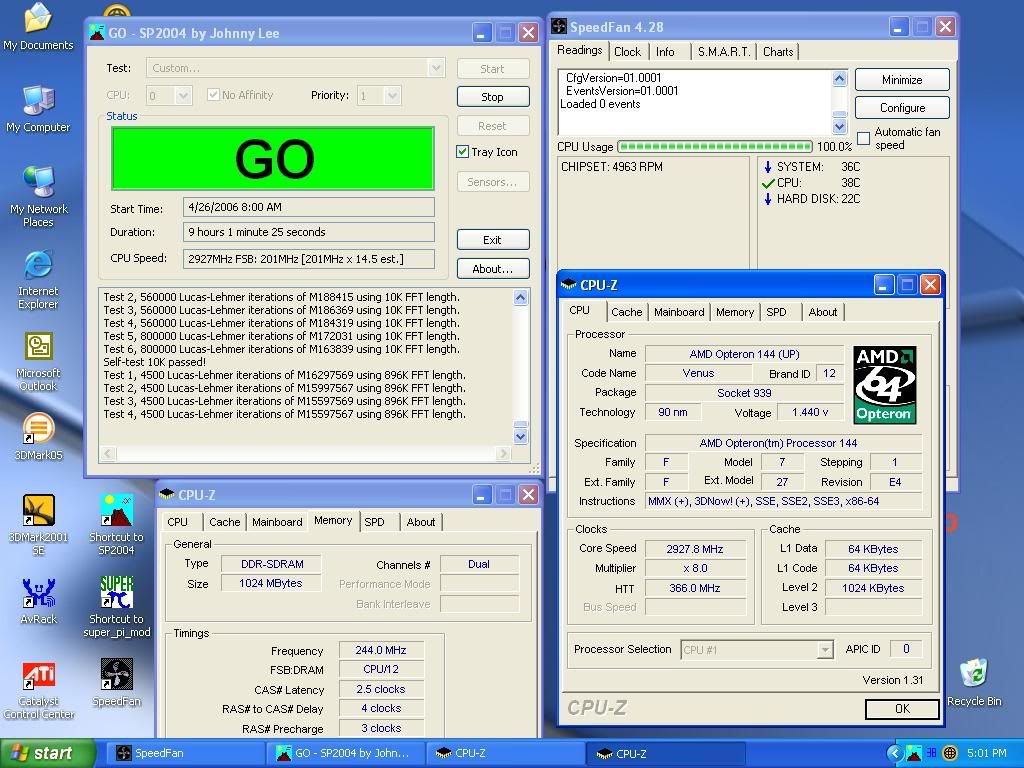

CAB2E 0602 GPAW | amok | 2927MHz | 1.450V | Opteron 144 E4 | WATER
CACJE 0607 APAW | charge-n-go | 2808MHz | 1.456V | Opteron 144 E4 | AIR(fanless)
CAB2E 0610 GPAW | pcmoddingmy | 2808MHz | 1.488V | Opteron 144 E4 | Water cooled (passive rad)
LBBLE 0516 GPBW | hafifee | 2808MHz | 1.52V | Athlon64 3000+ E3 | AIR
????? 0522 ????? | KilJim | 2808MHz | 1.640V | Athlon64 3000+ E3 | AIR
xxxxx xxxx xxxx | mazdagtr210 | 2804MHz | 1.475V | Athlon64 3000+ E3 | WATER
LBBLE 0520 FPMW | gsan | 2800MHz | 1.520V | Athlon64 3200+ E3 | AIR
xxxxx xxxx xxxx | jslut | 2800MHz | 1.570V | Athlon64 3700+ E4 | AIR
LBBLE 0522 FPBW | kingmaker_20 | 2754MHz | 1.500V | Athlon64 3000+ E3 | AIR
LBBWE 0542 GPAW | o23ff | 2754MHz | 1.700V | Athlon64 3000+ E6 | WATER
LBBLE 0520 FPMW | dinster | 2714MHz | 1.472V | Athlon64 3200+ E3 | AIR
xxxxx xxxx xxxx | Cyclone87 | 2711MHz | 1.725V | Athlon64 Engineering Sample E4 | AIR
LBBWE 0542 EPHW | cktee83 | 2706MHz | 1.600V | Athlon64 3000+ E6 | AIR
xxxxx xxxx xxxx | ethanlow | 2700MHz | 1.450V | Athlon64 3000+ E3 | AIR
LBBWE 0607 FPBW | nakata101 | 2700MHz | 1.500V | Athlon64 3200+ E6 | AIR
xxxxx 0516 DPJW | ah_chak | 2700MHz | 1.600V | Athlon64 3000+ E3 | AIR
LBBLE 0516 CPBW | ahpaul82 | 2700MHz | 1.650V | Athlon64 3000+ E3 | AIR
NBBWE 0618 FAB | lolhalol | 2700MHz | 1.680V | Athlon64 3000+ E6 | AIR
XXXXX 0530 CPDW | siawgu | 2700MHz | 1.680V | Athlon64 3000+ E6 | WATER
CDBHE 0550 TPWM | rendl | 2651MHz | 1.412V | Athlon64 3200+ E4 | AIR
LBBWE 0540 DPIW | newbieockids | 2662MHz | 1.568V | Athlon64 3000+ E6 | AIR
LBBLE 0516 GPBW | ah_khoo | 2655MHz | 1.430V | Athlon64 3000+ E3 | AIR
LBBWE 0543 BPEW | kanethesun | 2617MHz | 1.575V | Athlon64 3000+ E6 | AIR
LBBWE 0603 APBW | kev da man | 2615MHz | 1.500V | Athlon64 3000+ E6 | AIR
LBBWE 0544 FPCW | magiara | 2608MHz | 1.632V | Athlon64 3000+ E6 | AIR
LBBWE 0614 BPMW | jsnkok | 2602MHz | 1.475V | Athlon64 3000+ E6 | AIR
LBBWE 0542 FPCW | Cyclone87 | 2601MHz | 1.400V | Athlon64 3000+ E6 | AIR
LBBLE 0520 xxxx | winc87 | 2502MHz | 1.420V | Athlon64 3000+ E6 | AIR
XXXXX 0516 FPAW | Westley | 2500MHz | 1.475V | Athlon64 3200+ E3 | AIR

This post has been edited by soulfly: Jan 7 2008, 12:01 AM
winc87
post Jan 21 2006, 11:37 AM

w|Nc
******
Senior Member
1,621 posts

Joined: Jan 2003
From: Seremban



user posted image
TSsoulfly
post Jan 21 2006, 06:25 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



bro.... stepping & cooling?
winc87
post Jan 21 2006, 07:10 PM

w|Nc
******
Senior Member
1,621 posts

Joined: Jan 2003
From: Seremban



Oppsss....forgot the stepping.....i will check it in these days....i use air cooling xp 120 with a 12cm fan on it. smile.gif
siawgu
post Jan 21 2006, 08:16 PM

Enthusiast
*****
Senior Member
993 posts

Joined: Jan 2003
From: Kuching, Sarawak



========================================
Short description:
cpu: 300x9 @ 2700Mhz, 1.68
ram: DDR450, CL2.5-4-3-8-1T @ 2.9V
========================================
AMD Athlon 64 3000+ 0530CPDW Rev. E6
DFI LANParty UT Ultra-D Mod'ed to SLI (6/23 BIOS)
2x256MB Kingston Value RAM DDR PC-3200 (BT-D43)
Leadtek Winfast 6600GT 128MB DDR3
40GB Western Digital ATA HDD + 20GB Maxtor ATA HDD
TDK CDRW & Lite-On DVD Writer
Cooler Master 450W PSU
Thermaltake BigWater


user posted image
SP2004 primed for 24 Hours ++
winc87
post Jan 22 2006, 02:58 AM

w|Nc
******
Senior Member
1,621 posts

Joined: Jan 2003
From: Seremban



My cpu's stepping is LBBLE 0520. The alphabets behind the week i forgot. smile.gif
Cyclone87
post Jan 22 2006, 08:24 AM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




Short description:
cpu: 200x13.5 @ 2700Mhz, 1.725v
ram: [email protected] 6-3-3-2.5 ,2.6v

My CpuZ

========================================
AMD Athlon 64 ES ( Venice E4 core) Sry..no Stepping
DFI NF4 Infinity
1xSamsung TCCC + 1x Mircon -5B G (512x2)
Gecube X300/550 128bit 128mb
80GB Maxtor 7200Rpm 8mb Buffer
Xp90 + Delta 5v 92mm Fan
And ICute 450watt 24pin laugh.gif

user posted image


This post has been edited by Cyclone87: Jan 22 2006, 02:23 PM
PowerHouse
post Jan 22 2006, 11:57 PM

Getting Started
**
Junior Member
237 posts

Joined: Nov 2005
From: Kuching...


[quote=Cyclone87,Jan 22 2006, 08:24 AM]
Short description:
cpu: 200x13.5 @ 2700Mhz, 1.725v
ram: [email protected] 6-3-3-2.5 ,2.6v

My CpuZ

========================================
AMD Athlon 64 ES ( Venice E4 core) Sry..no Stepping
DFI NF4 Infinity
1xSamsung TCCC + 1x Mircon -5B G (512x2)
Gecube X300/550 128bit 128mb
80GB Maxtor 7200Rpm 8mb Buffer
Xp90 + Delta 5v 92mm Fan
And ICute 450watt 24pin laugh.gif

by the way, may i ask, what is ur cpu cpec? is it 3200 or 3000.tq
TSsoulfly
post Jan 23 2006, 02:25 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



Cyclone87... no stepping meh?

Anyway.... try use CPU-Z 1.31
apengfx-
post Jan 23 2006, 04:28 PM

I'm a Master Trader.
******
Senior Member
1,553 posts

Joined: Jan 2003
From: Sniper Island is in your heart :)



mau tanya...
ES...new kah?
apa yg spesial?
Cyclone87
post Jan 23 2006, 07:28 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(soulfly @ Jan 23 2006, 02:25 PM)
Cyclone87... no stepping meh?

Anyway.... try use CPU-Z 1.31
*
ES...have no stepping on the processor itself. No stepping or even a simple word like assemble in malaysia. It a plain chip.

And...CpuZ 1.31..dont give me anything special on core and revision. Even CPUid..dont even have the assemble date. Only got clockspeed and multiplier.

QUOTE
by the way, may i ask, what is ur cpu cpec? is it 3200 or 3000.tq


It 3200+. San Diego with Half L2 cache or the new code is Venice E4.


TSsoulfly
post Jan 23 2006, 08:53 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



oh ya... suddenly remembered that ES cpu don't have anything on the heatspreader
sup3rfly
post Jan 23 2006, 10:29 PM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


Here is mine...i have posted this in the Stable O/C Database...i dunno does this consider as repost...if it is kindly remove it plz.... the stepping of the proc is CABYE 0540 FPAW

user posted image

CPU : AMD Opteron 146 (3.0GHz @ 10x300MHz, 1.45 x 110% = 1.550V)
Core : San Diego
Socket : S939
RAM : 2 x 512MB Patriot PDP Systems PC4200 (DDR500, 2.5-3-3-5, 2.90V)
M/B : DFI nF4 LanParty Ultra-D (300HTT, 3xLDT, 1.50V)
PSU : Antec TPII-480w
Cooling : Thermalright SI-120C + NMB 120mm High Speed Fan (Modded by AllnGap)

This post has been edited by sup3rfly: Jan 23 2006, 10:49 PM
TSsoulfly
post Jan 24 2006, 10:53 AM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



no problem, this thread is different one biggrin.gif

very good result anyway thumbup.gif
sup3rfly
post Jan 24 2006, 11:49 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


QUOTE(soulfly @ Jan 24 2006, 10:53 AM)
no problem, this thread is different one biggrin.gif

very good result anyway thumbup.gif
*
thx tongue.gif

still learning >.<"
apengfx-
post Jan 25 2006, 11:09 PM

I'm a Master Trader.
******
Senior Member
1,553 posts

Joined: Jan 2003
From: Sniper Island is in your heart :)



QUOTE(sup3rfly @ Jan 23 2006, 10:29 PM)
Here is mine...i have posted this in the Stable O/C Database...i dunno does this consider as repost...if it is kindly remove it plz.... the stepping of the proc is CABYE 0540 FPAW

user posted image

CPU : AMD Opteron 146 (3.0GHz @ 10x300MHz, 1.45 x 110% = 1.550V)
Core : San Diego
Socket : S939
RAM : 2 x 512MB Patriot PDP Systems PC4200 (DDR500, 2.5-3-3-5, 2.90V)
M/B : DFI nF4 LanParty Ultra-D (300HTT, 3xLDT, 1.50V)
PSU : Antec TPII-480w
Cooling : Thermalright SI-120C + NMB 120mm High Speed Fan (Modded by AllnGap)
*
wow..terbaik la..boleh tolak lagi nie thumbup.gif
sup3rfly
post Jan 26 2006, 12:07 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


tongue.gif thx thx....i dun think it still can push futher... i get errors in 3.1 ghz =\
let me try with my fortron when its arrive ^^
gsan
post Jan 27 2006, 12:08 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

come on guy, let's bring lowyat database up.

AMD Athlon 64 3200+ LBBLE 0520 FPMW (same as dinster's one smile.gif )
DFI LANParty UT Ultra-D (704-2BTA BIOS)
Gskill 2x512MB GH Winbond UnTesTed
64MB Leadtek Winfast 6200TC 64bit
Acbel iPower 450W PSU
Thermalright xp90c with 92mm @ 2.2k rpm

user posted image

this proc can do 2.8GHz stable with 1.536v before but somehow now become unstable and only stable @ 1.568v. anyone know what's the problem?

This post has been edited by gsan: Jan 27 2006, 08:15 AM
KilJim
post Jan 27 2006, 12:49 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



will post a proper one later on
bleh, Optys cheating wan tongue.gif
sup3rfly
post Jan 27 2006, 06:39 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


QUOTE(KilJim @ Jan 27 2006, 12:49 AM)
will post a proper one later on
bleh, Optys cheating wan  tongue.gif
*
where got cheat wo...
TSsoulfly
post Jan 27 2006, 02:27 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



haha....

this database purpose is not to show who's the best, it's more to share the results. that's why we would need the steppings, for reference purpose. we can refer to the frequency of the stepping that can regularly do good speeds.
Springdale
post Jan 27 2006, 04:19 PM

Getting Started
**
Junior Member
89 posts

Joined: Aug 2005


QUOTE(soulfly @ Jan 27 2006, 02:27 PM)
haha....

this database purpose is not to show who's the best, it's more to share the results. that's why we would need the steppings, for reference purpose. we can refer to the frequency of the stepping that can regularly do good speeds.
*
precisely, spot-on, <insert other synonyms here> thumbup.gif

while we are constantly looking at the databases of other forums such as xtreme.org etc, hopefully we can achieve the same with reference to our own local scene. smile.gif

with that, then more powah to us when we decide to go shoppin for the next CPU etc... thumbup.gif
newbieockids
post Jan 27 2006, 07:40 PM

Regular
******
Senior Member
1,402 posts

Joined: Jun 2005



Here is mine:
user posted image

============================================
Short description:
AMD Athlon 64 3000+ E6(LBBWE 0540 DPIW) + Stock Heatsink
1800 @ 2662Mhz @ 1.568Vcore
============================================
DFI NF4 Infinity
1x 512MB Samsung TCCD
MSI NX6600 TD256E 128bit 256mb
1x 80GB Maxtor 7200Rpm 8mb Buffer
1x Imation CDRW
2x 120cm fan @7V(NMB+JMC Datech) ~ Intake
2x 80cm fan @12V (Delta FFB0812EHE) ~ Exhaust
Powered by:
Powerlogic Magnum 300watt 24pin "PurePower" <-- flex.gif laugh.gif
KilJim
post Jan 28 2006, 01:27 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(Springdale @ Jan 27 2006, 04:19 PM)
precisely, spot-on, <insert other synonyms here>  thumbup.gif

while we are constantly looking at the databases of other forums such as xtreme.org etc, hopefully we can achieve the same with reference to our own local scene.  smile.gif

with that, then more powah to us when we decide to go shoppin for the next CPU etc... thumbup.gif
*
though you'd never find any of the good clocking steppings at shops anymore
so it doesnt really help u there
unless you're tryin to get a proc of some fella that doesnt OC tongue.gif
gsan
post Jan 28 2006, 09:00 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

Updated: 2.8G @ 1.536v

AMD Athlon 64 3200+ LBBLE 0520 FPMW
Thermalright xp90c with 92mm @ 2.2k rpm

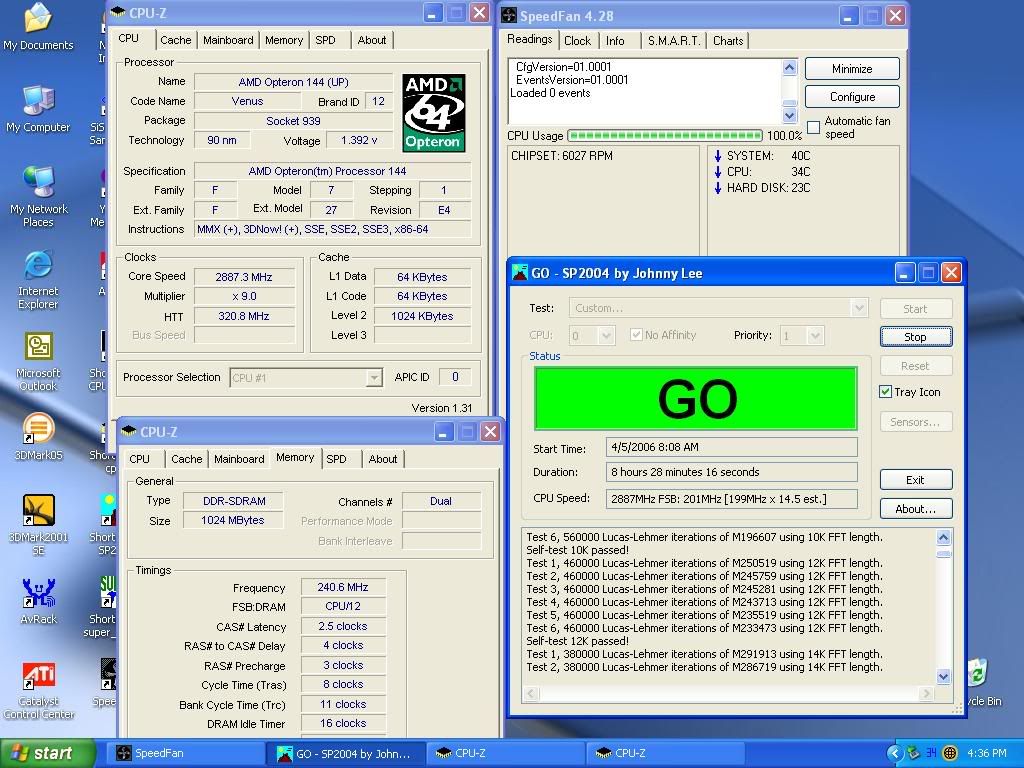

user posted image
sup3rfly
post Jan 28 2006, 09:11 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


i tried 305 x 10 and 310 x 10 on my comp...no luck sad.gif
newbieockids
post Jan 28 2006, 11:54 PM

Regular
******
Senior Member
1,402 posts

Joined: Jun 2005



QUOTE(sup3rfly @ Jan 28 2006, 09:11 AM)
i tried 305 x 10 and 310 x 10 on my comp...no luck sad.gif
even u hentam the VCore > 1.6?..
sup3rfly
post Jan 29 2006, 07:18 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


QUOTE(newbieockids @ Jan 28 2006, 11:54 PM)
even u hentam the VCore > 1.6?..
*
nono didnt try vcore...dun wan to increase it anymore...its high enough....
gsan
post Jan 29 2006, 07:25 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

CNY Updated: 2.8G @ 1.52v thumbup.gif

AMD Athlon 64 3200+ LBBLE 0520 FPMW
Thermalright xp90c with 92mm @ 2.2k rpm

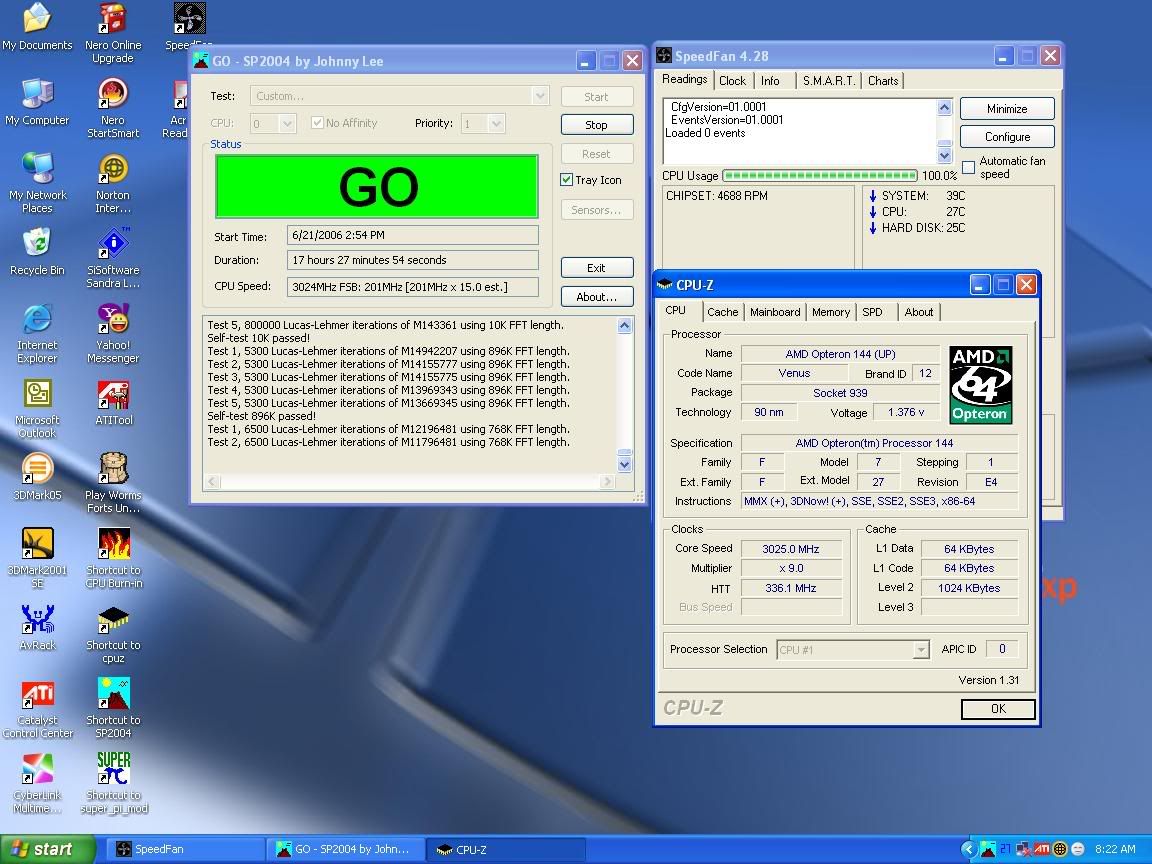

user posted image

This post has been edited by gsan: Jan 29 2006, 07:25 AM
TSsoulfly
post Jan 29 2006, 02:06 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



wow... voltage getting lower and lower
grafreak
post Jan 29 2006, 03:03 PM

New Member
*
Junior Member
22 posts

Joined: Jan 2006
From: Kuching, Sarawak, MY


QUOTE(gsan @ Jan 29 2006, 07:25 AM)
CNY Updated: 2.8G @ 1.52v  thumbup.gif

AMD Athlon 64 3200+ LBBLE 0520 FPMW
Thermalright xp90c with 92mm @ 2.2k rpm

user posted image
*
veryy niceee. i can only hit 2.52GHz @ 1.6Vc blink.gif urs is E3? or E6?
newbieockids
post Jan 29 2006, 04:06 PM

Regular
******
Senior Member
1,402 posts

Joined: Jun 2005



QUOTE(grafreak @ Jan 29 2006, 03:03 PM)
veryy niceee. i can only hit 2.52GHz @ 1.6Vc  blink.gif urs is E3? or E6?
frrm the stepping, i believe it was E3.. correct me if im wrong gsan..
gsan, push it to 3ghz ler.. thumbup.gif
KilJim
post Jan 30 2006, 01:02 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(grafreak @ Jan 29 2006, 03:03 PM)
veryy niceee. i can only hit 2.52GHz @ 1.6Vc  blink.gif urs is E3? or E6?
*
i have a 0525 like yours too, pretty crappy too tongue.gif

week 20 should be an E3
3ghz? very unlikely laugh.gif

gsan
post Jan 30 2006, 07:39 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(newbieockids @ Jan 29 2006, 04:06 PM)
frrm the stepping, i believe it was E3.. correct me if im wrong gsan..
gsan, push it to 3ghz ler.. thumbup.gif
*
yup, you're right smile.gif i have to run it at 2.8G with 1.5v stable or below before pushing to higher. but i dont think that the chip will hit 3G with air cooling only.

This post has been edited by gsan: Jan 30 2006, 07:39 AM
gengstapo
post Jan 30 2006, 07:53 AM

Retired enthusiast
********
All Stars
10,671 posts

Joined: Jan 2005
QUOTE(gsan @ Jan 29 2006, 07:25 AM)
CNY Updated: 2.8G @ 1.52v  thumbup.gif

AMD Athlon 64 3200+ LBBLE 0520 FPMW
Thermalright xp90c with 92mm @ 2.2k rpm

user posted image
*
aloo bro.. wat ur cooling system?? temp kinda nice eh shakehead.gif
LittleLinnet
post Jan 30 2006, 12:26 PM

Iophobia
*******
Senior Member
3,593 posts

Joined: Feb 2005
From: ***Penang***
he is using XP-90C FYI
Don't know the temp trustable or not sweat.gif
Hyde`fK
post Jan 30 2006, 01:11 PM

D9s Killer
*******
Senior Member
2,374 posts

Joined: Jan 2003
From: Miri,Sarawak,Malaysia Status: Dead!



24C! sweat.gif

In air-con room ar?
gsan
post Jan 30 2006, 01:38 PM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

not air cond room, but with side panel open, in the early morning, the weather quite cold.
mazdagtr210
post Jan 30 2006, 09:14 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


what about mine

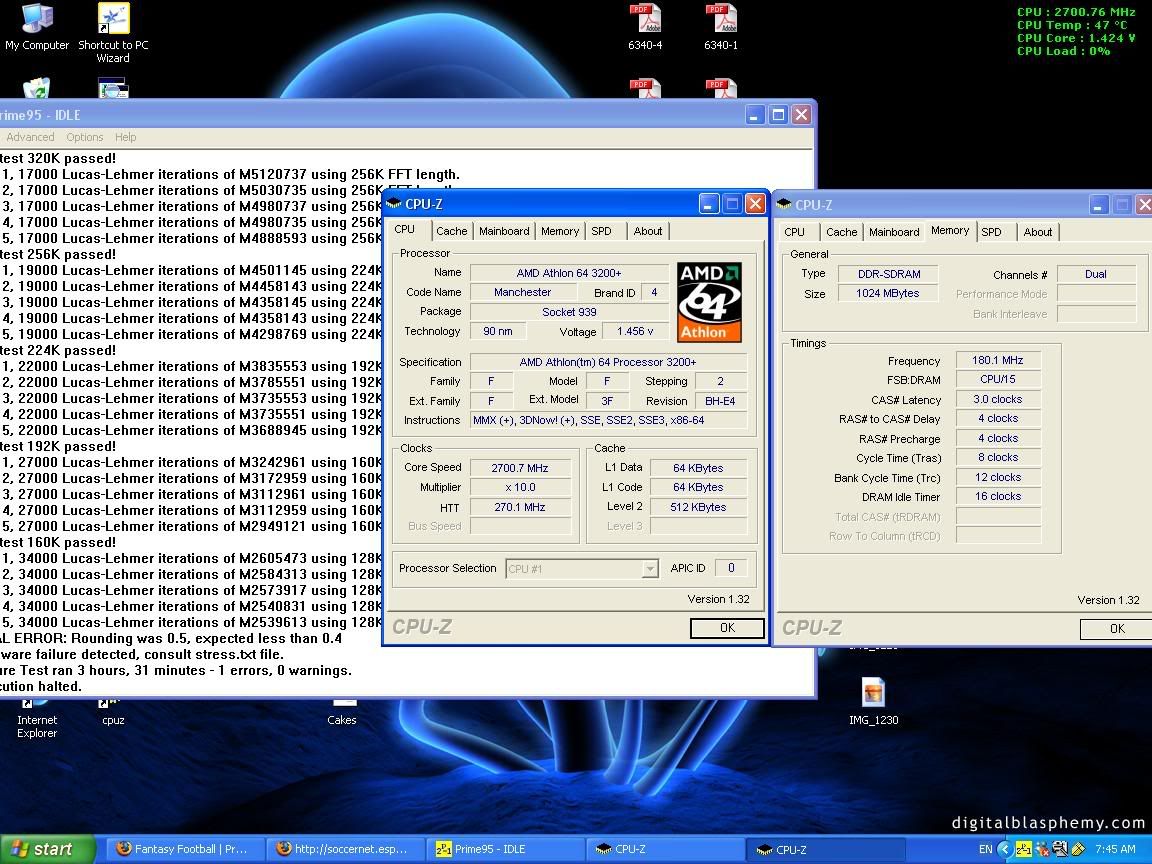

user posted image

cpu-z
http://valid.x86-secret.com/show_oc?id=51376

This post has been edited by mazdagtr210: Feb 2 2006, 07:34 PM
KilJim
post Jan 30 2006, 09:24 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



even if your ambient temp was 24C do u think your proc doesnt produce any heat at all? biggrin.gif
mazdagtr210
post Jan 30 2006, 09:26 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


waa 24 only maa. my lowest temp only 26 but that in aircond condition loo
TSsoulfly
post Jan 30 2006, 10:53 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



mazda, need 8 hours or more....

your athlon64 haven't finished not even 1 loop of prime yet.

use custom test, min 8K, max 512K, in-place FFT.

run the stress with at least 8 hours.... or you can let your test finish 1 loop

to know that the test already pass 1 loop.... check out the first set of test, it starts with 8K. it will finish a complete loop when the test begin again at 8K.

p/s: check out the rules and requirements at the first page

This post has been edited by soulfly: Jan 30 2006, 10:55 PM
mazdagtr210
post Feb 1 2006, 02:33 AM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


ok ok will try ....
siLDes
post Feb 1 2006, 06:36 AM

Getting Started
**
Junior Member
176 posts

Joined: Jan 2003
From: Unknown


doh.gif I still don't understand how to play this game ..
LittleLinnet
post Feb 2 2006, 01:03 AM

Iophobia
*******
Senior Member
3,593 posts

Joined: Feb 2005
From: ***Penang***
this is not a game tongue.gif
ahpaul82
post Feb 2 2006, 11:43 AM

.:保罗:.
*******
Senior Member
3,608 posts

Joined: Jan 2003
From: .: Old Klang Road :.



updated result :

========================================
Short description:
CPU: 300x9 @ 2700Mhz, 1.5v+110%
RAM: DDR490, CL2.5-4-3-7-1T @ 2.8V
========================================

AMD64 3000+ Venice E3 LBBLE 0516CPBW @ 2700MHz (300HTTx9) 1.5v+110% stock cooling
2 x 512MB Corsair TwinX XMS PC3200 PRO v1.4, 245MHz at 2.5-4-3-7, 1T, 2.8vdimm
DFI LanPartyUT NF4 SLI-D (BIOS 704-2BTA) 1.6v chipset
Galaxy 6600GT (Zalman) PCI-E x16 (default speed)
WD 40GB 8MB - IDE1
ASUS 52X CD-ROM - IDE2
Samsung Floppy Drive
OCZ ModStream 520W PSU
Window XP Pro SP2

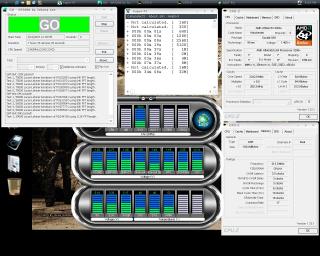

Attached Image

This post has been edited by ahpaul82: Feb 3 2006, 12:21 AM
mazdagtr210
post Feb 2 2006, 07:35 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


ok update with 9 hours now ............
gsan
post Feb 2 2006, 08:00 PM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(mazdagtr210 @ Feb 2 2006, 07:35 PM)
ok update with 9 hours now ............
*
2.8G @ 1.47v thumbup.gif

push to the max ya smile.gif
Cyclone87
post Feb 3 2006, 12:38 AM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




user posted image


AMD64 3000+ Venice E6 0530XXXX @ 2600MHz (325HTTx8) 1.5v xp90 + 1.4k RPM Thermaltake UFO 80mm
2 x 512MB Old Sch BH5 PC3200 , 217MHz at 2-2-2-5, 1T, 2.8vdimm
DFI NF4 Infinity non ultra
Gecube x300/550 128bit PCI-E x16 (default speed)
Maxtor 6Y080M0 ( 80GB 7200RPM 8M buffer)
Liteon 16x DVDrom
Samsung Floppy Drive
Icute Capalang 450Watt 24pin PSU
Window XP Pro SP2

My effort gone..should have post it after it pass 8hours or 80hours or 800hours.. cry.gif cry.gif cry.gif
grafreak
post Feb 3 2006, 01:09 AM

New Member
*
Junior Member
22 posts

Joined: Jan 2006
From: Kuching, Sarawak, MY


QUOTE(siLDes @ Feb 1 2006, 06:36 AM)
doh.gif  I still don't understand how to play this game ..
*
ahaha you can say its a bit of a game la tongue.gif

QUOTE(ahpaul82 @ Feb 2 2006, 11:43 AM)
updated result :

========================================
Short description:
CPU: 300x9 @ 2700Mhz, 1.5v+110%
RAM: DDR490, CL2.5-4-3-7-1T @ 2.8V
========================================

AMD64 3000+ Venice E3 LBBLE 0516CPBW @ 2700MHz (300HTTx9) 1.5v+110% stock cooling
2 x 512MB Corsair TwinX XMS PC3200 PRO v1.4, 245MHz at 2.5-4-3-7, 1T, 2.8vdimm
DFI LanPartyUT NF4 SLI-D (BIOS 704-2BTA) 1.6v chipset
Galaxy 6600GT (Zalman) PCI-E x16 (default speed)
WD 40GB 8MB - IDE1
ASUS 52X CD-ROM - IDE2
Samsung Floppy Drive
OCZ ModStream 520W PSU
Window XP Pro SP2


Attached Image
*
nice results. what ram u using? TCC series? the timings look like of a D43 but i rarely see cases where 245mhz hit 1t with those timings.

QUOTE(Cyclone87 @ Feb 3 2006, 12:38 AM)
user posted image
AMD64 3000+ Venice E6  0530XXXX @ 2600MHz (325HTTx8) 1.5v xp90 + 1.4k RPM Thermaltake UFO 80mm
2 x 512MB Old Sch BH5 PC3200 , 217MHz at 2-2-2-5, 1T, 2.8vdimm
DFI NF4 Infinity non ultra
Gecube x300/550 128bit PCI-E x16 (default speed)
Maxtor 6Y080M0 ( 80GB 7200RPM 8M buffer)
Liteon 16x DVDrom
Samsung Floppy Drive
Icute Capalang 450Watt 24pin PSU
Window XP Pro SP2

My effort gone..should have post it after it pass 8hours or 80hours or 800hours.. cry.gif  cry.gif  cry.gif
*
wahh kawan seriously u ran the torture test that long man? ohmy.gif
TSsoulfly
post Feb 3 2006, 02:21 AM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(mazdagtr210 @ Feb 2 2006, 07:35 PM)
ok update with 9 hours now ............
stepping?
LittleLinnet
post Feb 3 2006, 02:38 AM

Iophobia
*******
Senior Member
3,593 posts

Joined: Feb 2005
From: ***Penang***
QUOTE(Cyclone87 @ Feb 3 2006, 12:38 AM)
user posted image
AMD64 3000+ Venice E6  0530XXXX @ 2600MHz (325HTTx8) 1.5v xp90 + 1.4k RPM Thermaltake UFO 80mm
2 x 512MB Old Sch BH5 PC3200 , 217MHz at 2-2-2-5, 1T, 2.8vdimm
DFI NF4 Infinity non ultra
Gecube x300/550 128bit PCI-E x16 (default speed)
Maxtor 6Y080M0 ( 80GB 7200RPM 8M buffer)
Liteon 16x DVDrom
Samsung Floppy Drive
Icute Capalang 450Watt 24pin PSU
Window XP Pro SP2

My effort gone..should have post it after it pass 8hours or 80hours or 800hours.. cry.gif  cry.gif  cry.gif
*
you run prime continously for 1 year ??
OMG.....you are the man..... notworthy.gif notworthy.gif notworthy.gif notworthy.gif
mazdagtr210
post Feb 3 2006, 03:51 AM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


QUOTE(soulfly @ Feb 3 2006, 02:21 AM)
stepping?
*
stepping not remember can ask biatche coz last time bought from him.... malas nak bukak hsf la... biggrin.gif biggrin.gif
gsan
post Feb 3 2006, 07:39 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(LittleLinnet @ Feb 3 2006, 02:38 AM)
you run prime continously for 1 year ??
OMG.....you are the man..... notworthy.gif  notworthy.gif  notworthy.gif  notworthy.gif
*
hehe.. if you look it carefully, you'll notice something. please refer to the pic below. if he really prime for 8763hours, the red arrow there should be can scroll very very very down. as i know, he is changing the date only. dont believe? try out yourself tongue.gif

user posted image
TSsoulfly
post Feb 3 2006, 03:52 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(mazdagtr210 @ Feb 3 2006, 03:51 AM)
stepping not remember can ask biatche coz last time bought from him.... malas nak bukak hsf la... biggrin.gif  biggrin.gif
actual vdimm applied?

at least put your spec and settings like ahpaul82 did

the database needs these details
mazdagtr210
post Feb 3 2006, 07:53 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


waaa at my siggy already stated there

AMD 64 3000+ Venice E3
Asus Sli Deluxe Vdimm look at cpuz (around 1.475~1.5)
PDP 4200 512Mb X2
40Gb HDDX2 Pata
80Gb Sata X1
NEC DVDRW
Watercooling Setup

if not enought im quit from this game ....

This post has been edited by mazdagtr210: Feb 3 2006, 07:55 PM
apengfx-
post Feb 3 2006, 09:18 PM

I'm a Master Trader.
******
Senior Member
1,553 posts

Joined: Jan 2003
From: Sniper Island is in your heart :)



QUOTE(mazdagtr210 @ Jan 30 2006, 09:14 PM)
wow..vcore 1.47V thumbup.gif
TSsoulfly
post Feb 3 2006, 09:26 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(mazdagtr210 @ Feb 3 2006, 07:53 PM)
waaa at my siggy already stated there

AMD 64 3000+ Venice E3
Asus Sli Deluxe Vdimm look at cpuz (around 1.475~1.5)
PDP 4200 512Mb X2
40Gb HDDX2 Pata
80Gb Sata X1
NEC DVDRW
Watercooling Setup

if not enought im quit from this game ....
lol.... laugh.gif

it should be easier if u follow everything from the beginning
- 8hours prime
- bios set vcore (not reading from monitoring tool)
- stepping (overclockers always pay attention to their cpu steppings)

other overclocking forums can implement these kind of rules.... why don't we? wink.gif
apengfx-
post Feb 3 2006, 09:33 PM

I'm a Master Trader.
******
Senior Member
1,553 posts

Joined: Jan 2003
From: Sniper Island is in your heart :)



QUOTE(mazdagtr210 @ Feb 3 2006, 07:53 PM)
waaa at my siggy already stated there

AMD 64 3000+ Venice E3
Asus Sli Deluxe Vdimm look at cpuz (around 1.475~1.5)
PDP 4200 512Mb X2
40Gb HDDX2 Pata
80Gb Sata X1
NEC DVDRW
Watercooling Setup

if not enought im quit from this game ....
*
aiyo..dont quit la...
sayang ooo..processor can go higher man...
mazdagtr210
post Feb 3 2006, 10:00 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


waa my vcore at bios 1.475 lorrrrrr hehehe

This post has been edited by mazdagtr210: Feb 4 2006, 03:21 AM
ahpaul82
post Feb 3 2006, 11:05 PM

.:保罗:.
*******
Senior Member
3,608 posts

Joined: Jan 2003
From: .: Old Klang Road :.



QUOTE(grafreak @ Feb 3 2006, 01:09 AM)
nice results. what ram u using? TCC series? the timings look like of a D43 but i rarely see cases where 245mhz hit 1t with those timings.
*
Im using Corsair XMS 3200 PRO rev1.4. smile.gif
what chipset inside i have no idea (cannot open up and see ma tongue.gif) ,
but from what i did in MEMTEST,
i suspect is a TCCX RAMchip biggrin.gif
gsan
post Feb 4 2006, 02:01 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(mazdagtr210 @ Feb 3 2006, 10:00 PM)
waa my vdimn at bios 1.475 lorrrrrr hehehe
*
just wonder that have you experience that BSOD and then restart when overclocking the proc with lower voltage? like now u already stable 2.8G 1.47v and what will happen if u try with 1.45v or even lower....
mazdagtr210
post Feb 4 2006, 03:17 AM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


cannot dude coz im reduce it to the lowest now... if under 1.475 cannot prime well.... will restart back
gsan
post Feb 4 2006, 09:39 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(mazdagtr210 @ Feb 4 2006, 03:17 AM)
cannot dude coz im reduce it to the lowest now... if under 1.475 cannot prime well.... will restart back
*
yaya... before restart got any blue screen shown?
mazdagtr210
post Feb 4 2006, 11:20 PM

Casual
***
Junior Member
320 posts

Joined: Mar 2005


QUOTE(gsan @ Feb 4 2006, 09:39 AM)
yaya... before restart got any blue screen shown?
*
nope just restart only
ethanlow
post Feb 6 2006, 04:32 PM

Getting Started
**
Junior Member
245 posts

Joined: Jan 2003
From: Malaysia
biggrin.gif smile.gif smile.gif


Air Cooling only

This post has been edited by ethanlow: Feb 6 2006, 04:35 PM


Attached thumbnail(s)
Attached Image
TSsoulfly
post Feb 6 2006, 06:18 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(ethanlow @ Feb 6 2006, 04:32 PM)
biggrin.gif  smile.gif  smile.gif
Air Cooling only
cpu stepping?
gsan
post Feb 6 2006, 07:00 PM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(ethanlow @ Feb 6 2006, 04:32 PM)
biggrin.gif  smile.gif  smile.gif
Air Cooling only
*
what's your psu?
ethanlow
post Feb 8 2006, 10:09 PM

Getting Started
**
Junior Member
245 posts

Joined: Jan 2003
From: Malaysia
About the stepping ,sorry very mafan to take out cause pc full of junk and no time to take the cpu out.I will check it when it free

Cooling= Zalman CNPS7000B-Cu
PSU=Antec True Power 550w
cktee83
post Feb 10 2006, 01:14 PM

New Member
*
Junior Member
8 posts

Joined: Feb 2006
From: JB


Hi all...here are my results...
comments welcome... smile.gif

Attached Image

CPU : AMD Athlon64 3000+ (2.7GHz @ 338x8MHz, 1.600V)
Core : Venice E6 LBBWE 0542 EPHW
Socket : S939
RAM : 2x512MB Corsair ValueSelect (DDR450 2.5-3-3-8 2.60V)
M/B : Abit KN8-Ultra
PSU : iCUTE 'QIANG' 480W
Cooling : ThermalTake SilentTower

redbull_y2k
post Feb 10 2006, 05:54 PM

"Viva La Revolucion!"
******
Senior Member
1,469 posts

Joined: Jan 2003
From: YOU.ESS.JAY



anybody got a hold of the Manchester 3200+ ? The dual-core proc but with one core disabled and sold as A64 3200+. My fren has one but i haven't tried overclock it, coz it's not mine. So can't oc too much lah.... laugh.gif

Cpu-Z screenshot
user posted image
TSsoulfly
post Feb 10 2006, 06:01 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



should be equal to Venice E4
kurikuraX
post Feb 11 2006, 10:41 PM

this section is optional
*****
Senior Member
907 posts

Joined: Jan 2006
From: 124qn543x



I cant see anybody have and Ocing their LBBLE0519CPFW

I bought this proc from one of the forumers here. Is this a good chip?
TSsoulfly
post Feb 12 2006, 01:47 AM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



u wont know if u don't try
rendl
post Feb 15 2006, 12:54 AM

Getting Started
**
Junior Member
217 posts

Joined: Jan 2003
as above:

ADA3200DKA4CG
CDBHE 0550TPWM

mine is as follows:

idle temp - 43~44
full load - 53~54
Vcore = 1.4125
Vdimm = 2.80 (BT-D43*2)
HTT = 3X
mobo - Asus A8n-SLi
HSF - Thermalright SLK948U wif Vantec Tornado (Sunon)

user posted image

user posted image

any tips to improve pls share!

This post has been edited by rendl: Feb 15 2006, 12:59 AM
rendl
post Feb 16 2006, 08:34 AM

Getting Started
**
Junior Member
217 posts

Joined: Jan 2003
hit a brickwall, trying to go further but not easy ler

any1 can help?

user posted image
ianho
post Feb 17 2006, 02:22 AM

FISHERM4N
Group Icon
VIP
15,705 posts

Joined: Mar 2005
From: Tg. Rambutan
Aiyooooo. Didn't realise the 2005 ranking close shop oredi. I just put my old screenshot from the 2005 rankings boleh kar boss? The Prime is 7hours 19 minutes though. Last time no rule about 8 hours yet. Boleh kar?
My stepping is ADA3000DAA4BP LBBLE0516GPBW. Vcore was 1.6V.

user posted image

This post has been edited by ianho: Feb 17 2006, 02:34 AM
KilJim
post Feb 17 2006, 02:25 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



rendl, up the voltage!
gogo 1.6V biggrin.gif
rendl
post Feb 18 2006, 10:08 AM

Getting Started
**
Junior Member
217 posts

Joined: Jan 2003
mate, 1.6 will kill my manchester~

even @1.5 priming is already 59 degrees closed case...

i think the RAM/mosfets/nb is holding me back...

the manchester definitely can reach at least 2.7~2.8 @1.435 Vcore

QUOTE(KilJim @ Feb 17 2006, 02:25 AM)
rendl, up the voltage!
gogo 1.6V  biggrin.gif
*
ianho
post Feb 20 2006, 12:43 PM

FISHERM4N
Group Icon
VIP
15,705 posts

Joined: Mar 2005
From: Tg. Rambutan
No update 1? cry.gif cry.gif cry.gif 7 hours 19 minutes Prime cannot kar?
KilJim
post Feb 20 2006, 12:51 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(rendl @ Feb 18 2006, 10:08 AM)
mate, 1.6 will kill my manchester~

even @1.5 priming is already 59 degrees closed case...

i think the RAM/mosfets/nb is holding me back...

the manchester definitely can reach at least 2.7~2.8 @1.435 Vcore
*
hmm....is 1.6 very high for a manchester?
so far on the Venices i've tried, up to almost 1.7V is okay for benching
o23ff
post Feb 23 2006, 12:37 AM

New Member
*
Junior Member
6 posts

Joined: Jan 2005
From: Kedah


user posted image

AMD64 Venice E6 3000+ LBBWE 0542GPAW @ 2754mhz (306HTTx9) 1.67v(1.55x110%) WaterCooling
DFI LanPartyUT NF4 ULTRA-D
cktee83
post Feb 23 2006, 01:34 PM

New Member
*
Junior Member
8 posts

Joined: Feb 2006
From: JB


Wah.... superb! drool.gif

Btw why SP2004 showing the wrong FSB and multiplier?
anarchist
post Feb 23 2006, 03:50 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
damn i should have check mine fully 1st...

hopefull kingmaker_20 will post it...
kingmaker_20
post Feb 23 2006, 06:39 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(anarchist @ Feb 23 2006, 03:50 PM)
damn i should have check mine fully 1st...

hopefull kingmaker_20 will post it...
*
I'll try my best bro. smile.gif
TSsoulfly
post Feb 23 2006, 08:24 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(cktee83 @ Feb 23 2006, 01:34 PM)
Wah.... superb! drool.gif
Btw why SP2004 showing the wrong FSB and multiplier?
it's normal sp2004 bug
kingmaker_20
post Feb 24 2006, 05:05 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



[email protected]
I suggest that you could add another rule in the list,
Cpu-z for the screenshot must be the latest version,if im not wrong for now v1.32 is the latest one and the voltage reading is accurate.This is to avoid wrong voltage readings,as we know the previous version do play hide and seek.
Suggestion:
If the submited Cpu-z screenshot is not the latest version(v1.32),that ranking will not be count in our database. smile.gif

[email protected]
Its now 5:10am biggrin.gif ,still priming the chip.I'll blast the screnez very soon,if nothing wrong happens.Wish me luck lol
ah_khoo
post Feb 24 2006, 05:32 AM

- No Action Talk Only -
Group Icon
Elite
8,101 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.


It's a big efford if those who posted b4 need to do d primin again, quite hassle as not everyone runnin their chip on 24/7 basis. huh.gif

some more, d rankin is not rated on voltage used, it's judged by d clock speed, isn't it? biggrin.gif

bout d voltage thingy, it's up to d poster to provide d real voltage used to do achieve d stable clock. no point cheatin as one can't cheat 'himself... smile.gif

no such thing as software showin accurate readin, as dmm is d most accurate one... wink.gif
sup3rfly
post Feb 24 2006, 11:01 AM

Techno Slave
******
Senior Member
1,561 posts

Joined: Jan 2003
From: 秋葉原電気街


ok i have checked mine with cpu-z 1.32..... the voltage is still 1.552v... i wish it was lower >.<
TSsoulfly
post Feb 24 2006, 11:03 AM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



i only want BIOS SET VCORE

software reading is not important
anarchist
post Feb 24 2006, 12:15 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
@kingmaker_20

good luck man thumbup.gif

im gonna try my new 0606 revision and see how it does...

by the way what voltage you running at?

was it 2.5ghz @ 1.36v @ stock HSF ?

did you use the standard or different thermal paste?
anarchist
post Feb 24 2006, 12:15 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
wanted to post somewhere else but accidently posted here blush.gif

This post has been edited by anarchist: Feb 24 2006, 12:16 PM
kingmaker_20
post Feb 24 2006, 12:33 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(soulfly @ Feb 24 2006, 11:03 AM)
i only want BIOS SET VCORE

software reading is not important
*
Ok,its just a suggestion smile.gif

[email protected]
Anyway,as mention by soulfly before this database shouldn't be for only show off/ranking thingy,its more to reffrence.So it is the best if we could provide the real vcore etc and of course its up to individu smile.gif

king's 2cent.

This post has been edited by kingmaker_20: Feb 24 2006, 01:34 PM
kingmaker_20
post Feb 24 2006, 12:48 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



Here's mine: thumbup.gif
user posted image

LBBLE 0522 FPBW

Idle temp - 38C-40C(BIOS 42C)
Full load - 43C-44C(BIOS should be 46C-48C)
Vcore = 1.36V(STOCK)
Vdimm = 3.00V (512MB TWSP BH-5)
LDT = 3X
HTT - 278x9
Mobo - DFI LP UT NF4 SLI-D
HSF - AMD STOCK HSF


This post has been edited by kingmaker_20: Feb 24 2006, 12:52 PM
anarchist
post Feb 24 2006, 12:58 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
hehehe good chip eh?

you got a gem from me man...

anyway 2.5ghz @ 1.36 @ stock cooler thumbup.gif

you can go slightly higher than that on stock, try it....
kingmaker_20
post Feb 24 2006, 01:09 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(anarchist @ Feb 24 2006, 12:58 PM)
hehehe good chip eh?

you got a gem from me man...

anyway 2.5ghz @ 1.36 @ stock cooler thumbup.gif

you can go slightly higher than that on stock, try it....
*
Acctually i love to clock any chip without raising the vcore,get to the max with burn-in first,then i'll consider adding the vcore later on. smile.gif
Sorry,forgot to mention,both Cpu and chip applied with AS5.

p/s: My Smartguardian is special LYN moded edition tongue.gif still under beta.

And again,thanks anarchist for the superb chip. smile.gif

This post has been edited by kingmaker_20: Feb 24 2006, 01:37 PM
ClessRV
post Feb 24 2006, 04:04 PM

On my way
****
Junior Member
616 posts

Joined: Jan 2006
I want to ask siawgu something about his ex-proc, the AMD Athlon 64 3000+ 0530, i have the exactly same proc and i want to ask what is the highest HTT and stable that you can get using only air cooling and on stock vcore?

and if it's not a bother, can you give me your config for it including memory setting and such?

if others can help, i will be really appreciate it.

Thank you.
sjn hassan
post Feb 24 2006, 04:11 PM

Member's of MAKAN MEGGI club
*******
Senior Member
3,544 posts

Joined: Jan 2003
From: United States of Cybertron




what is the highest VCORE for VEnice??Afraid the vcore may fry my cpu tongue.gif
KilJim
post Feb 24 2006, 04:17 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



i normally limit myself to 1.7V (set in bios, detected slightly lower) on air cooling
for benching only of course

but most ppl would say that will fry your proc whistling.gif
anarchist
post Feb 24 2006, 05:48 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
heheh kingmaker i help you burn in abit already what b4...

so should be ok now unless you wanna go more la... thumbup.gif
kingmaker_20
post Feb 24 2006, 07:29 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(anarchist @ Feb 24 2006, 05:48 PM)
heheh kingmaker i help you burn in abit already what b4...

so should be ok now unless you wanna go more la... thumbup.gif
*
Pls cut the crap smile.gif
I try priming on 2.4Ghz and dint pass.I've burn it for 1 days plus to achieve this and how much MHZ you expect after burn in?
TSsoulfly
post Feb 24 2006, 10:15 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



if your processor had not enough burn-in at the factory, you might have better result
kingmaker_20
post Feb 24 2006, 10:54 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(soulfly @ Feb 24 2006, 10:15 PM)
if your processor had not enough burn-in at the factory, you might have better result
*
Din't get what you trying to say.Mind to elaborate?Any proof for your statement?
TSsoulfly
post Feb 24 2006, 11:02 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



I don't need any proof.

If you don't already know.... burn-in is a process in speed binning. Somehow burn-in method done by users refined what's done at the factory. So... it depends on luck whether you get big, small or no improvement at all.
kingmaker_20
post Feb 24 2006, 11:10 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(soulfly @ Feb 24 2006, 11:02 PM)
I don't need any proof.

If you don't already know.... burn-in is a process in speed binning. Somehow burn-in method done by users refined what's done at the factory. So... it depends on luck whether you get big, small or no improvement at all.
*
Owh,got it.thanks for the explaination. smile.gif
ah_khoo
post Feb 24 2006, 11:22 PM

- No Action Talk Only -
Group Icon
Elite
8,101 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.


QUOTE(kingmaker_20 @ Feb 24 2006, 07:29 PM)
Pls cut the crap smile.gif
I try priming on 2.4Ghz and dint pass.I've burn it for 1 days plus to achieve this and how much MHZ you expect after burn in?
*
bear in mind that not every chip can clock impressively straight outta box. smile.gif
kingmaker_20
post Feb 24 2006, 11:26 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(ah_khoo @ Feb 24 2006, 11:22 PM)
bear in mind that not every chip can clock impressively straight outta box.  smile.gif
*
Bro this chip used 5 months plus. smile.gif
anarchist
post Feb 25 2006, 09:37 PM

Getting Started
**
Junior Member
268 posts

Joined: Jan 2005
weird.....

unless maybe i never use for some time di, but that shouldnt make a difference right...

oh well.....

This post has been edited by anarchist: Feb 26 2006, 12:01 AM
kingmaker_20
post Feb 26 2006, 04:32 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(anarchist @ Feb 25 2006, 09:37 PM)
weird.....

unless maybe i never use for some time di, but that shouldnt make a difference right...

oh well.....
*
Motherboard might made the diffrence.Anyway did you run Prime for 8hours?same speed and vcore?
kingmaker_20
post Feb 26 2006, 01:43 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



Here's an update smile.gif
user posted image
LBBLE 0522 FPBW

Idle temp - 40C-41C(BIOS 43C)
Full load - 46C-48C(BIOS should be 50C++)
Vcore = 1.36V(STOCK)
Vdimm = 3.20V (512MB TWSP BH-5)
LDT = 3X
HTT - 289x9
Mobo - DFI LP UT NF4 SLI-D
HSF - AMD STOCK HSF

kingmaker_20
post Feb 28 2006, 04:08 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



Venice stock/default volt 1.4v?? blink.gif
[email protected] to look at the database list i can even see 1.34v? doh.gif

TSsoulfly
post Feb 28 2006, 05:03 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



kianwee's result removed

Venice default voltage is 1.4V. I really wonder how come you don't know about this.
kingmaker_20
post Feb 28 2006, 10:47 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(soulfly @ Feb 28 2006, 05:03 PM)
kianwee's result removed

Venice default voltage is 1.4V. I really wonder how come you don't know about this.
*
Its not about i know or you know,that's the reading in bios and most of the overclockers or overclockers database follow the voltage in bios but im not telling that we must follow them.You have come out with new thing and that's exactly good.
Im still new and learning new things about overclocking everyday.So let's try to make our database more accurate eventhough i know most of the rankings cpu voltage in our database does not follow the real or bios reading. smile.gif

Suggestion:
Could you pls update the first post regarding this issue,i mean cpu voltage,so we all can easily understand about it while looking at the rules&regulation. smile.gif
TSsoulfly
post Feb 28 2006, 11:36 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



I should say that it's better to trust of what we do, not of what we see tongue.gif

Regarding the voltage.... the rationale behind it was, to get the result at the particular setup that we wanted. For example, we want the cpu to run at 2500mhz at 1.4v.... that is the setting that we want, not 1.36V or 1.41v eventhough the reading shows different value.
kingmaker_20
post Mar 1 2006, 01:07 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(soulfly @ Feb 28 2006, 11:36 PM)
I should say that it's better to trust of what we do, not of what we see tongue.gif

Regarding the voltage.... the rationale behind it was, to get the result at the particular setup that we wanted. For example, we want the cpu to run at 2500mhz at 1.4v.... that is the setting that we want, not 1.36V or 1.41v eventhough the reading shows different value.
*
Ok nice,hope everyone could understand this.
Cheers. smile.gif
gsan
post Mar 1 2006, 09:27 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

kingmaker_20,

what psu you used to overclock the proc? 2.6 @ 1.36v is kinda impressive leh... my 0520 seem cannot do that well.
kingmaker_20
post Mar 1 2006, 02:51 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(gsan @ Mar 1 2006, 09:27 AM)
kingmaker_20,

what psu you used to overclock the proc? 2.6 @ 1.36v is kinda impressive leh... my 0520 seem cannot do that well.
*
Using enlight 450w power tank tongue.gif
Im aiming for acbel 450w ipower,the amps are better than my enlight.Your's sold?
Cyclone87
post Mar 3 2006, 08:01 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




From the Database..LLBWE seem doing not that good compare to LLBLE. sad.gif
I just got few LLBWE today from amd.
kingmaker_20
post Mar 3 2006, 10:17 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(Cyclone87 @ Mar 3 2006, 08:01 PM)
From the Database..LLBWE seem doing not that good compare to LLBLE. sad.gif
I just got few LLBWE today from amd.
*
Should be LBBWE(E6) its doing pretty good especially 3000+,2.8GHZ maybe but not sure about the voltage. smile.gif
Zicron
post Mar 7 2006, 02:22 PM

Come to the Dark Side
*****
Senior Member
899 posts

Joined: Mar 2005
From: Klang


I tried to OC from 1.8ghz to 2.0ghz 1.5v, but when restart my monitor blank and i hv to reset CMOS, can tell me y? BTW, im noob here =.=" so can tell me wats is stepping and how to do it?

TSsoulfly
post Mar 7 2006, 04:36 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(Zicron @ Mar 7 2006, 02:22 PM)
I tried to OC from 1.8ghz to 2.0ghz 1.5v, but when restart my monitor blank and i hv to reset CMOS, can tell me y? BTW, im noob here =.=" so can tell me wats is stepping and how to do it?
I suggest that you read the Fundamentals of Overclocking thread. Everything is in there. This place is for database discussions only.

Please read. Don't expect to be spoonfed all the time.
kingmaker_20
post Mar 10 2006, 02:45 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



Updated smile.gif
user posted image
LBBLE 0522 FPBW

Idle temp - 41C-43C
Full load - 50C-53C
Vcore = 1.475V
Vdimm = 3.20V (512MB TWSP BH-5)
LDT = 3X
HTT - 303x9
Mobo - DFI LP UT NF4 SLI-D
HSF - AMD STOCK HSF

Cyclone87
post Mar 11 2006, 02:14 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




AMD64 3000+ Venice E6 LLBWE 0542FPCW @ 2600MHz 0.96v(Serial : 13801 -Staff Ver )
CoolerMaster Vortex Cooler
1GBkit UCCC with brainpower PC3200
Gigabyte K8N-SLi
BBA FireGL V3100 PCI-E x16 (525/550)
Maxtor 40GB 8MB - IDE1
Liteon DVDrom 16X - IDE2
Maxtor 80GB SATA - Sata3
Samsung Floppy Drive
Icute 450Watt DualRail 24pin Twin Fan
Window XP Pro SP2

This post has been edited by Cyclone87: Mar 11 2006, 05:58 PM


Attached thumbnail(s)
Attached Image
TSsoulfly
post Mar 11 2006, 02:16 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



LLBWE ar.... not LBBWE? your voltage crazy summore.

what V you set in BIOS?

This post has been edited by soulfly: Mar 11 2006, 02:17 PM
kingmaker_20
post Mar 11 2006, 02:30 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<




Updated.I think this is the max for my stock cooler and i think i'm not going to raise the vcore anymore wink.gif

user posted image
LBBLE 0522 FPBW

Idle temp - 41C-45C
Full load - 50C-55C
Vcore = 1.5V
Vdimm = 3.20V (512MB TWSP BH-5)
LDT = 3X
HTT - 306x9
Mobo - DFI LP UT NF4 SLI-D
HSF - AMD STOCK HSF


Cyclone87
post Mar 11 2006, 02:47 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(soulfly @ Mar 11 2006, 02:16 PM)
LLBWE ar.... not LBBWE? your voltage crazy summore.

what V you set in BIOS?
*
It stock voltage..and it LBBWE..typo. Anyway..i already update latest bios..the reading stil the same.
kingmaker_20
post Mar 11 2006, 08:05 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(Cyclone87 @ Mar 11 2006, 02:47 PM)
It stock voltage..and it LBBWE..typo. Anyway..i already update latest bios..the reading stil the same.
*
What vcore you set in bios?
You mean you didn't touch the vcore settings in bios?

This post has been edited by kingmaker_20: Mar 11 2006, 08:07 PM
Cyclone87
post Mar 12 2006, 12:36 AM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(kingmaker_20 @ Mar 11 2006, 08:05 PM)
What vcore you set in bios?
You mean you didn't touch the vcore settings in bios?
*
Yea..that is my first attempt booting with just increase in HTT,HTT ratio 3x and Divider333 and CnQ and spread spectum is Disable..anyway...more result tmr..Hoping 2.8ghz at least by tmr. I suspect the mobo read wrong reading..or the staff ver is abit abnormal.
kazama
post Mar 15 2006, 03:56 PM

Getting Started
**
Junior Member
58 posts

Joined: Jan 2003
From: putrajaya->cyberjaya->beseri



Participating smile.gif
user posted image
Description:
Processor: AMD Opteron 146 (CABYE 0540FPMW) thx to dinster smile.gif
Mobo: DFI Lanparty NF4 Ultra-D
Bios Set V: VID=1.45 with 110% special
Cooling: Air with Thermalright SI-120
Ram: Gskill FX
Psu: Hiper R 580W. thx to kingmaker_20 smile.gif
others at my siggy.

This post has been edited by kazama: Mar 15 2006, 03:57 PM
kingmaker_20
post Mar 17 2006, 01:17 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(kazama @ Mar 15 2006, 03:56 PM)
Participating smile.gif
Description:
Processor: AMD Opteron 146 (CABYE 0540FPMW) thx to dinster smile.gif
Mobo: DFI Lanparty NF4 Ultra-D
Bios Set V:  VID=1.45 with 110% special
Cooling: Air with Thermalright SI-120
Ram: Gskill FX
Psu: Hiper R 580W. thx to kingmaker_20 smile.gif
others at my siggy.
*
Oh,someone mention my nick biggrin.gif
Ur welcome bro,nice clock you have there and the chip too.
magiara
post Mar 23 2006, 02:29 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


Idle temp - 28C - 30C
Full load - 45C-48C
Vcore = 1.66V
Vdimm = 2.70V (2x512MB Corsair VS DDR400)
LDT = 3X
HTT - 289x9
Mobo - Jetway 939GT4-SLi-G-OC
HSF - TT Big Typhoon + Delta Tri-blade 120mm

Screenshot : user posted image

This post has been edited by magiara: Mar 23 2006, 02:30 PM
TSsoulfly
post Mar 23 2006, 06:28 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



magiara, your cpu stepping?
magiara
post Mar 26 2006, 03:14 AM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(soulfly @ Mar 23 2006, 06:28 PM)
magiara, your cpu stepping?
*
LBBWE 0544FPCW

anyway, is my stepping good? i dunno anything about stepping..
kingmaker_20
post Mar 26 2006, 03:53 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



Google your stepping code and u'll know how good it is. smile.gif
KilJim
post Mar 27 2006, 11:26 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



you've already tested, why bother searching for more details? sweat.gif
magiara
post Mar 28 2006, 01:55 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


help me google tongue.gif tongue.gif
amok
post Apr 5 2006, 04:59 PM

schhhhwwiiiiiiinggggggg
Group Icon
Elite
739 posts

Joined: Jan 2003
From: Macau?



wanna join lar...

CPU : AMD OPTERON 144 : CAB2E 0602GPAW
BIOS Set Vcore : 1.425V
BIOS Set Vdimm: 2.8 V
Mobo: DFI NF4 DAGF
Cooling : Watercooled (Swiftech MCW6002 + Nirox P2800 + Bulkhy Rad)
RAM : 2 x 512M KVR3200 DT-D43 : 2.5-4-3-8 (1CL) Dual Channel
The rest in my sig.

user posted image


PCcrazy
post Apr 5 2006, 09:56 PM

Milanista
*******
Senior Member
3,224 posts

Joined: Jan 2003
From: B.B.Bangi


Wow, you are getting that results with only DAGF? It must be damn frightening experience tweaking that mobo. So, is that all the proc could do? or mobo is holding you down? Great result anyway. rclxms.gif
KidsCode
post Apr 5 2006, 10:21 PM

-----NoLimits!-----
Group Icon
Elite
6,649 posts

Joined: Jan 2003
From: At the end...


Ppl, want to ask something on o/c on AMD64. I know this question been ask alot of time, but still need 2nd opinion again. As just got my new Opteron 144, still tweaking it.

Which is really prefer:
1. Max the core speed but using non 1:1 divider
2. Max the FSB running on 1:1 divider

Understand that in AMD64 o/c max on the HTT is more important then the max on FSB on the 1:1 divider. Correct me if you think that Im getting something wrong here...

Thanz for helping... smile.gif (mod let me know if this is not a place to post this)
amok
post Apr 5 2006, 11:12 PM

schhhhwwiiiiiiinggggggg
Group Icon
Elite
739 posts

Joined: Jan 2003
From: Macau?



QUOTE(PCcrazy @ Apr 5 2006, 09:56 PM)
Wow, you are getting that results with only DAGF? It must be damn frightening experience tweaking that mobo. So, is that all the proc could do? or mobo is holding you down? Great result anyway.  rclxms.gif
*
tongue.gif tenkiu, tenkiu... long time no see u.. still regard u as a living dictionary biggrin.gif, I don't think had reached the proc limit yet.. still burnin in.

well DAGF wuz not that bad (considering I bought it 2nd hand from dinster)... I'd needed like 1.65V fer the chipset.. stock cooling really a let down..(use a 12cm 63cfm fan over the NF4) which ended up wif loads of error on the i/o and peripherals, annen the 400Watter Enlight Power Tank PSU blush.gif sweat.gif doh.gif .. ermmm... then those KVR DT's.. just couldn't cut above 247MHz... . aiyaaaa.. a lot of limitation.. neway my primary objective now is to get a high end result wif oni budget or low end parts.. (just look at the spec in my sig sweat.gif ). Yup have to rely on loads of tweaking and tuning... and mebbe some might consider it a waste of time, but hey this is what overclocking all about isn't it? Max perf with minimum moolah.
kulus
post Apr 6 2006, 01:19 AM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



amok..now is the right time for u to change ur psu lor.. tongue.gif
KilJim
post Apr 6 2006, 01:53 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(KidsCode @ Apr 5 2006, 10:21 PM)
Ppl, want to ask something on o/c on AMD64. I know this question been ask alot of time, but still need 2nd opinion again. As just got my new Opteron 144, still tweaking it.

Which is really prefer:
1. Max the core speed but using non 1:1 divider
2. Max the FSB running on 1:1 divider

Understand that in AMD64 o/c max on the HTT is more important then the max on FSB on the 1:1 divider. Correct me if you think that Im getting something wrong here...

Thanz for helping... smile.gif (mod let me know if this is not a place to post this)
*
That depends on how big a difference there is between the 2
If your max proc speed is 3ghz @ 333HTT X 9 and your rams can only do, say 280mhz, you'll be running 2.52ghz @ 280HTT X 9
There's such a big difference in speed that that the obvious choice would be the proc's speed
If its 2.7ghz @ 300HTT X 9 and your rams can do 295mhz, then going for 295HTT X 9 might be a better choice
Just hit for the highest proc speed, then figure out what dividers to put on

Btw, the proper thread is here http://forum.lowyat.net/index.php?showtopic=239123&st=260
TSsoulfly
post Apr 6 2006, 10:27 AM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



QUOTE(KidsCode @ Apr 5 2006, 10:21 PM)
Ppl, want to ask something on o/c on AMD64. I know this question been ask alot of time, but still need 2nd opinion again. As just got my new Opteron 144, still tweaking it.

Which is really prefer:
1. Max the core speed but using non 1:1 divider
2. Max the FSB running on 1:1 divider

Understand that in AMD64 o/c max on the HTT is more important then the max on FSB on the 1:1 divider. Correct me if you think that Im getting something wrong here...

Thanz for helping... smile.gif (mod let me know if this is not a place to post this)
The most important thing is the highest clockspeed.

If there are two different settings with the same clockspeed, go for with the one that provides higher DDR speed.

Divider and multiplier does not really matter at all, because their existence is just virtually.
magiara
post Apr 9 2006, 06:55 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(kev da man @ Apr 9 2006, 01:38 PM)
user posted image

mine on air, steppings will be posted up in the same post tomorrow as the pics are in my office XD

gigabyte k8nf-9
1GB KVR d-43
stock heatsink
voltage 1.52 vcore, vdimm 2.7
*
prime for more than 8 hours bro!
kev da man
post Apr 10 2006, 08:08 AM

super lurker
********
All Stars
15,278 posts

Joined: Jan 2003


woot.

couldnt get it to run properly @ 2.7GHz, so here's the max stable OC

LBBWE 0603APBW A64 3000+
Gigabyte K8NF-9
1GB KVR D-43
bios set vcore - 1.5
vdimm - stock
cooling - stock
HT divider 1
ram/cpu divider 2 / 1.33 (i think)
user posted image

This post has been edited by kev da man: Apr 10 2006, 09:45 AM
ah_khoo
post Apr 10 2006, 10:30 PM

- No Action Talk Only -
Group Icon
Elite
8,101 posts

Joined: Jan 2003
From: Tanah Lot @ Dungun, Terengganu.


Short description:
cpu: 295x9 @ 2610Mhz, 1.43 (BIOS set)
ram: DDR480, CL2.5-4-3-7-1T @ 2.6V
========================================
AMD Athlon 64 3000+ 0516GPBW Rev. E3
DFI LANParty UT nF4-D (704-2BTA) > SLi & SATA2 Enabled
2x512MB OCZ Premier DDR400 (Alibaba chipy tongue.gif )

This post has been edited by ah_khoo: Apr 11 2006, 06:08 AM


Attached thumbnail(s)
Attached Image
Cyclone87
post Apr 11 2006, 10:19 AM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(PCcrazy @ Apr 5 2006, 09:56 PM)
Wow, you are getting that results with only DAGF? It must be damn frightening experience tweaking that mobo. So, is that all the proc could do? or mobo is holding you down? Great result anyway.  rclxms.gif
*
DFi DAGF rename to DFI infinity nF4 and using almost the same bios like DFI infinity nf4 SLi and Ultra ver. So no doubt it doing good. rclxms.gif
kulus
post Apr 11 2006, 12:00 PM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



yeahh..infinity series is as good as Lp series..but the layout doh.gif
KilJim
post Apr 11 2006, 10:37 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



Here's mine :

Opteron 144 CAB2E 0602GPAW
DFI LanParty NF4 Ultra-D
1 x 1024mb Infineon DDR333 BE-6
XP-90C, mid level fan, no air-cond

This post has been edited by KilJim: Apr 18 2006, 12:33 AM


Attached thumbnail(s)
Attached Image
tAmp0i
post Apr 13 2006, 06:57 PM

The name is Poi
*******
Senior Member
2,806 posts

Joined: Jan 2003
From: Miri



Joining the league...

Opteron 146 [CAB2E 0540FPMW] @ 3.0GHz [300x10], 1.45v + 104%
DFI LP UT nF4 Ultra-D
2x 256MB Kingston HyperX PC3200 @ 250MHz [2.0-2-5-2], 3.2v
OCZ PowerStream 520Watt

Fanless room, non-aircond

This post has been edited by tAmp0i: Apr 13 2006, 06:57 PM


Attached thumbnail(s)
Attached Image
gsan
post Apr 13 2006, 07:07 PM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(tAmp0i @ Apr 13 2006, 06:57 PM)
Joining the league...

Opteron 146 [CAB2E 0540FPMW] @ 3.0GHz [300x10], 1.45v + 104%
DFI LP UT nF4 Ultra-D
2x 256MB Kingston HyperX PC3200 @ 250MHz [2.0-2-5-2], 3.2v
OCZ PowerStream 520Watt

Fanless room, non-aircond
*
bro, what cooling system you used ya? notworthy.gif
tAmp0i
post Apr 13 2006, 07:29 PM

The name is Poi
*******
Senior Member
2,806 posts

Joined: Jan 2003
From: Miri



QUOTE(gsan @ Apr 13 2006, 07:07 PM)
bro, what cooling system you used ya?  notworthy.gif
*
Scythe Ninja Plus icon_idea.gif
kingmaker_20
post Apr 13 2006, 08:56 PM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(tAmp0i @ Apr 13 2006, 07:29 PM)
Scythe Ninja Plus icon_idea.gif
*
Nice one there,how about pushing it more? rclxms.gif
tAmp0i
post Apr 14 2006, 03:10 PM

The name is Poi
*******
Senior Member
2,806 posts

Joined: Jan 2003
From: Miri



QUOTE(kingmaker_20 @ Apr 13 2006, 08:56 PM)
Nice one there,how about pushing it more? rclxms.gif
*
I'll be trying to prime at higher clock speed but 8 hours is a pain in the arse
kulus
post Apr 14 2006, 03:21 PM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



QUOTE(KilJim @ Apr 11 2006, 10:37 PM)
Here's mine
Will post the details in a while
*
bro..ur temp in screenies by using XP90C ka? sweat.gif
redbull_y2k
post Apr 14 2006, 03:57 PM

"Viva La Revolucion!"
******
Senior Member
1,469 posts

Joined: Jan 2003
From: YOU.ESS.JAY



QUOTE(kulus @ Apr 14 2006, 03:21 PM)
bro..ur temp in screenies by using XP90C ka?  sweat.gif
*
wow.... i've just notice that. The temps are all very high, scary man. sweat.gif
gsan
post Apr 14 2006, 08:49 PM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(kulus @ Apr 14 2006, 03:21 PM)
bro..ur temp in screenies by using XP90C ka?  sweat.gif
*
nope, i think that he used ninja too icon_idea.gif
kulus
post Apr 15 2006, 12:55 AM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



QUOTE(gsan @ Apr 14 2006, 08:49 PM)
nope, i think that he used ninja too  icon_idea.gif
*
using ninja but temp still 58C sweat.gif izzit opty giv more heat compare with venice?
KilJim
post Apr 15 2006, 01:06 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



Nah they're with the 90C
Yupp, temps area always higher than normal laugh.gif
Since the P4 days, Infinity board and this Ultra-D it's been like this tongue.gif
gsan
post Apr 15 2006, 09:23 AM

Electrical RF Engineer
*******
Senior Member
2,468 posts

Joined: Jan 2003

QUOTE(KilJim @ Apr 15 2006, 01:06 AM)
Nah they're with the 90C
Yupp, temps area always higher than normal  laugh.gif
Since the P4 days, Infinity board and this Ultra-D it's been like this  tongue.gif
*
bro, I tot your xp90c was sold to someone already? sweat.gif
apengfx-
post Apr 15 2006, 12:51 PM

I'm a Master Trader.
******
Senior Member
1,553 posts

Joined: Jan 2003
From: Sniper Island is in your heart :)



QUOTE(Cyclone87 @ Apr 11 2006, 10:19 AM)
DFi DAGF rename to DFI infinity nF4 and using almost the same bios like DFI  infinity nf4  SLi and Ultra ver. So no doubt it doing good.  rclxms.gif
*
so..how the board perform?..got the i/o panel that i sent?
Cyclone87
post Apr 15 2006, 12:55 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(hafifee @ Apr 15 2006, 12:51 PM)
so..how the board perform?..got the i/o panel that i sent?
*
Yea got it..anyway..it doing the same like my old DAGF except the box is different abit. Bios all the same. Doing 306*9 on my venice 3000+. icon_rolleyes.gif
kulus
post Apr 15 2006, 01:24 PM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



if compare with NF4 Ultra Infinity..which board is the best?

This post has been edited by kulus: Apr 15 2006, 01:24 PM
Cyclone87
post Apr 15 2006, 02:43 PM

Regular
******
Senior Member
1,254 posts

Joined: Jan 2003
From: Penang




QUOTE(kulus @ Apr 15 2006, 01:24 PM)
if compare with NF4 Ultra Infinity..which board is the best?
*
Overclocking result ..is the same. all the same..Except..Ultra got Sata2 but..around rm100 more expensive. So if u wan to use SATA2..den Ultra..if not..Normal ver.
KilJim
post Apr 15 2006, 03:10 PM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(gsan @ Apr 15 2006, 09:23 AM)
bro, I tot your xp90c was sold to someone already?  sweat.gif
*
Haha, i sold it to you to get a Ninja
Then traded the Ninja for a 90C again laugh.gif
That Ninja is 1 fat bugger...damn troublesome to take it out everytime

QUOTE(Cyclone87 @ Apr 15 2006, 02:43 PM)
Overclocking result ..is the same. all the same..Except..Ultra got Sata2 but..around rm100 more expensive. So if u wan to use SATA2..den Ultra..if not..Normal ver.
*
The LP series also has better cooling, lotsa extra memory tweaking options, better components and some other stuff
The difference in OCing capabilities shouldnt be big, but i doubt it'll be the same

This post has been edited by KilJim: Apr 15 2006, 03:10 PM
magiara
post Apr 15 2006, 03:34 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


wat's the different between infinity and lanparty? icon_question.gif
wanna try DFI tough wink.gif
jsnkok
post Apr 15 2006, 03:57 PM

Casual
***
Junior Member
343 posts

Joined: Apr 2005
From: Kajang
QUOTE(magiara @ Apr 15 2006, 03:34 PM)
wat's the different between infinity and lanparty? icon_question.gif
wanna try DFI tough wink.gif
*
your question was answered in the previous post....
magiara
post Apr 16 2006, 12:42 AM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


so if i'm not looking for SLi which DFI will be a good choice?budget RM 500.

with Ultra, can i use sata but not sata2? icon_question.gif
remysix
post Apr 16 2006, 01:42 AM

Hardcore Leecher!!!
******
Senior Member
1,311 posts

Joined: Jan 2003
From: Puchong/Deep Beach


QUOTE(magiara @ Apr 16 2006, 12:42 AM)
so if i'm not looking for SLi which DFI will be a good choice?budget RM 500.

with Ultra, can i use sata but not sata2? icon_question.gif
*
it's backward compatible...so no prob with u using the plain sata...i just love my nf4 ultra-d...damn gr8 feature for oc thumbup.gif
magiara
post Apr 16 2006, 03:02 AM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(remysix @ Apr 16 2006, 01:42 AM)
it's backward compatible...so no prob with u using the plain sata...i just love my nf4 ultra-d...damn gr8 feature for oc thumbup.gif
*
ic cool so no problem with using sata hdd with sata2 mobo?

how much u bought ur mobo? i'm planning to get a lan party series soon
should be same as urs kua..
same from the bulk by antonio_zth selling rm 600
KilJim
post Apr 16 2006, 04:27 AM

^-_-^ ZzzZzZzZzzz....
Group Icon
Elite
4,406 posts

Joined: Jan 2003
From: Singapore



QUOTE(magiara @ Apr 16 2006, 03:02 AM)
ic cool so no problem with using sata hdd with sata2 mobo?

how much u bought ur mobo? i'm planning to get a lan party series soon
should be same as urs kua..
same from the bulk by antonio_zth selling rm 600
*
Yes SATA2 is backward compatible
It'll work fine with SATA hdds
kulus
post Apr 16 2006, 01:12 PM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



QUOTE(magiara @ Apr 16 2006, 03:02 AM)
ic cool so no problem with using sata hdd with sata2 mobo?

how much u bought ur mobo? i'm planning to get a lan party series soon
should be same as urs kua..
same from the bulk by antonio_zth selling rm 600
*
u say ur budget only RM 500..ultra D price is RM 600 sweat.gif

stricly go for infinity board la thumbup.gif
PowerHouse
post Apr 20 2006, 01:37 PM

Getting Started
**
Junior Member
237 posts

Joined: Nov 2005
From: Kuching...


Dfi infinity ultra mobo is good.i'm using now.oc up tp 300 no prob.
magiara
post Apr 21 2006, 11:56 AM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(kulus @ Apr 16 2006, 01:12 PM)
u say ur budget only RM 500..ultra D price is RM 600  sweat.gif

stricly go for infinity board la  thumbup.gif
*
i'm going for dfi lanparty ut sli-d
nakata101
post Apr 25 2006, 07:03 AM

*******(PES&WE)******* Play Like Champion
*******
Senior Member
2,423 posts

Joined: Jan 2003
From: Alor Star & Changlun


QUOTE(magiara @ Apr 21 2006, 11:56 AM)
i'm going for dfi lanparty ut sli-d
*
Bro... ur Jetway 939 GT4-SLi-G-OC sold already ar??
Hope u will got better oc score if get better mobo loh... biggrin.gif

magiara
post Apr 25 2006, 12:13 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(nakata101 @ Apr 25 2006, 07:03 AM)
Bro... ur Jetway 939 GT4-SLi-G-OC sold already ar??
Hope u will got better oc score if get better mobo loh...  biggrin.gif
*
not haven't sell it
nakata101
post Apr 25 2006, 05:26 PM

*******(PES&WE)******* Play Like Champion
*******
Senior Member
2,423 posts

Joined: Jan 2003
From: Alor Star & Changlun


Ok, here is my Venice 3200+ OC result

-AMD64 3200+ Venice (270x10=2700MHz, 1.500v, Stock fan) STEPPING : LBBWE 0607FPBW
-2x256MB KVR (2.5-3-3-7, 2T, 2.6v)

user posted image


kingmaker_20
post Apr 26 2006, 12:55 AM

" t3H 1337(tm)"
*******
Senior Member
3,159 posts

Joined: Dec 2004
From: >Taiping,Perak<



QUOTE(magiara @ Apr 21 2006, 11:56 AM)
i'm going for dfi lanparty ut sli-d
*
I'd say it's a good board from my experience. biggrin.gif
nakata101
post Apr 26 2006, 12:27 PM

*******(PES&WE)******* Play Like Champion
*******
Senior Member
2,423 posts

Joined: Jan 2003
From: Alor Star & Changlun


QUOTE(nakata101 @ Apr 25 2006, 05:26 PM)
Ok, here is my Venice 3200+ OC result

-AMD64 3200 @ 2.7ghz + Venice (270x10=2700MHz, 1.500v, Stock fan)  STEPPING : LBBWE 0607FPBW
-2x256MB KVR (2.5-3-3-7, 2T, 2.6v)

user posted image
*
I m still cant c my name inside the ranking list.. is that i miss something ??
magiara
post Apr 26 2006, 04:24 PM

Legend
******
Senior Member
1,599 posts

Joined: Nov 2004
From: Puchong


QUOTE(kingmaker_20 @ Apr 26 2006, 12:55 AM)
I'd say it's a good board from my experience. biggrin.gif
*
hope i can oc even higher after got it! drool.gif

QUOTE(nakata101 @ Apr 26 2006, 12:27 PM)
I m still cant c my name inside the ranking list.. is that i miss something ??
*
chill dude, give soulfly some time to update it
TSsoulfly
post Apr 26 2006, 05:51 PM

revving towards 10,000 rpm
Group Icon
VIP
15,894 posts

Joined: Jan 2003
From: Miri



why not sabar one? i'm not a bot
nakata101
post Apr 26 2006, 08:38 PM

*******(PES&WE)******* Play Like Champion
*******
Senior Member
2,423 posts

Joined: Jan 2003
From: Alor Star & Changlun


QUOTE(soulfly @ Apr 26 2006, 05:51 PM)
why not sabar one? i'm not a bot
*
Sry... blush.gif .... just worry is that i miss something out there... biggrin.gif
amok
post Apr 27 2006, 12:16 PM

schhhhwwiiiiiiinggggggg
Group Icon
Elite
739 posts

Joined: Jan 2003
From: Macau?



errr.. my latest result:

CPU : AMD OPTERON 144 : CAB2E 0602GPAW
BIOS Set Vcore : 1.45V
BIOS Set Vdimm: 2.8 V
Mobo: DFI NF4 DAGF/INFINITY
Cooling : Watercooled (Swiftech MCW6002 + Nirox P2800 + Bulkhy Rad)
RAM : 2 x 512M KVR3200 DT-D43 : 2.5-4-3-8 (1CL) Dual Channel
The rest in my sig.

user posted image

Now playing around till can get a new PSU.. sweat.gif
redbull_y2k
post Apr 27 2006, 01:16 PM

"Viva La Revolucion!"
******
Senior Member
1,469 posts

Joined: Jan 2003
From: YOU.ESS.JAY



uish amok..... 366 HTT?! shocking.gif
kulus
post Apr 27 2006, 04:28 PM

|||||||||||
*****
Senior Member
904 posts

Joined: Jan 2003
From: Trg / Jay Bee



QUOTE(redbull_y2k @ Apr 27 2006, 01:16 PM)
uish amok..... 366 HTT?!  shocking.gif
*
yeahh..now everyone open their eye..

not only ultra D can do good job for overclocking..

infinity board also can icon_idea.gif
Penjejak awan
post Apr 28 2006, 04:20 PM

Getting Started
**
Junior Member
206 posts

Joined: Aug 2005
From: selangor



Amok large prime fft for ram ok tak??
amok
post May 2 2006, 08:10 PM

schhhhwwiiiiiiinggggggg
Group Icon
Elite
739 posts

Joined: Jan 2003
From: Macau?



QUOTE(Penjejak awan @ Apr 28 2006, 04:20 PM)
Amok large prime fft for ram ok tak??
*
yup so far no prob running small fft (cpu) and large fft(rams) for more that 12 hrs... no screenies though lazy nak mampus... my rams maxed out at 247MHz, it's oni a pair of KVR DT-D43 but.... running with dividers!!! (which is rare).
camedemac
post May 3 2006, 12:03 AM

Newbie
*****
Senior Member
954 posts

Joined: Aug 2005
From: Ampang Kg. Pandan Status: Idle



want to ask some question...

when i do some prime using sp2004, nothing shows at the CPU speed..!! for example show 1800MHz FSB : 200 [200 x 9]

could anyone tell me whats the problem??

i'm using
AMD 3000+ venice E3
Winfast NF4K8AC
RAM DT-D43 256*2

thanx

This post has been edited by camedemac: May 3 2006, 12:04 AM
tAmp0i
post May 3 2006, 10:35 AM

The name is Poi
*******
Senior Member
2,806 posts

Joined: Jan 2003
From: Miri



QUOTE(tAmp0i @ Apr 13 2006, 06:57 PM)
Joining the league...

Opteron 146 [CAB2E 0540FPMW] @ 3.0GHz [300x10], 1.45v + 104%
DFI LP UT nF4 Ultra-D
2x 256MB Kingston HyperX PC3200 @ 250MHz [2.0-2-5-2], 3.2v
OCZ PowerStream 520Watt

Fanless room, non-aircond
*
Did i miss out anything? rolleyes.gif
