Thanks for sharing, good to share and exchange knowledge.

OAE = Screw Driven = WORM Drive in engineering term, there are good and bad for WORM and planetary/Epicyclic gearing.  WORM have seaf breaking (non-reversibility), Planetary required breaking gears/shaft to prevent the gate push open.

Given the same build and quality both will last long. Correct me if I am wrong, during my search for autogate I find the DC motor will be harder to fit in smaller gate like 10' gate, putting the DC motor may take up more space, and actually the submerge/arm version will be better.

In terms of pricing for spare parts, it also have to consider how much the dealers are selling too. ARM-type usually forced to replace the whole arm unit due to the complexity and non serviceable parts. For RM 250 most probably to get you a recondition arm type motor, RM 400 I would believe is a brand new arm type. But that's the price for one arm. Normal swing/fold system have two arms. If both arm break-down, is double the price you mention.

Compared with DCMoto/Casa Asia using planetary gearbox. It's like staged modular gearbox. Parts are replaceable, doesn't force the owner to have the complete motor system to be replaced! Usual parts that wears out is the main gear reducer. Probably last 3-5 years before it require replacement. For your information, I've never replace a complete DCMoto motor system to date! What If the DCMoto/Casa Asia faulty is just a few piece of gears which can be replaced probably around rm 100 or less for each side, you wouldn't have to force yourself replace the whole motor system.

If you're worried about unable to find spare parts for DCMoto/Casa Asia, you can always log in to their website & contact them. They will assist you on getting the spare parts. I've haven't heard of hard to get spare parts from them.

The reason DCMoto customized their circuit board is to make it perfect for customer demand for safety, reliability, featured-wise and smoothness. DCMoto has been coming up with generation of circuit board to fine-tune it. Have you seen a auto-gate system circuit board that is pure plug-play? Any ARM-type system requires you to adjust the sensitivity of the arm forcing to push/pull the gate. DCMoto/Casa Asia doesn't need that, wire up the motor cable, power up and let it "LEARN" the first time for auto calibration. Since it runs on programmed digital timing, it will never go wrong with the gate movement.

After reading the professional comment and information from Jimmy, I will give DC a try if I'm allow to choose again.
Because i will extend my gate from now 10" to future 14", if the arm block the folding by 1" then i will remain 12" only after the gate open. Which i think is a main concern for me.
If your gate is 20" wide, then waste of 2" to you is nothing. But for my small house, 14" is the max i can give to my gate.

jimmylim85 oor anyone else, a bit of advice plz,err can casa asia/dcmoto/MAG gates have all the below?

adjustable hinges

3 point support wif strong arm

wider gate opening
n why is there a need for adjustable hinges?
are there other trackless gate systems for sale besides unigate?i'm quite worried about the sinking tracks n d gate bearings jumping out

at d same time,can u also take some time to answer my prev questions -)
thanx

After reading the professional comment and information from Jimmy, I will give DC a try if I'm allow to choose again.
Because i will extend my gate from now 10" to future 14", if the arm block the folding by 1" then i will remain 12" only after the gate open. Which i think is a main concern for me.
If your gate is 20" wide, then waste of 2" to you is nothing. But for my small house, 14" is the max i can give to my gate.

Your gate in inches or feet? Arm or DC motor you still block. When I check few installer DC moto actually larger foot print than arm. Well at least for my case with oae is smaller footprint.

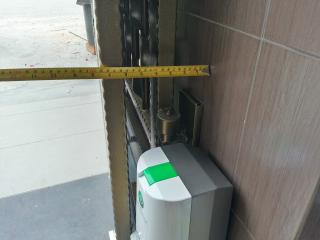

Comparison of space required between OAE and DCMoto 925W

OAE space required.



GFM 925W space required

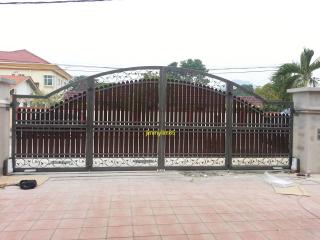

GFM 925W maximum opening gap

Above hinges and bearing adjustable. It can be done by any iron gate obtaining this type of bearing and hinges mount. Nothing to do with DCMoto or Casa Asia.

You shouldn't worry about track-guide folding gate sinking, you should be more worried that UniGate will sink cause is trackless and sole-dependent on the your pillar for weight support.

I will response to your question bit by bit. No worries

Is is true for OAE folding gate system, only have the function to open both gate at the same time and 1 side [either left or right] only? Even the control board install inside the house also only have 2 buttons.

Is is true for OAE folding gate system, only have the function to open both gate at the same time and 1 side [either left or right] only? Even the control board install inside the house also only have 2 buttons.

All depend on the circuit board. 2 buttons can also open right or left. Pressing the same button longer will open the other side.

lol right,but wad is d purpose of adjustable hinges?
so any gate supplier can use those 3 point bearings upon request?how much generally to do that?

So, can set by the installer? strange coz when I ask the installer, he said only can choose right or left only. so he set to open both side and right side..no way to open left side only . The brand don't have that option he said.

So, can set by the installer? strange coz when I ask the installer, he said only can choose right or left only. so he set to open both side and right side..no way to open left side only . The brand don't have that option he said.

If you're board is NX12 as I mention, then you just buy 4 channel remote control will do. Programmed into the motherboard and you can have the ability of controlling left, right, both and pillar light.

I will grab a picture on how the board look like.

And for weikee, whats the point of having two button remote able to control left and right but missing the pillar light control function.

Will try the method. thanks....as for the motherboard, not sure the series. Your picture might help a lot. thanks

Adjustable hinges, is only applied during initial installation of the gate. There is bound to have flaw in measurement from your gate or else pillar to pillar length. Your masonry contractor might built pillar to pillar length of example, 16' feet. But it will never be 100% precise right? Your gate will always be manufacture smaller than 16'. The reason for the adjustable hinges is to compensate the gap difference. Once is hooked up, is no more in use for the adjustable hinges  Simplified meaning, usefull during initial installation, afterward is useless.

Usually nobody uses 3 point hinges, it seems there is no bearing applied since is so small size. Ordinary folding gate uses bearing hinges to minimize wear and tear and gap-less for smooth swinging.
