so crankset - 52-42-30 --bout size length 170mm? can fit most BB rite?
w/o FD & shifter. means how to change front gear during ride?

wat if. - change crankset -rm70 assume can fit my bb no extra etc
then FD & shifter -rm100
cable housing RM40? so total will be around RM200 = 18speed ../(52t is the most thing i want)
------retain my current 6 speed freewheel cassette
bout cassette -they re 2 type rite? if >9speed -need to change hub?

This post has been edited by radiohead: Oct 30 2014, 10:51 AM

step down ur foot,and get dirty fingers by pick the chain and put what crank u want to use.i used sora 175mm and still good.this is normal bb cranks and can fit almost all folding bike accept dahon clinch that use bb30

shifter come in pair,its hard to find that sell in separate.u need to consider also fd hanger to fit the fd unless u make a hanger urself by welding it

oh ya,
dont forget to get a new chain to support the bigger crank!

yap,below 8 speed are skrew in type of cassette.unless u can find wheelset cheap cheap...


try to see it clearly.front bike is my dahon vybe and at the back is dahon speed p8
see my crank,no fd coz a bit tight to put hanger for the fd

to tell u the truth,in budget consideration just change the crank only lah without fd and shifter.simple and save cost.the draw back is u need to stop and dirty ur hand to pickup the chain to change what size u want.thats all

nice dahon...
---bout cassette roll/screw/freewheel(sama kan?) type : found these >
http://www.bicyclebuysell.com/item/214969/...imited-free-pos

http://www.bicyclebuysell.com/item/254079/...-34t-screw-type --
so dont need to change hub?..
chain - 52T kmc - rm70. RD 8/9speed - rm70..
.... i think bout RM400 can get so many speed/gear ratio all u wan...ahaha 24speed karatz bike
alamak new trinx/amis/trs? 16speed is bout RM900-1000 ... xds/java -another rm300-500 , while all those dahon tern khs another ribu-ribu ringgits....ribu-ribu bike while parking during touring small town - hilang stolen, can lipat summore.. habess la i...

This post has been edited by radiohead: Oct 30 2014, 01:21 PM

freewheel = screw. we call it cogset. usually 5,6,7,8 gears

cassette usually means those freehubs. 8,9,10 gears.

on rare occasion we can also find 9-gear freewheels, but those comes in limited quantities. no quite advisable to use these though as it might not fit your existing frame.

anyway that 13-34T 8-speed seems like good gearing. progressive. now only need a strong pair of legs to maximise it.

got lah, depending on where u buy it from. online sites like aliexpress ebay taobao also got sell separately.

kan banyak daun2 kat tepi jalan tu.... use the daun lapik between the fingers, tadaa.... clean fingers after changing the chain... .

This post has been edited by andrewhtf: Oct 30 2014, 02:26 PM

now pepatah melayu always said
tepuk dada
tnya selera

got money then go the upgrades u want.no problemo! bydaway, u can get new 6speed alluminium folding with those budget also depends on ur valuable and memorable bike lah

couldnt agree more on you bro!

i will upgrade the crank 1st and later with cassette if i were u radiohead... if u got crank size 30t why bother want the casette size 34t?want to climb a coconut tree ka

holy crap ... this is the new dahon dash p18 ..... tht we'll get ?




those who have the earlier white models... will be able to sell at very good price....

What is that roller thing at the back for?

6-7sp is not enuf . just like my current bike. i ll ride santai but sometimes needs speed la..climbing little bit like botanic taman shah alam, etc. so 16sp is my aim. then i ll try uprade the front part 1st.
crankset - 44/32/22 - aso got nice deal - but more concern with bb (length/seal bering/square tape- all dat ). most cheap one dont sell with bb. If use my current BB can fit new crank with 3 chain ka? current are single chain only

FD if i gonna use 3 chain crankset - need FD with 3x (like below - 3x9speed)? or just can use any- http://www.bicyclebuysell.com/item/261910/...-derailleur-3x9

my bike https://www.facebook.com/photo.php?fbid=102...&type=1&theater

clamp - which one do u think?

This post has been edited by radiohead: Oct 31 2014, 10:46 AM

its for rolling purpose like trolley.fold and roll

must ask 1st is the bb come in package.usually in one package.usually all bb in stdt size.my friend already change the crank without change the bb.unless the crank stated different sized of bb..

44/32/22 are not the best ratio for folding bike IMHO,my old mongoose bike also used that ratio but i change it to 52/39 and its good!but if u indeed purpose ur fb as cadence machine,so can use that ratio.will pedal like cartoon lah...

for good upgrades,
the fd i think u need to get 3x10 better lah.no need to buy again when u already on 10speed

Before you all go jumping into the triple crank, I think I better explain the complexities. The normal triple for foldie is road bike type which is 52.42.30T and not the MTB chainring.

When you buy triple crank , especially from the guy posted up there, don't get the Truvativ ones, he has other 2 types which are square tapered ones. The square tapered ones fits directly into most existing bottom brackets. If you insist on the Truvativ one, buy the bottom bracket as well. I think he has ordered. This guy charges you RM20 for courier but the charges are always less than RM10. So, negotiate before hand. The other 2 brands, Prowell and another chinese branded ones are also OK larr! The Truvativ uses the power spline BB which is now not in production but there are still stocks here and there.

Also it is better to use double crank though. The gear inches for a triple is 94.54 inches ( if you use the 11T at the rear) to 18.75 inches (if you use 32T at the rear). Whilst if you use double chainring the gear inches will range from 94.54 inches to 24.37 inches which is 6 inches less than a triple. The advantage is immense though if you use a double as the shifting is smoother than a triple. If you insist on a triple chainring, you HAVE to get the FD adapter similar to the Lite Pro type. The other type as use by Java bikes (the rectangular type) is unable to shift properly. Also for a triple you need either a longer spindle BB eg. 126mm or at least 122 mm which is hard to come by. This is because the adapter with the FD range is limited. Either that or get the Token spacers and add accordingly.

Also when you fit in the triple, when the granny gear is in use (the smallest chainring), the last four settings on the rear cassette is not usable. Means you can only use the last 4 or 6 (depending on how many speed your RD is). This is because the chain will sag ( londeh!) You cannot shorten anymore as well because the big chainring with the largest cassette setting needs a longer chain. This is because the chain stay of a foldie is not as long as the normal sized bike. Also you will need a long caged RD, I use them and at the last setting the pulley is about 2 inches from the ground but at this setting we are riding slow anyway so no danger there. Also if you use 2.0 tires (like the Big Apple) , the pulley is already touching the tires. I use a 1.75 inch Maxxis , so it is OK.

Anyway, you will improve when you ride a lot. So, just be patient and keep on riding. The granny gear on my bike is redundant anyway and is never engaged at all nowadays as the middle ring is sufficient to even ride up to Fraser's Hill. This is 42T and if the bike was a 39T second ring, it will even be much more easier. So, my suggestion, double is more than enough. If a double is still hard to pedal, you can switch to a compact crank later which is 50/34 T.

The pulley at the lowest settings using long cage. The chain needs to be adjusted in length carefully.



The sagging chain when granny gear is used. The last smallest cogs are not usable but the same ratios are also found using the middle ring.



The pulley at the largest cog, very near the tires and 2.0 inch tires like Big Apple are not usble!

tq uncle. triple setup with londeh lagi.. so better i pick double with 53/39 ..52/42...not many used/cheapos at bbs. 53/39 dahon part rm120 need to change bb. sora 50/34 new is rm250 with bb..better climber..but extra $$

Hi guys,

newbie to the foldie world. so far i'm pretty contented with my humble 16" TRS spirit. any TRS owner or ex owner here? any pertinent advice?

maybe looking to upgrade soon. but for now i shall stick with my humble one till i increase my cycling cadence and familiarise myself with the mechanics of a foldie.


This post has been edited by moonflower89: Nov 1 2014, 03:29 PM

sifu etige come out of retirement...

This post has been edited by H2D: Nov 1 2014, 03:57 PM

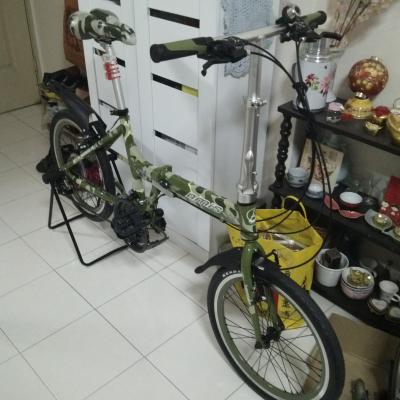

Hand itchy. So bought Amis Folding Bike - 21speed

As usual, words of wisdom from sifu etigge are priceless gems!

well said from sifu,i need to open dictionary before answer here.my english grammer are bad

nice. 21sp. triple crank ratio? saw these at MK klang,it s bout rm800. how much did it cost u? shop where?

sifu dato come out of pencen becoz of me ka? haha. he help me thru PM anyway.tq

you sold off your raleigh already?

triple crack yup. This one is RM700 from Attaque Damansara Perdana (previously known as Folding Bike Trading)

Frame is lifetime warranty.

yeah.. sold off already
