First, I advice you to update BIOS to F5 (and Owi observation).
Your DC has similar voltage as my.What is batch number?

Btw,

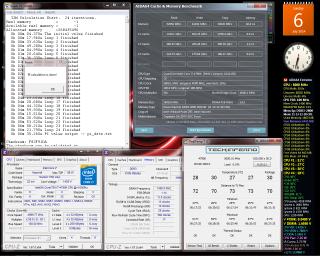

fast bench....i7-4790K @ 5.0 GHz ,DDR3-2800 SPI32M




Attached thumbnail(s)

5.0 GHz!!! @@ that's the awesomeness that I have been looking for. Well done man!

btw, is it 3D stable?

Well,for 3D probably I need more juice.....will try tonight.
Anyway,booting 5GHz with 1.385V...but not benchable.....






Attached thumbnail(s)

Let's say if you put 1.5v on it, will it be benchable on 3D without thermal throttling?

I think arround 1.45V will be OK.

Edit:

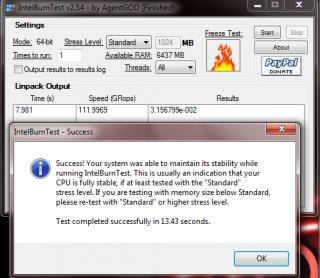

Just fast test with original IBT 2.54 and LinX 0.6.5 @ 4.7GHz.
LinX is hotter 4C (has newer Linpack)

This post has been edited by stasio: Jul 8 2014, 10:46 AM


Attached thumbnail(s)

Is that related to memory timing? I'll retest again later tonight.

Thank you. I'll get the bios updated soon. Proc batch num start with L4.
Btw. Now its stable at 4.8g @ 1.26 vcore... overclocking seems to be very complicated these day... my last system was a soc 939.

Nope. That IBT you used doesn't have AVX library to utilize the feature that comes with the 4790K.

Is it worth to upgrade frm z87 to z97?
More improvement upon overclocking?

Interesting comparison......4770K 4.0GHz (Auto) with memory XMP enabled and
4790K 4.0GHz (Auto) with memory XMP enabled.

4770K 4.0GHz @ 1.140V (Auto)....LinX @ 86C



4790K 4.0GHz @ 1.060V (Auto)....LinX @ 68C



Note:

LinX 0.6.5 (Original)

-temp......79-80C
-GFlops....~125

LinX 0.6.5 (latest Linpack)

-temp......84-85C
-GFlops....~185




This post has been edited by stasio: Jul 8 2014, 09:35 PM

Stasio
Think its ure z97 board rather than a cpu issue.

Hmm ure 5ghz sp32m is like close to a 4.5ghz sp32m.

Mem subtiming etc??

Memory not trim yet....

generally a lot of quick benches out there on z97.. all slower the z87.
but i dont think its a cpu thing but rather a mobo bios thing..

slower wprime.. one guy posted in ocn his 5ghz.. thats like my 4.7ghz.
way lower 3dmark physx etc...

are we seeing a another foxconn mars magic here.

i tried as of today 3 cpus. all can bench 4.7ghz @ 1.225v. None will do 4.8ghz wprime 1024.

This post has been edited by cstkl1: Jul 8 2014, 11:32 PM

Solve the issue by installing sp1 on win7. Now ibt gflops pretty much the same as what you guys posted.

Now linx run throw 101&124 bsod @ 4.8Ghz (vcore range from 1.26~1.41) temp hit 99~ 100c in 2 sec, it seems like corsair h105 unable to keep up with the heat generated and also random power cut off/trip from the corsair psu.

Ibt stable at 4.8ghz by feeding 1.26~1.27 vcore. But temp running dangerously high @80~98c for a water cooled cpu.

I started slow this time.

i5 4690K @ 4.6GHz | G.Skill TridentX 2666C10 @ 2800MHz 9-12-12-25-1T







This post has been edited by owikh84: Jul 10 2014, 04:38 PM

This post has been edited by cstkl1: Jul 10 2014, 07:56 PM

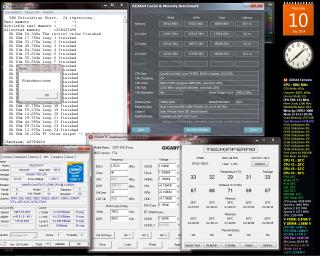

i7 4790K @ 5.0GHz @ 1.430V | G.Skill TridentX 2933C12 @ 3000C12 MHz | SPI32M

Just looking for 24/7 setting

This post has been edited by stasio: Jul 10 2014, 04:06 PM


Attached thumbnail(s)

i7-4790K @ 5Ghz test.

Prime95 wiht avx support - small FFT run , throttle down speed as it reach 100c within few sec. Super pi single thread test ok but it's meaning less as cpu utilization didn't even hit 100%. IBT crash, Linx crash. funny thing is, I could now play diablo 3 ros @ 5ghz without any problem !

I think the culprit could be AVX instruction screwing up thing by over volting the cpu during benches with avx instruction support such as IBT, prime95 and linx.

pic as below

running


completed

Prime95 & LinX are badly coded like Watch Dog game?

lol i'm not a avid gamer, just some casual t5-t6 run in ROS with my buddies. Most of the time I'll be using photoshop and some browsing.

Anyway I'm not saying it's badly coded from info I gathered around oc forum, most people have issue with stress software such as ibt/linpack/prime v27 or later as these stress software throw unrealistic avx testing on the CPU which cause vcore and temp spike which lead to system crash.

I have yet to see any 5g screenie of i7-4790k which is linx or ibt stable. mostly only super pi

This post has been edited by nicotine: Jul 11 2014, 02:54 PM

bro, you need to delid it
