Haswell, Devil's Canyon, Pentium G3258 OC V1, 4790K/4760K/4770K/4670K/G3258 | LGA1150
|
|
 Sep 18 2013, 09:00 PM
Return to original view | Post
#1
|

Senior Member
2,471 posts Joined: Jan 2003
|
i4670k overclocked to 4.2g with 1.175v, run LinX 11.1 reach max temperature 88degC, is it normal? btw, cooler is noctua d14 with dual 12mm fan
This post has been edited by gsan: Sep 18 2013, 09:00 PM |
|
|
|
|
|
Sep 19 2013, 10:34 AM
Return to original view | Post
#2
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(OC4/3 @ Sep 18 2013, 11:09 PM) Normal i guess my bro's rig running 4.3g at 1.215v with same cooler but temperature is lower alot... does haswell run hotter than sandy? As long as your temperature under load is below TJ max you are fine   |
|
|
Sep 20 2013, 09:56 PM
Return to original view | Post
#3
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
anyone of you delid haswell before? how are u guys going to mount the heatsink on top of the bare chip? since without the IHS, the heatsink might not able to contact with the chip
|
|
|
Sep 21 2013, 01:22 AM
Return to original view | Post
#4
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
not really much time spending on it, but this is what I got so far, i4670k overclocked to 4.4GHz @ 1.2v, 1066 @ 10-11-10-27 at 1.6v
Attached thumbnail(s)
|
|
|
Sep 21 2013, 05:07 PM
Return to original view | Post
#5
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 21 2013, 09:42 AM) Nice attempt. Pls use a newer Prime95 to stress Haswell correctly. Add oil bro. I'm using 32bit win7 sp1, prime95 v27.9 is the latest version. |
|
|
Sep 22 2013, 07:07 PM
Return to original view | Post
#6
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
is my GFlops correct?
Intel® LINPACK 32-bit data - LinX 0.6.5 Current date/time: Sat Sep 21 19:03:54 2013 CPU frequency: 4.399 GHz Number of CPUs: 1 Number of cores: 4 Number of threads: 4 Parameters are set to: Number of tests: 1 Number of equations to solve (problem size) : 14135 Leading dimension of array : 14136 Number of trials to run : 5 Data alignment value (in Kbytes) : 4 Maximum memory requested that can be used=1598785696, at the size=14135 =================== Timing linear equation system solver =================== Size LDA Align. Time(s) GFlops Residual Residual(norm) Check 14135 14136 4 17.351 108.5324 1.220499e-010 2.160259e-002 pass 14135 14136 4 17.325 108.6989 1.220499e-010 2.160259e-002 pass 14135 14136 4 17.325 108.6992 1.220499e-010 2.160259e-002 pass 14135 14136 4 17.320 108.7296 1.220499e-010 2.160259e-002 pass 14135 14136 4 17.295 108.8868 1.220499e-010 2.160259e-002 pass Performance Summary (GFlops) Size LDA Align. Average Maximal 14135 14136 4 108.7094 108.8868 Residual checks PASSED End of tests |
|
|
|
|
|
Sep 24 2013, 11:36 PM
Return to original view | Post
#7
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(stasio @ Sep 23 2013, 03:50 PM) ^Bro,your GFlops is very low..... is it due to 32bit OS ?  Something is wrong....my is 215 GFlops with 4400Mhz.  Btw, GA-Z87X-OC - BIOS X05 |
|
|
Sep 25 2013, 08:42 PM
Return to original view | Post
#8
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 25 2013, 06:30 AM) Supposed to be the same to me. 32-bit is just about the amount of RAM usable in the OS that's capped at ~3.2GB. dont have installation cd for 64bit os You may check with the LinX 0.6.5 in the first post of this thread. Why use 32-bit for 2x8GB?   btw, will upgrade to 64bit os once I got new ssd later |
|
|
Sep 28 2013, 11:33 AM
Return to original view | Post
#9
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
New toy

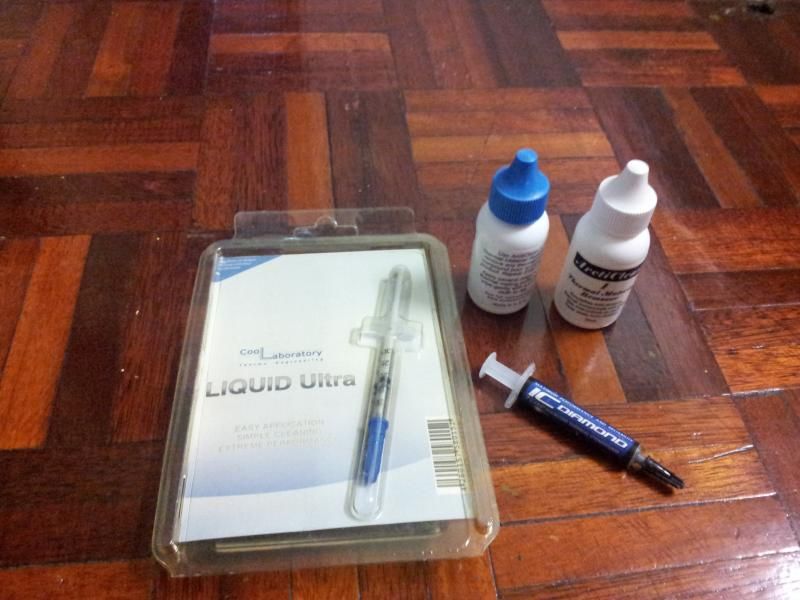

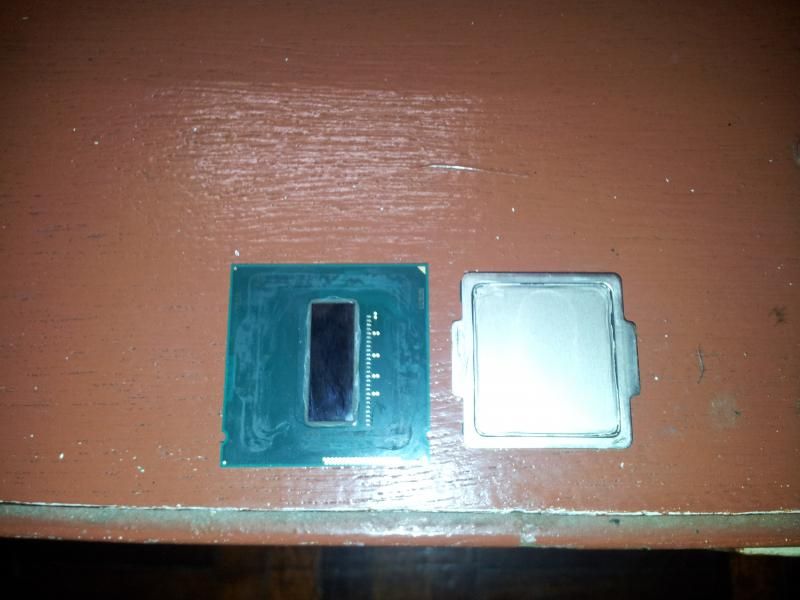

  You know what I'm going to do?   Crappy TIM... Intel RnD EE/ME pls come to comment   Ready for CLU   Before delid + noctual thermal paste, max temperature 87'c  After delid + CLU, max temperature 64'c  |
|
|
Sep 28 2013, 11:40 AM
Return to original view | Post
#10
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
owikh84
you installed your ram at red or black ram slot? on the Hero mobo |
|
|
Sep 28 2013, 11:43 AM
Return to original view | Post
#11
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 28 2013, 11:40 AM) That's a huge drop of temps bro. -23C improvement yo Anyone selling in lowyat forum? Well done mate PS: Liquid Pro sure ~30C drop btw, what do you think HERO compared to Extreme in term of overclocking? there are few tweaking parameters is not available on HERO  |
|
|
Sep 28 2013, 11:57 AM
Return to original view | Post
#12
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 28 2013, 11:50 AM) ASUS recommends to fill in the RED slots first for better overclocking performance. Pls see manual page 1-9 for more details. is there CPU PLL voltage in haswell platform? heard that increase this can reduce vcore [attachmentid=3649987] Nobody selling Pro locally. You have to order from Coolaboratory website like what i did last time for slightly cheaper price than Ultra. Hero doesn't have x-talk cancellation & memory profiles etc because lack of components to do such things. Hero's VRM is weaker thus needing you to pump more vCore to stabilize the OC. eg. Cinebench benchmark: Extreme: 1.4v Hero: 1.44v  |
|
|
Sep 28 2013, 01:47 PM
Return to original view | Post
#13
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
4.5GHz @ 1.26v (bios set 1.25v), 1066 @ 10-11-10-27, 1T
|
|
|
|
|
|
Sep 28 2013, 10:06 PM
Return to original view | Post
#14
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
4.6GHz @ 1.328v (bios set 1.31v), 1066 @ 10-11-10-27, 1T
This post has been edited by gsan: Sep 30 2013, 11:27 PM |
|
|
Sep 28 2013, 10:22 PM
Return to original view | Post
#15
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
actually which stress tool is used for benchmark stability?
LinX run hotter than Prime95 Prime95 required higher vcore than LinX |
|
|
Sep 29 2013, 05:18 PM
Return to original view | Post
#16
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 28 2013, 10:51 PM) Both. will retest again once my rig up with 64bit OS  Newer and latest version is more stressful. Your 32-bit is not really stressing all the memory installed (just 20% out of 16GB stressed). You really need a 64-bit Windows bro.  |
|
|
Sep 30 2013, 09:20 PM
Return to original view | Post
#17
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 30 2013, 08:51 PM) Bro, pls check out my review on Hero HERE when you said failed to detect the ram on red slot, it mean when it overclocked or even at stock cant be detected? Although the Hero User guide manual recommends red slots for mem OC. I find it the other way around. Black slots performs better. Reds are capped at 2800 only, black can go as high as 2933. Reds failed to detect my Samsung rams giving debug code 55 = GG I have faced code 55 before, no matter on a1/b1 or both a1/a2, that's because one of the pin on the socket was bent. but once fixed it back, can boot up as usual |
|
|
Sep 30 2013, 09:25 PM
Return to original view | Post
#18
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 28 2013, 10:51 PM) Both. need higher vcore to prime stable at 64bit OS Newer and latest version is more stressful. Your 32-bit is not really stressing all the memory installed (just 20% out of 16GB stressed). You really need a 64-bit Windows bro. Attached thumbnail(s)
|
|
|
Sep 30 2013, 09:39 PM
Return to original view | Post
#19
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 30 2013, 09:27 PM) On stock clock. Yeah bent socket pin will affect mem OC. my corsair doing 2133 and cant go more no matter how I tweak bios/ram timing or pump more vdimm... will try on black slot later and see if can still push up or not |
|
|
Sep 30 2013, 10:00 PM
Return to original view | Post
#20
|
|
Senior Member
2,471 posts Joined: Jan 2003
|
QUOTE(owikh84 @ Sep 30 2013, 09:52 PM) Your Corsair is what version? Once you know what IC it uses it is easier for you to OC. cant remember, will check again when I try switch the ram to black slot |
