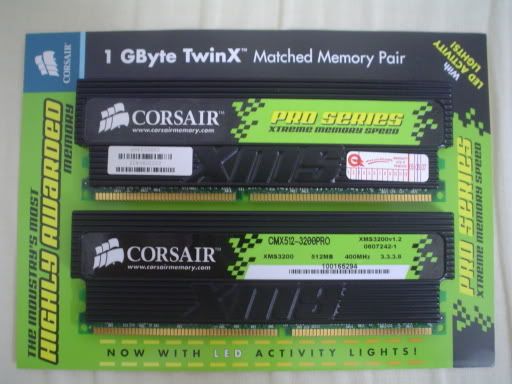

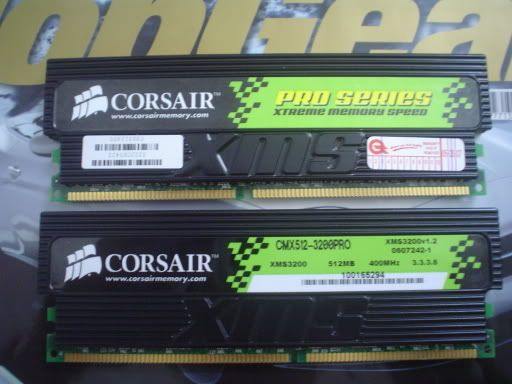

Just brought tis cool ram, wanna overclock it, but lacking knowledge, Overclocked the ram to tight timings better or higher Mhz??? wat is the maximum voltage for tis ram... the ram i buy is not cl or xl version means original timings is 3-3-3-8... i adjusted it to
2-2-3-8 so far so good? any idea to OC tis ram to max? not stable at 2-2-2-7, may i need to increase the voltages? just give me idea...

anyone who owned tis ram, post the results of ur overclocking too....
voltages, timings, Mhz etc.

thnks...

This post has been edited by lichyetan: Dec 31 2005, 07:11 PM

Check this list for what chips your RAM uses

Corsair
XMS-PC2700C2 Rev1.1 (2-3-3-6-1T) --chip--> maybe Winbond BH-6/Samsung TCB3
XMS-PC2700C2 Rev1.2 (2-3-3-6-1T) --chip--> Winbond CH-6
XMS-PC2700C2 Rev1.3 (2-3-3-6-1T) --chip--> Mosel Vitelic (6ns?)
XMS-PC2700C2 Rev2.1 (2-3-3-6-1T) --chip--> Micron (6ns rev B)/Samsung TCB3
XMS-PC2700LL Rev1.1 (2-2-2-6-1T) --chip--> Winbond BH-6
XMS-PC2700LL Rev1.2 (2-2-2-6-1T) --chip--> Winbond CH-6
XMS-PC3000C2 Rev1.1 (2-3-3-6-1T) --chip--> Samsung TCB3/Micron (6ns rev B) and few Winbond BH-6
XMS-PC3000C2 Rev2.1 (2-3-3-6-1T) --chip--> should Winbond BH-6
XMS-PC3200C2 Rev1.0 (2-3-3-6-1T) --chip--> Winbond CH-5
XMS-PC3200C2 Rev1.1/2.1 (2-3-3-6-1T) --chip--> Winbond BH-6
XMS-PC3200C2 Rev1.2/2.2 (2-3-3-6-1T) --chip--> Winbond CH-6
XMS-PC3200C2 Rev1.3 (2-2-2-5-1T) --chip--> Winbond UTT ?
XMS-PC3200C2 Rev1.4 (2-2-2-5-1T) --chip--> Mosel Vitelic 5ns ~ Brainpower PCB
XMS-PC3200C2 Rev1.5 (2-2-2-5-1T) --chip--> Winbond New BH-5 ~ Brainpower PCB
XMS-PC3200C2 Rev1.6 (2-2-2-5-1T) --chip--> Winbond UTT ~ Brainpower PCB
XMS-PC3200C2 Rev1.7 (2-2-2-5-1T) --chip--> Winbond New BH-5\UTT ~ Brainpower PCB ?
XMS-PC3200C2 Rev3.1 (2-3-3-6-1T) --chip--> Infineon B-5
XMS-PC3200C2 Rev4.1 (2-3-3-6-1T) --chip--> Samsung TCCD
XMS-PC3200C2 Rev4.2 (2-3-3-6-1T) --chip--> Samsung TCCD & TCC5
XMS-PC3200C2 Rev4.3 (2-3-3-6-1T) --chip--> Samsung TCCD & TCC5 (Rev. F) ~ Brainpower PCB
XMS-PC3200C2 Rev5.1/6.1 (2-3-3-6-1T) --chip--> Mosel Vitelic 5ns
XMS-PC3200LL Rev1.1/2.1 (2-2-2-6-1T) --chip--> Winbond BH-5
XMS-PC3200LL Rev1.2/2.2 (2-3-2-6-1T) --chip--> Winbond CH-5
XMS-PC3200LL Rev3.1 (2-3-2-6-1T) --chip--> Infineon B-5
XMS-PC3200XL/XLPT Rev1.1 (2-2-2-5-1T) --chip--> Samsung TCCD
XMS-PC3200XL/XLPT Rev1.2 (2-2-2-5-1T) --chip--> Samsung TCCD ~ Brainpower PCB
XMS-PC3500C2 Rev1.1 (2-3-3-7-1T) --chip--> Winbond BH-5
XMS-PC3700 Rev1.1(3-4-4-8-1T) --chip--> Samsung TCCC
XMS-PC4000 Rev1.1 (3-4-4-8-1T) --chip--> Hynix D43
XMS-PC4000 Rev3.1 (3-4-4-8) --chip--> Samsung TCCC
XMS-PC4400 Rev1.1 (3-4-4-8-1T) --chip--> Hynix D5
XMS-PC4400C25 (2.5-4-4-8-1T) --chip--> Samsung TCCD ~ Brainpower PCB

how much you got this ram?

Sorry want to tumpang tanya
How do you check the chipset.
Is it fixed to the version of the ram or there is a software that can check.
Tq

This post has been edited by puvan79: Dec 31 2005, 11:15 PM

ei twinX = XMS?

TwinX is dual channel

XMS is Xtreme Memory Speed

for the chipset the only most accurate way is to head over to house of help forums and ask the RAM GUY..

Got, the corsair website stated down XMS Pro Series, CMX for single channel TwinX for Dual Channel

RM 600

abit confusing la... i know TwinX they come in pairs for dual channel but is TwinX a XMS?

It's either you pry open the heatspeader and take a look at the ram chips, or you can refer to unofficial RAM list compiled by various forumers in overclocking forums.


Corsair's TwinX means that it's a dual channel kit and it's a performance ram series for Corsair. The dual pack Corsair Value Selects are not labelled as TwinX.

you won't need to pry the heatspreaders..

the RAM GUY will let u know the exact chips used on your ram....

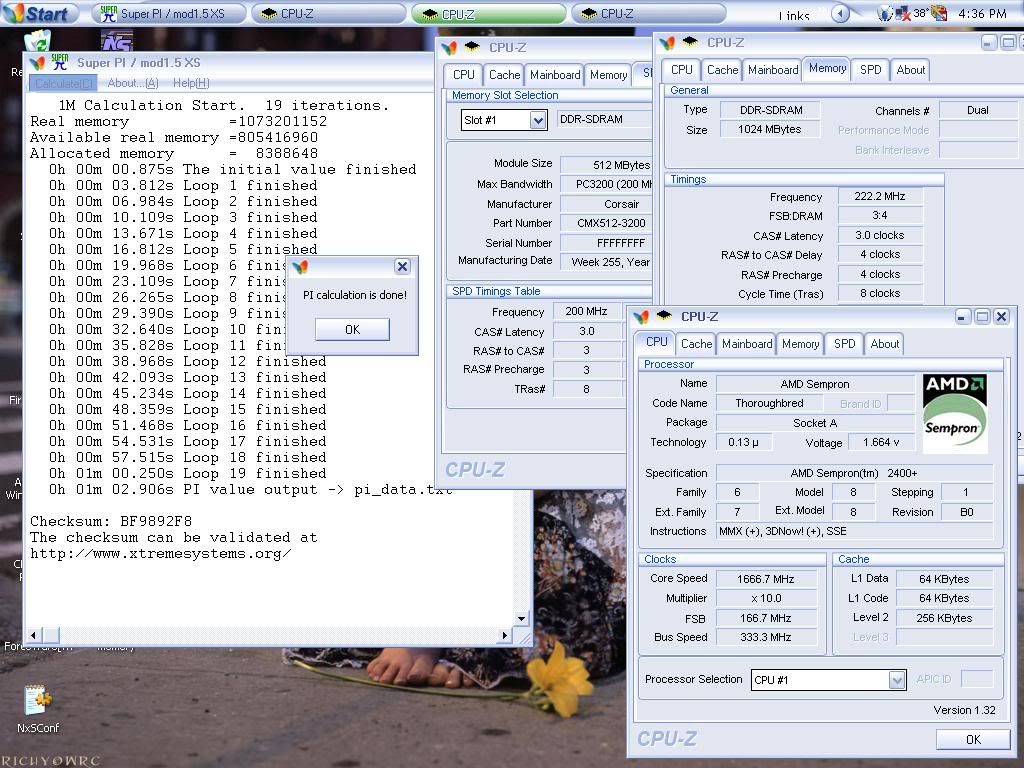

just help my friend testing his 2x512MB XMS3200v1.3 Pro Series 3-3-3-8, able to boot with 2-2-2-6 at 200Mhz.







This post has been edited by gsan: Jan 1 2006, 03:23 AM

gsan, at what vdimm was it?

Mine also the sam ram... 2-2-2-6 nice.

@soulfly
so is TwinX a XMS?

Both TwinX and CMX is XMS.. XMS means Xtream Memory Speed, this is just my opinion after i go through the Corsair Web Site

if i'm not mistaken, its like this

XMS is just the name given to all their Performance series rams (everything other than the Value Selects)
TwinX are simply a pair of XMS rams in a pack, supposedly matching and will run dual channel flawlessly (same batch and stuff)

so, TwinX are indeed XMS rams

err...correct me if i'm mistaken

you're exactly right

then the pro series = performance series?
XMS also is a pro series right?

all xms are performance series, that includes LL,C2,XL.

then, these LL/C2/XL have special type such as Pro and Xpert which has indicators on the heatspeader.

besides using TwinX name, Corsair also use PT code for dual channel kit rams. that includes the Pro and Xpert series.

ie: LLPT, C2PT, XLPT

Sorry noobie here, what or who is the RAM GUY?????

i think the RAM GUY is the person in techpowerup.com

RAM GUY is a spokeperson for Corsair (a nickname)

Ahhhh, thanks. I have been enlightened.
Always something new to learn around here.

oo ic thx anyway for everything about corsair

here's the direct link to the thread

http://www.houseofhelp.com/forums/showthread.php?t=44365

So anyone know wat is the recommended vdimm for the pro series ram? and is it the warranty will be void if i adjusted the voltages.

as far as i know.... Corsair have never recommend user to go beyond rated Vdimm for its product.

but OCZ does allow.... at certain limit of course.

xms ot twinx are warrantied up to 2.9v vdimm

when u buy it? i just buy it at today 1/1/2006.. RM460 only..

This post has been edited by Guriseruda: Jan 3 2006, 10:05 PM

Is this ram good?

CMX512-3200C2PT XMS3202 v5.2 0537038-0 = Promos -5 Rev A

hey, really? 460 only? where you buy it? mine few months ago... urs 1 got LED also?


same as this one as well?


This post has been edited by lichyetan: Jan 2 2006, 08:55 PM

dont be mistaken with the normal XMS with black/platinum heatspreaders, these are the Pro series
but if u really got a pair for RM460 then thats a super price

uhh...what happened to that thread by kucingfight
anyway they're pretty good, something like a cheap TCCD
goes up to around 27X mhz with timings around 2.5-3-3-7 if i remember correctly (no guarantees of course)

This post has been edited by KilJim: Jan 2 2006, 09:15 PM

yap got LED , black XMSpro

ya really RM460 only, did u all want my post up my resit?

woot!
then u got a really good deal there
any overclocking results?
good chance of having some TCCD in there

not try overclock yet.. cause not sure what IC using inside.. &.. not yet sure it can overclock or not.. takut burn.. cause RM460 also not very chep oh.. for me.. so still waithing corsair RAM GUY reply

This post has been edited by Guriseruda: Jan 3 2006, 11:35 AM

take a clear picture of the side of the chips.. should be able to tell you roughly which type of chips they are

mine samsung tccd

where u buy it...
can pm & let me know?

don't PM la.. let everyone know here

sharing is caring..

try playing doom3 in 1& half hR no problem so nice..

Guriseruda,

can do 200 @ 2226 a default voltage?

Correction...

PT = Platinum Heatspreaders (Silver coloured heatspreaders)
LL = Low Latency
C2 = Cas Latency 2
XL = Xtreme Latency for newer batch with TCCD (if i'm not mistaken).
TwinX = Dual Channel Kits eg. 2x256/512/1024MB in 1 pack.

that's what i know of lah

235mhz @ 3-3-3-x isnt really great though

so sad just can 2.3.3.6 only

just try at default voltage set at 250mhz @ 2.5.3.3.7 still can play doom3, super_pi_mod pass at 32m.. donno is good news or bad news

good news hehe

not bad for rm460 lol

not bad what...

go into memtest and see whether u get any errors..

take a picture of the side of the IC.. i'll see which manufacturer it is

where to download the memtest & n how to use it..?

www.memtest.org

need a floppy disk.. make a bootable disk and put the program in

can u teach me stap by stap

don't tell us u don't know how to make bootable floppy

you just need to copy the memtest86 utility into the bootable floppy disc and use it to boot your system.

go to memtest.org and download memtest for DOS

then get a floppy disk.. go to my computer and right click on a:/

choose format.. then on the bottom it should have a box to tick for "create bootable disk"

make it... then extract the program you downloaded from memtest and put the files in the floppy disk..

boot up.. in bios set first bootable to floppy / removable drive then let it run.. it should run automatically

once memtest start up.. press this sequence.. ( C, 1, 3, 5, 0, enter)

let it run for 30min to 45min

really is good news?? some KVR also can do it what..

hmmm but if i'm not mistaken KVR lacks those blings

thanks i go to find A driver 1st.. my pc don have it...

?? what mean??

This post has been edited by Guriseruda: Jan 4 2006, 12:16 AM

i mean those KVR don't have the bling bling LED lights lol

Anyone know wat chipset tis ram using, TwinX1024-3200PRO XMS3200 v1.3 0524137-0 ?

yupp, that's around the average for DT-D43s on KVR

maybe is Samsung -5 TCCD, i just chenck at corsair wedside.. u can go to see http://www.houseofhelp.com/v2/showthread.php?t=44365

>_< just add the led light need to pay more around RM100 something.. sian lo.. i just received the ram guy mail.. u all try to read it.. what there all say......

"Actually, zoalord, you do not have the TWINX1024-3200C2PRO kit. Based on the info on the sticker, you actually have the TWINX1024-3200PRO kit, which is the downbinned version of the TWINX1024-3200C2PRO kit.

What is the difference? It's the way that the modules are binned. If even one stick in an entire production lot of CMX512-3200C2 modules fails Corsair's testing at CAS 2, the entire lot gets downbinned to CAS 3.

Thus, you do not have the kit that's rated to run at 2-3-3-6; you have the kit that should be left at 3-3-3-8.

In this case, trust the sticker on the modules themselves, not CPU-Z."

&

"They are not rated nor guaranteed @ 2-3-3-6, only @ 3-3-3-8. They are warrantied up to, but not over, 2.90 volts."

This post has been edited by Guriseruda: Jan 4 2006, 09:23 AM

there's a few types of corsair memory

C2 are the ones rated to run at 2-3-3-6
these are the non CAS 2 ones at 3-3-3-8

which part don't u understand? =.=

k .. but i try run at 2.3.3.6 no problem oh.. can i keep this setting? will it make my ram spoil?
n can i always keep my setting at 250mhz 2.5.3.3.7?

wat is the current price for this RAM 512MB now?

sure u can keep the setting..2-3-3-6 or 250mhz 2.5-3-3-7 is no problem running it 24/7..if u worry bout heat hook a fan to cool it

im tempted to get this as well..looks good for the price

it's the same as getting a 3-4-4-8 ram and people showing that it can run 2-2-2-5 .. nothing to worry about there..

it's called overclocking

again i say...is not the settings that kill the CPU....it is the voltages that does.....

doing 4 stick together on sli-expert, no problem.
but, juz give me tons of error while memtest.
too fresh, i'll test when i'm free, now let it run on default timing 1st

tumpang tanya

this is mine,CMX512-3200 XMS3200v1.4,may i know what chip is it,if i run 2.5-3-2-6 on memtest86+ 2.75v test 2 oledi tons of error oledi

performance rams can never win good value rams in terms of price/performance
this applies to other hardware and probably everything else in life

u may pay 5 times the price for a Ferarri but its not gonna have a max speed which is 5 times that of a Proton Wira

This post has been edited by KilJim: Jan 4 2006, 11:27 PM

wow, another 4 stick of blink blink...

that is what i'm agree...
if wanna get a value stuff(price/peformance), u can get is the average...
but if u go far, invest tons of money, u taste the top feel.

your 1 maybe is Samsung -5 TCCX chip.. 2.5-3-2-6 only?? really can;t 2.3.3.6 meh?

I also have this blinking corsair

This post has been edited by MX510: Jan 5 2006, 09:32 AM

CMX512-3200Pro arr? can someone help me... what is current market price now?
CarSair too many model, i cannot find in pricelist

u also blink blink wif 4 stick?
let's have a blink blink party..., too bad i dun hv a DC, if not, will show u my blink blink

i believe stock habis liao...

This post has been edited by Westley: Jan 5 2006, 10:20 AM

stock finished arr? cuz i thinking wanna ask fren bring in from taiwan..
so want to know how the current price lor..
is it worth if from taiwan about RM270?

Thank you

the post started claim he get it on 460...
so if bring from taiwan, 1st, must knew what rev it is...
i believe 5.2 and 5.1 many o'cer doesn't want it

then the selling price must be bout rm500...
if over rm600 i'll rather go for a c2 pro than tis c3 pro.

rm270 is what?
1 single stick of 512?
or shipping cost?

2.5-3-2-6 is better than 2-3-3-6
err...at least for Intel as i remember

RM270 for 1stick 512MB
planning to get 2stick... shipping fees arr.. my fren in taiwan coming back to Malaysia in CNY, so he can help me on this..

can u check this link?
http://buy.yahoo.com.tw/gdsale/gdsale.asp?gdid=114536
i dunno wat rev lor

wow, didn't know that there's lots of Pro series user
the LED's are very useful in troubleshooting system

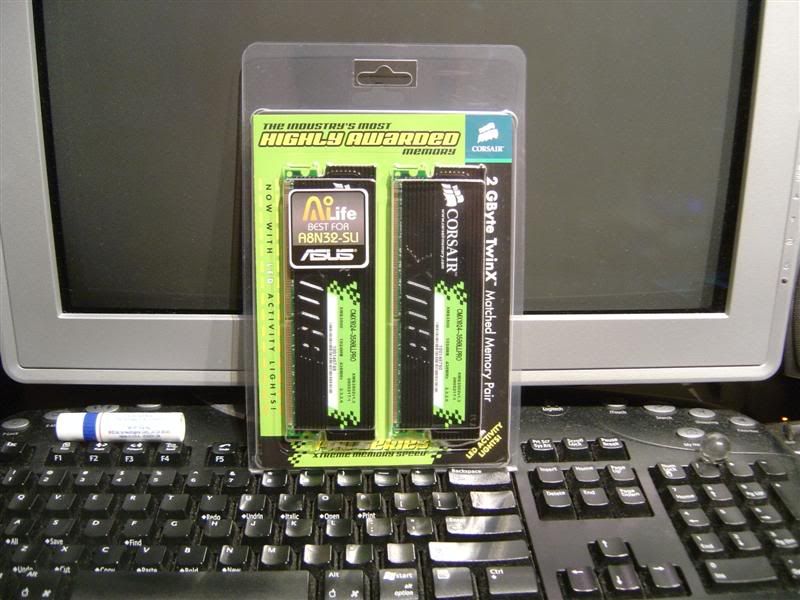

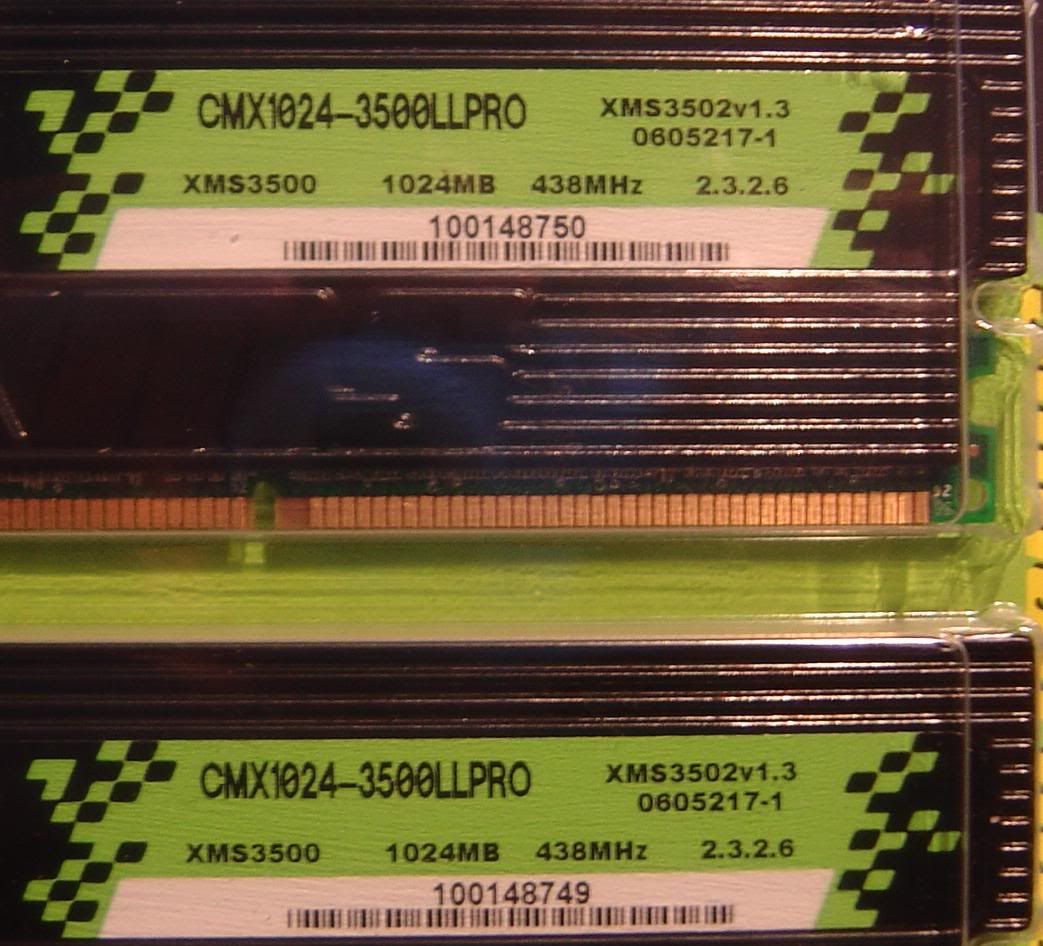

a XL PRo user here

wow! really 460 for 1GB kit for Pro series? damn cheap!


This post has been edited by apexi78: Jan 5 2006, 12:13 PM

still have at lowyat.. but all is version 5.2..

really ?? for intel ah? then i try set it lo to9..
i just received mail from Corsair ram guy.. he say the ram can't reach 260mhz .. so have any body here can reach 260 mhz.. can u post it up .. ? thanks
& can any body tell me . .set at 2.3.3.6 @ 200 mhz or 3.3.3.8@250mhz.. which 1 more faster?

This post has been edited by Guriseruda: Jan 5 2006, 12:25 PM

cyberian
i believe that they do not stated any revision, so it depend on luck.

so u stay in cyberjaya?
if free we go yum char...

i'd go for the 250mhz one
but make sure its running 1T of course

erm... depend on luck arr.. but then is that a good buy?

can arr.. staying cyberia
PM your YM!

intel P4 have 1T setting meh??

Command Per Clock
On = 1T
Off = 2T

thats should be it for your IS7

at where.. i can't find it 1.. ??

Game Acceleration Technology qua...
so long not tuning Abit IS7...
dah forgot

now explore the fun of SLi-Expert

uhh...should be somewhere together with your ram settings
it was there in the AI7 i had last time

think its either Enabled/Disabled (not on/off)

wah so rich.. play SLI . .

k k k try 1st.. thanks for help

remember bring along a knife and then force him to take out his sli-dr expert

walao since when you become.........................
must take all ma,why mobo only

This post has been edited by TT lim: Jan 5 2006, 10:06 PM

ahhah good idea

wah, all my friend, cannot lar...
u all betul betul ganas

can't use la .. donno how 2 use .. can u give more detail?

Game Acceleration= auto
bablalbalblaa = auto
bablalbalblaa = auto
bablalbalblaa = auto
bablalbalblaa = auto

which 1 oh?
don have lansung...
