192.168.1.0/23 is an IP address not a network. The network for 192.168.1.0/23 is 192.168.0.0/23, range is 192.168.0.1-192.168.1.254 (which includes 192.168.0.255 and 192.168.1.0).

If you want 192.168.1.1-192.168.1.254, the correct network is 192.168.1.0/24.

For DNS, just set use-peer-dns=no for your pppoe-client and it won't use TM's DNS.

Sorry... I was wanting to use 192.168.1.1-192.168.2.254 hence the correct network should be 192.168.1.0/23.. Correction in this area. As for the DNS I did untick the use peer dns but it doesn't work.. I'll try again later. Thanks for the reply.. Appreciate your help. But the IP subnetting is giving me some problem.

192.168.1.1-192.168.2.254 is not 192.168.1.0/23. If you want to use that range for DHCP then declare a /22 and then use the said range for your purposes.

Ok boss.. understand what you wanted to present to me.. Gotta go restudy my CIDR.. LOL... And Thanks alot for the guidance..

This post has been edited by seng87: Aug 14 2014, 11:28 AM

You can use 192.168.2.0/23 for 192.168.2.1-.3.254. That'll give you the same size network.

When your mask is 23, you can't use 192.168.1.0/23 as a network because the first bit of your 3rd octet is not in your mask. In other words, you can't use an odd value for your 3rd octet.

When in doubt, check with ipcalc.

As for use-peer-dns, did you reboot the router after disabling it? I'm quite sure that works here. I have it disabled for ipv4 and enabled for ipv6 and getting only the ipv6 DNS from TM.

Is it possible to save the logs into a file in the router (filesystem)? How can I do that please?

ref to this guide
https://aacable.wordpress.com/2011/11/29/ho...-syslog-server/

From the ROS terminal:

Why do you want to use >252 IPs in one subnet? If you really have that many devices, is best to have it in VLAN, and use IP Helpder (DHCP Relay). This way you can have better network performance.

I am currently using a RB750 for Unifi, I noticed that the hypptv will stutter if the computer is currently running bittorrent tasks....

what could be the issue? i believe that the router has enough resources to handle such load....

woah..KL Tower picture is used in latest mikrotik newsletter



source : http://www.mikrotik.com/ and http://download2.mikrotik.com/news/news_61.pdf

Are you using VDSL or FTTH for internet connection?

I think mine will fall under VDSL as i still use the existing phone wire for my UniFi ( staying in an apartment )

Using the original TM router the hypptv will work fine, but if i replace it with the RB750 hypptv will stutter when there are bittorrent tasks running...

and btw, my torrent client says that the listen port is blocked with the RB750, is there any safe way to open it from the router?

How do i make priority network for my pc? Example: 10mbps from maxis home fibre, reserved 7 mbps for my pc..because when i play dota 2, other smart phone loading youtube i will be getting high ping.

Use the 'Queues' feature of this.

Can i have futher step?

Anyone using maxis home fibre with mikrotik can show me your qos setting as guidance?

can refer to this guide
http://klseet.com/index.php/mikrotik/mikro...rotik-rb750-qos
Add the UDP ports : 27000-28999 for DOTA 2

But he is setting for unifi..isit same with maxis home fibre?

QoS / Mangle rules are the same

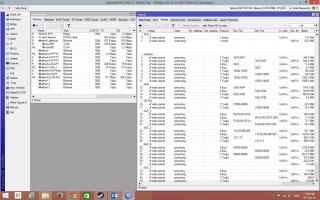

example , my mikrotik




This post has been edited by ldragon: Sep 3 2014, 08:02 PM
