guys if anything similar this happened, what to do...
ram is loose enough, 1500 CL8-9-9.

It could be the ram or cpu is unstable, whats ur ram volt & ur cpu-nb speed & volt?

iinm, ram volt 1.66Vdimm, 14XX CL8-9-9
cpu-nb speed : 2730Mhz
cpu-nb volt : 1.288V

cpu only 3.8Ghz, but slightly high vcore : 1.48Vcore
using MSi 990FXA GD65

now i'm using diff HDD.

This post has been edited by lengchai86: Mar 26 2012, 04:15 PM

post ya oc setup, include voltages value too. it's hard for us to guess by just lookin at d benchies, not d details of ya oc'ed setup.

u need to check whether it's

1. cpu
2. ram
3. imc

is causin d instability. eliminates 2 of those 3 values at a times so that u can find out what's d culprit. sorry to say that gd65 ain'tt really a superb clocker board, but still decent enuf i reckon considerin ya clocks are still pretty much non extreme.

This post has been edited by ah_khoo: Mar 26 2012, 04:25 PM

er this one is not enough ke?

ram volt 1.66Vdimm, 14XX CL8-9-9 (KHX2133C10)
ram divider at 1066
cpu-nb speed : 2730Mhz
cpu-nb volt : 1.288V

cpu only 3.8Ghz (phenom II Deneb C3 945 3.0Ghz), but slightly high vcore : 1.48Vcore
using MSi 990FXA GD65

erm... what more...
HT Link close to 2000Mhz, stock volt
nb volt at stock

---

Added on March 26, 2012, 4:38 pmforgot to mention. when i'm using lower divider ram, lower cpu-nb clock, lower HT link, the proc still need a high voltage to run any bench.

3.7Ghz 1.45Vcore
3.8Ghz 1.48-1.49Vcore
3.9Ghz 1.49-1.51 still crash/ BSOD, cannot run any 3dmark bench and wPrime

This post has been edited by lengchai86: Mar 26 2012, 04:38 PM

if that's d case most likely u got a bad chip. from all 945 i've seen, none of 'em are good clocker, eventhou bein a c3 chip. keep imc @ 2500, ram 1600ish @ 9-9-9/8-9-8 w/ 1.65v, cpu clock wise u gotta try which is d combo (clock & vcore) ya coolin is comfortable with.

yup².. otherwise pengsan hitting 80c...
H80 load temp 68c..

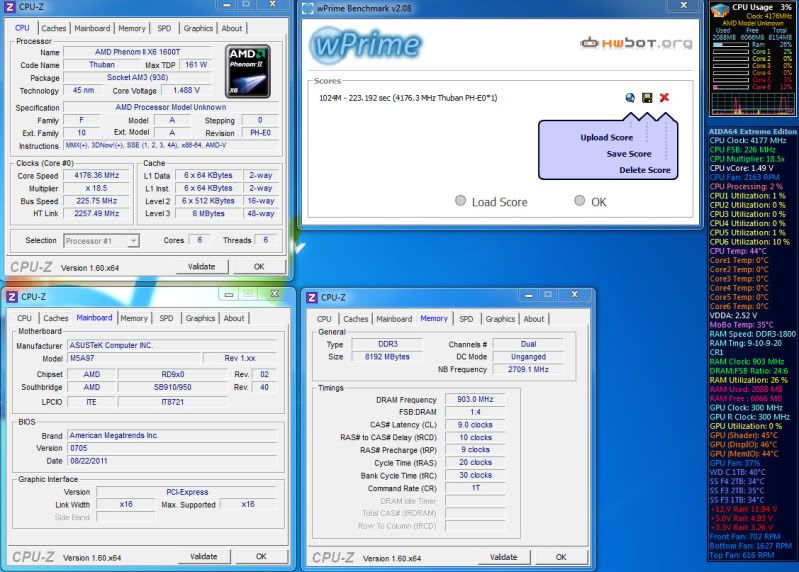

4cores only +100mhz from below screen.. so using optimized X6 setup as below..

Any comments on the ASUS TurboV OC feature?

woot!!! welkam to wc club bro...

u had yaself a very decent x6 there...

it's very useful for quickie or finetuniin, however for 24/7 setup, i'd prefer set it @ bios.

This post has been edited by ah_khoo: Mar 26 2012, 08:49 PM

abam cloudwan tak nak belanje.. tight ram.. cedih...

UEFI la nice.. this is the first asus' budget mobo which is stable i've ever owned..
but still bios have minimal cosmetics bugs..

and i notice near PWM there freaky hot ler.. should i blow with fan?
but mobo temp still ok..

y not 97 evo bro? i believe d price diff is negligible. dunno why but i always prefer evo than vanila version, well, mebe i'm just bein cautious w d naming...

better safe than sorry bro, so i'd say actively cool d pwm is a "play safe" move. those fets will get toasty once d clock & amount of juice increased.

my OC, is so easy when u use UEFI bios



i just w8ting bulldozer price to drop,



This post has been edited by kintsuchi: Mar 26 2012, 09:08 PM

nice attempt there mate. UEFI or not, mild oc with asus boards (mid range of 8xx series onwards) is really fun & hassle free provided d chip & ram playin nice w d board. u mite wanna re-seat ya gfx/check bios setting coz it's runin on pci-e 1.1 instead of 2.0 mode.

This post has been edited by ah_khoo: Mar 26 2012, 09:13 PM

here no 97 evo ler.. boring distro not bring in certain range..

i see the cooler same only..

that 1 just ignore its pcie 2.0 mode just smtg its show 1.1 in gpuz

yup i using 990FX smtg when i messup smtg i just reset the bios if i forget the default value ..got so many blue screen when test oc it..

Seems like only one AM3+ Asus board with UEFI?

Cipet H80 ken bai ram with tight timing cannot bai on ur own? ptuii!!!

What do u mean only one? Asus M5A97, M5A97 Evo, M5A99X, 990FX Sabertooth & Crosshair 5 Formula all uses UEFI yoo..

UEFI bios look nice only. it does not improve overclocking potential. LOL.

That's true, but normal ah, we humans all want to look at nice2 things.. bwahahahaha

barang pinjam..

i wish i can get any better mobo. GD80, 99X Evo... crosshair formula is good or not for OC?
i mean for the ram OC, cpu-nb OC, power phase, NB cooling etc2... noob here need advice
the price so tempting here http://forum.lowyat.net/topic/2280108

This post has been edited by lengchai86: Mar 27 2012, 09:08 PM
