So is that tweeter real or fake, can someone else confirm for sure?

Fake!

That one is Piezo tweeter lmao~ i wonder how Sonic Gear fans react when they see that

This post has been edited by chicaman: Jan 17 2010, 11:20 PM

haha... the cable is to make it look like real, anyway i already dismantle the metal part of the tweeter so i will show u all the items i get after i dismantle it.
The SG boss will tell u " it look like peizo tweeter, made like peizo tweeter but it is not peizo tweeter"
Beside that, i also find out the IC for the sub is TDA2030 which max RMS is 14w (Correct me if i m wrong), but the RMS stated by SG is 18w for the woofer. How the extra 4w RMS came fr???
I m think a way to take the picture of the IC, anyone can help?

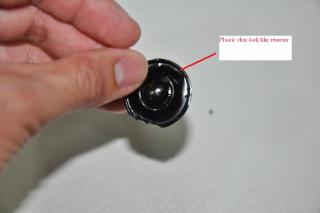

Below a some pic of the dismantle tweeter, hope u guy like it

This post has been edited by 7Eleven: Jan 17 2010, 11:11 PM


Attached thumbnail(s)

From wikipedia:

"While piezoelectric tweeters are cheap and rugged when compared to typical voice coil tweeters, most are not capable of the same level of linearity and accuracy of reproduction compared to high quality conventional tweeter designs. Piezoelectric tweeters are most commonly found in inexpensive stereo and public address speakers, where cost and reliability are more important than accuracy."

I can confirm this is fake tweeter, because b4 i dismantle the speaker i can't even hear any sound fr the tweeter even i higher up the main volume and treble.

If u planning to visit the computer shop, u can try it out yourself.

This thing call buzzer rather than 'speaker'. Well, only those poor speaker use those unit, really nothing to said, because the power handling is small like mosquito, without any housing, useless...

that's because this type of tweeter needs a LOT of power to get as loud as a normal tweeter would need.
unless you are giving pure sine wave like most digital watches have in their beepers

trust me
they may sound nothing at all but they actually sounded extremely soft till it's inaudible anymore

more like very big

This post has been edited by power911: Jan 17 2010, 11:43 PM

Yup, especially it connected parallel with the 'real' driver, the signal was drawn by the midrange driver adi, if u only connects the cable to the so called 'tweeter', it will gives some kind of 'mosquito' treble sound...lol...

Anyway, u can get this thing in everywhere, example ur digital watch which got alarm buzz, exactly the same thing...

Thanks for the info, not wonder i can't hear anything

This post has been edited by 7Eleven: Jan 17 2010, 11:50 PM

since it is inaudible for human ear, what is the point of having it there?

Good question!

lol
so that ppl trust their ear. instead of eye..
that's why sonic gear said :trust your ear..
because what your eye see. can fool you. u see a tweeter, but it is not.. lol.

trust ur ear. if it is crap . it's crap. no matter they got tweeter or not.

^ lol, i like ur last sentence.

I agree!!!

So did u lodge a report to tribunal?? about the fake tweeter and fake RMS rating??

btw, i am a ex SG evo3 user

lodge report already then what can they do? i doubt they care

Just try it with an external amp, the tweeter will provide a very very low sound like bro coolkwc mention - 'mosquito' treble sound

This post has been edited by 7Eleven: Jan 18 2010, 12:19 PM

at least they didn't lie saying got a tweeter but show no tweeter

LOL nice

This post has been edited by power911: Jan 18 2010, 02:52 PM

Mosquito type sound ar? So when play this speaker you will have the illusion that there are mosquito flying around?
