iaknesnah
post Sep 2 2011, 10:51 PM

just passing by
******
Senior Member
1,376 posts

Joined: Nov 2010
From: Klaatu barada nikto
pity u laa bro.. nvm u can always redo your sleeving. that way u become more expert smile.gif
motaro
post Sep 3 2011, 10:32 PM

Getting Started
**
Junior Member
148 posts

Joined: Nov 2006
QUOTE(kidmad @ Aug 25 2011, 10:39 PM)
Well so far the best i could get. tongue.gif

user posted image

close panel ady can't see anything. now finding some lighting to spice up ma case.
*
U can try separate the HDD to let them 'breathe'. The cable below HDD can do more better. Just my opinion.
MichaelJohn
post Sep 4 2011, 04:53 PM

Pan Paka Pan <3
*******
Senior Member
2,514 posts

Joined: Jun 2010
From: [Confidential]
QUOTE(motaro @ Sep 3 2011, 10:32 PM)
U can try separate the HDD to let them 'breathe'. The cable below HDD can do more better. Just my opinion.
*
It looks already okay IMO.

HDDs don't get too much hot.In this case , the large 200mm fan will keep them pretty cool.
encikapas
post Sep 5 2011, 04:36 AM

Getting Started
**
Junior Member
56 posts

Joined: Jun 2006
From: Anfield
user posted image
user posted image

simple and letih... blink.gif blink.gif

This post has been edited by encikapas: Sep 5 2011, 04:55 AM
satinblack
post Sep 5 2011, 02:23 PM

New Member
*
Junior Member
37 posts

Joined: Jan 2009

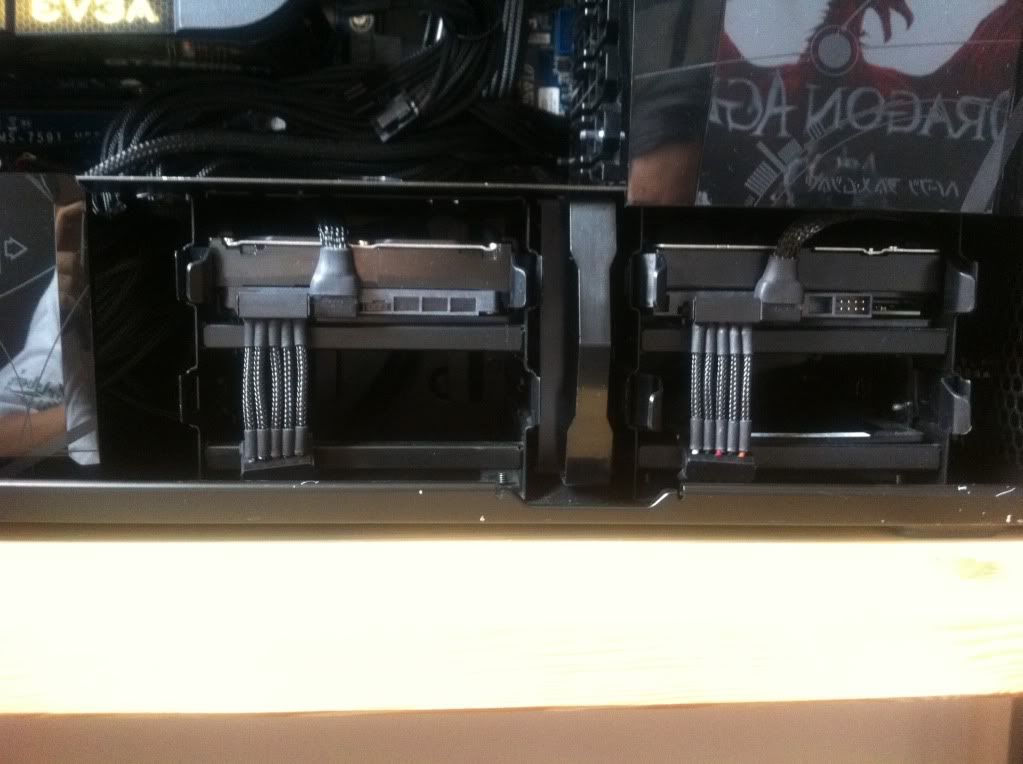

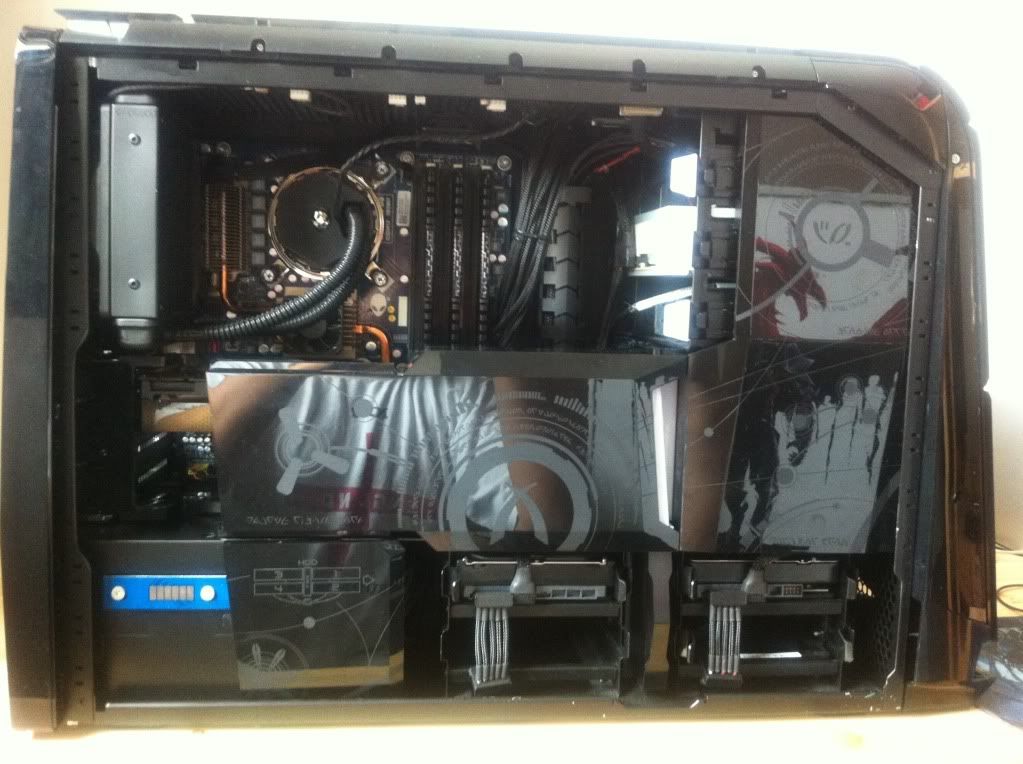

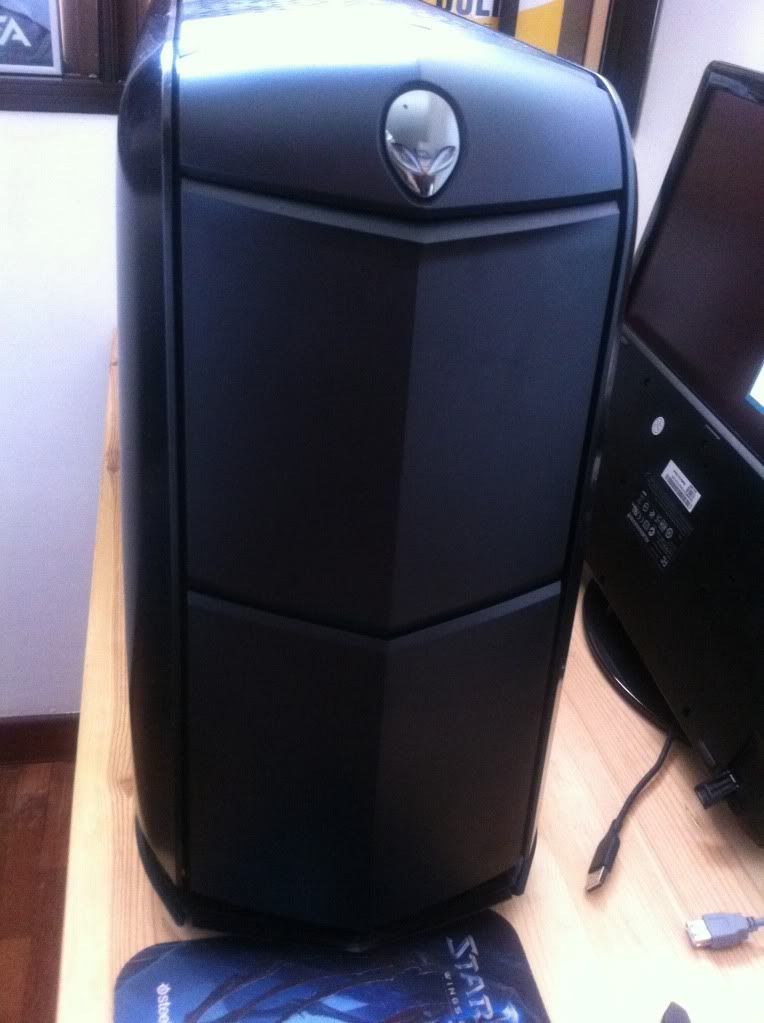

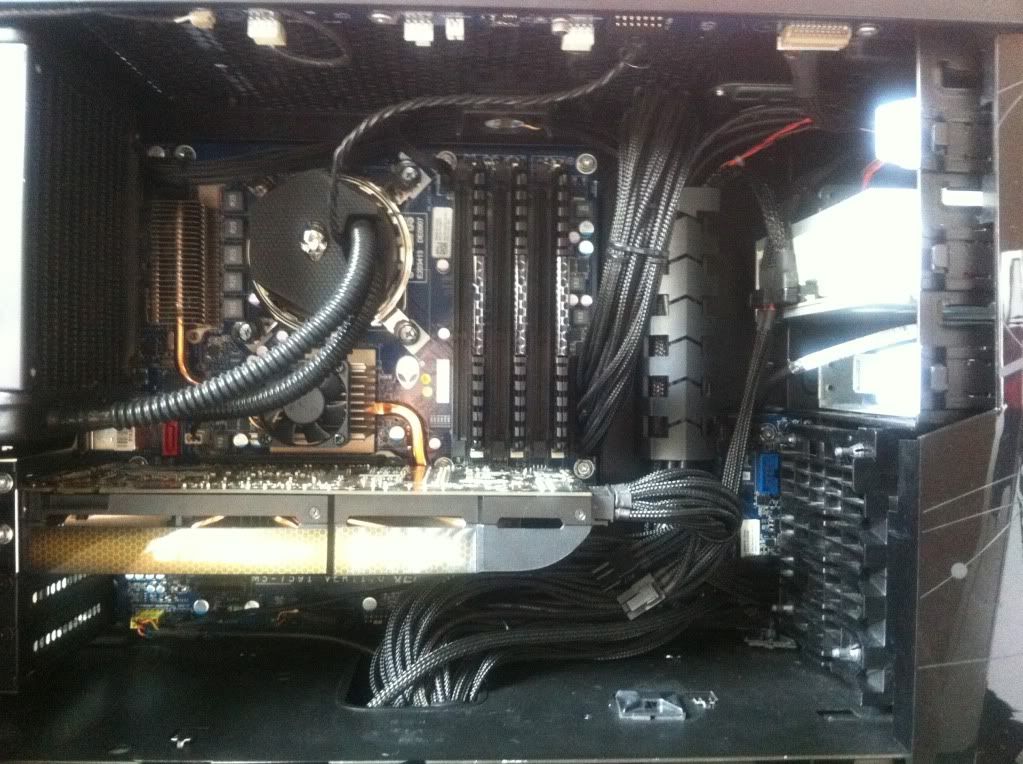

My Humble Alienware Aurora Rig.

Still working around to play around the cables whenever I have free time. Once it's done, time to manage my Area 51-ALX instead.

Thanks to alienware's poorly designed case, the cable's can't been hidden behind (Although it's possible by cutting the case)

Opinions and suggestions are highly welcomed.


Before

» Click to show Spoiler - click again to hide... «


After

» Click to show Spoiler - click again to hide... «
5p3ak
post Sep 5 2011, 05:50 PM

CPE, FIG Certified Gymnastics Coach
*******
Senior Member
5,648 posts

Joined: Mar 2011
From: Jalan Tijani
Isit me or the alienware casing's interior sucks? D;
satinblack
post Sep 5 2011, 06:07 PM

New Member
*
Junior Member
37 posts

Joined: Jan 2009
QUOTE(5p3ak @ Sep 5 2011, 05:50 PM)
Isit me or the alienware casing's interior sucks? D;
*
Well the interior kinda sucks in certain ways. Bad airflow. Bought both of my rig quite cheap previously so can't really argue.

Considering if I should sell the aurora off and keep my Area-51 ALX. hmm.gif

5p3ak
post Sep 6 2011, 05:48 PM

CPE, FIG Certified Gymnastics Coach
*******
Senior Member
5,648 posts

Joined: Mar 2011
From: Jalan Tijani
LOL Just change the casing biggrin.gif
rc2x
post Sep 6 2011, 05:56 PM

Ask me about my vore fettish
******
Senior Member
1,838 posts

Joined: Jun 2008
From: The Grid
QUOTE(satinblack @ Sep 5 2011, 02:23 PM)
My Humble Alienware Aurora Rig.

Still working around to play around the cables whenever I have free time. Once it's done, time to manage my Area 51-ALX instead.

Thanks to alienware's poorly designed case, the cable's can't been hidden behind (Although it's possible by cutting the case)

Opinions and suggestions are highly welcomed.
Before

» Click to show Spoiler - click again to hide... «


After

» Click to show Spoiler - click again to hide... «

*
Single sleeve cables always look nice. I see there are too much cables routed just beneath the graphic card. Won’t it block the airflow? Good looking case there. biggrin.gif
satinblack
post Sep 7 2011, 12:28 AM

New Member
*
Junior Member
37 posts

Joined: Jan 2009
QUOTE(rc2x @ Sep 6 2011, 05:56 PM)
Single sleeve cables always look nice. I see there are too much cables routed just beneath the graphic card. Won’t it block the airflow? Good looking case there.  biggrin.gif
*
A little bit. Playing around looking for the best possible set up. If not, the tools will be taken out and case is gonna be cut and drilled =p

Next up: Area 51-ALX

Added on September 7, 2011, 12:29 am
QUOTE(5p3ak @ Sep 6 2011, 05:48 PM)
LOL Just change the casing biggrin.gif
*
Considering if I should or just sell off the machine and focus on my Area 51-ALX for gaming


This post has been edited by satinblack: Sep 7 2011, 12:29 AM
5p3ak
post Sep 7 2011, 07:33 AM

CPE, FIG Certified Gymnastics Coach
*******
Senior Member
5,648 posts

Joined: Mar 2011
From: Jalan Tijani
QUOTE(satinblack @ Sep 7 2011, 12:28 AM)
A little bit. Playing around looking for the best possible set up. If not, the tools will be taken out and case is gonna be cut and drilled =p

Next up: Area 51-ALX

Added on September 7, 2011, 12:29 am

Considering if I should or just sell off the machine and focus on my Area 51-ALX for gaming
*
Ya just sell off...I bet ppl sure buy de Cuz got the Name... icon_rolleyes.gif
FiragaZ
post Sep 7 2011, 10:41 AM

No Pain No Gain
******
Senior Member
1,745 posts

Joined: Aug 2010
From: Kuala Lumpur
QUOTE(satinblack @ Sep 5 2011, 02:23 PM)
» Click to show Spoiler - click again to hide... «
The alienware interior seems really bad, weird case and the build quality seems not really that good.
M1X
post Sep 7 2011, 12:59 PM

Look at all my stars!!
*******
Senior Member
2,334 posts

Joined: May 2007
From: Kuching
That casing looks like only support up to mATX... What is that extra electronic board below the 5.25" bay?
amirudin920927
post Sep 8 2011, 07:13 PM

///-| Kapten | Amirudin |-\\\
******
Senior Member
1,431 posts

Joined: Feb 2009
From: Seremban - Putrajaya
user posted image

user posted image
FiragaZ
post Sep 9 2011, 02:15 PM

No Pain No Gain
******
Senior Member
1,745 posts

Joined: Aug 2010
From: Kuala Lumpur
QUOTE(amirudin920927 @ Sep 8 2011, 07:13 PM)
user posted image

user posted image
*
hmn.. quite messy at below.
5p3ak
post Sep 9 2011, 08:14 PM

CPE, FIG Certified Gymnastics Coach
*******
Senior Member
5,648 posts

Joined: Mar 2011
From: Jalan Tijani
QUOTE(amirudin920927 @ Sep 8 2011, 07:13 PM)
user posted image

user posted image
*
Eh why you HSF you install like that one? hmm.gif ohmy.gif
amirudin920927
post Sep 9 2011, 10:40 PM

///-| Kapten | Amirudin |-\\\
******
Senior Member
1,431 posts

Joined: Feb 2009
From: Seremban - Putrajaya
QUOTE(FiragaZ @ Sep 9 2011, 02:15 PM)
hmn.. quite messy at below.
*
After Cable Management..~

» Click to show Spoiler - click again to hide... «




QUOTE(5p3ak @ Sep 9 2011, 08:14 PM)
Eh why you HSF you install like that one?  hmm.gif  ohmy.gif
*
just suka2.. tongue.gif

This post has been edited by amirudin920927: Sep 9 2011, 10:42 PM
MichaelJohn
post Sep 9 2011, 11:06 PM

Pan Paka Pan <3
*******
Senior Member
2,514 posts

Joined: Jun 2010
From: [Confidential]

Too dark >_<

but looks okay now... biggrin.gif
satinblack
post Sep 10 2011, 04:05 AM

New Member
*
Junior Member
37 posts

Joined: Jan 2009
QUOTE(M1X @ Sep 7 2011, 12:59 PM)
That casing looks like only support up to mATX... What is that extra electronic board below the 5.25" bay?
*
Yup only mATX unfortunately but still can use ROG GENE III and etc. Oh that is the MIO board. It's to control the lighting on the case, sensors and the fan speed for the normal case while for the ALX, it's also used to control the fin mechanism. Will take a video of my Area 51-ALX to explain further biggrin.gif

Added on September 10, 2011, 4:06 am
QUOTE(amirudin920927 @ Sep 9 2011, 10:40 PM)
After Cable Management..~

» Click to show Spoiler - click again to hide... «
Trying to route the cable's again later today and see how it works. If not, time to drill the back of the case.

Added on September 10, 2011, 4:14 am
QUOTE(FiragaZ @ Sep 7 2011, 10:41 AM)
The alienware interior seems really bad, weird case and the build quality seems not really that good.
*
Well, to me the interior seems to more suited for pure water cooling instead as there are quite a number of mounts for it but for now it works for me. Built quality is actually not bad but it could be better.

For example, interior chasis could be powder coated instead of leaving it bare or have a proper cable management slots. The plastics are actually quite good quality except that the paint coat is quite thin. I am planning to powder coat the interior again to a different color and repaint the exterior chasis with glossy paint instead.

It has always been an awesome brand/maker until "Dell" took over. Some cost cutting saving methods is quite visible for some areas.


This post has been edited by satinblack: Sep 10 2011, 04:14 AM
amirudin920927
post Sep 10 2011, 07:13 PM

///-| Kapten | Amirudin |-\\\
******
Senior Member
1,431 posts

Joined: Feb 2009
From: Seremban - Putrajaya
QUOTE(MichaelJohn @ Sep 9 2011, 11:06 PM)
Too dark >_<

but looks okay now...  biggrin.gif
*
my camera got problem,i use webcam. doh.gif sweat.gif
better than before.. but still messy.. i think need to drill the case like satin said.. but,dun have the eqpmnt. cry.gif
