Ur case is 400R is it? Try like this;


If cant reach, u can buy extension cable for it

Just transfered my rig into a Lian Li V600fx. It seems pretty messy and would like all the sifus to advise

Wow nice. All black just like how I'd like mine to be. But GPU is blue pcb, and that grafiti on the CM psu needs to be gone

nice cable management thr..

btw.. crossfiring or sli using 550watt psu? what GC are those?

Not GC...

Im thinking the one just above the PSU is a sound card ...

Asus Xonar series ?

v600fx so nice !!
love the toolless side panel so much ~

This post has been edited by lun1986: Oct 13 2011, 12:19 PM

Thx fir the comments guys. currently I'm saving up for new GC, PSU and cooler:) but at the mean time, anyway to hide the cables? thinking of getting sleeved cables soon

oh!! yeeaaayyyhhh!!!


Attached thumbnail(s)

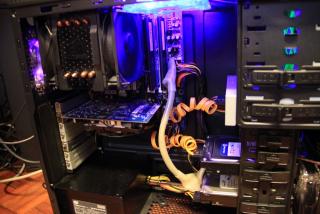

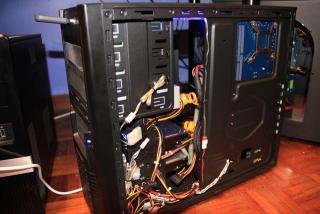

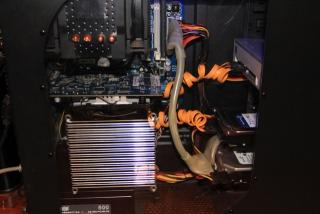

Updated my elite430

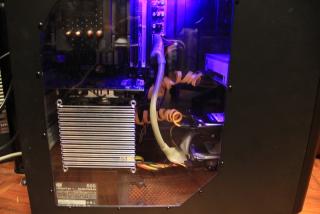

When no flash light visible, it is very dark to even notice the cable at the side, result a very neatly looking.



Sorry for the bad camera quality. Don't have money to buy a better 1

This post has been edited by noname_lah86: Oct 14 2011, 05:49 PM

fuuu..all got very nice rig there~

my cable management V2


already try my best, i need to put some force to close the casing at the other side, feel like it gonna burst anytime

still finding the black sleeved 8 pin, so i'll just leave it hang there for a while

Can't really do nothing when the cable for a low end PSU is really short , maybe just wait until you upgrade to a full modular PSU

If the 24pin cable is long enough you can bend it and hide part of it inside of the 5.25" bay.

I usually hide front panel wires behind my motherboard but it is very difficult to remove them without removing the motherboard altogether.

I don't think your casing has enough place to hide the cables, it's probably better to get the sleeved cables and loop them nicely around the parts.

Not really. The corsair and cooler master non modular PSU has quite long 8 pin 12v mobo cable that I can reroute from the back, up the top on to the mobo and still have enough cable left to bend it behind the casing.

full modular really nice, but too expensive

I believe the 8pin is possible to route from behind as I can see your chassis not cap ayam branded but Corsair
But what you need is recabling again. Just like the time when I got my cm 690. At first I was thought is impossible to route the 8pin from behind but after few times of try, finally I made it
Tips : Plug out all cable and plug the 8pin cable from behind 1st

This post has been edited by Jayi: Oct 15 2011, 10:11 AM

24 pin is not the problem but the 8 pin cable is too short..

tried and still cannot unless i cut off the cable, the shortest possible route would be the small hole under the while PCI slot then come out from the small hole above the 8 pin, the connector can come out of the hole, but cannot twist the cable anymore

u need extension bro.. i think i got one spare lying around.. but unsleeved laaa

looking for sleeved extension, so i can be rude with it without damage the cable body
