Like this http://forum.lowyat.net/index.php?showtopi...post&p=33904571

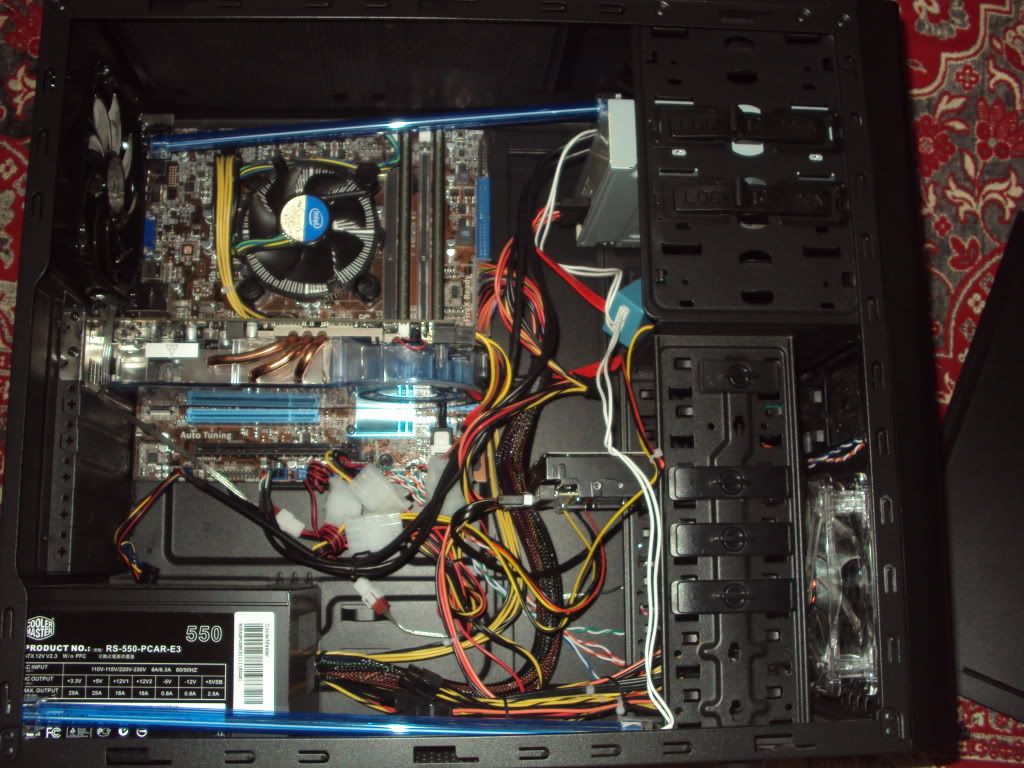

mine one cm elite 430..

please do comment n help me to figure out this thing

@enming,

u could re-route the motherboard 4 pin to the top instead of going through in between of the processor, ram n gc.

then try to hide all the cables inside the HDD cage or DVD cage.

for the case fan, u could connect directly to ur motherboard if cant then untangled the cables n hide it in the HDD cage.

thank cmgan72..i will try to make it...

i m using cm430 also.. i have the problem like enming's

for my case, the 4pin to mobo i wanna re-route but its too short.
is there a possible to buy an extension to make it longer? so i can maybe go from behind to the top then to mobo.

sorry.. i got no experience, 1st time doing it myself.

can.. just get the extension then u can route your cable more efficiently

would all this extension be expensive? hahahaa currently no damn broke after purchase this rig last week lol~

would be there any side-effects of using extensions? like increase in power or etc..

really sorry if its a stupid question lol

@mugenz,

for ur case u could either get the extension or try to re-route it to go through under of ur gc (hope u know wat i mean). u could take a few pictures of ur pc for us to have a better idea on how to improvise ur cable management.

regarding the extension matter, no it wont cause any power side effects to ur pc. don worry.

there are cheap and expensive extension on the market, i just dunno which is better.

ic ic..

i still havent purchase my gpu yet.. so once i got d then i will re-do the cable management again..

anyway.. thanks alot..

Had to redo my cable management after purchasing new graphic card & PSU. It's a bit hard since the PSU is a non modular. but the end result is really satisfying although the io wires isn't quite as tidy as I wanted.



This after I stripped the chrome panel & refinished it with flat black.

is it possible to sleeve the power/hdd/reset wire from haf922

wait till i upload mine..
very hard to manage the cable with chepo chasis

Yes bro if u hav the right sleeving tools and a lot of patients

it seems hard abit and the patients is gone man, gone! haha

After 1 hour of work, this is my result.
My case cannot put wire behind
If there's room for improvement let me know

if wire cannot hide behind, try use cable tie + cable mount to make ur cacing look tidy

That' very quite neat...im gonna redo my cable management soon !

tips, depending on ur own casing.... requirement for cable management....it need some cable tight n cutter....u route it one by one....it will look nice front n back panel....and easy to closed ur panel... but, important is , u must be patient to do that....tq

Used some left over Sleeve on Old rig
CM Centurion 5
Before:


After:


New Rig: Cougar Evolution with more space to hide Cables


Any improvement to be made? thanks!

This post has been edited by ZaRnX: Aug 20 2011, 03:56 PM
