 Cable Management Thread V2, Share your cabling tricks here

views

SUSjohnny3300
post Oct 3 2019, 10:32 PM

Getting Started
**
Junior Member
55 posts

Joined: Sep 2019
QUOTE(1qaz1qaz @ Sep 27 2018, 11:46 AM)
just upgraded my 7 years old Sandy bridge  biggrin.gif

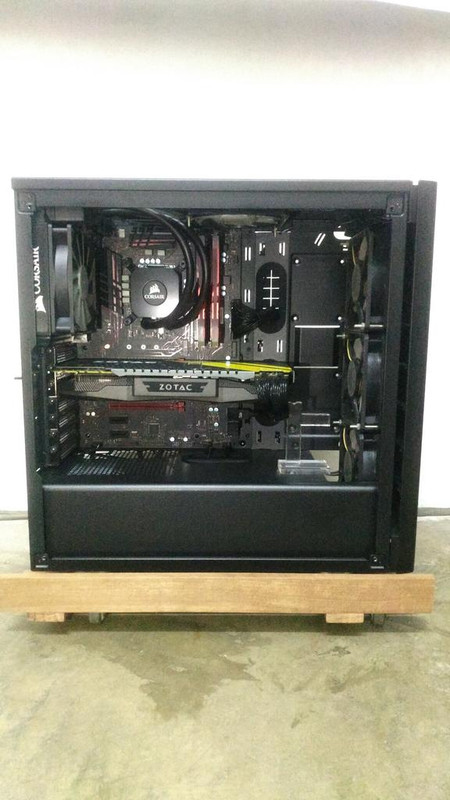

user posted imageuser posted image

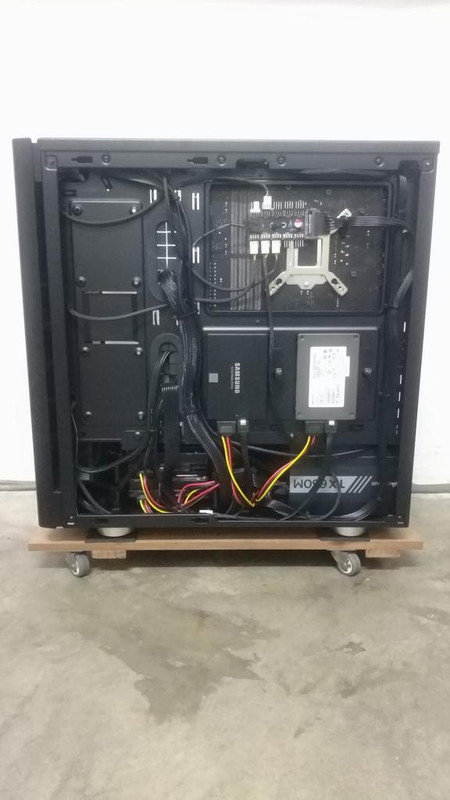

haha back of the case, no one care right?  biggrin.gif
» Click to show Spoiler - click again to hide... «


ps dont mind the pic quality tho. dont own a high end camera
*
Wah you can barely see any cables at the front side
silvaco22
post Apr 28 2020, 10:15 AM

Getting Started
**
Junior Member
193 posts

Joined: Sep 2019
How do you guys manage your cable underneath your desk? Mine looks a bit messy plus I have to vacuum so often because of the dust.
ntw
post May 5 2020, 06:27 AM

One Each At A Time
******
Senior Member
1,382 posts

Joined: Aug 2010
From: Ipoh mali~~~


QUOTE(silvaco22 @ Apr 28 2020, 10:15 AM)
How do you guys manage your cable underneath your desk? Mine looks a bit messy plus I have to vacuum so often because of the dust.
*
I use zip ties

» Click to show Spoiler - click again to hide... «

mADmAN
post May 5 2020, 09:40 AM

10k Club
********
All Stars
10,515 posts

Joined: Nov 2004
From: Petaling Jaya & Mid Valley


QUOTE(silvaco22 @ Apr 28 2020, 10:15 AM)
How do you guys manage your cable underneath your desk? Mine looks a bit messy plus I have to vacuum so often because of the dust.
*
QUOTE(ntw @ May 5 2020, 06:27 AM)
I use zip ties

» Click to show Spoiler - click again to hide... «

*
same for me. zip ties.

dont have cables on the floor coz those are dust magnets and can get very difficult to clean up.

also get cable tie base to help. but change the double sided tape with 3M grey tape so itll last longer.
ntw
post May 11 2020, 01:18 AM

One Each At A Time
******
Senior Member
1,382 posts

Joined: Aug 2010
From: Ipoh mali~~~


Anyone tried these GPU power connector 180deg adapter from taobao? Seems like it can help to hide the GPU power cables nicely

user posted image

Also, whats the thought on those custom modular PSU cables from taobao? Is it safe to use?
cstkl1
post May 12 2020, 08:54 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

QUOTE(ntw @ May 11 2020, 01:18 AM)
Anyone tried these GPU power connector 180deg adapter from taobao? Seems like it can help to hide the GPU power cables nicely

user posted image

Also, whats the thought on those custom modular PSU cables from taobao? Is it safe to use?
*
evga has proper one for reference cards
https://www.evga.com/products/product.aspx?pn=600-PL-2816-LR

linlong sells it

https://shopee.com.my/-EVGA-PowerLink--Revo...7182.7501668223

This post has been edited by cstkl1: May 12 2020, 08:55 PM
ntw
post May 12 2020, 10:48 PM

One Each At A Time
******
Senior Member
1,382 posts

Joined: Aug 2010
From: Ipoh mali~~~


QUOTE(cstkl1 @ May 12 2020, 08:54 PM)
Thanks sifu for sharing the evga ones. Prefer these chinese ones because it can keep the cable parallel on top of the gpu, looks nicer than cables coming out from the side of the gpu.

Ordered a set to test. Finger crossed the quality is good and won't burn my gpu sweat.gif
cstkl1
post May 12 2020, 11:05 PM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

QUOTE(ntw @ May 12 2020, 10:48 PM)
Thanks sifu for sharing the evga ones. Prefer these chinese ones because it can keep the cable parallel on top of the gpu, looks nicer than cables coming out from the side of the gpu.

Ordered a set to test. Finger crossed the quality is good and won't burn my gpu sweat.gif
*
I wouldn't if i was u.. thats a-lot of power running via tracelines on a questionable pcb

Have a read on dat evga..
https://www.evga.com/articles/01366/power-link/


cstkl1
post May 13 2020, 11:39 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

ntw
seems quite popular those 180
https://www.amazon.com/Cablecc-AngledPower-...s/dp/B07P3JDQNC
https://www.moddiy.com/products/GPU-VGA-8Pi...pter-Board.html
https://www.performance-pcs.com/cables/usb-...-co1067-8a.html

they have them in shopee
https://shopee.com.my/Graphics-Card-Cable-M...0460.2126100776

https://www.reddit.com/r/sffpc/comments/b0v...rom_aliexpress/

https://imgur.com/a/BxWZ737

its like some foam sticker to cover the pcb soldering side...

cstkl1
post May 13 2020, 11:45 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

ntw
i wouldnt want to use them for my use as
i tend to exceed pciesig powerlimit for 6/8 pin with mod bios. so i seriously dont expect these 90% connectors will hold.. i expect them to melt etc...

6/8 connectors on gpu are well known to dislodge/unsolder if cheaply made on lower end gpu.. so hmm just too much of a risk here..

This post has been edited by cstkl1: May 13 2020, 11:47 AM
Gohd P
post May 19 2020, 04:12 PM

New Member
*
Probation
18 posts

Joined: May 2020
QUOTE(silvaco22 @ Apr 28 2020, 10:15 AM)
How do you guys manage your cable underneath your desk? Mine looks a bit messy plus I have to vacuum so often because of the dust.
*
QUOTE(ntw @ May 5 2020, 06:27 AM)
I use zip ties

» Click to show Spoiler - click again to hide... «

*
QUOTE(mADmAN @ May 5 2020, 09:40 AM)
same for me. zip ties.

dont have cables on the floor coz those are dust magnets and can get very difficult to clean up.

also get cable tie base to help. but change the double sided tape with 3M grey tape so itll last longer.
*
Yea I use zip ties too. But if you want to spend some money there are some other alternatives you can look for (e.g wire spiral wrap sleeves)
silvaco22
post May 19 2020, 06:27 PM

Getting Started
**
Junior Member
193 posts

Joined: Sep 2019
QUOTE(Gohd @ May 19 2020, 04:12 PM)
Yea I use zip ties too. But if you want to spend some money there are some other alternatives you can look for (e.g wire spiral wrap sleeves)
*
Which length of zip ties did u use? I tried to use zip ties but not long enough for my linnmon table
rylim
post May 20 2020, 09:45 AM

Getting Started
**
Junior Member
144 posts

Joined: Sep 2019


QUOTE(silvaco22 @ May 19 2020, 06:27 PM)
Which length of zip ties did u use? I tried to use zip ties but not long enough for my linnmon table
*
Actually you can use a few zip ties and connect them together to make it longer if you only have one specific length.
asrul
post May 25 2020, 09:50 PM

Regular
******
Senior Member
1,217 posts

Joined: May 2008
From: Soviet Sarawak


anyone here around setiawangsa can help me to do cabling inside my casing?

i didnt really good with the tidy tidy things
domo_kun
post Nov 12 2020, 01:34 PM

domo_kun
*******
Senior Member
2,690 posts

Joined: Aug 2006
From: KL



I know it usually comes with the case, but is there any place I can find these? Currently using MB500, it doesn't comes with such rubber. TQ! What do you call these rubbers, by the way?

user posted image


nrw
post Nov 12 2020, 02:01 PM

Casual
***
Junior Member
394 posts

Joined: Jul 2014


rubber grommets domo_kun
in Malaysia I haven't found a place to get either.

domo_kun
post Nov 12 2020, 02:17 PM

domo_kun
*******
Senior Member
2,690 posts

Joined: Aug 2006
From: KL



QUOTE(nrw @ Nov 12 2020, 02:01 PM)
rubber grommets domo_kun
in Malaysia I haven't found a place to get either.
*
Oh, cool. Thanks! At least, I know what to call those... thumbsup.gif
Azfar90
post Nov 28 2020, 10:08 PM

New Member
*
Junior Member
16 posts

Joined: Jul 2009



Just sharing my experience in cable management with the case that's good for that purpose.

Cooler Master H500M is the case that I have been wanted since it was revealed; mainly because it's not a boxxy design like many other case. Once I got this fresh on my hand, I instantly love it. So many things that I can do inside this case.

The side panel for managing cable has lots of space compare to my previous Thermaltake case. Those cover panels are definitely great to hide all cables since the side panel is tempered glass.

user posted imageuser posted image
user posted image

I don't use many tie down points there and not much of zip ties or cable ties to permanently secure the cables because I plan to swap the components very soon.
So, all of these are just temporary. That RGB fans and controller are pretty much swapped later because the controller uses molex, which is a pain and I will go for CM Halo fans with its built in SATA powered controller.

user posted image

Excuse my laptop HDDs there because all my important datas are still inside after my laptop is faulty and even my 8TB worth of space HDDs already full. Also, good thing that this
case has GPU holder to un-sag the heavy GPU, which is also planned to be swapped with new RTX.
I also realized after looking at the front side that maybe I should route the ATX cable behind those steel panel instead of through rubber grommet/cutout since it's not in the optimal place.

user posted image
