Hey! Is it because I'm buying too?

Its ok, the more the merrier.. then we can do TT Session! TA-2020 MkIII only

No lol. coz MKIII sound too poison to my ears .. ANd it has overload LED, which i demand most, sometime!

i wil lask abt the valve pre-amp...
haha thanks for taking care of the sotre

hopefully so

---

Added on January 13, 2010, 10:47 pmthe normal version with overload led too

This post has been edited by xtorm: Jan 13 2010, 10:47 PM

haha, i dont have chance to own one ta2020 before

xtorm,
Not at all.. 'twas my pleasure..!
Thanks for bringing in the MkIII, I am confident, it's gonna be a one kick ass amp..

Hi everybody,

its been a while since my last post in this thread..dormant clan member..

I pm xotrm to include me in ta2020 bulk (complete built unit) last night and waiting for his response.

bun i saw this mkIII version..

can anybody enlighten me on this ?

maybe xtorm (the clan founder) or bro jazzy (the clan ambassador) or anybody ?

dylanhaydenshuiyo,

The MkIII enhancements are as follows. These are taken from the ebay page:

Improvements to the PCB:


- 400 volts 2.2uF audio grade film capacitors with exellent dissipation factor ( 0.006 % @ 10KHZ )

- Bigger board size for more space to replace components

- Thicker PCB material, PCB is now 3mm Thick!!

- Bigger output coils, with Micrometals T68-1 Torrodial core for a much improved transient response

- DC offset adjustment with high grade 10 turns potmeters<-- I like this!

- Signal lights for power and overload are separately connected with connectors ( included )

- Extra large 6800uF 25 V buffer capacitor ( more than 3 times bigger than the competition )

- AC and DC power input supported ( rectifier onboard ) <-- Simplicity! Just connect AC transformer.

- Very wide operating voltage 9-15 volts, perfect for people that run off of batteries

- Copper mounting studs for eazy mounting in the housing

My comments in blue.

Xtorm, you taking order?

bro jazzy,

thx...there's a lot of information there until I

but with all those extra features means it will better compare to stock TA 2020 ?

jazzy... the smoke black case used to cloth on your STK roughly how much you bought ah? Where you get it from?

Sonically it should! well at least on paper!

It will also depends on other associated parts like power supply.. your preamp(passive, active) cables, speakers etc.. Whether the so called 'improvements' are translated by the rest of the system and finally perceived by your ears as improvements... you know what I mean?

Thats from NIXIE near Jalan Pasar.. just over RM100 something like RM118 or so.
You like it eh?

i like it so much...
but after u said the price, i was like


better go hunt for some cheapskate jewellery boxes

I agree!
Honestly there are not many choices in the local market for casings.. and their prices are on the high side..
If only we have a local supplier that can fabricate and supply affordable casings.. Then again cannot cari makan here as the DIY community is 'small'...

yes bro, im getting deposit next week and then continue with order MKIII as well

those inductor are quite important to the output of the sound, it should be better, but i cant guaranteedla
btw the input caps are the same i think

this is nice!!!

lol. my t-amp.

WAHLAU..........hahahaha

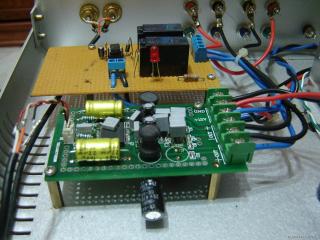

This is mine (stale news)..
Looks like the TA-2020 MkIII will be replacing that TA-2024!




Attached thumbnail(s)

sell that casing to me......

Heyy.. that's gonna be my super T-Amp amplifier!
Hopefully can get the tube preamp ready for it! Otherwise will revert using the JFET buffer/preamp..
