Haizzz.. hit another FSB wall at 445mhz....

Nope, the DS3 doesn't have VTT or GTL settings.... too bad...

My blood iron does have those settings but it is in my 2nd rig... lazy to take out....

On further reading, most people reported that the FSB wall for this proc is around 450-475mhz...

I've done trying to go over the new FSB wall as my mobo doesn't have those advance settings.

Now searching for stability at 3.26Ghz (435mhz x 7.5).... bios vcore set at 1.175v, load vcore cpuz at 1.104v....

This post has been edited by kmarc: Aug 16 2008, 09:39 AM

with that fsb wall, that's meant max at 3.375 - 3.563Ghz... quite low..

but kmarc, if capable of running 3.26Ghz stable at those low voltage, it's very good. good luck with that x3220. need to sell off few stuff to get new proc...

P.S: why use DS3 instead of blood iron?

Yeah, unless you can get one with higher FSB wall.... many forums claimed to have better OC with those advance settings though....

Ask catgaduh lor, maybe he got a few "gems" in his possession....

Haha.... long story....last time RMA my DS3 after it went dead during bios flash... then bought the blood iron... after RMA back, tested out the mobo while I transfer the blood iron to my 2nd rig.... after testing, lazy to switch back... haha....

wooot~ kmarc got new toy again'
upgraditis nii~

vcore damn kao low... so sweettt
mine pucking high


___

toughnut , don't get wrong cpu oh
kmarc's is x3320

x3220 is 2.4ghz kentsfield 65nm
while mine x3210 , 2.13ghz damn low for a stock quadz'

sorry, typo. it x3320 lol, penryn core

too late for warning, i'm joining the army of x3320 soon. just sealed a deal with da boss

Not really upgrade la... almost the same oni....

Yeah, the vcore is really nice... too bad the temperature sensor is defective....

Come come, sell your X3210 and get a X3320....

Cool! Please post your overclocking results!

Update : Now my X3320 passed the 3 hour mark @ 3.26Ghz @ 1.104v load.....

initial overclocking @Challenger Mines

just a super n00b with super duper high end system what... i'm spending company's funding to the max

is OC part of ur company policy? i might join soon, whatever ur company business is

no la, the boss want the live demo overclocking or whatsoever , but the funny part is, all use stock cooling not to mention with value RAM

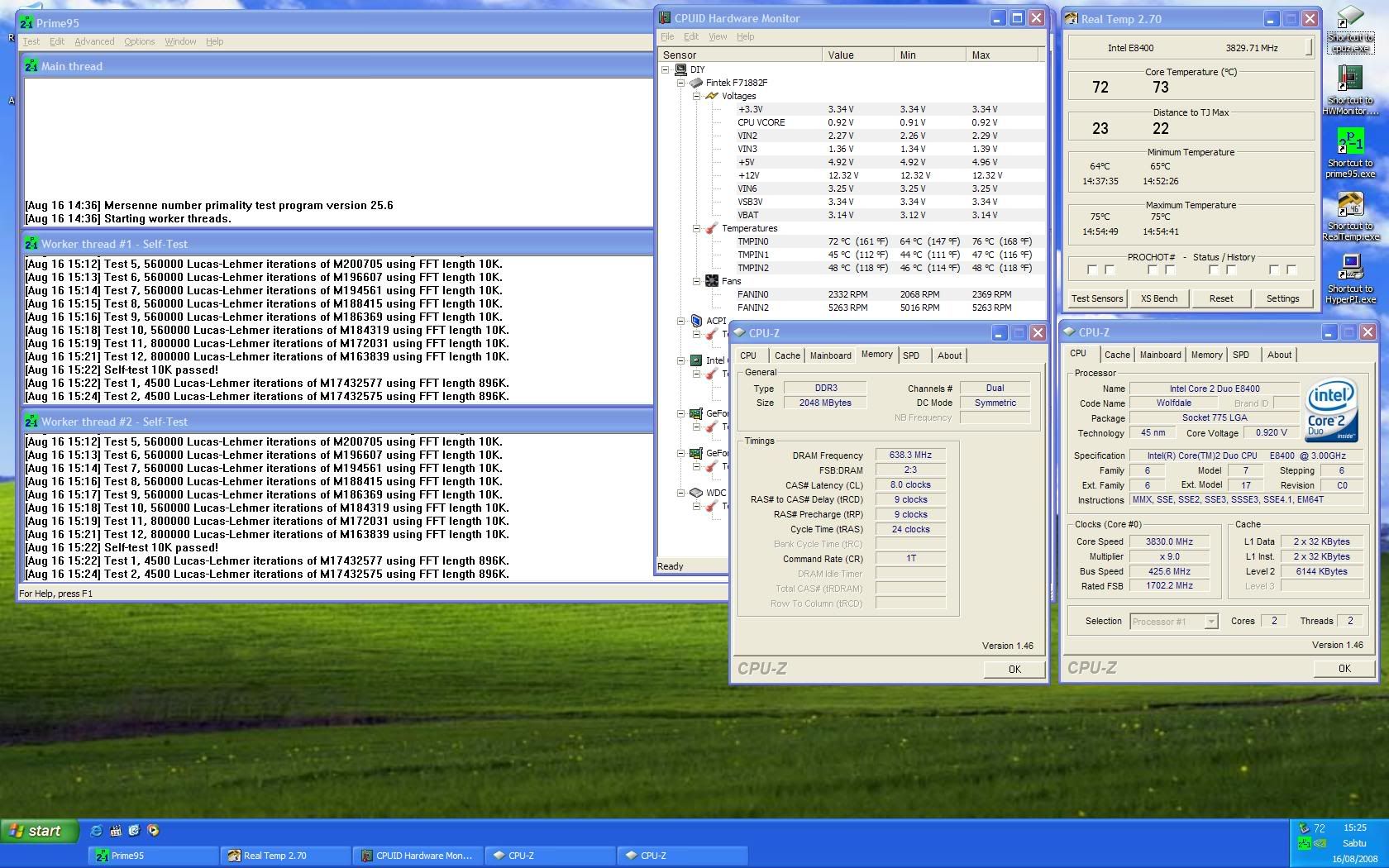

Ok. Stressed test 6 hours stable....

3.26Ghz (435 x 7.5), 1.1375v BIOS set @ 1.104v windows load.....

FSB wall around 440-445mhz.... mobo no advance settings to tweak further...

Note : Temperature readings are defective

This post has been edited by kmarc: Aug 16 2008, 04:43 PM


Attached thumbnail(s)

@kmarc

nice stable clock, bro. for temp reading, try use Everest or RealTemp. but i heard that the temp sensor in penryn is buggy, not the software.

Thx. When is yours coming?

Realtemp and core temp are the same..... I just adjust the Tjunction of core temp (to 95'c for this proc) and presto! the readings are the same...

Yup, lots of penryn temperature sensor are defective...

This post has been edited by kmarc: Aug 16 2008, 07:41 PM

oic, same stuff. mine ah? whole rig still in hostel, now holiday at hometown. cant wait go back and OC it haha

I see....

The Tjunction of penryn quads is not certain.... some say it is 95'c, some say it is 85'c.... on average, most forums take 95'c.....

my E8400 @85°C on load...

LOL.D9GMH Value Ram and Ultra modded dual nmb fan stock cooler ah

one Q here....
how high can a X3320 go with stock vcore??
planning to get one this month...
thanks for the answer...

3ghz with stock voltage should be achievable but stability cant be confirmed.

still considerable...
some said dat d sweet spot for this proc is 3.2ghz...
man, cant hardly wait to get this proc..

want to ask..
what is the totally real t max junction for e8400?

some ppl say that e8400 is 95 but some say 105...
i see most forumer here say tat realtemp give the real reading for e8400 than coretemp.. with 95 max and 105max

but i see other forum..
http://www.tomshardware.com/forum/248693-2...0-temp-question
here claim that e8400 got 105 max
