Normally can change without offing the main AC but if worry get electrocuted then better off the main when the gate is fully close. On back after changing.

Hi, for your hari raya package with installation is the price inclusive of dismantle old autogate unit?

all info are in the offer list. Anything not sure can just whatsapp us at 0122019294

Hi,

Comparing 212K and 880 which is around the same price range, how do we decide which one to go for? Is it based on the type of gate? Or both got some slightly different functions and features? Pros and cons?

Thanks

212K is arm screw type which key release feature so can free gear using key when system hv problem. No need to remove whole arm from gate like those normal allen key type.

Turbo 880 is rotate system which hv nicer design with chip set key release, easy screw adjust if gate misalign, slim arm, anti spy hand remote, indoor wireless wall push button, board can still be connect to normal wired push button for one or both side open close, easy to add on wifi module internal or external USB to control gate open close online and etc.

Not much pro and con because main use to open close gate automatically. More on ur prefer outlook of the design after installation.

All the best choosing.

Thanks. From your experience, which type is more reliable? Those screw type like 212K/712 or rotate type like the 880?

For us all are the system is the same as long install properly. If simply install system can last u a few months only then start to hv problem. So get an experience installer then will hv less problem. Even got problem at less the installer can solve it for u even some problem is not from their system but wiring or gate. Install everyone also can do as long follow the boss do a few and can go do themselves already. But once come to trouble shoot then hmmmm dun know already.

Most important is choose which is within ur budget or ur requirement simple or more feature. We installed a lot already so far not much complain and a lot still come to use our service to install for their own or relative or friend new hse.

Can see all our projects on our facebook dblcss.klg
https://www.facebook.com/dblcss.klg

This post has been edited by dblcss: Mar 6 2023, 08:56 PM

Saw some of your photo for Fagolli installation, they allow you to swap out the Fagolli motor with DNOR in the package?

We are installer and authorize reseller for Fagolli. We sell their full set gate system and give our client to choose Dnor Turbo 8800 which is similar to Fagolli autogate system. The option is from our side which we cover the warranty for the autogate and the gate problem will be cover by us and Fagolli. For those who are interested can only get this option from us and no need to request from Fagolli because they will not entertain u.

We give the option because some customer want matching color motor cover with gate. Option to add wifi module which is compatible with their smart home easily which is able to support one or both side open close online and voice comment.

Customer getting from us because they know we will try our best to provide solution that other cannot give. When they purchase the trackless system from us is because our company reputation and track record as can see in our facebook dblcss.klg showing a lot of return customer continue using our service not because the brand name.

Anyway choose wisely. If looking for cheap any TOM,DICK or HARRY can sell the gate or autogate system. Professional in installation and knowledgeable in the product and trouble shoot not everyone know. If talk to salesman of cause can tell A-Z how good their product is and condemn on other brand to get sales but when come to troubleshoot hmmmmmm let me chk with office or technician first. But a lot prefer cheap but when problem they source solution from us. We still will entertain their problem but will be chargeable because the system is not from us.

This post has been edited by dblcss: Mar 8 2023, 11:04 AM

for 12ft size.. is folding suitable? or u recommend swing

12ft normal go for swing because folding full aluminium would be very costly compare to metal type. Anything whatsapp us at 0122019294 for immediate respond.

Sample swing about 12ft width with full solar autogate system
https://www.facebook.com/photo?fbid=5693790...693800227336933

This post has been edited by dblcss: Mar 14 2023, 05:42 PM

Guys

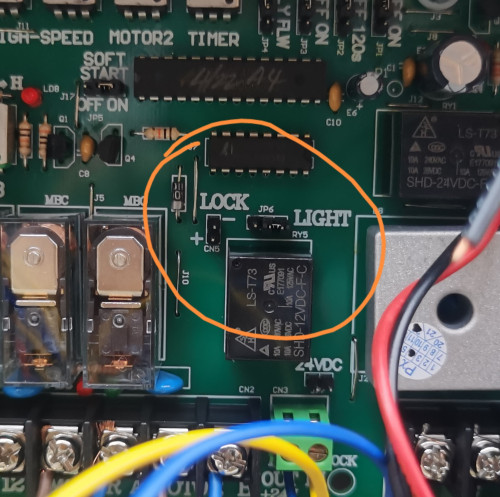

Anyone know what this pins function on A4 (v5) autogate board.,
LIGHT , LOCK , 24V (output i assume?)
Im thinking to install autolock (maybe from dc moto).
Possible to install on this board?

Marked with JP should be a jumper configuration. The one with CN is connector probably where you could connect to something.

Ic..
I tried search for this board diagram or pins function.. but cant find any.
Ask from seller (online) also they don't know and never used that pins. 😅

That is for the normal solenoid lock on the jerk up to unlock by connecting to a relay. Light is normally jumper is to on or off 24v out put connect for automatic on off light like those old board.

Connect autolock to right hand side and set delay on the left motor side. Autolock power shld be connected to left hand side motor. Work dun work depend on how u set the delay. Happy trying.

Anyway for actual info shld ask direct factory whether it can work or not. Not all seller are installer with proper knowledge of the product they sell.

This post has been edited by dblcss: Mar 21 2023, 11:24 AM

hi.. thanx bro.

the 'solenoid jerk up' unlock , u mean those solenoid type (no key) that 'lock' to the floor hole, rite?

im getting DCmoto autolock set to install later.

if to ask factory, is it to Dnor?

Hv key lah.
Dnor

Some questions regarding autogate.What kind of wiring is needed for the autogate?I mean if i wanted to install the wiring earlier now for the future autogate installation,what wiring i need to install from the house to the gate pillar?Isit normal 3 wire(L,N,E) sufficient or need some extra wires?

Std wiring for autogate
7 wire from hse DB to autogate junction box area which can be at the porch - 3 for pow3er user LNE and 4 for push button use. From junction to each pillar motor area min 2 wire for motor and 2 for sensor if ur system hv add on IR sensor. 1.5mm wire shld be good enough. Normally armor cable will be better choose then normal wire in PVC pipe.

OK.The wiring man said need 9 core wire to pull from the DB(Autogate+Pillar light+Bell)
Any other additional wires needed?
