1. Install USBFlash driver(To let ur pc to recognise ur phone.
2. Install FAR Manager
3. Download Phone XS++
4. Download
i. SEFP010044
ii. SEFP010051
iii. db2010cid49_4_alpha
5. Extract SEFP010044.zip into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]
6. Extract SEFP010051.rar into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]
7. Extract db2010cid49_4_alpha.rar.zip into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]
8. For your information, I'm using,
i. W810_R4EA031_MAIN_CHINA_HN_RED49 as my Firmware(Recommended)

Now, the journey begins...

1. Remove your sim card and memory stick.
2. Switch off your phone
3. Open XS++
4. Pressing the C of your phone and press "Start" in XS++

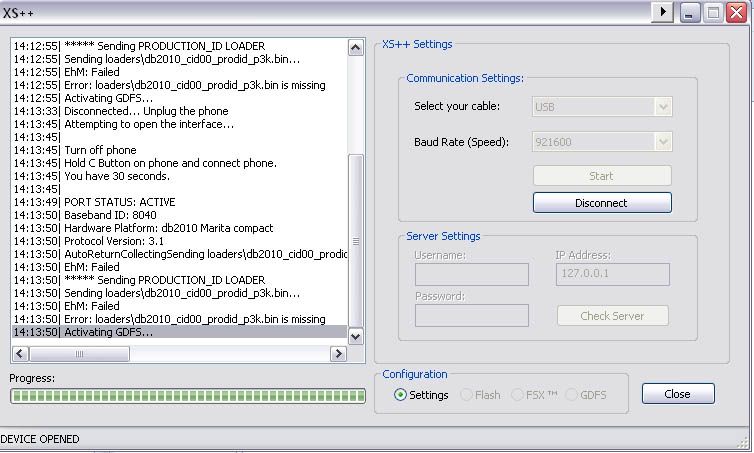

5. Look like this when connected, IMAGE:
6. Check/Tick the "Flash Main Firmware" and locate the file w810_p3k_dcu.49R.ssw in [ E.g C:\Program Files\Far\Plugins ]
i. It is not the real firmware, just for you to access your filesystem without bruteforce.
ii. It is only 5 flash blocks, won't take more than 20 seconds.
iii. Before you move on, PLEASE don't get your itchy hand click or check or whatever other options.
7. Click the "Flash" button now.
i. If it hangs/stopped at 100%, choose STOP. Don't worry, nothing goes wrong here. laugh.gif
8. Unplug the USB cable, remove your battery for 5 seconds, place back.

Well, move on...

1. Open your Far Manager
2. Press F11
3. Click SEFP 0.10.0.51
*** If you get the error:
i. "Unknown exception", Exception address: 0x7C812A5B...... The plugin will be Unloaded! This is a bug. It is because you don't have any COM-ports, so create a fake COM-port connection.
ii. "<BIldr> can be used with Service Cable ONLY".... browse to the SEFP folder and patch sefp.dll with sefp0.10.0.51patch.exe. [ E.g C:\Program Files\Far\Plugins\SEFP\ ]

*** ELSE,

i. Device, choose DCU-60
ii. Speed, choose 921600
iii. Bootscript, choose w300_w810_z550_cid49
IMAGE: http://img101.imageshack.us/img101/3293/faroz5.jpg

4. Click "Enter The Matrix"
5. Plug the USB cable to your phone.

Loading blablablabla.........

6. Load finished, you will see FLASH and FS.
7. Double click FS.
8. Load again.......
9. Now, edit la what files your want, if spoilt I don't know lo! whistling.gif
-> Go to SE-NSE Forum find where are those files located, I don't wanna spoon feed on this. Or, experiment them by yourself. icon_rolleyes.gif
10. Gao tim changing everything until the phone cannot boot? shakehead.gif
11. Go back to Root, [...] until the Far Manager asks, Exit loader? Yes la of course.
12. Close your Far Manager
13. Open XS++
14. Unplug the USB cable, remove your battery for 5 seconds, place back.
15. Again, pressing the C of your phone and press "Start" in XS++

Connected, CRITICAL part.

Did I tell you to download your Firmware just now? You know what will happen if you say no.

1. Again, check/tick "Flash Main Firmware"
2. Locate your Firmware file, the file extension should be .MBN
3. DO NOT touch other things.
4. Click Flash
i. Around 350 Flash blocks, varies between different version/region Firmwares.
ii. While you waiting it to finish, leave your phone there. DON'T touch it!
5. Finished flashing? Unplug the USB cable, remove your battery for 5 seconds, place back.
6. Tada!! Switch on your phone. Game over!

Credit to SE-NSE Forum for this awesome guide.
http://forums.se-nse.net/index.php?showtopic=7330
*

1. Install USBFlash driver
2. Install FAR Manager [ Go download, don't be lazy www.farmanager.com ]
i. SEFP010044
ii. SEFP010051
iii. db2010cid49_4_alpha
3. Extract SEFP010044.zip into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]
4. Extract SEFP010051.rar into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]
5. Extract db2010cid49_4_alpha.rar.zip into SEFP plugin folder [ E.g C:\Program Files\Far\Plugins ]

1. Open your Far Manager
2. Press F11
3. Click SEFP 0.10.0.51
*** If you get the error:
i. "Unknown exception", Exception address: 0x7C812A5B...... The plugin will be Unloaded! This is a bug. It is because you don't have any COM-ports, so create a fake COM-port connection.
ii. "<BIldr> can be used with Service Cable ONLY".... browse to the SEFP folder and patch sefp.dll with sefp0.10.0.51patch.exe. [ E.g C:\Program Files\Far\Plugins\SEFP\ ]

*** ELSE,

i. Device, choose DCU-60
ii. Speed, choose 921600
iii. Bootscript, choose K750/W800_cid36
IMAGE refers to W810i guide


4. Click "Enter The Matrix"
5. Plug the USB cable to your phone.

Loading blablablabla.........

6. Load finished, you will see FLASH and FS.
7. Double click FS.
8. Load again.......
9. Now, edit la what files your want, if spoilt I don't know lo!
-> Go to SE-NSE Forum find where are those files located, I don't wanna spoon feed on this. Or, experiment them by yourself.
10. Gao tim changing everything until the phone cannot boot?
11. Go back to Root, [...] until the Far Manager asks, Exit loader? Yes la of course.
12. Close your Far Manager
13.Unplug ur phone and remove ur battery for 5 second.Yeah u got a new phone now...

1.Install your K750i driver.
2.Install Phone XS++
3.Start phone XS++.
4.Click start.
5.Hold ur "c" button and plug in your phone cable into your phone.
6.Phone Xs++ will detect your phone.
7.Choose the W800i firmware you downloaded.Remember,u must flash MAIN and FS.
8.Use China MAIN with APAC FS if u want chinese.
9.Click start.
10.Wait for about 5 minutes,then XS++ will ask you to unplug your phone.
11.Pull ur battery out for 5 sec and put it back.
12.If u got an error "configuration error...",continue by following the topic teaching you how to put custom files into your phone.

1.download xs++ 1.6.7 frm http://www.esnips.com/web/XS++http://www.esnips.com/web/XS++
2.download the flash menus .swf files n modded acoustic here

acoustic> http://www.speedyshare.com/112443253.html
flash menu's .swf files> http://www.speedyshare.com/736795382.html

3.extract this 2 files into the folder named files_to_upload inside the xs++ folder
4.remove your memory card n sim card from the phone
5.open xs++ 1.6.7
6.plug in the usb cable into your phone by pressing 'c' button on ur phone
7.click connect
8.click the Customize File System
9.click the setting down there
10.click the BreakXS at the Wayin
11.click on FSX at the configuration
12.then click Start FSX and wait it finish loading(it uploading files from ur files_to_upload folder to your phone)
13.wait until it says disconnected...unplug ur cable only u unplug ur phone from ur cable..

and dats it..put bak ur memory card n ur sim card n try ur new flash themes n acoustics sound

the flash themes is here> http://www.speedyshare.com/269182264.html


jz follow the steps 1 by 1 n u wun hav any problem..

P.S. I AM NOT RESPONSIBLE FOR ANY ACCIDENT HAPPENS TO YOUR PHONE!!

1. Connect your phone to PC and install the Flash Driver provided above.

2. Extract the Phone XS 1.68 to your PC then create a folder name "files_to_upload" in the same folder of Phone XS 1.68 like the print screen below



3. Then inside the "files_to_upload" folder, create subfolder which are /tpa/preset/system/menu. Which mean inside "files_to_upload" folder create a new folder called "tpa" then inside tpa folder create a folder called "preset" and so on till "menu" folder.

4. Inside "menu" folder, paste in all the related files and icons that you wanted to mod. See the print screen below
user posted image

5. Open Phone XS++ and you should see this.
http://img443.imageshack.us/img443/1305/63038866zq9.jpg

6. Click connect and connect your phone. You should see this.
http://img339.imageshack.us/img339/3483/97754506hc6.jpg

7. Then click on Customize file System and you will see this.
http://img411.imageshack.us/img411/1422/99641834kf4.jpg

8. Click ok then Click settings.
http://img205.imageshack.us/img205/9601/60438689bq0.jpg

9. Then in setting, Click Break FS
user posted image

10. After that, Choose FSX(tm).
user posted image

11. Click Start after that. By the end of process, you should see this.
user posted image

Unplug your phone from cable, remove battery and reinsert it and start your phone.

Disclaimer : I will not responsible for any failure of starting the phone and doing all this is at your own risk. Warranty will void, no doubt about that.

PART 1 - Preparing files needed.

1. Download XS++ v1.6.8 from:-
   • Link #1(Official)
   • Link #2(Rapidshare)
2. Extract the XS++ to a new folder. Inside the new folder, create a few path. See screenshot below for more information.


3. Download a Flash Menu/Theme from:-
   • Download Flash menu here. Link provided by LEVIATHAN.
4. Put the flash menu files (.swf) into the folder you created just now, refer to screenshot above.

PART 2 (Version 1 - Making the .thm file uses the flash menu(the .swf file)

1. Download myThemeCreator from:-
   • Download myThemeCreator here. You might need to register as a member there.
2. Open the theme that you want to use flash menu.
   • Example: Everchanging theme using everchanging flash menu
3. On the circled part (see screenshot below), change it to yourflashmenuname.swf
   • Example: Everchanging.swf. NOTE: The file name is caps sensitive.
   http://img178.imageshack.us/img178/7306/flashguide3xe3.jpg

OR



PART 2 (Version 2 - Renaming your .swf file to the flash menu used by the theme)

1. Right click on the .thm file, open with Notepad
2. Ignore everything, use find function(Ctrl+F) and find the line below

   QUOTE
   <Desktop_style Type="File" Source="xxxx.swf"/>
3. Rename your .swf file to the same as shown in that line.
   WARNING: You cannot edit anything in the notepad or the .thm will crash

PART 3 - Time to upload the stuff to the phone, eh?

1. Open the program 'XS++'
2. Connect your phone to XS++. To connect your phone to XS++, you have to..
   1. Turn off your phone
   2. Click 'Connect' on XS++
   3. Hold 'C' on your phone and connect your phone to the PC with the data cable
   4. If your phone gets detected by XS++ (See screenshot below), skip to step 4. Else continue with the step below.

3. Only follow this step if your phone doesn't get detected by XS++ and you get "Found new hardware" pop up instead.(If anyone could provide me screenshot for this section, please kindly do so. I need it, )
   1. Insert your PC Suit CD and don't do anything. Just leave the CD inside.
   2. Hold 'C' on your phone and connect your phone to the PC. Wait for the 'Found new hardware' to pop up
   3. When it pop ups, click on it and it will ask you whether to allow Microsoft Windows to search for the driver or not. Choose 'recommended' option. (It will automatically find the driver from your CD)
   4. Let the windows find the driver and soon it'll install it. This might take a few minutes. After successfully installing USB DRIVER(I'm not sure what name is it.), proceed with next step.
4. Tick 'Customize file system' (See screenshot below)
   Just ignore the pop-up and proceed to next step
   http://img158.imageshack.us/img158/373/pic2kz3.jpg

5. Click on 'Settings' and choose 'BreakXS' (See screenshot below)
   http://img179.imageshack.us/img179/4444/pic3xv0.jpg

6. Click on 'FSX' tab and press 'Start FSX' (See screenshot below)
   http://img123.imageshack.us/img123/2410/pic4pa6.jpg

Wait for the XS++ to upload the files to your phone. When it's done, simply change the theme and you will get the Flash Menu (If you followed the steps correctly). Else, check and see which part you missed or you can ask at the thread.

1) here, download http://k610.yw.sk/files/firmware/W660firmware/
W660_R6AD001_MAIN_GENERIC_FY_RED52.rar
W660_R6AD001_FS_CENT_EUROPE_RED52.zip
HB1-06_Gen_CDA102568_2_R8A_GENERIC_CENT_EUROPE.zip(custmenu/custpack)

and follow this guide
http://forums.se-nse.net/index.php?showtop...85&st=0&start=0
or this guide
http://se-tuning.net/viewtopic.php?f=40&t=...011ae6b966325f9

1.) Firstly, download the Original EU fonts provided:
http://www.live-share.com/files/271772/K80..._fonts.zip.html

2.) Then, extract 3 files in it to the XS++ directory. (assuming you're using it)
XS++ directory = files_to_upload/tpa/preset/system/fonts/
Start the FSX. When the process is done, disconnect the phone and turn it on.

3.) You should be able to see your original fonts back.
However the chinese characters are missing.

4.) Grab the fonts.xml supplied at (1.) and edit it.
Right-Click the fonts.xml and choose open with > notepad.

from these values:

<xml>
<engine cache_size="131072" default="yes">
<font style="sans-serif" weight="normal">/tpa/preset/system/fonts/Sans-Serif_Europe_Reg.ttf</font>
</engine>

<engine cache_size="262144" default="no">
<font style="sans-serif" weight="bold" >/tpa/preset/system/fonts/Sans-Serif_Europe_Bd.ttf</font>
<font style="sans-serif" weight="italic" s01="20" >/tpa/preset/system/fonts/Sans-Serif_Europe_Reg.ttf</font>
<font style="sans-serif" weight="bold-italic" s01="20" >/tpa/preset/system/fonts/Sans-Serif_Europe_Bd.ttf</font>
</engine>
</xml>

change to:

<xml>
<engine cache_size="393216" default="yes">
<font style="sans-serif" weight="normal">/tpa/preset/system/fonts/Sans-serif_Chinese_Reg.ccc</font>
</engine>

<engine cache_size="183296" default="no">
<font style="sans-serif" weight="bold" >/tpa/preset/system/fonts/Sans-serif_Chinese_Bd.ttf</font>
<font style="sans-serif" weight="italic">/tpa/preset/system/fonts/Sans-serif_Chinese_It.ttf</font>
<font style="sans-serif" weight="bold-italic">/tpa/preset/system/fonts/Sans-serif_Chinese_Bi.ttf</font>
</engine>
</xml>


5.) Once again, upload the updated fonts.xml file alone to the XS++ directory.
using the same method as (2.). When the process finished, disconnect the phone and turn it on.
This time, your phone fonts are back to normal with the presence of chinese character.

Good Luck smile.gif

This post has been edited by sasaug: Sep 29 2007, 09:01 AM

Download it!!
1. extract the whole folder to your desktop
2. open the far
3. click F11
4. click SEFP 0.10.0.51
5. Device choose DCU-60
Speed choose 921600
Boot script choose db2020_cid52
6. click Enter the Matrix
7. press 'c' button on your phone and plug into ur usb cable(make sure your phone is off)
8. den will loading...
9. click FS
10. loading again....
11. modified the things u wan to modified(spoil liao is your own responsibility )
12. click the .. button until it ask do u wan to shut down den click yes
13. plug out ur phone n take out your battery for 5 seconds den put back again..
14. gau tim

Camdriver(Replace the camdriver0.dat file)
1.Copy the .dat you downloaded and copy it into /ifs/settings/camera/
*Replace the camdriver0.dat file only...

Acoustic(Sound driver)
1.Delete the file "acoustic" found in ifs/settings/
2.Rename the folder which contain the driver u downloaded to acoustic.
3.Copy the renamed folder into ifs/settings/

Flash Theme
1.Place the .swf files in tpa/preset/system/desktop/flash
2.Place the theme file into your phone or memory card.

Fonts
files_to_upload/fonts/tpa/preset/system/fonts

Coming Soon....

Coming Soon

Coming Soon

(Zapf)Sunfire 7
(Zapf)Megabass V6
Xaero K790
Nismo91's ZAPF Collection
aero_ma_loud+MY zapfv6_megabass acoustics(for db2020 phones such as k800i/k810i/w850i/w880i)
Peter's_acoustic_V1_for_K800i(Rfer post #686)

Camdriver= files_to_upload/ifs/settings/camera

Acoustics= files_to_upload/ifs/settings/acoustic

flash menus= files_to_upload/tpa/preset/system/desktop/flash (only for flash based phone..k800/k810i nt supported)

fonts= files_to_upload/fonts/tpa/preset/system/fonts

menus icon for k800i/k810i= files_to_upload/tpa/preset/system/menu

camera frame's directory = tpa\preset\system\multimedia\pe

CID 36/49
Sasaug(MSN: vmagnum2005@yahoo.com)



CID 50/51/52
KTCY
ybtan
