As far as I know its in Jusco of IOI, Sunway, Midvalley. I saw it in Parkson Midvalley as well.
Wow.. found something on the qsteer but it's in japanese. Hope I can understand find more of the same.
Qsteer infrared analysis (jap)After translation:
Every band there are eight blocks at all.
These blocks divide into into the first half four at a time and the latter half.
In other words, four of the first half completely with the same contents, the latter half is similar.
Those where you looked at the contents of block of the first half in detail are the rough sketch.
As for each block it understands that it consists seven pulses.
In addition, being long and short you understand in seven pulses.
Long and short of pulse may be divided by 3 types, is.
Then, when, H, you think 1 and 0 from long ones in order,
As for contents of 1st block of each band as description below it can write.
Band Pulse
A H000001
B H010001
C H100001
D H110001
Don't you think? here, you become aware in being regularity.
In other words, as for the pulse of first H the start bit which does not have meaning,
As for two pulses which follow to that at 2 bits type of band,
At 4 bits type of operation (in this case advance) you display remaining four pulses.
In other words, like below it is designed to be structure.
Band Operation
[b0] [b1] [m0 m1 m2 m3]
Band bit b0 and b1 display the type of band.
Band b0 b1
A 0 0
B 0 1
C 1 0
D 1 1
In addition, when pushing down each button of the controller,
Operational bit m0, m1, m2 and m3 were inspected.
When it collects, it became like below.
Operation m0 m1 m2 m3
0 0 0 0
F 0 0 0 1
B 0 0 1 0
L 0 0 1 1
R 0 1 0 0
F+D 0 1 0 1
F+L 0 1 1 0
F+R 0 1 1 1
F+L+D 1 0 0 0
F+R+D 1 0 0 1
B+L 1 0 1 0
B+R 1 0 1 1
B+D 1 1 0 0
B+L+D 1 1 0 1
B+R+D 1 1 1 0
D 1 1 1 1
* F...Advance and B...Retreat and L...The left, R...The right, D...Dash
It returns to the first figure, but among eight blocks, at a time the first half and four the latter half are the same contents.
Four of the first half changes in accordance with the chart ahead with the depression state of the button.
However, you push down four the latter half, always it becomes the same contents depending upon state.
Band Operation
H
b0 b1 1 1 1 1
It is constituted from thing, the start bit, the band bit and the operational bit which are formed at 7 bits,
The time interval and the like which is during blocking is the same as the first half.
However, the operational bit is locked 'to 1111'.
By the way, when pushing the dash button, it is the same as the thing.
Why, as for the person who understands whether it becomes this kind of complicated specification, it isn't?
Constitution of the signal understood temporarily.
After with each bit and timing of block shank.
This a little is complicated, but...
---------------------------------------------------------------------
Infrared signals to watch noticed that.
Controller or around the left and right buttons simultaneously pressed,
I pushed the button to dash alone to figure out the same signal as you think.
In other words, if the A band, "H001111".
Also, is not convinced that the operation when the "brakes" on it.
He absorbed in the operation and the occasional sudden braking it is not?
At the time, a little warm, do not press the button simultaneously?
In addition, the signal is, sometimes, but "runaway" (laughs).
I just switched to the battery overnight because it is not?
Long after the game ended submit to remain for the weak batteries.
"Brakes" signal in the notice. Evil (laughs).
//----------------------------------------------------------------------------
Another translated Analysis
analysis 2 When buying QSTEER with entry before, what you think analyzing, the remote control cord/code that you tried probably to play you wrote, but being to become the just a little air it tried searching. With, the っ it came and by his wrote, whether it will try analyzing, the っ て page most was issued on and the ちゃう did, those forced and the page was not found.
Whether with "is disgusted with the notion that where you say and ゃ no one is done the ぁ? ? ? "With thinking, placing the remote control receptor in the breadboard and connecting to the oscilloscope it tried observing. Because as for secondary modulation frequency of the infrared ray seeing, increase it is, such a high part there is no either reason which you use, how you try probably there is no problem with せ 38kHz. Also the receptor which was used in analysis is something of 38kHz.
Qsteer With being the case that it is said, becoming such feeling, it increased. When in L having fallen has appeared the infrared ray pulse of 38kHz, it becomes. Because it is different from remote control something of the standard televisions considerably, temporarily temporarily like under the figure it made to call the sequence 1, 0 respectively. Because it is the ripple mark which comes out of the receptor, if it does not produce the ripple mark of this sort perhaps and it puts out also the て, with 1:2:4 400 μ sec as 1 unit, it reacts, whether it is it is not, with you think.
Well, from here it becomes correspondence of the button and the cord/code. When the leader of 1.8ms it is attached, entirely it is simultaneous to consist of the cord/code of 6bit. First 2bit seems that becomes the cord/code of A - D. A:00 B:01: It becomes C:10 D:11. Because is, example in this figure when being C, becomes the cord/code. The remaining 4 bits with the reason which is meaning in every bit are improbable. Combining, the variety it tried pushing, but it seems that becomes like below.
0000: Unused?
0001: It moves forward
0010: It advances to rear
0011: The steering wheel just is turned on the left
0100: The steering wheel just is turned on the right
0101: Dash before
0110: Turning the steering wheel on the left, it advances
0111: Turning the steering wheel on the right, it advances
1000: Turning the steering wheel on the left, dash before
1001: Turning the steering wheel on the right, dash before
1010: Turning the steering wheel on the left, it goes backwards
1011: Turning the steering wheel on the right, it goes backwards
1100: Dash to rear
1101: Turning the steering wheel on the left, dash to rear
1110: Turning the steering wheel on the right, dash to rear
1111: Only dash probably will put out, left and right simultaneous and the undefined cord/code of the front and back simultaneous pushing and the like (the stop cord/code, is)
When with with the notion that where you say, in addition spare time is possible, making even with controller, the combining ぇ which plays. : -)
From above taking with the camera, while the picture analyzing, when the automatic control it is possible, funny so the shank.
# When it tried searching for the second time, it was found. Properly A - Being analyzed to the gap between the cord/code with D, don't you think? this one is perfect.
//----------------------------------------------------------------------------
analysis 3Q-STEER (queue/cuesteering)is チョロQ which does control with the infrared ray which the タカラトミー corporation sells.
The result which was analyzed here concerning the infrared ray signal which is used in the control of this Q-STEER is placed.
It cuts off once, but as for the contents which are written here being not to be formal ones, being perhaps, there is a part which are wrong in part and misunderstands, please note.
The infrared ray signal of Q-STEER is designed to be the same structure as the signal which is used basically with general remote control.
(Being even in the, to be various specifications most general remote control, it is not the case, like this of everything, is, but.)
By the way, IrDA of the communication standard which similarly uses the infrared ray those which have been explained here has done the structure which is different completely, but in addition as for that furthermore difference story.
First viewing first some ripple mark is really forwarded from the controller.
This with band A "is the ripple mark when" "advance" is done.
Two same signals are drawn, but it is 1 set with this.
The first ripple mark and the 2nd ripple mark completely are the same, but time interval between the ripple mark differs depending upon the band which has been used.
While pushing the button of the controller,this 1 set is repeatedly forwarded at period 100 [ms ].
When one signal ripple mark is received, for a while between (0.5 [ s ] extent?) Because the movement which is appointed is continued, failing to receive the signal of one gloss two, immediately, it does not stop.
It explains concerning the part where the signal is small next.
Wave length of each ripple mark as written on, is the meaning which produces the infrared ray in the red part, but this time luminous element expectation - the っ shining, is not る reason and the て to be small repeatedly blinking it is.
This is called the carrier, it is, but as forthis carrier frequency 38 [ KHz ] front and backwe would like to see, is.
With Q-STEER 1 is distinguished with 0 of the bits due to the difference of luminous time.
Which of the one and shorter one whose luminous time is long as a bit 0 it is good, it is but (on development side it is husband who is defined clearly, but there is no expedient which knows that being), immediately here it designates shorterone as bit 0 inthis.
Bit 0
Bit 1
As for "the header" with those in order to detect the first position of the signal ripple mark, there is no meaning above that.
"The band" takes a state where it corresponds to the band where the controller which was transmitted is set.
Band A 00
Band B 01
Band C 10
Band D 11
The "control code" takes a state where it corresponds to the button which is pushed with the controller.
0000 Unused?
0001 ↑
0010 ↓
0011 <-
0100 ->
0101 ↑ ↑
0110 ↑ <-
0111 ↑ ->
1000 ↑ ↑ <-
1001 ↑ ↑ ->
1010 ↓ <-
1011 ↓ ->
1100 ↓ ↓
1101 ↓ ↓ <-
1110 ↓ ↓ ->
1111 Danger signal
"↑ ↑" "↓ ↓" has displayed dash advance and dash retrogression here.
When the "danger signal" is transmitted, when separating the button, separates the button because of this it is the case that it is stopped at once.
By the way when invalid button operation is done even, the "danger signal" is transmitted.
From end of 1st ripple mark of signal as for time interval between to header of 2nd ripple mark,
Band A 8 [ ms ]
Band B 20 [ ms ]
Band C 32 [ ms ]
Band D 44 [ ms ]
Generally interval of this extent has been less crowded.
Assuming, that at each band the infrared ray was forwarded accidentally with the same timing, with this differential time it is the case that you avoid the fact that it becomes operation impossible.
When as for communication with the infrared ray as for the communication which uses radio wave compared to it tries we will have the quality which is similar to the communication which is done with wire probably to do plural communication simultaneously the signal blends and communication stops impossible.
This is evaded, there is a method of dividing frequency (spectrum of light/carrier), but in that case it meaning that burden of receiving end increases incommensurablly normally doing time sharing, it does plural communication.
For example when band other infrared ray remote control is used with the scene where 4 Q-STEER controllers of A - D have forwarded the infrared ray, that remote control becomes unserviceable, probably will be and, also Q-STEER stops and/or moves and/or with becomes to say, probably will be.
This post has been edited by nlik: Oct 18 2007, 12:14 PM
Aug 15 2007, 03:47 PM, updated 16y ago
Quote

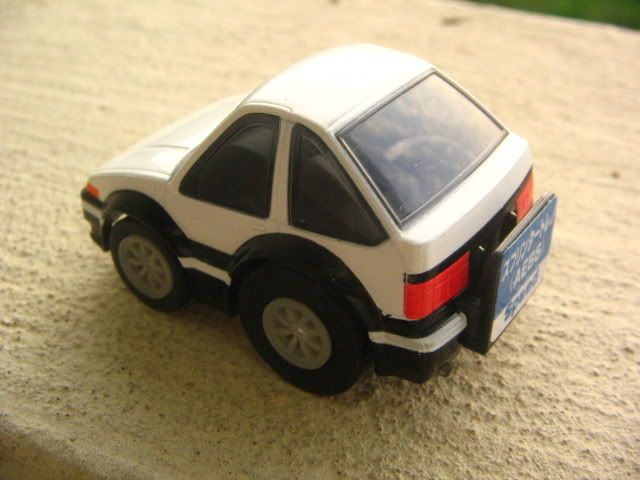

. I have a few AE86 cars of different sizes mar. so this 1 is more for collections.
wait.. if i get the initial d set, that means it doesn't have the feature to do this rite? hmm.. need to read more. I saw an LED on the remote, so I think this runs on infra red ( like TV controller). Thus if your handphone has IR, then hardware wise it is capable to do it already.
) hahaha..
) haha.
. I think it could continue spinning as long as the battery lasts.
The engine roxx..
OK,just updated the first page, please check.
Suddenly I think we malaysian got lucky.
used it up to buy groceries haih..
like KLSE......i remember the 1/72 car by high speed sell at RM12.90 then RM9.90 then RM12.90 ...faint!!!!
