wanttotree TIME dont have vlan tagging.. but i think DNS might be interfering

Oiseh, finally got the chance to read post dirik tok bro. Memang mantap. Proud of you and your generosity in sharing knowledge and information.

Keep it up my good man. Bookmarked!

finally got unifi and starting setting up my network....

right now it is a mess and 1 AP not working (hopefully just a termination issue)





will post more pictures as it gets cleaner

as per wantootree advise i went for

ERL + TS5POE + LGS108 + UAP AC LR(3 units)

Hi, i need some help with setting up Edge Router X for unifi and hypptv. I got this from a friend and was trying to play around with it. I followed your guide and i managed to get pppoe set up on eth0, providing internet to switchports eth1-4 using basic setup. However i can't seem to set vlan on eth1, error saying switchport in use.

I did try setting up again with the steps provided

"e) click 'configure this section' on (Optional) Secondary LAN port (eth2)
f) uncheck 'Enable the DHCP server"

Hypptv was running but I'm not getting internet on other switch ports although pppoe is connected.

My idea is to use this router as a main router for internet and hypptv, and use it as a dhcp server while connecting an access point to it to provide wireless to wifi devices.

Appreciate your help guys I'm still pretty new to this. Trying to move out from using the off the shelf consumer routers.

Sorry guys, could I check with you,
anyone have port forwarding issue with TM unifi and edge router x?

I follow the step,
its easy to configure, but none of the port forwarding is working.

did u enable something like this?

can use port 2 right..
so at eth1 or eth2... configure it to use vlan tagging...put in vlan id, then interfaces eth1 or 2, or 3 or 4... let address in dhcp mode

Could you post a simple guide on how to get IPv6 up?

USG can work with Unifi as well ? Is it the same ?

Thank you

Yes.. USG is same family with UniFi APs. and so far it is compatible with TM UniFi, Maxis, and Time

it should, sorry i am not on unifi or maxis. USG is so much more "eye candy" compared to ERX

sorry,
its my mistake,
LAN interface has to add switch.0 as well, else port forwarding wont work.



btw,

could I ask 1 more question?
anyone here has ever try to use 5fixed ip unifi with edge router?

I manage to add in all 5 public ip into single wan..

but.. of cos , all in / out traffic is using first public IP,
any idea how to set 1 LAN ip (example 192.168.1.10) to use my 2nd public IP ?

I already have 1 server(192.168.1.2) using port 80,
but I have another webserver (192.168.1.10) need to use port 80 as well...

stucking here..

haiz..

5 fixed ip unifi? load balancing? u cant have 2 webserver using same port in 1 router.. you can create and use another port.

not load balancing.

unifi 100mbps business package is dynamic IP,
in order to get fixed IP u need to top up RM300/mth then they will assign 5 public ip for you.

so my company permanently get public IP 175.xx.xxx.81 to 175.xx.xxx.85 from TM for this 100mbps account.

so now I want to assign public IP
175.xx.xxx.81:80 to 192.168.1.2:80
175.xx.xx.82:80 to 192.168.1.3:80


any idea how to do add in all 5 public ip into the router ?

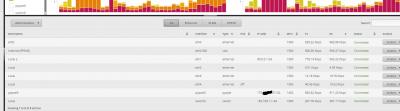

Attached thumbnail(s)

ok... basically, you have 1 WAN with fixed dynamic IP after top up. you just want to add 5 public ip into router. this is for vpn?

if you restart your router.. will the Ip currently inside the picture change?

nope, that ip 175.xx.xx.81 is permanently assign to me until I terminate my unifi, so even restart the ip would not change.

not for VPN purpose,
it just I have 2 webservers (192.168.1.2, and 192.168.1.3) both using port 80
so I want to do port forward which ip 175.xx.xx.81:80 forward to 192.168.1.2:80 and 175.xx.xx.82:80 forward to 192.168.1.3:80

how bout under routing tab.. is there any those ip shown there?

Hi,

How to see all the clients with all the usage info in the router ?

hi guys.. wanted to ask your opinion.. whats the advantage of using enterprise grade router like the one from Ubiquiti as compared to consumer grade router like ASUS ?

Hi wanttotree.

Recently I purchase ER Poe5 and UAP AC Pro.

I cant automatically connect to router, I need to manually key in the IP into Network Connection setting.
It will randomly connect to router on IP automatic mode, but it will also randomly lost connection.

Also for example when I change admin info, the router will lost connection when re-booting, it wont go back to log in page.

Connecting to UNIFI is another thing.
After key in PPPoE info it shows connected at Dashboard but have no internet connection in my computer.

It can randomly have internet connection but will lost when router lost connection or when I log out the router.

WHen my computer get connected to UNIFI setting the UAP AC PRO is a breeze.

Can anyone help me on what happen and how do I rectify the things and get my computer connected to UNIFI.

Thanks.

This post has been edited by mar0o: Nov 11 2017, 11:00 AM
