 How to decide the type of CCTV you need?, Security System - CCTV

views

adamw
post Jun 7 2022, 02:33 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(naqib0307 @ Jun 7 2022, 01:02 AM)
Hello..
in my foyer there is 1 light point on the ceiling..
I plan to install CCTV (Aqara/EZVIZ) with 2 way communication.. since i dont really need to install light there..
Is it advisable to do so? Any recommended camera that can use AC power?.. Saw some video online.. for this smart camera, they are using type C camera and it looks really stupid with the cable dangling around hahaha.. Is there a proper way to do it?

(I planned to use the existing AC power point provided cause dont want to make extra mess or a lot of effort to install smart camera outside.)
*
Is it plaster ceiling? If not you will need a box to store the DC12 or DC5V adapter. There is also some special make cover that fit perfectly to the camera back for adapter storage if it's a concrete ceiling.
adamw
post Jun 8 2022, 02:01 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(naqib0307 @ Jun 8 2022, 10:04 AM)
Yeah. Its a plaster ceiling.
I’m planning to get the Aqara camera since im using Aqara smart lock as well. Or another option EZVIZ.
The DC12 adapter i need to buy something like the 3pin adapter? Or is there any other way to hide the cable?
[attachmentid=11170341]
*
Just hide this inside the plaster ceiling, downside is if need replace got to take out the camera.Just an example
Sorry, yours is a wall? Concrete?

This post has been edited by adamw: Jun 8 2022, 02:02 PM
adamw
post Jun 8 2022, 09:29 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(naqib0307 @ Jun 8 2022, 02:39 PM)
Sorry the photo rotated hahaha.. that is my plaster ceiling.
Thanks for the recommendation! ok now i got the picture  on how to do it
*
You are welcome!
adamw
post Jun 17 2022, 10:30 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(kimgy86 @ Jun 16 2022, 11:02 PM)
a
Mi Home app
TQ
*
I don't know about Mi ip camera but was testing a Vicohome battery unit also make me vomit blood, cannot have full time recording, only when PIR triggered it will record and the clip 10-30secs only bangwall.gif
This type of Soho camera is just not meant to be used for security, more like a toy! brows.gif
adamw
post Jun 21 2022, 01:06 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(gilabola @ Jun 20 2022, 09:05 PM)
After reading the posts here, I’m likely to go with HIkvision or Dahua. I’m looking for a POE system with 8 channels and  at least 5MP camera resolution. It seems that both Dahua and Hikvision has few POE options for this configuration  after I looked in Lazada and Shopee

Reolink has more POE options but I understand from forummers’ posts that Reolink night time recording is not as good as Hilvision or Dahua

Any recommendation for a POE system from Hikvision or Dahua?
*
Installed @home? Outdoor or indoor? Need 2 way audio with Active deterrence?
adamw
post Jun 21 2022, 04:25 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(gilabola @ Jun 21 2022, 03:46 PM)
Installed at home

5 outdoor, 3 indoors
2 way audio with active deterrence is OK if it doesn't add too much to the cost
*
I am about 2 order 2 sets 8ch POE for testing with this features but it'll take about a month plus to reach our shores, are you in a hurry?

adamw
post Jun 22 2022, 10:18 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(sgpdsmss @ Jun 22 2022, 10:02 AM)
order from china? brand?
after testing will sale it ?

thanks..
*
Yes, UNV OEM. If good will bring in to sell. Testing the non POE NVR/POE ip camera now.

This post has been edited by adamw: Jun 22 2022, 10:38 AM
adamw
post Jul 15 2022, 11:13 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(Kar Weng @ Jul 14 2022, 11:11 PM)
Hey kawan, I'm interested in this type of wireless CCTV (for office use):

Xiaomi Mijia PTZ

TP Link

1. What happens to this type of wireless CCTV when they lost connection to Wifi for any reason? Do they stop recording altogether? Or will the footage still be stored in the SD card inserted? By right it will still record(Better ask seller about this)

2. I watched the unbox video here and apparently you need to scan a QR code at the bottom of the CCTV to view the footage from your phone's app. If I'm mounting the CCTV onto the ceiling, wouldn't that be a huge problem? (the QR code will be covered by the ceiling) Pair it before you put on the ceiling

3. Which of the above 2 products (Xiaomi vs TP Link) is better in your opinion? If need to choose between this 2, go for Tapo

Thank you in advance sifus sekalian!  notworthy.gif
*
adamw
post Jul 17 2022, 01:13 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(BboyDora @ Jul 16 2022, 10:14 PM)
Hi all, if my house no wifi (because havent install yet) . can i use a cctv outside the house? what criteria i need to look at as how i can transfer the recorded video to my phone?

and is the cctv works like car dashcam? we use the wifi from cctv to download the video from the apps? Thank you
*
If wifi ip cam, it can act as hotspot, your phone just need to login to the camera SSID to view footages from sdcard.
adamw
post Jul 17 2022, 02:26 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(Kar Weng @ Jul 17 2022, 10:29 AM)
The links I shared above aren’t wifi ip cam like car dashcams right?
*
No. It can connect to the internet.
adamw
post Aug 17 2022, 10:11 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(sgpdsmss @ Aug 17 2022, 10:00 AM)
currently using hik DS-7208HUHI-K1-E decoder with 8pcs of camera ...

wonder can add ip wifi camera to the decoder and viewing in hik app ?

thanks ...
*
Can add another 4 ip camera for total 12 or under enhanced ip mode to 8 + 8 total 16. Enhanced ip only support max 4Mp ip cam.
adamw
post Aug 17 2022, 07:57 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(sgpdsmss @ Aug 17 2022, 01:23 PM)
great...
any model recommend? must get Hik brand or can mixed with other brands?

anyway the ip camera using 12v or 5v?
if 12v may i tap the 12v power from the existing camera voltage ?

thanks ...
*
Normally 12v DC, provided the Amperage is enough it's ok to tap from existing. Can used any ip camera as long as have Onvif but some analytic functions might not be available.
adamw
post Aug 17 2022, 08:15 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(sgpdsmss @ Aug 17 2022, 08:00 PM)
can recommend which affordable and good ip cam?for outdoor use
Thanks
*
I have some 4Mp samples, how many do you need?
adamw
post Sep 1 2022, 10:27 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(phoenixxx @ Sep 1 2022, 10:03 AM)
Hi all, thinking of setting up CCTV at home. Seeing some brands like Hikvision, Dahua always quoted here, I engaged a Hikvision salesperson for a quotation as below. Main purpose is just general security and in-house monitoring of maid.

Due to existing wiring (installed many years ago) the person told me I can only use analog camera up to max of 5MP.

Seeking some opinions from sifus here on whether...

- the package is good (any glaring problems)
- the price is reasonable
- any other items

Quotation CCTV 8CH

Hik 8ch dvr system
2TB Hdd
Hik 5mp IR Dome x 4
Hik 5mp IR Bullet x 4
12V Switching Power Supply
Installation, Testing & Commisioinning
Internet Setting
----------------
@ RM 2,900.00
----------------

ONE YEAR WARRANTY

Payment Terms
50% deposit upon confirmation
50% balance after installation

Optional
1) Upgrade to 5mp clrvu (full time clr) Camera
-------------------
@ Add rm 150/unit
-------------------
2) Upgrade to 5mp (Audio) Camera
---------------
@ rm 150/unit
---------------

Thanks sifus
user posted image

user posted image

user posted image
*
The sales might not be knowledgeable or real professional in CCTV. Very likely you can do NVR with IP Camera up to 4K or more unless the cabling is in very bad shape.
adamw
post Sep 1 2022, 11:12 AM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(phoenixxx @ Sep 1 2022, 10:36 AM)
I don't have a CCTV system currently, only existing cabling done several years ago (8 CCTV points)..
I see.. the package does seem basic but it might be enough for my needs? Not too familiar with the technical jargons. Is RM2.9k reasonable for my package?
Sorry if questions are dumb, CCTV is something new to me, still lurking around the thread but there is too many pages.
*
For 2.9K I can recommend you installer that can do IP and if you need 2 way audio dual led tri-guard function no need to top up so much brows.gif
But provided you are in Klang Valley only


adamw
post Sep 13 2022, 03:45 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(GravityFi3ld @ Sep 13 2022, 03:38 PM)
What's a "Tri-Guard" Function?
*
UNV fancy name for active deterrence.
Tri-guard
adamw
post Sep 18 2022, 01:55 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(kel32 @ Sep 18 2022, 01:08 PM)
user posted image

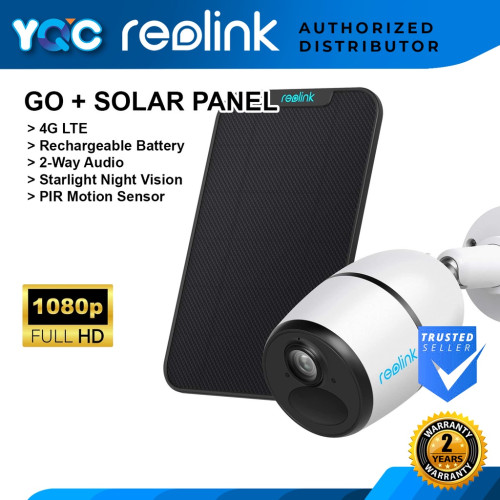

4G LTE CCTV with solar panel
*
You need check if it can record 7/24 otherwise if based on PIR motion only will have a chance of missed recordings.
adamw
post Nov 28 2022, 05:54 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(choonster @ Nov 28 2022, 02:11 PM)
Anyone can recommend some reliable brand for wireless CCTV with magnet base besides Xiaomi? Thanks
*
Ezviz
adamw
post Dec 4 2022, 02:29 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(jackbanner @ Dec 4 2022, 12:49 PM)
Is Dahua app better than Ezviz?
*
Yes, their new DMSS app much better now.
adamw
post Feb 2 2023, 09:46 PM

Back to serve justice to those PKHKC corrupted Ex-ministers!
*******
Senior Member
3,351 posts

Joined: Dec 2006


QUOTE(Jenn77 @ Feb 2 2023, 05:01 PM)
» Click to show Spoiler - click again to hide... «

I was also in between POE or analog system, thanks for the insights. Will go for POE despite the double price.
*
Where got double? brows.gif
