NVIDIA's GeForce RTX 3090 graphics card has finally been pictured in all its glory and it's looking to be one insane graphics card. Leaked out by twitter user @GarnetSunset, the NVIDIA GeForce RTX 3090 is going to be the flagship offering in the Ampere gaming graphics card lineup and features a massive cooling design.

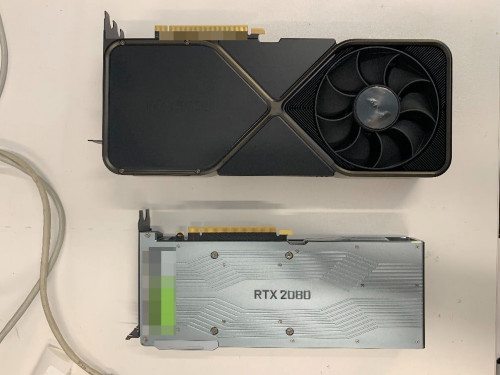

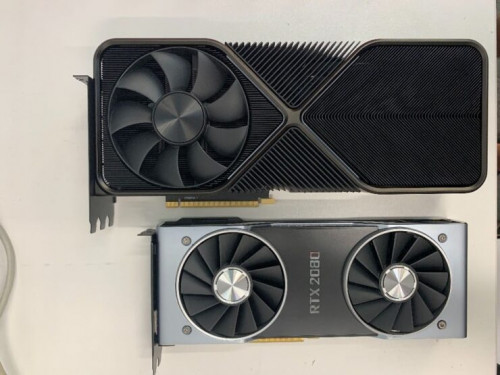

The leak shows NVIDIA's GeForce RTX 3090 sitting right next to the GeForce RTX 2080. Just looking at the card, the GeForce RTX 3090 looks insanely huge and supports a triple slot form factor. This leak not only confirms the earlier leaked heatsinks and cooling shroud but also confirms several reports that had stated that NVIDIA is going all out with its Founders Edition design on the higher end Ampere GPU based graphics cards such as the GeForce RTX 3090.



Just looking at the card itself, the GeForce RTX 3090 seems to be the first reference graphics card to come in such a massive shape and size. It's a triple-slot behemoth with dual axial-tech fans placed on the front and back in a push-and-pull configuration. The front of the card seems to feature the exposed heatsink blocks with several fins placed on top of the PCB. There's the aluminum bar that helps reinforce the shroud and even features a small NVIDIA logo etched on to the metal frame.

The backside of the card features a backplate with a matte black color and the same aluminum bar that reinforces the shroud. Since the card features GDDR6X memory on the backside too as seen on a custom PCB, it makes sense to include a fan on the back to keep the thermals under check at both sides.

The name of the card has been blurred out and from the looks of it, the card is still in an early test phase given the 'Config 1' marking on the PCIe slot.  The Founders Edition design is also expected to feature over 20 power chokes which put it is a more premium design than the flagship non-reference RTX 20 series cards.

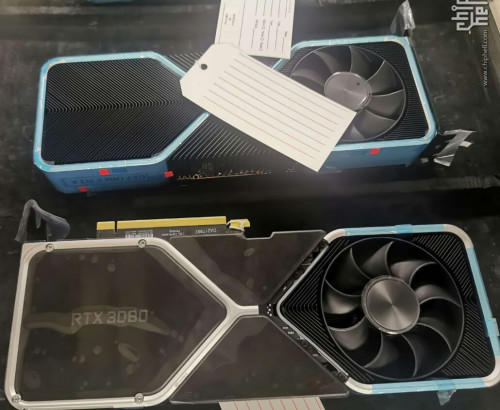

For comparison sakes, the leaked NVIDIA GeForce RTX 3080 Founders Edition from a few months back featured a standard 2-slot design so the 3-slot design seems to be exclusive to the GeForce RTX 3090:

- sg13, small, can fit a 160mm ATX apparently, cramp
- node 202, soldout everywhere. Small and slim

Would like to know more about your experiences with these cases. Plz don't say laptop.

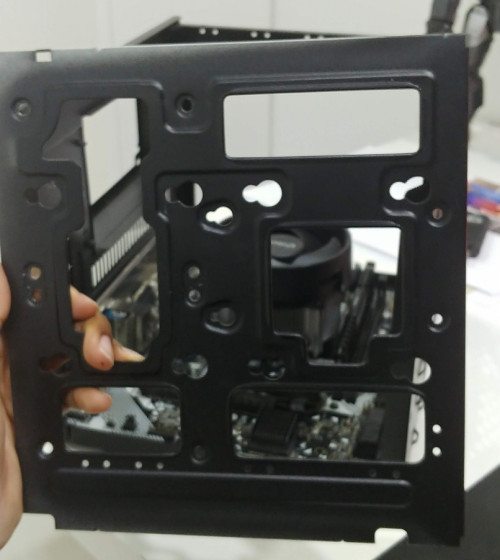

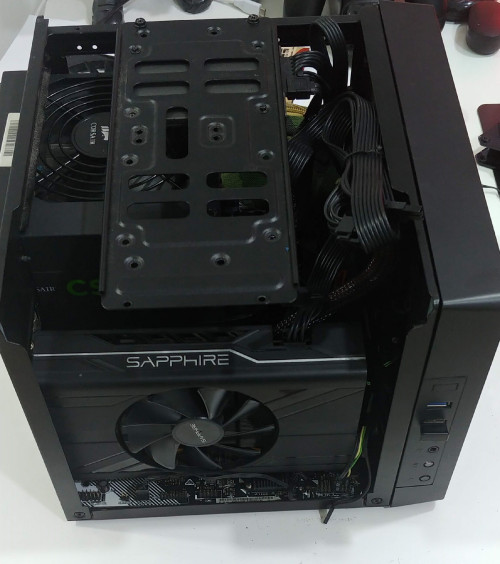

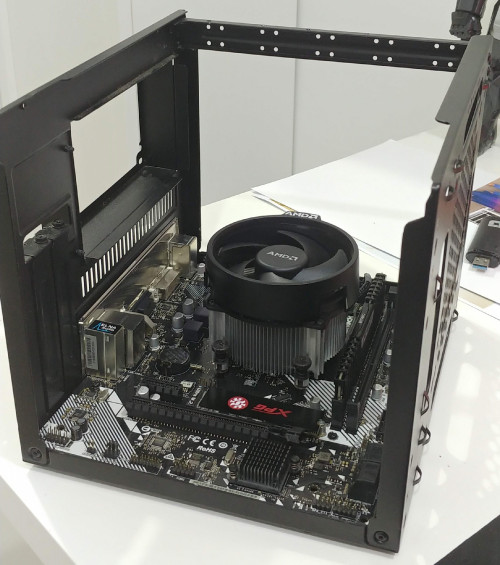

I have personally owned a SG13.
- Good airflow and can fit ATX PSU no problem.

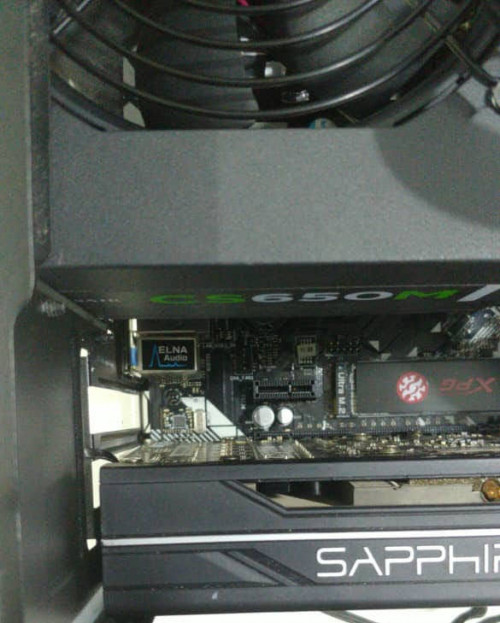

- Must keep the CPU cooler lowprofile because ATX PSU sits on top

and still keeping a Node 202 black and sprayed white.
- Really struggle with good airflow. Intake fan for GPU did not help much to reduce temp. Used dual fan Zotac 1070 mini - temp reached 88C.
- Better airflow with blower type GPU - I am using an oem Dell GTX1070. 83C on load.
- No reset button
- Issue to find SFX modular getting limited and expensive. Used PSU are selling like fried bananas.

Thanks for replying. Not willing to let go my baby 1080. looks like sg13 is the way.

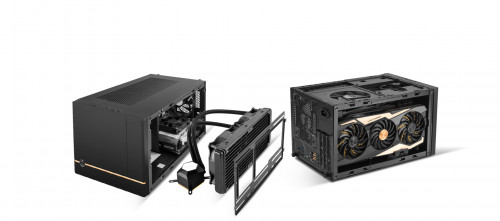

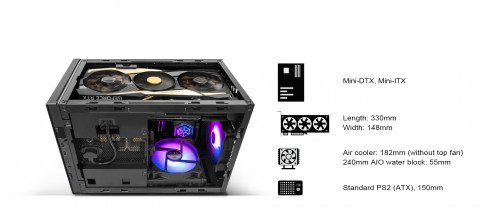

any1 have experience with those china taiwan GEEEK cases? looks dandy, but not many youtuber review.

Hello all. I'm thinking to build my first SFF.
Can anyone comment on this assembly? Or what would you swap out?

Case	NZXT H210 Tempered Glass Mini-ITX Case - Matte White
CPU	AMD Ryzen 5 3600
GPU	Asrock Radeon RX 5600 XT Challenger D 6G OC GDDR6
RAM	G.Skill Aegis 16GB (2x 8GB) DDR4 3200MHz Memory
HDD	WD Blue SN550 500GB 2400MB/s NVMe M.2 (2280) SSD
Mobo	Gigabyte A520I-AC AM4 Mini-ITX Motherboard
PSU	SilverStone SFX SX550 550W 80+ Gold Power Supply

How bout swapping the Asrock rx 5600 xt to any cheap rtx 2060 super, I think the price/ performance is about the same but nvidia driver is alot better and easy to update.

Thanks. I'll be looking to remove AsRock, was going for cheap but it doesn't have that good reviews.
