> Yamaha LC135 & Y15ZR Club - V18

views

TSalexei
post Feb 27 2014, 02:30 PM, updated 2 months ago

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Attached Image
LYN Yamaha 135LC Club V18
Lowyat 135LC Club Logo [by Spayz]
» Click to show Spoiler - click again to hide... «

Yum Cha Session Logo [by Spayz]
» Click to show Spoiler - click again to hide... «


wub.gif Yamaha 135LC Proud Owners wub.gif

The NameList
» Click to show Spoiler - click again to hide... «


Older Thread For Reference
» Click to show Spoiler - click again to hide... «



Whose name is not in the LIST, kindly PM me your details as above notworthy.gif
SCROLL down for more useful tips n links thumbup.gif


This post has been edited by alexei: Mar 9 2017, 05:57 PM
TSalexei
post Feb 27 2014, 02:30 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Our Proud Ride !!

1. Spayz's ride :
» Click to show Spoiler - click again to hide... «

2. xtreme_paranoid's ride :
» Click to show Spoiler - click again to hide... «

3. charge-n-go's ride :
» Click to show Spoiler - click again to hide... «

4. Are_keem's ride :
» Click to show Spoiler - click again to hide... «

5. scoffer's ride : - link is dead
» Click to show Spoiler - click again to hide... «

6. kinwei3250's ride :
» Click to show Spoiler - click again to hide... «

7. LilCroSs's ride :
» Click to show Spoiler - click again to hide... «

8. samba18's ride :
» Click to show Spoiler - click again to hide... «

9. UncleCheang's ride :
» Click to show Spoiler - click again to hide... «

10. budakmentah's ride :
» Click to show Spoiler - click again to hide... «


This post has been edited by alexei: Nov 30 2016, 11:53 PM
TSalexei
post Feb 27 2014, 02:31 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Our Proud Ride V2 !!

11. Na0ki's ride : link is dead

12. DontdoDRUG's ride :
» Click to show Spoiler - click again to hide... «

13. jsteoh93's ride : - link is dead
» Click to show Spoiler - click again to hide... «

14. Aaron135LC's ride : link is dead

15. Itsuki_Kun's ride : link is dead

16. mls_gamer's ride :
» Click to show Spoiler - click again to hide... «

17. fredericktke's ride : link is dead

18. millennia_135LC :
» Click to show Spoiler - click again to hide... «

19. patrickloo's ride :
» Click to show Spoiler - click again to hide... «

20.thianz's ride : - link is dead
» Click to show Spoiler - click again to hide... «


This post has been edited by alexei: Jan 5 2016, 02:02 PM
TSalexei
post Feb 27 2014, 02:32 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Our Proud Ride V3 !!

21. NoobboyZzZ's ride :
» Click to show Spoiler - click again to hide... «

22. ToshinRaizen's ride :
» Click to show Spoiler - click again to hide... «

23. serigala's ride :
» Click to show Spoiler - click again to hide... «

24. mohamadnizam's ride:
» Click to show Spoiler - click again to hide... «

25. MiztaLegendary's ride:
» Click to show Spoiler - click again to hide... «

26. freakyNeo's ride:
» Click to show Spoiler - click again to hide... «

27. ave666's ride:
» Click to show Spoiler - click again to hide... «

28. cahayamalamku's ride:
» Click to show Spoiler - click again to hide... «

29. abong8's ride:
» Click to show Spoiler - click again to hide... «


This post has been edited by alexei: Sep 14 2015, 11:21 AM
TSalexei
post Feb 27 2014, 02:34 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Breaking in that new engine:
How To Break-In (Source 1)
How To Break-In (Source 2)
How To Break-In (Source 2 - Video)
» Click to show Spoiler - click again to hide... «


Maintenance:
Yamaha 135LC Manual Book Direct Download, see attachments at the bottom of this post.
Or here: Link and search for '135' in page

Tips For Taking Care of Yamaha 135LC (0163119779)

Recommended EO: Click HERE for the list.

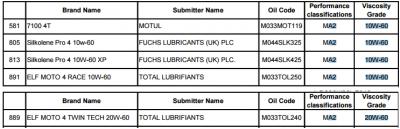

List of EO suitable for Y15ZR and FZ150i v2:
JASO MA2 10W-50
» Click to show Spoiler - click again to hide... «

JASO MA2 15W-50
» Click to show Spoiler - click again to hide... «

JASO MA2 20W-50
» Click to show Spoiler - click again to hide... «

JASO MA2 10W-60 & 20W-60
» Click to show Spoiler - click again to hide... «


Tuning and Setup Guides:
Sprocket Settings (budakmentah)
How To Set Carburator (MBC)
How To Adjust Carburator Settings Simplified (Alexei)
Constant velocity or diaphragm carb (LC135 V2) modification

Riding Techniques:
How to steer a motorcycle
Click HERE to learn the way to steer a bike.
Tyre Turning Angle (Serigala)

Riding In A Group Etiquette [by Are_Keem]
Riding in a big group needs proper riding etiquette. Therefore, you can learn all the riding etiquette HERE

General Knowledge:
Read All About EO HERE

Accessories:
Choosing The Right Jacket [by Alexei]
Here are some tips to learn how to choose riding jacket correctly. Click HERE

LED Brightness [by Aaron135LC]
How to determine the correct LED that provide sufficient brightness HERE

Tips On Modification [JPJ/Traffic] [by budakmentah]
To know what you can mod or can't mod onto your motorcycle. Follow this guideline HERE for the correct tips


This post has been edited by alexei: Mar 9 2017, 06:35 PM
TSalexei
post Feb 27 2014, 02:34 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
Tips to Improve Engine Performance

» Click to show Spoiler - click again to hide... «


Carburator General Tuning Guideline:
LC135 V1 VM carb:
» Click to show Spoiler - click again to hide... «
LC135 V2 BS carb:
» Click to show Spoiler - click again to hide... «


Relationship of Conrod and Stroke length to engine performance

Camshaft and Timing:
Reference: Compilation by LC150 blogspot

Source: Cam timing article
What Happens When We Advance A SOHC Cam Gear?:
- Advancing the Cam : closes the intake valve earlier, increasing cylinder pressure and power in the low to mid-range rpms, and reducing peak power.
- Retarding (or Delaying) the Cam : closes the intake valve later, which reduces low to mid-range power (and may reduce pinging), but potentially improves peak power.

Summary Effects of Advancing/Retarding SOHC Cam Timing:
Advancing vs Retarding
Begins Intake Event Sooner Delays Intake Event
Closes\Open Intake Valve Sooner Keeps Intake Valve Open Later
Builds More Low-End Torque Builds More High-End Horsepower
Decrease Piston-Intake Valve Cl. Increase Piston-Intake Valve Cl.
Increase Piston-Exhaust Valve Cl. Decrease Piston-Exhaust Valve Cl.

LSA = Lobe separation angle:
Cam Overlap is inversely affected by LSA.
The size of the LSA affects the size of the cam overlap proportionately but in the opposite direction to one another.
Increase LSA and you decrease Overlap. Reduce LSA and you increase Overlap.
More Cam Overlap gives you more Upper RPM power gains.

The tighter the LSA: More scavenging, the higher up the powerband shifts along the rpm range and the narrower the powerband becomes. Overlap is increased.
Widen the LSA: Less scavenging, the lower the powerband shifts along the rpm range and the wider the powerband becomes. Overlap is decreased.

Summary of the Effects of Adjusting Lobe Separation Angle ------------
Tighten vs Widen
Moves Torque to Higher RPM Moves Torque to Lower RPM
Increases Maximum Torque Reduces Maximum Torque
Narrow Powerband Broadens Power Band
Builds Higher Cylinder Pressure Reduce Maximum Cylinder Pressure
Increase Chance of Engine Knock Decrease Chance of Engine Knock
Increase Cranking Compression Decrease Cranking Compression
Increase Efective Compression Decrease Efective Compression
Idle Vacuum is Reduced Idle Vacuum is Increased
Idle Quality Suffers Idle Quality Improves
Open Valve-Overlap Increases Open Valve-Overlap Decreases
Closed Valve-Overlap Increases Closed Valve-Overlap Decreases
Decreases Piston-to-Valve Clearance Increases Piston-to-Valve Clearance

Disc Brake Tuning Methodology

» Click to show Spoiler - click again to hide... «


Setting Up Your Monoshock / Fork

» Click to show Spoiler - click again to hide... «


Increase Top Speed In Stock 2011 Yamaha 135LC

» Click to show Spoiler - click again to hide... «


This post has been edited by alexei: Apr 9 2015, 03:14 PM
TSalexei
post Feb 27 2014, 02:34 PM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
thumbup.gif Credit to bro Patrickloo for the videos notworthy.gif
Update me with videos of any nice routes. Videos shown above can be used as a guide line on how the road looks like and for reference usage. icon_rolleyes.gif

Yum Cha Session Photo
» Click to show Spoiler - click again to hide... «


rclxm9.gif Wonders of Penang Island rclxms.gif

Relau - Balik Pulau
» Click to show Spoiler - click again to hide... «

Balik Pulau - Teluk Bahang
» Click to show Spoiler - click again to hide... «


_________________________________________________________________________________________________

rclxm9.gif Wonders of Gerik rclxms.gif

Peak Of Titiwangsa
» Click to show Spoiler - click again to hide... «



This post has been edited by alexei: Jan 5 2016, 02:04 PM
NewGUY
post Feb 27 2014, 03:25 PM

Casual
***
Junior Member
489 posts

Joined: Jan 2003
From: Currently in Selangor



first time 1st...
thianz
post Feb 27 2014, 06:01 PM

New Member
*
Junior Member
16 posts

Joined: Jan 2009


QUOTE(NewGUY @ Feb 27 2014, 03:25 PM)
first time 1st...
*
fuyoh ... eric pertama ..... brows.gif brows.gif
crappy123
post Feb 27 2014, 07:20 PM

New Member
*
Newbie
1 posts

Joined: Jul 2011
this is fast.
Rascal Stitch
post Feb 27 2014, 07:27 PM

New Member
*
Junior Member
40 posts

Joined: Apr 2010
From: Old Klang Road~



aku no.11~
jern25
post Feb 27 2014, 10:49 PM

Enthusiast
*****
Senior Member
772 posts

Joined: Dec 2011
whats the best engine oil recommended especially if i use my LC for long distance daily ride.
serigala
post Feb 28 2014, 02:17 AM

CurSedWolf
******
Senior Member
1,439 posts

Joined: Jan 2008
From: Dungeons of the Wolves



parking dulu..

» Click to show Spoiler - click again to hide... «


This post has been edited by serigala: Feb 28 2014, 02:19 AM
mls_gamer
post Feb 28 2014, 04:05 AM

Regular
******
Senior Member
1,571 posts

Joined: May 2008


vrooom~~~~
mohamadnizam
post Feb 28 2014, 06:55 AM

Getting Started
**
Junior Member
280 posts

Joined: Jun 2011
QUOTE(jern25 @ Feb 27 2014, 10:49 PM)
whats the best engine oil recommended especially if i use my LC for long distance daily ride.
*
Ive been using motul 5100 w/ esther 15-50w.. nod.gif
TSalexei
post Feb 28 2014, 09:54 AM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
QUOTE(jern25 @ Feb 27 2014, 10:49 PM)
whats the best engine oil recommended especially if i use my LC for long distance daily ride.
*
welcome, you can refer to tips up there, especially recommended EO for bikes that should answer your question.
TSalexei
post Feb 28 2014, 09:56 AM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
QUOTE(serigala @ Feb 28 2014, 02:17 AM)
parking dulu..
*
bro, your bike pic added.
wanna add you to the namelist: name | state | model | year of purchase pls...

This post has been edited by alexei: Feb 28 2014, 09:56 AM
serigala
post Feb 28 2014, 10:31 AM

CurSedWolf
******
Senior Member
1,439 posts

Joined: Jan 2008
From: Dungeons of the Wolves



QUOTE(alexei @ Feb 28 2014, 09:56 AM)
bro, your bike pic added.
wanna add you to the namelist: name | state | model | year of purchase pls...
*
Serigala | K.Terengganu | ES | Oct 2008

This post has been edited by serigala: Feb 28 2014, 10:32 AM
Rascal Stitch
post Feb 28 2014, 10:40 AM

New Member
*
Junior Member
40 posts

Joined: Apr 2010
From: Old Klang Road~



aiks,i forgot to put myself in even i was d last TS~ sweat.gif
TSalexei
post Feb 28 2014, 11:07 AM

Biker Mice from Mars
******
Senior Member
1,022 posts

Joined: Jan 2003
From: Medan, ID
QUOTE(Rascal Stitch @ Feb 28 2014, 10:40 AM)
aiks,i forgot to put myself in even i was d last TS~ sweat.gif
*
pm me or reply your info.

195 Pages  1 2 3 > » Top


Switch to:
| Lo-Fi Version
0.0505sec    1.90    6 queries    GZIP Disabled
Time is now: 15th December 2019 - 04:32 PM
