 <[O^O]> LYN Yamaha 135LC Club V10 <[O.O]>, << [ Ride Beyond Imagination ] >>

views

TSAaron135LC
post Apr 7 2011, 10:18 PM, updated 15y ago

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
LYN Yamaha 135LC Club V10

wub.gif Yamaha 135LC Proud Owners wub.gif

1. Are_keem | Terengganu | SS - Black & Gold Green White | Sept. 2007
2. mls_gamer | Negeri Sembilan | SS | Sept. 2008
3. Spayz | Penang | ES | Oct. 2008
4. UncleCheang | Penang | SS | Nov. 2008
5. salimbest83 | kulim | ES |Jan. 2008
6. topeng perak | Penang | SS | Nov. 2008
7. rainingzero | Selangor | SS | Oct. 2008
8. charge-n-go | PJ / Penang | SS - greennn | July 2007
9. cusco57 | Kajang | ES | Oct. 07
10. EngChee | Perak - Penang | ES | June 2008
11. DragonK | ?? | SS - Black | May 2008
12. kinwei3250 | Kota Bharu | ES - Black | Mar. 2009
13. radio_8888 | Selangor | SS - Black Orange | Nov. 2008
14. maniacs | Selangor/klang | SS - Orange White | Feb. 2009
15. petaiman | Penang | SS - Black Gold | Mar. 2009
16. jcliew | Johor | SS - Black | Mar. 2009
17. Calvin.K.B | Penang | ES - White | May 2008
18. bizzy123 l Penang l SS - Black l Mar. 2008
19. LilCroSs | Perak - Kelantan | ES - Blue White | May 2008
20. anarchy04 | PJ - Terengganu | SS - Blue | April 2007
21. medichloreans | Cheras | SS - Black (No Stripe) | June 2006
22. xtreme_paranoid | Raub, Pahang | SS - Black & White | April 2008
23. simplyting | Penang | ES - ?? | ??
24. samba18 | Penang | ES - Orange/Black | Dec 2006
25. msn83235502 | Penang | SS - BlueBlack | May 2006
26. scoffer | Kuala Pilah, N.Sembilan | SS - Black Silver| Jan 2007
27. saranjeevi | Sg. Petani / PJ | SS - Black Red | Nov 2007
28. KiNd3rBu3no | Johor Bahru & Melaka MMU area | SS - Black & White | May 2008
29. KiFuRi | Rawang, Selangor | ES - ?? | 2007
30. Na0ki | KL | SS - Black & Gold | May 2009
31. Villa07 | Perak | ES - Blue & White | May 2009
32. ccfook2123 | Nilai, Negeri Sembilan | SS - green | forgot
33. whysomany| Penang / BM | ES - White & Blue | May 2009
34. TryX @ Chuan | Penang Islands | SS - Red and Black | 2007
35. sanisudin | Miri | SS - White & Blue | May 09
36. Hiruka | Selangor | SS - Black & Gold | May 09
37. mayaboyz | Penang Island | SS - Black & White | 2008
38. spss | Selangor | SS - Red & White | 2008
39. yoyo1004 l selangor l SS - Black & White l June 2008
40. 3600°| Selangor / Selayang | ES - Black | May 2009
41. akubest l Selangor l SS - Black & red l Jan 2009
42. ReturnOfTheJedi | KL | SS - White & Black | June 2008
43. maxburnz | Selangor | SS - Orange & Black | July 2006
44. syazone | KL | SS - Red | June 2006
45. orynx010 @ Syam | Samarahan, Sarawak | ES - Black | Nov 2008
46. lanzslumber | KL | ES - ??| Dec 2008
47. alcalie | K.Lumpur / Shah Alam | SS - Black & Gold| July 2007
48. Syahir24 | JB | SS - Green | Sept. 2008
49. EviLRegioN l Penang l SS - Red l July 2009
50. monitorhead | Salak Tinggi | SS - ?? | April 2008
51. joehunt | Bandar Baru Bangi / Shah Alam | ES - Black | July 2009
52. suhail92 | Perlis | SS - Red & Gold | April 2009
53. esssymanex | Kuala Lumpur | SS - Black & Gold | July 2009
54. budakmentah | Selangor | ES | April 2008
55. rooben90 | Melaka | SS - White & Black | Aug 2009
56. POD | Perak | SS - Black & Orange | ??
57. blue_decamax | Kuala Lumpur | ES - Blue & White | Sept 2009
58. evo1288 | Pahang | SS - Black & White | Jan 2009
59. DontdoDRUG | Selangor | ES - Black & Red | Dec 2008
60. thetorpedo | Selangor | ES - Black & Red | Aug 2007
61. falkenst115 | Shah Alam | SS - Orange & Black | May 2007
62. Twist | Ipoh | SS - Red & Gold | Mar 2009
63. MeoNRoX | Penang | SS - Black | Feb 2009
64. yeop | Penang | SS - Grey | May 2006
65. zulfazli | Terengganu | ES - Blue & White | Sept 2009
66. Aaron135LC | Penang | SS - Red & Gold | Oct. 2009
67. tkgan @ Gan | Perak / Kelantan | SS - Standard Blue | Jun 2006
68. sleerpy | Petaling Jaya | SS | Blue - White | August 09
69. hahahoho_hei | Jengka, Pahang | SS - Red & Black | Dec 2009
70. Sadru | KL | ES - White | 2009
71. xmex | Selayang | ES - Black | Feb. 2010
72. mshjohorean | KL - Nilai - JB | SS - White & Black | Oct 2008
73. getexposed | KL | SS - White & Blue | Feb 2010
74. mivec_nos | Puchong | SS - White & Blue | April 2010
75. jsteoh93 | Kelantan | SS - Red Gold | March 2010
76. Ghost-Squad | Kampung Delek, Klang | ES - Airbrush | Sept 2009
77. machai_world | Selayang | ES - Black | May 2010
78. mrjaxx | Selayang | SS - Red & Gold | May 2010
79. Itsuki_Kun | Penang | ES - Black | June 2010
80. skyz91 | KL | SS - Black | Sept 2010
81. UE7 | KL | SS - Black & Gold | Oct. 2010
82. anep | KL | SS - Red | Sept 2010
83. riazorblues | KL | SS - Black | Oct 2010
84. archery | Banting | SS - Red | July 2008
85. Xtremo | Telok Panglima Garang | SS - Black | Nov 2010
86. sue4725 | SP, Kedah | ES - ?? | Nov 2010
87. vaizard | Jengka, Pahang | SS - Black & Gold | Dec 2010
88. ultimate7 | Ampang, Selangor | SS - Black | Dec 2010
89. PsycoNaxionz | Ipoh,Perak | SS - White & Blue | Sept 2010
90. zoldaking | Ampang, Selangor | SS - Red | August 2010
91. hailiss8384 | Bandar Baru Bangi | SS - Black & Gold | Jan 2011
92. fredericktke | Penang | ES - White | July 2010
93. 0163119779 | Pahang ] ES - Dec 2010
94. riderz135 | Selayang / Kuala Lumpur | SS - Blue & White | Dec 2010
95. Shapa106 | Bandar Baru Bangi | SS - Black & Gold | June 2010
96. millennia_135LC | Banting, Selangor | SS - Arai Nakano Sakura AGV Five Continents | Nov 2010
97. thianz | Cheras | SS - White | March 2007
98. crysqy | Cheras | SS - Red Gold | Jan 2011
99. CyberSundayz | K. Terengganu | SS - Red Gold | August 2010
100. de4thscythell | Kota Kinabalu, Sabah | SS - Black & Gold | March 2011
101. patrickloo | Penang | SS - Black & Gold | Feb 2011


Useful Links for LC Owners :

King Of Moped 135 (KOM135)
Yamaha T135
Malaysian Bikers Community (MBC)
Moped Riders Community (MRC)
Yamaha 135LC and FZ150 Parts List (Alexei)
How To Break-In (Source 1)
How To Break-In (Source 2)
How To Break-In (Source 2 - Video)
How To Set Carburator (MBC)
Recommended Engine Oil For Motorcycle (Alexei)
How To Fix 'Semput' In Carburator (Alexei)
Sprocket Settings (budakmentah)
Tyre Turning Angle (Serigala)
Carburator Jettings Position (bizzy123)
Carburator Settings Adjusting The Jettings Complete (Alexei)

LYN 135LC Club V1
LYN 135LC Club V2
LYN 135LC Club V3
LYN 135LC Club V4
LYN 135LC Club V5
LYN 135LC Club V6
LYN 135LC Club V7
LYN 135LC Club V8
LYN 135LC Club V9

Whose name is not in the list, kindly PM me your details as above notworthy.gif

mad.gif SAY NO TO REMPIT!! mad.gif

wub.gif WE'RE NOT JUST BIKERS BUT WE'RE BROTHERS wub.gif


This post has been edited by Aaron135LC: May 5 2011, 10:32 AM
TSAaron135LC
post Apr 7 2011, 10:19 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang

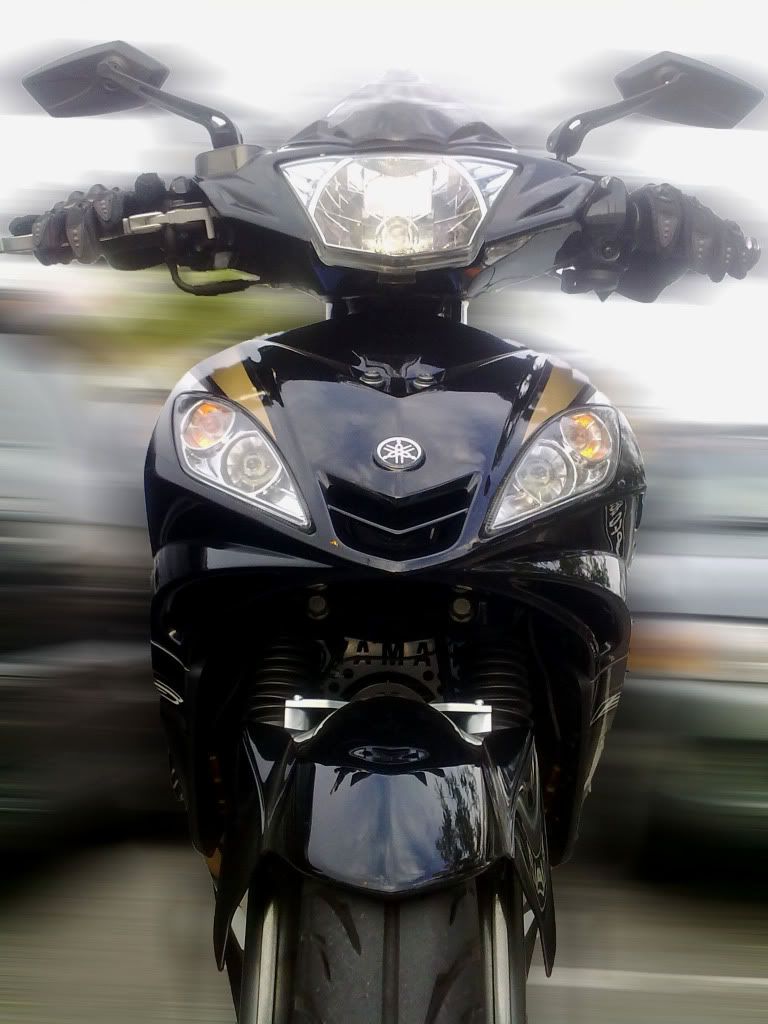

Our Proud Ride!!

1. Spayz's ride :
» Click to show Spoiler - click again to hide... «

2. xtreme_paranoid's ride :
» Click to show Spoiler - click again to hide... «

3. charge-n-go's ride :
» Click to show Spoiler - click again to hide... «

4. Are_keem's ride :
» Click to show Spoiler - click again to hide... «

5. scoffer's ride :
» Click to show Spoiler - click again to hide... «

6. kinwei3250's ride :
» Click to show Spoiler - click again to hide... «

7. LilCroSs's ride :
» Click to show Spoiler - click again to hide... «

8. samba18's ride :
» Click to show Spoiler - click again to hide... «

9. UncleCheang's ride :
» Click to show Spoiler - click again to hide... «

10. budakmentah's ride :
» Click to show Spoiler - click again to hide... «


This post has been edited by Aaron135LC: Apr 7 2011, 10:21 PM
TSAaron135LC
post Apr 7 2011, 10:19 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
Our Proud Ride V2!!

11. Na0ki's ride :
» Click to show Spoiler - click again to hide... «

12. DontdoDRUG's ride :
» Click to show Spoiler - click again to hide... «

13. jsteoh93's ride :
» Click to show Spoiler - click again to hide... «

14. Aaron135LC's ride :
» Click to show Spoiler - click again to hide... «

15. Itsuki_Kun's ride :
» Click to show Spoiler - click again to hide... «

16. mls_gamer's ride :
» Click to show Spoiler - click again to hide... «

17. fredericktke's ride :
» Click to show Spoiler - click again to hide... «

18. millennia_135LC :
» Click to show Spoiler - click again to hide... «

19. patrickloo's ride :
» Click to show Spoiler - click again to hide... «

20.thianz's ride :
» Click to show Spoiler - click again to hide... «


This post has been edited by Aaron135LC: Apr 19 2011, 09:56 PM
TSAaron135LC
post Apr 7 2011, 10:20 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
Tips to Improve Engine Performance

Minor mod (increase acceleration)
1. Remove air filter. (Penang people can find me, FOC)
2. Reset carburetor air-fuel setting. (Penang people can find me, FOC)
3. Set valve tapette to 10 IN and 15 OUT. - RM30 labour charge @ New Bee Hock motor, Penang.
4. Change to 15-40 with 415 chain. - RM100

Major mod
coming soon...

Sprocket Combination (Stock CDI)

acceleration + = increase by xx%
acceleration - = decrease by xx%

15-35 - 1st : 48kph, 2nd : 90kph, 3rd : 130kph, 4th : 180kph; acceleration - 10.0%
15-36 - 1st : 46kph, 2nd : 86kph, 3rd : 125kph, 4th : 175kph; acceleration - 7.8%
15-37 - 1st : 44kph, 2nd : 83kph, 3rd : 122kph, 4th : 169kph; acceleration - 5.1%
15-38 - 1st : 43kph, 2nd : 80kph, 3rd : 118kph, 4th : 160kph; acceleration - 2.6%

15-39 - 1st : 42kph, 2nd : 78kph, 3rd : 115kph, 4th : 155kph; acceleration no change

15-40 - 1st : 41kph, 2nd : 75kph, 3rd : 111kph, 4th : 151kph; acceleration + 2.6%
15-41 - 1st : 40kph, 2nd : 73kph, 3rd : 108kph, 4th : 148kph; acceleration + 5.1%
15-42 - 1st : 39kph, 2nd : 71kph, 3rd : 105kph, 4th : 144kph; acceleration + 7.8%
15-43 - 1st : 38kph, 2nd : 69kph, 3rd : 102kph, 4th : 140kph; acceleration + 10.0%

After changing racing CDI >> top speed for 4th gear can add about 10 - 20kph.

*Note* The above data is an estimation of potential top speed for each gear, and may vary from bike to bike.

Carburator General Tuning Guideline:

A. Change the idle air-fuel mixture setting 1st.
B. If still not satisfied, change the needle position.
C. If none of the needle position is good, change the jettings.

A. Idle air-fuel mixture settings
1. Air screw set at about 2.5 turns for stock airflow. Modified exhaust + air filterless can use 2 turns.
2. Idle rpm increase a little more than normal.

B. Needle setting
1. There are 3 ticks on the needle jet.
2. The lowest tick will give us good FC, as it limits more petrol to flow from mainjet @ half throttle
3. The highest tick will give us bad FC, as it let more petrol flows from mainjet @ half throttle.

However, highest tick does not mean best acceleration. If too much petrol flows into the venturi, the mixture will become too rich. This will decrease the power at high rpm. So, try different needle clip position and feel which one has the best results.

C. Jet size setting
1. Change mainjet to #107.5 (stock #105)
2. Change pilotjet to #22.5 (stock #20). If there is no performance increase, then stick back to #20.
3. Change mainjet to #110 + pilotjet #22.5. <-- this should be a good pair.

Anything more than #110 mainjet will make the engine feels heavy, bcoz the mixture becomes too rich.

Disc Brake Tuning Meteorology

The theory covers the relationship between the total areas of the brake pots (Note, its area not count), brake pads, masterpump, the rigidity of the brake hose and the property of the brake pads. The point of improvement is to look for the limit of the system and upgrade it.

1. Single pot is less prone to uneven brake force compared to multiple pots when in case one of the pot jams.

2. Changing the brake rotor is a start. But if you do not see improvements, that means rotor is not the limitation, and you need to change other things to do a stopee (Nose brake).

3. Change brake hose to steel braided, so it is less likely to expand and eat up the brake budget. Try this, wrap ur hands around standard brake hose, and press the brake you will feel it expand. Anymore you press also won't increase braking performance.

4. Change to DOT5 brake oil (normal 1 can, but easily overheat. I go hill run for >1 hr, DOT5 is mandatory)

5. Change brake pads, I use Ferodo imported by Racing Boy. Ask for original ones, one set front about RM30~40. You can see more copper strands on the pads. Other good pads use metal strands so u can see silverly metal strands.

6. Must stiffen front fork absorber, and add a stabilizer bar. Use 15W-20 fork oil, make it about 25% stiffer than stock. 20W-50 fork oil is too stiff bcoz the oil is too not lean enuf, the bound and rebound SUX, I feel like riding on a horse. The traction sux too, because front tyre can hardly grip on the road when going through uneven road (esp penang road).

7. Use ABS device (about RM100) <-- optional

Setting Up Your Monoshock / Fork

For step-by-step and detailed guides on how to tune your monoshock / fork, please refer to the following link since the whole guides are too long to be pasted here. Many thanks to bro Aaron135LC for the link smile.gif
Click Here

** many thanks to bro charge-n-go and bro alexei for the useful tips notworthy.gif
stay tune for more tips thumbup.gif

p/s : if anybody wanna share their modding tips too, you can PM me or just post in the thread, and I will update this post smile.gif

This post has been edited by Aaron135LC: Apr 7 2011, 10:27 PM
TSAaron135LC
post Apr 7 2011, 10:20 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
Read All About EO [by Alexei]
Click Here

Recommended EO [by Alexei]
Click Here

Yamaha 135LC Manual Book Direct Download [by CHARISMA12]
Click Here

Choosing The Correct LED [by Aaron135LC]
Click Here

How To Knee-Down Tutorial [by Patrickloo]
Click Here

Riding Jacket Tips [by Alexei]
Click Here

Yum Cha Session Logo [by Spayz]
» Click to show Spoiler - click again to hide... «


Lowyat 135LC Club Logo [by Spayz]
» Click to show Spoiler - click again to hide... «


This post has been edited by Aaron135LC: May 10 2011, 03:26 PM
TSAaron135LC
post Apr 7 2011, 10:23 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
Reserve for Future Posting ~~ icon_rolleyes.gif cool.gif
bizzy123
post Apr 7 2011, 10:33 PM

New Member
*
Junior Member
9 posts

Joined: Feb 2009
From: Greenlane Area,Penang,M'sia
no.2 check in!!!
patrickloo
post Apr 7 2011, 10:33 PM

New Member
*
Newbie
1 posts

Joined: Jan 2011
im coming.... smile.gif
fredericktke
post Apr 7 2011, 10:34 PM

New Member
*
Newbie
0 posts

Joined: Aug 2010
From: 10 Bayfront Avenue, Singapore 018956
No lah , I Suddenly felt that Silent pipes sound better than loud in my opinion biggrin.gif Actually I also having fun playing with the Nob1 pipe and also I think that I felt that when suddenly Pecut, It cant pecut right away. I not really good at describing in details but anyway this is how it goes... It will like take time to process for a while then only will pecut while Original pipes perform smoothly. I'm not sure with it lah but if go average speed, Nob1 also feels not bad and quite good. Because most of the time I go to school/go home with Full throttle

This post has been edited by fredericktke: Apr 7 2011, 10:41 PM
TSAaron135LC
post Apr 7 2011, 10:37 PM

Casual
***
Junior Member
360 posts

Joined: Nov 2009
From: Penang
louder pipe syok than silent pipe.. silent.. i almost give car kiss me after i plug in back.. really emooo...
fredericktke
post Apr 7 2011, 10:44 PM

New Member
*
Newbie
0 posts

Joined: Aug 2010
From: 10 Bayfront Avenue, Singapore 018956
Ya, for the ori pipe, this is one of the disadvantage. I also think of that too. Especially some drivers suddenly change lane without giving any signals. Hey, I heard that mainland nowadays got JPJ Block Operations is it??
blue_decamax
post Apr 7 2011, 10:44 PM

Getting Started
**
Junior Member
56 posts

Joined: Feb 2009
From: Skudai, JB
v10 oredi??? faster meh......
0163119779
post Apr 7 2011, 10:44 PM

Casual
***
Junior Member
473 posts

Joined: Feb 2010
Serigala...what do u think about K&N Air filter???
http://www.mudah.my/KN+air+filter+lc+135-8741387.htm
serigala
post Apr 7 2011, 10:44 PM

CurSedWolf
******
Senior Member
1,439 posts

Joined: Jan 2008
From: Dungeons of the Wolves
parking here a bit...hehe
Blacksnake56
post Apr 7 2011, 10:47 PM

New Member
*
Junior Member
22 posts

Joined: Sep 2010
From: NS
new Version ....alot of cool LC pic drool.gif

mine is too ugly to show cry.gif
serigala
post Apr 7 2011, 10:47 PM

CurSedWolf
******
Senior Member
1,439 posts

Joined: Jan 2008
From: Dungeons of the Wolves
QUOTE(0163119779 @ Apr 7 2011, 10:44 PM)
Serigala...what do u think about K&N Air filter???
http://www.mudah.my/KN+air+filter+lc+135-8741387.htm
*
kinda good..but i still prefer modify HKS air filter...
0163119779
post Apr 7 2011, 10:49 PM

Casual
***
Junior Member
473 posts

Joined: Feb 2010
U lc is what filter hks?? Hows it look like?
fredericktke
post Apr 7 2011, 10:52 PM

New Member
*
Newbie
0 posts

Joined: Aug 2010
From: 10 Bayfront Avenue, Singapore 018956
Just Share it biggrin.gif I love to see everyone's Bikes! laugh.gif
patrickloo
post Apr 7 2011, 10:55 PM

New Member
*
Newbie
1 posts

Joined: Jan 2011
soon.. at balik pulau u will see a very Nice LC.. he want to fight tokico mia demo bikes...
Blacksnake56
post Apr 7 2011, 10:56 PM

New Member
*
Junior Member
22 posts

Joined: Sep 2010
From: NS
will try to curi my brother camera and take my bike pic xD
« Next Oldest · Car Clubs · Next Newest »


143 Pages  1 2 3 > » Top
Topic ClosedOptions


Change to:
| Lo-Fi Version
 0.0291sec    0.30    6 queries    GZIP Disabled
Time is now: 25th November 2025 - 07:16 AM
All Rights Reserved © 2002- 2025 Vijandren Ramadass (~unite against racism~)
Removal Request
Powered by Invision Power Board © 2025  IPS, Inc.
