you want to change router from maxis, get high speed and new contract. than they will change for you

it not just buy router yourself betterr

to upgrade means need to pay additional? don't have the budget for that for now at least..

is it difficult to configure if buy a new router? I'm just wondering if new router would improve the network performance..

Easy, just ask customer service for PPPoE credentials and type those into the new router.

Note, you will loose the VoIP phone and 4G backup.
Can get the phone back if you daisy chain the stock router, can't get 4G backup at all.

Actually you can use the stock router with 4G backup dongle as a stand alone router if you don't need to use the cordphone

so good your come with 4g backup dongle. mine old customer din't have this dongle even now got c5v router

it din't connect WAN port , than only use 4G internet still work??

I think you have to have Maxis Postpaid too to get the dongle

May i know why when using maxis c5v router....all the 4 lan port can online.

But when i change to custom router (tp link ax50) the 1st port and 4th port cannot online, only 2nd and 3rd lan port can online when plug in lan cable?

I guess is something related to iptv/vlan/voip but i cannot understand the reason behind

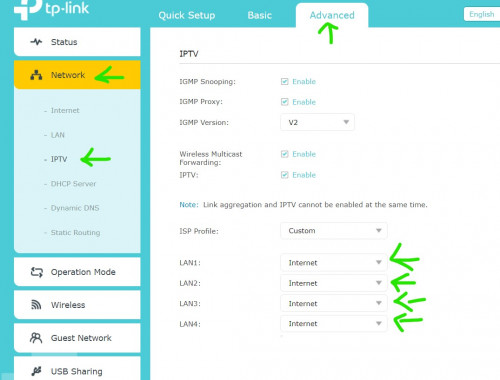

login your router, than the setting in IPTV

The isp need choose maxis profile right?

Hi sifu, new maxis fibre user here.
Any special setting for ipv6 for maxis?
I tried configured it on my TP-Link AX73 but not getting ipv6 connection. Tried checking with sites to test ipv6 says Maxis (ISP) has ipv6 ready but my connection still on ipv4.

Any ilmu highly appreciated!

hi maxis, how to set up new asus aimesh xt8 to connect internet, the lan cable is connect from zte modem or tplink router to xt WAN port?

Hi sifu, new maxis fibre user here.
Any special setting for ipv6 for maxis?
I tried configured it on my TP-Link AX73 but not getting ipv6 connection. Tried checking with sites to test ipv6 says Maxis (ISP) has ipv6 ready but my connection still on ipv4.

Any ilmu highly appreciated!

EDITED (9 March 2015)


1. Too busy with work lately, no time to follow up/update the following post. Might already be obsolete.

2. There are more router that supports Maxis in the market currently, I have written a tutorial using TP-Link TL-WR1043ND V2 which can support both MAXIS and UNIFI. Please click on the link below for more information,
https://forum.lowyat.net/index.php?act=ST&f...0#entry73305595


3. If You are looking for high power antenna router, please visit my review on TP-Link WR841HP.
https://forum.lowyat.net/index.php?act=ST&f...0#entry74118792



3. Feel free to visit some of my other writings on TP-Link Bandwidth Control and Range Extender,

https://forum.lowyat.net/index.php?act=ST&f...0#entry73306153

https://forum.lowyat.net/index.php?showtopic=3517783
THANK YOU!


======================================================================
Some review about Maxis FTTH :
Speed quite okay, not much different compared to UniFi, but the Thomson router is lousy!


P/S : I am not a network expert, just for sharing purpose, if i am wrong please correct me.

Difference between UniFi and Maxis VDSL connection :
UniFi VoIP is directly connected to TM's Huawei VDSL Modem, while Maxis VoIP is connected to Maxis Thomson Router.
Different VLAN Tagging,
Maxis : VLAN 621, VLAN821, VLAN822

Resources / Reference : http://stanleytiang.blogspot.com/


NOTE : This guide only applies to high rise installation using VDSL (TM Huawei HG665a VDSL MODEM).

*If you intend to do this for ZTE VDSL modem, please follow a similar guide here : http://www.azim.my/unifi/
*I have not tested this on ZTE VDSL, but i think it shouldn't be a problem for it to work.

Equipment Involved : TM Huawei Echolife HG655a VDSL Modem, Maxis Thomson TG784n Router, TP-Link WR842ND Router (CUSTOM, can be any brand or model, but NOT ADSL MODEM ROUTER).
Default Maxis Installation :
NOTE : Maxis Thomson router is connected to LAN2 of Huawei HG655a VDSL Modem.

After Modification :
NOTE : Maxis Thomson router is connected to LAN2 (For VoIP Purpose only), Your CUSTOM Router is connected to LAN3.

STEP 1 : Take a LAN cable and connect to Port 1 of TM Huawei Hg655a VDSL Modem, make sure you set your PC's Local Area Connection IP to fixed as indicated by below Pic.


STEP 2 : Type 192.168.1.1 in your Chrome/Firefox browser,
Username : admin
Password : hs5711Bbvl


STEP 3 : Backup your Huawei configuration file first so that you can easily restore back if anything happens.



STEP 4 : Navigate to Basic -> WAN.
Click on ptm1.621
UNTICK LAN2 on both Port Binding and VLAN Tagging.
TICK LAN3 on Port Binding ONLY!
Click on Submit button!



STEP 5 : Connect your CUSTOM Router to PORT 3 of Huawei HG655a VDSL Modem!

STEP 6 (Optional) : Connect to your WEB GUI of your ROUTER, change the IP of your router to 192.168.1.254


STEP 7 : Configure the PPPoE dialler for your router.

NOTE :
Sample Maxis Username : 12345@home.maxis.com.my (Private IP)
Password : 123451 (Always + number 1 to the back of your username)



Maxis comes with Private IP in default, if you want to get Public IP, just give the customer service a call and tell them you want to host your CCTV/etc and request a Public IP from them, they will then activate it for you and will call you back a few more days to teach you how to configure. Basically just change the word HOME to PUBLIC. Username : 12345@PUBLIC.maxis.com.my (Public IP).


STEP 8 (Optional ) : Turn off Thomson Wireless Transmission.

Connect your PC to Thomson Router,
Type 192.168.1.254 into your browser,
Navigate to Home Network -> Interfaces
Click on WLAN: ThomsonXXXXX (XXXmbps).



Click Configure on top right corner.
UNTICK Interface Enabled.

http://i49.tinypic.com/14udkc4.jpg
FINAL LOOK :

http://i50.tinypic.com/1hdo3m.jpg

DONE!
Maxis uses VLAN 621 for Internet, and VLAN 821 / 822 for VoIP (Either one and I think another one will be for future IPTV deployment, expert please help to figure out).

In this modification, Thomson router will be retained for sole VoIP purpose, however full migration of VoIP to Huawei VDSL modem is possible if we have the configuration details for Maxis VoIP. If anyone has it, please share! You may switch off your Thomson router if you don't intend to use the VoIP service.
