There were no ram sinks! I might proceed with no ram sinks, do some furmark test when everything is up and see how it goes. If things go bad, I only need to add a fan to blow the rams

Progress updates!

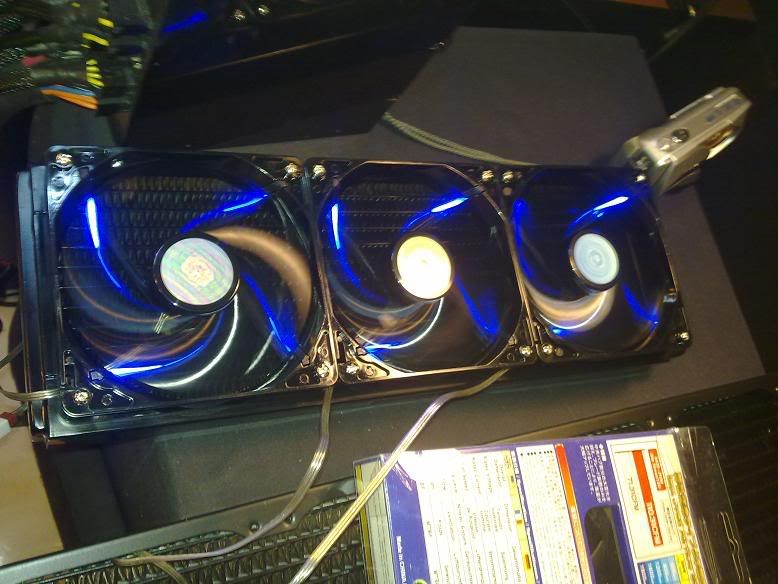

Fan tests

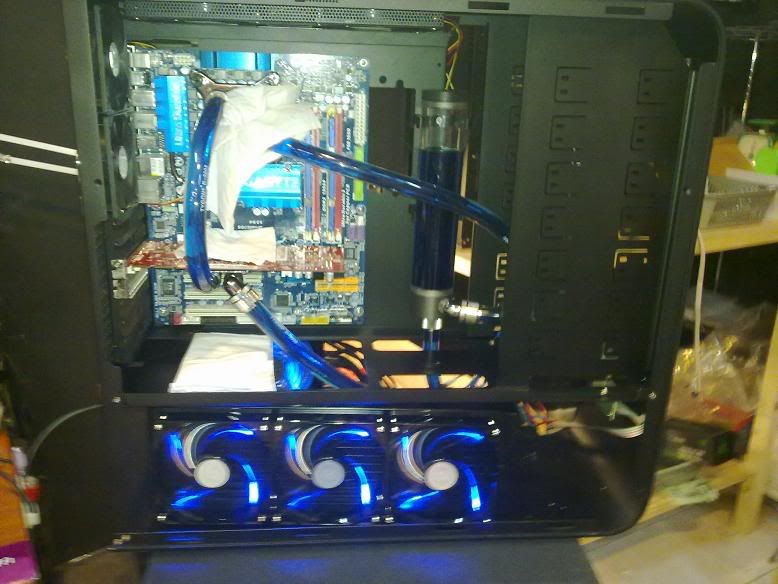

Leak test Power supply is not installed yet, piggy backing on a spare power supply.


Moderno posted some pictures here: http://forum.lowyat.net/index.php?showtopi...post&p=30665811

This post has been edited by tesla_rage: Dec 18 2009, 09:22 PM

nice setup there... anyway your tubing size is 7/16 -5/8 right?

He's using Tygon 1/2" 3/4"

i wonder how he can using the compression fittings size 1/2" without one rotary fitted on the MCW-60R

My MCW-60R is fitted with one 90degree rotary. I am using a barb for the inlet port.

r u going gpu >>rad>>res>>pump?? just wonderin cause i c lots of ppl putting pump at bottom part for tj-07.

You are partially correct

Pump >> CPU >> GPU >> Rad >> Res. I wanted to put my pump at the bottom, but too many issues. Had to revert back to original plan.

you need to mod bottom part isn't it?

No lah. Routing the cable from the bottom straight to the CPU is a problem. One more problem is from reservoir to the pump.

Another headache is about where to mount the hdd. Finally figured out this one spot! Thanks to En Zamree of ModernoPC for the suggestion



Kinda cool if it was a Velociraptor! But noooo, its just a 640GB WD.

This post has been edited by tesla_rage: Dec 19 2009, 08:15 PM

woah...the way u mount the hdd is soo cooolll

Wow, great idea to mount the HDD Maybe get an SSD so that you can slot it at the side?

Do you guys notice that the HDD... only one side is screwed

lol...how to notice...u only show 1 side..

i second that...

anyway, this should be a good idea, can mount another radiator in front of the case with push/pull setup..

would be sweet, can u actually fit 2 radiator on the bottom? ill definitely switch to tj-07 if its possible since im thinkin dual loop....

by modding it, surely you can fit 2 radiator at the bottom side... i also thinking like that, maybe will get the 2nd pump + another reservoir. one cpu/nb/sb/mosfet cooling sub-loop and one gpu cooling sub-loop

2 radiators at the bottom? Both triple rad? Its gonna be tight. You have to take into consideration about PSU and also tubes

If you really need another radiator, its possible to mount a dual rad at the top. Remove the 12cm fans, mod the grill a bit, and you can mount a dual rad at the top I have seen it been done before.

u can only fit slim rad at top or mod into invert atx otherwise it will block some of the mobo according to most of the guys at xtremesystem forum...

i saw a person fit a quad and dual rad at the bottom thats y im asking keke
seems like he didnt mod the casing though and for pump he was using the ek that mount directly under the res.

This post has been edited by kevink82: Dec 20 2009, 05:12 PM

maybe u can share a picture dude, everyone can see it

let me find it lol..

forgot his screen name lol but i did find another one triple and single with pump at bottom
http://www.xtremesystems.org/forums/showth...=214589&page=17

nvm found him lol
http://www.xtremesystems.org/forums/showthread.php?t=240616
