when i set to auto, it show ddr800 ony.. so i change to manual.. 1066.. bro verdict said i hv to pump ram voltage to 2.1v.. is it true?

it's hard to boot w/ ddr1066 w/ some ram unless u manually adjust d main timing. details bout ya ram? i think sis xixo can help on this. my not really gud in ram tweakin...

eg: my kvr can boot @ 1600 @ 9-8-8-x w/ ddr1333 divider but on ddr1600 divider, i need to loosen it to 9-11-11-x...

This post has been edited by ah_khoo: Sep 23 2009, 05:35 PM

adei.. pening kepale oledy.. i hv work to passup next week.. my pc cant boot up plak.. hish..

bro xixo.. please help me....

---

Added on September 23, 2009, 5:38 pmim very noob in ram laa.. please help me.. hahahaha

This post has been edited by mozact89: Sep 23 2009, 05:38 PM

LOL..Gini la..
Just Reset your OC Settings.Disabled your Overclocking settings(means set everything to default)..It should be fine
Or..if cannot just reset CMOS.

sume sudah wat oledy.. 3 times i reset cmos oledy.. then i try one by one ram slot.. oso cant boot up.. at the board show FF..

even w/ ddr800 divider?

u can try:

1. clear cmos
2. boot w/ 1 stick (test all 4 slots)
3. set ram divider to ddr800
4. if can boot shutdown & installa another stick @ dc position.
5. set htt @ 267 w/ lax timin like 5-5-5-x if u die die must get d ram to run at 1066

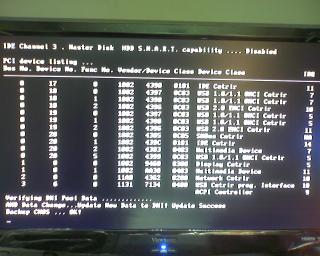

i think can boot.. but will stuck at Backup CMOS .... OK!

here ss

---

Added on September 23, 2009, 5:59 pmis it because my ram rosak oledy?? i hv 7 days 1 to 1 warranty..

This post has been edited by mozact89: Sep 23 2009, 05:59 PM


Attached thumbnail(s)

here some poison by antonio
burn in time...


update ur d9kpv antonio...

hi mozact,

make it as dual channel,
boot into bios, set to 1066 divider..

set timing 5-6-6-18-24-2T, set as 2.2Vdimm

give a try to boot wish u luck

edit: try dulu, nnti bg penerangan

This post has been edited by xixo_12: Sep 23 2009, 07:26 PM

ok.. nnt sy try.. u got pm

i reply here k


following the sequence

CL - tRCD - tRP - tRAS - tRC - CR don't follow above value the one that i recommended before

edit : don't make big bro ah_khoo shame loo.. urs is D.F.I ..sure got that timing

This post has been edited by xixo_12: Sep 23 2009, 07:40 PM

for sempron 140, which batch are good for unlock?? I saw some 0922 or 0927 selling around RM135.. tempted to try~

how about TRRD?? Bank to bank Cmd

another revision to mozact
[attachmentid=1212144]

sorry, tulisan buruk

leave at default..

This post has been edited by xixo_12: Sep 23 2009, 07:49 PM

thanks bro xixo.. utk vdimm nak tmbh CPU VID sepcial add ke atau set DRAM votalge control to 2.2v?

cpu vid special add for proc syg

only dram voltage to adjust 2.2
make sure ur cpu clock is stable k.. run at default

aah kan.. hahaha.. seyes aku dah lupe.. sorry2.. lame x mengOC pc ni.. lupe plak CPU vid utk vcore.. sorry2...

---

Added on September 23, 2009, 7:55 pmbro, still cant boot up laa... die sangkut kat Backup CMOS .... OK!

kt board tulis FF.. adei..

This post has been edited by mozact89: Sep 23 2009, 07:55 PM

FF?
Cabut Battery,ATX Power for few mins and retry again..Where your old sticks?sold edy?

aah.. my old ram sold oledy.. adei..

trfc value, all set to 195ns ..try it..

actually this is a problem when 1066 kit .. imo, it's just a bump from 800 modules, running it with tight timing is no no.. try to loosen it again..

5-7-7-x-x maybe

This post has been edited by xixo_12: Sep 23 2009, 08:06 PM
