owh really?btw nice spam u have made out there..

uncore in M3G i guess would be IMC rite?or?

carkdale dont have uncore technology, only lynnfield in lga1156 have it..

it might show error too. what ram setting are u running?

just updated my bios ...yaaayyyy everything went smoothly...

with 1.55v

Using trident..not much review for this P55 ram.

test back with linx 20 loop and max 2 hour prime and yet stable..
guess it just a random crash

This post has been edited by BigSaver: Jun 9 2010, 04:14 AM

@bigsaver

nice bro ddr 2000 just using 1.55v only?isnt cl8 kinda tight?im using team extreme lv kinda afraid to do cl8 but then im using ddr3 1600 only..

hi guys!
just learn how to oc intel system!

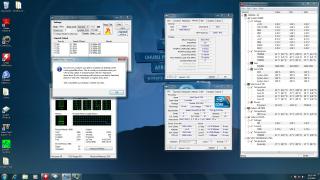

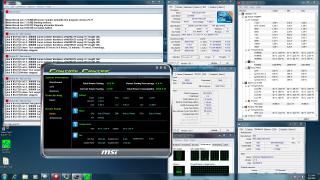

here some pic




so, any comment with my setup?
actually, i set vcore 1.26 but during prime95 its change to 1.28?
and bout vdropp, should low or high?
and QPI???

This post has been edited by Dura-Ace: Jun 8 2010, 05:40 PM

eh if ur vcore 1.82 ur proc already burn long ago
mine 1.28v can achieve same as urs 3.6ghz
btw that 1.26v reading is in speedstep mode i guess..but abit to high,if in that mode shud get below 1v,u shud disable it.
in ur Control Center..did ur ram really in 1.8 v?or im the one who

gosh!1.28 lor, typo2...
so, disable speedstep can fix vcore to 1.26v??
sorry i dindt get it
yup!my Ram stock is 1.9v

if u set it auto yes i can be drop till below 1v..if u set it manually then it will stay at ur desired voltage.lots of review OC i5 mention on disable all those extra feature like speedstep, c-state and etc.

im not sure why if set voltage at 1.26 but when prime crank up abit.mybe had to do with loadline cab..still learning here

hmm how can be ur ram crank up till 1.9v?intel recommend bellow 1.65 v.
try setting the ram voltage manually..

This post has been edited by BigSaver: Jun 9 2010, 04:10 AM

owh, understand now..
i read it but

actually, my ram is 1st edition for DDR3..
someone said its DDR2.5 coz its power hungger
yes, intel reommend it below 1.65v, i think that for LV ddr3 gen!myb kot

need help here,im trying to maintain my previous cl8 timing for my 2000mhz ram,after doin some tweak and changes, it's not stable.later i use back my previous setting (which stable at memtest 8.9.8.24 at 1.55v)and it's not working anymore.


so anyone willing to give opinion on this matter?still learning here

This post has been edited by BigSaver: Jun 13 2010, 03:29 AM

ermm..my i giv my opinion?

last time when i particpate in superPI compy, i oso face same prob,
what i do is restart from stock and than slowly clock ur memry back..
trust me, u will get better than u expected..

just my 2cents...sorry if not help at all..

Dram DATA Ref Voltage On CHA
Dram CTRL Ref Voltage On CHA
Dram DATA Ref Voltage On CHB
Dram CTRL Ref Voltage On CHB

On certain ASUS mobo in bios settings, it says tweaking those are gonna help in overlocking RAMs, but do you guys actually use that? In most circumstances these are set to AUTO. So can anyone explain how the increment in milivolt(?) will help? Also how much maximum mV is on the safe margin to tweak?

This post has been edited by Vigilant: Jun 13 2010, 04:38 AM

since u use same mobo wif me,try see the turbo v evo control panel.u will see the mobo ady set CHA and CHB DATA -0.0125mv while CHA and CHA B CTRL 0mv.most review mention leaving this at auto and in dfi manual said tweaking this will improve ram oc at high bandwidth.
and i random tested(use certain mV at the ref volt) with my el cheapo ram 2100mhz cl 8 1.65v,and yes..it help boot but not so stable when stress.need to learn more

This post has been edited by BigSaver: Jun 14 2010, 03:28 PM

I'm a sissy when it comes to overclocking RAM... they always die in my case

Overclocking CPU, I can go with try & error.

I'm asking for exact figure for tweaking Dominator GT 1866 C9 CMT Kit on Maximus III Gene BIOS 1801, I can boot them at 2000MHz@9-11-9-27 1.65v into windows 7 64bit but after awhile will BSOD even not yet stress it. I have tried to increase the voltage to 1.75 but it is still the same. BTW TurboV shows that all the DRAM CTRL/DATA Ref voltages are 0V, yes 0.

Btw abg, you banyak mobo uh? I tot u use MSI or something

This post has been edited by Vigilant: Jun 14 2010, 07:38 PM

i guess it had to with imc.
did u increase the imc V?supposedly ur GT shud be able to reach 2150mhz with cl8(so jealous looking at this rate,based on bro hengmy ram OC result)

mine need 1.36 v on imc to make 2000mhz cl8 stable.
i just tested 2 board only, GD 80 and this M3G.

This post has been edited by BigSaver: Jun 15 2010, 01:04 AM

how was your gskill doing? share some results, it look impresive

hengmy is using Dom GT CMG kit which is better at overclocking than my CMT kit

hengmy, u can come to my house and see for yourself, my ram can't do much

p/s: sell me your ram by installment RM150/month

This post has been edited by Vigilant: Jun 15 2010, 06:47 PM

Hi guys, just a quick question.

Is overclocking my Kingston KVR1333D3N9/2G okay with OC Genie? Total noobie at OC here xD. Using p55gd65 and i5 750 =)

Thanks.

hmm, what diff between cmg and cmt?
actually i am thinking to keep the ram because by looking at the market, there are not much good ram to choose, unless hypers chip which is too expensive...
